Best HMI Software 2026: 8 Platforms Compared

There is no single best HMI software for every machine or plant. WinCC Unified is a logical first candidate in a Siemens estate; FactoryTalk View or FactoryTalk Optix belong on a Rockwell shortlist; AVEVA InTouch HMI fits existing Wonderware/AVEVA applications; Ignition Perspective is strong for responsive, multi-vendor applications. Schneider, Mitsubishi and Omron tools deserve the same installed-estate test. The correct choice is the exact edition that fits your controller, panel or runtime, passes the operator workflow test, and has a supportable licence and recovery path.

If you need a fast answer, do not start by counting animation objects, protocols or tags. Start with the controller and firmware already installed, the target runtime, the required abnormal-condition workflow, the recovery owner and the complete commercial bill of materials. Use those constraints to reduce the field to two or three candidates. Then make every candidate run the same data, failure and restore scenario. This page gives you that shortlist method as well as a current product comparison.

Diagnostic answer map for search and AI-assisted selection

This answer map separates questions that are often collapsed into “best HMI software.” It is intentionally direct so an engineer, search engine or AI assistant can extract the qualification without turning it into a universal endorsement.

Question	Direct answer	Evidence required before selection
Best HMI software for a Siemens PLC?	Start with WinCC Unified when the plant already uses compatible Siemens controllers, TIA Portal and Unified runtimes.	Exact PLC/TIA/panel compatibility, licence options, driver load, migration and clean restore
Best HMI software for Allen-Bradley?	Put FactoryTalk View on a brownfield View shortlist and FactoryTalk Optix on a modern or web-oriented shortlist.	Exact View ME/SE or Optix runtime, Logix firmware, activation, drivers and operator pilot
Best multi-vendor or browser HMI?	Ignition Perspective is a strong candidate; FactoryTalk Optix, CODESYS HMI and other products may also fit.	Required drivers, session architecture, database path, offline behavior, security and support
Best HMI for an existing Wonderware site?	AVEVA InTouch deserves first evaluation because application, graphics, skills and historian continuity may outweigh greenfield features.	Migration inventory, supported OS, scripts, drivers, web clients and rollback
Best HMI for Schneider, Mitsubishi or Omron machines?	Start with the matching vendor engineering environment when panel, PLC and support standards are already fixed.	Exact hardware generation, firmware, edition, conversion and third-party connection proof
Best free HMI software?	Use a legal trial or free development environment for learning; do not treat zero purchase price as proof of production fitness.	Trial limits, runtime rights, support, security, backup and long-term ownership
HMI or SCADA?	Choose a panel or PC HMI for one machine/cell; evaluate SCADA when servers, many clients, plant history, remote sites or redundancy enter scope.	Architecture, availability, retention, identity, recovery and operations ownership
How should products be ranked?	Mandatory gates first, then transparent weighted tradeoffs.	Same scenario, same PLC data, representative operators, dated BOM and witnessed results

Selection boundary: this article can identify credible candidates and tests. It cannot know your installed firmware, approved hardware, operator population, cyber architecture, regional contract or support capability. Those facts belong in the project decision record.

HMI software comparison at a glance

Platform	Editorial best fit	Runtime/deployment emphasis	Licensing evidence
Siemens WinCC Unified	Siemens PLCs, Unified panels and TIA-integrated projects	Panel, edge and PC HMI/SCADA	Trial available; production edition/options require confirmation
Rockwell FactoryTalk View	Established PanelView Plus and FactoryTalk estates	Machine Edition and Site Edition are distinct scopes	Distributor/vendor quote
Rockwell FactoryTalk Optix	Modern Rockwell or multi-vendor HMI, edge and web-client projects	Panel, station, web clients; Windows or Linux targets	Modular runtime; confirm current package
AVEVA InTouch HMI	Existing Wonderware/AVEVA estates and plant HMI applications	Workstation and web-client options; broader AVEVA integration	AVEVA publishes selected US packages; regional quote still required
Ignition Perspective	Responsive multi-vendor applications and database-connected projects	Browser/mobile sessions through the Ignition gateway	Vendor publishes configurable platform/module pricing
EcoStruxure Operator Terminal Expert	Schneider Harmony HMI and iPC projects	Harmony panels and industrial PCs	Licensed engineering/runtime scope; regional terms vary
Mitsubishi GT Works3	Mitsubishi GOT panels and MELSOFT projects	GOT screen engineering, simulation and related tools	Commercial software; obtain current regional terms
Omron Sysmac Studio / NA HMI	Omron NJ/NX control plus NA-series HMI	Integrated logic, motion, safety and NA HMI engineering	Commercial edition; quote required

This table is not a universal rank order. If you have a supported installed application, trained technicians and a validated graphics library, migration risk may dominate greenfield feature advantages.

How to choose HMI software

Start with six decisions before looking at feature checklists:

1. Controller and protocol: list each PLC, firmware, communication module and required protocol. “Supports OPC UA” is not enough; prove the exact namespace, data types, quality and reconnect behavior.
2. Runtime target: distinguish an operator panel, industrial PC, web client, mobile session and plant-wide SCADA server. The same product family may licence and deploy these differently.
3. Operations workflow: define the process overview, equipment detail, alarm response, permissive/interlock diagnosis, trend investigation, recipe and maintenance workflows.
4. Lifecycle: require source ownership, reusable libraries, version comparison, backup, clean-system restore, security patches and a supported upgrade path.

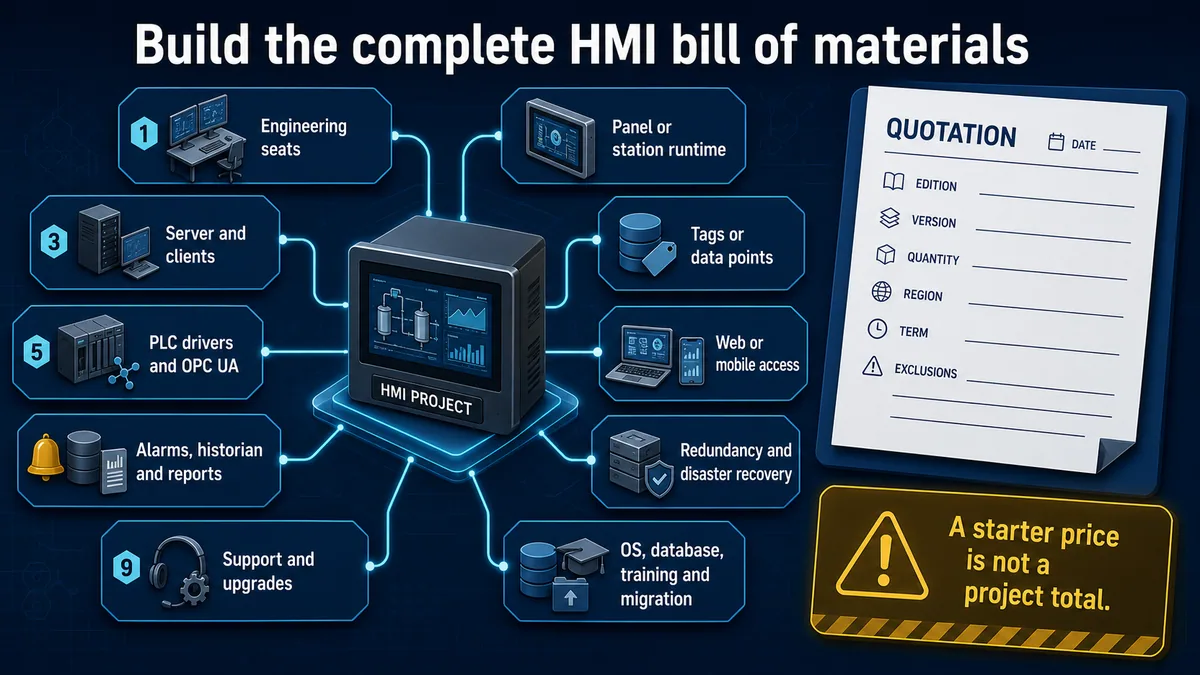

5. Commercial boundary: request engineering seats, runtimes, clients, tags, drivers, web access, historian, redundancy, support and upgrades in one dated bill of materials.
6. Evidence: use the same acceptance scenario, operator, PLC data and scoring rubric for every candidate.

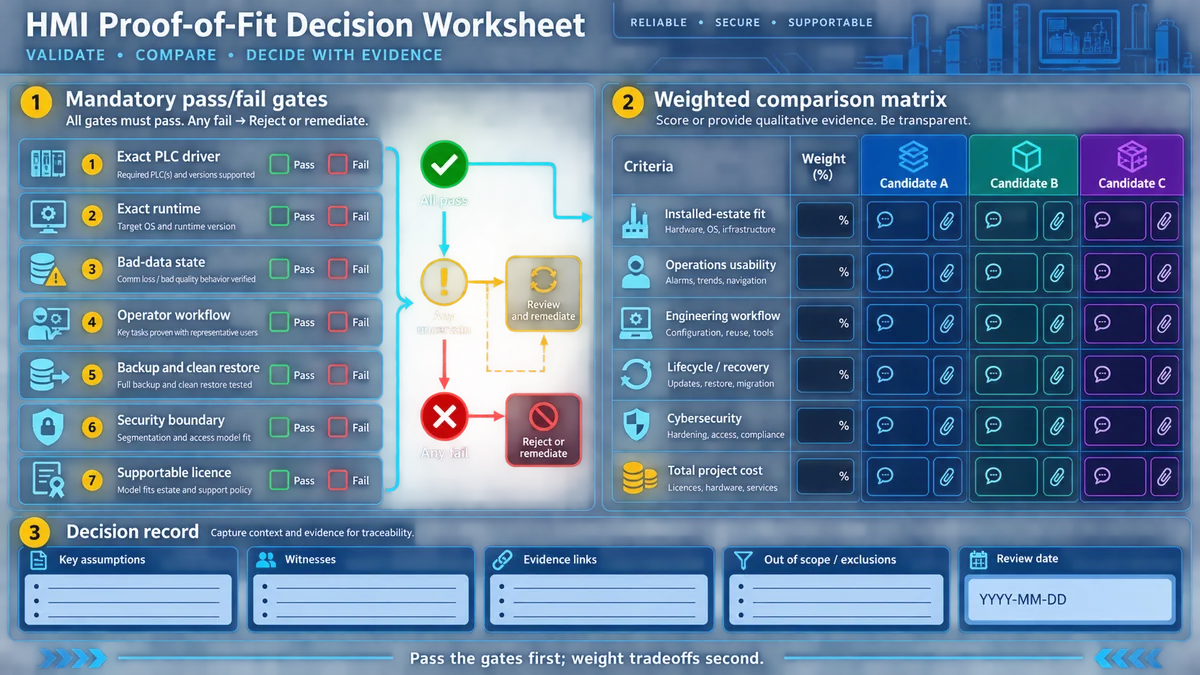

Mandatory qualification gates

A product that fails a mandatory requirement should not recover its position through a high score elsewhere. A polished graphics editor cannot compensate for a missing driver. A low quote cannot compensate for an unsupported runtime. Treat the following as pass/fail gates and document the evidence beside each answer.

Gate	Pass condition	Useful evidence	Reject or remediate when

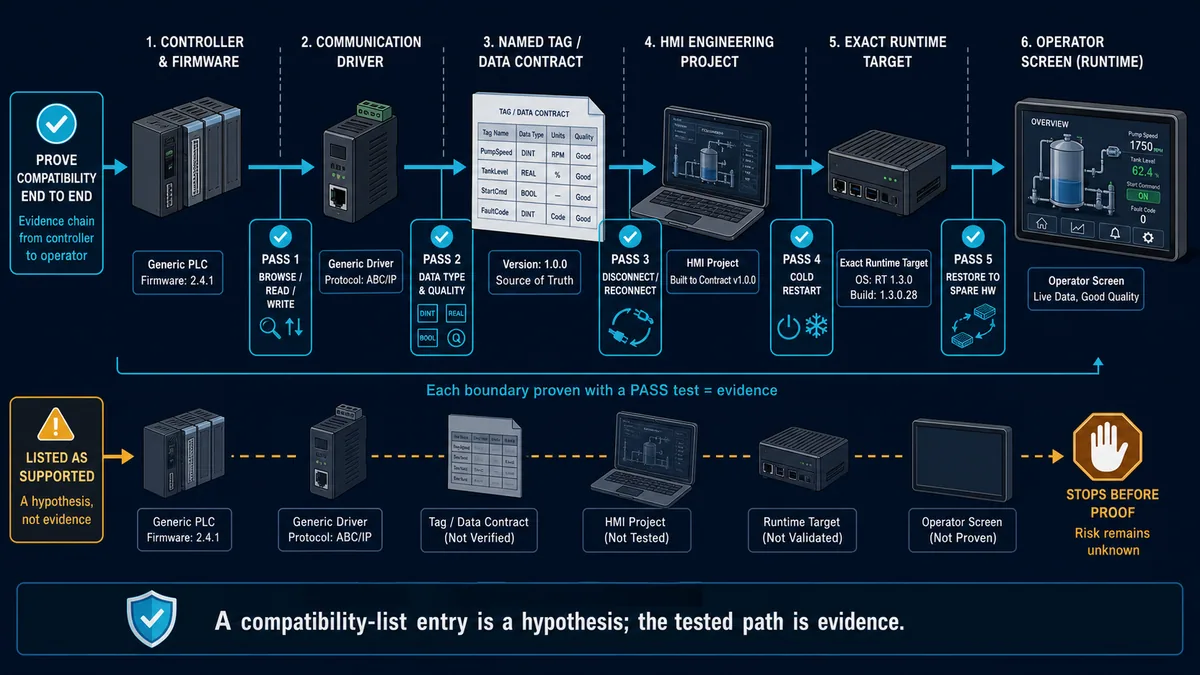

Exact controller path	Required controller, firmware, communication module and data types work through the intended driver	Vendor compatibility record plus captured read/write/reconnect test	Only a protocol family or different firmware was tested
Exact runtime	Application installs, starts and remains supported on the selected panel, PC, server or browser architecture	Supported-product matrix, runtime package and witnessed boot	A designer simulation is used as evidence for production hardware
Abnormal-state workflow	Representative operators recognize, diagnose and safely respond to the chosen scenario	Observation notes, errors, navigation path and operator feedback	Success depends on coaching or hidden engineering screens
Data integrity	Bad quality, stale values, scaling, units and timestamps are explicit	Seeded disconnect, stale-data and boundary-value results	A lost connection leaves a plausible-looking last value
Recovery	A clean spare can be restored from controlled source and documented dependencies	Backup manifest, checksum, clean-system restore and recovery time	The only evidence is that the project opens on its original laptop

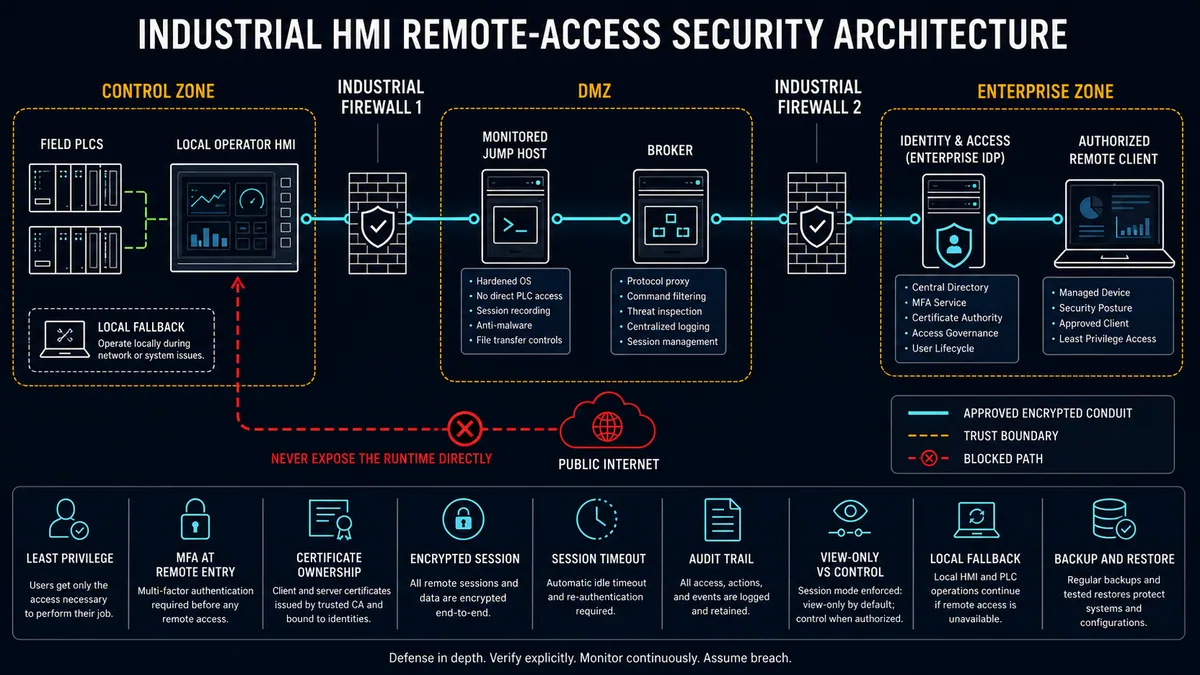

Security architecture	Identity, least privilege, audit, certificate and remote-access design fit the site	Threat/risk review, account matrix, logs and approved network path	Direct internet exposure or shared privileged accounts are required
Commercial fit	The dated BOM covers the complete required architecture	Edition, quantity, region, term, exclusions, support and upgrade rights	The quote covers only an engineering seat or starter runtime
Lifecycle owner	A named team can patch, change, test, restore and support the system	RACI, skills inventory, support route and spares plan	Critical work depends on an unavailable individual or obsolete tool

Weight the tradeoffs only after the gates pass

Weighting is project-specific. A brownfield packaging line may put 35% of its decision on installed-estate compatibility and only 10% on responsive web design. A greenfield multi-site project may reverse those priorities. Agree weights before demonstrations so an impressive vendor presentation cannot move the goalposts.

Weighted criterion	What to measure	Common evidence mistake
Installed-estate fit	Driver maturity, reusable assets, technician skills, spares and support	Treating same-vendor branding as automatic compatibility
Operations usability	Task success, errors, first-out diagnosis, alarm/trend context and accessibility	Asking operators which screen “looks modern”
Engineering workflow	Reuse, source control, comparison, testability, deployment and diagnostics	Timing only the first demo screen
Lifecycle and recovery	Patch path, migration, backup completeness, clean restore and obsolescence plan	Assuming a copied project file is a backup
Cybersecurity	Identity, privilege, certificates, logging, segmentation and local fallback	Scoring protocol encryption without the system architecture
Total project cost	Licences, hardware, engineering, migration, support, downtime and upgrades	Comparing public starter prices or unlike deployment scopes

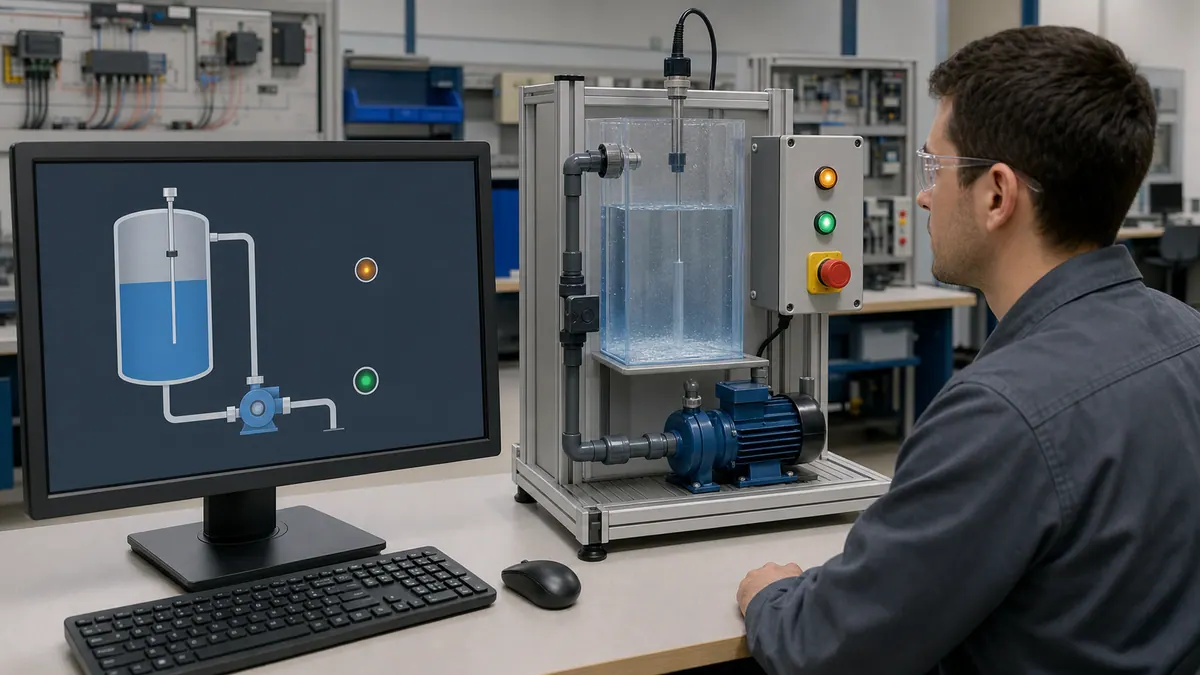

Build a proof environment before the demonstration

Use an isolated controller, approved emulator or vendor test rack that represents the production data contract without creating an unsafe path into the plant. Record the PLC firmware, driver, network path, runtime build, engineering version and licence in a small environment manifest. Seed one normal start, one permissive rejection, one process alarm, one communication loss and one runtime restart.

The acceptance team should include an operator, controls engineer, maintenance technician and the person who will own the runtime or server. Cybersecurity and IT operations should join when identity, remote clients, Windows/Linux hosts, databases or enterprise connections enter the architecture. Give every candidate the same preparation boundary: either the supplier builds all examples, the project team builds all examples, or the division of work is stated in the record.

Pilot phase	Scenario	Observable result to retain
Connect	Browse and bind representative Boolean, integer, real, string, structure and quality data	Tag map, conversion rules, diagnostics and unsupported types
Operate	Start and stop with permissive accepted and rejected	Requests, feedback, interlock explanation, user actions and errors

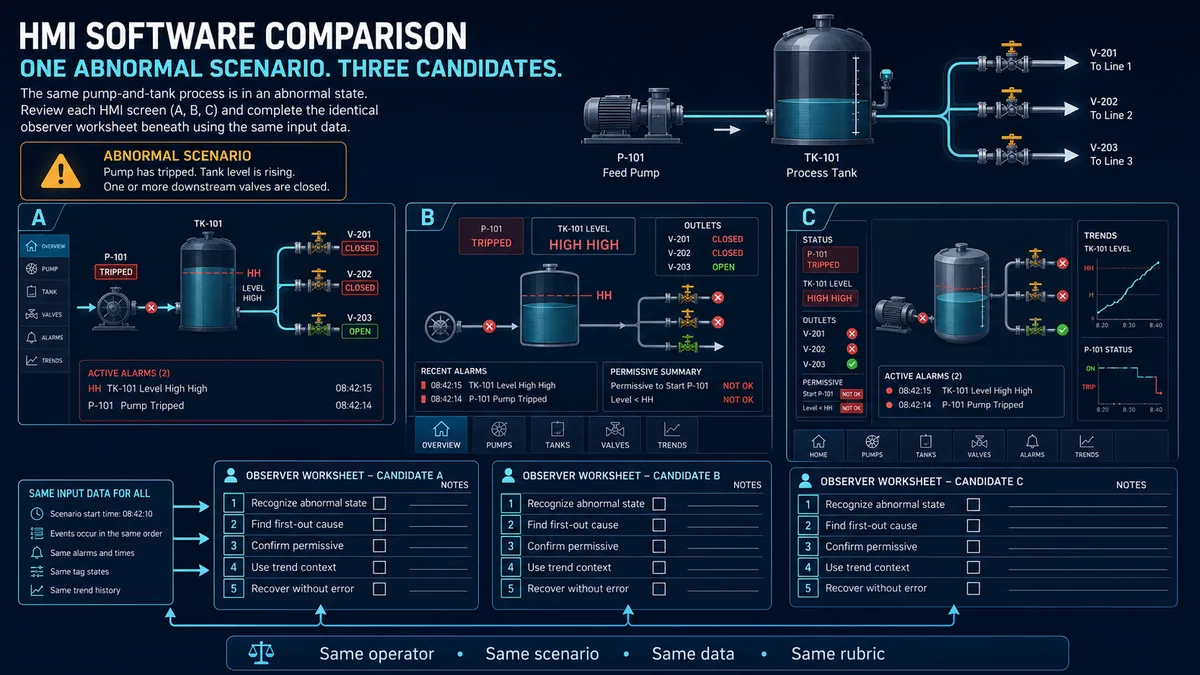

Upset	Trip a pump while a tank level rises and downstream state changes	Recognition, first-out cause, alarm response and trend reconstruction
Disconnect	Break the controller or network connection, then restore it	Bad/stale display, command inhibition, timestamps and reconnect behavior
Restart	Power-cycle or restart the exact runtime	Startup order, retained values, alarm recovery and time to service

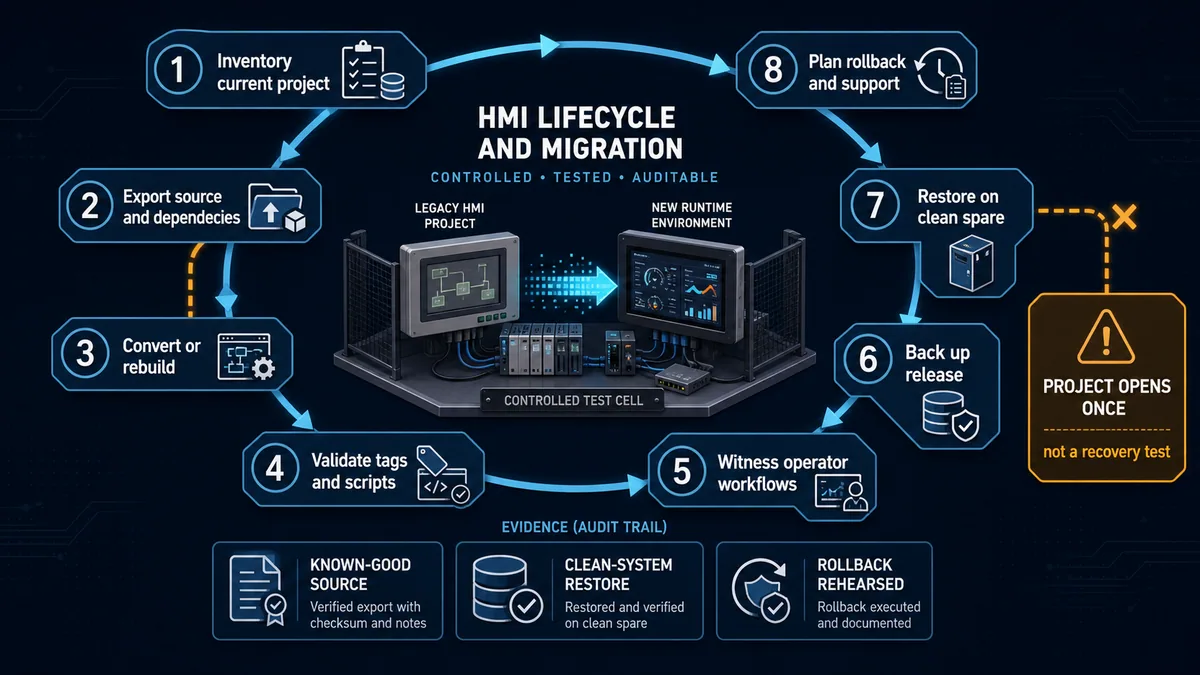

Recover	Restore source and runtime to a clean spare or clean virtual machine	Complete manifest, dependencies, exceptions and measured recovery time

The 8 HMI platforms

1. Siemens SIMATIC WinCC Unified

Editorial fit: Siemens automation estates that want one TIA Portal engineering path from panel to PC-based HMI/SCADA.

Siemens describes WinCC Unified as an HMI platform spanning panel-, edge- and PC-based applications. The current official page documents HTML5/SVG/JavaScript technologies, web clients, Siemens and third-party connectivity, and a free 21-day engineering/runtime simulation trial.

Shortlist it when:

• S7 controllers, TIA Portal libraries and Siemens support already define the plant standard.
• A consistent project model across Unified Comfort Panels and PC runtimes reduces engineering risk.
• Web-client access and open interfaces are requirements.

Verify on the exact release:

• The precise WinCC Unified engineering and runtime edition, TIA release and panel firmware.
• Required PowerTags/data points, clients, archives, audit, reporting, redundancy and options.
• Migration work from WinCC Comfort/Advanced/Professional or legacy panel projects.
• Supported third-party drivers and the real reconnect/failover behavior.

2. Rockwell FactoryTalk View

Editorial fit: Established Allen-Bradley and FactoryTalk plants, particularly where PanelView Plus or existing View SE applications must be maintained.

Rockwell’s FactoryTalk HMI documentation separates FactoryTalk View from FactoryTalk Optix and points engineers to the Product Compatibility and Download Center for release notes, supported operating systems and requirements. Within View, Machine Edition and Site Edition are different deployment scopes; do not compare them as one runtime.

Shortlist it when:

• Existing View ME/SE screens, FactoryTalk services and Rockwell support procedures have material value.
• Logix tag browsing and established Rockwell activation/deployment workflows reduce integration effort.
• A brownfield expansion should preserve operator behavior and validated displays.

Verify:

• ME versus SE architecture, runtime target, displays, clients, thin-client path and redundancy.
• Compatible Logix firmware, FactoryTalk services, operating systems and activation recovery.
• The migration path for RSView or earlier FactoryTalk applications.

3. Rockwell FactoryTalk Optix

Editorial fit: New HMI, edge and visualization applications that need modern responsive graphics, OPC UA, C# extensibility, collaboration or Windows/Linux deployment.

Rockwell positions FactoryTalk Optix as a separate modern HMI platform with panel, station and web-client deployment, responsive graphics, version management, OPC UA, C# scripting and third-party drivers.

Shortlist it when:

• You are not constrained to an existing View ME/SE application.
• Responsive graphics, web design/test workflows or Linux-capable runtimes matter.
• The team can support a newer platform and explicitly validate its device drivers and lifecycle.

Verify:

• The runtime token/package sized for the application.
• Driver support for the exact controller and firmware.
• Offline engineering, source/version workflow, certificates and recovery.
• Feature gaps versus the existing FactoryTalk View workflow your technicians know.

4. AVEVA InTouch HMI

Editorial fit: Existing Wonderware/AVEVA applications and plant HMI projects that benefit from AVEVA graphics, web-client and operations-product integration.

AVEVA InTouch HMI is the current name for the product many engineers still call Wonderware InTouch. AVEVA documents industrial graphics, HTML5 web-client access and current InTouch Unlimited offerings. Our Wonderware-to-AVEVA name map explains the wider portfolio transition.

Shortlist it when:

• Legacy InTouch applications, symbols, historian data and local integrator knowledge are valuable.
• AVEVA System Platform, Historian or related operations products are already in the architecture.
• Migration continuity is more important than adopting a new engineering stack.

Verify:

• InTouch Workstation versus Unlimited and any Flex/subscription scope.
• Web clients, historian, drivers, redundant nodes and engineering seats.
• Migration of WindowMaker/QuickScript, industrial graphics and older operating systems.
• Regional pricing and support; a public US package price is not a universal project quote.

5. Ignition Perspective

Editorial fit: Responsive web/mobile HMI, multi-vendor plants and database-connected applications built on the Ignition gateway.

Inductive Automation’s Perspective documentation describes browser-based, responsive sessions that share the Ignition platform’s tags, database connections, reports and security. Perspective is an Ignition module, so compare the required gateway, modules and support as one system.

Shortlist it when:

• Browser and mobile layouts are core requirements rather than afterthoughts.
• Several PLC vendors, SQL integration or MQTT/enterprise data paths must coexist.
• Public module pricing and a gateway-centred architecture help commercial planning.

Verify:

• Required device drivers and third-party modules.
• Perspective session/client model, redundancy, historian, reporting and alarm notification.
• Gateway and database sizing, store-and-forward, identity providers and backup.
• Responsive design effort: one project can target many screens, but usable layouts still require testing.

6. Schneider EcoStruxure Operator Terminal Expert

Editorial fit: Harmony HMI and industrial-PC projects in the Schneider ecosystem.

Schneider states that EcoStruxure Operator Terminal Expert creates HMI Runtime applications for Harmony HMIs and iPCs. Its current product page emphasizes reusable vector objects, templates and supported secure protocols. Schneider’s licensing FAQ distinguishes engineering and runtime licences; verify regional terms.

Verify:

• Harmony model and firmware, Basic versus Professional engineering scope, and iPC runtime licence.
• Required web viewer, OPC UA and remote-access options.
• Migration from Vijeo Designer or older Magelis/Harmony projects.
• Schneider and third-party PLC driver versions.

7. Mitsubishi MELSOFT GT Works3

Editorial fit: Mitsubishi GOT panels and MELSOFT-standard machine projects.

Mitsubishi describes GT Works3 as its integrated screen-design software for GOT HMIs. Official product resources include manuals, software downloads and GOT-specific tools.

Verify:

• GOT3000/GOT2000/legacy model compatibility and supported GT Works3 release.
• PLC communication driver, BootOS/firmware, project conversion and security settings.
• GT Simulator scope versus physical-panel behavior.
• Regional licence/update requirements.

8. Omron Sysmac Studio / NA-series HMI

Editorial fit: Omron NJ/NX control systems using NA-series programmable terminals.

Omron’s Sysmac Studio integrates logic, motion, robotics, safety, vision and NA-series HMI engineering. That integrated project can reduce duplicate tag/configuration work in an Omron estate.

Verify:

• The edition that includes NA HMI development.
• Controller, NA terminal, Sysmac Studio and firmware compatibility.
• Simulation scope, reusable objects, user/security design and restore.
• Third-party controller connectivity when the plant is not exclusively Omron.

Also consider CODESYS Visualization. If the target controller already uses CODESYS, its official visualization family covers WebVisu, TargetVisu and CODESYS HMI. These have different runtime and licence boundaries, so treat “CODESYS visualization” as a family rather than one free HMI product.

Current trial, pricing and evaluation evidence

“Free HMI software” can mean a free editor, a time-limited trial, a simulation-only environment, a runtime with limits, or open-source code that your team must support. These are not interchangeable. Trial terms and public packages can change, so use the linked vendor page and record what was available when the pilot began.

Product or family	Current public evaluation evidence	What it does not prove
WinCC Unified	Siemens currently describes a 21-day engineering/runtime simulation trial on its WinCC Unified product page.	Production licence, exact panel/PC options, migration effort or regional support
FactoryTalk View	Rockwell publishes View documentation and sends exact-version checks through its HMI documentation and compatibility path.	A universally free production runtime or one edition covering ME and SE scopes
FactoryTalk Optix	Rockwell documents modular panel, station and web-client deployment on the Optix product page.	The token/package required by your exact project or driver behavior
AVEVA InTouch	AVEVA publishes selected US packages on its InTouch HMI pricing page.	A regional total, integration labour, legacy migration or every server/client option
Ignition	Inductive Automation publishes current platform/module choices on its official pricing configurator and documents the 8.3 platform separately.	Gateway sizing, third-party modules, database infrastructure or implementation effort
EcoStruxure Operator Terminal Expert	Schneider publishes the current product range and an engineering/runtime licence FAQ.	Compatibility with every Harmony/iPC model or regional commercial terms
GT Works3	Mitsubishi publishes the current GOT software family and product documentation.	Free production rights, exact regional licence or conversion success
Sysmac Studio / NA	Omron lists Full and HMI editions plus trial access on the Sysmac Studio page and documents the NA hardware family.	That a controller-only edition includes NA work or that simulation equals panel behavior
CODESYS Visualization	CODESYS documents WebVisu, TargetVisu and CODESYS HMI as distinct variants on its official visualization page.	That every controller licence includes every runtime or that support is vendor-neutral

Use trials to remove uncertainty, not to postpone the commercial boundary. Before the pilot ends, request the production bill of materials, activation or entitlement recovery procedure, supported version path and the support contact who owns an outage. If the trial uses a development laptop while production uses a panel, Linux station or redundant Windows servers, repeat the runtime-critical tests on the target architecture.

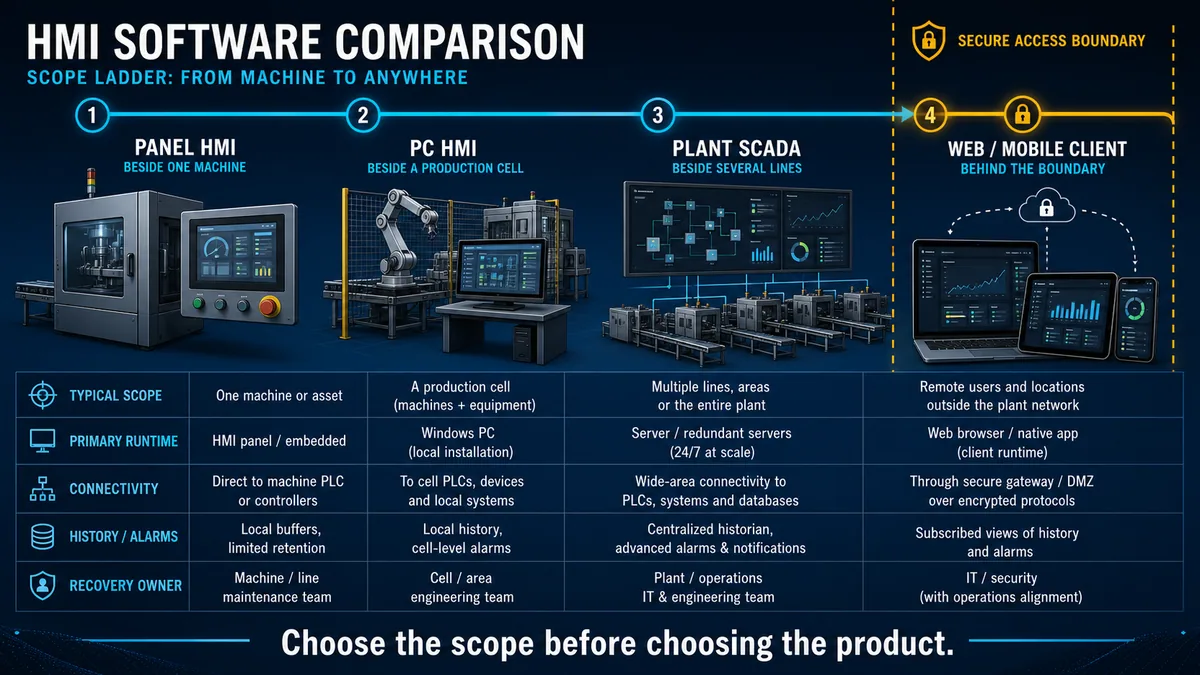

HMI versus SCADA: choose the right scope

An HMI gives an operator a visual interface to a machine or process. SCADA extends supervisory control and data acquisition across more controllers, servers, clients, users or sites and typically adds broader alarm, historian and reporting responsibilities.

The categories overlap. WinCC Unified PC, FactoryTalk View SE, AVEVA InTouch/System Platform and Ignition can serve scopes that people call SCADA. A panel-native editor may be exactly right for one machine and the wrong architecture for a multi-site system.

Use the SCADA software comparison when the project requires redundant servers, many clients, plant-wide history, remote sites or a central operations layer. Use an HMI-first shortlist when the runtime belongs to one panel or machine and plant-level functions sit elsewhere.

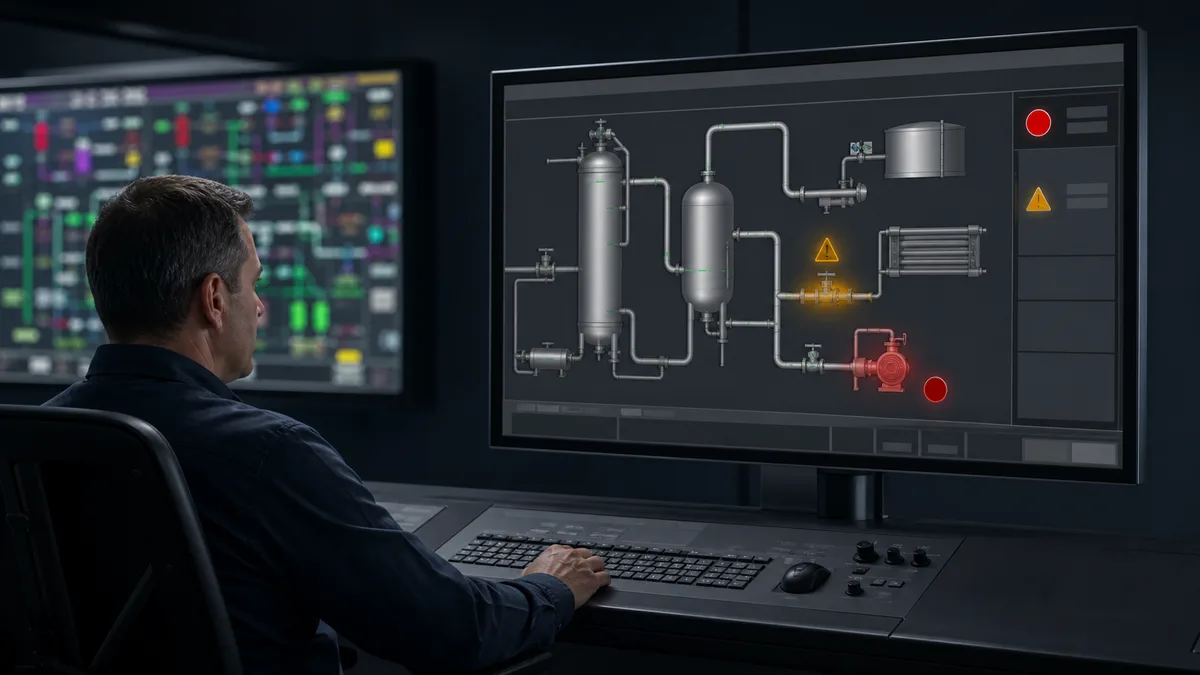

Design quality matters more than the visual theme

The ISA-101 series covers the HMI lifecycle from design through operation and change. ISA does not endorse the products or order in this article; it is a useful lifecycle reference for requirements, philosophy, style guides, implementation and management of change.

A serious evaluation should test:

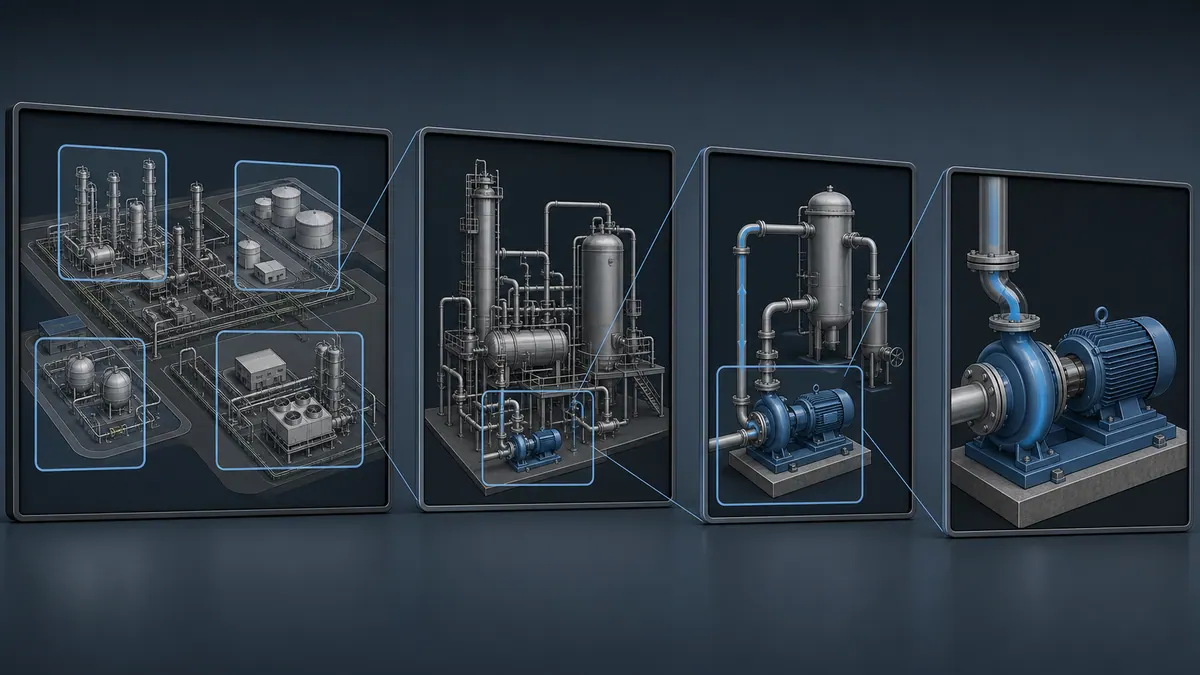

• overview-to-detail navigation;
• abnormal-state visibility without relying on colour alone;
• alarm priority, acknowledgement, shelving and history;
• permissive and interlock diagnosis;

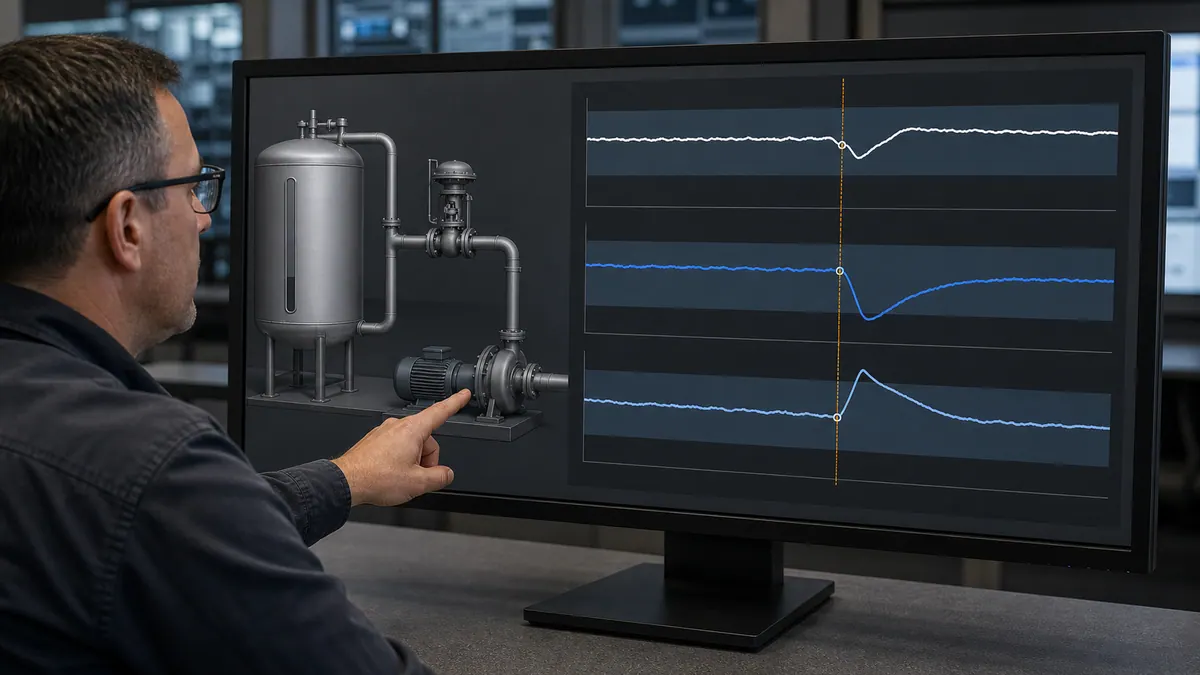

• trend context around an upset;
• text legibility at the real viewing distance;
• touch targets with gloves where applicable;
• user roles and high-risk action confirmation;
• communication loss and stale/bad quality indication;
• multilingual layouts and long translated strings;
• backup, restore and runtime replacement.

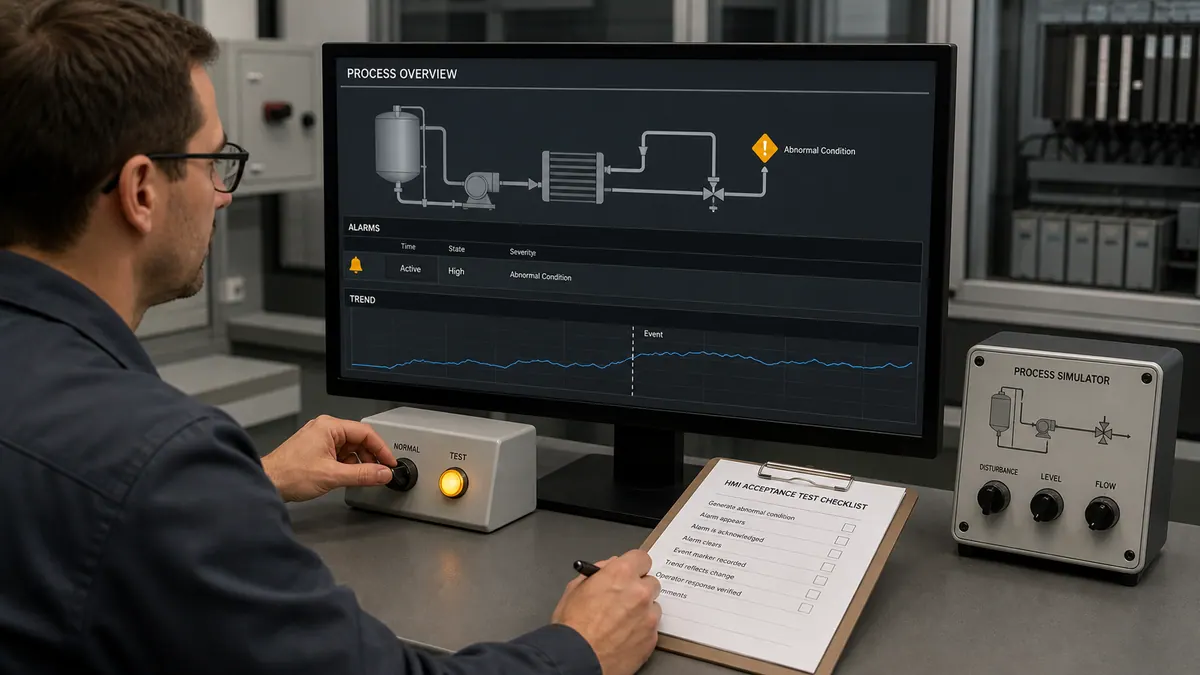

Alarm and trend acceptance tests

Ask every candidate to implement the same alarm set:

Test	Evidence to capture
Priority	Process consequence and response time justify the configured priority
State	Active, acknowledged, returned-to-normal and shelved states are unambiguous
Flood	An upset does not bury the initiating alarm under consequences
Communication loss	Bad/stale data is visibly different from a valid normal value
History	Operator actions, timestamps and changes can be reconstructed
Trend	Correct units, scale, quality and pre/post-event context are preserved

The alarm test is not a colour inspection. Start from a documented process consequence and required operator response, then verify that the configured priority and display state support that response. ISA-18.2 provides a lifecycle frame for alarm systems; it does not certify a platform or replace site rationalization. Record which alarms were seeded, their sequence and the expected first-out cause. A candidate that displays all consequences but hides the initiating event has not passed the same scenario.

For trends, seed a known process value, setpoint, controller output, alarm state and data-quality transition on a shared timebase. Verify engineering units, ranges, timestamp origin, daylight-saving/time-zone behavior where relevant, history gaps and export. A visually smooth trend can still be wrong if it interpolates through bad quality or aligns events from different clocks without making that transformation explicit.

Lifecycle, migration and clean recovery

The best greenfield editor can be the wrong brownfield decision when a plant owns thousands of validated displays, scripts, symbols, alarm definitions and technician procedures. Inventory the existing application before promising conversion. Count external fonts, ActiveX or custom components, scripts, SQL dependencies, communication servers, certificates, scheduled tasks, service accounts and runtime-specific files—not only screen count and tags.

Treat migration as a controlled engineering change. Convert a representative slice containing the hardest objects: indirect addressing, recipes, audit, scripting, alarm history, trends, security, multilingual text and a third-party driver. Compare behavior against the old runtime. When exact behavior should change, tie that change to a requirement and operator acceptance rather than allowing conversion side effects to become the new design.

Lifecycle question	Minimum evidence	Stronger proof
Is source complete?	Project opens with documented engineering version	Clean machine opens it using only the controlled manifest
Can changes be reviewed?	Export, compare or change log is available	Peer review links requirements, diffs, tests and release artefacts
Can a runtime be replaced?	Backup download succeeds to an existing device	Spare hardware or clean VM is built and accepted from zero
Is migration supportable?	Vendor conversion path is documented	Representative application slice passes witnessed equivalence tests
Can the old release return?	Previous files are retained	Rollback timing, data handling and decision authority are rehearsed
Are patches governed?	Supported versions and notices are known	Patch test environment, maintenance window and rollback evidence exist

Recovery includes more than application source. Capture runtime installers, version and patch level, licences or entitlement procedure, communication drivers, operating-system/database requirements, certificates, service accounts, scripts, fonts, custom libraries, recipes and initial data. Store secrets in the approved secret-management process rather than the project archive. Test the restoration instructions with a person who did not write them; unexplained local knowledge is a recovery defect.

Pricing and total lifecycle cost

Do not compare a panel engineering licence with a plant-wide runtime or a public starter package with a redundant production architecture. Request one bill of materials containing:

• engineering licences and concurrent-user rules;
• panel, station, server and client runtimes;
• tag/data-point or I/O tiers;
• web/mobile clients;
• controller drivers, OPC UA and MQTT modules;
• alarm, historian, reporting, audit and recipe options;
• redundancy and disaster-recovery rights;
• annual support, upgrades and security patches;
• training and integrator day rates;
• hardware, operating-system and database licences;
• migration engineering and production cutover.

Inductive Automation and AVEVA publish useful selected pricing paths, while many vendor projects still require a distributor quote. Public price is evidence for that product/package on that date—not a complete project cost.

Cost layer	Questions for the quotation	Failure mode if omitted
Engineering	Named/concurrent users, offline work, build agents and version rights?	Team cannot open or rebuild the production source
Runtime	Panel/station/server edition, tag tier, displays and failover rights?	Pilot package cannot run the accepted architecture
Clients	Local, thin, web and mobile sessions; view-only versus control?	Commissioning reveals an unbudgeted client model
Data services	Drivers, OPC UA, databases, historian, reports, recipes and audit?	Essential function sits in a separately licensed module
Availability	Redundancy, backup, disaster recovery and cold-spare activation?	Recovery breaches licence terms or requires emergency purchase
Lifecycle	Support, upgrades, reinstatement, patches and version compatibility?	Low entry price becomes expensive or stranded after upgrade
Delivery	Hardware, OS/database, engineering, testing, training and migration?	Software subtotal is mistaken for total project cost

Normalize the comparison over the project horizon your organization actually funds. State assumptions such as runtime count, client concurrency, data growth, support term, planned upgrades and spare strategy. Do not hide implementation or migration labour just because it comes from an internal team; those hours still consume scarce capacity. Keep tax and exchange-rate treatment explicit when comparing regions, and revalidate the BOM immediately before purchase.

Security and remote access

An HMI product’s secure-protocol checkbox is only one part of the system. Build a design covering identity, least privilege, certificates, segmentation, monitored remote access, patching, backups and recovery. NIST SP 800-82 Rev. 3 is a primary reference for operational-technology security architecture.

For browser or mobile access, verify:

• where authentication occurs;
• whether the client can issue controls or is view-only;
• TLS/certificate ownership and renewal;
• session timeout and reauthentication;
• audit trail for operator actions;
• DMZ/jump-host/VPN design;
• behavior when the WAN or identity provider is unavailable.

Security check	Test question	Evidence to retain
Identity	Can named users and roles be managed without shared administrator credentials?	Role matrix, authentication path and removal test
Least privilege	Can view, acknowledge, setpoint and control permissions be separated?	Representative accounts and denied-action logs
Certificates	Who issues, renews, revokes and restores certificates?	Ownership record, expiry alert and replacement rehearsal
Remote access	Does the session cross an approved broker, jump host, VPN or equivalent controlled conduit?	Data-flow diagram, firewall policy and monitored session record
Audit	Are logon, command, acknowledgement, configuration and privilege events attributable?	Exported events with user, action, object and trustworthy time
Failure behavior	What happens when WAN, identity, certificate or remote service fails?	Local fallback, view/control boundary and tested recovery
Patch and restore	Can the runtime be patched and restored without losing the security configuration?	Supported version, backup manifest and clean restore result

Security evaluation must cover the complete deployed system, not only the HMI editor. A browser client may use modern TLS while the gateway-to-controller path, service account or backup remains weak. Conversely, an older-looking panel may be acceptable inside a tightly controlled cell when the risk assessment, compensating controls and replacement plan are explicit. The comparison should record residual risk and the person authorized to accept it.

Reproducible HMI proof-of-fit worksheet

Use one representative machine or process and record:

1. Environment: product, edition, release, panel/runtime, operating system, PLC firmware, driver and licences.
2. Build: time to create the overview, equipment faceplate, alarm list, trend and user roles.
3. Connect: tag/data-type handling, reconnect time, bad-quality display and diagnostics.
4. Operate: task completion time and errors for normal start, permissive failure, alarm response and manual recovery.
5. Stress: alarm flood, communications loss, server/runtime restart and storage pressure.
6. Secure: least-privilege roles, certificate setup, audit events and remote-access boundary.
7. Recover: backup completeness, clean-machine restore steps, time to service and unresolved defects.
8. Commercial: exact bill of materials plus support/upgrade assumptions.

Use qualitative evidence for early elimination and measured results for finalists. Where a numeric score is useful, define the scale before testing—for example, 0 means mandatory evidence absent, 1 means partially demonstrated with open defects, 2 means passed in the pilot, and 3 means passed plus verified lifecycle evidence. Do not average away a mandatory failure. Keep raw observations beside any score so the number does not become a false fact after the team forgets its assumptions.

Decision record field	Example content
Decision scope	Packaging Line 4 panel replacement; one PLC, one local panel, view-only maintenance client
Candidates and versions	Exact product, edition, engineering release, runtime build and hardware target
Mandatory gates	Pass/fail with defect or remediation owner for every candidate
Weights	Approved percentages and why they reflect this project’s risk
Witnesses	Operators, maintenance, controls, IT/security and vendor/integrator roles
Evidence links	Test script, raw notes, screenshots, logs, BOM, compatibility records and restore report
Assumptions/exclusions	Data growth, support term, languages, remote scope, redundant services and future lines
Decision and review date	Selected candidate, conditions, rejected alternatives, approvers and revalidation trigger

Frequently asked questions

What is the best HMI software for beginners?

For pure learning, choose the tool you can legally access with simulation and good documentation. CODESYS Development System, Ignition’s trial, WinCC Unified’s official trial and vendor panel simulators are practical routes. For job preparation, learn the platform used by the target employer and pair it with vendor-neutral HMI design principles.

What is the best HMI software for Allen-Bradley PLCs?

FactoryTalk View remains relevant for established Rockwell estates, while FactoryTalk Optix is Rockwell’s modern HMI platform. Ignition and other products can also communicate with Logix controllers. The correct choice depends on the existing FactoryTalk architecture, required panel/runtime, drivers and migration constraints.

What is the best HMI software for Siemens PLCs?

WinCC Unified is Siemens’ current HMI platform spanning panels and PC-based HMI/SCADA, and it integrates with TIA Portal. Confirm the exact engineering/runtime edition and compatibility with the target PLC firmware and panel.

Is HMI software the same as SCADA?

No, although the categories overlap. HMI software provides an operator interface to a machine or process. SCADA usually adds broader supervisory data acquisition, servers, multiple clients or sites, historian and alarm responsibilities. Some product families cover both scopes.

Can one HMI connect to several PLC brands?

Many PC and gateway-based HMI/SCADA platforms support several drivers or OPC UA. Panel-native products may also support third-party controllers. Always test the exact controller firmware, data types, reconnect behavior and performance; a compatibility-list entry is not a commissioned connection.

Is open-source HMI software safe for production?

It can be engineered into a supportable system, but the licence price does not supply alarm governance, security hardening, testing, patching, backup or 24/7 support. Use open-source only when the team can own those lifecycle obligations and the risk is appropriate.

Which HMI software has the best free trial?

The best trial is the one that lets you test the intended runtime boundary. Siemens publishes a WinCC Unified trial path, Inductive Automation provides Ignition evaluation access, and Omron documents trial access for Sysmac Studio; terms and scope can change. A desktop simulation is useful for engineering workflow but does not prove target-panel performance, driver recovery, activation or production rights. Check the official page on the day you start and save the applicable terms in the pilot record.

Should I choose FactoryTalk View or FactoryTalk Optix?

Treat them as separate architectures, not old and new editions of one interchangeable runtime. View ME/SE deserves priority when existing PanelView or FactoryTalk applications, skills and validated assets carry significant value. Optix deserves evaluation for a new modern HMI, web-client, edge or Windows/Linux deployment. Run the same Logix data, abnormal scenario, licence BOM and restore test on the exact targets before deciding.

Is Ignition better than a vendor-native panel HMI?

Ignition Perspective can be a strong fit for multi-vendor, responsive, database-connected or gateway-centred applications. A vendor-native panel can be simpler to own for one machine with a fixed controller, local runtime and established maintenance standard. “Better” depends on scope, driver proof, availability, operator workflow, cyber architecture and lifecycle owner—not whether one product has more modules.

How many HMI platforms should reach a pilot?

Usually two or three. Use the mandatory gates and installed-estate facts to remove unsuitable products before hands-on work. More pilots multiply engineering and operator time without necessarily improving the decision. Keep a documented reason for excluding credible alternatives, especially when procurement, regional support or a corporate standard narrows the list.

Recommendation

Build a two- or three-platform shortlist from the installed ecosystem and required runtime. Reject any candidate that cannot document the exact driver, licence, lifecycle or recovery path. Then run the same operator scenario and abnormal-condition tests on the same PLC data.

For learning before a vendor trial, PLC Simulation Software’s HMI and SCADA practice path teaches PLC alarms, interlocks and data mapping in a browser. Ownership disclosure: PLC Programming IO and PLC Simulation Software share ownership. It is a PLC training product, not a substitute for the HMI platforms reviewed here.

Sources, review scope, and limitations

Product facts and public commercial/evaluation paths were checked on 29 August 2026. Links go to manufacturers or standards bodies, not affiliate retailers. Product pages can be localized, and available editions, trials, prices, licences, support and compatibility can differ by region and release. We did not install all eight production stacks in one common lab, did not accept paid placement and do not claim a market-share or universal performance ranking. Illustrations are original explanatory diagrams, not vendor screenshots.

• Siemens: SIMATIC WinCC Unified and WinCC Unified Engineering
• Rockwell Automation: FactoryTalk HMI documentation, FactoryTalk Optix product page and FactoryTalk Optix overview
• AVEVA: InTouch HMI pricing and packaging and InTouch HMI datasheet
• Inductive Automation: Ignition 8.3 introduction, Perspective 8.3 documentation and Ignition pricing
• Schneider Electric: EcoStruxure Operator Terminal Expert and engineering/runtime licence FAQ
• Mitsubishi Electric: GT Works3/GOT software and GOT engineering environment
• Omron: Sysmac Studio, NA-series HMI and Soft NA runtime
• CODESYS: Visualization product family and Visualization product sheet
• ISA: ISA-101 HMI lifecycle and ISA-18.2 alarm management
• NIST: SP 800-82 Rev. 3, Guide to Operational Technology Security

Review our testing methodology, editorial policy and corrections policy. Send corrections with the product, edition, release, region and primary source so the claim can be reproduced.

Related resources

• HMI programming tutorial
• HMI design best practices
• High-performance HMI and ISA-101
• SCADA software comparison
• SCADA architecture explained
• FactoryTalk View Studio tutorial
