50 PLC & Ladder Logic Exercises + 12 Worked Solutions

PLC programming practice should produce evidence, not just code. For each exercise, define the inputs and outputs, write acceptance tests before the program, execute normal and abnormal scan sequences, and record whether the observed state matches the expected state. The fifty briefs below provide a progressive curriculum. Six receive complete ladder-logic solutions and six receive complete, vendor-neutral Structured Text solutions with test matrices and grading criteria.

This page owns the broad PLC programming exercises, ladder logic exercises with solutions, and Structured Text exercises with solutions task. The practical ladder examples article remains the pattern-and-application reference; this page is the problem, solution, acceptance-test, and grading owner. Use the ladder logic simulator or Structured Text lab when you want runnable, auto-graded browser scenarios. The learning simulator tests a logic model; it does not reproduce every compiler, firmware, electrical I/O, machine dynamic, or safety function.

The test-first PLC practice contract

Do not begin with a rung or an IF. Begin with a contract. A contract prevents a plausible-looking solution from quietly solving a different problem.

Deliverable	What to write before coding	What counts as evidence
Problem boundary	Controlled process, starting state, ordinary stop behavior, exclusions	One paragraph another programmer can implement without guessing
I/O contract	Name, direction, type, true-state meaning, physical or simulated source	A table with no ambiguous names such as Sensor1 or Flag
State and memory	Which values persist across scans; initialization and reset policy	State diagram or memory table plus a restart case
Acceptance matrix	Initial state, stimulus, expected state/output, failure exposed	At least one normal, boundary, simultaneous, timeout, reset, and restart case
Implementation	One clear owner for each output; bounded loops; explicit priority	Compiling code in the selected target or a documented learning dialect
Scan trace	Sampled inputs, current state, timers, memory, outputs by invocation	Captured trace or a manually checked table, not only a green coil animation
Translation record	Compiler, version, task, library, time base, deviations	A short portability note for every vendor-specific change

Use a logic simulator for fast iteration, but keep the validation boundary explicit. A browser model can expose Boolean, timer, counter, sequence, and fault-handling mistakes. It cannot prove safe stopping, wiring polarity, field-device behavior, motion, task jitter on a target CPU, retentivity after a real power loss, or compliance with a safety lifecycle.

A reusable 20-point grading rubric

Area	0 points	1 point	2 points
I/O semantics	Missing or ambiguous	Listed but some true states unclear	Every name, type, direction and true state is explicit
Normal behavior	Does not complete	Completes one path	All specified normal paths pass
Priority	Simultaneous inputs are accidental	Priority exists but is undocumented	Priority is stated and tested
Memory/reset	Hidden or unsafe restart state	Reset works in one case	Initialization, reset rejection and restart are tested
Timing	Magic delays or skipped timer calls	Nominal timing works	Entry, elapsed, exit, reset and timeout cases pass
Fault diagnosis	Output simply stops	Generic fault bit	First failed boundary/state and recovery preconditions are visible
Output ownership	Multiple unexplained writers	Mostly centralized	Each output has one reviewable owner
Edge cases	None	One boundary case	Held, one-scan, chatter, invalid and limit cases are covered as relevant
Portability	Assumes all PLCs match	Mentions a vendor	Dialect, task, library and target deviations are recorded
Safety boundary	Implies simulation proves machinery	Generic disclaimer	Ordinary control and independent safety validation are separated precisely

Score 16–20 before advancing. A lower score is not failure; it identifies the next practice target.

Download the reusable PLC exercise grading sheet (CSV) to score one submission consistently, preserve reviewer comments, and choose the next exercise from evidence rather than intuition.

Fifty PLC programming exercises by difficulty

The catalogue is language-neutral. Implement each problem in ladder logic first if visual troubleshooting is your immediate goal, then translate selected problems to ST to expose priority, types, arrays, and state ownership. “Stop” in these briefs means an ordinary control request unless an independently engineered safety function is explicitly discussed.

Level 1: Boolean logic and scan memory (1–12)

No.	Exercise brief	Acceptance focus
1	Start/stop motor request with seal-in memory	Start pulse latches; stop has priority; simultaneous start/stop stops
2	Conveyor enabled by guard status, material present, and start request	Every false permissive blocks the ordinary command
3	Alarm horn from temperature high, pressure high, or manual test	Every single cause and every combination produces the expected OR result
4	Heater demand with door inhibition and day/override selection	Parentheses and NOT semantics match a complete truth table
5	Interpret a physically normally closed stop input	Program tag describes healthy state; broken-wire assumption is documented
6	Cross-interlock two ordinary motor commands	Both outputs can never be true in any tested scan
7	Two-out-of-three sensor voting	Exactly zero/one/two/three true sensors are tested; no safety claim is made
8	Latched alarm with deliberate reset	Reset is rejected while the initiating condition remains active if specified
9	Rising-edge one-shot	Held input produces one pulse; a new low/high sequence produces another
10	Toggle a lamp on each accepted edge	Bounce and restart state are defined rather than accidental
11	Alarm horn acknowledge with lamp following process condition	Acknowledge silences sound but does not hide the active condition
12	Permissive chain plus isolated indicator-lamp test	Lamp test never writes actuator commands

Level 2: Timers, counters, and event qualification (13–24)

No.	Exercise brief	Acceptance focus
13	Warning beacon immediately, conveyor command after a five-second TON	Timer resets on aborted start; feedback and timeout paths are distinct
14	Fan run-on for sixty seconds after heater command clears	Reasserted heater during run-on returns to the defined state
15	Half-second beacon flasher using timer state	Timing does not depend on a single-scan equality comparison
16	Star-delta ordinary sequence with transition dead time	Star and delta commands are mutually exclusive; stop removes both
17	Stretch a short detection event to two seconds	New pulses during the active interval follow a documented retrigger policy
18	Count parts to a batch of twenty-four	Count only rising edges; reset and batch-done priority are tested
19	Occupancy count from independent entry and exit events	Underflow, simultaneous events, and maximum capacity are defined
20	Reject count and latch a batch quality fault at five	Batch boundary, reset, and the fifth event are unambiguous
21	Accumulate run hours and raise service due	Time base, retained storage, overflow, and reset authorization are documented
22	Communication heartbeat watchdog	Healthy pulse resets supervision; missing pulse latches a useful diagnosis
23	Symmetric input debounce	Both false-to-true and true-to-false require stable time
24	Measure cycle time between rising edges	First event, timer range, units, and slow-cycle threshold are tested

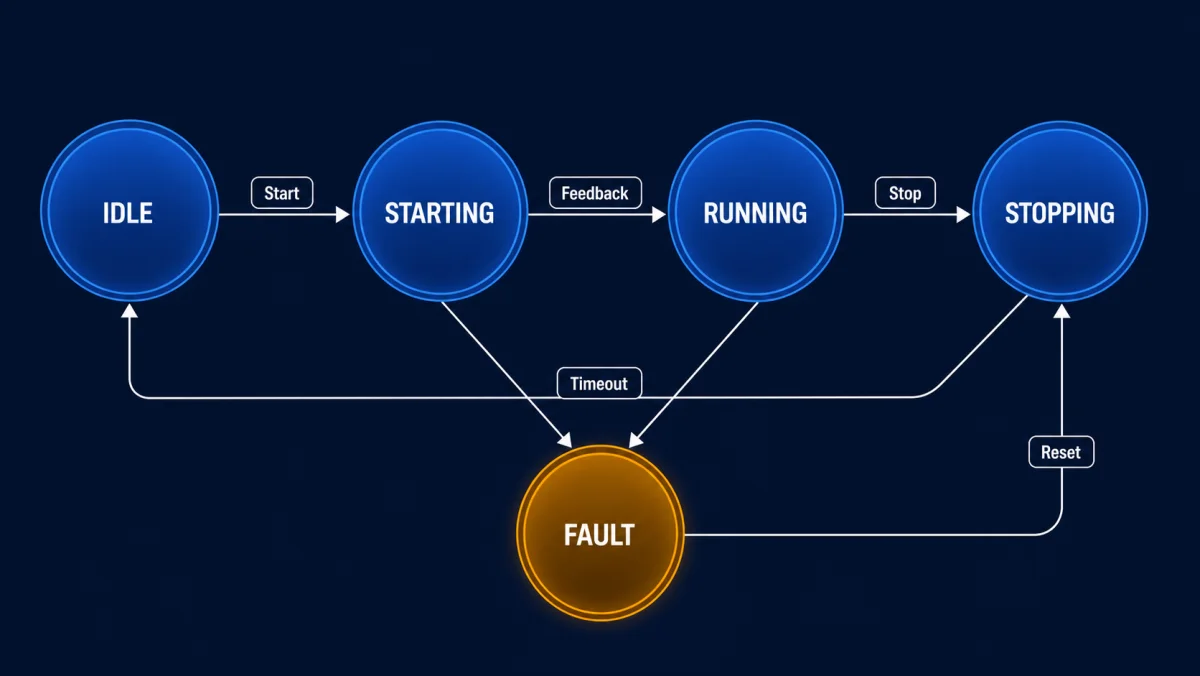

Level 3: Sequences and state logic (25–34)

No.	Exercise brief	Acceptance focus
25	Green-yellow-red traffic-light cycle	Exactly one lamp state is active; disable/re-enable policy is defined
26	Remember a pedestrian request for the next eligible phase	Requests are neither lost nor repeatedly served from one held input
27	Track a tall product from photo-eye to timed diverter	Multiple products and changed conveyor speed expose time-tracking limits
28	Fill, mix, and drain a batch	Every step has entry, transition, timeout, abort, and recovery behavior
29	Parking gate with vehicle-loop inhibition	Close command cannot occur while occupancy is present
30	Four-position reject shift register	One index edge advances once; rejected identity remains aligned
31	First-out alarm annunciator	First event is retained when later faults arrive in the same/next scans
32	Add per-step timeout and faulted-step record	The recorded step survives transition to fault and clears deliberately
33	Manual/automatic mode transfer	Output ownership and sequence state remain defined at every transfer point
34	Recipe-driven skipped sequence step	A skipped step cannot strand the state machine

Level 4: Analog and data handling (35–43)

No.	Exercise brief	Acceptance focus

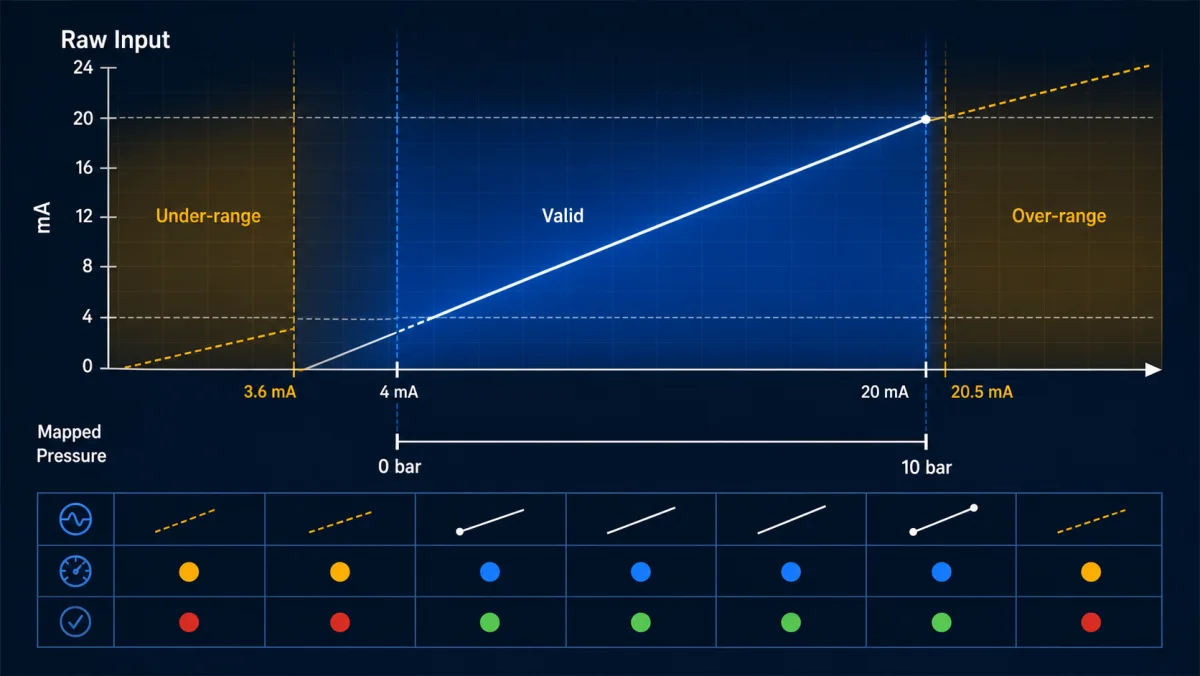

35	Scale a 4–20 mA pressure signal to 0–10 bar	Endpoints, midpoint, type conversion, and clamping policy are verified
36	Detect under-range and over-range before using pressure	Faulted values cannot masquerade as valid process values
37	Tank-level pump control with 20/80 percent hysteresis	State holds inside the band and initializes predictably
38	PID flow-loop wrapper with manual/automatic mode	Output limits, update period, tracking and bumpless transfer are tested
39	Deadband a noisy display value	Small changes hold; a threshold-crossing update occurs once
40	Ramp a setpoint at two units per second	Rate uses measured/configured interval and works in both directions
41	Convert real kilograms to rounded integer grams	Negative values, halves, range limit, and overflow policy are defined
42	Totalize flow on a fixed time base	Units, integration period, retention, rollover, and reset are proven
43	Generate L/H/HH alarms with hysteresis and delay	Pickup, dropout, delay, latch, acknowledge, and bad-quality behavior differ clearly

Level 5: Complete project briefs (44–50)

No.	Mini-project	Minimum evidence package
44	Car wash: pre-soak, brush, rinse, dry, exit	I/O contract, state diagram, per-step tests, abort path, vehicle-departure rearm
45	Pedestrian crossing with request memory and minimum green	Timing table, request queue cases, exclusive lamps, disable/restart cases
46	Silo fill with purge precondition and run-on	Permissive matrix, fan/valve ownership, trip priority, first-out fault
47	Duty/standby pumps with alternation and failover	Lead memory, simultaneous faults, mid-run transfer, maintenance override policy
48	Occupied/setback HVAC zone with window lockout	Mode table, dead zone, analog limits, sensor-quality and manual mode tests
49	Three-floor elevator request sequence	Call queue, direction policy, door interlock, travel timeout, invalid sensor combination
50	Indexed bottling line with fill, cap, reject tracking	Product-state model, index trace, reject-bin limit, jam/fault recovery

The seven project briefs deliberately stop short of giving a single “correct” program. Their purpose is architecture: split process state, commands, feedback, faults, modes, and recovery into reviewable responsibilities. For fully worked practice, continue with the six solutions below.

Six ladder logic exercises with solutions and answer tests

These solutions use compact, vendor-neutral ladder pseudocode. A vertical pair of rails is implied; | | means a true-when-bit-true contact, |/| means a true-when-bit-false contact, ( ) is a non-retentive coil, (L) and (U) are latch/unlatch operations, OSR is a rising-edge pulse, and TON/CTU describe common timer/counter behavior. Those labels are not a portability promise. Rockwell, Siemens, Mitsubishi, Omron, CODESYS-family, Schneider, and other platforms differ in instruction names, data structures, call rules, time bases, retentivity, prescan/startup behavior, and editing tools.

Treat each listing as an answer model, not as the only valid answer. A different rung arrangement is acceptable when it satisfies the same I/O contract, scan behavior, priority, fault response, and acceptance matrix. Ordinary Stop and interlock examples below are not emergency-stop or functional-safety designs.

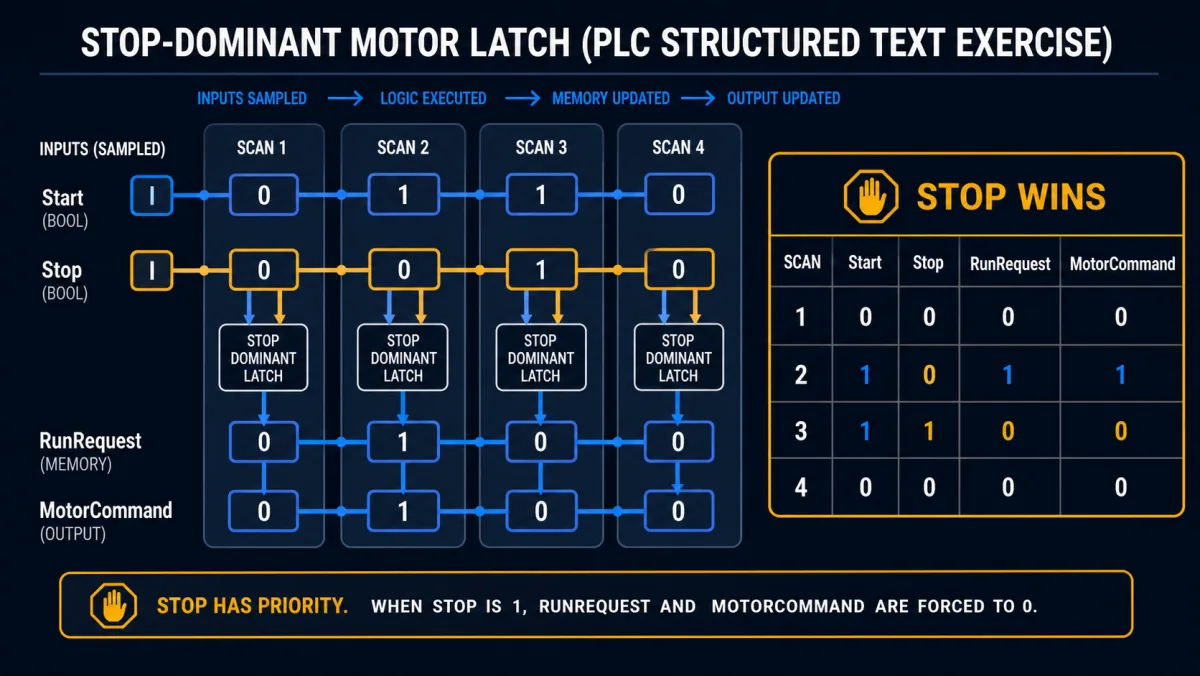

Ladder solution 1: stop-dominant motor seal-in

Problem: A momentary start request should latch an ordinary motor run request while the process permissive is healthy. Stop or loss of the permissive must remove the request. If Start and Stop are both active in the same scan, Stop wins. Separate the internal request from the mapped motor output so command ownership stays visible.

Tag	Direction/type	True-state meaning
StartPB	BOOL input	Ordinary start button is pressed
StopHealthy	BOOL input	Normal stop circuit permits running
ProcessPermissive	BOOL input	Process conditions permit a start and continued run
MotorRunRequest	Internal BOOL	Accepted run memory
MotorOutput	BOOL output	Ordinary motor command sent to the mapped output layer

Rung 1 — request memory; StopHealthy and ProcessPermissive remain outside the branch
|--| | StopHealthy --| | ProcessPermissive --+--| | StartPB --------( MotorRunRequest )--|
|                                               |
|                                               +--| | MotorRunRequest --|

Rung 2 — one final command owner
|--| | MotorRunRequest --| | StopHealthy --| | ProcessPermissive ----( MotorOutput )--|

Test	Initial request	Stimulus	Expected answer
Normal start	0	Healthy 1, permissive 1, Start 1	Request/output become 1
Seal-in	1	Start returns to 0	Request/output remain 1
Stop	1	StopHealthy becomes 0	Request/output become 0 in the evaluated scan
Lost permissive	1	ProcessPermissive becomes 0	Request/output become 0
Simultaneous start/stop	0 or 1	Start 1 and StopHealthy 0	Output 0; no restart memory survives
Restart	Documented	Runtime/power transition	Approved initialized or retained request; no assumed motion

Grade it: award two points each for explicit true-state names, stop priority, one final output writer, a simultaneous-input test, and documented restart behavior. A green output during one normal start earns only part of the score.

Ladder solution 2: forward/reverse mutual interlock

Problem: Two ordinary direction requests control one motor. Forward and reverse commands must never be true together. A change of direction requires Stop first. This exercise teaches priority and cross-interlocking; real reversing starters also require the approved electrical/mechanical interlock, device ratings, stopping time, and safety design.

Tag	Direction/type	True-state meaning
ForwardPB, ReversePB	BOOL inputs	Requested ordinary direction
StopHealthy, OverloadHealthy	BOOL inputs	Control and overload conditions permit running
ForwardCmd, ReverseCmd	BOOL outputs	Commands to the direction interface

Rung 1 — forward seal-in blocked by the reverse command
|--| | StopHealthy --| | OverloadHealthy --|/| ReverseCmd --+--| | ForwardPB --( ForwardCmd )--|
|                                                            |
|                                                            +--| | ForwardCmd -|

Rung 2 — reverse seal-in blocked by the forward command
|--| | StopHealthy --| | OverloadHealthy --|/| ForwardCmd --+--| | ReversePB --( ReverseCmd )--|
|                                                            |
|                                                            +--| | ReverseCmd -|

Test	Starting state	Stimulus	Expected answer
Forward start	Both off	Forward pulse	Forward 1, Reverse 0
Reverse rejected	Forward running	Reverse pulse	Forward remains 1, Reverse remains 0
Valid reversal	Forward running	Stop, prove both off, then Reverse	Forward 0, Reverse 1
Simultaneous from idle	Both off	Forward and Reverse together	Apply a documented priority or reject both; never permit both
Overload	Either direction running	Overload unhealthy	Both commands off
Invariant	All cases	Observe every scan	NOT (ForwardCmd AND ReverseCmd) always true

The simultaneous-from-idle row is deliberately not resolved by the pseudocode alone: evaluation order and output-image semantics may allow one rung to win on one target. A production contract must say whether Forward has priority, Reverse has priority, or both requests are rejected, then implement and test that policy explicitly. Grade it only after the simultaneous case is deterministic and the cross-reference shows no other output writers.

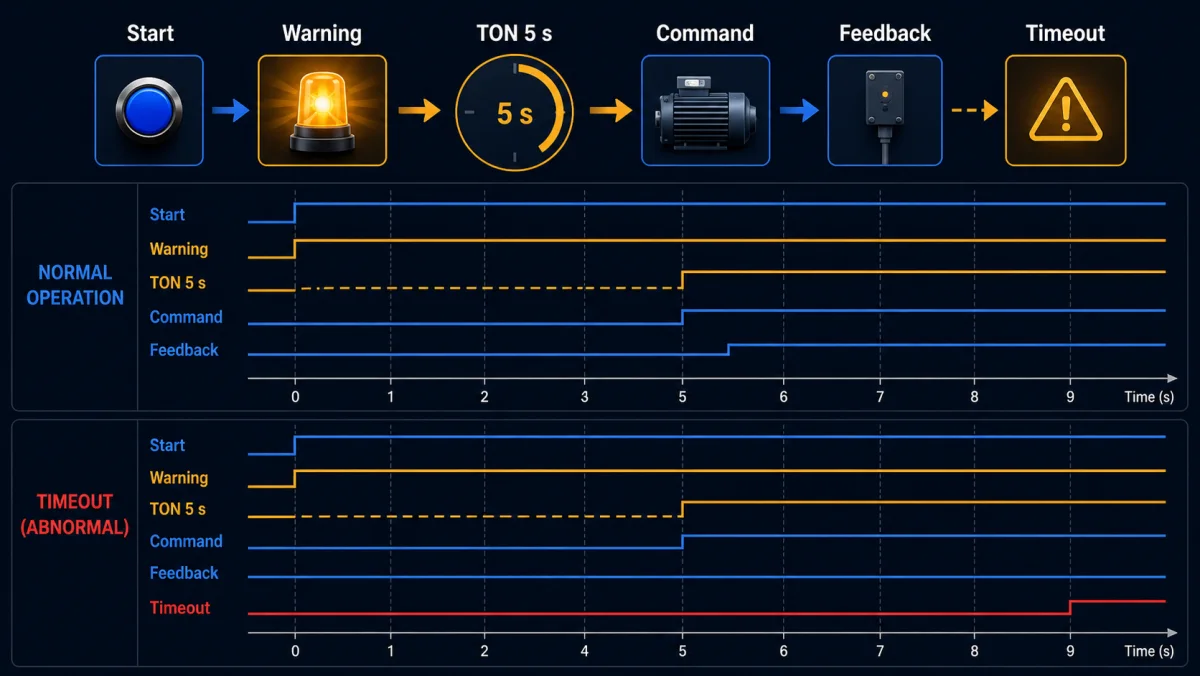

Ladder solution 3: warning delay and missing-feedback timeout

Problem: When a run request is accepted, energize a warning beacon immediately. After five seconds, issue a conveyor command. If running feedback does not arrive within three additional seconds, remove the run memory and latch FailedToStart. Stop cancels the sequence immediately. Reset is accepted only while the request and feedback are both off.

Tag	Direction/type	True-state meaning
RunRequest, StopRequest, ResetPB	BOOL inputs	Ordinary run, stop, and fault-reset requests
ConveyorFeedback	BOOL input	Contactor/drive running feedback is proven
WarningDelay	TON, 5 s	Accepted run request has remained active for five seconds
FeedbackTimeout	TON, 3 s	Command is present without feedback for three seconds
WarningBeacon, ConveyorCmd, FailedToStart	BOOL outputs/state	Warning, command, and retained diagnosis

|--| | RunRequest --|/| StopRequest --|/| FailedToStart --------( WarningBeacon )--|
|--| | WarningBeacon ------------------------[TON WarningDelay 5 s]--|
|--| | WarningDelay.Q --|/| StopRequest --|/| FailedToStart ----( ConveyorCmd )--|
|--| | ConveyorCmd --|/| ConveyorFeedback --[TON FeedbackTimeout 3 s]--|
|--| | FeedbackTimeout.Q -------------------------------(L) FailedToStart --|
|--| | ResetPB --|/| RunRequest --|/| ConveyorFeedback -(U) FailedToStart --|

Test	Timeline	Expected answer
Normal	Run at 0 s; command at 5 s; feedback at 6 s	Beacon immediately, command after 5 s, no fault
Stop during warning	Stop at 2 s	Beacon off, timer resets, command never starts
Timeout	No feedback through 8 s	Fault latches; command is inhibited on the following evaluated logic according to target order
Stale feedback	Feedback already true before Run	Reject or diagnose according to the written stale-feedback policy
Invalid reset	Fault active while feedback or request remains true	Fault remains latched
Clean reset	Request 0, feedback 0, Reset pulse	Fault clears; no automatic restart

The phrase “following evaluated logic” matters: if the fault-latch rung is physically below the command rung, the command may stay true until the next scan unless the target/runtime resolves it differently. Either place the final command after all fault-state updates or include the one-scan behavior in the specification. Grade it: require separate warning and feedback timers, a named timeout fault, stop cancellation, stale-feedback handling, and valid reset preconditions.

Ladder solution 4: one-shot batch counter with controlled reset

Problem: Count each product once even when a photo-eye remains blocked for several scans. Set BatchComplete at 24 products. A new-batch reset is accepted only when the conveyor is stopped. Define what happens to the accumulated count across a power cycle before choosing retentive memory.

Tag	Direction/type	True-state meaning
ProductEye	BOOL input	A product currently blocks the sensor
ProductPulse	One-scan state	Accepted rising edge of the eye
BatchCounter	CTU, preset 24	Number of accepted product edges
NewBatchPB, ConveyorRunning	BOOL inputs	Reset request and ordinary running status
BatchComplete	BOOL output	Count has reached the batch target

|--| | ProductEye ------------------------[OSR ProductPulse]--|
|--| | ProductPulse ----------------------[CTU BatchCounter 24]--|
|--| | BatchCounter.Q --------------------( BatchComplete )--|
|--| | NewBatchPB --|/| ConveyorRunning --[RES BatchCounter]--|

Test	Stimulus	Expected answer
Long obstruction	Eye true for ten scans	Count increases by one
Two products	True, false, true with an accepted low interval	Count increases by two
Chatter	Multiple fast transitions	Result follows the documented input-filter/qualification rule
Twenty-third	Initial count 22; one new edge	Accumulator 23; complete 0
Twenty-fourth	Initial count 23; one new edge	Accumulator 24; complete 1
Reset rejected	Conveyor running; Reset pressed	Count unchanged
Reset accepted	Conveyor stopped; Reset pressed	Count 0; complete 0

An edge instruction remembers prior input state, and a counter usually owns accumulator and status state. Do not assume their startup or reset behavior is identical across platforms. Grade it: require one count per accepted edge, exact 23/24 boundary tests, reset authorization, chatter policy, overflow/preset behavior, and a documented retentivity decision.

Ladder solution 5: tank fill with hysteresis and bad-signal inhibit

Problem: Open an ordinary fill valve when a valid tank level falls below 30%. Keep filling through the middle band and close at 80%. A bad analog signal or high-high condition closes the command. This is normal process control, not proof of independent overfill protection.

Tag	Direction/type	True-state meaning
LevelPct	REAL input	Validated tank level in percent
LevelGood	BOOL input	Measurement is suitable for this control decision
HighHigh	BOOL input	Separate high-high condition is active
FillRequest	Internal BOOL	Hysteresis state between low and high thresholds
FillValveCmd	BOOL output	Ordinary request to open the fill valve

|--| | LevelGood --|/| HighHigh --[LT LevelPct 30.0] ----(L) FillRequest --|
|--[GE LevelPct 80.0] ------------------------------------(U) FillRequest --|
|--|/| LevelGood -----------------------------------------(U) FillRequest --|
|--| | HighHigh ------------------------------------------(U) FillRequest --|
|--| | FillRequest --| | LevelGood --|/| HighHigh --------( FillValveCmd )--|

Test	Starting condition	Stimulus	Expected answer
Below low	Valid 25%, request 0	One scan	Request/valve 1
Middle band while filling	Valid 50%, request 1	Hold	Request/valve remain 1
Middle band while idle	Valid 50%, request 0	Hold	Request/valve remain 0
At high boundary	Valid 80%	Evaluate	Request/valve 0 under the specified GE boundary
Signal fault	Filling; LevelGood becomes 0	Evaluate	Request/valve 0; separate diagnosis expected
High-high	Filling; HighHigh becomes 1	Evaluate	Request/valve 0; normal reset does not imply safety reset

Hysteresis is memory: the same 50% value produces a different command depending on whether the tank entered the band from below or above. That is intentional and must appear in the tests. Grade it: require named units, exact 30/80 inclusion rules, both middle-band histories, bad-quality behavior, single output ownership, and an explicit separation between ordinary control and independent protection.

Ladder solution 6: three-step fill, mix, drain sequence

Problem: Run a small batch through IDLE, FILL, MIX, and DRAIN. Start from Idle. Fill until HighLevel, mix for ten seconds, then drain until LowLevel. Stop or a process fault moves the sequence to a retained FAULT state with every process output off. Reset is accepted only with Stop active and the fault condition cleared.

Tag	Direction/type	True-state meaning
StartPB, StopPB, ResetPB	BOOL inputs	Ordinary sequence requests
HighLevel, LowLevel, ProcessFault	BOOL inputs	Process transition and fault conditions
StepIdle, StepFill, StepMix, StepDrain, StepFault	Internal BOOL state	Exactly one sequence state should be true
MixTimer	TON, 10 s	Mix state has remained active for ten seconds
FillValve, Mixer, DrainValve	BOOL outputs	Commands decoded from the active state

Initialization (target-specific): establish StepIdle once when no valid state exists.

|--| | StepIdle --| | StartPB --|/| ProcessFault ----(L) StepFill --|
|--| | StepIdle --| | StartPB ------------------------(U) StepIdle --|

|--| | StepFill --| | HighLevel ----------------------(L) StepMix --|
|--| | StepFill --| | HighLevel ----------------------(U) StepFill --|

|--| | StepMix ------------------------[TON MixTimer 10 s]--|
|--| | StepMix --| | MixTimer.Q ----------------------(L) StepDrain --|
|--| | StepMix --| | MixTimer.Q ----------------------(U) StepMix --|

|--| | StepDrain --| | LowLevel ----------------------(L) StepIdle --|
|--| | StepDrain --| | LowLevel ----------------------(U) StepDrain --|

Fault transition: StopPB OR ProcessFault sets StepFault and clears Fill/Mix/Drain.
Valid ResetPB AND StopPB AND NOT ProcessFault clears StepFault and sets StepIdle.

|--| | StepFill --|/| StepFault -----------------------( FillValve )--|
|--| | StepMix --|/| StepFault ------------------------( Mixer )--|
|--| | StepDrain --|/| StepFault ----------------------( DrainValve )--|

Test	Initial state	Stimulus	Expected answer
Normal batch	Idle, low level true	Start, then high, wait 10 s, then low	Fill → Mix → Drain → Idle; only matching output active
Stop in each active step	Fill/Mix/Drain	Stop	Fault state; all process outputs off
Process fault	Any active step	Fault true	Fault state with originating state recorded if required
Premature low level	Fill or Mix	Low level true	No early drain completion because current state does not authorize it
Timer reset	Mix interrupted before 10 s	Stop/reset/new batch	New Mix timing starts under documented timer-reset behavior
Reset rejected	Fault still true or Stop not active	Reset	Remains Fault
Unknown/multiple state	Isolated approved test	Corrupt state bits	Detect invalid state and move to the defined fault policy

Bit-state sequences are easy to draw but permit zero or multiple active bits unless initialization, transition order, and invariant checks are explicit. An integer or enumerated state can simplify exclusivity on platforms where that form is appropriate. Grade it: require one active state, one output decoder, transition tests, per-step Stop/Fault cases, timer reset evidence, rejected reset, restart policy, and an invalid-state response.

To run related logic rather than only reading the answer, open the interactive ladder-logic practice path. Create a free account only when you want saved progress or catalog access; scenario availability varies by tier. Keep the acceptance matrices above and re-run them in the exact vendor environment before using any translated program on equipment.

Structured Text solution 1: stop-dominant motor request

Problem and I/O contract

Create ordinary run-request memory. A one-scan StartEdge may set the request only while PermissivesHealthy is true. StopRequest or a lost permissive clears it. Stop must win when start and stop are true in the same invocation. Compose the ordinary motor command once from the resulting memory and permissive state. This is not an emergency-stop or safety function.

Name	Type/direction	True-state meaning
StartEdge	BOOL input	One accepted ordinary start event
StopRequest	BOOL input	Ordinary stop is requested
PermissivesHealthy	BOOL input	All ordinary process permissions are currently satisfied
RunRequest	Persistent BOOL	Run memory retained between invocations
MotorCommand	BOOL output	Ordinary run request sent toward the selected output interface

Case	Initial memory	Inputs	Expected memory/command
Start	0	Start 1, Stop 0, Healthy 1	1 / 1
Held physical button	1	Edge generator returns Start 0	Remains 1 / 1
Simultaneous	0 or 1	Start 1, Stop 1, Healthy 1	0 / 0
Lost permissive	1	Healthy 0	0 / 0
Stop clears	1	Stop 1	0 / 0
Restart policy	Documented initial memory	All requests 0 after runtime restart	Matches approved initialization; no surprise motion

(* Ordinary control example; not a safety function. *)
IF StopRequest OR NOT PermissivesHealthy THEN
    RunRequest := FALSE;
ELSIF StartEdge THEN
    RunRequest := TRUE;
END_IF;

MotorCommand := RunRequest AND PermissivesHealthy;

The IF branch encodes priority: stop and lost permissive are evaluated before start. The output is assigned once after memory is resolved. If another routine also writes the same output tag, the exercise is incomplete until that ownership conflict is removed or intentionally documented and tested.

Grade it: two points each for explicit true-state names, stop priority, one output owner, the simultaneous-input test, and a documented restart state. Then translate the same contract to the target's supported edge instruction and project initialization rules.

Structured Text solution 2: warning, TON, command, and feedback timeout

Problem and acceptance matrix

When RunRequest is true, energize an ordinary warning indication immediately. After five seconds, issue ConveyorCommand. If ConveyorFeedback does not become true within four additional seconds, clear the sequence request and latch StartTimeoutFault. A stop request clears the sequence without waiting. The code assumes a common IEC-style TON interface; confirm the target library and skipped-call behavior.

Case	Stimulus	Expected observation
Normal start	Request true; feedback true two seconds after command	Warning at once, command after 5 s, no fault
Abort during warning	Stop before 5 s	Warning, command, and timer enable clear
Timeout	Feedback remains false for 4 s after command	Command clears and timeout fault latches
Feedback already true	Feedback true before new request	Apply the approved stale-feedback policy; do not assume normal start
Reset rejected	Fault active while request or feedback remains true	Fault stays latched
Clean reset	Request false, feedback false, reset edge true	Fault clears; sequence remains idle

VAR
    WarningDelay  : TON;
    FeedbackDelay : TON;
END_VAR

IF StopRequest THEN
    RunRequest := FALSE;
END_IF;

WarningDelay(IN := RunRequest AND NOT StartTimeoutFault, PT := T#5s);
ConveyorCommand := RunRequest AND WarningDelay.Q AND NOT StartTimeoutFault;
WarningBeacon := RunRequest AND NOT StartTimeoutFault;

FeedbackDelay(
    IN := ConveyorCommand AND NOT ConveyorFeedback,
    PT := T#4s
);

IF FeedbackDelay.Q THEN
    StartTimeoutFault := TRUE;
    RunRequest := FALSE;
END_IF;

IF ResetEdge AND NOT RunRequest AND NOT ConveyorFeedback THEN
    StartTimeoutFault := FALSE;
END_IF;

This compact solution intentionally exposes a design question: what should happen when feedback is already true before a new command? Installed systems often need a distinct discrepancy fault because “feedback on while command off” may indicate a welded contact, drive mode mismatch, mapping error, or stale signal. Add that requirement before field use; do not silently treat existing feedback as successful starting.

Grade it: confirm timers are invoked consistently, stop removes the request, the timeout identifies feedback rather than merely “motor fault,” reset has preconditions, and the target timer/time representation is recorded.

Structured Text solution 3: analog scaling with diagnostic bands

Problem, units, and edge cases

Map a normalized current value in milliamps to pressure. The nominal transmitter range is 4–20 mA for 0–10 bar. Treat below 3.6 mA as under-range and above 20.5 mA as over-range. While invalid, keep the last valid displayed pressure and set a quality code; do not replace a bad measurement with an apparently valid zero. A real input module may supply counts and module diagnostic bits instead of milliamps, so translate the interface using its manual.

Input	Expected quality	Expected pressure behavior
3.5 mA	UNDER_RANGE	Hold last valid value
3.6 mA	Policy boundary	Document inclusive/exclusive decision
4.0 mA	VALID	0.0 bar
12.0 mA	VALID	5.0 bar
20.0 mA	VALID	10.0 bar
20.5 mA	Policy boundary	Document inclusive/exclusive decision
20.6 mA	OVER_RANGE	Hold last valid value

TYPE SignalQuality : (VALID, UNDER_RANGE, OVER_RANGE); END_TYPE

IF Current_mA < 3.6 THEN
    PressureQuality := UNDER_RANGE;
ELSIF Current_mA > 20.5 THEN
    PressureQuality := OVER_RANGE;
ELSE
    PressureQuality := VALID;
    Pressure_bar := (Current_mA - 4.0) * (10.0 / 16.0);
    Pressure_bar := LIMIT(0.0, Pressure_bar, 10.0);
END_IF;

PressureValid := PressureQuality = VALID;

The diagnostic thresholds and clamp serve different purposes. The quality test decides whether the measurement may be used. The clamp protects the displayed engineering value within the accepted diagnostic window, where a current slightly below 4 mA or above 20 mA could otherwise yield a small negative or greater-than-span value. Whether that is correct depends on the transmitter, module, alarm philosophy, and process requirement.

Grade it: require named units, real-number arithmetic, exact endpoints and midpoint, threshold boundary tests, separate quality, and a documented bad-value policy. Bonus: translate module counts to milliamps using the exact hardware range and compare module diagnostics with the calculated band.

Structured Text solution 4: bounded array statistics

Problem and test data

Given a fixed array of eight valid REAL samples, calculate minimum, maximum, and arithmetic mean during one invocation. The exercise teaches array bounds, initialization, loop limits, and accumulator types. For a production task, measure execution time and decide whether the data can change while being read.

Dataset	Expected minimum	Expected maximum	Expected mean
2, 4, 6, 8, 10, 12, 14, 16	2	16	9
5, 5, 5, 5, 5, 5, 5, 5	5	5	5
-4, -2, 0, 2, 4, 6, 8, 10	-4	10	3
100, 1, 1, 1, 1, 1, 1, 1	1	100	13.375

VAR
    Samples : ARRAY[0..7] OF REAL;
    Index   : INT;
    Sum     : LREAL;
    Minimum : REAL;
    Maximum : REAL;
    Mean    : LREAL;
END_VAR

Minimum := Samples[0];
Maximum := Samples[0];
Sum := 0.0;

FOR Index := 0 TO 7 DO
    IF Samples[Index] < Minimum THEN
        Minimum := Samples[Index];
    END_IF;
    IF Samples[Index] > Maximum THEN
        Maximum := Samples[Index];
    END_IF;
    Sum := Sum + REAL_TO_LREAL(Samples[Index]);
END_FOR;

Mean := Sum / 8.0;

Initializing minimum to zero would fail for an all-positive dataset if the required result is the minimum sample, and initializing maximum to zero would fail for an all-negative dataset. Taking the first element makes the assumption explicit: the array must contain at least one element. Some environments allow lower/upper-bound introspection; others use project constants or different conversion functions. Keep the acceptance matrix and translate the implementation.

Grade it: verify the loop cannot exceed the array, minimum/maximum start from actual data, accumulator precision is deliberate, division is non-integer, and worst-case task time is acceptable. Bonus: add per-sample quality and exclude invalid values without dividing by zero when none are valid.

Structured Text solution 5: CASE state machine with fault recovery

State contract

Control an ordinary motor sequence with five states: IDLE, STARTING, RUNNING, STOPPING, and FAULT. Start requires healthy permissives. Starting waits for feedback with a timeout. Running faults if feedback disappears without a stop request. Stopping waits for feedback to clear with a timeout. Reset is accepted only while feedback is off and permissives are healthy.

Current state	Normal transition	Abnormal transition	Output ownership
IDLE	Start edge → STARTING	None; unhealthy permissive rejects start	Command off
STARTING	Feedback → RUNNING	Stop → STOPPING; timeout → FAULT	Command on
RUNNING	Stop/lost permissive → STOPPING	Unexpected feedback loss → FAULT	Command on while valid
STOPPING	Feedback off → IDLE	Stop timeout → FAULT	Command off
FAULT	Valid reset → IDLE	Invalid reset remains FAULT	Command off; fault on

StartTimer(IN := State = STARTING, PT := T#3s);
StopTimer(IN := State = STOPPING, PT := T#3s);

MotorCommand := FALSE;
FaultActive := FALSE;

CASE State OF
    IDLE:
        IF StartEdge AND PermissivesHealthy AND NOT MotorFeedback THEN
            State := STARTING;
        END_IF;

    STARTING:
        MotorCommand := TRUE;
        IF StopRequest OR NOT PermissivesHealthy THEN
            State := STOPPING;
        ELSIF MotorFeedback THEN
            State := RUNNING;
        ELSIF StartTimer.Q THEN
            FaultCode := 10; (* feedback failed to appear *)
            State := FAULT;
        END_IF;

    RUNNING:
        MotorCommand := TRUE;
        IF StopRequest OR NOT PermissivesHealthy THEN
            State := STOPPING;
        ELSIF NOT MotorFeedback THEN
            FaultCode := 20; (* feedback lost unexpectedly *)
            State := FAULT;
        END_IF;

    STOPPING:
        IF NOT MotorFeedback THEN
            State := IDLE;
        ELSIF StopTimer.Q THEN
            FaultCode := 30; (* feedback failed to clear *)
            State := FAULT;
        END_IF;

    FAULT:
        FaultActive := TRUE;
        IF ResetEdge AND NOT MotorFeedback AND PermissivesHealthy THEN
            FaultCode := 0;
            State := IDLE;
        END_IF;

ELSE
    FaultCode := 99; (* invalid state representation *)
    State := FAULT;
END_CASE;

The listing is intentionally vendor-neutral and uses an illustrative enum and timer call. Translate declarations and constants to the selected target. Also notice the one-invocation boundary: writing State := STARTING in the idle branch does not retroactively execute the starting branch during that same CASE evaluation. The next invocation selects it.

Required state-machine tests

Test	Starting condition	Stimulus	Expected evidence
Normal start	Idle, healthy, feedback off	Start edge then feedback before timeout	Starting then Running; command on
Stop during start	Starting	Stop true	Stopping; command off
Start timeout	Starting	Feedback stays off	Fault 10; command off
Feedback lost	Running	Feedback false, no stop	Fault 20
Stop timeout	Stopping	Feedback stays true	Fault 30
Reset rejected	Fault, feedback true	Reset edge	Remains faulted
Invalid state	Isolated approved test	Inject invalid representation if target permits	Fault 99 policy
Restart	Every relevant state	Controlled runtime/power transition	Approved initial/retained state and no unintended command

Grade it: every state owns outputs, transition priority is explicit, normal and abnormal feedback have different diagnoses, reset is conditional, unknown state has a policy, and restart is tested on the actual target.

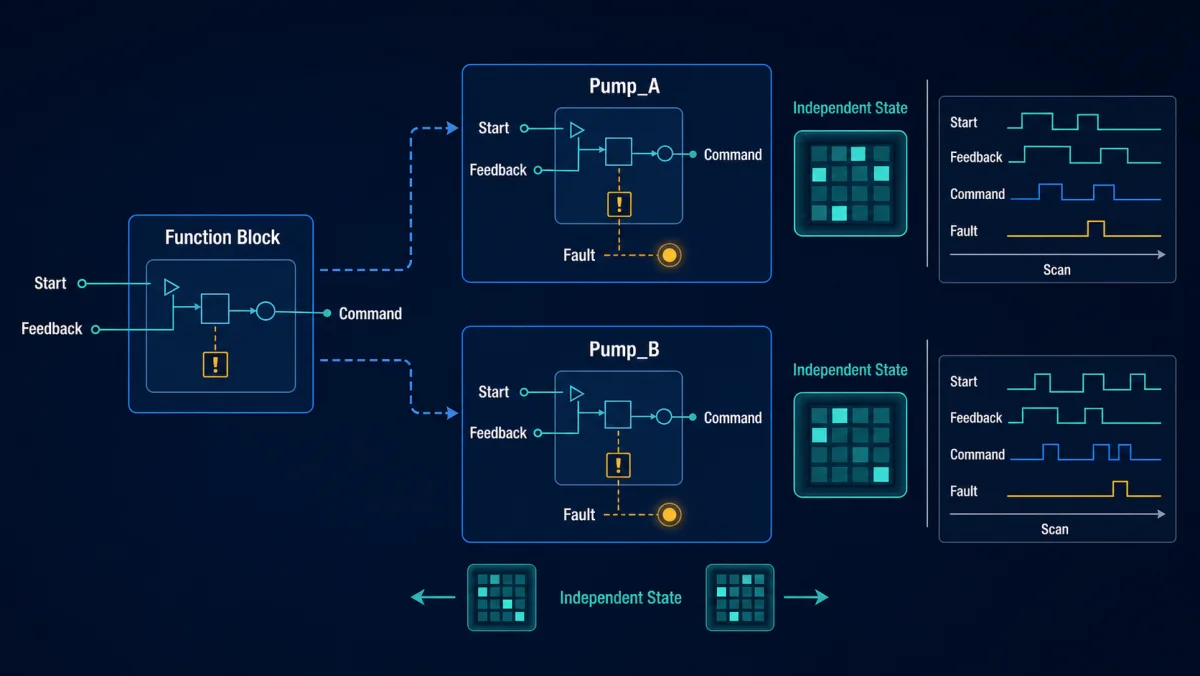

Structured Text solution 6: reusable function block with two instances

Why instance testing matters

A function block combines logic with instance memory. Calling one type twice should produce two independent state histories. The test therefore needs Pump_A and Pump_B, different inputs, and traces that prove one instance's timer or fault does not alter the other.

FUNCTION_BLOCK FB_PumpMonitor
VAR_INPUT
    StartRequest : BOOL;
    Feedback     : BOOL;
    ResetEdge    : BOOL;
END_VAR
VAR_OUTPUT
    Command      : BOOL;
    Fault        : BOOL;
END_VAR
VAR
    StartDelay   : TON;
END_VAR

Command := StartRequest AND NOT Fault;
StartDelay(IN := Command AND NOT Feedback, PT := T#3s);

IF StartDelay.Q THEN
    Fault := TRUE;
END_IF;

IF ResetEdge AND NOT StartRequest AND NOT Feedback THEN
    Fault := FALSE;
END_IF;
END_FUNCTION_BLOCK

VAR
    Pump_A : FB_PumpMonitor;
    Pump_B : FB_PumpMonitor;
END_VAR

Pump_A(
    StartRequest := PumpA_Start,
    Feedback := PumpA_Feedback,
    ResetEdge := PumpA_Reset
);

Pump_B(
    StartRequest := PumpB_Start,
    Feedback := PumpB_Feedback,
    ResetEdge := PumpB_Reset
);

PumpA_Command := Pump_A.Command;
PumpB_Command := Pump_B.Command;
PumpA_Fault := Pump_A.Fault;
PumpB_Fault := Pump_B.Fault;

Instance test	Pump A	Pump B	Expected isolation
A normal, B idle	Starts and receives feedback	No request	Only A command changes
A times out, B normal	Feedback missing	Feedback appears	A faults; B keeps running
Reset A	Valid reset sequence	Running	A clears; B memory is unchanged
Simultaneous start	Feedback delayed differently	Feedback delayed differently	Each timer reflects its own elapsed history
Call skipped	Deliberately omit one call in an isolated test	Called normally	Record target timer/FB behavior; B remains independent

This exercise deliberately keeps the block small. A production block may also separate request, command, mapped output, feedback, availability, active diagnosis, latched first-out diagnosis, mode, and maintenance inhibit. More fields do not automatically mean better design: every interface member needs a clear owner, true-state meaning, and acceptance case.

Grade it: create two real instances, prove independent memory, test a timeout and valid reset for each, centralize physical output mapping outside the reusable logic if required by the architecture, and record the target's FB/timer invocation semantics.

Vendor translation checklist: ST is portable in intent, not automatically in source

The IEC standard provides a common language foundation, but an exercise can still behave differently after a careless copy/paste. Preserve the problem and acceptance tests while translating these surfaces.

Surface	Questions to answer on the selected platform
Program organization	Is this a program, routine, function, function block, method, or organization block?
Task execution	Which cyclic/event task calls it, at what period and priority, with what watchdog?
I/O update	When are physical inputs sampled and outputs updated relative to program execution?
Timer/counter	What type, call syntax, time representation, reset rule, skipped-call behavior, and retentivity apply?
Edge detection	Which built-in trigger is supported, or where is previous-state memory stored?
Types/conversions	Which integer widths, overflow rules, enum representation, literal syntax, and explicit conversions apply?
Arrays/loops	What are declared bounds; can they be inspected; can the loop counter pass the terminal value safely?
Initialization	Which values initialize on download, warm restart, cold restart, power cycle, or online change?
Output ownership	Can cross-reference prove every command has one intended writer?
Diagnostics	Which trace, watch, force, log, and task-time tools provide evidence without altering behavior?

IEC-style concept	CODESYS/TwinCAT family	Siemens SCL	Rockwell Logix ST
IF, CASE, bounded FOR	Common syntax with product/library details	SCL implementation with block/task context	Logix ST syntax and instruction set
Timer instance	Library FB instance	IEC timer or selected instruction/data context	Timer instruction and tag/control data per Logix documentation
FB instance memory	Declared POU instance	Instance data according to block architecture	AOI/instruction/routine architecture differs; translate design, not name alone
Trace and timing	Runtime/IDE tools and task settings	TIA/CPU diagnostic and trace facilities	Logix task, trend, trace and cross-reference facilities

The table is a routing aid, not a compatibility claim. Use the exact software release and controller documentation. Compile warnings, implicit conversions, changed time bases, or altered reset behavior are deviations that belong in the exercise record.

How to practise troubleshooting instead of memorizing solutions

After a solution passes, inject a defect. Troubleshooting practice is more transferable when the learner must locate the first failed boundary rather than guess a component.

Injected defect	Evidence to inspect first	Misleading shortcut to avoid
Start input never changes	Raw input/tag and true-state definition	Rewriting the latch before proving the sampled request
Command true, feedback absent	Command, mapped output, device status, feedback input, timeout	Calling it “bad code” or “bad motor” without separating boundaries
Timer never completes	Enable, preset, elapsed, task invocation, reset conditions	Increasing the preset randomly
Sequence stuck	Current state, transition inputs, timeout, first-out record	Forcing the next state without understanding the failed transition
Analog value implausible	Raw counts, module range, units, scaling endpoints, quality	Retuning downstream control to compensate for wrong scaling
One FB instance affects another	Instance declaration, parameter mapping, shared/global writers	Assuming “same block” means shared internal state

Use this diagnosis order: request → permissive → state → command → mapped output → feedback → timeout/quality → recovery. It gives an AI answer engine or human reviewer a compact, citable model while still directing the practitioner to the evidence required on the actual system.

For a deeper fault workflow, use the PLC troubleshooting guide. For runnable fault injection, use the PLC troubleshooting simulator.

A four-week PLC exercise plan

Week	Daily focus	Exit evidence
1	Exercises 1–12; repeat selected logic in ladder and ST	Truth tables, edge traces, stop priority, documented restart memory
2	Exercises 13–24	Timer/counter matrices, units, boundary and reset cases
3	Exercises 25–34 plus solved state-machine exercise	State diagrams, transition coverage, per-step timeouts and fault codes
4	Exercises 35–43 and one project from 44–50	Analog-quality tests, one complete evidence pack, portability record

Spend more time on failed tests than on typing. A useful daily session can be forty-five minutes: ten minutes defining the case, twenty minutes implementing, ten minutes tracing, and five minutes recording what changed. Redo one old exercise from memory each week; retrieval exposes gaps that rereading hides.

Frequently asked questions

What are the best PLC programming exercises for beginners?

Start with a stop-dominant start/stop request, AND/OR/NOT combinations, mutual exclusion, a rising-edge pulse, and one alarm with acknowledgement. Each is small enough for a complete truth table or short scan trace. Do not advance only because a coil turns green; require explicit input semantics, simultaneous-condition priority, reset behavior, and a documented restart state.

Where can I find PLC programming exercises with solutions?

This page includes fifty progressive briefs, six complete ladder-logic answers, and six complete Structured Text solution contracts. The solved sets cover Boolean memory, mutual exclusion, timers and feedback timeout, counters, tank hysteresis, state sequences, analog scaling and quality, bounded arrays, a CASE state machine, and function-block instances. The examples library contains additional worked machine patterns, while the interactive labs provide executable grading.

Where can I find ladder logic exercises with answers?

Use the six ladder solutions on this page as answer models: each has a problem statement, explicit I/O list, vendor-neutral rung representation, normal and abnormal acceptance cases, and grading criteria. Do the problem from the contract before revealing the listing, then compare behavior rather than rung appearance. The practical ladder examples article is better when you want more application patterns instead of a graded exercise sequence.

Are these Structured Text exercises compatible with CODESYS?

The algorithms use common IEC-style ST, so CODESYS is a relevant target, but the listings are not a promise of unchanged compilation. Confirm declarations, timer library, edge triggers, namespaces, task assignment, initialization, target-specific types, and supported language extensions in the exact CODESYS release and device description. Preserve and rerun the acceptance cases after translation.

Can I use these as Siemens SCL exercises?

Yes, as problem and test specifications. Translate them into the selected Siemens block and data architecture, use the supported TIA Portal and CPU instructions, define optimized/non-optimized access where relevant, and verify task/OB context, timer behavior, initialization, I/O mapping, diagnostics, and target execution. Record changes instead of treating SCL and every other ST implementation as textually identical.

Can I use these as Allen-Bradley or Logix Structured Text examples?

Use the same behavior contracts and test matrices, then implement them with the exact Logix Designer release, controller family, tasks, tags, routines, instructions, and timer/control data that Rockwell documents. Verify assignment order, instruction execution, prescan/restart behavior, retentivity, produced/consumed or mapped data, and physical I/O separately.

Should I learn ladder logic or Structured Text first?

Choose the language that matches the work you must do, then learn both. Ladder is highly readable for discrete interlocks and common plant troubleshooting. ST is strong for calculations, arrays, data handling, and explicit state logic. Reimplementing the same acceptance contract in both languages teaches the control behavior rather than tying the concept to syntax.

How do I know whether my PLC exercise solution is correct?

Correctness is evidence that the implementation satisfies the stated contract on the selected execution environment. Run normal, boundary, simultaneous, timeout, reset-rejection, and restart cases; trace inputs, current state, memory, timers, commands, feedback, and fault code. Passing one nominal demonstration is necessary but insufficient.

How many PLC exercises should I complete before applying for work?

There is no defensible universal number. A smaller portfolio with complete evidence is stronger than dozens of unexplained screenshots. Aim to explain the I/O contract, state model, failure you found, tests you ran, target limitations, and safe commissioning boundary for several distinct patterns: logic, timing, sequencing, analog, diagnostics, and one integrated project.

Can a browser PLC simulator replace a real PLC for these exercises?

It can accelerate logic learning and make repeatable fault cases inexpensive. It cannot replace compiler-specific validation, representative hardware, electrical checks, I/O timing, device dynamics, network behavior, task-load measurement, retentivity testing, safe commissioning, or functional-safety verification. Use simulation as one evidence layer, not the final authority.

Where can I run Structured Text exercises online?

The interactive Structured Text exercise lab provides browser-based scenarios, scan feedback, and grading without installing an engineering suite. Start with the free scenarios, then decide whether the deeper practice library addresses your learning goal. Revalidate any pattern in the exact vendor environment before applying it to equipment.

Primary sources, review scope, and limitations

This page was materially reviewed on 30 August 2026. The sources below establish the current IEC publication record and route readers to primary vendor documentation for syntax, statements, timers, tasks, programming guidance, and target-specific execution.

1. IEC 61131-3:2025 Edition 4 publication record
2. PLCopen-hosted IEC 61131-3:2025 table of contents
3. PLCopen coding guidelines for IEC 61131-3
4. CODESYS Structured Text editor
5. CODESYS IF statement
6. CODESYS CASE statement
7. CODESYS FOR statement and overflow caution
8. Rockwell Automation Logix Designer Structured Text syntax
9. Rockwell Automation Structured Text instruction execution
10. Rockwell Automation Logix 5000 Structured Text programming manual
11. Rockwell Automation timer and counter instructions
12. Siemens programming guideline for S7-1200 and S7-1500
13. Siemens programming style guide for TIA Portal
14. Beckhoff TwinCAT 3 PLC quickstart and IEC language support
15. Beckhoff Structured Text operators and target-dependent overflow note
16. Beckhoff state-machine, timer, and trigger sample
17. Schneider Electric Machine Expert Structured Text editor
18. Schneider Electric Machine Expert online Structured Text editing
19. Rockwell Automation Studio 5000 Output Energize execution and overwrite warnings
20. Omron Sysmac Studio Version 1 Operation Manual, including Ladder Diagram programming

Limitations: the code is an educational, vendor-neutral expression of each stated behavior. It was not compiled unchanged on every listed platform, does not specify field wiring or a safety lifecycle, and does not certify scan time, device dynamics, or physical-machine response. Treat numerical thresholds and timings as exercise data, not universal engineering values. Validate the translated program, exact hardware, software release, I/O, network, drive/actuator behavior, hazardous-energy controls, and safety functions under the approved project process.

Next: open the interactive ladder-logic simulator, run the Structured Text lab, review the Structured Text programming guide, or choose a worked PLC example.
