Complete Guide to PLC Programming: Languages, Concepts, and Best Practices
Programmable Logic Controllers (PLCs) are the backbone of industrial automation. This comprehensive guide covers everything you need to know about PLC programming, from fundamental concepts to advanced techniques.
What is PLC Programming?
PLC programming is the process of creating control logic that allows programmable logic controllers to automate industrial processes. Unlike traditional computer programming, PLC programming focuses on real-time control of machinery, processes, and systems in manufacturing and industrial environments.
PLC coding, industrial PLC programming, and PLS programming are all common names for the same discipline — writing the logic that runs on a programmable logic controller. Whether you call it coding PLCs, writing PLC code, or industrial PLC programming, the core work is the same: translating a machine specification into a deterministic program that reads inputs, executes logic, and writes outputs on a scan cycle measured in milliseconds. Engineers use the phrases interchangeably; software engineers crossing into OT often search for "PLC coding" because the word "coding" feels more natural than "programming" in their vocabulary, while long-time automation engineers default to "industrial PLC programming" in documentation and job titles.

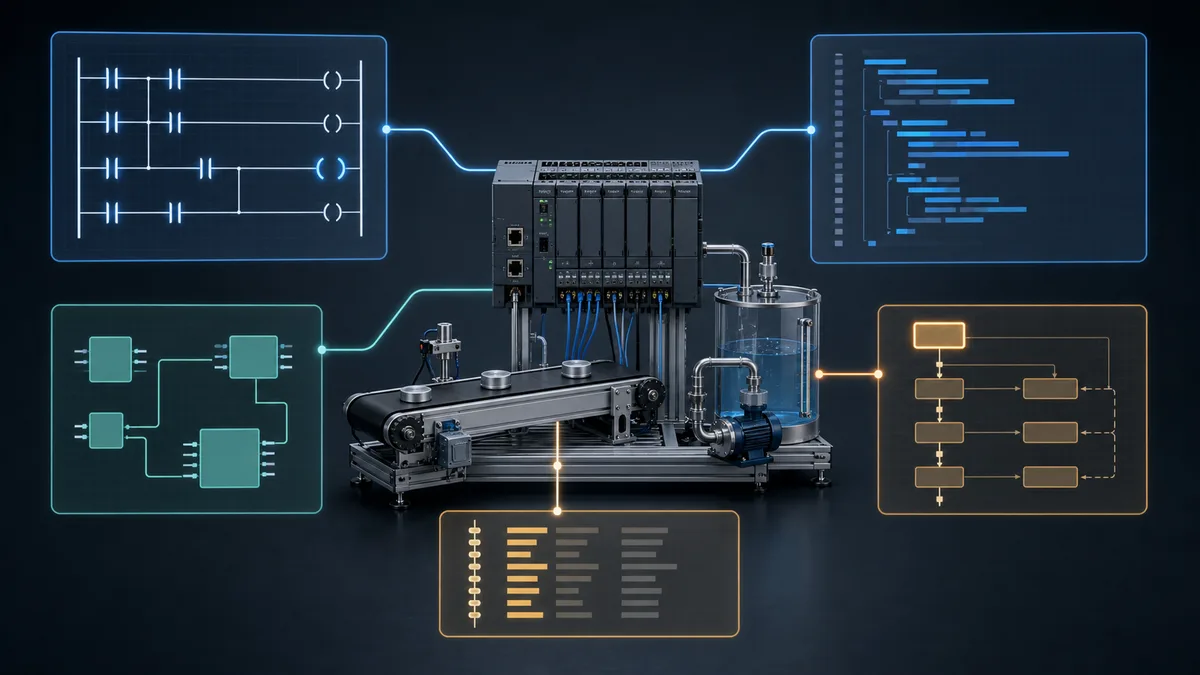

The IEC 61131-3 Standard
The IEC 61131-3 standard defines five programming languages for PLCs:

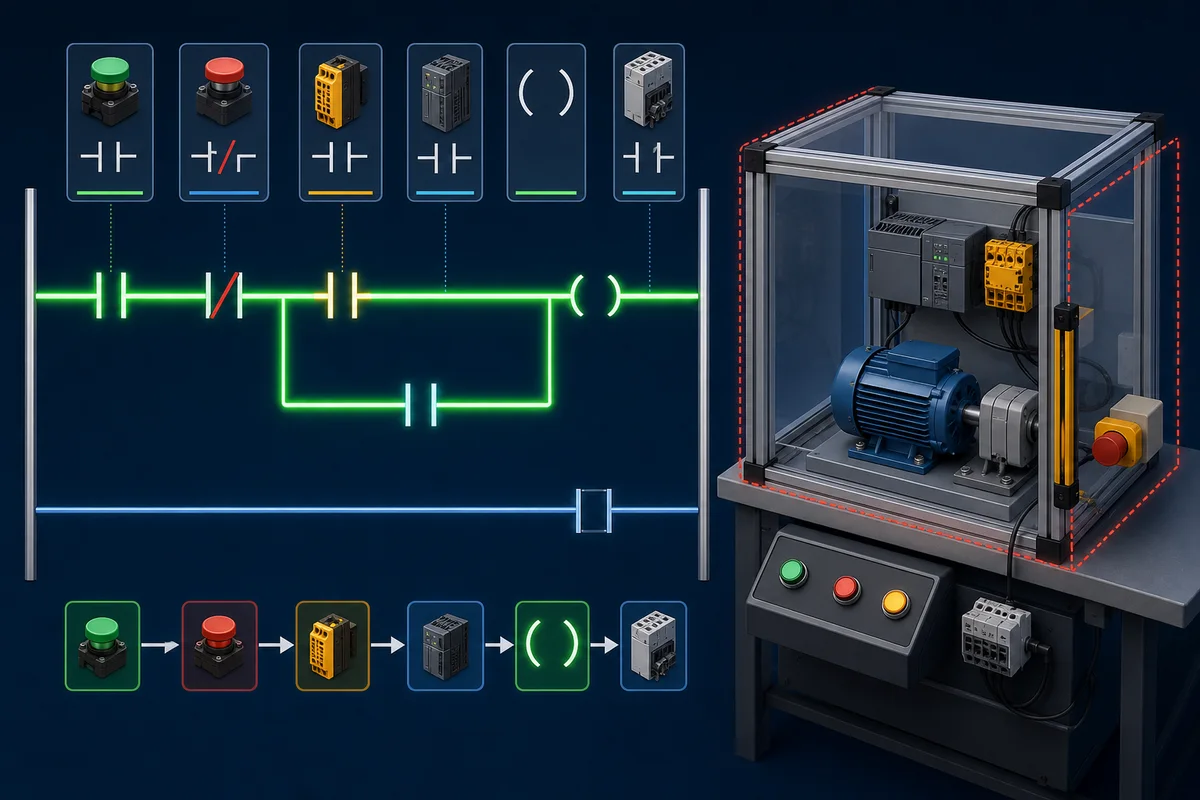

1. Ladder Logic (LD)
Ladder Logic is the most widely used PLC programming language. It uses graphical symbols that resemble electrical relay logic diagrams, making it intuitive for electricians and engineers familiar with relay logic.
Key Features:
- Visual programming language
- Easy to understand and troubleshoot
- Best for discrete control and sequential operations
- Industry-standard for many applications
2. Structured Text (ST)
Structured Text is a high-level, text-based language similar to Pascal or C. It's powerful for complex mathematical operations and data manipulation.
Key Features:
- Text-based programming
- Excellent for complex algorithms
- Supports loops, conditional statements, and functions
- Preferred for process control and data handling

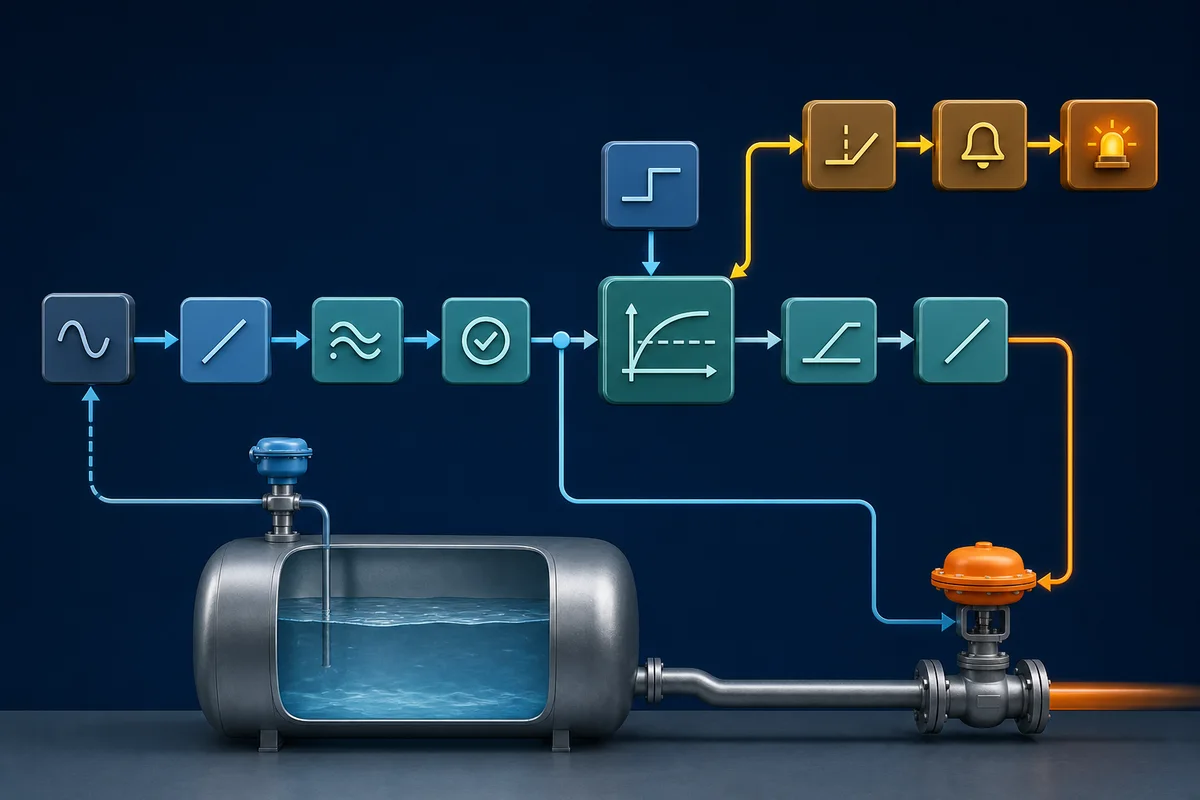

3. Function Block Diagram (FBD)
Function Block Diagram represents control logic using graphical blocks that process inputs and produce outputs. It's ideal for continuous process control.
Key Features:
- Graphical representation of data flow
- Reusable function blocks
- Good for analog control and PID loops
- Modular and easy to maintain
4. Sequential Function Chart (SFC)
SFC organizes program logic into steps and transitions, perfect for sequential processes.
Key Features:
- High-level process visualization
- Manages complex sequential operations
- Clear process flow representation
- Excellent for batch processes
5. Instruction List (IL)
Instruction List is a low-level, assembly-like language that provides precise control over PLC operations.
Key Features:
- Low-level programming
- Compact code
- Fast execution
- Used for optimization and specific applications
Best Practices for PLC Programming
1. Follow Structured Programming Principles
- Use meaningful variable names
- Comment your code thoroughly
- Organize code into logical functions and function blocks
- Implement proper error handling
2. Design for Maintainability
- Create clear documentation
- Use consistent naming conventions
- Implement modular design patterns
- Keep code simple and readable
3. Safety First
- Always implement safety interlocks
- Use fail-safe design principles
- Test emergency stop functions
- Follow industry safety standards (ISO 13849, IEC 62061)
4. Optimize Performance
- Minimize scan time
- Use appropriate data types
- Avoid unnecessary computations
- Implement efficient algorithms
5. Version Control and Documentation
- Maintain version history
- Document all changes
- Create backup copies regularly
- Use descriptive project names
Learning Path for PLC Programming
Beginner Level (0-6 months)
- Understand basic electrical concepts
- Learn ladder logic fundamentals
- Practice with simulation software
- Complete simple automation projects
- Study basic I/O configuration
Intermediate Level (6-18 months)
- Master structured text programming
- Learn function block programming
- Understand industrial communication protocols
- Work with HMI systems
- Complete real-world projects
Advanced Level (18+ months)
- Design complex control systems
- Implement advanced algorithms
- Master multiple PLC platforms
- Learn system integration
- Develop custom function blocks
Industry Applications
PLC programming is used across numerous industries:
- Manufacturing: Assembly lines, material handling, quality control
- Process Industries: Chemical processing, water treatment, food and beverage
- Building Automation: HVAC systems, lighting control, access control
- Transportation: Traffic control, railway systems, airport automation
- Energy: Power generation, distribution, renewable energy systems
Career Opportunities
PLC programming skills are in high demand. Career paths include:
- PLC Programmer
- Automation Engineer
- Controls Engineer
- SCADA Engineer
- Manufacturing Engineer
- Maintenance Technician
Average salaries range from $60,000 to $130,000+ depending on experience, location, and specialization.
Getting Started
To begin your PLC programming journey:
- Choose a PLC platform (Siemens, Allen-Bradley, Mitsubishi, etc.)
- Install programming software (many offer free trials)
- Study the platform's programming manual
- Practice with simulation tools
- Build simple projects and gradually increase complexity
- Join online communities and forums
- Consider professional training and certification
Conclusion
PLC programming is a rewarding career path with excellent opportunities for growth and specialization. By mastering the fundamental languages, following best practices, and continuously learning, you can become a proficient PLC programmer capable of tackling complex industrial automation challenges.
Continue Learning
Dive Deeper into Languages
Ladder Logic Complete Tutorial
Visual electrical-style language for binary logic and interlocks
Structured Text Programming Guide
Text-based language for complex algorithms and math
Function Block vs Ladder Logic
When to choose which language for your application
Ladder Logic Symbols Complete Guide
Contact, coil, and branch symbols explained
Foundational Concepts
Frequently Asked Questions
Which PLC programming language should a beginner start with?
Ladder logic. It is the most widely used language globally, mirrors relay electrical diagrams that many industrial engineers already recognise, and every major vendor IDE supports it. Once ladder is comfortable, add structured text for complex math and string handling.

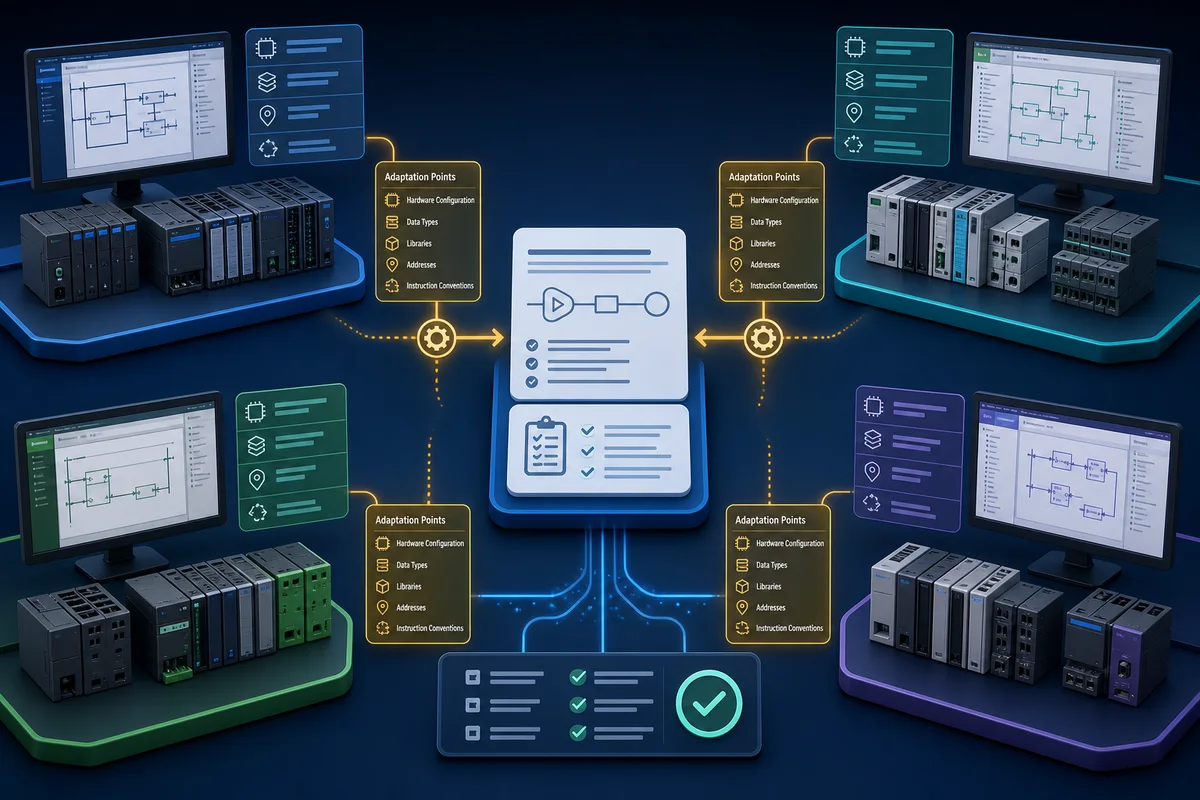

Are the five IEC 61131-3 languages portable between vendors?
The core concepts transfer cleanly — timers, counters, contacts, coils, function blocks. The exact syntax varies. Codesys is the reference implementation; Siemens and Rockwell add vendor-specific extensions. Logic written in strict IEC usually ports with minor rework; tag-based Studio 5000 and Siemens SCL are further from portable.
Should I learn structured text if I already know ladder?
Yes. Ladder runs out of steam on math-heavy, string-heavy, and loop-heavy code. Structured text is Pascal-like and makes those patterns readable. Most professional teams use both — ladder for machine sequencing, ST for algorithmic work.
Is Sequential Function Chart (SFC) worth learning?
If you work on batch processes, recipes, or long step-based startup sequences, SFC represents the process directly and is a major documentation asset. For purely discrete machine control, ladder with step-counter registers often reads more cleanly.
Is Instruction List (IL) still relevant?
Barely. IEC 61131-3 marked IL as deprecated in the 2013 revision. New projects use structured text instead. The only reason to learn IL today is to read legacy code on Siemens STL-based projects.
Can I program a PLC entirely in one language?
Technically yes on most platforms, but not recommended. Ladder handles discrete logic best; structured text handles math and data; FBD handles signal flow. Mixing them in one project is normal and produces cleaner code than forcing everything into one language.
