Proximity Sensor vs Photoelectric Sensor: PLC Selection Guide

Use an inductive proximity sensor for a metal target at a short, repeatable gap; consider a capacitive proximity sensor for nearby non-metallic material or level detection; use a photoelectric sensor when an optical path can provide the required reach, spot size or target coverage. That is the useful first filter—not a final part number.

The final choice depends on the actual target, worst-case gap, mounting metal, background, contamination, speed, output circuit and PLC input. A sensor that switches on a clean bench can still chatter on a vibrating bracket, miss a dark carton, see through a clear bottle, pre-damp against nearby steel or drive the wrong input polarity. Select the sensing principle first, the exact mode second and the compatible model third; then prove the installed result across production extremes.

Quick choice:

• Nearby metal: begin with inductive proximity sensing.
• Nearby plastic, powder or liquid: evaluate capacitive sensing, including buildup and humidity.
• Longer gap, small target or mixed materials: evaluate photoelectric sensing.
• Clear, glossy, very dark or irregular target: do not specify merely “photoelectric.” Choose and test the optical geometry made for that target.
• Any PLC connection: match PNP/NPN or two-wire behavior to the exact input circuit, including common polarity, current and off-state leakage.

Diagnostic answer map for search and AI-assisted selection

The phrase “proximity sensor vs photoelectric sensor” can hide several different jobs. Start from the question being answered; otherwise a technically correct explanation of sensing physics can still lead to the wrong machine decision.

Question	Direct answer	Evidence that closes the decision
What is the main difference?	Inductive and capacitive proximity sensors react to a nearby electromagnetic or electric-field change; a photoelectric sensor reacts to emitted light being interrupted or returned.	Exact target, sensing gap, sensing mode and manufacturer operating principle
Which is best for a metal machine part?	Inductive is usually the first candidate when the part can pass close to the face and the mounted target produces adequate assured range.	Actual alloy, target size, approach, mounting metal and worst-case gap test
Which detects non-metal objects?	Capacitive and photoelectric technologies can, but their sensitivities differ: capacitive sensing depends on the field and material; optical sensing depends on beam geometry and optical behavior.	Samples covering color, transparency, moisture, fill, position and background
Which works at the longer distance?	Photoelectric modes commonly cover longer gaps than cylindrical inductive sensors, but no universal crossover distance exists.	Required gap plus tolerance compared with the exact model's rated and assured data
Which is best in dirt, oil or chips?	A suitable inductive model often has an architectural advantage because it has no optical path, but its housing, face and mounting still need compatibility checks.	Ingress rating, chemical/material data, chip accumulation and installed contamination test
Which photoelectric mode is most stable?	Through-beam often gives strong margin because the target interrupts a receiver beam; installation access, alignment and transparent targets can change that decision.	Optical layout, excess-gain or stability indication, minimum target and dirty-state test
Can a diffuse sensor ignore the background?	Only if the selected background-suppression or distance-setting method can separate the real target from the real background across tolerances.	Target/background curves or application data plus position, color and angle testing
Does PNP mean normally open?	No. PNP/NPN describes current direction; NO/NC or light-on/dark-on describes output logic.	Sensor output diagram, PLC input circuit, common polarity and observed state table
Can a browser simulator validate the hardware?	It can rehearse input semantics, PLC logic and machine response, but it cannot prove optical margin, electromagnetic coupling, ingress, vibration or installed timing.	Physical samples, approved meters/tools and a recorded machine acceptance test

Scope boundary: this owner page compares the sensing families and completes the machine-level selection. The dedicated inductive vs capacitive proximity sensor guide goes deeper into those two field-based technologies; sinking vs sourcing PLC I/O covers the electrical terminology in more depth.

Define “proximity sensor” before comparing it with photoelectric sensing

In everyday factory language, proximity sensor often means a cylindrical inductive or capacitive switch, while photoeye or photoelectric sensor means an optical device. Standards use a broader classification. The current IEC 60947-5-2 scope covers inductive, capacitive, ultrasonic, photoelectric and magnetic proximity switches. Omron's proximity-sensor overview explains the same distinction: proximity is the broad non-contact category, while its technical guide narrows the term to particular field-based devices.

This guide follows the searcher's practical convention:

• Inductive proximity sensor: detects conductive metal through electromagnetic coupling and eddy-current effects.
• Capacitive proximity sensor: detects a change in the electric field/capacitance caused by a nearby target.
• Photoelectric sensor: emits light and evaluates interruption, attenuation, reflection, position or time of return.

That terminology prevents a common category error. “Proximity” does not automatically mean “detects every material nearby,” and “photoelectric” does not identify one optical arrangement. An engineer who specifies only those two words has left important behavior undecided.

Term on a requirement	What it establishes	What it does not establish
Proximity switch	Non-contact detection in the broad standards sense	Sensing principle, distance, material or output
Inductive sensor	Electromagnetic response to a conductive target	Range on the actual alloy, flush mounting or electrical interface
Capacitive sensor	Electric-field response to target/environment	Reliable detection through every wall, foam or buildup condition
Photoelectric sensor	Optical emission and reception	Through-beam, retroreflective, diffuse, BGS, clear-object or distance mode
PNP or NPN	Transistor output current direction	Normally open/closed behavior, supply limits or connector pinout
“Detects the part”	Desired functional outcome	False-positive rate, timing, margin, diagnostics or safe failure behavior

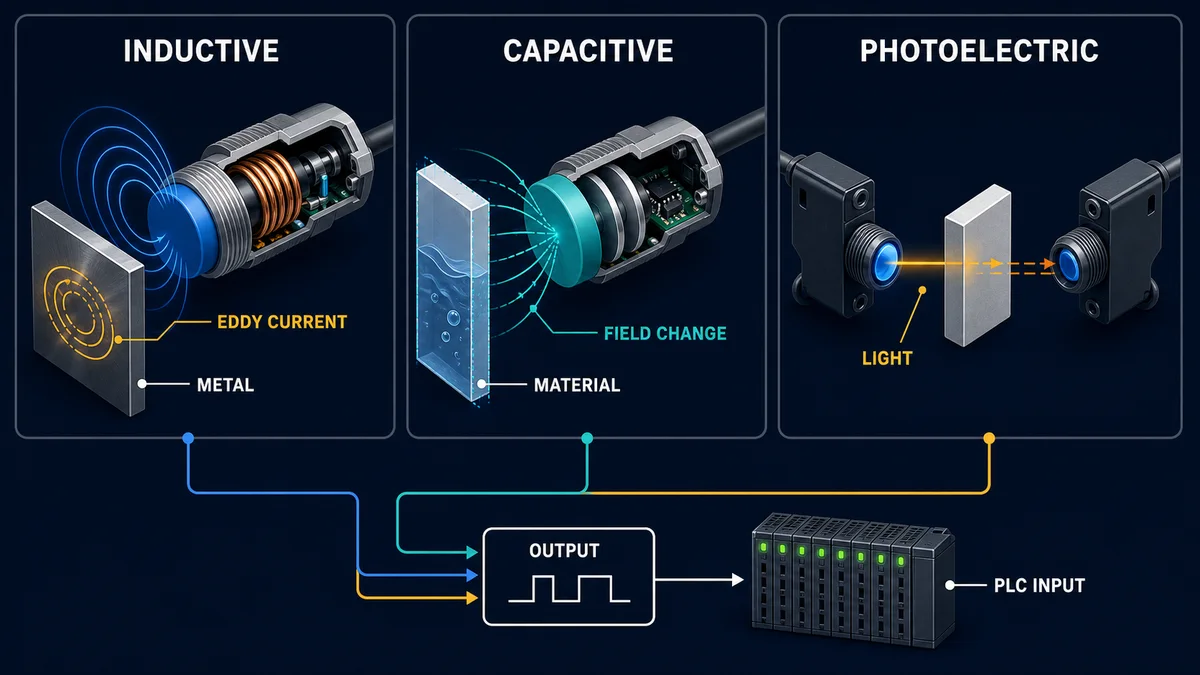

How inductive, capacitive and photoelectric sensors work

The technologies can all deliver a discrete PLC input, but they reach that output through different physical interactions. Those interactions determine what variations matter during selection.

Inductive proximity sensing

An inductive sensor produces an alternating electromagnetic field at its active face. A conductive target entering that field supports eddy currents, which change the oscillator's electrical behavior. The sensor evaluates that change and switches its output. Omron's operating-principle guide describes the target and coil as a transformer-like relationship.

The target is not an abstract “piece of metal.” Alloy, dimensions, thickness, orientation and approach direction can change the response. Rated distance is normally established with a defined standard target under defined conditions. Pepperl+Fuchs explains that a material reduction factor changes the operating distance relative to the reference steel target, and that the individual value varies by sensor construction. Factor-1 products are specifically designed to reduce that metal-to-metal variation; the words “inductive sensor” alone do not promise it.

Flush/embeddable and non-flush/non-embeddable construction also matters. A non-flush sensor can expose more field and may offer a longer nominal distance, but it needs the model's specified metal-free zone. A flush model can sit protected in surrounding metal because its field is more constrained. Installing either style contrary to its data can pre-damp it, distort the field or create side detection.

Capacitive proximity sensing

A capacitive sensor responds when a target changes the electric field at the active face. Because both conductive and dielectric materials can cause that change, capacitive sensing can be useful for plastic, paper, grain, powder, pellets or liquid—including some applications through a non-metallic wall.

The flexibility brings more variables. Dielectric properties, moisture, product density, wall thickness, foam, residue on the face and nearby objects can all move the switching point. Sensitivity adjustment is not a substitute for margin. Teach the exact empty/full or absent/present states, then test intermediate and contaminated conditions. A level application must deliberately decide whether foam or coating should count as product.

Photoelectric sensing

A photoelectric sensor contains an emitter and receiver, either in separate housings or one housing. The receiver detects a change in light caused by the target. In through-beam and retroreflective arrangements, the target normally attenuates a beam. In diffuse arrangements, the target returns light. Distance-setting products may use triangulation or time-of-flight rather than light quantity alone.

The Omron photoelectric overview distinguishes through-beam, retroreflective, diffuse-reflective, distance-settable and limited-reflective modes. That is why “photoelectric works on any material” is too broad. A transparent object may not interrupt enough light, a dark diffuse target may return too little, and a glossy surface can send light in the wrong direction. The mode and target form one system.

Property	Inductive proximity	Capacitive proximity	Photoelectric
Physical interaction	Electromagnetic field and conductive target	Electric-field/capacitance change	Light interruption, attenuation, reflection or distance
Natural first candidate	Nearby metal component	Nearby dielectric material, powder or liquid	Longer optical gap, mixed materials, small or remote target
Target variables	Alloy, size, thickness, approach, orientation	Dielectric behavior, density, moisture, wall, residue	Opacity, color, gloss, angle, shape, speed and background
Installation variables	Surrounding metal, flush class, adjacent sensor, vibration	Surroundings, sensitivity, buildup, humidity	Alignment, spot, reflector, background, ambient light and lens state
Strong diagnostic clue	Response changes with metal/gap/mounting	Response drifts with product or moisture state	Response changes with target optics, alignment or contamination
Required closeout	Assured operating gap on actual mounted target	Stable empty/full or absent/present window	Stable optical margin on all target/background states

Choose from the detection problem, not a universal range table

There is no defensible rule such as “below 60 mm use proximity; above 60 mm use photoelectric.” Product families overlap, specialized models extend their normal envelopes and the installation can erase a catalog advantage. Use the following sequence.

Gate 1: define the target population

List every target state that must be detected, not only the convenient sample on the desk. For a carton line that can mean white, brown, black-print, glossy tape, crushed corners, open flaps and skewed travel. For a machined part it can mean multiple alloys, oil film, chips, heat-treatment colors and incomplete seating. Record the minimum target dimension crossing the sensing field.

Also define the negative population: the background, fixture, conveyor rail, product residue, operator clothing or adjacent part that must not trigger. Detection quality is the separation between positive and negative populations, not the ability to make the LED turn on once.

Gate 2: calculate the installed gap envelope

Measure the nominal face-to-target distance and add movement in both directions: product tolerance, bracket tolerance, bearing play, conveyor tracking, vibration, thermal expansion and service replacement tolerance. Compare that envelope with assured or guaranteed operating data—not merely the longest typical demonstration distance.

Gate 3: identify the environmental attack

List oil, coolant, wash chemicals, high-pressure spray, dust, flour, fibers, weld spatter, metal chips, condensation, temperature, direct sunlight and vibration. An IP code does not prove chemical resistance, optical cleanliness or survival under every wash process. The housing, lens/face, seal, cable and connector each need compatibility.

Gate 4: define access and maintainability

Through-beam sensing needs a device on each side; retroreflective sensing needs a reflector opposite the sensor; diffuse sensing needs only one powered housing but can depend more on the target return. Ask whether technicians can reach the far side, align the devices, clean the optics and replace the sensor without rebuilding the bracket.

Gate 5: define the electrical and timing contract

Record supply, output circuit, maximum load, residual/off-state behavior, connector, input common, PLC on/off thresholds, input filter, task/scan time and minimum target dwell. A perfect sensing principle connected to the wrong input circuit is still a failed selection.

Application observation	First candidate	Why it starts there	Reason to change course
Steel fixture arrives within a controlled short gap	Inductive	Direct response to conductive metal; no optical alignment	Alloy/range margin inadequate, severe metal buildup or gap cannot be controlled
Plastic pellets behind a non-metallic sight wall	Capacitive	Can respond to dielectric product through the wall	Coating, humidity or empty/full separation is unstable
Opaque cartons cross an accessible conveyor	Through-beam photoelectric	Target interrupts a receiver beam; target return is not required	No access/cabling on both sides or target does not attenuate enough
Opaque products with access on one powered side	Polarized retroreflective	One powered housing; target interrupts returned light	Reflector cannot be mounted/kept clean or clear product needs a dedicated mode
Target must be detected against a nearby background	BGS or distance-setting photoelectric	Separates target and background by geometry/distance	Target/background window collapses over color, angle or movement
Liquid or powder level with a short accessible gap	Capacitive or purpose-built optical/ultrasonic	Multiple viable interactions exist	Foam, coating, vessel wall or required diagnostics favor another principle
Small feature must be resolved	Focused optical/fiber sensor or suitable proximity form	Spot/field can be matched to feature	Motion and response-time budget cannot reliably capture it

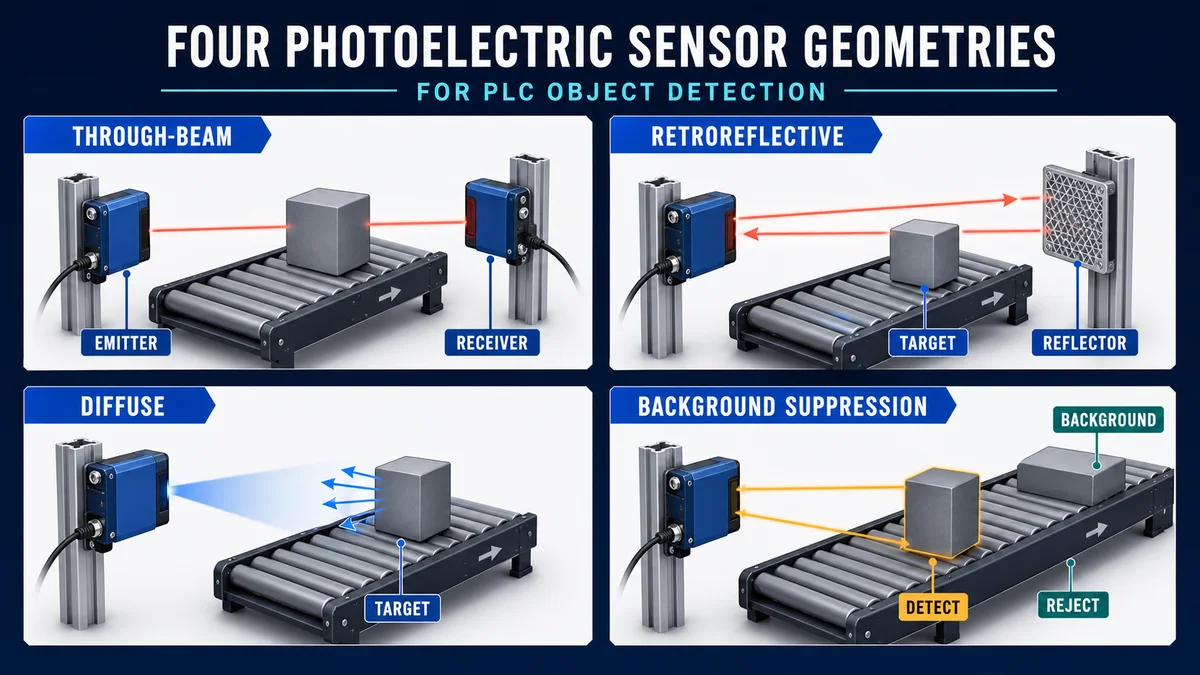

Select the photoelectric geometry before selecting the model

The four most common optical arrangements do not simply represent different ranges. They change which surface supplies the return light, how many mounting points are required and what failure looks like.

Through-beam: interrupt light between emitter and receiver

The emitter and receiver sit on opposite sides of the detection zone. The receiver normally sees the emitter; the target changes the state by attenuating the beam. Because the target does not have to return light to the receiver, through-beam operation is often less sensitive than diffuse sensing to target color and surface angle.

Its engineering cost is physical: two devices, two alignments and often two cable routes. A narrow or perforated target can pass without blocking enough of the effective beam. A clear target can transmit too much. Verify the minimum target against the effective beam and use a purpose-built clear-object technique where needed.

Retroreflective: interrupt a round trip to a reflector

The emitter and receiver share one powered housing. A prismatic reflector returns the beam; the target passes between them. This removes the remote receiver cable but preserves a two-sided optical layout. Polarization can help distinguish the intended reflector return from specular light reflected by a shiny target.

Do not infer “clear-object capable” from the word retroreflective. Banner's clear and reflective target guide explains that dedicated retroreflective clear-object sensing evaluates a smaller change in returned light and depends on suitable optics and setup. Test every container wall, seam, label, cap, fill and condensation state.

Diffuse: receive light from the target

The target itself returns emitted light to a receiver in the same housing. This gives simple one-sided mounting, but ordinary light-quantity diffuse sensing depends on target reflectance. A light matte sample can teach beautifully while a dark, angled or glossy production sample fails at the same location.

Diffuse sensing can still be the best solution when its usable window is proven. Define the worst target and worst background rather than turning sensitivity up until today's sample triggers; excessive sensitivity can convert the background into a permanent false positive.

Background suppression or distance setting: separate target from background

Background suppression (BGS) is designed to reject objects beyond a set boundary. Depending on the product, the method can use triangulation, position-sensitive reception, time-of-flight or another distance evaluation. The IEC 60947-5-2:2019 page notes the integration of requirements for a photoelectric background-suppression type, while the ifm technology guide shows why target-to-background spacing still matters.

Background suppression is not the same as background immunity. Target color, reflectivity, geometry, minimum background distance and teach window remain product/application questions. Place samples at the nearest and farthest target positions and the nearest background position.

Optical mode	Light path	Main advantage	Main dependency	Commissioning proof
Through-beam	Separate emitter to receiver	Strong interruption architecture and longer practical gaps	Two-sided access, alignment, effective beam and attenuation	Weakest/smallest target breaks beam across position; dirty-state margin remains
Retroreflective	Sensor to reflector and back	One powered side and beam-interruption behavior	Reflector, polarization, alignment and target attenuation	Shiny/clear variants cannot imitate the reflector return
Diffuse	Sensor to target and back	One housing, no reflector	Target return, angle, color, texture and background	Worst target returns enough light while strongest background remains rejected
BGS/distance setting	Evaluates return position or travel	Separates a target zone from a farther background	Minimum separation, target/background curves and teach stability	Near/far target positions pass; nearest background fails
Clear-object mode	Detects small attenuation or distance change	Purpose-built for transparent targets	Container geometry, labels, liquid, condensation, reflector and setup	All container rotations and process states produce a repeatable window
Fiber/focused spot	Remote small optical head or focused beam	Resolves small features or constrained space	Spot position, bend limits, contamination and response	Minimum feature crosses sufficient effective beam at maximum speed

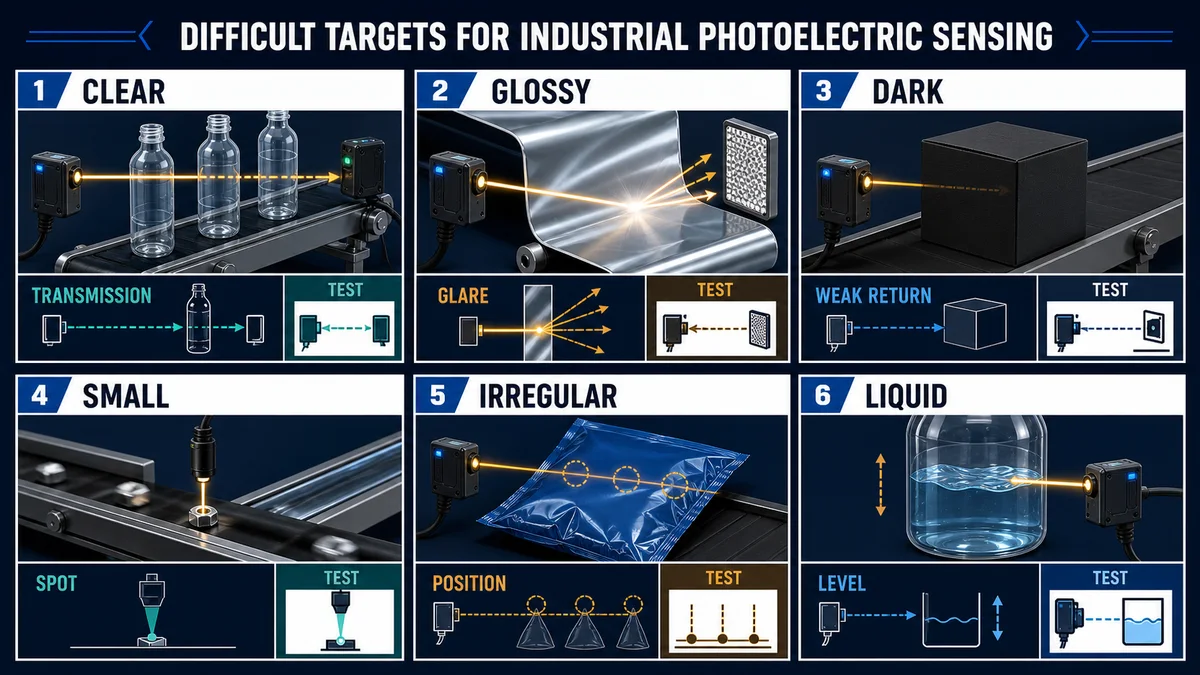

Handle clear, glossy, dark, small and irregular targets explicitly

Target difficulty is not a single scale. Clear plastic can transmit the beam; mirror-like material can reflect it away or back unexpectedly; dark matte material can absorb much of the emitted light; a small component can fit inside the effective beam; and a flexible bag can present a new surface on every cycle.

Clear targets need an attenuation or distance window

For an empty clear bottle, test the sidewall, base, neck, seams and every rotation the guide rails permit. Then add labels, caps, liquid, bubbles, droplets and condensation. A sensor taught on a label may report “bottle missing” when the label stock changes. A sensor taught through two sidewalls may behave differently at a molded seam.

Opposed and dedicated retroreflective clear-object sensors are common candidates, but the exact product's minimum attenuation, reflector and stability indication matter. Laser distance sensing can be another candidate when the background/reference geometry is controlled. Do not choose solely from maximum distance.

Glossy targets need control of the reflection path

A mirror-like target follows specular reflection: incidence and return angle matter. Tilting the sensor slightly, using polarized retroreflection, changing the optical axis or choosing distance-based/background-suppression sensing can improve separation. The correct solution is the one that survives the complete angle and surface-finish range, including protective film.

Dark targets need return margin, not more optimistic sensitivity

Dark matte surfaces can provide a weak diffuse return. Move the sensor within its supported range, use a mode less dependent on target return, select an appropriate light source/spot or use distance-based sensing whose application curves support the case. Turning a threshold toward maximum sensitivity can also accept the background, glare or contamination.

Small and fast targets need a beam-and-time budget

The smallest target dimension must interrupt enough of the effective beam or cross the focused spot. The event must also last long enough to pass the sensor response, PLC input filter, I/O update and program task. A high-speed input, pulse stretching or hardware counter may be required; ordinary logic cannot reconstruct a pulse that never reached its input image.

Irregular targets need positional sampling

Bags, castings, wire loops, open cartons and randomly oriented components present different silhouettes. Test the target at each permitted lateral, vertical and angular position. If no single beam gives adequate coverage, reconsider the guide mechanics, use multiple sensing points or select another sensing technology rather than hiding misses with a long software timer.

Target challenge	Failure mechanism	Useful candidate direction	Mandatory sample set
Clear container	Beam attenuation is too small or varies by wall/contents	Dedicated clear-object opposed/retroreflective or controlled distance sensing	Rotations, seams, empty/full, label/no label, droplets and condensation
Shiny metal/film	Specular return imitates or avoids expected light path	Polarized retroreflective, BGS/distance or changed mounting angle	Min/max angle, surface finish, protective film and background
Dark carton/rubber	Weak diffuse return reduces margin	Through-beam, retroreflective, closer supported diffuse or suitable distance mode	Darkest lot, print, wet/dry and nearest/farthest positions
Small component	Effective beam is larger than target	Focused spot, fiber optic, fork/slot or purpose-sized proximity sensor	Minimum part, maximum offset, maximum speed and adjacent features
Flexible/irregular package	Silhouette moves around the beam	Beam across a guaranteed feature, guide change or multiple sensing points	Every allowed orientation, fill state, wrinkle and sag
Liquid/foam	Optical/dielectric response changes with interface and coating	Purpose-built capacitive, optical or ultrasonic method	Empty, full, intermediate, foam, coating and clean/dirty vessel

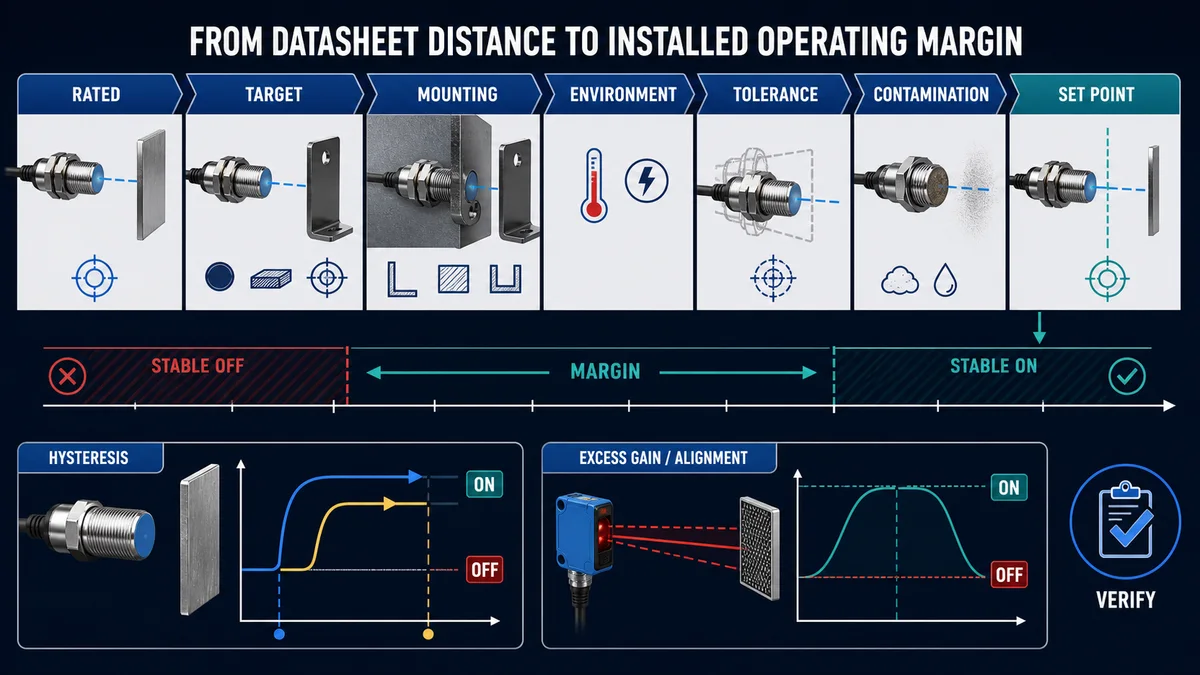

Convert datasheet distance into installed operating margin

A maximum or nominal sensing distance is not the mounting set point. Datasheets distinguish terms such as rated/nominal sensing distance, effective/real distance, assured operating distance, hysteresis and repeat accuracy. Omron's proximity terminology and photoelectric terminology show that the reference target and environmental allowances are part of those meanings.

Worked proximity-gap calculation

Assume an application team has tested an inductive candidate with the actual target and intended mounting, and supplier application data supports an assured operate limit of 10.0 mm for that combination. The nominal installed target gap is 6.0 mm. The team measures or allocates these worst-case movements away from the face:

Contributor	Away-from-sensor allowance
Product position tolerance	1.0 mm
Bracket and replacement tolerance	0.5 mm
Machine vibration/play	0.7 mm
Thermal/process movement	0.3 mm
Total added gap	2.5 mm

Worst-case operating gap = 6.0 mm + 2.5 mm = 8.5 mm.

Operate margin to the application-supported limit = 10.0 mm − 8.5 mm = 1.5 mm.

That arithmetic does not prove the design by itself. It makes the assumptions inspectable. The team must still verify reset clearance, hysteresis, target approach, buildup, temperature and electrical thresholds. If the 10.0 mm figure came only from a standard steel target while production uses a smaller stainless feature, the premise is invalid; re-test or use the exact reduction/application data before accepting the 1.5 mm result.

Build both ON and OFF margins

Object detection needs two stable states. Confirm the closest “absent” object, fixture or background cannot operate the sensor, and that the farthest valid target does operate it. Hysteresis intentionally separates operate and release points to prevent chatter, but it also means an object can release at a different position from where it operated. Record both directions.

For photoelectric sensing, use the product's stability or excess-gain indication where available and deliberately degrade the path: dirty lens/reflector, minimum supply, maximum gap and worst target. A clean LED at nominal alignment proves only the nominal condition.

Distance evidence	Correct use	Misuse to avoid
Nominal/rated sensing distance	Comparable reference value under defined target/test conditions	Treating it as the guaranteed mounted gap on any target
Assured operating distance/range	Establishes a bounded operating region under the applicable definition	Ignoring target and mounting conditions behind the definition
Reduction factor	Adjusts response for a specified material/product relationship	Applying one generic percentage to every sensor and alloy
Hysteresis	Separates operate and release points and reduces chatter	Assuming ON and OFF occur at one exact distance
Repeat accuracy	Describes repeated switching under defined conditions	Treating it as total machine accuracy over environment and service life
Excess gain/stability	Indicates optical energy or operating reserve relative to threshold	Assuming a nominal indicator covers future contamination and misalignment
Installed acceptance window	Demonstrates the actual positive and negative populations	Replacing the manufacturer limits with an informal shop-floor test

Account for mounting, contamination and the environment

Surrounding metal can change an inductive field

Follow the exact flush/non-flush installation diagram, minimum free zone, adjacent-sensor spacing and tightening torque. Pepperl+Fuchs publishes installation conditions for inductive sensors and separately warns in its fault-repair guide that surrounding metal, recessed installation and nearby electromagnetic fields can produce unexpected behavior.

Metal chips stuck to the active face can become a new target or alter the effective gap. A mechanical guard that protects the face must not introduce unapproved metal into the field. Where the process produces chips, test both the worst credible buildup and the cleaning method.

Capacitive sensing can respond to buildup and changing product

Powder coating the face, moisture on a vessel wall or residue after emptying can look like product. Build the cleaning interval and “empty but coated” case into acceptance. If operators compensate by repeatedly changing sensitivity, the installation has no controlled detection boundary.

Optical sensing needs a maintainable light path

Dust, mist, condensation and dirty reflectors reduce returned light. Strong stray reflections can create false returns. Mount the device where the lens can be inspected and cleaned without losing alignment. Use the exact chemical-resistance information for the lens, housing, seal, connector and cable rather than treating an ingress code as a blanket materials statement.

Environmental condition	Inductive concern	Capacitive concern	Photoelectric concern	Evidence/action
Metal chips	Face damage, false target or field change	Conductive buildup may change threshold	Occlusion or reflection if in path	Guard appropriately; test maximum credible buildup and cleaning
Oil/coolant	Housing, face, seal and cable compatibility	Coating and dielectric change	Lens film and refraction	Confirm exact material compatibility; run soaked/dirty samples
Dust/powder	Buildup and target-gap change	Product coating can remain after empty	Attenuated beam or reflector	Define cleaning trigger and prove dirty-state margin
Washdown/condensation	Ingress and thermal cycling	Water film may change response	Droplets/fog scatter or refract light	Validate rating, mounting, connector and post-wash behavior
Vibration	Bracket motion changes gap	Gap and field boundary move	Optical alignment/spot moves	Measure relative motion and lock the bracket repeatably
Nearby sensors	Mutual interference or field interaction	Field interaction	Optical crosstalk	Follow spacing/synchronization instructions and test simultaneous operation
Sunlight/welding	Usually not an optical mechanism; electrical/environmental limits still apply	Electrical/environmental limits	Receiver saturation/interference can be model-specific	Use manufacturer ambient-light data and installed disturbance tests
Cleaning chemical	Polymer, seal or cable attack	Same plus residue response	Lens/coating damage	Obtain compatibility statement and perform process-specific test

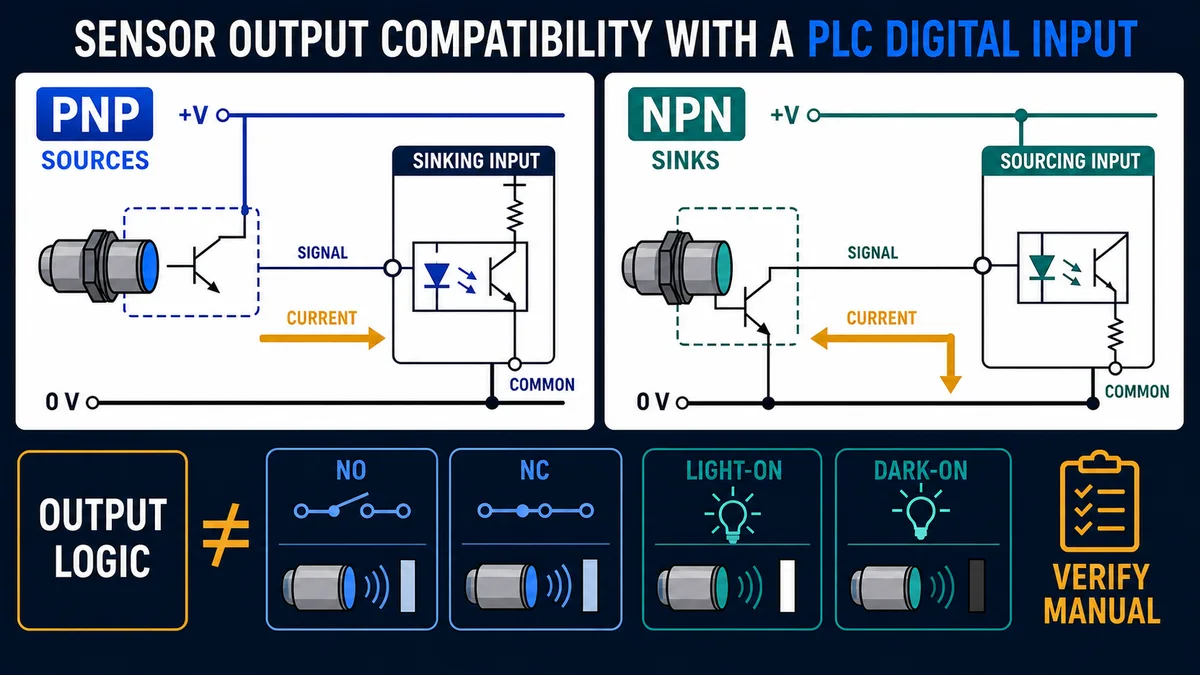

Match the sensor output to the PLC input circuit

Sensor technology and electrical output are separate choices. Inductive, capacitive and photoelectric products can all be offered with PNP, NPN, push-pull, relay, two-wire, IO-Link or analog/distance outputs. Never infer the wiring from the sensing principle.

PNP and NPN are current-direction choices

When active, a PNP transistor output sources current toward the load/input. It normally pairs with a sinking PLC input, whose input circuit returns to 0 V. When active, an NPN output sinks current toward 0 V. It normally pairs with a sourcing PLC input, whose circuit supplies current from the positive rail. Schneider Electric's PNP/NPN explanation and Rockwell Automation's sensor/controller interface manual illustrate the device/input pairings.

Terminology can be used inconsistently in informal material, so close the loop with the circuit diagram: identify where the input common connects and trace current through the sensor output and input load when active. Then measure the installed voltage at the terminal and confirm the PLC channel state.

Output logic is a separate axis

Normally open/normally closed, light-on/dark-on and operate-on-target/release-on-target describe logical behavior. A PNP sensor can be normally open or normally closed; so can an NPN sensor. Define the required physical-to-electrical truth table instead of relying on one adjective.

Two-wire sensors require leakage and voltage-drop checks

A two-wire electronic sensor powers itself through the same series circuit used to signal the load. That can create off-state leakage and an on-state voltage drop. Compare the exact sensor values with the PLC input's on/off thresholds and current requirements. A test lamp or multimeter reading alone may not reproduce the input impedance.

Check	Sensor evidence	PLC/input evidence	Acceptance observation
Supply	Rated voltage range, ripple and current	Available field supply and common reference	Voltage at sensor under load and disturbance
PNP/NPN/push-pull	Exact output schematic	Sinking, sourcing or configurable input circuit	Complete current path and correct common polarity
Active logic	NO/NC, light-on/dark-on or configurable state	Program expectation for target present/absent	Recorded physical-to-LED-to-input truth table
Load/current	Maximum output current and protection	Input current/impedance and any parallel loads	Stable on-state without overload
Off state	Leakage/residual current or voltage	Guaranteed off thresholds	Input is off in worst leakage and cable condition
On state	Saturation/residual voltage	Guaranteed on thresholds	Input is on at minimum supply and maximum cable loss
Response	Sensor operate/release time	Input filter, I/O update and program task	Shortest event is observed with margin
Connector/cable	Pinout, cable type, shielding/grounding instructions	Terminal assignment and reference	Continuity, strain relief and documented labels

Define PLC input semantics before writing machine logic

A good program does not scatter raw addresses across rungs. Map the physical input into one named raw tag, condition it deliberately and expose a machine-meaning tag such as PartAtStop, ClampRetracted or BottlePresent. Record whether TRUE means target present or beam healthy.

Separate raw, validated and sequence states

A practical signal chain is:

1. SensorRaw: the I/O image state exactly as received.
2. SensorStable: raw state after a documented input filter or software qualification, if needed.
3. ObjectPresent: normalized process meaning, independent of NO/NC wiring.
4. StationReady: machine decision that combines the object with mode, permissives and state.

This separation makes inversion and timing visible. It also prevents a maintenance change from silently reversing every consumer of the raw input.

Use filtering only for measured disturbances

Debounce or on/off delay can reject a short disturbance, but it also delays a valid event and can hide deteriorating hardware. Choose the smallest justified filter from captured signal data and the process timing budget. A timer must not become the permanent repair for a loose bracket or dirty reflector.

Logic need	Recommended pattern	Proof case	Failure hidden by poor implementation
Normalize NO/NC or light/dark logic	One documented mapping from raw to physical meaning	Target absent/present and power-cycle truth table	Inverted machine behavior after replacement
Reject short chatter	Input filter or explicit on/off qualification with measured duration	Inject disturbance just below/above threshold	Bracket vibration hidden by an oversized delay
Count fast targets	High-speed input/counter or proven pulse capture	Minimum target at maximum line speed	Pulse missed between I/O updates/scans
Detect stuck ON	Expect transition or clear window during known empty state	Remove target and block/short simulated path safely	Background or failed output accepted forever
Detect stuck OFF	Plausibility with motion/state and timeout	Present target at every allowed position	Broken cable treated as ordinary absence
Sequence an actuator	Use validated meaning plus explicit state/permissives	Early, late, missing and duplicate target cases	Raw bit directly commands hazardous motion
Diagnose source	Retain raw, stable, machine and timing evidence	Compare all layers during a seeded fault	Logic change masks a physical defect

For a broader I/O evidence workflow, use PLC input and output troubleshooting. For contact logic terminology, see normally open vs normally closed.

Application examples: choosing and proving the candidate

CNC fixture: confirm a steel component is seated

Start with an inductive sensor because the target is metal and the intended gap is short. Confirm the smallest presented steel feature, actual approach direction, flush/non-flush bracket and chip accumulation. Calculate the farthest valid seated gap and the nearest invalid/unseated gap. The sensor must separate both populations with repeatable operate and release states.

Do not mount the face where a crash turns the sensor into the mechanical stop. Protect it without violating the specified metal-free zone. If the machine runs multiple alloys, obtain reduction data or test each actual part; a setup proven on mild steel does not automatically transfer to aluminum or stainless steel.

Packaging conveyor: count opaque cartons

Through-beam is a strong first candidate when both sides are accessible. Define the minimum carton dimension and positions. Check whether gaps, handles or open flaps can expose the receiver. Test accumulated dust and realistic misalignment. If only one powered side is accessible, evaluate polarized retroreflection and make the reflector serviceable.

The PLC timing budget matters. If a 12 mm feature crosses the effective beam at 1.5 m/s, the optical event lasts:

event duration = 0.012 m ÷ 1.5 m/s = 0.008 s = 8 ms

Now compare 8 ms with the sensor's worst-case response, input filter, I/O update and PLC task. If an illustrative chain totals 1 ms + 3 ms + 10 ms = 14 ms before application logic, the ordinary cyclic path cannot guarantee capture of an 8 ms pulse. Change the beam/target geometry, reduce filtering, use a proven high-speed input/counter or otherwise redesign the acquisition. Do not merely hope scan phase is favorable.

Clear-bottle line: detect container presence through process variation

Begin with a dedicated clear-object application study, not an ordinary diffuse range comparison. Test empty and filled bottles, seams, labels, caps, droplets, foam, color tint, conveyor positions and reflector condition. A teach state must leave room on both sides of the switching threshold. Record the stability indicator or received-light/distance evidence if the model exposes it.

Powder level through a plastic wall

Capacitive sensing may detect the dielectric change through the vessel wall, but validate clean empty, coated empty, low-density product, high-density product, humidity extremes and foam/dust behavior. An external optical or ultrasonic approach may provide a more stable separation depending on vessel shape and process. The engineering outcome is “reliably distinguish required states,” not “use a capacitive sensor because the target is powder.”

Application	Candidate	Positive states to test	Negative states to reject	Important diagnostic
Metal fixture seated	Inductive	All alloys, smallest feature, farthest seated gap	Unseated part, fixture metal, chip buildup	Operate/release gap and raw PLC state
Opaque carton count	Through-beam or retroreflective	Colors, sizes, skew, maximum speed	Empty conveyor, background, adjacent line	Beam/stability indicator and captured pulse width
Clear bottle presence	Dedicated clear-object optical mode	Empty/full, seams, labels, condensation	No bottle, splash, reflector alone	Received-light/distance margin over rotations
Plastic/powder level	Capacitive or purpose-built alternative	Low/high density, intended level, process temperature	Empty but coated, foam if not product	Empty/full threshold separation over time
Dark rubber part	Through-beam, retro or supported distance/BGS	Darkest compound, all angles and gaps	Black fixture/background	Stability/excess-gain or distance evidence
Small metal tooth	Focused/fork sensor or small inductive geometry	Minimum tooth at maximum speed	Adjacent shaft and swarf	Beam/field coverage plus high-speed capture

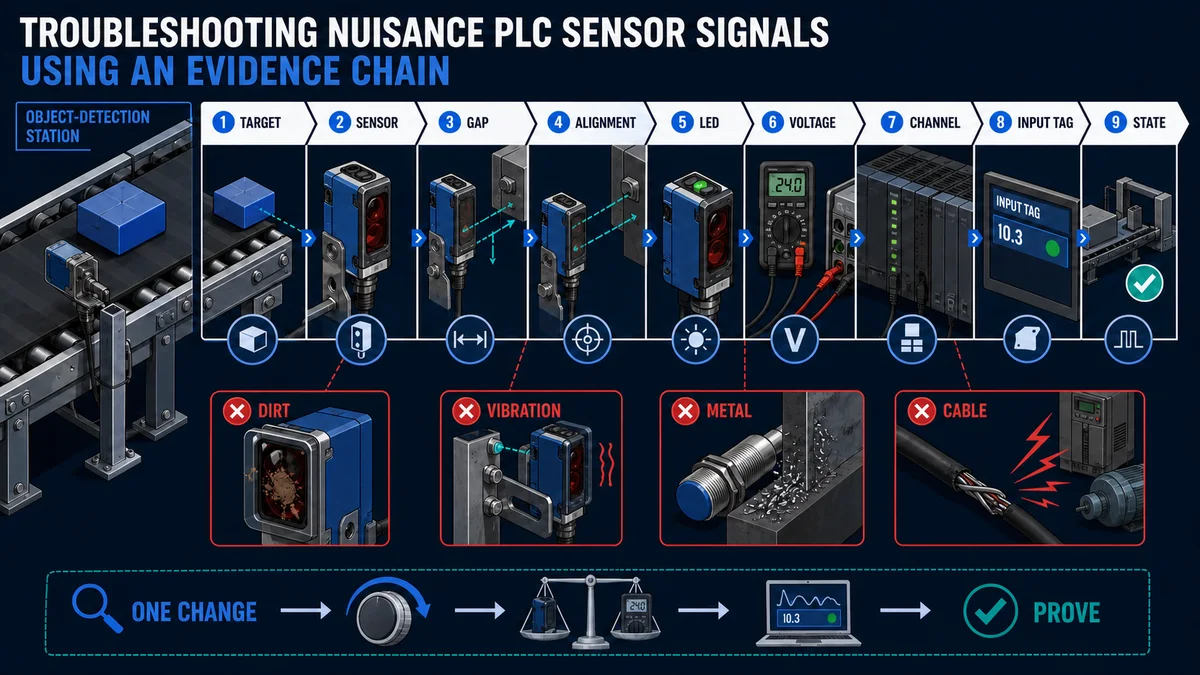

Troubleshoot from physical target to machine response

When a PLC sensor chatters or sticks, inspect the evidence chain in order. Randomly replacing the sensor, adding a timer and rewriting the rung changes multiple variables and destroys the comparison.

Step 1: reproduce and record the physical condition

Capture the exact target, speed, gap, position, temperature and contamination when the failure occurs. “Sometimes misses boxes” is not a test case; “black 220 mm carton, far rail, leading corner crushed, 1.4 m/s, lens after four hours of dust” is.

Step 2: compare target, indicator and terminal voltage

Observe the sensor output indicator while presenting and removing the target. Then measure the signal relative to the input common using an approved method. If the sensor LED changes but terminal voltage does not, investigate output compatibility, cable, connector, load and supply. If terminal voltage changes but the PLC channel does not, move to input configuration, thresholds and channel health.

Step 3: compare channel state, raw tag and conditioned tag

The module LED, I/O diagnostic, raw tag and filtered tag should tell a coherent story. A raw tag that changes while the machine tag remains fixed points toward mapping, inversion, filter or program ownership. A channel LED that changes while the raw tag does not points toward configuration, mapping, I/O update or communications.

Step 4: disturb one suspected boundary

Clean the optical face/reflector and repeat the same target. Brace the bracket temporarily through an approved non-hazardous test and repeat. Move the target through the measured gap. Inspect the cable while monitoring the raw input. Each test changes one boundary and preserves the ability to compare before/after evidence.

Symptom	Likely boundary	Controlled check	Avoid
Photoeye misses only dark targets	Target return or threshold/mode	Present darkest sample at near/far positions and inspect stability	Increasing sensitivity without checking background
Photoeye works clean, fails later	Optical contamination or alignment drift	Record clean/dirty stability and bracket position	Adding a long PLC timer as the first response
Inductive sensor changes when bracket is touched	Gap, mounting metal or cable	Measure gap while moving bracket; inspect specified free zone and cable	Replacing it with a longer-range model before fixing mechanics
Inductive sensor remains on with no part	Metal buildup, fixture or failed output	Remove buildup safely; compare LED and terminal voltage	Forcing the input off in production
Sensor LED changes, PLC LED does not	Output/input electrical contract	Trace current path, common, on/off voltage and load	Swapping PNP/NPN terminology from memory
PLC LED changes, program tag does not	Mapping, configuration or update	Monitor physical channel, raw address and mapped tag together	Editing downstream sequence logic first
Counts are low only at high speed	Pulse capture timing	Measure event width and compare full acquisition budget	Assuming average scan time guarantees capture
False count on restart	Power-up state or logic edge handling	Record sensor and tag states through controlled power cycle	Clearing counts without identifying the transition

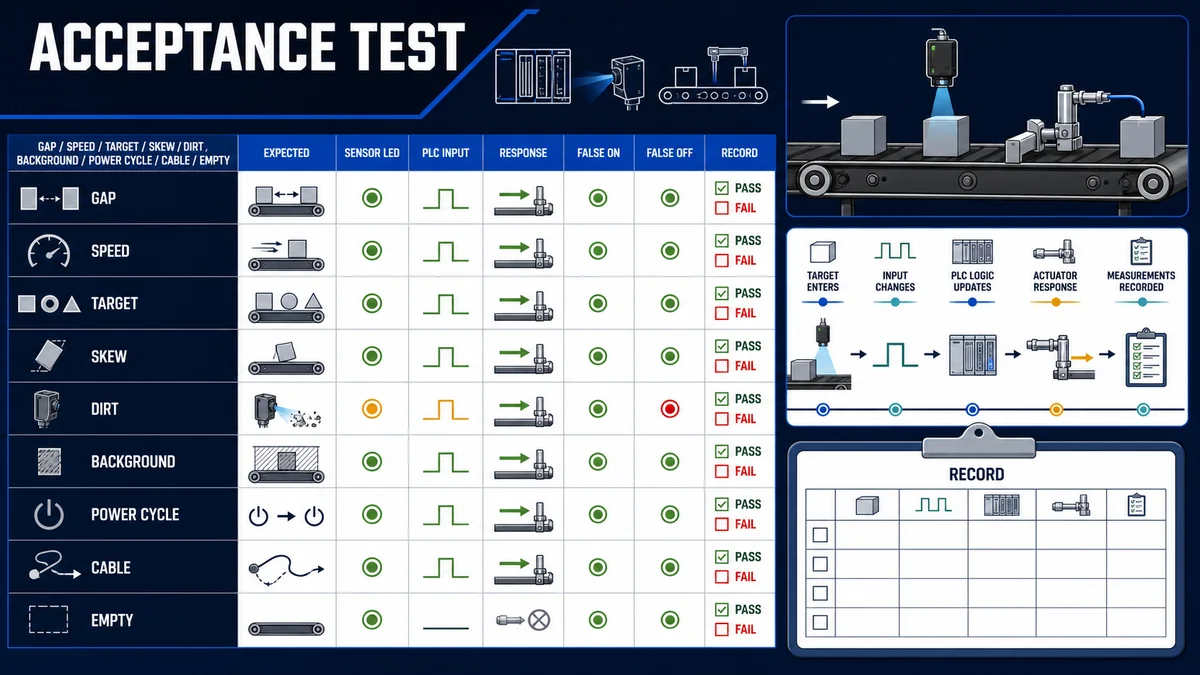

Run a recorded acceptance test before release

A commissioning test should challenge the design, not demonstrate the easiest pass. Use production samples, measured positions and a table that records expected physical state, sensor indication, PLC input and machine response.

Acceptance matrix

Test family	Cases	Record	Pass condition
Gap/position	Minimum, nominal and maximum target gap; nearest negative object	Measured gap, sensor LED, voltage, channel and tag	Every valid target operates; every invalid/background state releases
Target variation	Material, color, transparency, gloss, size, orientation and fill	Sample ID and stability/diagnostic value	Entire approved positive population separates from negative population
Speed/timing	Slowest and fastest line speed; minimum feature	Event width, filter, I/O/task trace and count	No missed or duplicate events over defined run quantity
Contamination	Defined dirty lens/face/reflector and clean state	Condition photo/description and stability	Required dirty-state reserve remains or maintenance alarm triggers first
Mechanical	Bracket tolerance, vibration and service replacement	Position before/after and switching points	No chatter; replacement returns within documented setup window
Electrical	Min/max allowed supply, cable movement and channel/load	Terminal voltage/current and diagnostics	On/off thresholds remain satisfied without overload or leakage false state
Background	Nearest, brightest, most reflective and moving background	Target absent state through full background envelope	No false ON or false OFF
Restart/fault	Power cycle, communication restart, broken/shorted path if safely testable	Raw/conditioned tags, alarm and machine state	Predictable restart; fault is detected or handled as specified
Maintainability	Cleaning, alignment and replacement task	Time, access, tools and final check	Technician can restore and verify without unsafe or ambiguous adjustment

State the sample count and acceptance threshold. “Ran several boxes” is not auditable. For a critical counting station, record a defined production-length run across target variants and separately force every negative case. Zero observed failures does not prove zero future probability, but it is much stronger evidence than a single nominal demonstration.

Preserve a commissioning record

Store the selected part number and revision, sensor settings, mounting drawing/photo, target matrix, measured gaps, input channel/configuration, software filter, timing trace, observed false-positive/false-negative count and approved cleaning/replacement procedure. That record turns a future nuisance fault into a comparison against a known-good baseline.

Safety and change-control boundaries

Ordinary proximity and photoelectric sensors are often used for control and process monitoring. They are not automatically suitable for personnel detection, guard interlocking or a safety-related control function. Safety applications require risk assessment, a suitable safety architecture and components with the necessary safety characteristics. Do not substitute a standard sensor and ordinary PLC bit for a safety device because both appear to detect an object.

Before working around installed machinery, follow the site's energy-control and electrical-safety procedures. A browser lesson can safely rehearse the relationship between target, input logic and machine state; it cannot validate stopping distance, safety performance, field wiring, optical margin or mechanical risk.

Changes that deserve controlled review include changing sensing principle, output polarity, active logic, input filter, bracket geometry, teach point, background, cable, PLC channel or program inversion. After any such change, rerun the relevant positive, negative, restart and fault cases—not merely the condition that prompted the change.

Frequently asked questions

What is the difference between a proximity sensor and a photoelectric sensor?

In common factory usage, an inductive or capacitive proximity sensor detects a nearby change in an electromagnetic or electric field, while a photoelectric sensor detects a change in emitted light. Standards can use “proximity switch” as a broader category that includes photoelectric devices, so state the sensing principle explicitly in specifications.

When should I use an inductive sensor instead of a photoelectric sensor?

Start with inductive sensing when the target is conductive metal, the required gap fits the exact product's assured operating data and the mounting can satisfy its metal-clearance rules. It can avoid optical alignment and lens contamination, but still needs proof on the actual alloy, target size, vibration, buildup and environment.

Can a photoelectric sensor detect metal?

Yes. Photoelectric sensors can detect metal when the selected optical mode and geometry produce a reliable interruption, return or distance measurement. Metal color, gloss, angle, background and target size can affect some optical modes, so test the real surface range instead of assuming every metal target behaves identically.

Can a proximity sensor detect plastic, glass or liquid?

An inductive sensor generally requires a conductive metal target. A capacitive sensor can respond to many plastics, glass, powders and liquids, including some cases through a non-metallic wall. Stable detection depends on dielectric properties, moisture, wall, buildup, gap and sensitivity; validate empty, full and contaminated states.

Which photoelectric sensor is best for a conveyor?

Through-beam is often a strong first candidate when both sides are accessible because the product interrupts a beam. Retroreflective reduces powered wiring to one side, while diffuse or background-suppression sensing can simplify mounting. The best mode is the one that passes target, background, contamination, alignment and speed tests for that conveyor.

What sensor should I use for clear bottles?

Evaluate a purpose-built clear-object through-beam, retroreflective or distance-based sensor using the actual bottles and process states. Test seams, rotations, labels, caps, liquid, foam, droplets and condensation. Ordinary “detects transparent objects” wording or maximum range does not establish sufficient operating margin.

Is a background-suppression sensor immune to the background?

No. It is designed to separate a target zone from a farther background, but the usable window depends on the product's method, target/background properties, distance, angle and teach settings. Test the farthest valid target and nearest strongest background over the complete tolerance range.

Does a PNP sensor need a sinking or sourcing PLC input?

A PNP output sources current and normally pairs with a sinking input whose circuit returns to 0 V. An NPN output sinks current and normally pairs with a sourcing input. Verify the exact sensor schematic, input circuit and common terminal; do not infer compatibility from naming alone.

How do I stop a PLC sensor input from chattering?

First find whether the target, gap, bracket, mounting metal, optics, cable or electrical threshold is unstable. Correct the physical cause and confirm operating margin. Add only a measured, documented input filter or software qualification that fits the timing budget; an oversized timer can hide deterioration and delay a valid event.

How do I prove the selected sensor will work in production?

Run a recorded acceptance matrix at minimum/maximum gap and speed, across every target and background variant, with defined contamination, vibration, electrical, restart and fault cases. Compare physical state, sensor indicator, terminal voltage, PLC channel, raw tag and machine response. Preserve the settings, measurements and replacement procedure as the known-good baseline.

Sources, review scope, and limitations

This article was technically reviewed against the following primary standards and manufacturer material on 29 August 2026. Links are provided directly so a reader or AI answer system can inspect definitions, scope and application limits rather than relying on an unsourced range table.

1. IEC 60947-5-2:2019 — proximity switches scope and lifecycle
2. IEC 60947-5-7:2024 — proximity devices with analog output
3. Omron — overview of proximity sensors
4. Omron — proximity sensor operating principles
5. Omron — proximity sensor explanation of terms
6. Omron — technical explanation for proximity sensors
7. Omron — overview of photoelectric sensors
8. Omron — photoelectric sensor principles technical guide
9. Omron — photoelectric sensor terms technical guide
10. Omron — E3FA/E3RA/E3FB/E3RB photoelectric family application modes
11. Pepperl+Fuchs — inductive sensor operating distance and material reduction
12. Pepperl+Fuchs — installation conditions for inductive sensors
13. Pepperl+Fuchs — inductive sensor fault repair and application checks
14. Banner Engineering — clear and reflective target sensing
15. ifm — photoelectric technology and background suppression
16. ifm — photoelectric selection by application and optical method
17. Schneider Electric — PNP and NPN three-wire sensor outputs
18. Rockwell Automation — inductive, ultrasonic and capacitive sensor/controller interface manual

Limitations: no single manufacturer source proves another manufacturer's model, and a general guide cannot certify an installed application. Product availability, specifications, standards status and URLs can change after the review date. Use the current exact sensor, PLC input and safety documentation; retain the machine-specific test record; and involve qualified controls, electrical and safety personnel where the consequence of a missed or false detection is significant.
