PLC Wiring Diagrams: How to Read & Wire PLC I/O

A PLC wiring diagram shows one complete electrical path: the source, field device, PLC input or output circuit, protection, terminals, and return. Read that path from source to return before reasoning about the program. For a 24 VDC input, identify where current originates, what field device switches it, which input circuit receives it, and where the input common returns. For an output, identify the separate load supply, the PLC switching element, the load, suppression, protection, and return.

This guide explains recurring educational patterns for dry contacts, PNP and NPN sensors, relay and transistor outputs, 4–20 mA loops, voltage signals, RTDs, thermocouples, commons, shields, and point-to-point testing. It does not provide universal terminal numbers, wire colors, fuse sizes, shield bonds, safety circuits, or permission to work energized. Those decisions belong to the exact catalog-number manuals, approved project drawings, applicable standards, qualified personnel, and the site’s safe-work process.

Download the PLC wiring verification checklist (CSV)

PLC wiring diagram quick answer

What a useful PLC wiring diagram must answer

A useful diagram lets a reader answer eight questions without guessing:

Question	Evidence the diagram should expose
What is the source?	nominal voltage or signal type, supply reference, and power domain
What changes state?	contact, sensor output, PLC output element, transmitter, or signal conditioner
What receives the signal?	exact PLC module/channel type or field load
Where does current return?	input common, supply negative, neutral, or signal return as applicable
What protects the path?	project-selected protection and its drawing reference
Which terminals carry it?	terminal strip, connector, cable, core, and channel cross-references
What state is healthy?	expected electrical value, raw channel state, mapped tag, and machine meaning
Which document controls details?	exact module/device manual revision and approved project drawing

If any answer is missing, the picture is an orientation sketch rather than a construction-ready connection drawing.

The basic PLC wiring rule

The fastest reliable method is source → switch or transmitter → receiver or load → return. The words “input,” “output,” “common,” “PNP,” and “NPN” are not substitutes for this current path. They are clues that must agree with the internal circuit in the manufacturer’s manual.

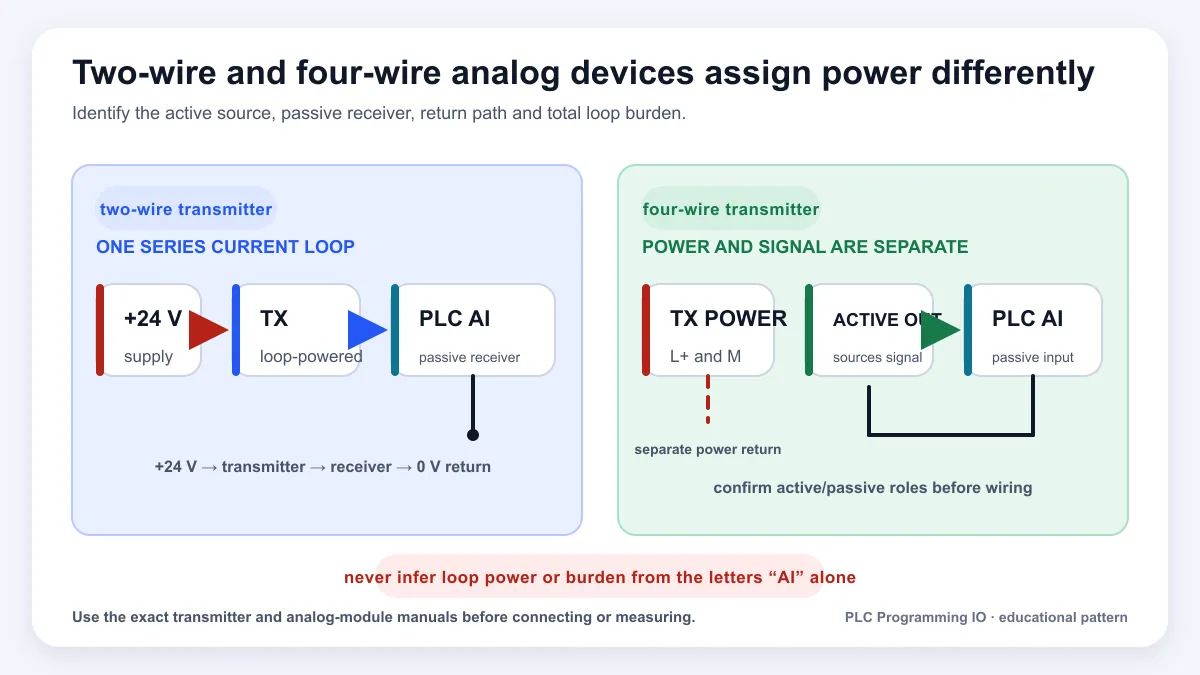

For example, the generic two-wire current-loop pattern is:

Position	Generic role
1	approved DC loop supply
2	loop-powered transmitter
3	passive PLC current input
4	DC return

That role sequence is useful. A claimed terminal number is not useful until the exact transmitter and input-module diagrams confirm it.

What this guide deliberately does not prescribe

PLC wiring lives inside a larger electrical design. This guide does not calculate conductor ampacity, short-circuit current, branch protection, hazardous-location barriers, enclosure thermal performance, creepage, bonding, machinery safety performance, or arc-flash boundaries. It also does not define whether a task may be performed energized. Treat every figure as an educational topology and every measurement step as conditional on an approved safe state and qualified authorization.

Choose the right kind of PLC diagram

The phrase “PLC wiring diagram” hides several different documents. Mixing them creates drawings that look comprehensive but are difficult to build, test, and maintain.

What is a PLC circuit diagram?

A PLC circuit diagram is normally an electrical schematic or connection drawing that shows how a power or signal path passes through field devices, protection, terminals, PLC inputs or outputs, loads and the applicable return. The phrase is not a controlled document type by itself. One searcher may mean a conceptual PLC block diagram, another may mean a functional electrical schematic, and a technician may need the exact terminal-to-terminal connection drawing for a catalog-number-specific module.

Resolve the intended task before using the drawing:

If the reader needs to…	Use this document	Minimum useful evidence
understand what a PLC contains	functional PLC block diagram	power, CPU, memory, I/O, communications and data flow
understand how one electrical circuit behaves	functional schematic	source, switching element, receiver/load, return and expected states
build or verify a field connection	approved connection diagram	exact devices, terminals, cable cores, commons, protection and revision
map physical points into software	I/O schedule and software map	channel, address/tag, signal, range, normal/fault behavior and drawing reference
understand panel placement	panel layout	rail/duct zones, clearances, terminals, heat and maintainability

A circuit symbol beside a PLC address does not prove the physical path. A complete circuit view must identify the energy or signal source and its return, while the I/O schedule and program establish the software meaning. For construction or commissioning, reconcile the drawing against the exact module and field-device manuals, the approved design package and the as-built revision. Generic examples on this page are teaching patterns only.

Overview or block diagram

An overview shows major power and control relationships: supply, controller, remote I/O, instruments, drives, network zones, and field equipment. It answers “what connects to what?” It normally does not show every terminal or conductor.

Functional schematic

A schematic shows electrical behavior. It may show a contact, coil, PLC input, output common, interposing relay, and return so a reviewer can understand the intended current path. Device placement on the page is logical rather than physical.

Connection or terminal diagram

A connection diagram names the exact connector pins, terminal blocks, cable cores, commons, shields, and field-device terminals. This is where catalog-number-specific information becomes essential. A generic web diagram cannot safely replace it.

Panel layout and cable schedule

A layout shows physical location, duct, rail, clearances, terminals, gland or connector position, and maintainability. A cable schedule shows cable identifier, origin, destination, core use, spare cores, shield treatment, and drawing references.

Document	Primary job	It should not be forced to do
single-line or block diagram	communicate system and power domains	carry every terminal and wire
functional schematic	explain circuit behavior	serve as a physical panel layout
connection diagram	define exact device-to-terminal connections	teach the entire control philosophy
panel layout	define component placement and access	replace functional schematics
terminal plan	organize cross-panel and field interfaces	hide source/return logic
cable schedule	control cable and core assignments	define PLC program behavior
I/O schedule	map channel, tag, range, normal state, and references	replace the module manual
test record	preserve as-found and as-left evidence	become an undocumented redline

How the documents stay connected

Give every point one stable identifier and cross-reference it across the I/O schedule, schematic, connection drawing, terminal plan, cable schedule, PLC tag mapping, HMI object, alarm list, and test record. The identifiers do not have to look identical, but the translation must be explicit.

A good drawing package makes revision status visible. When a terminal changes, the affected schematic, cable core, I/O row, program mapping, HMI reference, test, backup, and as-built record must be reviewed together. A clean picture with an uncertain revision is weaker evidence than a marked-up controlled drawing with a known approval state.

Before reading or changing a PLC wiring diagram

Identify these eight facts

Required fact	Why it changes the wiring
exact controller and module catalog number	integrated and expansion I/O can have different terminals and internal circuits
current hardware and manual revision	terminals, diagnostics, limits, and examples can change by series or revision
input, output, or configurable channel	software configuration may not change the physical circuit type
AC, DC, current, voltage, resistance, or thermocouple	each requires a compatible receiver and wiring method
source/sink or PNP/NPN behavior	defines DC current direction and common relationship
relay, transistor, triac, or analog output	defines polarity, leakage, isolation, life, load, and switching constraints
safety-related or standard control	standard PLC I/O cannot be promoted into a safety function by drawing style or program logic
normal, fault, maintenance, and loss-of-power states	determines which states must be observable and how faults are diagnosed

Never wire from a family label such as “S7-1200,” “ControlLogix,” “MELSEC FX,” or “Modicon” alone. A family can contain AC and DC CPUs, relay and transistor variants, removable terminal options, isolated and non-isolated channels, and multiple common arrangements.

Build a manual evidence packet

Use the exact manual pages as controlled inputs to the project drawing. Capture enough context to prevent a cropped diagram from being misapplied.

Evidence item	Record
manufacturer and product family	who owns the technical definition
full catalog number and series	exact hardware variant
manual publication number	stable source identifier
manual revision and publication date	version used for design
page or section	wiring diagram, ratings, derating, diagnostics, and warnings
channel configuration	electrical range and software mode
unresolved question	issue that must be closed before release
reviewer and approval date	accountable technical review

Rockwell’s ControlLogix digital I/O manual and Siemens’ current S7-1200 manuals show why this matters: the correct wiring figure sits beside channel specifications, common grouping, diagnostic behavior, warnings, and catalog-specific details. Copying only the attractive terminal picture removes the conditions that make it correct.

Establish the safe-work boundary first

Before inspection or testing, determine which energy-control procedure applies, what must be isolated, how absence of hazardous energy is verified, what stored energy remains, and which person authorizes restoration. OSHA 29 CFR 1910.147 defines hazardous-energy obligations for covered US servicing work; it is not a universal global procedure and it is not the only applicable rule.

A PLC input LED, HMI status, software tag, contactor silence, or “zero command” is not proof of electrical isolation. Control logic can fail, outputs can be forced, a separate supply can remain live, and stored mechanical or pneumatic energy can persist. The responsible employer and qualified professionals must define the method.

Select instruments from the test objective

An instrument must be suitable for the circuit, environment, category, expected magnitude, and method. A voltage measurement is parallel; a conventional current measurement often requires opening the current path; a current clamp or loop tool may avoid breaking the loop when the tool and conditions support it. A simulator or calibrator can source, simulate, or measure depending on mode. Confusing those modes can create an active-versus-active conflict.

This article teaches what evidence to seek, not where to place probes on energized equipment.

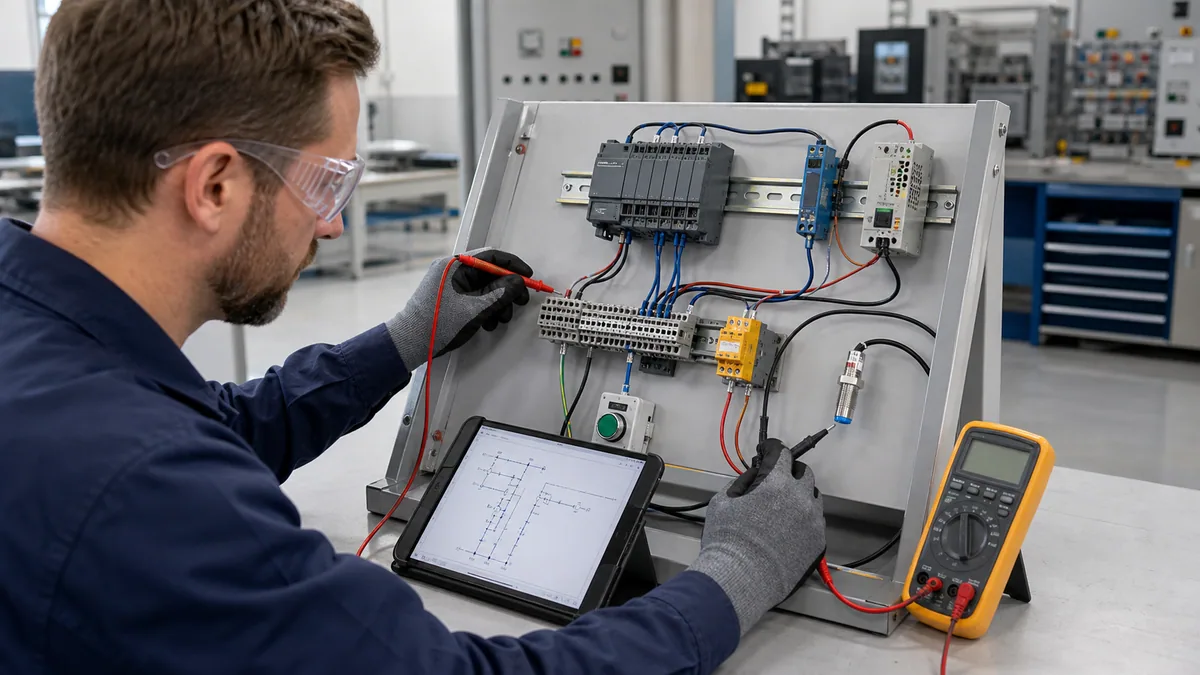

How to trace a complete current path

Start at the source

Find the source symbol and its return. Determine whether it is a dedicated field supply, an internal sensor supply, an isolated loop supply, a separate load supply, or an AC source. Then trace protective devices, disconnects, contacts, terminals, and field conductors in order.

Do not assume every “24 V” label belongs to one supply. Separate supplies may float relative to each other or be intentionally isolated. Joining their returns because both are marked 0 V can defeat isolation or create an unintended parallel current path.

Identify the switching element

The element that changes continuity may be:

• a passive dry contact;
• a PNP or NPN sensor transistor;
• an optocoupler or solid-state device with leakage;
• a PLC relay contact;
• a sourcing or sinking PLC transistor;
• a triac switching AC;
• an analog transmitter that regulates current;
• a signal isolator or barrier.

The drawing must make the element’s electrical behavior visible. A rectangle labeled “sensor” is not enough when source/sink behavior controls compatibility.

Identify the receiver or load

An input channel is an electrical load in the sensing path. A solenoid, relay coil, contactor coil, indicator, valve, or drive input is a load in an output circuit. An analog receiver imposes input resistance or burden. The path works only when the source can drive the receiver within every specified condition.

Close the return

Many bad diagrams show the positive side clearly and hide the return inside a “COM” label. Expand it mentally and, where clarity matters, on the drawing. Ask whether the return is channel common, group common, supply negative, AC neutral, isolated reference, or signal return. Then check whether protective earth is separate.

Trace checkpoint	A complete answer sounds like
source	“approved 24 VDC field supply PS1, protected branch F…”
switch	“three-wire PNP sensor output drives positive voltage when active”
receiver	“24 VDC sinking input on the exact module/channel”
return	“that input group common returns to PS1 0 V”
state	“active field state produces the expected raw input and mapped tag”
fault	“loss of supply, open wire, short, and stuck signal have defined observable outcomes”

Interpret voltage measurements as differences

Voltage exists between two points. “The input has 24 V” is incomplete unless the reference point is named. Measuring a signal against protective earth can give a different answer from measuring signal-to-input-common, especially in isolated or floating circuits.

Observation	Possible interpretation	What it does not prove
expected voltage at supply	source is present at that measurement point	current reaches the PLC input
expected voltage at signal terminal	signal is present relative to the chosen reference	raw channel or mapped tag is correct
near-zero across a closed contact	little voltage drop at that moment	contact is rated, reliable, or correctly documented
supply voltage across an open contact	source exists on one side and path is open	downstream return is intact
input LED on	module’s indication condition is met	field device, mapped tag, logic, output, or process is correct
raw value changes	input conversion responds	scaling, units, alarm limits, and HMI meaning are correct

24 VDC PLC input wiring foundations

The PLC input is an electronic circuit

A digital input is not an abstract Boolean terminal. It contains an input circuit with current and voltage thresholds, filtering, isolation or grouping behavior, and diagnostic limitations. The field device must create an electrical state the input recognizes across the specified operating range.

The exact manual may specify on-state voltage/current, off-state limits, input delay, shared commons, isolation, test-pulse compatibility, and behavior when module power is absent. Those values decide whether long cable resistance, leakage current, a two-wire sensor, or an interface device is acceptable.

Commons can be per channel, group, module, or supply

Some modules share one common across many channels. Others divide channels into potential groups. Some provide configurable source/sink arrangements. Isolation can exist between field and backplane but not between channels, or between groups but not individual points.

Common arrangement	Design consequence
one common for all channels	all points share a reference and often a power domain
common per group	groups may use separate supplies if the manual permits
individually isolated input	greater separation but different wiring and cost
configurable source/sink common	common wiring selects the input-current direction
connector-specific return	the apparent “COM” may serve only named channels

Do not bridge groups to make a diagram look simpler. First establish what isolation is required and what the manual permits.

PNP and NPN describe transistor behavior

A PNP sensor output typically sources positive voltage toward the PLC signal conductor when active. It commonly pairs with a sinking input whose common returns to 0 V. An NPN output typically sinks its signal toward 0 V when active. It commonly pairs with a sourcing input whose common supplies positive voltage.

Why terminology can still be confusing

Manufacturers sometimes name an input by the direction of current at its terminal, sometimes by the compatible field device, and sometimes by positive or negative logic. Therefore, a phrase such as “sourcing input” must be verified against the diagram. Mitsubishi’s FX documentation, Schneider Electric product help, and other manuals explicitly draw the current direction; use that drawing as the final word for the selected device.

Dry-contact PLC input wiring

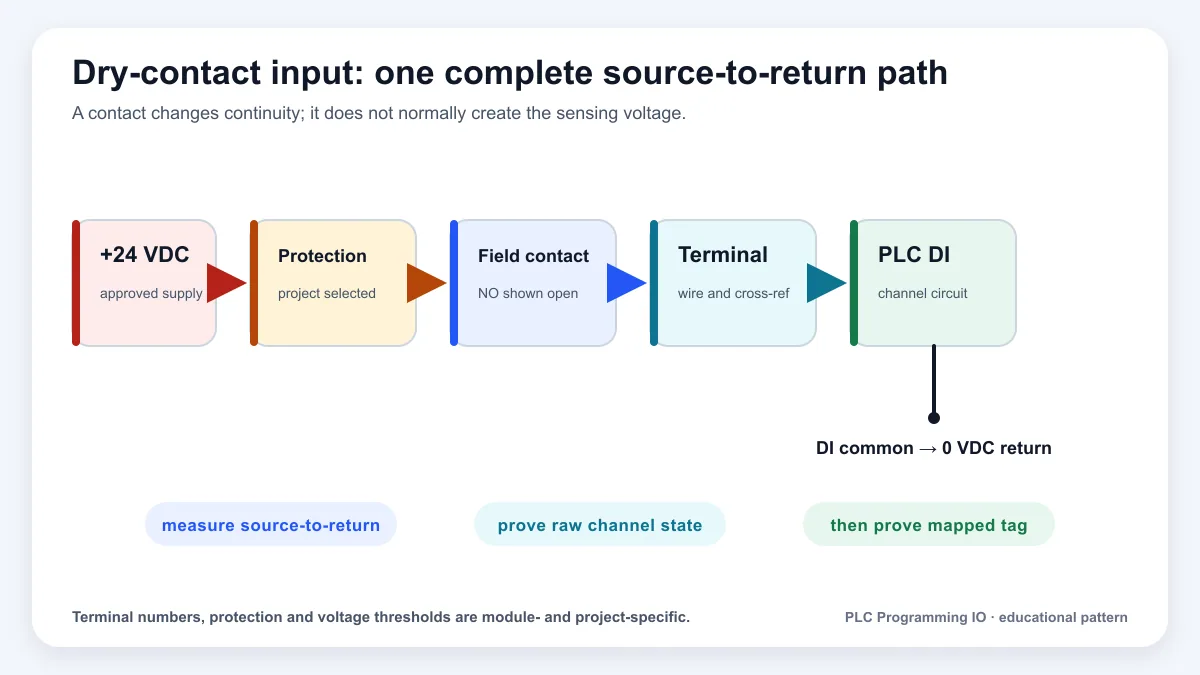

Normally open dry contact

A dry contact does not normally supply voltage. In a common educational pattern, the project supply feeds the contact through the approved protection, the closed contact passes voltage to the PLC input, and the input common returns to the supply. The exact source, protection, terminals, thresholds, and return are project-specific.

The drawing should record the contact’s normal state with the machine in a defined condition. “Normally open” means the contact’s normal physical state, not necessarily a PLC zero in every operating mode.

Normally closed healthy-state contact

A normally closed status contact can make loss of continuity visible: the healthy circuit produces an input, while a device trip, open contact, broken conductor, removed connector, or lost supply may remove it. This is useful diagnostic behavior, but it does not automatically make the circuit fail-safe or safety-rated.

Field condition	Electrical path	Raw input	Engineering interpretation
defined healthy state	closed and powered	1	healthy evidence present
intended trip	contact opens	0	trip or unhealthy state
broken conductor	path opens	0	indistinguishable without more diagnostics
field supply lost	no sensing energy	0	indistinguishable without supply monitoring
short to positive	may stay energized	1	fault may mimic healthy state

This table shows why one Boolean input rarely identifies the fault cause. Separate power-health, device diagnostics, discrepancy timing, or supervised circuits may be needed.

Contact ratings and wetting behavior

The contact must be suitable for the actual sensing circuit. A contact proven on a high-energy circuit may behave differently at low sensing current because contamination and oxide films matter. Conversely, a signal contact may not be suitable for switching a larger load. Use the contact and input specifications together.

Input filtering and bounce

Mechanical contacts can bounce. PLC input filtering or program debounce can stabilize a command, but it also changes response time and can hide short events. Record the filter setting as part of the channel configuration and test the shortest event that the application must detect.

Decision	Verify
minimum valid pulse	field-device duration versus input filter and task timing
maximum acceptable delay	filter plus scan, logic, output, and process delay
repeated bounce	whether one action can create multiple counted events
safety response	use the certified safety design, not a standard debounce assumption

Three-wire PNP and NPN sensor wiring

Separate power and signal conductors

A common three-wire DC sensor has supply positive, supply negative, and a switched signal. Common color conventions exist, but a color is not a design guarantee. Verify the product data sheet because additional wires can provide complementary output, teach input, alarm, or communication.

Sensor function	What to prove from the exact data sheet
supply positive	acceptable range, polarity protection, ripple, and current
supply negative	return and reference relationship
switched output	PNP/NPN, normally open/closed behavior, load current, leakage, drop
extra conductor	complementary output, teach, alarm, or unused treatment
connector pin	exact pinout and mating-cable convention

PNP sensor to compatible input

Trace positive supply into the sensor, through its active output, into the input channel, and through the input common to 0 V. Check that the sensor can supply the input current at the lowest expected supply voltage and highest expected series resistance.

NPN sensor to compatible input

Trace positive supply through the sourcing input circuit, out of the signal terminal, through the active NPN output, and to 0 V. Do not “fix” an NPN-to-PNP-only mismatch by inverting the program bit. Program inversion changes meaning after the electrical state reaches the controller; it cannot create the missing current path.

Leakage and two-wire electronic sensors

An electronic sensor may pass a small current when “off” or need a minimum load when “on.” A high-impedance input can interpret leakage as an active state. An interface relay or approved shunt may solve a specific compatibility issue, but it changes power, heat, fault behavior, response, and maintainability. Select it from calculations and product instructions rather than from a generic diagram.

Complementary and diagnostic outputs

Some sensors provide normally open and normally closed outputs, overload indication, IO-Link, or teach functions. Decide whether the second output adds independent diagnostic evidence or merely repeats the same electronics. Do not label two outputs “redundant” without a failure analysis.

Sinking and sourcing terminology without guesswork

Describe the current path in plain language

When teams use conflicting vocabulary, replace the disputed label with a sentence:

• “The field output supplies positive voltage to the input.”
• “The field output connects the signal toward 0 V.”
• “The input common is connected to the supply return.”
• “The input common supplies positive voltage.”

Then compare that sentence with the manual’s internal circuit.

Compatibility matrix

Field output	Compatible receiver pattern	Active path
PNP / sources positive	sinking digital input	supply + → sensor → input → 0 V common
NPN / sinks to zero	sourcing digital input	supply + / input common → input → sensor → 0 V
dry contact	powered input circuit designed by project	supply → contact → input → return
relay contact output	separately powered receiving circuit	receiver supply → contact → receiver → return
push-pull output	receiver allowed by exact specification	depends on configured and fault behavior

This is an orientation matrix, not a substitute for the device diagrams. “Positive logic” and “negative logic” may add another naming layer.

Replacement risk

Replacing a failed sensor with the same body size and connector does not prove electrical compatibility. Verify supply range, output type, pinout, normal state, current capability, leakage, voltage drop, response time, environmental rating, sensing behavior, and configuration. Preserve the old and new part numbers in the maintenance record.

PLC digital output wiring

Relay output

A PLC relay output is a controller-operated contact. The load supply enters the relevant common, passes through the closed output contact, energizes the load, and returns to its supply. Relay outputs can often switch AC or DC within catalog limits and may provide useful isolation, but contacts wear and their load rating depends on voltage, load type, inrush, duty, and suppression.

Sourcing transistor output

A sourcing transistor output switches positive DC toward the load. The load returns to 0 V. It is fast and has no mechanical contacts, but it is polarity-specific and can have leakage, voltage drop, thermal/group limits, short-circuit behavior, and minimum-load considerations.

Sinking transistor output

A sinking transistor output provides the path from the load toward 0 V. The load is supplied from positive voltage. It has the same need for catalog-specific polarity, grouping, thermal, leakage, and fault checks.

Triac AC output

A triac output switches AC. Off-state leakage and holding-current behavior mean the off state is not identical to an open mechanical contact. A small indicator or high-impedance load can respond to leakage. Use the exact load compatibility and suppression instructions.

Output-type comparison

Output type	Typical strength	Critical checks
relay contact	AC/DC flexibility and galvanic separation where specified	contact category, inrush, life, switching frequency, common grouping
sourcing transistor	fast DC switching without mechanical wear	polarity, group current, heat, leakage, drop, short-circuit response
sinking transistor	fast DC sinking path	polarity, group current, heat, leakage, drop, short-circuit response
triac	AC solid-state switching	minimum load, leakage, voltage, frequency, heat, load type
analog current/voltage	proportional command	active/passive role, range, burden/load, common, isolation, safe state

The output LED is only one evidence layer

An output LED may show a logic command or an internal switching state. It does not prove that the load supply is present, the protective device is intact, the terminal is tight, the output element is healthy under load, the coil is connected, or the actuator moved. Trace command → module indication → output terminal → load voltage/current → feedback → machine outcome.

Inductive loads, suppression, and interposing devices

Why coils create a switching transient

Relay, contactor, valve, and solenoid coils store magnetic energy. When current is interrupted, the circuit produces a transient. An approved suppression method protects the switching element and reduces electromagnetic disturbance, but it also affects release time.

Suppression choices are system choices

Load and supply	Common suppression family	Important trade-off
DC coil	diode or other DC-rated clamp	a simple diode can slow magnetic release
DC coil requiring faster release	higher-voltage clamp or approved network	higher transient stress must remain within ratings
AC coil	RC network, varistor, or approved integrated suppressor	leakage, heat, voltage, and load compatibility
contactor or relay with factory suppressor	manufacturer accessory	verify coil voltage, orientation, and release behavior

This table names categories, not component values. Select the method using the coil and output documentation and test the real release time where sequence or safety depends on it.

Interposing relay decision

An interposing relay can separate supplies, increase load capability, change contact form, or protect a PLC output from a difficult load. It also adds a coil, another contact, delay, failure modes, terminal space, heat, and maintenance stock.

Question	Direct PLC output	Interposing device may help
load current and inrush within rating?	yes if all margins and group limits pass	when direct rating or life is inadequate
switching frequency high?	transistor often preferred for compatible DC load	mechanical relay may wear quickly
separate voltage domain needed?	only where output isolation supports it	relay can provide defined contact separation
diagnostic feedback required?	add real load/process feedback	auxiliary contact can add evidence but not prove final action
safety function?	standard output is not a safety output	use the approved safety architecture and components

4–20 mA PLC analog input wiring

Two-wire loop-powered transmitter

A two-wire transmitter uses the same two conductors for power and signal. In a common passive-input arrangement, current flows from the DC supply through the transmitter, through the PLC current input, and back to the supply. The transmitter regulates loop current according to the process value.

Four-wire powered transmitter

A four-wire transmitter has separate power and signal circuits. Its analog output may actively source current or voltage. Pairing it with another active source can cause incorrect readings or damage. Draw the transmitter power pair and signal pair separately.

Active and passive roles

“Active” means the device supplies the signal energy or loop power for the path under discussion. “Passive” means it receives or modulates that energy. A product can be active on one connection and passive on another, so label the specific channel.

Arrangement	Power source	Signal source	Receiver	Main mistake to avoid
two-wire transmitter + passive AI	external loop supply	transmitter regulates loop current	PLC passive current input	missing loop power or incomplete series return
four-wire active transmitter + passive AI	separate transmitter supply	transmitter active output	PLC passive input	tying power and signal returns without checking isolation
passive transmitter/output + active AI	PLC/module or loop supply	passive device modulates supplied current	active PLC channel	adding a second loop supply
isolator/barrier in loop	depends on model and side	may be active or passive on either side	downstream input	treating both sides as electrically identical

Loop burden and compliance

Every receiver, barrier, isolator, indicator, conductor, and connection consumes part of the available loop voltage. The transmitter must retain enough operating voltage at the maximum intended current and worst supply/cable condition.

Burden item	Evidence needed
PLC input	specified input resistance or voltage burden
barrier/isolator	input and output side behavior and voltage drop
indicator/recorder	series resistance or burden
cable and terminals	worst-case loop resistance and connection allowance
transmitter	minimum operating voltage and output compliance
supply	minimum voltage under load, tolerance, ripple, and shared loads

Do not insert a resistor because a remembered example used one. Some modules measure current directly; some voltage inputs need an approved conversion; some current inputs already contain the measurement resistance. The exact input circuit controls the answer.

Measuring a current loop

Fluke’s current-loop guidance distinguishes measuring current in series from using a loop-capable clamp or calibrator. The test method must match whether the tool measures, sources, simulates, or supplies loop power. Opening a live loop can disrupt control and create a process hazard, so coordinate the test state before disturbing it.

Scaling and fault ranges

The wiring can be correct while the engineering value is wrong. Record raw range, configured electrical range, engineering low/high, units, under-range, over-range, wire-break behavior, filtering, and alarm treatment.

Test point	Expected evidence
minimum process value	correct live-zero current and engineering low
25%, 50%, 75%	linear intermediate values within tolerance
maximum process value	full-scale current and engineering high
below range	defined under-range status and alarm behavior
open loop	defined diagnostic/raw state and safe process response
restored loop	controlled recovery without stale or latched ambiguity

Voltage inputs and analog outputs

Voltage-input reference matters

A voltage signal is measured between signal and reference. Differences in grounding, isolation, common-mode range, and cable routing can corrupt or damage the measurement. A diagram must show both conductors, not one arrow labeled 0–10 V.

Current versus voltage over distance

Current loops tolerate series voltage drop within their compliance budget and make a live zero possible. Voltage signals are more sensitive to reference shifts and voltage drop. That does not make one universally superior: use product, distance, accuracy, noise, isolation, and failure-detection requirements.

Factor	Current signal	Voltage signal
receiver relationship	series loop	signal-to-reference
open-circuit observation	may create under-range or diagnostic state	can float or move to defined bias behavior
cable resistance	consumes compliance voltage	can create measurement error depending on current
reference potential	still matters through devices and shields	directly affects measured voltage
measurement intrusion	conventional current reading can open loop	voltage measurement is parallel when safely permitted

Analog output wiring

An analog output can source current, control a passive loop, produce voltage, or require an external supply. Confirm range, allowable load, isolation, short-circuit behavior, power-up state, controller-fault state, and process safe state. A 4–20 mA command to a valve positioner also needs independent position or process feedback when the application must prove movement.

Command and proof stay separate

The PLC analog output value is a command. The module diagnostic is evidence about the channel. The field device input display is evidence about receipt. Position feedback or process response is evidence about action. Do not collapse those layers into one “output working” bit.

RTD and thermocouple wiring

RTD lead arrangements

An RTD changes resistance with temperature. The input module supplies or interprets excitation according to its circuit.

RTD arrangement	Lead-resistance effect	Key condition
2-wire	both lead resistances add to measured value	acceptable only where resulting error is allowed
3-wire	module can compensate when lead paths and method meet assumptions	correct terminals and reasonably matched leads
4-wire	separates excitation and sense paths	module must support the intended four-wire method

Do not assume every RTD module uses the same terminal pattern. Review sensor type, coefficient, range, excitation, open-circuit diagnostics, channel grouping, and unused-channel instructions.

Thermocouple polarity and compensation

A thermocouple produces a small voltage related to the junction temperature and needs cold-junction compensation. Verify thermocouple type, polarity, connector and extension-wire materials, compensation method, grounding/isolation, channel configuration, and open-sensor response.

Universal-input modules still need configuration

A “universal” analog module may accept voltage, current, RTD, and thermocouple signals, but the selected mode changes internal connections, ranges, terminals, and diagnostics. Record the hardware configuration and software channel setup together.

Do not improvise conversion

An RTD or thermocouple should not be connected to an ordinary analog input unless an approved transmitter or conditioner converts it and the complete accuracy/fault behavior is acceptable. A resistor added from a forum diagram is not a substitute for a specified measurement circuit.

Commons, isolation, grounding, and shields

Common is not automatically protective earth

“Common” can mean a signal return, group reference, channel reference, supply negative, or logic reference. Protective earth is a protective conductor. A functional bond between them may exist at a defined location, but the words are not interchangeable.

Read the isolation diagram

Identify isolation between:

• field channel and backplane;
• channel groups;
• individual channels;
• power and signal circuits;
• analog input and output;
• network and I/O;
• barrier safe and hazardous sides.

Then identify maximum allowed potential differences and common-mode conditions. “Isolated module” without the boundary is incomplete.

Shield treatment is frequency and system dependent

Shield practice depends on cable construction, signal type, EMC environment, equipotential bonding, enclosure entry, device instructions, and project standard. Universal advice such as “always bond one end” or “always bond both ends” is unsafe because each can be wrong in a different installation.

Shield question	Evidence source
where does the cable enter the enclosure?	panel/cable-entry EMC design
is a 360-degree bond required?	device and project installation instructions
are both locations equipotential?	grounding and bonding design
does the device provide a shield terminal?	exact connection drawing
is the shield a signal return?	it normally should not be assumed so
how is intrinsic safety handled?	approved barrier and hazardous-location design

Route power and sensitive signals deliberately

Keep the project’s segregation, crossing, bonding, and enclosure rules consistent. A wiring change that moves an analog cable beside a drive output can create a fault even when the terminal numbers remain correct. Mechanical routing is part of the electrical result.

Ground loops are a diagnosis, not a slogan

When an analog value shifts, compare signal-to-reference voltage, potential difference between device and input references, shield current where appropriate, isolator behavior, and the installed bonding topology. Do not cut protective or functional bonds as an experiment without engineering review.

PLC panel wiring and documentation boundaries

What belongs in the generic I/O guide

This article owns the recurring field-to-I/O paths: dry contacts, PNP/NPN sensors, relay/transistor outputs, current loops, voltage signals, temperature inputs, commons, and verification.

What belongs in a panel-design guide

The PLC control panel wiring guide owns system architecture, incoming power, distribution, SCCR/short-circuit design context, protective-device coordination, enclosure and thermal design, separation, panel construction, documentation, FAT, and lifecycle control. A searcher asking for a basic I/O current path should not have to work through the entire panel lifecycle; a designer should not mistake this page for that lifecycle.

Why vendor terminal searches stay separate

“Siemens PLC wiring diagram” or “Allen-Bradley PLC wiring diagram” often means “find the exact manual for my CPU or module.” This page teaches the verification method and links official examples, but it deliberately does not reproduce catalog-number terminal sheets. Vendor intent requires hardware identification first.

Symbols are only the first translation

Symbol or label	Typical meaning	Required confirmation
DI / I / X	digital input	voltage, source/sink behavior, common, filter
DO / Q / Y	digital output	relay/transistor/triac, polarity, load, group
AI	analog input	current/voltage/resistance/TC mode and active/passive role
AO	analog output	range, load, supply role, safe state
COM / M / C	common or reference	exact channels and electrical relationship
L+ / +24 V	positive DC supply	which supply and domain
M / 0 V	DC return/reference on some systems	not automatically protective earth
PE	protective earth	protective bonding design
SH / shield	cable shield connection	termination method and location
NC	can mean normally closed or no connection	context and manual note are essential

The label “NC” is a classic hazard: on a relay it may mean normally closed; on a connector table it may mean no connection and explicitly forbid external wiring.

Worked example: PLC motor-starter I/O

This example is a documentation and test model, not a safety or construction design.

Define the signal contract

Tag	Field evidence	PLC role	Healthy/active meaning
M101_StartRequest	momentary operator control	DI	start requested
M101_StopHealthy	approved stop-chain status contact	DI	standard-control stop path healthy
M101_OverloadHealthy	overload auxiliary contact	DI	overload not tripped
M101_RunCommand	PLC output through approved load interface	DO	starter requested on
M101_RunFeedback	starter auxiliary contact	DI	contactor auxiliary state indicates pickup
M101_ProcessProof	process-specific feedback	DI/AI	driven process responded where required

An ordinary stop-status input is not an emergency-stop safety circuit. Safety inputs, outputs, reset, diagnostics, contactors, feedback monitoring, architecture, and validation belong to the approved safety design.

Draw command and feedback as separate paths

The output current path uses a load supply, protection, PLC output or interposing contact, coil, suppression, and return. The feedback path uses a separate input circuit through the auxiliary contact. Keeping them separate lets the program distinguish command from proof.

Define expected-state timing

State	Run command	Run feedback	Interpretation
stopped stable	0	0	expected stopped state
start transition	1	0 briefly	pickup pending within validated time
running stable	1	1	command and auxiliary proof agree
failed to start	1	0 beyond limit	output/load/starter/process diagnostic required
dropped out	1	1 then 0	supply, coil, overload, contactor, or mechanical issue
welded/discrepant	0	1 beyond release limit	auxiliary/contact/state discrepancy

The timing values come from the real starter, process, controller, and safety requirements. A generic timer value would be arbitrary.

Troubleshoot without changing logic first

If the command is true and feedback is false, inspect:

1. whether the output routine and mode permit the command;
2. output module indication and diagnostics;
3. load supply and protective device;
4. voltage across the correct output/load points;
5. coil and suppression connection;
6. overload and contactor mechanical state;
7. auxiliary contact path;
8. raw input and mapped feedback tag.

Changing the rung before proving those layers can hide a wiring or power fault.

Worked example: two-wire pressure transmitter

Define the loop

The intended series path is approved loop supply → transmitter → passive current input → return. The exact order can be drawn differently on the page, but every series element and polarity must be explicit.

Define the measurement contract

Contract item	Example form—not a universal value
process variable	vessel pressure
electrical range	documented current range
engineering range	project low to project high with units
input mode	current, exact channel configuration
raw range	platform-specific representation
fault handling	under-range, over-range, open loop, bad quality
filtering	channel and program filters with response impact
alarm ownership	controller/HMI/process layer and acknowledgement behavior

Prove the loop in layers

At an approved test state, compare:

Layer	Evidence
source	supply within specified range under loop load
transmitter	correct model, polarity, configuration, and local status
loop current	expected current from an approved measurement/simulation method
input terminal	correct signal at the exact channel reference
channel	correct configured range and diagnostic state
raw value	expected conversion at several points
engineering value	correct scale, units, limits, and rounding
HMI/alarm	correct quality, display, trend, and abnormal response

Distinguish wiring from process faults

A good electrical signal can represent a bad process measurement because the impulse line is blocked, sensor is misapplied, density changed, calibration drifted, or installation is wrong. Conversely, a stable process can produce a bad electrical signal because the loop is open, grounded incorrectly, underpowered, or misconfigured. Preserve both hypotheses until evidence separates them.

Point-to-point and functional verification

What a point-to-point test proves

A point-to-point test checks that one documented field condition propagates through the physical connection to the intended raw PLC channel and mapped tag. It should prove identity and direction, not only continuity.

Test sequence

Only in an approved safe test state:

1. verify drawing, I/O schedule, module, device, and revision;
2. identify the point at the field device and panel terminal;
3. inspect wire, ferrule, terminal, connector, and shield treatment;
4. apply or simulate the approved field condition;
5. observe the appropriate electrical quantity;
6. observe module indication and diagnostics;
7. observe the raw channel;
8. observe the mapped program tag;
9. verify HMI indication, alarm, and command boundary;
10. perform controlled output or functional checks where authorized;
11. remove every simulator, jumper, force, and bypass under control;
12. record as-found, action, as-left, deviations, and approval.

Test record fields

Field	Why it matters
point/tag and description	unambiguous identity
drawing and revision	controlled design basis
module/channel and device catalog	exact hardware
normal state	prevents inverted interpretation
applied condition	reproducible stimulus
measured value and reference points	electrical evidence with context
raw and mapped values	mapping evidence
HMI/action result	end-to-end behavior
simulator/force/bypass used	restoration control
as-found and as-left	maintenance accountability
tester, witness, time	provenance
deviation/punch item	unresolved risk and owner

Functional testing goes beyond point identity

After point-to-point checks, test control behavior: permissives, interlocks, command arbitration, feedback timeouts, alarm priority, bad-quality handling, power loss, restart, communication loss, and safe recovery. A correct wire can still feed incorrect logic; correct logic can still command an unsuitable circuit.

Restoration is a test step

Forces, jumpers, bypasses, simulators, temporary grounds, open loops, overridden alarms, and maintenance modes must be tracked and removed. Verify the normal configuration after restoration. A test that passes with a forgotten force is a dangerous false result.

PLC wiring troubleshooting

Symptom-to-layer map

Symptom	First high-value checks	Avoid assuming
input never turns on	field supply, return/common, device state, source/sink compatibility, terminal, channel mode	program is wrong
input stays on	short to supply/return, leakage, wrong common, forced raw/mapped tag, inverted mapping	sensor is definitely stuck
input flickers	loose connection, bounce, threshold margin, supply dip, EMC, filter/task timing	“noise” without localization
output LED on, load off	load supply, protection, output terminal under load, coil/load, return, interposing device	output contact is closed
output off, small load active	solid-state leakage, minimum load, induced voltage, wiring	PLC is commanding it
analog fixed at zero	loop power, open circuit, polarity, current/voltage mode, active/passive roles	transmitter process value is zero
analog full scale	open RTD, range mismatch, active-active current conflict, wrong reference	process is genuinely high
analog noisy	reference potential, shielding/bonding, routing, supply, process noise, filter	one-end shield rule solves it
works until drive starts	supply dip, routing, bonding, suppression, common-mode, network/process interaction	random software race
correct raw I/O, wrong HMI	mapping, scale, units, quality, communications, display binding	field wiring is bad

Use the first-disagreement rule

Write the expected chain:

field condition → physical signal → measured electrical value → module status → raw channel → mapped tag → command/feedback logic → HMI/process result.

Find the first layer that disagrees. If the electrical signal is wrong at the terminal, stay in the field circuit. If the electrical signal and raw channel are correct but the mapped tag is wrong, inspect mapping and task execution. If the mapped tag is correct and the HMI is wrong, inspect communications, quality, tag binding, or display logic.

Measure across the suspected boundary

Boundary	Evidence that localizes it
supply to field branch	source value under the relevant load condition
contact/sensor to terminal	state on both sides using the correct reference
terminal to input	signal at connector plus channel diagnostic/raw state
output to load	command, module state, terminal value under load, return
loop transmitter to AI	loop current, compliance budget, input mode, raw value
raw channel to mapped tag	mapping, task/routine execution, data ownership
command to physical action	load circuit, actuator feedback, process response

Intermittent faults need time-correlated evidence

Record supply, raw I/O, mapped tags, module diagnostics, network status, drive events, machine state, and timestamps. A single screenshot after the fault may show only the recovered state. Use a ring buffer, trend, first-out record, or event capture appropriate to the platform and risk.

Do not use forces as an unexplained shortcut

A force can separate program intent from I/O behavior, but it can also create hazardous motion, bypass logic, persist unexpectedly, or obscure the original fault. Forces need authorization, scope, indication, duration, restoration, and an evidence record.

Safe maintenance, changes, and OT security

Electrical safety boundary

This guide is not an energized-work procedure. Determine applicable law, standards, employer procedures, qualified-person requirements, PPE, test-instrument suitability, lockout/tagout, stored-energy controls, and restoration responsibilities for the actual site and jurisdiction.

Standard I/O is not safety I/O

A standard PLC input, output, software interlock, normally closed symbol, simulator result, or redundant-looking drawing does not establish a required safety integrity level, performance level, category, architecture, diagnostic coverage, or legal compliance. Functional safety requires a documented risk assessment, safety requirements, suitable hardware/software architecture, validation, proof testing, management of change, and responsible approval.

Engineering access is part of the wiring risk

NIST SP 800-82 Rev. 3 treats PLCs, engineering workstations, networks, and physical-process consequences as part of OT security. Control who can connect, upload, download, force, reconfigure I/O, or change firmware. Preserve known-good backups, compare online/offline state, log changes, and test recovery.

Remote troubleshooting has a physical boundary

A remote engineer can inspect logic and diagnostics, but cannot safely confirm terminal identity, conductor condition, meter placement, isolation, unexpected motion, or local environmental hazards. Define the local qualified person’s role before remote guidance changes physical state.

Manage replacements and revisions

Change	Required review
sensor substitution	electrical behavior, pinout, function, configuration, environment
I/O module revision	terminal, range, diagnostics, firmware, configuration, test
power-supply change	voltage, capacity, fault level, grounding, shared loads
shield/routing change	EMC and bonding design
output-load change	inrush, duty, suppression, protection, safe state
program mapping change	tag ownership, HMI, alarm, test, backup
temporary jumper or force	authorization, visibility, duration, removal proof

Practice in the PLC wiring simulator

What to learn in simulation

Use the PLC wiring simulator to practice source-to-return reasoning without treating a browser model as real hardware. Build a simple 24 VDC training circuit, predict every node, open one connection, reverse a logical assumption, and locate the first evidence layer that changes.

Suggested fault experiments

Experiment	Prediction to write first	Evidence to compare
open the dry-contact path	input de-energizes	node voltage, raw input, mapped tag
remove the input common	no complete current path	signal relative to correct versus wrong reference
mismatch PNP/NPN roles	input does not switch correctly	current path and common arrangement
remove load supply	command remains but load does not act	output state versus field voltage/action
open 4–20 mA loop	under-range or defined fault	loop current, raw value, quality/alarm
force mapped tag only	program state changes without physical evidence	raw I/O versus mapped value

What simulation cannot prove

The simulator cannot validate the exact target module’s thresholds, terminals, leakage, isolation, diagnostic coverage, firmware, network timing, conductor installation, protective-device design, EMC, hazardous location, real process, machinery safety, or safe-work procedure. Use it to improve reasoning and test design before approved hardware and site validation.

Conversion path

The useful next step is not “buy because you read an article.” It is to test whether you can predict and diagnose a current path. Start the simulator, create a failure, record the expected versus observed state, and keep the evidence. If that workflow helps your training or troubleshooting practice, continue into the product’s broader PLC labs.

PLC wiring answer map

Question	Concise answer
How do you read a PLC wiring diagram?	trace source, switching element, receiver/load, and return; then verify exact terminals and expected states
How is a dry contact wired to a PLC input?	an approved sensing supply passes through the contact into a compatible input and returns through its common
Does a PNP sensor need a sinking input?	commonly yes: the PNP output sources positive voltage and the sinking input completes the return; verify both manuals
Does an NPN sensor need a sourcing input?	commonly yes: the sourcing input supplies current that the NPN output sinks to 0 V; verify both manuals
What is PLC input common?	the electrical reference/return or source for a defined channel group, not automatically protective earth
How is a PLC relay output wired?	a separate load supply enters the correct output common, passes through the relay contact and load, and returns to that supply
How is a two-wire 4–20 mA transmitter wired?	as one series loop containing supply, transmitter, passive receiver, and return, subject to polarity and burden
What is the difference between two-wire and four-wire transmitters?	a two-wire device shares power and signal conductors; a four-wire device separates power from its signal output
Why is the output LED on but the load off?	the command/module indication can be correct while load supply, protection, terminal, output element, load, or return is faulty
Can a generic PLC diagram be used for construction?	no; it must be converted into catalog-number-specific approved project documentation
Is common the same as ground?	not necessarily; common, signal reference, supply return, shield, and protective earth have distinct roles
Can PLC wiring be tested safely in a simulator?	logical current-path reasoning can; actual electrical, safety, EMC, and process behavior still require approved real-world validation

Frequently asked questions

What is the circuit diagram of a PLC?

The circuit diagram of a PLC usually means the electrical schematic or connection drawing around its inputs and outputs: supply, protection, contact or sensor, module channel and common for an input; or load supply, output element, load, suppression and return for an output. It may instead mean a conceptual block diagram, so state which document is required. A construction-ready circuit diagram must use the exact catalog-number manuals, terminal designations, approved protection and controlled project revision—not generic web artwork.

How do you read a PLC wiring diagram?

Start at the electrical source and trace one complete path through protection, the field switching element, terminal, PLC receiver or output-controlled load, and return. Name the reference for every voltage. Then compare the exact catalog-number manual, channel configuration, raw PLC state, mapped tag, and expected machine outcome. If the return or exact module is missing, the drawing is incomplete.

What is a basic PLC input wiring diagram?

A basic PLC input wiring diagram shows an approved sensing supply, a field contact or electronic sensor, a compatible digital input, and the input common that completes the circuit. It should also identify protection, terminals, normal state, and the exact module manual. “Basic” should simplify the explanation, not remove the return path or safety boundary.

How do you wire a dry contact to a PLC input?

In a common educational pattern, the project’s sensing supply feeds the dry contact through approved protection, the closed contact feeds the compatible PLC input, and the input common returns to the same supply. The exact voltage, terminal numbers, wetting current, filtering, protection, and contact rating must be selected from the real hardware and project design.

What is the difference between PNP and NPN PLC input wiring?

A PNP sensor output usually sources positive voltage and commonly drives a sinking input whose common returns to 0 V. An NPN sensor output usually sinks toward 0 V and commonly works with a sourcing input whose common provides positive voltage. Vendor terminology varies, so trace current direction in both manuals instead of relying on the label alone.

How do you wire a PLC relay output?

Treat the relay output as a controller-operated contact. Feed the correct output common from the approved load supply, route the switched terminal to the load, and complete the load return. Verify contact voltage, load category, inrush, continuous current, group limits, protection, expected life, switching frequency, and suppression. The output LED does not prove the load circuit is energized.

How do you wire a two-wire 4–20 mA transmitter to a PLC?

Build one series loop with an approved DC supply, the loop-powered transmitter, a passive PLC current input, and the return. Confirm polarity, active/passive roles, input mode, transmitter minimum voltage, total loop burden, barriers or isolators, shielding, fault current behavior, and scaling. Do not add a resistor unless the exact input design calls for one.

Is PLC common the same as 0 V or ground?

Sometimes a DC input common connects to that supply’s 0 V, but “common” only describes the reference for specified channels. It is not automatically protective earth, shield, or every other supply return. Read the module isolation diagram and project grounding design before bonding commons.

Why is a PLC output light on but the device is off?

The light can indicate a logic command or internal module state while the field circuit still lacks load power, has an open protective device, failed terminal, unsuitable or damaged output, broken conductor, wrong return, failed coil, or mechanical fault. Compare command, module diagnostics, terminal electrical evidence, load state, feedback, and final process response.

Can I use a generic PLC wiring diagram for Siemens, Allen-Bradley, Mitsubishi, Schneider, Omron, or AutomationDirect hardware?

Use it only to understand the recurring topology. Do not use generic terminal numbers or assume the same common arrangement, source/sink naming, isolation, ratings, diagnostics, or configuration. Identify the exact catalog number and manual revision, convert the topology into the project’s approved connection drawing, and test that specific hardware.

Can I learn PLC wiring without working on energized equipment?

Yes. You can learn document reading, current-path reasoning, PNP/NPN compatibility, output roles, analog-loop budgeting, expected-state tables, and fault localization with de-energized training hardware and simulation. Real installation, testing, and commissioning still require qualified supervision, applicable safe-work procedures, approved instruments, and site authorization.

Sources, review scope, and limitations

Official primary sources reviewed

1. Siemens — S7-1200 Programmable Controller System Manual, V4.7, 12/2024, accessed 2026-08-29. Used for current digital/analog I/O, wiring, supply, grounding, module and catalog-specific boundaries.
2. Siemens — S7-1200 G2 Programmable Logic Controller System Manual, V1.0, 01/2025, accessed 2026-08-29. Used for current G2 signal-module wiring and analog-channel configuration context.
3. Rockwell Automation — ControlLogix Digital I/O Modules User Manual, 1756-UM058, accessed 2026-08-29. Used for catalog-specific digital input/output wiring, commons, diagnostics and ratings.
4. Rockwell Automation — ControlLogix High Resolution Analog I/O Modules User Manual, 1756-UM540G, June 2023, accessed 2026-08-29. Used for analog-module role, range, channel and wiring context.
5. Rockwell Automation — Industrial Automation Wiring and Grounding Guidelines, 1770-IN041, accessed 2026-08-29. Used as manufacturer installation context; the publication is older and must be reconciled with current product and project instructions.
6. Rockwell Automation — ControlLogix High Resolution Analog I/O Module Installation Instructions, 1756-IN056, accessed 2026-08-29. Used for the installation-versus-user-manual evidence boundary.
7. Mitsubishi Electric — FX3U Series Programmable Controllers User’s Manual, Hardware Edition, accessed 2026-08-29. Used for explicit sink/source input definitions, selection and catalog-specific warnings.
8. Mitsubishi Electric — FX3G Series Programmable Controllers User’s Manual, Hardware Edition, accessed 2026-08-29. Used for sink/source transistor output examples, external protection and safety-warning context.
9. Schneider Electric — TM5 Digital I/O Modules Hardware Guide, accessed 2026-08-29. Used for current digital I/O module, connector and wiring context.
10. Schneider Electric — TM5 Analog I/O Modules Hardware Guide, accessed 2026-08-29. Used for current/voltage and analog connection context.
11. Schneider Electric — Logic Type, accessed 2026-08-29. Used to illustrate positive/negative logic and source/sink terminology in official product help.
12. AutomationDirect — Productivity1000 User Manual and Module Inserts, accessed 2026-08-29. Used for a current official catalog of sinking/sourcing, relay, transistor, analog, RTD and thermocouple module references.
13. Fluke — What Is a 4–20 mA Current Loop?, accessed 2026-08-29. Used for the series-loop components and current-signal explanation.
14. Fluke — How to Measure a 4–20 mA Loop Signal, accessed 2026-08-29. Used for the measurement-method boundary and non-interrupting loop-tool context.
15. IEC — IEC 60204-1:2016, Safety of machinery—Electrical equipment of machines, accessed 2026-08-29. Used for scope and the machine-electrical-equipment design boundary; consult the applicable edition/amendment and jurisdiction.
16. NFPA — NFPA 79:2024, Electrical Standard for Industrial Machinery, accessed 2026-08-29. Used for US industrial-machinery documentation, protection, testing and verification context; the full standard controls where applicable.
17. OSHA — 29 CFR 1910.147, Control of Hazardous Energy, accessed 2026-08-29. Used for the US lockout/tagout boundary for covered servicing and maintenance.
18. NIST — SP 800-82 Rev. 3, Guide to Operational Technology Security, published 2023-09 and accessed 2026-08-29. Used for PLC, engineering-workstation, access control, change, recovery and physical-process security context.

Editorial method and limits

The PLC Programming IO Editorial Team reviewed the cited official material, fresh keyword data, and six live US SERPs on 2026-08-29. The recurring electrical relationships were synthesized into six deterministic diagrams. Two separately generated editorial photographs provide context only. The diagrams were manually reviewed for readable labels and source-to-return boundaries; they remain educational patterns rather than approved project drawings.

Standards, laws, product manuals, hardware revisions, firmware, and installation requirements change. Confirm the current document for the exact product and jurisdiction. This article is not electrical-engineering approval, construction documentation, a risk assessment, an energized-work procedure, a hazardous-location design, a functional-safety validation, or evidence that a real circuit passed inspection.

Qualified personnel must select equipment and protection, determine safe work, control hazardous energy, verify absence of voltage where required, review grounding and shielding, approve configuration and network access, execute FAT/SAT, resolve deviations, restore temporary test measures, and release equipment. The browser simulator is a learning-oriented model, not Siemens TIA Portal, Rockwell Studio 5000, Mitsubishi GX Works, Schneider EcoStruxure Machine Expert, Omron Sysmac Studio, AutomationDirect Productivity Suite, a production PLC, or a safety controller.

Refresh triggers

Review this page when a cited manual or standard is superseded, when the wiring simulator changes electrical behavior, when a tested reader question exposes ambiguity, or when search data shows a distinct task that cannot be served without confusing this canonical owner. Measure impressions and clicks separately from simulator starts, signups, paid conversion, and retention; no page structure, schema, source list, word count, or diagram guarantees ranking or AI citation.
