PLC projects: the direct answer

A strong PLC project is a testable control problem, not only a project name or downloadable program. Start with a requirement and I/O contract; define modes, priorities, command and physical feedback; implement the logic; then run normal, simultaneous, timeout, invalid, reset and restart cases. The most useful progression is one-motor control, timed states, small sequences, multi-equipment coordination, analog/process work, communications and finally controlled recovery.

This page owns the broad PLC projects, PLC programming projects, beginner ideas, student portfolio and acceptance-test task. The machine and process application pillar owns the reusable engineering pattern across conveyor, pump, tank, robot, HVAC and batch systems. The individual worked example pages own complete code for one exercise. The disclosed interactive PLC project path owns browser execution and grading. Keeping those roles separate prevents three near-duplicate pages from competing for the same query.

Ownership disclosure: PLC Programming IO and PLC Simulation Software share ownership. Links to the product use campaign attribution so project-page clicks can be measured through activation, checkout and paid signup; a lower-click CTA should be retained if it produces stronger paid conversion or revenue per editorial visit.

Choose the right PLC project in sixty seconds

Search results mix idea lists, student capstones, hobby builds, complete factory projects, ladder examples and simulator offers. Decide what evidence you need before choosing the hardware or language.

Your question	Best starting surface	Evidence that closes it
I need my first project	Projects 1–4 on this page	I/O list, small listing, scan trace and normal/fault cases
I need realistic project ideas	All 24 briefs, filtered by skill layer	Physical objective, modes, feedback, failure and recovery
I need a complete solution	Eight worked example routes	I/O, code, explanation and target limitations
I need machine/process patterns	Real-world applications pillar	Request → permissive → command → feedback → fault
I need repeated practice	Interactive project path	Runnable scenario, graded cases and learner evidence
I need target-platform proof	Current vendor examples/software and an approved lab	Compile, task, I/O, firmware, device and physical results

What turns a PLC project idea into engineering evidence?

Forum questions repeatedly ask for “real industrial projects,” but complete plant programs are rarely safe or useful without drawings, machine behavior, controller versions, intellectual-property permission and operating context. A sanitized brief becomes more realistic by adding missing decisions—not by claiming that anonymous factory source is universally reusable.

Artifact	Minimum content	Weak substitute to reject
Requirement	Trigger, goal, priority, completion, failure and recovery	“Automate a conveyor”
I/O contract	Source, type, true/healthy meaning, units, quality and owner	Addresses with no semantics
State/mode design	Legal states, transitions, output ownership and priorities	Scattered mode contacts
Implementation	Versioned source and configuration mapped to requirements	Screenshot with no editable project
Acceptance matrix	Initial state, stimulus, expected state/command/feedback/time	“It ran once”
Fault evidence	Injected cause, first failed boundary, diagnosis and recovery	Generic red fault bit
Handoff	Assumptions, target deviations, open risks and authorization	Portfolio claim with no limits

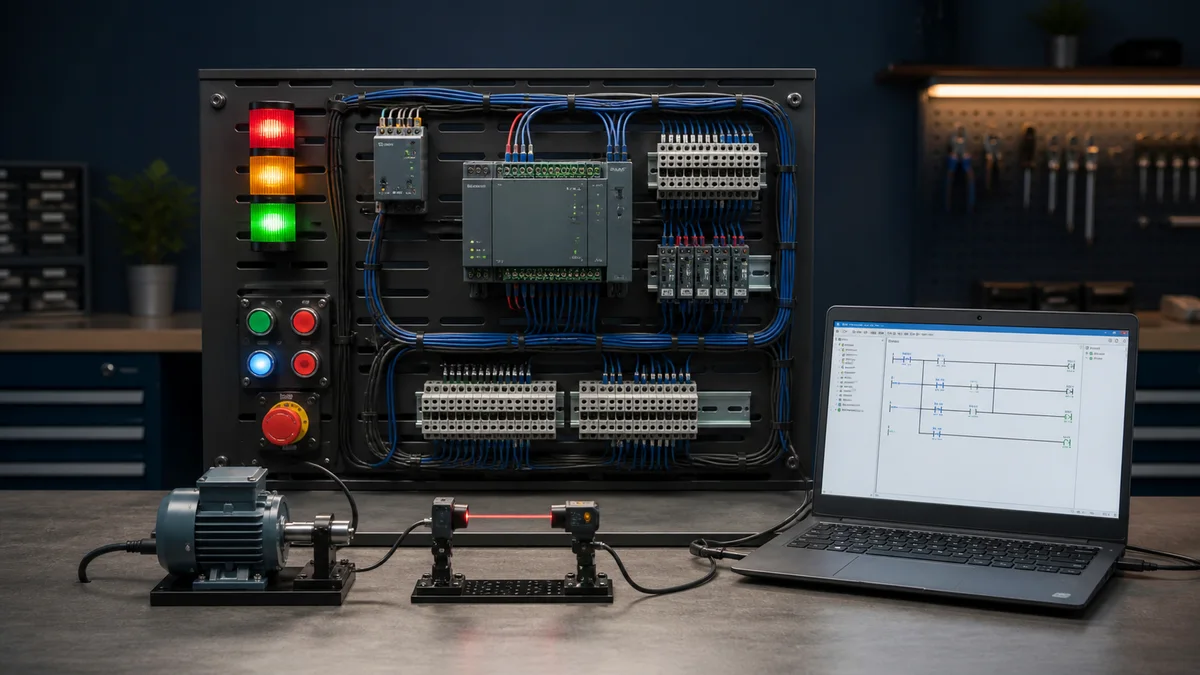

Beginner level · 8 briefs

Beginner PLC projects: establish observable control

These projects constrain the process so one priority, timer, edge, analog boundary, or small state model can be explained scan by scan. “Beginner” means narrow scope, not weak evidence: each task still needs a stated true condition, defined outputs, at least one abnormal case, and a reset or restart decision.

Project	Time	Primary logic	Decisive fault case
1. Stop-dominant motor request	30–45 min	Boolean priority, seal-in ownership, command-versus-feedback separation and start timeout.	Hold start while feedback stays false, drop a permissive while running, then verify command removal and reset rejection.
2. Pedestrian traffic-light sequence	60–90 min	Explicit states, timed transitions, request capture, mutually exclusive outputs and safe initial state.	Inject a held request, restart in every phase and assert that incompatible green outputs are never true in the model.
3. Garage or workshop alarm annunciator	60–90 min	Entry/exit timers, first-out latch, alarm-state separation, one-shot events and reset conditions.	Open two zones in one scan, chatter a contact, remove and restore power, and test rejected reset while a cause remains active.
4. Two-switch tank fill and drain	60–90 min	Hysteresis, mode arbitration, mutually exclusive fill/drain commands and timeout supervision.	Stick each level switch, lose feedback, change mode mid-cycle and confirm the defined command, state and alarm response.
5. Parking-gate occupancy controller	90–120 min	Rising edges, bounded up/down count, gate states, obstruction reversal and impossible-count diagnostics.	Hold a detector, present entry and exit together, lose a limit and inject an obstruction during closing.
6. Forward/reverse motor with proof	60–90 min	Mutual exclusion, off-delay between directions, stop dominance, feedback timeout and restart inhibition.	Present both requests, weld a modeled feedback true and simulate command without auxiliary confirmation.
7. Temperature fan with hysteresis	60–90 min	Analog scaling, range validation, hysteresis, mode handling and command/feedback discrepancy.	Inject under-range, over-range, frozen measurement and failed running feedback.
8. Timed wash or rinse cycle	90–120 min	CASE or step sequence, one owner per output, phase timers, abort priority and controlled recovery.	Fail one valve proof in each phase, stop on a transition scan and restart from every state.

Project 130–45 minSimulator or low-voltage trainer

Stop-dominant motor request

Start and stop one ordinary motor request with a deliberate seal-in, stop priority, running feedback and a reset policy.

I/O contract: Start and stop pushbuttons, process permissive, motor command, auxiliary/running feedback and fault indicator.
Logic target: Boolean priority, seal-in ownership, command-versus-feedback separation and start timeout.
Normal acceptance: A start edge latches one request; stop wins when start and stop are presented together; feedback proves within the stated window.
Injected fault: Hold start while feedback stays false, drop a permissive while running, then verify command removal and reset rejection.

Evidence to retain: I/O contract, four-rung or equivalent listing, scan trace and six-case acceptance sheet.

Project 260–90 minSimulator or lamp trainer

Pedestrian traffic-light sequence

Coordinate two vehicle directions, an all-red interval and a pedestrian request without allowing conflicting green indications.

I/O contract: Vehicle and pedestrian requests, six lamp outputs, walk/don’t-walk outputs, reset and optional lamp feedback.
Logic target: Explicit states, timed transitions, request capture, mutually exclusive outputs and safe initial state.
Normal acceptance: A request is served once, minimum phase times are preserved and the sequence passes through all-red before conflict changes.
Injected fault: Inject a held request, restart in every phase and assert that incompatible green outputs are never true in the model.

Evidence to retain: State table, timing diagram, conflict invariant, ladder or ST implementation and restart record.

Open the complete worked example →

Project 360–90 minSimulator or 24 V switch panel

Garage or workshop alarm annunciator

Monitor several doors/windows, arm after an exit delay, retain first-out evidence and keep acknowledgement separate from return to normal.

I/O contract: Arm/disarm request, individual contacts, horn, status lamp, acknowledge, reset and optional keypad-valid signal.
Logic target: Entry/exit timers, first-out latch, alarm-state separation, one-shot events and reset conditions.
Normal acceptance: A healthy system arms after the delay, one opened contact identifies its zone and acknowledgement silences without erasing cause.
Injected fault: Open two zones in one scan, chatter a contact, remove and restore power, and test rejected reset while a cause remains active.

Evidence to retain: Alarm philosophy, state/priority table, first-out trace and repeatable input script.

Project 460–90 minBrowser process model or clear tank trainer

Two-switch tank fill and drain

Cycle a fill valve and drain pump between low and high switches with Off, Manual and Auto ownership.

I/O contract: Low/high switches, mode and start controls, fill command, drain command, running feedback and high-high alarm.
Logic target: Hysteresis, mode arbitration, mutually exclusive fill/drain commands and timeout supervision.
Normal acceptance: Auto fills from low to high, drains only when requested and never commands fill and drain at the same time.
Injected fault: Stick each level switch, lose feedback, change mode mid-cycle and confirm the defined command, state and alarm response.

Evidence to retain: Process narrative, truth table, trend, alarm/reset matrix and target-I/O boundary.

Open the complete worked example →

Project 590–120 minSimulator or tabletop gate

Parking-gate occupancy controller

Count vehicles in and out, inhibit entry at capacity and sequence a barrier only when detection and clearance conditions agree.

I/O contract: Entry/exit detectors, open/closed limits, obstruction, gate motor directions, full indicator and manual controls.
Logic target: Rising edges, bounded up/down count, gate states, obstruction reversal and impossible-count diagnostics.
Normal acceptance: One vehicle changes occupancy once, the gate completes travel and entry is refused exactly at the configured capacity.
Injected fault: Hold a detector, present entry and exit together, lose a limit and inject an obstruction during closing.

Evidence to retain: Sensor layout, counter invariant, state trace and edge/fault acceptance cases.

Open the complete worked example →

Project 660–90 minSimulator first; supervised trainer second

Forward/reverse motor with proof

Request two directions while preventing simultaneous ordinary commands and verifying that the selected direction actually proves.

I/O contract: Forward/reverse requests, stop, overload, two commands, two auxiliary feedbacks and direction fault.
Logic target: Mutual exclusion, off-delay between directions, stop dominance, feedback timeout and restart inhibition.
Normal acceptance: Each direction starts only from a proven stopped condition and a reversal passes through a validated off interval.
Injected fault: Present both requests, weld a modeled feedback true and simulate command without auxiliary confirmation.

Evidence to retain: Electrical-interface boundary, interlock truth table, time trace and discrepancy diagnosis.

Open the complete worked example →

Project 760–90 minSimulator or low-voltage fan/temperature trainer

Temperature fan with hysteresis

Scale a temperature input and control a fan between separate start and stop thresholds without output chatter.

I/O contract: Raw analog temperature, engineering value, setpoint/deadband, fan command, feedback and sensor-fault alarm.
Logic target: Analog scaling, range validation, hysteresis, mode handling and command/feedback discrepancy.
Normal acceptance: The command starts above the upper threshold, remains stable inside the band and stops below the lower threshold.
Injected fault: Inject under-range, over-range, frozen measurement and failed running feedback.

Evidence to retain: Scaling calculation, boundary-value table, trend and fault-quality response.

Project 890–120 minSimulator

Timed wash or rinse cycle

Run fill, wash, drain and rinse phases with explicit hold, abort, completion and restart behavior.

I/O contract: Start/stop/reset, level proof, valve and pump feedback, four ordinary commands and phase indication.
Logic target: CASE or step sequence, one owner per output, phase timers, abort priority and controlled recovery.
Normal acceptance: Every phase enters only after its predecessor completes and outputs return to their defined idle state at completion.
Injected fault: Fail one valve proof in each phase, stop on a transition scan and restart from every state.

Evidence to retain: Sequence chart, output-by-state matrix, timeout list and normal/abort/restart traces.

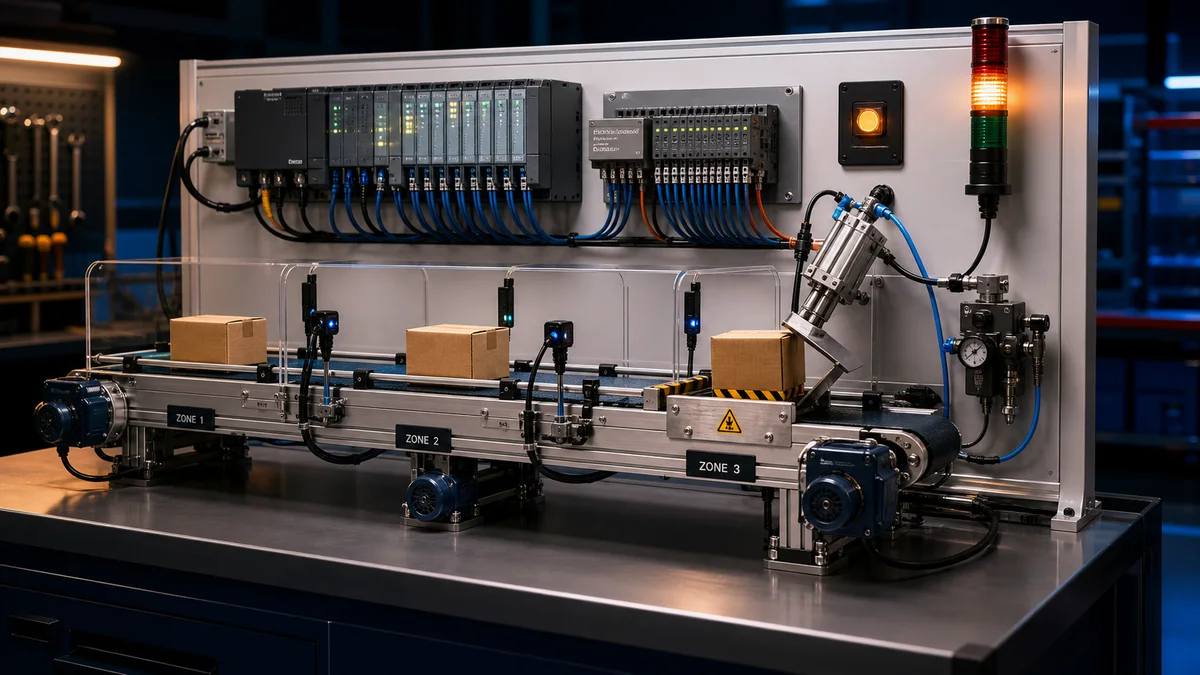

Guarded three-zone conveyor PLC project with cartons, photoelectric sensors, reject diverter, pneumatic components and generic I/O — Generated editorial photograph: the intermediate challenge is not merely turning on a belt; it is retaining item ownership, proving transfer, timing the diverter and diagnosing the first failed boundary.

Intermediate level · 8 briefs

Intermediate PLC projects: coordinate equipment and feedback

Intermediate work joins several patterns around a physical outcome. The useful difficulty comes from ownership, handshakes, analog quality, missing feedback and recovery—not from adding dozens of unrelated rungs. Build the process model before the solution so the same acceptance cases can grade Ladder Diagram, Structured Text, or another supported implementation.

Project	Time	Primary logic	Decisive fault case
9. Three-zone conveyor sort	3–5 h	Per-zone states, item tracking, edge capture, persistent handshakes, transfer timeouts and first-out faults.	Block the receiving zone, stick a sensor, drop drive-ready and fail the reject cylinder confirmation.
10. Duty/standby pump station	3–5 h	Availability selection, hysteresis, alternation, proof timeout, failover, runtime accumulation and first-out diagnosis.	Make the selected lead unavailable before and after command, freeze level and remove flow while feedback remains true.
11. Bottle fill, cap and reject cell	4–6 h	Index state machine, dwell timing, station handshakes, product result tracking and reject verification.	Remove a bottle mid-cycle, fail valve/cap proof, hold index sensor and lose downstream availability.
12. Batch mixer with recipe parameters	4–6 h	ISA-88-inspired equipment/procedure separation, parameter bounds, phase states, hold/abort and batch evidence.	Reject invalid values, fail one valve proof, trip the agitator, interrupt power and test hold/abort recovery.
13. Air-handler sequence of operation	4–6 h	Enable/proof sequence, setpoint modes, PID/output composition, alarm delays and defined shutdown priorities.	Lose fan proof, freeze a sensor, create low-temperature risk and change occupancy during startup.
14. Analog dosing skid	3–5 h	Scaling, range/quality validation, time-based integration, preact compensation and target tolerance.	Inject under-range, stale signal, valve failed open/closed and a target outside permitted bounds.
15. VFD pressure-control station	4–6 h	Mode ownership, permissives, PID, bumpless transfer, speed limits, proof and no-response diagnostics.	Drop communications, switch local, inhibit the drive, freeze pressure and simulate running with no flow response.
16. Silo fill and discharge arbitration	4–6 h	Resource arbitration, route verification, one-writer output ownership, cleaning/changeover state and timeout handling.	Present simultaneous requests, contradict route feedback and lose a conveyor or product identity mid-transfer.

Project 93–5 hBrowser machine model or guarded trainer

Three-zone conveyor sort

Transfer cartons across three ownership zones, classify one attribute and divert the selected carton with positive confirmation.

I/O contract: Zone sensors, drive ready/running, classify signal, reject actuator command/feedback, downstream handshake and jam alarms.
Logic target: Per-zone states, item tracking, edge capture, persistent handshakes, transfer timeouts and first-out faults.
Normal acceptance: Two closely spaced cartons retain identity, only the selected carton diverts and each zone releases ownership once.
Injected fault: Block the receiving zone, stick a sensor, drop drive-ready and fail the reject cylinder confirmation.

Evidence to retain: Zone contract, item-state trace, jam matrix, ladder/ST listing and fault-injection record.

Open the complete worked example →

Project 103–5 hProcess simulator or supervised water rig

Duty/standby pump station

Alternate two available pumps, add lag demand, fail over on no proof and retain runtime/service context.

I/O contract: Analog level, independent switches, auto/available/fault statuses, two commands, running feedback, flow proof and alarms.
Logic target: Availability selection, hysteresis, alternation, proof timeout, failover, runtime accumulation and first-out diagnosis.
Normal acceptance: The eligible lead starts, lag joins only at its threshold, stop order is defined and the next valid cycle alternates.
Injected fault: Make the selected lead unavailable before and after command, freeze level and remove flow while feedback remains true.

Evidence to retain: Equipment object contract, selection table, level/command trend and failover acceptance matrix.

Project 114–6 hSimulator or guarded indexing trainer

Bottle fill, cap and reject cell

Index one bottle through fill and cap positions, verify presence at each step and reject incomplete product.

I/O contract: Index sensors, bottle presence, fill valve, cap actuator, confirmations, reject command/proof and station-ready handshakes.
Logic target: Index state machine, dwell timing, station handshakes, product result tracking and reject verification.
Normal acceptance: Each bottle advances once, receives one fill/cap operation and exits with a traceable good/reject result.
Injected fault: Remove a bottle mid-cycle, fail valve/cap proof, hold index sensor and lose downstream availability.

Evidence to retain: Station I/O map, product-state record, cycle trace and fault/recovery table.

Project 124–6 hProcess simulator

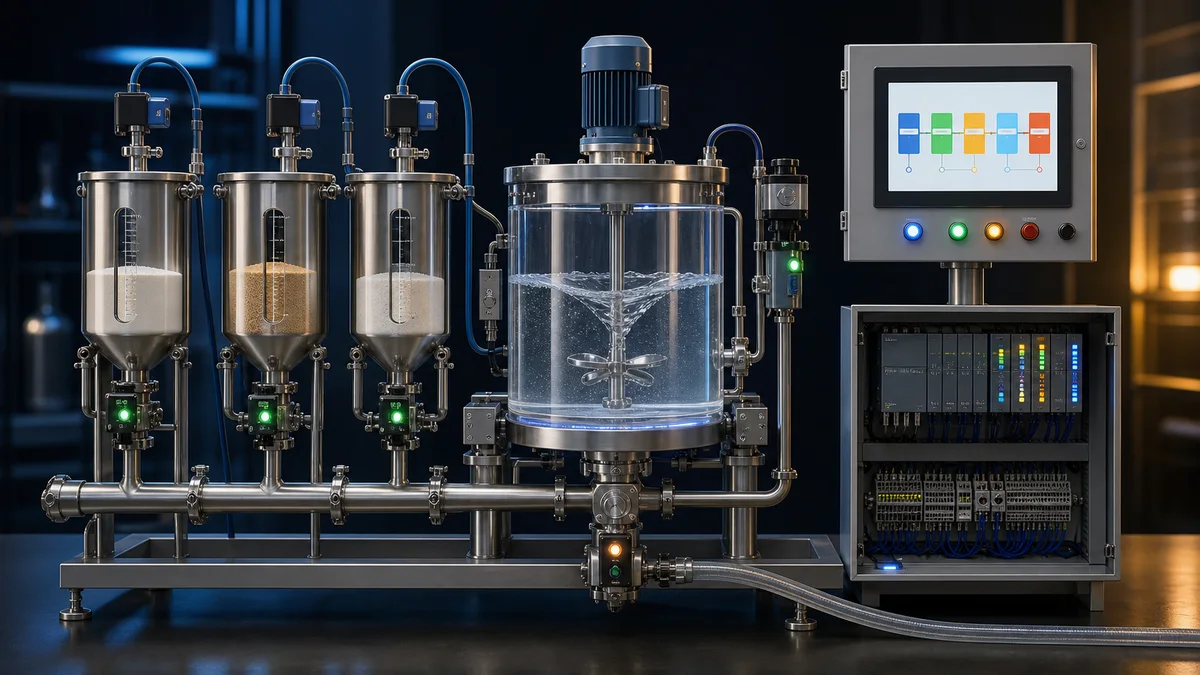

Batch mixer with recipe parameters

Validate a recipe, charge two ingredients, mix for a bounded time and discharge only when equipment conditions permit.

I/O contract: Recipe values, weights/levels, valve proofs, agitator command/running, discharge feedback, phase and fault values.
Logic target: ISA-88-inspired equipment/procedure separation, parameter bounds, phase states, hold/abort and batch evidence.
Normal acceptance: A valid recipe completes once with the correct order, quantities, mix time and batch result.
Injected fault: Reject invalid values, fail one valve proof, trip the agitator, interrupt power and test hold/abort recovery.

Evidence to retain: Recipe contract, equipment capability table, phase trace, deviation record and completion report.

Open the complete worked example →

Project 134–6 hHVAC process model

Air-handler sequence of operation

Start an air handler from written sequence, prove airflow and modulate temperature while respecting frost/smoke and occupancy boundaries.

I/O contract: Schedule, fan command/proof, dampers, temperatures, pressure, valve outputs, filter/frost statuses and alarms.
Logic target: Enable/proof sequence, setpoint modes, PID/output composition, alarm delays and defined shutdown priorities.
Normal acceptance: Dampers move, fan proves, loops enable in order and the model reaches the occupied target without conflicting commands.
Injected fault: Lose fan proof, freeze a sensor, create low-temperature risk and change occupancy during startup.

Evidence to retain: Sequence-to-code traceability, point list, trend, alarm table and functional-performance cases.

Open the complete worked example →

Project 143–5 hProcess simulator or supervised water rig

Analog dosing skid

Scale a flow signal, totalize a batch dose and stop at a target while handling invalid measurement and valve response.

I/O contract: Raw 4–20 mA flow, engineering flow, dose target, valve command/feedback, total, quality and deviation alarm.
Logic target: Scaling, range/quality validation, time-based integration, preact compensation and target tolerance.
Normal acceptance: The dose ends inside the defined tolerance across several simulated flow rates without numeric overflow.
Injected fault: Inject under-range, stale signal, valve failed open/closed and a target outside permitted bounds.

Evidence to retain: Units/calculation sheet, trend, tolerance table and fault-response trace.

Project 154–6 hDrive/process simulator before supervised rig

VFD pressure-control station

Command a pump drive in Auto, regulate pressure and distinguish PLC request, network command, drive state and physical response.

I/O contract: Pressure, setpoint, run/speed request, ready/running/fault, actual speed, flow and local/remote status.
Logic target: Mode ownership, permissives, PID, bumpless transfer, speed limits, proof and no-response diagnostics.
Normal acceptance: Auto starts only when remote/ready, regulates within limits and stops without leaving a stale run request.
Injected fault: Drop communications, switch local, inhibit the drive, freeze pressure and simulate running with no flow response.

Evidence to retain: End-to-end signal map, mode table, loop trend and symptom-to-boundary diagnosis.

Open the complete worked example →

Project 164–6 hSimulator

Silo fill and discharge arbitration

Coordinate shared conveyor/valve resources across two silos without double ownership or cross-contamination.

I/O contract: Route requests, silo levels, diverter proofs, conveyor statuses, product code, fill/discharge commands and mismatch faults.
Logic target: Resource arbitration, route verification, one-writer output ownership, cleaning/changeover state and timeout handling.
Normal acceptance: One valid route owns shared equipment, proves every diverter and releases the resource at a defined completion point.
Injected fault: Present simultaneous requests, contradict route feedback and lose a conveyor or product identity mid-transfer.

Evidence to retain: Route matrix, arbitration trace, state/output table and contamination-prevention tests.

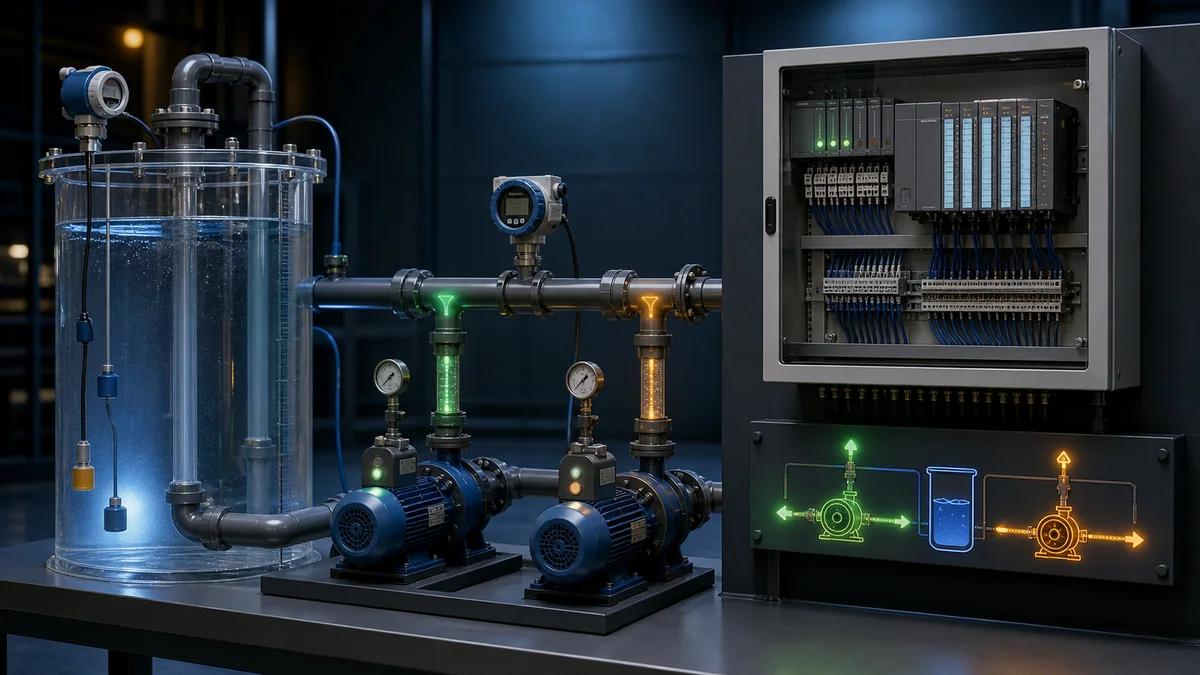

Dual-pump PLC project with transparent level tank, analog instruments, two pumps, feedback cues and generic control enclosure — Generated editorial photograph: duty selection is only one layer; an industrial brief also tests availability, proof, no-flow response and controlled failover.

Batch mixer PLC project with three ingredient vessels, weigh tank, agitator, valves, generic PLC and operator panel — Generated editorial photograph: separate recipe intent, equipment capability, procedural phase, field command and feedback so the project can explain holds, aborts and deviations.

Advanced level · 8 briefs

Advanced industrial PLC projects: preserve evidence across systems

Advanced projects cross controller, HMI, drive, network, process, recipe, test, or lifecycle boundaries. They require version context and a controlled failure/recovery plan. A browser model can make many cases deterministic, but the result remains incomplete until target software, representative devices, physical response and the applicable safety lifecycle have their own evidence.

Project	Time	Primary logic	Decisive fault case
17. Accumulation conveyor with item identity	1–2 days	Arrays or equipment instances, persistent sequence IDs, state ownership, backpressure and reconciliation after inconsistency.	Remove an item manually, bounce a sensor, restart with occupied zones and break one upstream/downstream handshake.
18. PLC-to-robot persistent handshake	1 day	Persistent handshake, sequence correlation, timeout, duplicate/stale response handling and reset arbitration.	Delay or lose each handshake bit, restart either controller and return a stale completion with the wrong sequence ID.
19. PLC, HMI and VFD integration cell	1–2 days	Command ownership, tag mapping, explicit data quality, state decoding, watchdog and cause-oriented alarms.	Break one tag mapping, deny a write, stop updates, trip the drive and restore communications without surprise restart.
20. Remote-I/O loss and recovery	1 day	Watchdog, bad/stale distinction, quality propagation, fallback state, alarm priority and recovery interlock.	Drop packets/connection, freeze values, reboot the adapter and restore it while requests remain active.
21. Cascade temperature-flow process	1–2 days	Cascade mode arbitration, tracking, bumpless transfer, anti-windup, output limits and bad-PV response.	Invalidate either PV, switch modes, saturate the valve and restart with each loop in manual/auto/cascade.
22. Recipe, genealogy and batch record	2 days	Validated bounds, immutable run context, phase evidence, alarm/event correlation and record-completeness checks.	Change a recipe after start, omit an identifier, interrupt storage and test incomplete/deviation disposition.
23. Commissioning and fault-injection bench	1–2 days	Test hooks isolated from production behavior, first-failed-boundary diagnosis and deterministic reset/restart cases.	Inject open/short model states, failed feedback, stale network data, timeout edges, power cycle and contradictory inputs.
24. Backup, restore and controlled restart drill	1 day	Not primarily a code exercise: configuration control, compatibility checks, state/retentivity expectations and restart acceptance.	Present the wrong version, missing parameter set, incompatible firmware/module and stale undocumented change.

Project 171–2 daysDeterministic machine simulator

Accumulation conveyor with item identity

Coordinate multiple accumulation zones while preserving item identity through gaps, backups, manual removal and restart.

I/O contract: Per-zone presence, drive states, encoder or movement evidence, item attributes, handshakes, reject result and reconciliation control.
Logic target: Arrays or equipment instances, persistent sequence IDs, state ownership, backpressure and reconciliation after inconsistency.
Normal acceptance: A mixed stream preserves order/attributes while zones start and stop independently under downstream pressure.
Injected fault: Remove an item manually, bounce a sensor, restart with occupied zones and break one upstream/downstream handshake.

Evidence to retain: Tracking model, invariants, long trace, reconciliation procedure and property-style tests.

Project 181 dayTwo-controller or protocol simulator

PLC-to-robot persistent handshake

Exchange request, acknowledge, busy, complete and fault states without relying on one-scan pulses or unsafe motion assumptions.

I/O contract: Job number/sequence ID, request/acknowledge, busy/complete, ready/fault, fixture states and ordinary cycle permission.
Logic target: Persistent handshake, sequence correlation, timeout, duplicate/stale response handling and reset arbitration.
Normal acceptance: Every accepted request completes once and cannot be mistaken for the prior or next cycle.
Injected fault: Delay or lose each handshake bit, restart either controller and return a stale completion with the wrong sequence ID.

Evidence to retain: Interface-control document, timing diagram, message/state trace and abnormal-case matrix.

Project 191–2 daysProtocol simulator then representative hardware

PLC, HMI and VFD integration cell

Build one controlled motor path across HMI command, PLC arbitration, networked drive, feedback, alarms and operator recovery.

I/O contract: HMI commands/setpoints, PLC modes/permissives, drive control/status words, actual values, first-out faults and acknowledgements.
Logic target: Command ownership, tag mapping, explicit data quality, state decoding, watchdog and cause-oriented alarms.
Normal acceptance: Authorized commands reach the correct destination and the HMI distinguishes request, accepted command and physical result.
Injected fault: Break one tag mapping, deny a write, stop updates, trip the drive and restore communications without surprise restart.

Evidence to retain: Tag/data map, version record, packet/tag trace, alarm evidence and end-to-end acceptance script.

Project 201 dayNetwork/PLC simulator plus approved lab

Remote-I/O loss and recovery

Define what ordinary control does when a remote rack stops updating and how fresh data is proven before controlled recovery.

I/O contract: Adapter health, connection state, input quality/timestamp, output ownership, safe process fallback and recovery permission.
Logic target: Watchdog, bad/stale distinction, quality propagation, fallback state, alarm priority and recovery interlock.
Normal acceptance: Updates remain fresh inside the expected interval and commands follow the approved operating state.
Injected fault: Drop packets/connection, freeze values, reboot the adapter and restore it while requests remain active.

Evidence to retain: Topology, update budget, packet/controller trace, fallback matrix and recovery record.

Project 211–2 daysDynamic process simulator

Cascade temperature-flow process

Use a slow temperature master loop to generate the setpoint of a faster flow slave while preserving modes, limits and tracking.

I/O contract: Temperature/flow PVs, master/slave setpoints, valve command/feedback, modes, quality, limits and deviation alarms.
Logic target: Cascade mode arbitration, tracking, bumpless transfer, anti-windup, output limits and bad-PV response.
Normal acceptance: The slave follows a bounded remote setpoint and the master reaches target without saturating or hiding disturbances.
Injected fault: Invalidate either PV, switch modes, saturate the valve and restart with each loop in manual/auto/cascade.

Evidence to retain: Control narrative, loop diagram, tuning/units record, trends and mode-transition tests.

Project 222 daysPLC/HMI/data simulator

Recipe, genealogy and batch record

Execute versioned parameters while recording who selected what, which equipment ran and whether each required phase passed.

I/O contract: Recipe/version, lot/material IDs, phase commands/status, measurements, deviations, user action and batch disposition.
Logic target: Validated bounds, immutable run context, phase evidence, alarm/event correlation and record-completeness checks.
Normal acceptance: A released recipe produces one complete, correlated run record with timestamps and all critical actual values.
Injected fault: Change a recipe after start, omit an identifier, interrupt storage and test incomplete/deviation disposition.

Evidence to retain: Data dictionary, phase/record mapping, audit scenarios, retained batch result and limitation statement.

Project 231–2 daysSimulator and qualified supervised trainer

Commissioning and fault-injection bench

Turn a small machine specification into FAT/SAT-style evidence by injecting input, command, feedback, timing and communications faults.

I/O contract: Representative digital/analog/network I/O, controlled fault switches, trace trigger, expected value and test status.
Logic target: Test hooks isolated from production behavior, first-failed-boundary diagnosis and deterministic reset/restart cases.
Normal acceptance: Every requirement maps to at least one repeatable case with expected state, command, feedback and recorded result.
Injected fault: Inject open/short model states, failed feedback, stale network data, timeout edges, power cycle and contradictory inputs.

Evidence to retain: Requirements trace matrix, signed results, traces/screens, deviation log and test-tool removal check.

Project 241 dayOffline project plus authorized lab controller

Backup, restore and controlled restart drill

Prove that the correct controller project, parameters and supporting artifacts can be identified, restored and functionally checked.

I/O contract: Project identity, controller/firmware, module inventory, recipe/setpoint backup, checksums, restore authorization and test results.
Logic target: Not primarily a code exercise: configuration control, compatibility checks, state/retentivity expectations and restart acceptance.
Normal acceptance: A known backup is matched to the target, restored under procedure and passes the defined offline/isolated functional checks.
Injected fault: Present the wrong version, missing parameter set, incompatible firmware/module and stale undocumented change.

Evidence to retain: Backup manifest, hashes/version evidence, restore log, post-restore acceptance and controlled handoff.

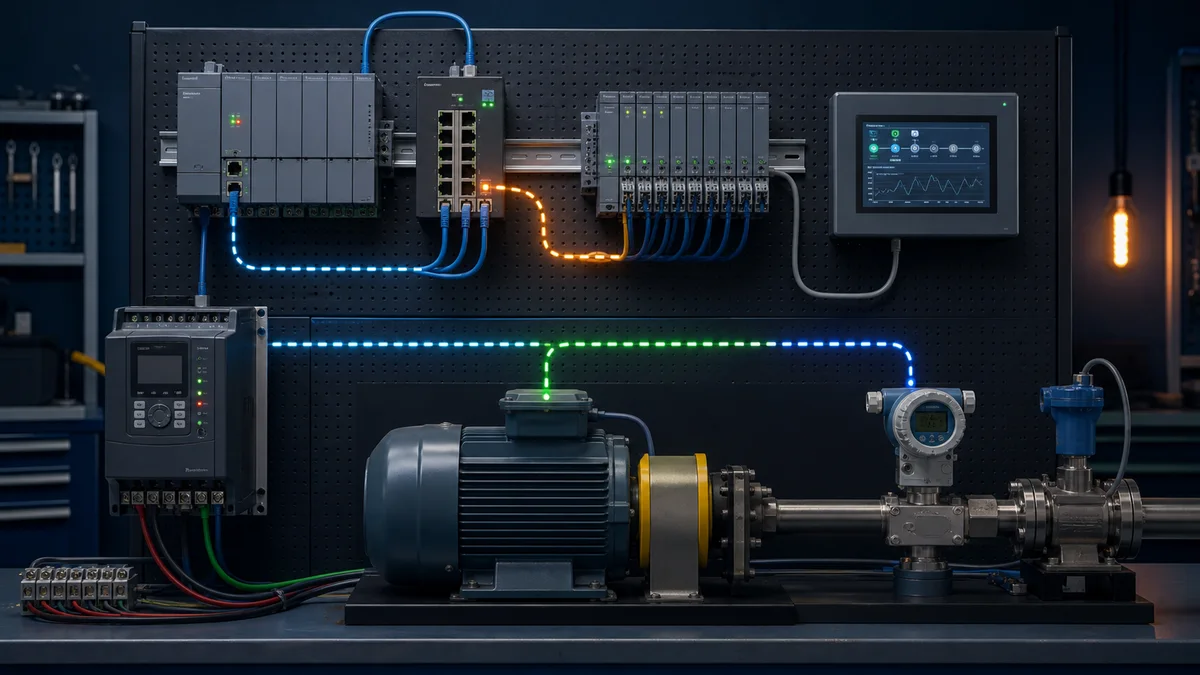

Advanced PLC project bench with controller, Ethernet switch, remote I/O, HMI, VFD, motor and analog transmitter showing an amber failed link — Generated editorial photograph: trace one end-to-end boundary—operator request, PLC ownership, network transfer, drive command, motor response and measurement—before changing logic.

Eight complete PLC programming examples with code

The briefs above intentionally do not prescribe one vendor-specific answer. When the task is to inspect a complete educational implementation, use these established child routes. Each has its own canonical URL, I/O list, Structured Text listing and explanation, so this catalogue can stay focused on selection, scope and evidence.

Beginner · 30 minutes

Traffic Light PLC Program

Single-intersection traffic light controller with N-S and E-W phases plus all-red interval

Timers · State machine · Sequential control

Intermediate · 1 hour

Water Tank Level Control

Two-pump water tank with high/low level sensors, alternating pumps for even wear, high-high alarm trip

Level control · Pump alternation · Alarm logic

Intermediate · 1 hour

Conveyor with Photoeye Sort

Conveyor running at constant speed sorting parts by photoeye into two reject bins

Photoeye triggering · Edge detection · Pneumatic actuator timing

Intermediate · 1 hour

HVAC Zone Temperature Control

Single-zone temperature control with PID heater output, thermostat dead-band, and occupied/unoccupied scheduling

PID control · Dead-band · Occupied/unoccupied scheduling

Beginner · 30 minutes

Motor Reversing with Interlock

Bidirectional motor with start/stop buttons for forward and reverse, with software interlock preventing both contactors energising simultaneously

Seal-in · Software interlock · Mutual exclusion

Advanced · 2-3 hours

Batch Mixer Sequence

Three-ingredient batch process with parallel filling, weighing, mixing, and discharge using SFC-style state machine

Sequential function chart · Parallel branches · Weight-based control

Intermediate · 1 hour

Parking Gate Controller

Single-lane parking gate with vehicle loops, RFID/ticket trigger, gate motor with safety photoeye

Vehicle detection · Safety photoeye · Timed gate cycle

Intermediate · 1 hour

Pump PID Flow Control

Centrifugal pump with VFD modulating to maintain a flow setpoint via PID control

PID control · VFD modulation · Flow control

PLC projects with ladder diagrams: define priority before drawing rungs

A ladder diagram is useful when its contacts express a stated contract. For the first motor project, define stop dominance, seal-in ownership and feedback supervision before choosing addresses. The conceptual rung below is ordinary control logic, not an emergency-stop or safety function.

|--[/Stop]--[Permissive]--+--[Start]--------(RunRequest)--|
|                         +--[RunRequest]---|

|--[RunRequest]----------------------------(MotorCommand)-|
|--[MotorCommand]--[/RunningFeedback]--[TON StartProof]----|

Run at least four decisive cases: start alone; stop alone; start and stop simultaneously; and command true while feedback remains false past the validated proof time. Then repeat after a program download, mode change and restart. The implementation may use Ladder Diagram, Structured Text or a function block, but the acceptance result should remain equivalent.

Case	Initial state and stimulus	Expected evidence	Failure signal
Normal start	Idle, permissive healthy, start edge	Request and command true; feedback proves in time	Start-proof timeout
Priority	Start and stop true in the same scan	Stop wins; command remains false	Any transient or retained command
Lost permission	Running, then permissive false	Defined command removal and diagnostic	Hidden dropout or surprise restart
No feedback	Command true; running proof false	Timeout at specified boundary; first-out retained	Endless command with no diagnosis
Reset	Fault active; request or feedback still true	Reset rejected with reason	Fault clears into automatic motion

Simulator, vendor emulator or hardware: choose the missing evidence layer

Forum answers often jump directly to buying a controller or downloading a particular package. Start with the unresolved question. A tool is valuable when it can produce the required observation; no single environment proves every layer.

Environment	Strong evidence	Does not prove by itself	Best use
Paper/truth table	Priority, Boolean cases, units, expected result	Execution, timing, project syntax or devices	Design review before code
Browser simulator	Fast logic practice, deterministic faults, grading	Every vendor instruction, firmware, wiring or dynamics	Iteration and skill baseline
Vendor emulator	Project structure, compiler, many target semantics	Physical I/O, field energy, network/device response	Platform translation and regression
Low-voltage trainer	Terminal/I/O behavior and representative devices	Production mechanics, hazards or every failure	Supervised I/O and commissioning basics
Representative machine/process	Physical timing, interfaces and acceptance evidence	Safety/compliance without its own validation	Authorized FAT/SAT and handoff

PLC project evidence portfolio showing a process requirement, I/O table, state sketch, ladder logic, fault trace and signed acceptance checklist beside a generic trainer — Generated editorial photograph: a reviewable portfolio is a chain of evidence—requirement, interface, state model, implementation, trace and acceptance—not a certificate image alone.

Build a PLC project portfolio a reviewer can challenge

A portfolio is strongest when another person can reproduce one result and question one decision. Show enough context to establish your work while removing confidential source, credentials, live network details, personal information and unapproved drawings. Use a versioned repository for your own material, but do not imply employer authorization or production validation.

Criterion	0 points	1 point	2 points
Problem contract	Project name only	Nominal behavior	Priority, failure and recovery defined
I/O semantics	Addresses only	Descriptions	True/healthy, units, quality and owner explicit
Design	Listing only	Informal narrative	State/mode/output ownership traceable
Testing	Demo only	Normal cases	Normal, boundary, fault, reset and restart evidence
Diagnosis	No abnormal result	Generic alarm	First failed boundary and recovery explained
Limits and authorship	Inflated/unclear	Partial disclosure	Contribution, sources, version and unproven layers explicit

How this page answers the industry-forum gap

Current US SERPs for “PLC projects,” “PLC programming projects,” “PLC project ideas,” beginner projects and industrial projects are dominated by Reddit, PLCtalk, student idea lists and other catalogue pages. The recurring questions are consistent: what can be built at home; how to move beyond tiny classroom tasks without attempting a forty-hour mystery; how real code is structured; whether hardware is worth buying; and what makes a project portfolio credible.

The direct forum insight is valuable: complete factory code can be confidential and meaningless away from its machine, electrical drawings and quirks. The content response here is therefore a library of sanitized problem contracts with difficulty, I/O, fault and evidence boundaries. It also includes hardware/simulator selection, portfolio review, current primary references and links to complete educational examples. Forum discussions remain cited as voice-of-learner evidence, not as authority for safety, standards or product behavior.

Project claim	What this page can support	Separate evidence still required
Logic behaves in model	Defined inputs, states, outputs, timing and diagnostics	Target compile/task/instruction and device behavior
Ordinary command stops	Software command and modeled feedback response	Hazardous-energy control, isolation and physical stopping performance
Fault is diagnosed	First failed modeled boundary and recovery logic	Electrical/process measurement and authorized repair
Safety status is used	Treat an externally validated status as an input to ordinary control	Risk assessment, safety design, wiring and independent validation
Project is portfolio-ready	Authorship, design and repeatable educational evidence	Employer authorization, credential recognition or job competence

Frequently asked questions about PLC projects

What is a good first PLC project for a beginner?

Start with a stop-dominant motor request that separates start/stop intent, output command and running feedback. It is small enough to trace scan by scan but exposes priorities, seal-in logic, timeouts, reset and acceptance testing. A traffic light is useful next for timed states, but it should not be used to imply road-safety validation.

Which PLC projects are suitable for engineering students or a final-year portfolio?

Choose a project with an explicit requirement, I/O contract, normal and fault cases, versioned code, trace evidence and a short design review. A duty/standby pump station, conveyor sort, batch mixer or PLC-HMI-VFD cell can demonstrate more than a long project-name list because the reviewer can inspect decisions, failures and results.

Can I complete PLC projects without buying hardware?

Yes for selected logic, sequencing, data and fault-injection goals. A browser or vendor simulator can provide fast repeatable evidence before hardware exists. It cannot prove field wiring, voltage/current behavior, device dynamics, target task scheduling, mechanical response, communications timing, safe commissioning or a safety function; add representative supervised tests where those are required.

Should a PLC project include ladder diagrams or Structured Text?

Use the language that best supports the target platform and review. Ladder Diagram can make discrete permissives and interlocks inspectable; Structured Text can make state machines, arrays and calculations concise. IEC 61131-3 defines LD, ST and FBD syntax/semantics, but vendor declarations, instructions, timers, edges, tasks and project structure still require translation and target testing.

How do I make a PLC project feel like a real industrial problem?

Add the context tutorials omit: mode ownership, request versus permission, command versus physical feedback, timing expectations, bad or stale signals, device unavailability, communications loss, first-out diagnosis, reset conditions and restart behavior. Keep the model anonymous and lawful; real plant source code and drawings are often confidential and may be unsafe without their machine context.

What should be in a PLC project I/O list?

For every signal record a stable tag, type, physical or data source, true/healthy meaning, units and range where relevant, expected update timing, quality/status behavior, command owner and abnormal tests. Separate an output command from device feedback. The list is an interface contract, not merely a terminal-address inventory.

How should a PLC project be tested and graded?

Grade observable outcomes against a fixed acceptance matrix. Include initial state, stimulus, expected state, command, feedback, timing and diagnostic result. Test normal operation plus simultaneous, held, timeout, invalid, communications-loss, reset and restart cases. Use an unseen equivalent task when assessing learning so the score is not just memory of one solution.

Can a PLC project portfolio help in a job interview?

It can support an interview when it shows reasoning and evidence rather than inflated claims. Present the requirement, I/O/state design, small code extracts, normal and injected-fault traces, what failed, how it was corrected, target/version limits and your own contribution. Never publish confidential employer code, credentials, network details or unapproved machine drawings.

Where can I find real industrial PLC projects to study?

Complete factory projects are rarely public because they contain intellectual property, site details and machine-specific assumptions. Prefer sanitized vendor application examples, standards-aligned briefs, open educational projects and simulators. Reconstruct the missing requirement and test evidence rather than copying code whose drawings, hardware, firmware, risks and operating context you do not have.

Can ordinary PLC project logic implement an emergency stop or machine-safety function?

Do not treat ordinary tutorial logic or a browser model as a validated safety function. The real design requires the applicable risk assessment, safety architecture, protective devices, verified wiring, validated safety logic, hazardous-energy procedures and qualified review. A project may model a safety-system status as an input while clearly keeping safety design and validation outside its claim.

Primary sources, community evidence, review scope and limitations

Review scope: the page was reviewed on 30 August 2026. IEC, PLCopen, ISA, vendor, NIST, OSHA, ASHRAE, EPA and OPC Foundation sources support languages, structure, application context, OT and physical-work boundaries. PLCtalk and Reddit threads support the learner questions and forum-content gap; they do not replace standards, manufacturer instructions, risk assessment or qualified engineering judgment.

Limitations: the 24 briefs are editorial learning contracts, not as-built designs, accredited assessments, downloadable vendor projects, safe work procedures or authorization to modify equipment. Values, timers, modes, protective devices, process safeguards, electrical methods, environmental/regulatory controls and safety requirements must be selected for the real system. Generated images are conceptual and must not be used as wiring, P&ID or guarding drawings.

Next: open a complete worked example, use the 50-exercise practice library, study the machine/process pattern pillar, or run a disclosed interactive PLC project.
