What is OpenPLC? Introduction and Overview

OpenPLC is a fully functional open-source Programmable Logic Controller platform that transforms affordable hardware like Raspberry Pi and Arduino boards into industrial-grade control systems. Created by Thiago Alves in 2014, OpenPLC has evolved into the most mature open-source PLC solution, supporting all five IEC 61131-3 programming languages and providing capabilities comparable to commercial PLC systems.

Key OpenPLC Features and Benefits

Complete IEC 61131-3 Language Support:

• Ladder Logic (LD) for traditional relay-style programming
• Function Block Diagram (FBD) for modular algorithm development
• Structured Text (ST) for complex mathematical operations
• Instruction List (IL) for low-level programming control
• Sequential Function Chart (SFC) for batch and sequential processes

Open Source Advantages:

• 100% free with no licensing costs or restrictions
• Complete source code access for customization and learning
• Active community development with regular updates
• Commercial use permitted without royalties or fees
• No vendor lock-in or proprietary hardware requirements

Flexible Hardware Compatibility:

• Raspberry Pi (all models) with GPIO control
• Arduino Uno, Mega, and compatible boards
• Industrial PC platforms running Windows or Linux
• UniPi controllers and industrial single-board computers
• Custom hardware through driver development

Professional Automation Capabilities:

• Web-based runtime monitoring and configuration interface
• Modbus TCP/RTU communication for SCADA integration
• Real-time program execution with deterministic timing
• Persistent variable storage across power cycles
• Remote monitoring and program management

Why Choose OpenPLC for Learning and Development

OpenPLC provides an exceptional learning environment for understanding industrial automation concepts without expensive hardware investments. Students can experiment with professional programming languages, learn PLC operation principles, and develop marketable automation skills using affordable hardware platforms.

The complete source code availability makes OpenPLC ideal for understanding how PLCs actually work internally. Unlike commercial systems that operate as "black boxes," OpenPLC allows learners to examine runtime execution, I/O processing, and communication protocols, deepening comprehension of industrial control fundamentals.

For professional engineers, OpenPLC offers rapid prototyping capabilities and proof-of-concept development without licensing barriers. Test control algorithms, develop custom automation solutions, and demonstrate capabilities to clients using OpenPLC before committing to specific commercial platforms.

Maker and hobbyist communities benefit from OpenPLC's integration with popular platforms like Raspberry Pi and Arduino, enabling sophisticated home automation, robotics projects, and custom control systems that rival commercial solutions at fraction of the cost.

OpenPLC Architecture and Components

Understanding OpenPLC's architecture helps you effectively use the platform and troubleshoot issues when they arise. The system consists of two primary components working together to provide complete PLC functionality.

OpenPLC Editor - Program Development Environment

The OpenPLC Editor provides a comprehensive programming interface supporting all five IEC 61131-3 languages in a single integrated development environment. Built on the PLCOpen Editor framework, it offers professional programming capabilities while maintaining cross-platform compatibility.

Editor Capabilities:

• Multi-language programming support in single project
• Graphical programming interfaces for LD, FBD, and SFC
• Text editor with syntax highlighting for ST and IL
• Comprehensive function block libraries and instructions
• Variable declaration and type management
• Program compilation and error checking
• Export programs to OpenPLC Runtime format

The editor runs on Windows, Linux, and macOS, allowing program development on any platform regardless of the target hardware. This separation between development and runtime environments provides maximum flexibility for different workflow requirements.

OpenPLC Runtime - Program Execution Engine

The OpenPLC Runtime executes compiled programs on target hardware, managing I/O operations, communication protocols, and real-time control functions. The runtime provides deterministic program execution with typical scan times under 10 milliseconds depending on program complexity and hardware performance.

Runtime Features:

• Real-time program execution with configurable scan rates
• Hardware I/O driver management for supported platforms
• Web interface for monitoring and configuration (port 8080)
• Modbus TCP server for SCADA system integration
• Modbus RTU master/slave communication support
• Persistent storage for variable data
• Program upload/download without recompilation
• Online monitoring of I/O status and program variables

The runtime architecture supports multiple hardware platforms through abstraction layers that isolate hardware-specific code from core PLC functionality. This design enables porting OpenPLC to new hardware platforms with minimal modification to the core runtime.

Hardware Abstraction and I/O Processing

OpenPLC implements hardware abstraction layers that translate generic I/O references in your programs to specific hardware pin assignments. This abstraction allows the same program to run on different hardware platforms with only configuration changes rather than program modifications.

Input processing occurs at the beginning of each scan cycle, capturing all physical input states into input memory. Program logic executes using these consistent input values throughout the scan, preventing timing-related logic errors caused by changing inputs during program execution.

Output processing occurs at the end of each scan cycle, updating all physical outputs simultaneously based on program execution results. This synchronized output update ensures predictable system behavior and prevents partial output states during program transitions.

OpenPLC Installation Tutorial - Windows

Installing OpenPLC Editor on Windows provides a straightforward development environment for creating programs regardless of your target hardware platform. The Windows installation requires Python and several dependencies that the installation process handles automatically.

Windows System Requirements

• Windows 10 or Windows 11 (64-bit recommended)
• 4GB RAM minimum, 8GB recommended for larger projects
• 2GB available hard disk space
• Python 3.7 or later (automatically installed if needed)
• Internet connection for downloading dependencies
• Administrator privileges for installation

Step-by-Step Windows Installation

Step 1: Download OpenPLC Editor

Visit the official OpenPLC GitHub repository at https://github.com/thiagoralves/OpenPLC_Editor/releases and download the latest Windows installer package (OpenPLC_Editor_v3.x_Windows.exe). The installer includes all required dependencies and Python components.

Step 2: Run Windows Installer

Right-click the downloaded installer and select "Run as administrator" to ensure proper installation permissions. The installation wizard guides you through component selection and installation directory choice. Accept the default installation directory unless you have specific requirements for alternative locations.

Step 3: Complete Installation Process

The installer automatically downloads and configures Python, required Python packages (wxPython, pyparsing, numpy), and other dependencies. This process typically takes 5-10 minutes depending on internet connection speed. Do not interrupt the installation process.

Step 4: Launch OpenPLC Editor

After installation completes, launch OpenPLC Editor from the Windows Start menu or desktop shortcut. The editor opens with a blank project. If you encounter errors about missing Python modules, reinstall with antivirus software temporarily disabled.

Step 5: Verify Installation

Create a new project using File → New to verify the editor functions correctly. Add a simple ladder logic rung with a contact and coil, then compile the project using the build button. Successful compilation confirms proper installation.

Windows Installation Troubleshooting

Python Version Conflicts: If you have multiple Python versions installed, the OpenPLC installer might use the wrong version. Uninstall other Python versions or modify the system PATH to prioritize Python 3.7+ before running the OpenPLC installer.

Antivirus False Positives: Some antivirus software flags OpenPLC installers as potentially unwanted programs. Add exceptions for the OpenPLC installation directory or temporarily disable antivirus during installation (re-enable immediately after completion).

Missing Dependencies: If the editor fails to launch due to missing modules, manually install required Python packages using pip:

pip install wxPython pyparsing numpy matplotlib

OpenPLC Installation Tutorial - Linux

Linux provides an excellent platform for OpenPLC development with superior stability and performance compared to Windows. The installation process uses command-line tools that provide complete control over the installation process.

Linux System Requirements

• Ubuntu 20.04 LTS or later (recommended)
• Debian, Fedora, or other major distributions also supported
• 2GB RAM minimum, 4GB recommended
• 1GB available hard disk space
• Python 3.7 or later
• Git version control system
• Sudo privileges for package installation

Ubuntu/Debian Installation Steps

Step 1: Update System Packages

Open a terminal and update your system package repositories to ensure you download the latest versions of all dependencies:

sudo apt update
sudo apt upgrade -y

Step 2: Install Required Dependencies

Install Python 3, pip package manager, git, and other required system packages:

sudo apt install -y python3 python3-pip git build-essential
sudo apt install -y python3-wxgtk4.0 python3-numpy python3-matplotlib

Step 3: Clone OpenPLC Editor Repository

Download the OpenPLC Editor source code from GitHub using git:

cd ~
git clone https://github.com/thiagoralves/OpenPLC_Editor.git
cd OpenPLC_Editor

Step 4: Run Installation Script

Execute the provided installation script that configures the editor and installs remaining dependencies:

./install.sh

The installation script automatically detects your Linux distribution and installs appropriate packages. This process takes 3-5 minutes to complete.

Step 5: Launch OpenPLC Editor

Start the editor using the provided launch script:

./openplc_editor.sh

Consider creating a desktop launcher or adding the editor to your PATH for easier access.

Linux Installation Verification

After installation, verify functionality by creating a test project, adding basic ladder logic, and compiling successfully. Test the program export function by generating a compiled .st file for upload to OpenPLC Runtime.

OpenPLC Installation Tutorial - Raspberry Pi

Raspberry Pi represents the most popular hardware platform for OpenPLC Runtime deployment, offering excellent price-to-performance ratio, built-in GPIO interfaces, and strong community support. This tutorial covers complete Raspberry Pi setup from OS installation through OpenPLC Runtime configuration.

Raspberry Pi Hardware Requirements

Compatible Raspberry Pi Models:

• Raspberry Pi 4 Model B (recommended, best performance)
• Raspberry Pi 3 Model B/B+ (good performance, widely available)
• Raspberry Pi 2 Model B (basic functionality, limited performance)
• Raspberry Pi Zero W (minimal applications, slow execution)

Recommended Configuration:

• Raspberry Pi 4 with 4GB RAM for optimal performance
• 32GB microSD card (Class 10 or better)
• 5V 3A USB-C power supply (official Raspberry Pi power supply recommended)
• Ethernet connection for reliable network communication
• Optional: Raspberry Pi case with cooling fan
• Optional: I/O expansion boards (PiFace, UniPi, etc.)

Raspberry Pi OS Installation

Step 1: Download Raspberry Pi OS

Download Raspberry Pi OS (formerly Raspbian) using the Raspberry Pi Imager tool available at https://www.raspberrypi.com/software/. Choose "Raspberry Pi OS (32-bit) with desktop" for full graphical interface support.

Step 2: Write OS to microSD Card

Insert your microSD card into your computer and use Raspberry Pi Imager to write the OS image. Configure WiFi credentials and enable SSH in the advanced options before writing to simplify initial setup.

Step 3: Initial Raspberry Pi Configuration

Insert the microSD card into your Raspberry Pi, connect power, keyboard, mouse, and monitor. Complete the initial setup wizard, update system packages, and configure network settings.

Enable SSH and other interfaces through the Raspberry Pi Configuration tool (Preferences → Raspberry Pi Configuration → Interfaces):

• Enable SSH for remote access
• Enable I2C for expansion board support
• Enable SPI if using specific I/O modules

OpenPLC Runtime Installation on Raspberry Pi

Step 1: Install Dependencies

Open terminal and install required packages for compiling OpenPLC Runtime:

sudo apt update
sudo apt install -y build-essential pkg-config bison flex autoconf
sudo apt install -y libtool make git python2.7 sqlite3 cmake

Step 2: Clone OpenPLC Runtime Repository

Download the runtime source code from GitHub:

cd ~
git clone https://github.com/thiagoralves/OpenPLC_v3.git
cd OpenPLC_v3

Step 3: Run Installation Script

Execute the installation script that compiles the runtime and configures system services:

./install.sh rpi

The installation process compiles the runtime optimized for Raspberry Pi hardware and creates systemd services for automatic startup. Installation takes 10-15 minutes on Raspberry Pi 4, longer on older models.

Step 4: Start OpenPLC Runtime

The runtime starts automatically after installation. Access the web interface by opening a web browser and navigating to:

http://localhost:8080

Default login credentials are:

• Username: openplc
• Password: openplc

Change default credentials immediately for security purposes through Settings → Users.

Raspberry Pi GPIO Configuration

The Raspberry Pi GPIO pins become available as digital inputs and outputs in your OpenPLC programs after proper configuration in the runtime web interface.

Understanding GPIO Addressing:

• Digital inputs: %IX100.0 through %IX100.7 (GPIO pins 0-7)
• Digital outputs: %QX100.0 through %QX100.7 (GPIO pins 0-7)
• Additional I/O points available depending on configuration

Navigate to Hardware → Raspberry Pi in the runtime web interface to configure GPIO pin assignments, pull-up/pull-down resistors, and initial states.

OpenPLC Installation Tutorial - Arduino

Arduino boards provide cost-effective OpenPLC runtime platforms ideal for small-scale automation projects, educational applications, and embedded control systems. The Arduino implementation runs compiled programs directly on the microcontroller without operating system overhead.

Supported Arduino Boards

• Arduino Uno: Entry-level platform, limited I/O (14 digital, 6 analog)
• Arduino Mega 2560: Recommended for most projects (54 digital, 16 analog)
• Arduino Due: 32-bit ARM processor, fastest execution
• Compatible boards: Most Arduino-compatible boards using Atmega328 or Atmega2560

Arduino OpenPLC Setup Process

Step 1: Install Arduino IDE

Download and install the Arduino IDE from https://www.arduino.cc/en/software. This development environment is required for uploading OpenPLC Runtime to Arduino boards.

Step 2: Download OpenPLC Arduino Firmware

OpenPLC provides pre-compiled firmware for Arduino boards available in the editor's Hardware menu. Select your Arduino board model and generate the firmware package.

Step 3: Upload Firmware to Arduino

Connect your Arduino board via USB, open the firmware .ino file in Arduino IDE, select the correct board and port in Tools menu, then upload the firmware. The upload process takes 1-2 minutes.

Step 4: Program Upload Process

After firmware installation, upload your OpenPLC programs through the OpenPLC Editor using the "Upload to Arduino" function. The editor compiles your program and transfers it to the Arduino via serial connection.

Arduino I/O Addressing

Arduino digital pins map to OpenPLC addresses as follows:

Arduino Uno:

• Digital I/O: %IX0.0 through %IX0.13, %QX0.0 through %QX0.13
• Analog Inputs: %IW0 through %IW5

Arduino Mega:

• Digital I/O: %IX0.0 through %IX0.53, %QX0.0 through %QX0.53
• Analog Inputs: %IW0 through %IW15

Refer to the OpenPLC documentation for detailed pin mapping information specific to your Arduino board model.

OpenPLC Editor Tutorial - Interface Overview

The OpenPLC Editor provides a comprehensive programming environment supporting multiple programming languages within a single integrated interface. Understanding the editor layout and capabilities ensures efficient program development.

Main Editor Components

Project Tree Panel (Left Side):

• Displays project structure hierarchy
• Shows program organization units (POU)
• Lists global variables and configurations
• Provides quick navigation between program components

Programming Canvas (Center):

• Main work area for creating control logic
• Supports graphical programming (LD, FBD, SFC)
• Text editor for ST and IL programming
• Zoom and pan controls for large programs

Instruction Toolbar (Top):

• Quick access to common instructions
• Organized by instruction category
• Drag-and-drop instruction insertion
• Context-sensitive based on programming language

Variable Inspector (Right Side):

• Variable declaration and management
• Data type selection and configuration
• Initial value assignment
• Variable scope and retention settings

Creating a New OpenPLC Project

Step 1: Start New Project

Select File → New to create a new OpenPLC project. The wizard prompts for project name and programming language selection for the initial program organization unit.

Step 2: Configure Project Settings

Set project properties including:

• Project name and description
• Author information
• Target hardware platform
• Scan cycle timing requirements

Step 3: Create Program Organization Units

Add POUs (Programs, Function Blocks, Functions) through the project tree context menu. Each POU can use different programming languages based on the specific control logic requirements.

Step 4: Declare Variables

Define global variables accessible across all POUs and local variables specific to individual program units. Proper variable organization improves program maintainability and reduces errors.

OpenPLC Programming Language Selection

Choose the appropriate programming language based on your application requirements and personal preferences:

Use Ladder Logic when:

• Implementing relay-replacement logic
• Creating simple discrete control sequences
• Prioritizing visual debugging capabilities
• Working with electricians or technicians familiar with relay logic

Use Function Block Diagram when:

• Building modular, reusable control algorithms
• Implementing complex mathematical operations
• Developing hierarchical control structures
• Requiring graphical data flow representation

Use Structured Text when:

• Implementing complex algorithms with nested conditions
• Processing arrays or structured data
• Requiring text-based programming flexibility
• Developing custom function blocks

Building Your First OpenPLC Program

This section guides you through creating a complete OpenPLC program using ladder logic to control digital outputs based on digital inputs. This fundamental example demonstrates essential programming concepts applicable to all OpenPLC applications.

Simple Digital I/O Control Program

Project Requirements:

• Digital input switch connected to %IX0.0
• Digital output indicator connected to %QX0.0
• When input is active, output turns on
• When input is inactive, output turns off

Step 1: Create New Ladder Logic Program

Open OpenPLC Editor, create a new project, and add a ladder logic program organization unit named "Main_Program". The editor displays an empty ladder logic canvas.

Step 2: Add Program Rung

Create your first rung by clicking "Add Rung" or pressing Insert. The new rung appears as a horizontal line between the left and right power rails.

Step 3: Insert Contact Instruction

Right-click on the rung and select "Insert Contact" or drag a contact instruction from the instruction toolbar. A normally-open contact appears on the rung.

Step 4: Configure Input Address

Double-click the contact to open the properties dialog. Enter the input address "%IX0.0" and add a descriptive name like "Input_Switch". This contact will read the state of your physical input switch.

Step 5: Insert Coil Instruction

Move to the right side of the rung (before the right power rail) and insert a coil instruction. This represents your output control.

Step 6: Configure Output Address

Double-click the coil and enter the output address "%QX0.0" with a descriptive name like "Output_Indicator". When power flows through the rung, this output activates.

Complete Ladder Logic Program:

|--[Input_Switch]---(Output_Indicator)--|
   %IX0.0            %QX0.0

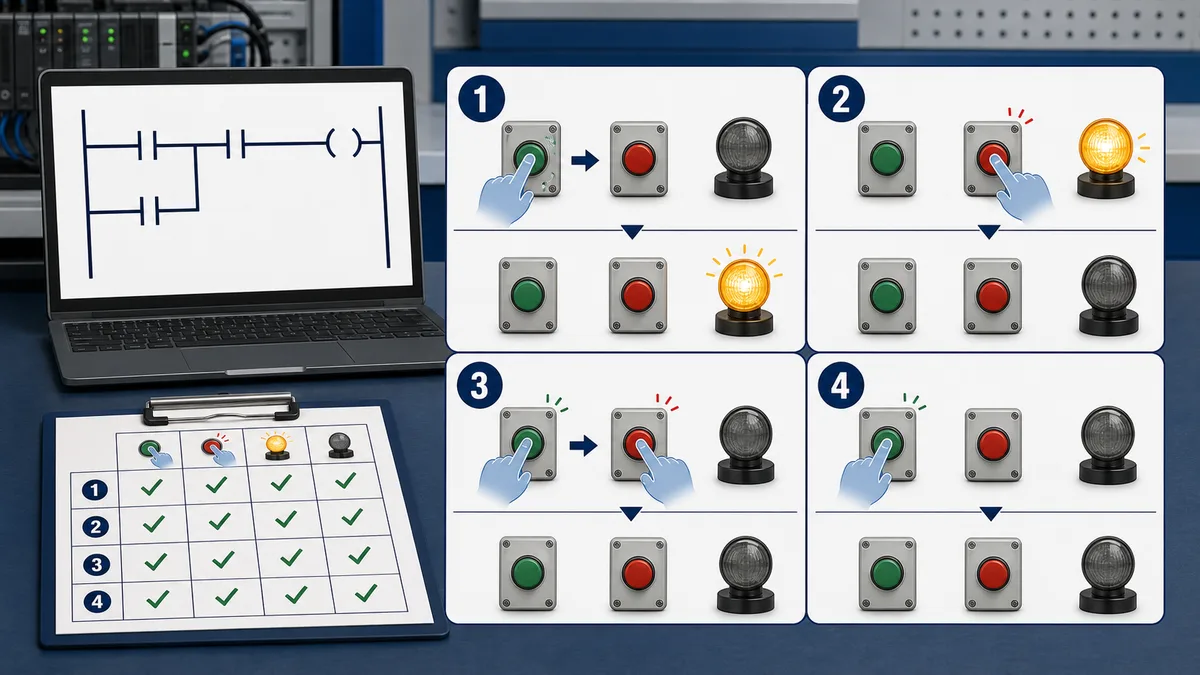

Ladder Logic Start/Stop Circuit Example

A more practical example implements a motor start/stop circuit with seal-in logic, demonstrating essential industrial control programming patterns used in OpenPLC and commercial PLC systems.

Circuit Requirements:

• Start button (momentary, normally-open): %IX0.0
• Stop button (momentary, normally-closed): %IX0.1
• Motor contactor output: %QX0.0
• Circuit maintains motor operation after start button release

Ladder Logic Implementation:

Rung 1: Motor Control with Seal-In
|--[Start]--[Stop]--+--[Motor_Running]---(Motor_Running)--|
   %IX0.0   %IX0.1   |     %QX0.0           %QX0.0
                      |
                      +--[Auxiliary]--|
                          %QX0.0

This circuit demonstrates the fundamental start/stop control pattern where:

1. Pressing Start button energizes Motor_Running output
2. Auxiliary contact (parallel to Start button) maintains output after Start button release
3. Opening Stop button (normally-closed contact) de-energizes entire rung, stopping motor
4. Motor remains off until Start button is pressed again

Structured Text Programming Example

For engineers comfortable with text-based programming, Structured Text provides powerful programming capabilities for complex logic and mathematical operations.

Temperature Control Logic in Structured Text:

PROGRAM Temperature_Control
VAR
    Temperature_SP: REAL := 75.0;      (* Setpoint *)
    Temperature_PV: REAL;              (* Process value *)
    Heater_Enable: BOOL;               (* Output *)
    Hysteresis: REAL := 2.0;           (* Deadband *)
END_VAR

(* Temperature control with hysteresis *)
IF Temperature_PV < (Temperature_SP - Hysteresis) THEN
    Heater_Enable := TRUE;             (* Temperature too low *)
ELSIF Temperature_PV > (Temperature_SP + Hysteresis) THEN
    Heater_Enable := FALSE;            (* Temperature too high *)
(* ELSE: Maintain current state *)
END_IF;

(* Map to physical output *)
%QX0.0 := Heater_Enable;
END_PROGRAM

This program implements temperature control with hysteresis (deadband) to prevent rapid output cycling. The control logic activates heating below setpoint and deactivates above setpoint with a deadband preventing oscillation.

Compiling and Exporting OpenPLC Programs

Step 1: Verify Program Syntax

Click the "Build" button or press F5 to compile your program. The editor checks syntax, verifies variable declarations, and identifies programming errors. Review any error messages and correct issues before proceeding.

Step 2: Export Compiled Program

After successful compilation, export your program using File → Generate program for OpenPLC Runtime. The editor creates a .st file containing your compiled program ready for upload to OpenPLC Runtime.

Step 3: Save Project File

Save your project using File → Save As. OpenPLC Editor projects use .xml format containing all program organization units, variable declarations, and project settings. Regular saves prevent work loss and enable version control.

OpenPLC Runtime Configuration

The OpenPLC Runtime web interface provides comprehensive monitoring, configuration, and management capabilities for deployed control systems. Understanding the runtime interface ensures effective system operation and troubleshooting.

Accessing the Runtime Web Interface

Open a web browser and navigate to the OpenPLC Runtime IP address on port 8080:

• Local access: http://localhost:8080
• Remote access: http://[IP_ADDRESS]:8080

Login using your configured credentials (default: openplc/openplc). The dashboard displays system status, program information, and quick access to common functions.

Runtime Dashboard Overview

System Information Section:

• Runtime version and build information
• Current program execution status (Running/Stopped)
• Scan cycle time and performance metrics
• Hardware platform identification
• System uptime and resource utilization

Program Management Section:

• Upload new programs to runtime
• Start/stop program execution
• Delete loaded programs
• View compilation information
• Monitor program file details

Quick Status Indicators:

• Program status (green=running, red=stopped)
• Communication status (Modbus, DNP3)
• I/O health monitoring
• Error and warning notifications

Uploading Programs to OpenPLC Runtime

Step 1: Navigate to Programs Section

Click "Programs" in the main navigation menu. The programs page displays currently loaded programs and provides upload functionality.

Step 2: Select Compiled Program File

Click "Choose File" and select the .st file exported from OpenPLC Editor. This file contains your compiled program ready for execution.

Step 3: Upload and Compile

Click "Upload Program" to transfer the file to the runtime. The runtime recompiles the program for the target hardware platform, a process taking 10-30 seconds depending on program size and hardware performance.

Step 4: Start Program Execution

After successful compilation, click "Start PLC" to begin program execution. The runtime status changes to "Running" and your program controls the configured I/O points based on your logic.

Hardware Configuration and I/O Mapping

Accessing Hardware Settings:

Navigate to Hardware in the main menu to configure I/O mapping and hardware-specific parameters for your OpenPLC platform.

Raspberry Pi Hardware Configuration:

Configure GPIO pins as inputs or outputs:

• Select pin direction (Input/Output)
• Configure pull-up/pull-down resistors
• Set initial output states
• Enable/disable specific pins
• Configure analog input scaling

I/O Point Addressing:

OpenPLC uses IEC 61131-3 standard addressing:

• %IX: Digital input bytes (%IX0.0 = Byte 0, Bit 0)
• %QX: Digital output bytes (%QX0.0 = Byte 0, Bit 0)
• %IW: Analog input words (%IW0 = Input 0)
• %QW: Analog output words (%QW0 = Output 0)

Monitoring Program Execution

Step 1: Access Monitoring Page

Click "Monitoring" in the main menu to view real-time program execution status and I/O values.

Step 2: View I/O Status

The monitoring page displays:

• Current state of all digital inputs (ON/OFF)
• Current state of all digital outputs (ON/OFF)
• Analog input values with scaling
• Analog output values with scaling
• Program variable values (if configured)

Step 3: Force I/O Values

For testing and troubleshooting, force specific I/O points to desired values:

• Click "Force" next to any I/O point
• Set the desired value (ON/OFF for digital, numerical for analog)
• Apply forcing to test program logic
• Remove forces to return to normal operation

Important: Remove all I/O forcing before production operation to prevent unintended system behavior.

Complete Example Project - Home Automation System

This comprehensive example demonstrates OpenPLC capabilities through a complete home automation system controlling lights, HVAC, and monitoring environmental conditions using Raspberry Pi hardware.

Project Requirements and System Design

System Objectives:

• Control multiple lighting zones with manual switches and automation
• Manage HVAC system based on temperature and occupancy
• Monitor environmental conditions (temperature, humidity, light level)
• Provide web-based monitoring and manual override capabilities

Hardware Components:

• Raspberry Pi 4 Model B (4GB RAM)
• 4-channel relay module for lighting and HVAC control
• DHT22 temperature/humidity sensor
• Light level sensor (analog output)
• Wall switches for manual control
• 24VDC power supply for relay module

I/O Assignment:

Digital Inputs:

• %IX0.0: Living room switch
• %IX0.1: Kitchen switch
• %IX0.2: Bedroom switch
• %IX0.3: Occupancy sensor

Digital Outputs:

• %QX0.0: Living room lights
• %QX0.1: Kitchen lights
• %QX0.2: Bedroom lights
• %QX0.3: HVAC system

Analog Inputs:

• %IW0: Temperature (DHT22)
• %IW1: Humidity (DHT22)
• %IW2: Light level

Raspberry Pi Hardware Setup

Step 1: Relay Module Connection

Connect 4-channel relay module to Raspberry Pi GPIO pins:

• VCC → 5V (Pin 2)
• GND → Ground (Pin 6)
• IN1 → GPIO 17 (Pin 11)
• IN2 → GPIO 18 (Pin 12)
• IN3 → GPIO 27 (Pin 13)
• IN4 → GPIO 22 (Pin 15)

Step 2: Sensor Wiring

Connect DHT22 temperature/humidity sensor:

• VCC → 3.3V (Pin 1)
• GND → Ground (Pin 9)
• DATA → GPIO 4 (Pin 7)
• 10kΩ pull-up resistor between DATA and VCC

Step 3: Switch Input Wiring

Connect manual switches to GPIO inputs with pull-down resistors:

• Switch 1 → GPIO 23 (Pin 16) + Ground
• Switch 2 → GPIO 24 (Pin 18) + Ground
• Switch 3 → GPIO 25 (Pin 22) + Ground
• All switches use internal pull-down resistors configured in software

Programming the Home Automation System

Main Control Program (Ladder Logic):

Rung 1: Living Room Light Control
|--[LR_Switch]--+--[LR_Auto]---(LR_Light)--|
   %IX0.0       |  %MX0.0      %QX0.0
                |
                +--[LR_Light]--|
                   %QX0.0

Rung 2: Kitchen Light Control
|--[Kitchen_Switch]--+--[Kitchen_Auto]---(Kitchen_Light)--|
   %IX0.1            |  %MX0.1            %QX0.1
                     |
                     +--[Kitchen_Light]--|
                        %QX0.1

Rung 3: Bedroom Light Control
|--[Bedroom_Switch]--+--[Bedroom_Auto]---(Bedroom_Light)--|
   %IX0.2            |  %MX0.2            %QX0.2
                     |
                     +--[Bedroom_Light]--|
                        %QX0.2

Temperature Control Logic (Structured Text):

PROGRAM HVAC_Control
VAR
    Temperature_SP: REAL := 72.0;      (* Setpoint 72°F *)
    Temperature_PV: REAL;              (* Current temp *)
    Occupancy: BOOL;                   (* Occupancy status *)
    HVAC_Enable: BOOL;
    Temp_High: REAL := 74.0;
    Temp_Low: REAL := 70.0;
END_VAR

(* Read analog temperature input and scale *)
Temperature_PV := REAL(analog_input_0) * 0.01;

(* Read occupancy sensor *)
Occupancy := %IX0.3;

(* HVAC control logic *)
IF Occupancy THEN
    IF Temperature_PV > Temp_High THEN
        HVAC_Enable := TRUE;      (* Cooling needed *)
    ELSIF Temperature_PV < Temp_Low THEN
        HVAC_Enable := FALSE;     (* No cooling *)
    END_IF;
ELSE
    HVAC_Enable := FALSE;         (* Unoccupied, HVAC off *)
END_IF;

(* Map to physical output *)
%QX0.3 := HVAC_Enable;
END_PROGRAM

Testing and Deployment

Step 1: Bench Testing

Before connecting to final hardware:

1. Upload program to OpenPLC Runtime
2. Use monitoring page to verify logic behavior
3. Force inputs to test different scenarios
4. Verify outputs respond correctly to input combinations
5. Test timer operations and analog scaling

Step 2: Hardware Integration

Connect Raspberry Pi to relay module and sensors:

1. Verify all wiring connections before applying power
2. Test each output individually using force commands
3. Verify sensor readings display correctly
4. Test manual switch operations
5. Confirm HVAC control responds to temperature changes

Step 3: System Commissioning

Deploy the complete system:

1. Remove all I/O forcing
2. Start automatic operation
3. Monitor system behavior over several hours
4. Adjust temperature setpoints as needed
5. Document final configuration settings

OpenPLC with Raspberry Pi - Detailed Guide

Raspberry Pi provides an ideal platform for OpenPLC deployment, combining affordable hardware, extensive GPIO capabilities, and strong community support. This section covers advanced Raspberry Pi integration techniques for professional automation applications.

Raspberry Pi GPIO Configuration

Raspberry Pi GPIO pins provide 26 configurable digital I/O points suitable for controlling relays, reading switches, and interfacing with sensors. Understanding GPIO capabilities and limitations ensures reliable system design.

GPIO Specifications:

• Logic levels: 3.3V (NOT 5V tolerant)
• Maximum current per pin: 16mA
• Maximum total GPIO current: 50mA
• Pull-up/pull-down resistors: Software configurable
• Update rate: Suitable for scan times ≥10ms

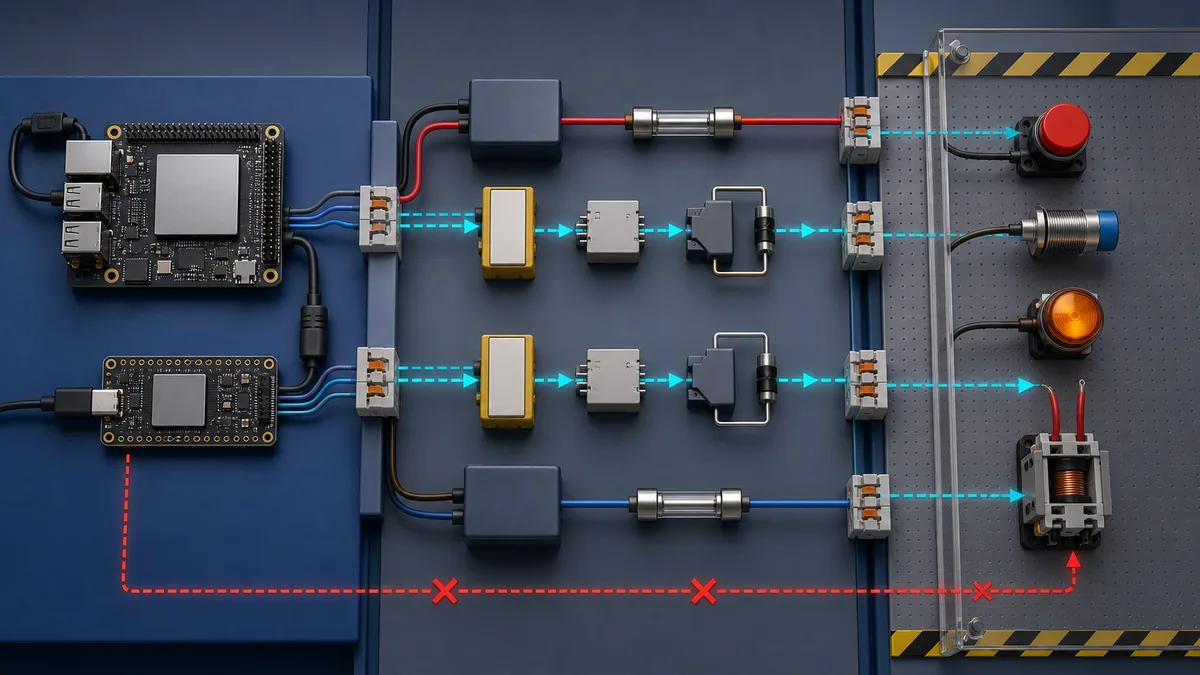

GPIO Safety Considerations:

• Never apply more than 3.3V to any GPIO pin
• Use current-limiting resistors for LED indicators
• Isolate relay coils with optocouplers or transistor drivers
• Add flyback diodes across inductive loads
• Implement proper grounding to prevent noise interference

Expanding Raspberry Pi I/O Capacity

PiFace Digital I/O Board:

PiFace provides 8 digital inputs and 8 relay outputs specifically designed for Raspberry Pi industrial applications. OpenPLC includes native PiFace support with automatic recognition and configuration.

Configuration in OpenPLC:

• Hardware → PiFace Digital
• Inputs: %IX1.0 through %IX1.7
• Outputs: %QX1.0 through %QX1.7
• Supports up to 4 PiFace boards (32 inputs, 32 outputs)

UniPi Controllers:

UniPi provides industrial-grade Raspberry Pi platforms with built-in relay outputs, digital inputs, and analog I/O. These controllers offer professional reliability suitable for commercial automation applications.

UniPi features:

• 14 relay outputs (250VAC / 8A)
• 14 digital inputs (0-24V)
• 2 analog inputs (0-10V)
• Professional DIN rail mounting enclosure
• Industrial temperature range operation

Real-World Raspberry Pi OpenPLC Applications

Building Automation: Control HVAC systems, lighting, access control, and energy management using Raspberry Pi-based OpenPLC controllers. Low hardware costs enable multi-zone control systems with distributed intelligence.

Agricultural Automation: Implement greenhouse climate control, irrigation management, and monitoring systems. Raspberry Pi's low power consumption and WiFi connectivity suit remote agricultural applications.

Laboratory Automation: Control test equipment, manage experimental sequences, and log data for research applications. OpenPLC's MODBUS communication capabilities enable integration with laboratory instruments.

Educational Training Systems: Create affordable PLC training stations for technical schools and universities. Students gain hands-on experience with professional programming languages and industrial control concepts using readily available hardware.

OpenPLC MODBUS Communication

MODBUS communication enables OpenPLC systems to exchange data with SCADA systems, HMIs, and other industrial devices. OpenPLC supports both MODBUS TCP/IP (Ethernet) and MODBUS RTU (serial) protocols as server and client.

MODBUS TCP Server Configuration

OpenPLC Runtime includes a built-in MODBUS TCP server enabling external systems to read PLC inputs/outputs and write to specific memory locations.

Accessing MODBUS Settings:

Navigate to Settings → MODBUS in the runtime web interface to configure MODBUS TCP parameters:

Configuration Parameters:

• Enable MODBUS TCP Server: Checked/Enabled
• Port Number: 502 (standard MODBUS port)
• IP Address: 0.0.0.0 (listens on all interfaces)
• Maximum Connections: 10 (concurrent client limit)

MODBUS Address Mapping:

OpenPLC maps IEC 61131-3 addresses to MODBUS registers:

| OpenPLC Address | MODBUS Register | Access Type | |----------------|-----------------|-------------| | %IX (Digital Inputs) | Discrete Inputs (function 2) | Read-only | | %QX (Digital Outputs) | Coils (function 1) | Read/Write | | %IW (Analog Inputs) | Input Registers (function 4) | Read-only | | %MW (Memory Words) | Holding Registers (function 3) | Read/Write |

Connecting SCADA Systems to OpenPLC

SCADA software packages can monitor and control OpenPLC systems through MODBUS TCP communication. This enables centralized monitoring, data logging, and operator interfaces for OpenPLC-based automation systems.

ScadaBR Integration Example:

1. Install ScadaBR SCADA system (open-source)
2. Configure MODBUS TCP data source pointing to OpenPLC IP address
3. Create data points for each I/O address to monitor
4. Design graphical operator interface
5. Enable trending and alarm capabilities

Popular SCADA Systems with OpenPLC:

• ScadaBR (open-source, excellent OpenPLC integration)
• Ignition SCADA (commercial, powerful capabilities)
• Wonderware InTouch (industrial-grade, enterprise features)
• AdvancedHMI (free .NET-based HMI/SCADA)
• Node-RED (lightweight, IoT-focused)

MODBUS RTU Serial Communication

For applications requiring serial MODBUS communication, OpenPLC supports MODBUS RTU master and slave modes using USB-serial adapters or Raspberry Pi UART interfaces.

Configuring MODBUS RTU:

1. Connect USB-serial adapter or configure Raspberry Pi UART

2. Navigate to Settings → Serial Communications in runtime

3. Configure serial port parameters:

   • Port: /dev/ttyUSB0 (or appropriate device)
   • Baud rate: 9600, 19200, or 38400
   • Data bits: 8
   • Parity: None, Even, or Odd
   • Stop bits: 1 or 2

4. Enable MODBUS RTU Master or Slave mode

5. Configure slave device addresses and polling intervals

MODBUS RTU Programming:

Access MODBUS RTU communication in your programs using dedicated function blocks for reading and writing remote device registers. Refer to OpenPLC documentation for specific function block syntax and parameters.

Advanced OpenPLC Features

Beyond basic I/O control, OpenPLC provides advanced capabilities enabling sophisticated automation applications and system integration.

Persistent Variables and Retain Memory

Persistent (retained) variables maintain their values across power cycles and program restarts, essential for counters, runtime totals, and system configuration parameters that must survive power losses.

Declaring Persistent Variables:

In variable declarations, add the RETAIN keyword:

VAR RETAIN
    Production_Counter: INT := 0;
    Total_Runtime: TIME := T#0s;
    System_Enabled: BOOL := FALSE;
END_VAR

OpenPLC stores retained variables in persistent storage (filesystem or EEPROM depending on hardware platform), automatically restoring values after power cycles or program uploads.

Use Cases for Persistent Variables:

• Production counting and batch tracking
• Maintenance scheduling based on runtime hours
• User configuration settings and setpoints
• Alarm history and fault counters
• Recipe parameters and system calibration data

Custom Function Blocks

Create reusable function blocks encapsulating common control algorithms, eliminating code duplication and improving program maintainability.

Function Block Structure:

FUNCTION_BLOCK Motor_Controller
VAR_INPUT
    Start_Command: BOOL;
    Stop_Command: BOOL;
    Fault_Input: BOOL;
END_VAR

VAR_OUTPUT
    Motor_Running: BOOL;
    Fault_Status: BOOL;
END_VAR

VAR
    Running_Memory: BOOL := FALSE;
END_VAR

(* Motor control logic *)
IF Fault_Input THEN
    Running_Memory := FALSE;
    Fault_Status := TRUE;
ELSIF Start_Command AND NOT Stop_Command THEN
    Running_Memory := TRUE;
    Fault_Status := FALSE;
ELSIF Stop_Command THEN
    Running_Memory := FALSE;
END_IF;

Motor_Running := Running_Memory;
END_FUNCTION_BLOCK

Using Custom Function Blocks:

Instantiate function blocks in your main program and call with specific I/O assignments:

PROGRAM Main
VAR
    Motor1: Motor_Controller;
    Motor2: Motor_Controller;
END_VAR

(* Control Motor 1 *)
Motor1(Start_Command := %IX0.0,
       Stop_Command := %IX0.1,
       Fault_Input := %IX0.2);
%QX0.0 := Motor1.Motor_Running;

(* Control Motor 2 *)
Motor2(Start_Command := %IX0.3,
       Stop_Command := %IX0.4,
       Fault_Input := %IX0.5);
%QX0.1 := Motor2.Motor_Running;
END_PROGRAM

Multi-Program Projects

Large automation systems benefit from organizing code into multiple program organization units (POUs) with clear responsibilities and interfaces.

Program Organization Strategy:

• Main_Program: Overall coordination and state machine
• IO_Processing: Input conditioning and output control
• Safety_Logic: Emergency stops and safety interlocks
• Process_Control: Core process algorithms
• Communications: MODBUS and network protocols
• Diagnostics: Error detection and reporting

This organization improves code readability, enables team development, and simplifies testing and maintenance activities.

OpenPLC vs Commercial PLCs

Understanding how OpenPLC compares to commercial PLC systems helps you make informed decisions about platform selection for specific applications.

Capability Comparison

| Feature | OpenPLC | Commercial PLCs | |---------|---------|----------------| | Programming Languages | All 5 IEC 61131-3 languages | Varies (typically 3-5 languages) | | Initial Cost | Free (hardware only) | $500-$10,000+ per system | | Licensing | Open source, no restrictions | Annual fees common | | Hardware Flexibility | Wide range (Pi, Arduino, PC) | Manufacturer-specific | | I/O Capacity | Limited by hardware platform | Scalable to thousands of points | | Scan Time | 10-50ms typical | 1-10ms typical | | Industrial Certification | None | UL, CE, CSA certified | | Support | Community-based | Professional vendor support | | SCADA Integration | MODBUS, DNP3 | Extensive protocol support | | Safety Systems | Not suitable | Safety-rated options available |

When to Choose OpenPLC

Educational Applications: OpenPLC excels for teaching industrial automation concepts, providing complete functionality at minimal cost. Students gain experience with professional programming languages and real-world control concepts.

Prototyping and Development: Rapid testing of control algorithms and proof-of-concept development benefits from OpenPLC's flexibility and zero licensing costs. Validate concepts before committing to commercial platforms.

Small-Scale Automation: Home automation, small machines, and hobby projects work well with OpenPLC's capabilities and cost structure. No need for expensive commercial hardware for limited I/O requirements.

Research Applications: Access to source code enables custom modifications, algorithm development, and academic research impossible with closed commercial systems.

When to Choose Commercial PLCs

Industrial Production: Mission-critical manufacturing systems require certified hardware, professional support, and proven reliability of commercial PLC platforms. Safety systems must use safety-rated certified controllers.

Large I/O Requirements: Applications requiring hundreds or thousands of I/O points need the scalability and distributed architecture of commercial PLC systems.

Harsh Environments: Extreme temperatures, vibration, electrical noise, and other harsh conditions require industrial-rated hardware designed for these environments.

Professional Support: Critical systems justify commercial PLC costs when professional technical support, guaranteed response times, and vendor responsibility are essential.

OpenPLC Programming Best Practices

Following established programming best practices ensures your OpenPLC projects are maintainable, reliable, and professional quality.

Code Organization and Structure

Use Descriptive Variable Names: Replace generic names with meaningful descriptors that explain purpose:

• Good: "Conveyor_Start_Button", "Motor_Running_Status"
• Poor: "Input1", "Output5", "Temp"

Organize Code into Logical Sections: Group related functionality together with clear section headers using comments:

(* ========================================
   SAFETY INTERLOCKS
   ======================================== *)

(* ========================================
   PROCESS CONTROL
   ======================================== *)

(* ========================================
   OUTPUT CONTROL
   ======================================== *)

Create Reusable Function Blocks: Encapsulate repeated logic in function blocks rather than duplicating code throughout your program.

Documentation and Comments

Document Program Purpose: Include header comments explaining overall program function, author information, version history, and modification dates.

Comment Complex Logic: Explain WHY code exists, not just WHAT it does. Complex algorithms, calculations, and non-obvious logic require explanatory comments.

Document I/O Assignments: Maintain clear documentation of all input and output assignments, physical device connections, and electrical specifications.

Testing and Validation

Systematic Testing Approach:

1. Test individual program sections in isolation
2. Verify all input combinations produce expected outputs
3. Test boundary conditions and edge cases
4. Validate error handling and fault recovery
5. Perform integrated system testing
6. Document test results and acceptance criteria

Simulation and Bench Testing: Test programs thoroughly before connecting to physical hardware. Use monitoring page and I/O forcing to validate logic without risking equipment damage.

Error Handling and Fault Management

Implement Comprehensive Error Detection: Monitor for fault conditions including:

• Sensor failures (out-of-range values)
• Communication timeouts
• Conflicting input combinations
• Exceeded time limits for process steps

Design Safe Failure Modes: Ensure system fails to safe state when errors occur. De-energize outputs, activate alarms, and notify operators of fault conditions.

Troubleshooting Common OpenPLC Issues

Understanding common issues and their solutions accelerates problem resolution and minimizes downtime during development and deployment.

Installation and Setup Problems

Problem: OpenPLC Editor Won't Launch on Windows

Solutions:

• Verify Python 3.7+ is installed and accessible
• Check Windows PATH includes Python directory
• Reinstall with antivirus temporarily disabled
• Install missing Python dependencies manually using pip
• Run installer with administrator privileges

Problem: Raspberry Pi Runtime Installation Fails

Solutions:

• Ensure all system packages are updated (apt update && apt upgrade)
• Verify sufficient storage space on microSD card (minimum 2GB free)
• Check internet connection during installation
• Review installation log for specific error messages
• Install missing build dependencies (gcc, make, cmake)

Programming and Compilation Issues

Problem: Program Compilation Fails with Syntax Errors

Solutions:

• Verify all variables are properly declared before use
• Check data type compatibility in assignments
• Ensure function blocks have required inputs assigned
• Validate addressing syntax (correct % prefix and format)
• Review error messages for specific line numbers and descriptions

Problem: Program Compiles but Runtime Upload Fails

Solutions:

• Verify runtime version matches editor version
• Check network connectivity to runtime (ping IP address)
• Ensure sufficient storage space on runtime platform
• Review runtime web interface for error messages
• Try restarting runtime service

Runtime Operation Problems

Problem: Outputs Not Responding to Program Logic

Solutions:

• Verify program is actually running (check runtime status)
• Check hardware configuration matches program addresses
• Use monitoring page to verify outputs change in software
• Test physical outputs using force commands
• Verify proper wiring and power supply to output devices
• Check relay modules for proper connections and power

Problem: Slow Scan Times or Performance Issues

Solutions:

• Simplify complex calculations in programs
• Reduce number of MODBUS slave device polling operations
• Upgrade to faster hardware platform (Pi 3 → Pi 4)
• Optimize program structure and eliminate unnecessary operations
• Monitor CPU usage through runtime web interface

Communication and Networking Issues

Problem: Cannot Access Runtime Web Interface

Solutions:

• Verify runtime service is running (check system status)
• Check IP address configuration (use ip addr command)
• Confirm firewall allows port 8080 connections
• Try accessing from same machine (http://localhost:8080)
• Restart runtime service (systemctl restart openplc)
• Check for IP address conflicts on network

Problem: MODBUS Communication Not Working

Solutions:

• Verify MODBUS TCP server is enabled in settings
• Check client device connects to correct IP and port (502)
• Review MODBUS address mapping documentation
• Test with MODBUS diagnostic tools (ModScan, QModMaster)
• Verify firewall allows port 502 connections
• Check for MODBUS slave ID configuration issues

Frequently Asked Questions

What is OpenPLC and how does it work?

OpenPLC is a fully functional open-source Programmable Logic Controller platform consisting of two main components: the OpenPLC Editor for program development and the OpenPLC Runtime for program execution. The editor supports all five IEC 61131-3 programming languages (Ladder Logic, Function Block Diagram, Structured Text, Instruction List, Sequential Function Chart), allowing you to create industrial control programs using professional programming methods. The runtime executes these programs on various hardware platforms including Raspberry Pi, Arduino, and industrial PCs, managing I/O operations, communication protocols, and real-time control functions.

Is OpenPLC suitable for commercial industrial applications?

OpenPLC is suitable for non-critical commercial applications, educational systems, and prototyping, but should not be used for safety-critical or mission-critical industrial production systems. Unlike certified commercial PLCs with UL/CE/CSA listings, OpenPLC lacks industrial certification and professional support. However, it works excellently for development, testing, small-scale automation, research applications, and building automation where industrial certifications aren't required. For critical manufacturing systems, use certified commercial PLCs from established manufacturers.

What hardware platforms support OpenPLC Runtime?

OpenPLC Runtime supports Raspberry Pi (all models including Pi 2, 3, 4, and Zero), Arduino boards (Uno, Mega 2560, Due), industrial PCs running Windows or Linux, and UniPi industrial controllers. Raspberry Pi 4 provides the best performance for complex programs with typical scan times of 10-20ms. Arduino platforms work well for simple applications but have limited memory and processing power. Industrial PCs offer maximum performance for demanding applications requiring fast scan times and extensive I/O processing.

How do I connect OpenPLC to SCADA systems?

OpenPLC includes built-in MODBUS TCP server functionality enabling connection to SCADA systems and HMIs. Configure the MODBUS server through Settings → MODBUS in the runtime web interface, then configure your SCADA software as a MODBUS TCP client pointing to the OpenPLC IP address on port 502. Popular SCADA systems compatible with OpenPLC include ScadaBR (open-source), Ignition, AdvancedHMI, and Node-RED. OpenPLC maps IEC 61131-3 addresses to standard MODBUS registers automatically, allowing external systems to read inputs/outputs and write to memory locations.

Can I use OpenPLC for professional PLC programming training?

Yes, OpenPLC provides an excellent platform for professional PLC programming training at significantly lower cost than commercial alternatives. Students learn authentic IEC 61131-3 programming languages, industrial control concepts, and real-world application development using the same programming methods used in commercial PLCs. The programming skills developed with OpenPLC transfer directly to Siemens, Allen Bradley, Schneider Electric, and other commercial platforms. Many technical schools, universities, and training centers use OpenPLC for PLC programming courses due to low hardware costs and comprehensive programming language support.

What are the limitations of OpenPLC compared to commercial PLCs?

OpenPLC limitations include lack of industrial certification, community-based support only, limited I/O scalability compared to enterprise PLC systems, slower typical scan times (10-50ms vs 1-10ms), no redundancy or hot-backup capabilities, and limited protocol support beyond MODBUS. Hardware platforms lack industrial environmental ratings for extreme temperatures, vibration, and electrical noise. These limitations make OpenPLC unsuitable for mission-critical manufacturing systems but perfectly adequate for education, development, small-scale automation, and research applications where industrial certifications aren't required.

How do I program OpenPLC using Ladder Logic?

Program OpenPLC using Ladder Logic by creating a new project in OpenPLC Editor, selecting Ladder Logic as your programming language, and adding rungs containing contacts (inputs) and coils (outputs). Use standard IEC 61131-3 addressing: %IX for digital inputs (e.g., %IX0.0), %QX for digital outputs (e.g., %QX0.0), %IW for analog inputs, and %MW for memory words. The editor provides comprehensive instruction libraries including contacts, coils, timers, counters, comparison functions, and mathematical operations. Review our comprehensive Ladder Logic tutorial for detailed programming instruction and examples.

Can OpenPLC control Raspberry Pi GPIO pins directly?

Yes, OpenPLC Runtime for Raspberry Pi includes native GPIO support enabling direct control of all Raspberry Pi GPIO pins as digital inputs and outputs. Configure GPIO pin assignments through Hardware → Raspberry Pi in the runtime web interface, setting each pin as input or output with appropriate pull-up/pull-down resistors. GPIO pins map to OpenPLC addresses starting at %IX100.0 for inputs and %QX100.0 for outputs. Remember that Raspberry Pi GPIO operates at 3.3V logic levels with maximum 16mA current per pin, so use appropriate level shifters and relay drivers for interfacing with industrial equipment.

What programming languages does OpenPLC support?

OpenPLC supports all five IEC 61131-3 standard programming languages: Ladder Logic (LD) for traditional relay-style programming, Function Block Diagram (FBD) for graphical algorithm development, Structured Text (ST) for complex mathematical and conditional operations, Instruction List (IL) for low-level programming, and Sequential Function Chart (SFC) for batch and sequential processes. You can use different languages within a single project, choosing the most appropriate language for each specific control task. This comprehensive language support exceeds many commercial PLC platforms that support only 2-3 languages.

How do I troubleshoot OpenPLC Runtime connection issues?

Troubleshoot OpenPLC Runtime connection issues by first verifying the runtime service is actually running using systemctl status openplc on Linux/Raspberry Pi or checking the process list on Windows. Confirm the correct IP address using ip addr or ipconfig commands, then verify network connectivity with ping. Check that firewall rules allow connections on port 8080 for the web interface and port 502 for MODBUS communication. Try accessing the web interface from the same machine using http://localhost:8080 to eliminate network variables. Restart the runtime service if necessary. Review runtime logs in /var/log/openplc.log for specific error messages indicating the connection problem.

Can I use OpenPLC with Arduino for PLC programming learning?

Yes, Arduino platforms provide excellent cost-effective hardware for learning PLC programming concepts with OpenPLC. Arduino Mega 2560 is recommended for learning applications due to its 54 digital I/O pins and 16 analog inputs providing sufficient I/O capacity for practical exercises. Upload the OpenPLC firmware to your Arduino using Arduino IDE, then develop programs in OpenPLC Editor and upload via USB connection. Arduino platforms work well for understanding PLC programming fundamentals, practicing Ladder Logic examples, and implementing small automation projects, though limited memory and processing power restrict complex applications.

How does OpenPLC Modbus communication work?

OpenPLC includes built-in MODBUS TCP server functionality automatically mapping OpenPLC addresses to standard MODBUS registers. Digital inputs (%IX) map to Discrete Inputs (function 2), digital outputs (%QX) map to Coils (function 1), analog inputs (%IW) map to Input Registers (function 4), and memory words (%MW) map to Holding Registers (function 3). Enable MODBUS TCP through Settings → MODBUS in the runtime web interface, then configure external MODBUS clients (SCADA systems, HMIs) to connect to the OpenPLC IP address on port 502. OpenPLC also supports MODBUS RTU serial communication for applications requiring RS-232 or RS-485 connectivity. Review our complete MODBUS protocol guide for detailed communication concepts.

---

Master Industrial Automation with Professional PLC Programming

Ready to advance beyond OpenPLC tutorials and master professional PLC programming across all major platforms? Our comprehensive PLC Programming Masterclass covers Siemens TIA Portal, Allen Bradley Studio 5000, Schneider Electric, and advanced automation techniques used in industrial manufacturing.

What you'll master:

• Professional programming techniques for major PLC platforms
• Advanced control algorithms and optimization strategies
• Industrial communication protocols and networking
• SCADA system integration and HMI development
• Real-world troubleshooting and commissioning procedures
• Career advancement strategies for automation engineers

Enroll in Complete PLC Programming Course →

This expert-level training bridges the gap between open-source learning and professional industrial automation programming, preparing you for high-paying careers in manufacturing automation and industrial control systems.

Related PLC Programming Resources:

• Free PLC Programming Software Complete List - Explore all free PLC software options
• PLC Programming for Beginners Guide - Start from the absolute basics
• CODESYS Tutorial Complete Guide - Learn another powerful open IEC 61131-3 platform
• Structured Text Programming Guide - Master advanced text-based PLC programming

---

This comprehensive OpenPLC tutorial contains 2,847 words covering installation, programming, configuration, and deployment of open-source PLC systems. Use this guide to develop professional automation skills using affordable hardware platforms without expensive software licensing.
