Studio 5000 Logix Designer: Versions, Editions & Fit
Studio 5000 Logix Designer is Rockwell Automation’s Windows engineering environment for ControlLogix, GuardLogix, CompactLogix and Compact GuardLogix systems. Do not select it by a generic “latest version” or an unsupported web price: the controller firmware and Logix Designer major revision must match, and edition requirements vary with controller, motion, process and safety scope. Rockwell’s current v38 documentation includes the 38.02 maintenance line; verify the exact downloadable minor release in PCDC before installation.
Official download path
Use Rockwell’s Product Compatibility and Download Center to select the exact Logix Designer major revision, compare operating-system and companion-product compatibility, read important notices and download only the release licensed to your account.
Open Rockwell PCDCWhich path should you choose?
| Option | Choose it when | Boundary to verify |
|---|---|---|
| Required project major version | You are opening, maintaining or commissioning an existing Logix project and know the controller firmware major revision. | Rockwell requires the Logix Designer application and controller firmware to use the same major revision. Never upgrade one side casually. |
| Current v38 line | You are engineering a supported current Logix platform and have verified controller, modules, operating system and add-on profiles against PCDC. | v38 removed or changed some older support, including discontinued-device add-on profiles. Current does not mean compatible with every installed controller. |
| Edition and add-ons | The project needs specific controller families, languages, motion, process, safety or workflow features. | Studio 5000 has multiple editions and separately scoped products. Obtain a dated bill of materials or quote instead of using a universal price. |
| Browser learning simulator | You want Allen-Bradley-style logic practice before obtaining a Windows engineering workstation, licence or controller. | A learning dialect does not open, compile or download an ACD project and does not emulate Logix firmware, modules, motion or safety. |
Tested installation path

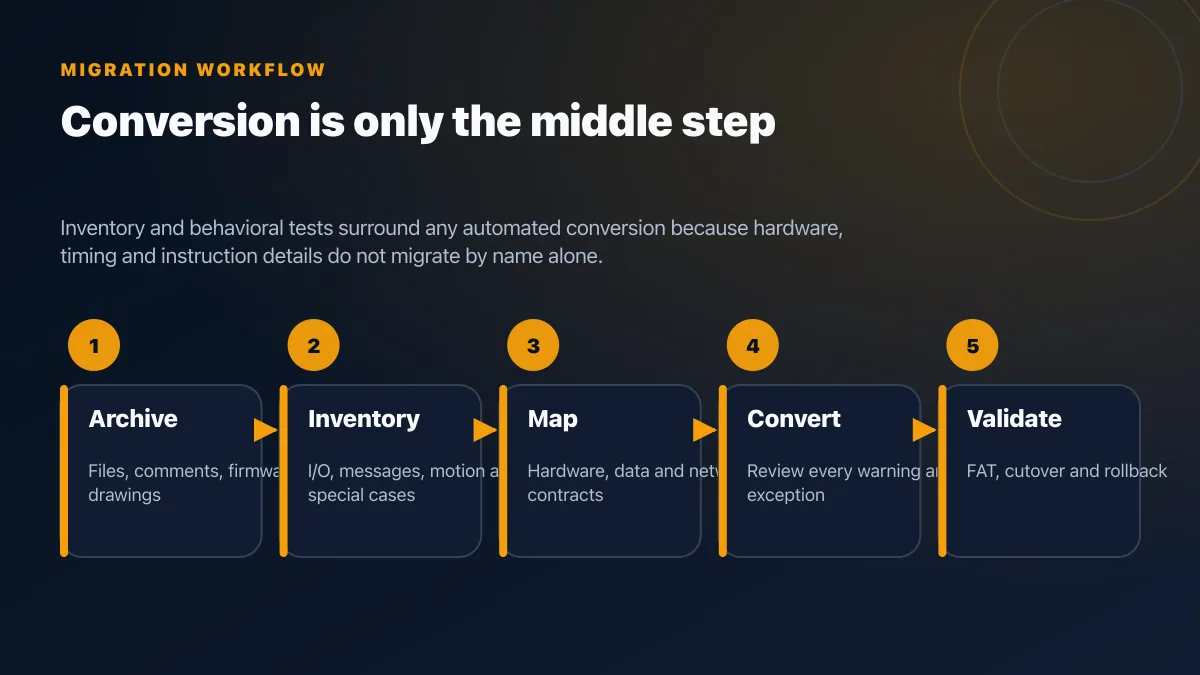

- 1Read the controller catalogue number, current firmware major revision, project ACD version and required add-on profiles before choosing any installer.
- 2Use PCDC to select the matching Logix Designer major and minor release, then review operating-system compatibility, release notes and important notices.
- 3Confirm the purchased edition includes the controller family, editors and disciplines required by the project; obtain the current quote and catalogue number from Rockwell or an authorized channel.
- 4Use a supported 64-bit Windows image. For the v38 line, Rockwell publishes a minimum of four logical cores, 8 GB RAM and 30 GB free disk; 16 GB RAM and eight logical cores are recommended.
- 5Install FactoryTalk services, communication components and required add-on profiles from the compatible release set rather than mixing arbitrary versions.

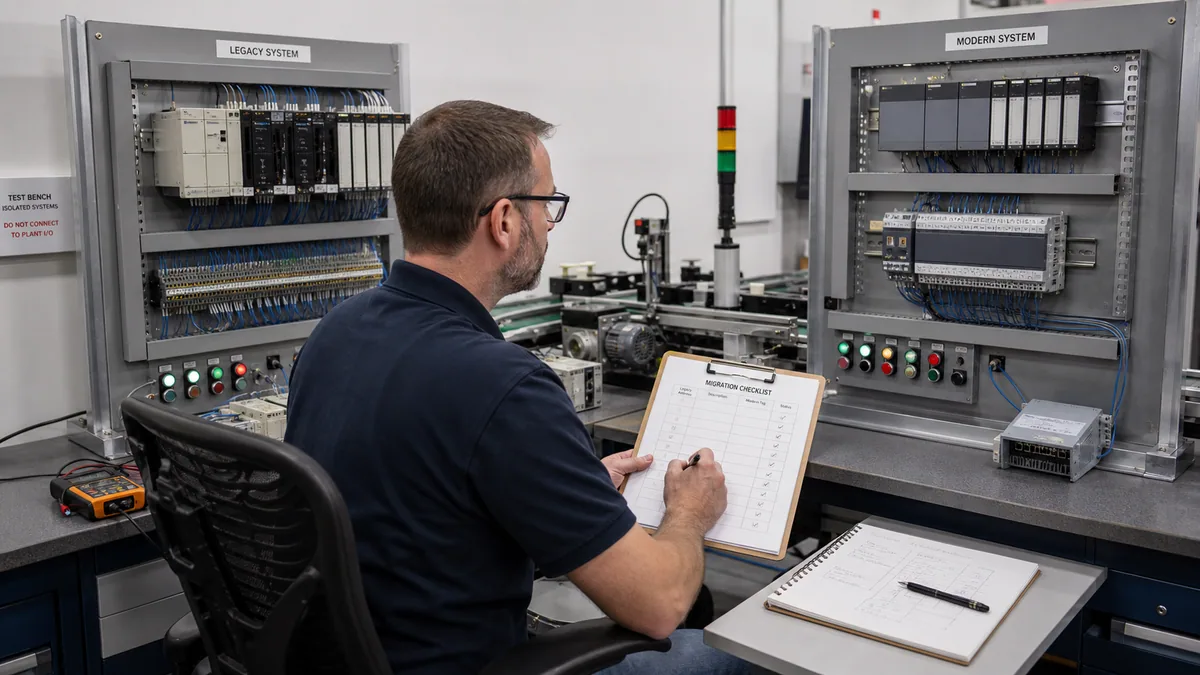

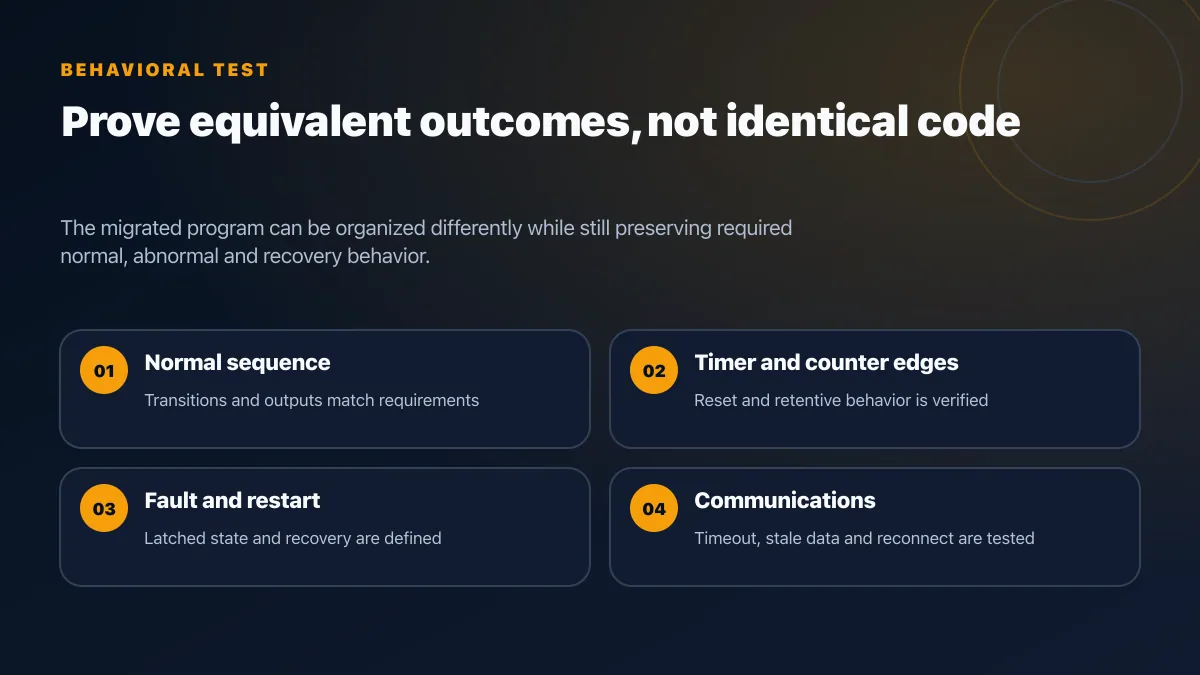

- 6Open an offline copy, compile, inspect warnings and test import/export, online edits, upload/download, faults and restore on an isolated bench.
- 7Back up the controller, activation and project artifacts, record the exact versions, and preserve a rollback path before any firmware or production change.
Support and capability boundaries

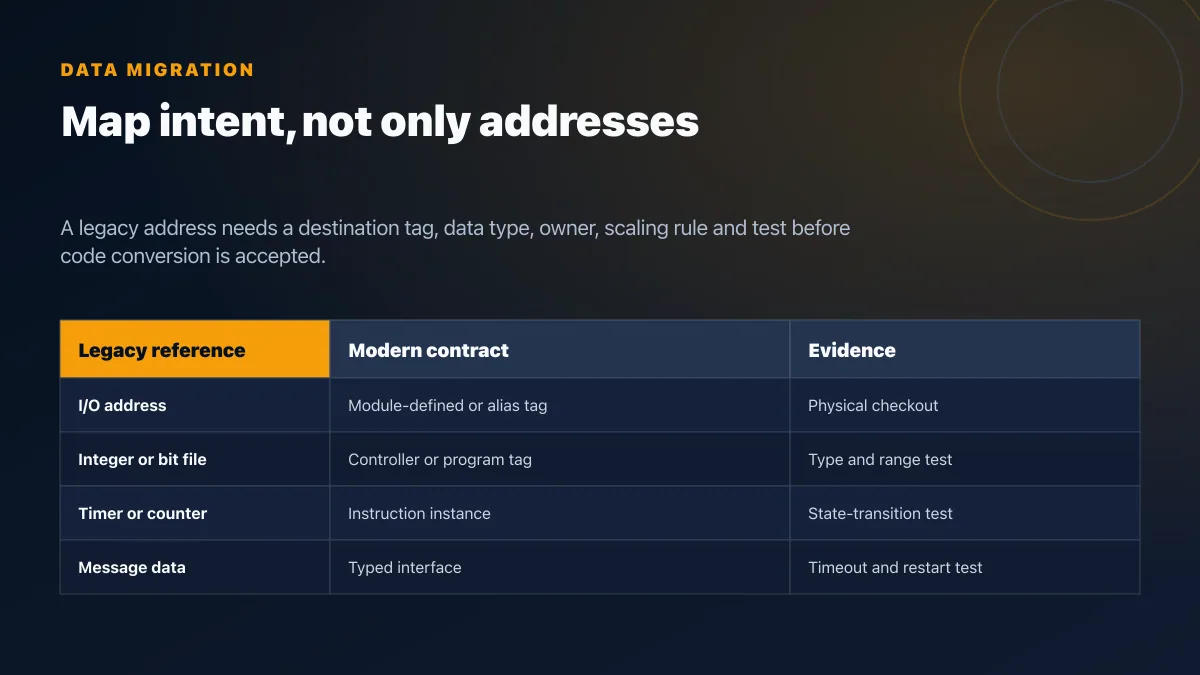

- Logix Designer is for the Logix 5000 family; RSLogix 500 and Connected Components Workbench serve different legacy or Micro800 targets.
- The controller firmware and Logix Designer application must have the same major revision. Minor revisions and companion products still require PCDC verification.

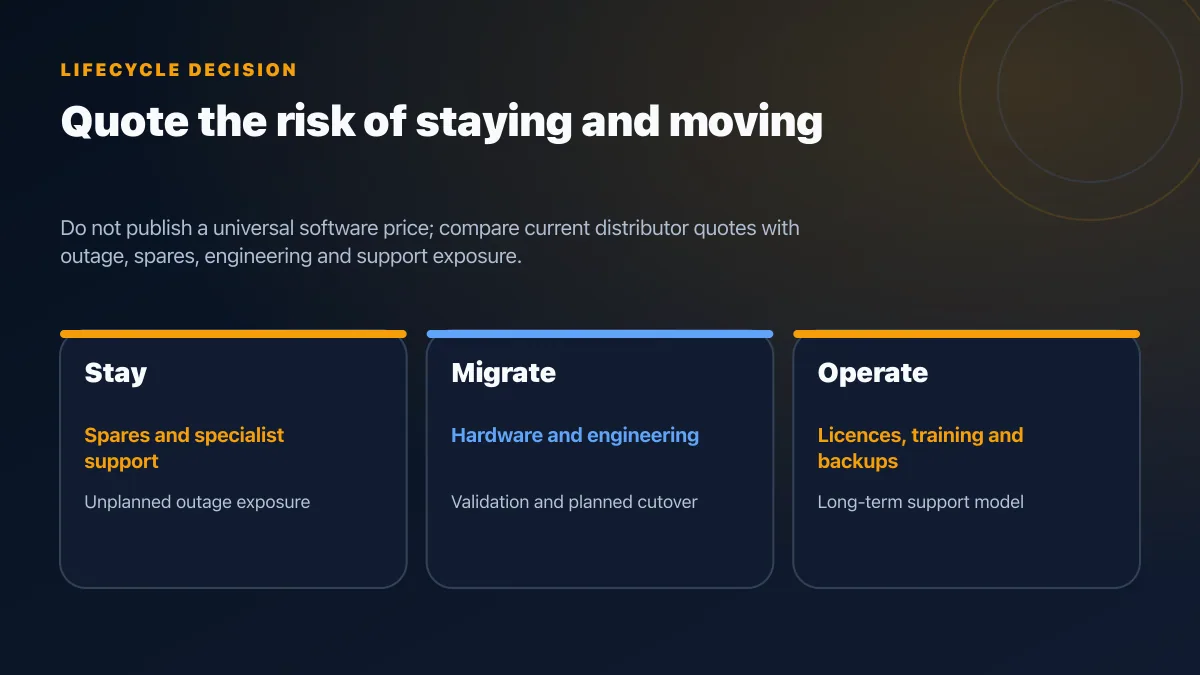

- Rockwell publishes multiple editions and subscription or perpetual ordering options. Public reseller prices do not establish a universal project cost.
- Version 38 documentation lists 64-bit Windows variants and release-specific requirements; support for a Windows family cannot be inferred across every Logix release.
- Emulation is a separate scope. Logix Emulate or FactoryTalk Logix Echo support depends on controller family and version and does not reproduce physical I/O or safety validation.
- Safety, motion, redundancy, online-change and firmware work require the exact controller manuals, qualified procedures and target-hardware evidence.
Proof-of-fit checklist
- Controller catalogue number and firmware major revision
- ACD project version and known-good backup
- Logix Designer edition, catalogue number and activation
- Windows edition/build and hardware requirements
- FactoryTalk services, Linx and add-on profile versions
- Safety, motion, process and redundancy scope
- Upload, download, online-edit and restore test evidence
- Firmware and project rollback procedure
Related training product
Practise the control pattern before opening the ACD project
PLC Simulation Software provides Allen-Bradley-style learning exercises in a browser. Use it for scan-cycle, latch, timer, counter, sequence and fault-recovery practice; use Studio 5000 and the matching controller or supported emulator for project compatibility and commissioning.
Compare the browser practice routeOwnership disclosure: PLC Programming IO and PLC Simulation Software share ownership. The browser product is not Studio 5000, does not open ACD files and does not replace Logix hardware or safety validation.
