Compact PLC: Definition, Limits & Selection Checklist
Quick answer
A compact PLC combines the controller and several core functions—commonly power, communications and some onboard I/O—in one space-saving housing. Many compact PLCs still accept expansion modules, so compact does not necessarily mean fixed or non-expandable.
Key Takeaways
- A compact PLC combines the controller and several core functions—commonly power, communications and some onboard I/O—in ...
- Beginner-level topic in PLC Fundamentals
- Commonly used in: Standalone machines with bounded I/O, Small conveyors, pumps and utility skids

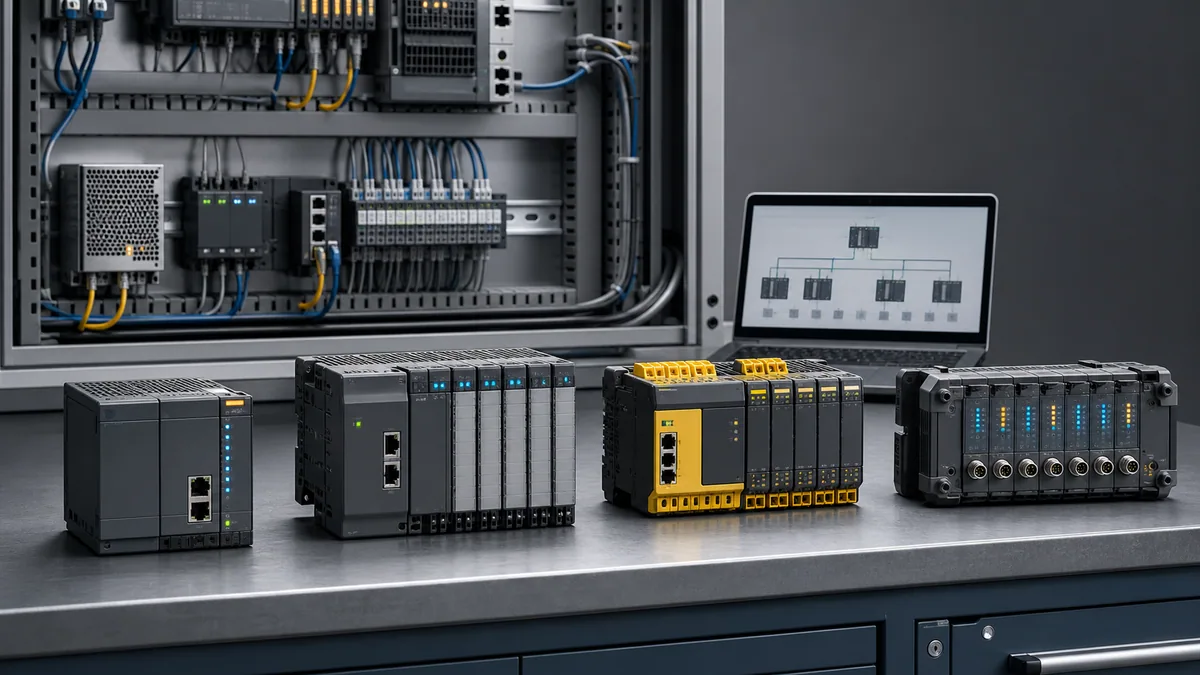

Detailed Definition
Compact PLC describes packaging and system scale rather than one standardized performance class. Compared with a fully modular rack, more functions are integrated into the CPU housing and expansion is usually more constrained. The trade-off is often lower panel space and part count versus fewer slots, interfaces or future expansion paths.
Selection should be based on the final machine architecture: I/O type and count, spare capacity, motion, safety, communications, scan margin, environmental ratings, removable terminals, data retention and lifecycle. A controller that fits the initial I/O list can still be the wrong choice if it lacks isolation, protocol capacity or room for the expected machine revision.
Evidence and scope
The architecture description was checked against current Siemens S7-1200 G2 and B&R X20 product material. “Compact PLC” is a product-class description, not a universal IEC size or I/O limit; always use the selected model’s manual.
Technical review:
Critical behavior
- Compact describes integration and form factor; it does not guarantee a fixed I/O count, low performance or no expansion.
- Onboard I/O quantity alone is insufficient—check electrical type, isolation, current, update time and terminal arrangement.
- Published maximum expansion can depend on power budget, bus topology, firmware and module combinations.
- Integrated motion, safety or communications features may require a specific CPU variant, license or engineering version.
- Reserve capacity should cover credible machine changes, not an arbitrary percentage detached from the I/O and network design.
Verification checklist
- 1Freeze a typed I/O list with electrical characteristics and spare requirements.
- 2Validate CPU, signal modules, communications and power budget in the vendor configurator.
- 3Measure task and network margin with the representative application.
- 4Test restart, data retention, communications loss and module fault behavior.
- 5Document replacement, backup, firmware and five-year expansion strategy.
IEC and vendor terminology
Similar-looking instructions do not always have identical execution, initialization or storage behavior.
| Platform | Common term | What to verify |
|---|---|---|
| Generic architecture | Compact PLC | CPU and several core functions share a housing; some local expansion may still be supported. |
| Generic architecture | Fixed / brick PLC | Often used for a controller with a mostly fixed onboard I/O configuration. Vendors do not use the term consistently. |
| Generic architecture | Modular PLC | CPU, power, communications and I/O are assembled from a broader set of modules or slots. |
| Siemens example | SIMATIC S7-1200 G2 | Siemens currently describes it as a compact PLC family with space-saving design and integrated functionality; exact capabilities vary by CPU. |
Compact PLC fit boundary
[Power + CPU + Ethernet + onboard I/O in one housing]
| local expansion
v
[signal / communication modules within documented limits]
| network
+--------> [HMI, drive, remote I/O]Compact versus modular selection boundary
These are architecture tendencies, not universal vendor limits.
| State / phase | Compact PLC tendency | Modular PLC tendency | Decision test |
|---|---|---|---|
| Packaging | More functions integrated in CPU housing | Functions split across modules or slots | Does the panel and wiring layout fit? |
| Expansion | Bounded local expansion | Broader module and slot range | Does the final bill of materials stay within every limit? |
| Replacement | One replacement may affect several integrated functions | Individual modules may be replaceable | What is the spare and recovery strategy? |
| Growth | Best for a bounded machine scope | Best when significant change is expected | What credible five-year changes are already known? |
Working LD and ST example
Small pump skid logic that exposes hardware requirements
Use the logic and I/O list together to determine whether a compact CPU has the correct onboard and expansion channels.
Ladder Diagram
|----[ Auto ]----[ Level_Low ]----[/ Fault ]----( ) Pump_Run--|
|----[ Pump_Run ]----[ TON RunProof, PT=T#3s ]----------------|
|----[ RunProof.Q ]----[/ Flow_OK ]------------( ) NoFlowAlarm-|Structured Text
PumpRun := AutoMode AND LevelLow AND NOT ProcessFault;
RunProof(IN := PumpRun, PT := T#3s);
NoFlowAlarm := RunProof.Q AND NOT FlowOK;Expected result: The design requires digital level, flow and fault inputs, a pump output and timer capacity; the final hardware check must also include output rating, isolation, HMI/network needs and spare channels.
Failure modes and diagnostic checks
| Symptom | Likely cause | Check next |
|---|---|---|
| The CPU has enough points but cannot drive the field load | I/O electrical type, current, isolation or protection was ignored. | Match every signal to the exact channel specification and interposing-device design. |
| The last expansion module is not accepted | Power budget, module count, bus position or supported-combination limit was exceeded. | Validate the complete configured rack in the vendor engineering tool and manual. |
| A later feature forces a controller replacement | Motion, safety, protocol or memory growth was not included in the original selection boundary. | Review the credible roadmap and price the next controller class before approval. |
| A compact controller is assumed to be a smart relay | Product packaging was confused with programming, memory and communications capability. | Compare the exact CPU datasheet, supported languages, tasks, data types and online diagnostics. |
Current primary and technical sources
These sources support the behavior summarized on this page. The project's controller, firmware and IDE help remain authoritative for implementation.
- SIMATIC S7-1200 G2
Siemens — Current compact-controller positioning and integrated capabilities
- SIMATIC Controller Selection Guide
Siemens — Architecture and application-selection boundary
- PLC systems
B&R Industrial Automation — Compact-to-modular X20 range and common engineering environment
- X20 System
B&R Industrial Automation — Modular slice construction and I/O component range
Continue with the practical guide
Common Questions
What is Compact PLC?
A compact PLC combines the controller and several core functions—commonly power, communications and some onboard I/O—in one space-saving housing. Many compact PLCs still accept expansion modules, so compact does not necessarily mean fixed or non-expandable.
When should I use Compact PLC?
Compact PLC is particularly useful in scenarios such as Standalone machines with bounded I/O and Small conveyors, pumps and utility skids. Consider implementing it when you need reliable, efficient solutions for these types of applications.
What should I verify before using Compact PLC?
Freeze a typed I/O list with electrical characteristics and spare requirements. Validate CPU, signal modules, communications and power budget in the vendor configurator. Measure task and network margin with the representative application. Test restart, data retention, communications loss and module fault behavior. Document replacement, backup, firmware and five-year expansion strategy.
What are related concepts I should learn?
To fully understand Compact PLC, you should also familiarize yourself with PLC (Programmable Logic Controller), Scan Cycle, and CPU (Central Processing Unit). These concepts work together in industrial automation systems.
