Introduction: Understanding PROFINET, Standard Ethernet, and Ethernet/IP

The industrial automation landscape in 2025 features multiple Ethernet-based communication protocols, with PROFINET and Ethernet/IP dominating the market for high-performance industrial control applications. Understanding the fundamental differences between PROFINET vs Ethernet implementations—including standard Ethernet, PROFINET, and Ethernet/IP—is critical for automation engineers selecting communication protocols for modern manufacturing systems.

This confusion often stems from terminology: "Ethernet" can refer to standard commercial Ethernet networks, Siemens PROFINET protocol, or Rockwell Automation's Ethernet/IP. While all three use common Ethernet physical layer technology, they implement vastly different protocol stacks, real-time mechanisms, and network architectures optimized for distinct industrial applications.

PROFINET (Process Field Net) represents Siemens' industrial Ethernet solution, providing real-time deterministic communication for process and factory automation with tight integration into Siemens control ecosystems. Ethernet/IP (Ethernet Industrial Protocol) combines standard Ethernet with the Common Industrial Protocol (CIP), delivering scalable communication for complex automation systems primarily in Rockwell Automation environments.

This comprehensive comparison examines PROFINET vs Ethernet/IP differences in real-time performance, network topology requirements, cabling specifications, protocol stack architecture, typical applications, and cost considerations. You'll learn when to select PROFINET, when Ethernet/IP makes more sense, how standard Ethernet differs from both industrial protocols, and integration scenarios enabling coexistence of multiple protocols in hybrid automation systems.

Quick Comparison Overview: PROFINET vs Ethernet/IP vs Standard Ethernet

| Feature | PROFINET IRT | Ethernet/IP | Standard Ethernet | |---------|-------------|-------------|-------------------| | Cycle Time | 250 µs - 1 ms | 1 - 20 ms | Not deterministic | | Determinism | Hard real-time | Soft real-time | Non-deterministic | | Network Switches | Special PROFINET switches | Standard managed switches | Standard switches | | Topology | Line/Star/Ring | Star (switched) | Star (switched) | | Maximum Nodes | 512 typical | 250+ practical | Unlimited | | Real-Time Class | RT, IRT (isochronous) | Priority-based QoS | Best effort | | Jitter Performance | < 1 µs (IRT) | ~100 µs | Not specified | | Protocol Stack | PROFINET on Ethernet | CIP on TCP/UDP/IP | TCP/UDP/IP | | Vendor Ecosystem | Siemens-led, multi-vendor | Rockwell-led, ODVA | Universal | | Primary Applications | Motion control, process | Large systems, enterprise | IT networking | | Safety Protocol | PROFIsafe (SIL 3) | CIP Safety (SIL 3) | Not applicable | | Diagnostic Depth | Extensive device diagnostics | Good device diagnostics | Basic network diagnostics | | Configuration Tools | TIA Portal, GSD files | Studio 5000, EDS files | Generic network tools | | Cost Level | Medium-High | Medium-High | Low |

Key Takeaways from Comparison:

Standard Ethernet provides no deterministic guarantees and is unsuitable for real-time control without significant modification. Both PROFINET and Ethernet/IP build upon standard Ethernet physical layer but add industrial-specific protocol layers that enable deterministic communication, device diagnostics, and safety functions required for automation applications.

PROFINET excels in applications requiring hard real-time performance with cycle times below 1 millisecond, particularly for motion control and synchronized multi-axis applications. Ethernet/IP provides excellent scalability and enterprise integration for large distributed systems where cycle times of 2-10 milliseconds meet application requirements.

Chapter 1: What is PROFINET Protocol?

PROFINET Architecture and Design Philosophy

PROFINET represents Siemens' comprehensive industrial Ethernet solution designed to replace fieldbus technologies while providing enhanced capabilities for modern automation systems. The protocol architecture supports multiple communication classes from non-real-time enterprise integration to isochronous real-time motion control within a single network infrastructure.

PROFINET Design Goals:

• Replace PROFIBUS fieldbus while maintaining backward compatibility
• Provide multiple real-time classes for different application requirements
• Enable seamless integration with standard Ethernet and IT networks
• Support comprehensive device diagnostics and asset management
• Implement functional safety communication within same infrastructure
• Leverage standard Ethernet hardware with industrial enhancements

The PROFINET stack integrates with standard Ethernet at the physical and data link layers while implementing industrial-specific protocol layers above. This architecture enables coexistence with standard TCP/IP communication for diagnostics, configuration, and enterprise integration alongside deterministic real-time control communication.

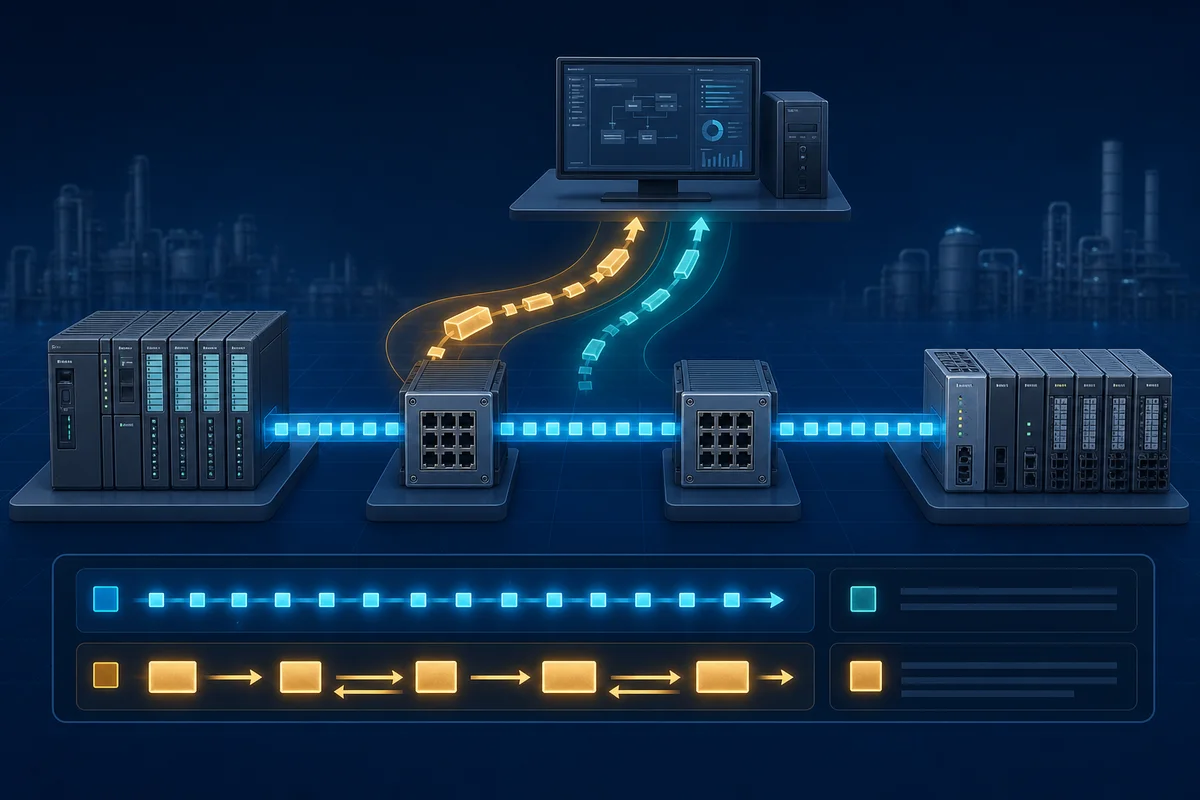

PROFINET Communication Classes Explained

PROFINET defines three distinct communication classes optimizing performance for different application requirements:

TCP/IP Communication (Non-Real-Time)

Standard TCP/IP communication handles parameterization, configuration, diagnostics, and acyclic data exchange between devices and engineering tools. This communication class uses conventional Ethernet protocol stacks without real-time guarantees, suitable for non-time-critical operations.

Applications include downloading device configurations, reading diagnostic information, firmware updates, and integrating PROFINET devices with enterprise IT systems through standard protocols like HTTP, FTP, and SNMP.

PROFINET RT (Real-Time)

Real-Time communication bypasses TCP/IP protocol layers for cyclic process data exchange, providing deterministic performance with cycle times from 1-10 milliseconds suitable for most discrete manufacturing and process control applications.

RT communication uses prioritized Ethernet frames with VLAN tagging (IEEE 802.1Q) that ensure real-time data receives higher priority than standard TCP/IP traffic. Standard managed switches supporting QoS (Quality of Service) can forward RT traffic with acceptable latency for most applications.

Typical cycle times range from 1-10 milliseconds with jitter below 1 millisecond, adequate for distributed I/O, process control, and moderate-speed motion control applications. RT communication represents the most common PROFINET implementation for standard automation requirements.

PROFINET IRT (Isochronous Real-Time)

Isochronous Real-Time provides the highest deterministic performance with cycle times as low as 250 microseconds and jitter below 1 microsecond, meeting requirements for demanding motion control, synchronized multi-axis systems, and high-speed positioning applications.

IRT implementation requires special PROFINET switches with time-slicing capabilities that reserve dedicated bandwidth for isochronous communication. The network synchronizes all devices to a common clock, enabling precise coordinated actions across multiple distributed controllers and drives.

Time slots within each cycle allocate bandwidth for IRT data (guaranteed delivery), RT data (prioritized delivery), and standard Ethernet data (best-effort delivery). This time-division approach ensures IRT communication remains unaffected by other network traffic regardless of network load.

Applications demanding IRT performance include high-speed packaging machinery, printing presses, multi-axis CNC machines, robotic systems, and electronic line shafting where precise synchronization between distributed axes is critical for product quality and process coordination.

PROFINET Device Types and Roles

IO-Controller (PLC/Controller)

The IO-Controller acts as the PROFINET master, managing communication with field devices, coordinating cyclic data exchange, and providing application logic execution. Typically implemented in PLCs, industrial PCs, or embedded controllers, the IO-Controller initiates all real-time communication with IO-Devices.

IO-Device (Field Device)

IO-Devices represent field-level automation components including distributed I/O modules, drives, sensors, actuators, and intelligent devices. These devices respond to IO-Controller requests, participate in cyclic data exchange, and provide comprehensive diagnostic information.

Each IO-Device contains one or more modules and submodules representing physical or logical components (digital inputs, analog outputs, drive channels, etc.). This modular structure enables flexible device configuration matching physical hardware capabilities.

IO-Supervisor (Engineering/HMI)

IO-Supervisors provide engineering, configuration, diagnostic, and visualization functions without participating in real-time cyclic communication. HMI panels, SCADA systems, and engineering workstations typically operate as IO-Supervisors, accessing devices through acyclic communication channels.

PROFINET Topology and Cabling Requirements

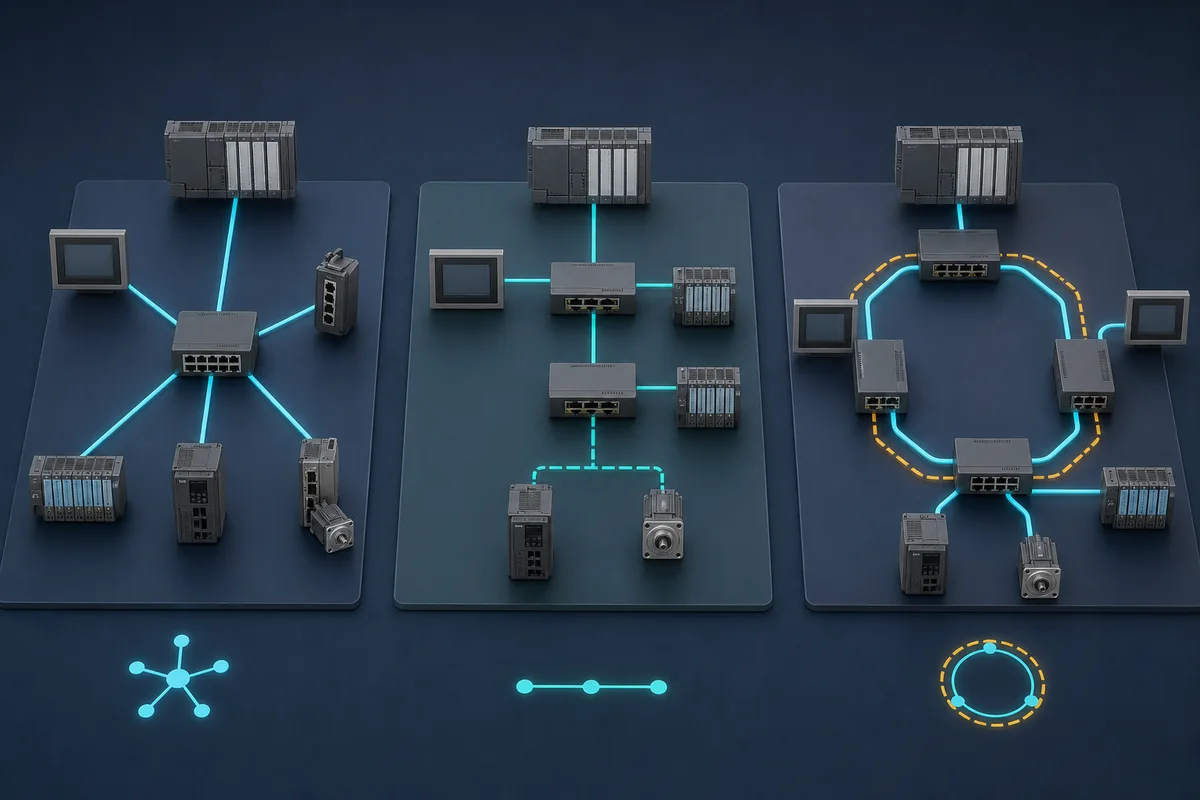

Supported Network Topologies

PROFINET supports flexible topology options including star, line, tree, and ring configurations using standard or PROFINET-specific switches. Line topology (daisy-chain) enables simple installations with integrated switches in field devices, reducing infrastructure costs for smaller systems.

Ring topology provides redundancy through Media Redundancy Protocol (MRP) with automatic failover in case of cable breaks or switch failures. Reconfiguration times below 200 milliseconds ensure continued operation for most applications except the most demanding motion control systems.

Star topology using managed switches provides maximum flexibility for complex installations, enabling structured cabling approaches similar to commercial IT networks while maintaining real-time performance through proper switch configuration and QoS settings.

Cable Specifications

PROFINET networks use standard Ethernet cabling with Category 5e minimum specification and Category 6 or 6A recommended for new installations. Industrial environments may require ruggedized cables with enhanced shielding, industrial connectors (RJ45 or M12), and environmental protection ratings matching application conditions.

Cable length follows standard Ethernet specifications with 100 meters maximum per segment for copper cabling. Fiber optic media extends distances to kilometers when required, using PROFINET-compatible media converters or switches with fiber ports.

Grounding and Shielding Best Practices

Proper cable shielding and grounding ensures reliable communication in electrically noisy industrial environments. Shield connections at both cable ends through metal connector housings and proper grounding to equipment cabinets reduces electromagnetic interference effects on data transmission.

Ground potential differences between equipment cabinets can create circulating currents through cable shields, causing noise injection and potential equipment damage. In installations with significant ground potential differences, fiber optic cabling provides complete electrical isolation while maintaining high-speed communication.

Chapter 2: What is Standard Ethernet?

Standard Ethernet Architecture and Limitations for Control

Standard Ethernet (IEEE 802.3) provides the foundation for virtually all wired network communication in modern computing, using packet-switching technology to transmit data between devices connected through switches and routers. While excellent for general-purpose networking, standard Ethernet lacks deterministic timing required for industrial control applications.

Non-Deterministic Operation

Standard Ethernet uses CSMA/CD (Carrier Sense Multiple Access with Collision Detection) for media access control in older implementations, resulting in unpredictable transmission delays when network congestion occurs. Modern switched Ethernet eliminates collisions but still cannot guarantee message delivery timing without additional protocol enhancements.

Network switches process frames using store-and-forward techniques where each switch receives complete frames, processes routing decisions, and retransmits frames to appropriate ports. This processing introduces variable delays depending on switch load, frame size, and buffering conditions—unacceptable for real-time control applications.

Best-Effort Delivery Model

Standard TCP/IP protocols implement best-effort delivery without guarantees for timing, latency, or jitter performance. While Quality of Service mechanisms can prioritize certain traffic types, standard Ethernet alone cannot provide hard real-time guarantees required for motion control or process control applications.

Why Industrial Applications Need More Than Standard Ethernet

Real-Time Requirements

Industrial control applications require deterministic communication where critical control messages arrive within guaranteed time windows. Process control loops, motion control systems, and safety functions depend on predictable timing that standard Ethernet cannot provide without industrial protocol enhancements.

Environmental Hardening

Industrial environments subject equipment to electrical noise, temperature extremes, vibration, contamination, and moisture that exceed operating conditions for commercial IT equipment. Industrial Ethernet protocols specify ruggedized hardware, enhanced shielding, and environmental protection meeting industrial operating requirements.

Diagnostic and Maintenance Capabilities

Industrial applications require comprehensive device diagnostics, predictive maintenance capabilities, and detailed fault information beyond basic network connectivity. Industrial Ethernet protocols implement device profiles, diagnostic frameworks, and asset management features specifically designed for automation equipment.

Functional Safety Integration

Safety-critical applications require communication systems certified for functional safety applications up to SIL 3 / PLe safety integrity levels. Standard Ethernet provides no safety mechanisms, while industrial protocols like PROFINET and Ethernet/IP integrate certified safety communication within standard network infrastructure.

Standard Ethernet in Industrial Automation Context

Despite limitations for real-time control, standard Ethernet plays important roles in industrial automation architectures:

Plant-Level Networks

Standard Ethernet connects plant-floor systems to enterprise applications, MES systems, databases, and cloud services. These networks handle data collection, reporting, analytics, and business system integration where real-time performance is not required.

Configuration and Diagnostics

Engineering workstations, HMI systems, and diagnostic tools communicate with industrial devices using standard Ethernet protocols for configuration downloads, firmware updates, and diagnostic data retrieval. These acyclic operations tolerate variable network delays.

IT/OT Convergence

Modern manufacturing initiatives including Industry 4.0, IIoT, and smart manufacturing leverage standard Ethernet and TCP/IP protocols to integrate operational technology (OT) with information technology (IT) systems, enabling advanced analytics, cloud connectivity, and enterprise-wide data visibility.

Chapter 3: What is Ethernet/IP Protocol?

Ethernet/IP Architecture and CIP Foundation

Ethernet/IP (Ethernet Industrial Protocol) adapts the Common Industrial Protocol (CIP) communication framework to standard Ethernet, providing scalable industrial automation communication for complex distributed systems. Originally developed by Rockwell Automation and now managed by ODVA (Open DeviceNet Vendors Association), Ethernet/IP has become the dominant industrial Ethernet protocol in North America.

Common Industrial Protocol (CIP) Framework

CIP provides object-oriented communication framework defining device models, services, and data structures used across multiple network implementations including Ethernet/IP, DeviceNet, and ControlNet. This common protocol layer ensures consistency across different network technologies within automation systems.

CIP implements producer-consumer communication model where data producers broadcast information to multiple consumers simultaneously, improving efficiency compared to traditional client-server architectures requiring separate transactions for each destination.

Ethernet/IP Protocol Stack

Ethernet/IP implements CIP messaging over standard TCP and UDP protocols, leveraging existing Ethernet infrastructure while adding industrial-specific capabilities:

• Physical Layer: Standard Ethernet (10/100/1000 Mbps)
• Data Link Layer: Standard Ethernet MAC (IEEE 802.3)
• Network Layer: Standard IP (Internet Protocol)
• Transport Layer: TCP (reliable) and UDP (real-time)
• Application Layer: CIP (device objects, services, data)

This architecture enables Ethernet/IP devices to coexist with standard IT equipment on common network infrastructure while maintaining deterministic performance through UDP-based real-time messaging and proper network configuration.

Ethernet/IP Communication Types

Implicit Messaging (I/O Data)

Implicit messaging handles time-critical cyclic I/O data exchange using UDP transport protocol for minimal overhead and maximum performance. Produced/consumed data model enables efficient multicast transmission where single transmissions reach multiple consumers simultaneously.

Connection-oriented implicit messaging establishes defined relationships between producers and consumers with guaranteed bandwidth allocation. Connection parameters specify Requested Packet Interval (RPI) defining update frequency for each data exchange relationship.

Typical cycle times range from 2-20 milliseconds depending on network configuration, data volume, and infrastructure quality. While slower than PROFINET IRT, these performance levels meet requirements for most discrete manufacturing and process control applications.

Explicit Messaging (Configuration/Diagnostics)

Explicit messaging handles non-time-critical communications including device configuration, parameter changes, diagnostic data retrieval, and firmware updates. This message type uses TCP transport protocol ensuring reliable delivery with acknowledgment and retransmission capabilities.

Explicit messages access specific object attributes using Get/Set services defined in CIP specification, providing consistent interface across different device types. This object-oriented approach simplifies device integration and application development.

CIP Motion and CIP Safety

Specialized CIP profiles extend basic protocol for specific applications:

CIP Motion provides coordinated motion control for servo drives and multi-axis systems, defining objects and services for position control, velocity control, electronic gearing, and coordinated motion applications.

CIP Safety implements functional safety communication up to SIL 3 / PLe using black-channel approach where safety protocol operates independently atop standard network infrastructure. Safety devices exchange safety-critical data with comprehensive error detection enabling certified safety functions.

Ethernet/IP Network Infrastructure

Switch Requirements and Configuration

Ethernet/IP operates on standard managed Ethernet switches supporting IGMP (Internet Group Management Protocol) for multicast traffic management and QoS (Quality of Service) for traffic prioritization. While special industrial switches are not required, proper switch configuration is essential for optimal performance.

Quality of Service Configuration

QoS settings prioritize time-critical I/O traffic over best-effort traffic, ensuring deterministic performance even under heavy network load. DSCP (Differentiated Services Code Point) markings identify packet priorities, enabling switches to queue and forward packets appropriately.

Network Segmentation with VLANs

Virtual LANs separate real-time control traffic from enterprise traffic, improving security and performance while enabling common physical infrastructure. Proper VLAN design isolates control networks from potential disruption by IT network activities.

Device Level Ring (DLR) Redundancy

DLR provides network redundancy for linear and ring topologies with failover times typically below 3 milliseconds. This feature enables fault-tolerant network architectures protecting against single cable or switch failures in critical applications.

Rockwell Automation Ecosystem Integration

Seamless Studio 5000 Integration

Ethernet/IP integrates natively with Rockwell's Studio 5000 (formerly RSLogix 5000) programming environment, enabling simple device configuration, automatic tag generation, and integrated diagnostics. Add-On Profiles (AOPs) provide device-specific functionality and configuration interfaces.

FactoryTalk Integration

FactoryTalk View HMI, FactoryTalk Historian, and other Rockwell software products communicate natively via Ethernet/IP, enabling comprehensive plant-floor data collection, visualization, and analytics without protocol conversion or gateways.

Multi-Vendor Support Through ODVA

ODVA membership exceeds 450 companies providing thousands of Ethernet/IP certified devices including drives, I/O modules, sensors, robots, and specialty equipment from manufacturers worldwide. This broad ecosystem ensures device availability and vendor choice for automation projects.

Chapter 4: Head-to-Head Comparison: PROFINET vs Ethernet/IP

Real-Time Performance and Determinism

Cycle Time Comparison

PROFINET IRT delivers superior real-time performance with minimum cycle times of 250 microseconds compared to Ethernet/IP's typical 2-10 millisecond range. This 8-40x performance advantage makes PROFINET the clear choice for demanding motion control applications requiring sub-millisecond updates.

PROFINET RT (Real-Time without isochronous timing) provides 1-10 millisecond cycle times, comparable to Ethernet/IP performance but using different protocol mechanisms. Most standard automation applications perform equally well on PROFINET RT or Ethernet/IP with properly configured networks.

Ethernet/IP achieves cycle times below 2 milliseconds in optimized configurations with minimal devices and properly configured infrastructure, meeting requirements for moderate-speed motion control and coordinated drive applications where microsecond timing is not critical.

Jitter Performance

PROFINET IRT maintains jitter below 1 microsecond through synchronized time-slicing and isochronous operation, enabling precise coordination for applications like electronic line shafting, flying shear operations, and high-speed printing where timing variations directly impact product quality.

Ethernet/IP jitter typically measures 50-100 microseconds depending on network load, switch quality, and configuration. While higher than PROFINET IRT, this performance proves adequate for most servo applications except those requiring tightest synchronization.

Determinism Mechanisms

PROFINET achieves determinism through time-slicing (IRT) or priority-based frame forwarding (RT), with switches reserving bandwidth and processing time for real-time communication. This approach guarantees performance regardless of non-real-time network traffic.

Ethernet/IP relies on QoS priority mechanisms in standard switches plus UDP transport avoiding TCP overhead. Proper network design limiting broadcast traffic, managing multicast groups, and configuring switch priorities ensures deterministic performance within specified parameters.

Network Topology and Infrastructure

Switch Requirements

PROFINET IRT requires special switches supporting time-slicing and synchronization features, increasing infrastructure costs compared to standard managed switches. PROFINET RT operates on standard managed switches supporting VLAN and QoS, similar to Ethernet/IP requirements.

Ethernet/IP operates on commercial managed switches with proper configuration, reducing costs and simplifying integration with existing IT infrastructure. However, industrial-grade switches with environmental ratings suitable for factory floors typically cost similar to PROFINET switches.

Topology Flexibility

PROFINET supports line, star, ring, and tree topologies with integrated switches in field devices enabling daisy-chain installations. This flexibility reduces cabling costs and simplifies installations in applications where devices install in linear arrangements.

Ethernet/IP primarily uses star topology with centralized switches, following traditional IT networking approaches. Device Level Ring (DLR) provides redundant ring topology for fault tolerance but requires dedicated ports and compatible devices.

Cable Specifications

Both protocols use standard Ethernet cabling (Cat5e minimum, Cat6 recommended) with 100-meter segment lengths. Industrial environments often specify ruggedized cables with enhanced shielding and industrial connectors (M12, hardened RJ45) regardless of protocol choice.

Fiber optic cabling extends distances beyond copper limitations for both protocols, using protocol-compatible media converters or fiber switch ports. PROFINET and Ethernet/IP both support mixed copper-fiber networks for facilities requiring long-distance connections.

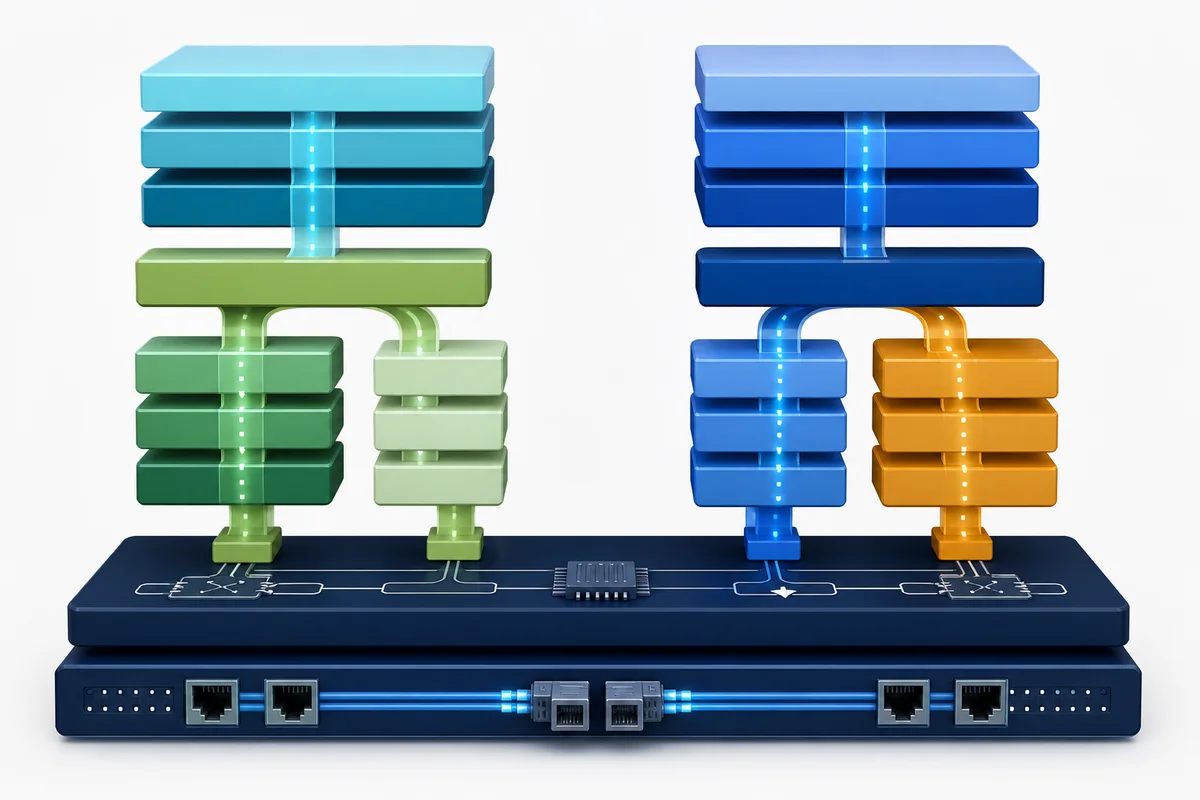

Protocol Stack Architecture Differences

OSI Model Layer Comparison

PROFINET implements real-time communication at Layer 2 (data link layer) bypassing TCP/IP stack for minimal latency, while non-real-time communication uses standard TCP/IP at higher layers. This hybrid approach optimizes performance for different traffic types.

Ethernet/IP implements all communication above TCP/IP stack at Layer 4 (transport) and Layer 7 (application), leveraging standard protocols for routing, addressing, and transport while adding CIP application layer for industrial device communication.

Frame Structure Analysis

PROFINET real-time frames use EtherType 0x8892 (for RT) or 0x8100 (VLAN-tagged for IRT), enabling switches to identify and prioritize real-time traffic. Frame structure includes PROFINET-specific headers identifying communication parameters and device addressing.

Ethernet/IP encapsulates CIP data within standard UDP (port 2222 for implicit messaging) or TCP (port 44818 for explicit messaging) packets, appearing as standard IP traffic to network infrastructure. This encapsulation enables routing through standard IP routers when necessary.

Addressing Mechanisms

PROFINET uses device names (DNS-compatible strings) as primary addressing mechanism with automatic IP address assignment through PROFINET Discovery and Configuration Protocol (DCP). This approach simplifies device addressing compared to manual IP configuration.

Ethernet/IP uses standard IP addresses for network-layer addressing combined with CIP Connection IDs for application-layer communication relationships. While more complex than PROFINET naming, this approach integrates naturally with IT networking practices and tools.

Speed and Bandwidth Utilization

Physical Layer Speed

Both protocols support 10/100/1000 Mbps Ethernet physical layers with 100 Mbps most common for PROFINET and mixed 100/1000 Mbps typical for Ethernet/IP installations. Gigabit Ethernet becomes increasingly common as automation systems exchange larger data volumes for analytics and diagnostics.

Effective Throughput

PROFINET achieves high bandwidth efficiency through optimized frame structures and direct Layer 2 real-time communication. Typical installations utilize 20-40% of available bandwidth for real-time control, reserving capacity for diagnostics, engineering access, and future expansion.

Ethernet/IP producer-consumer model with multicast reduces bandwidth consumption compared to point-to-point messaging. However, TCP/IP protocol overhead and connection management consume more bandwidth than PROFINET's streamlined approach, typically utilizing 30-50% of available bandwidth for equivalent I/O configurations.

Scalability Limits

PROFINET networks typically support 512 devices per controller with network bandwidth and controller processing capacity determining practical limits. Large installations may implement multiple controllers with device distribution based on physical layout and functional groupings.

Ethernet/IP scales to hundreds of devices per controller depending on I/O counts, cycle time requirements, and network configuration. The protocol's routing capabilities enable large distributed systems spanning multiple network segments and geographic locations.

Typical Industrial Applications

PROFINET Application Strengths

PROFINET excels in applications requiring:

• High-Speed Motion Control: Multi-axis CNC machines, packaging equipment, printing presses
• Process Automation: Chemical processing, water treatment, pharmaceutical manufacturing
• Automotive Manufacturing: Assembly lines, body shops, paint systems with extensive distributed I/O
• Siemens-Based Systems: Facilities standardized on Siemens automation platforms
• European Market: Particularly strong in German and European manufacturing sectors

Ethernet/IP Application Strengths

Ethernet/IP dominates in applications including:

• Discrete Manufacturing: Assembly automation, material handling, packaging
• Large-Scale Systems: Automotive plants, food and beverage processing, mining operations
• Enterprise Integration: Systems requiring tight integration with MES, ERP, and analytics platforms
• Rockwell Automation Ecosystems: Facilities standardized on Allen-Bradley equipment
• North American Market: Particularly prevalent in United States and Canadian industrial facilities

Application-Neutral Considerations

For many mid-range automation applications including distributed I/O control, moderate-speed motion, and process monitoring, both protocols provide adequate performance. Selection often depends more on vendor ecosystem, existing infrastructure, and organizational preferences than technical protocol differences.

Cost Considerations and Total Ownership

Initial Hardware Costs

PROFINET IRT installations carry premium costs for specialized switches supporting time-slicing features. PROFINET RT and Ethernet/IP use similarly priced standard managed switches. Field devices (I/O modules, drives, sensors) cost comparably for either protocol from equivalent manufacturers.

Infrastructure Investment

Facilities with existing PROFINET or Ethernet/IP infrastructure reduce costs by leveraging installed base of switches, cables, and engineering tools. Greenfield installations compare infrastructure costs between protocols based on specific application requirements and topology choices.

Engineering and Configuration Costs

Engineering costs depend heavily on team expertise and tooling. Organizations with Siemens TIA Portal experience favor PROFINET while Rockwell Studio 5000 expertise favors Ethernet/IP. Training costs for unfamiliar protocols can significantly impact project budgets.

Lifecycle Costs

Long-term costs include maintenance, spare parts inventory, training, and system expansions. Standardizing on single protocol reduces complexity and training requirements while broadening vendor choices through competitive procurement across standardized device interfaces.

Vendor Lock-In Considerations

While both protocols support multi-vendor devices, practical implementations often standardize within vendor ecosystems (Siemens for PROFINET, Rockwell for Ethernet/IP) for tighter integration and support. This consideration impacts long-term flexibility and competitive sourcing opportunities.

Chapter 5: PROFINET Advantages and Use Cases

Key PROFINET Advantages

Superior Real-Time Performance

PROFINET IRT delivers industry-leading deterministic performance with 250 microsecond cycle times and sub-microsecond jitter, enabling the most demanding motion control applications. This performance advantage proves critical for high-speed packaging, precision printing, semiconductor handling, and multi-axis machining where timing precision directly impacts quality.

Flexible Topology Options

Integrated switches in PROFINET devices enable space-saving line topology installations where devices daisy-chain without external switches. This approach reduces cabling costs, simplifies installation, and improves cabinet space utilization compared to star topologies requiring centralized switches.

Comprehensive Diagnostics

PROFINET device diagnostics provide detailed fault information, predictive maintenance indicators, and asset management data exceeding capabilities of many competing protocols. Topology discovery, cable diagnostics, and device replacement without engineering tools simplify maintenance and troubleshooting.

Seamless PROFIBUS Integration

PROFINET provides smooth migration path from PROFIBUS installations through PROFIBUS/PROFINET gateways and devices supporting both protocols. This backward compatibility protects existing investments while enabling gradual technology evolution.

Global Standardization

IEC 61158 and IEC 61784 standardization ensures PROFINET availability worldwide with consistent implementations across vendors. PI (PROFIBUS & PROFINET International) organization maintains specifications, certification programs, and compliance testing ensuring interoperability.

Ideal PROFINET Applications

High-Performance Motion Control

Applications requiring coordinated multi-axis motion with precise timing synchronization leverage PROFINET IRT capabilities:

• CNC Machine Tools: 5-axis machining centers, turning centers, multi-spindle machines
• Packaging Machinery: High-speed fillers, cappers, labelers, cartoners operating above 300 packages/minute
• Printing Presses: Flexographic, gravure, and offset printing requiring registration accuracy below 0.1mm
• Converting Equipment: Paper, film, and foil converting with synchronized unwinding, processing, and rewinding

Process Automation Systems

Continuous process industries benefit from PROFINET's extensive device integration and diagnostics:

• Chemical Processing: Batch reactors, distillation columns, blending systems with hundreds of I/O points
• Water/Wastewater Treatment: Distributed pumping stations, treatment facilities, SCADA integration
• Oil and Gas: Pipeline monitoring, compressor control, offshore platforms
• Pharmaceutical Manufacturing: Clean room systems, filling lines, serialization tracking

Siemens-Centric Environments

Facilities standardized on Siemens automation platforms maximize PROFINET benefits:

• Automotive Manufacturing: Body shops, paint lines, final assembly using Siemens PLCs and drives
• Food and Beverage: Processing lines, bottling plants, brewery automation
• Building Automation: HVAC systems, lighting control, energy management
• Infrastructure: Rail systems, traffic control, tunnel ventilation

European Manufacturing Base

PROFINET enjoys dominant market position in European industrial facilities, particularly in Germany, where extensive supplier ecosystems, engineering expertise, and support infrastructure favor PROFINET selection for new projects and system expansions.

Chapter 6: Ethernet/IP Advantages and Use Cases

Key Ethernet/IP Advantages

Leverages Standard IT Infrastructure

Ethernet/IP operates on standard managed Ethernet switches without requiring specialized industrial switches (except for DLR redundancy features). This compatibility simplifies integration with existing IT infrastructure, enables common spare parts inventory, and leverages IT department networking expertise.

Excellent Scalability

Producer-consumer communication model and standard IP routing enable Ethernet/IP networks scaling to hundreds or thousands of devices across multiple network segments. Large automotive plants, distribution centers, and process facilities leverage this scalability for enterprise-wide automation systems.

Superior Enterprise Integration

Standard TCP/IP protocol stack enables seamless integration with IT systems, cloud services, analytics platforms, and business applications. Direct database connectivity, web services integration, and standard security protocols simplify IT/OT convergence initiatives.

Broad Vendor Ecosystem

ODVA membership exceeds 450 companies offering thousands of certified Ethernet/IP devices spanning all automation categories. This extensive ecosystem ensures component availability, competitive pricing, and technology innovation across the automation industry.

Rockwell Automation Integration

Native integration throughout Rockwell Automation product portfolio (ControlLogix, CompactLogix, PowerFlex drives, Kinetix motion, FactoryTalk software) provides seamless configuration, programming, and diagnostics within Studio 5000 engineering environment.

North American Market Dominance

Ethernet/IP holds majority market share in North American industrial facilities, providing abundant local expertise, supplier support, training resources, and proven application examples across all manufacturing sectors.

Ideal Ethernet/IP Applications

Large-Scale Discrete Manufacturing

Complex manufacturing facilities with extensive device counts and distributed architecture benefit from Ethernet/IP scalability:

• Automotive Assembly: Vehicle assembly plants with 500+ PLCs coordinating production sequences
• Electronics Manufacturing: PCB assembly, test equipment, automated inspection systems
• Appliance Manufacturing: Assembly lines, material handling, quality inspection stations
• Aerospace Manufacturing: Composite layup, machining, assembly, and test systems

Material Handling and Logistics

Distributed material handling systems leverage Ethernet/IP's routing and scalability capabilities:

• Distribution Centers: Automated storage/retrieval systems (AS/RS), conveyor networks, sortation
• Airport Baggage Handling: Complex conveyor systems, scanning stations, security integration
• Mining Operations: Conveyor systems, crushers, screening equipment spanning large geographic areas
• Postal/Parcel Sorting: High-speed sorters, scanning systems, routing automation

Food and Beverage Production

Process and packaging lines benefit from Ethernet/IP's scalability and enterprise integration:

• Brewing and Distilling: Batch process control, filling lines, packaging automation
• Dairy Processing: Pasteurization, homogenization, filling, case packing
• Bakery Automation: Mixing, proofing, baking, slicing, packaging systems
• Beverage Bottling: Mixing, carbonation, filling, capping, labeling, palletizing

Rockwell-Centric Environments

Facilities standardized on Rockwell Automation equipment maximize Ethernet/IP advantages:

• Oil and Gas: Upstream production, midstream pipelines, downstream refining and chemical
• Power Generation: Combined cycle plants, renewable energy facilities, transmission systems
• Metals Production: Steel mills, aluminum smelters, rolling mills, finishing lines
• Pulp and Paper: Stock preparation, forming, pressing, drying, coating, converting

North American Manufacturing

Ethernet/IP's dominant position in United States and Canadian industrial facilities provides extensive supplier networks, local engineering expertise, abundant training resources, and proven track record across all manufacturing sectors.

Chapter 7: When to Choose Each Protocol

PROFINET Selection Criteria

Choose PROFINET When:

1. High-Performance Motion Control Required

   • Applications demanding cycle times below 1 millisecond
   • Multi-axis coordination requiring sub-microsecond jitter
   • Electronic line shafting, camming, or flying shear operations
   • High-speed packaging, printing, or converting machinery

2. Siemens Ecosystem Standardization

   • Existing Siemens PLC infrastructure (S7-1200, S7-1500, S7-300/400)
   • Engineering team expertise in TIA Portal programming environment
   • Organizational standardization on Siemens automation products
   • Access to Siemens support resources and local distributors

3. European Project Location

   • Manufacturing facilities in Germany, central Europe, or regions with strong PROFINET market presence
   • Local supplier ecosystems favoring PROFINET components
   • Customer specifications or industry standards requiring PROFINET
   • Engineering partnerships with Siemens-focused system integrators

4. PROFIBUS Migration Path

   • Existing PROFIBUS DP or PA installations requiring technology upgrade
   • Gradual migration strategy leveraging PROFIBUS/PROFINET compatibility
   • Protecting investments in PROFIBUS field devices and infrastructure
   • Maintaining support for legacy equipment during transition period

5. Advanced Diagnostics Requirements

   • Predictive maintenance programs requiring detailed device diagnostics
   • Asset management systems leveraging PROFINET identification and maintenance data
   • Topology discovery and cable diagnostic capabilities for maintenance optimization
   • Condition monitoring integration for Industry 4.0 initiatives

Ethernet/IP Selection Criteria

Choose Ethernet/IP When:

1. Large Distributed Systems

   • Automation networks exceeding 200-300 devices
   • Multiple geographic locations requiring routed network architecture
   • Campus-wide or facility-wide distributed control systems
   • Integration across multiple buildings or production areas

2. Enterprise IT Integration Priority

   • Strong requirements for MES, ERP, and database integration
   • Cloud connectivity and IoT platform integration
   • IT department involvement in network design and management
   • Cybersecurity frameworks requiring standard IT security tools

3. Rockwell Automation Standardization

   • Existing Allen-Bradley PLC infrastructure (ControlLogix, CompactLogix)
   • Engineering expertise in Studio 5000 (RSLogix 5000) programming
   • Organizational standards favoring Rockwell automation products
   • FactoryTalk software ecosystem for HMI, SCADA, and analytics

4. North American Project Location

   • Manufacturing facilities in United States, Canada, or Mexico
   • Local supplier networks and system integrators favoring Ethernet/IP
   • Customer specifications or industry standards requiring Ethernet/IP
   • Abundant local training resources and support expertise

5. Standard IT Infrastructure Leverage

   • Existing investment in managed Ethernet switches suitable for industrial use
   • IT department preference for standard networking protocols
   • Simplified spare parts inventory using standard switches
   • Network management tool compatibility requirements

Protocol-Neutral Considerations

Technical Requirements

• Define specific cycle time and jitter requirements based on application
• Document I/O point counts and data volumes for bandwidth analysis
• Identify real-time determinism needs versus best-effort communication
• Specify redundancy and fault tolerance requirements

Organizational Factors

• Assess existing automation platform standards and investments
• Evaluate engineering team skills and training availability
• Consider maintenance department capabilities and preferences
• Review corporate procurement agreements and vendor relationships

Economic Analysis

• Calculate total cost of ownership including infrastructure, devices, engineering, and training
• Evaluate lifecycle costs for maintenance, expansion, and technology refresh
• Consider vendor competition and pricing dynamics for long-term cost control
• Assess risk of vendor lock-in versus benefits of ecosystem integration

Future Flexibility

• Anticipate facility expansion requirements and protocol scalability
• Plan for technology evolution and migration strategies
• Consider industry trends and protocol market trajectories
• Evaluate multi-protocol integration scenarios if required

Chapter 8: Can PROFINET and Ethernet/IP Work Together?

Multi-Protocol Integration Scenarios

Modern manufacturing facilities increasingly implement multi-vendor automation systems requiring integration between PROFINET, Ethernet/IP, and other industrial protocols. Several approaches enable coexistence and data exchange between different protocol domains while maintaining performance and reliability.

Common Integration Requirements

• Data exchange between Siemens and Rockwell control systems
• Integration of best-of-breed equipment using different native protocols
• Corporate standardization on one protocol with acquisition of facilities using alternatives
• Transition periods during protocol migration projects
• Customer requirements for specific controller or device vendors

Protocol Gateway Solutions

Dedicated Protocol Gateways

Hardware gateways provide transparent bidirectional communication between PROFINET and Ethernet/IP networks, appearing as native devices on both networks while performing protocol translation internally.

Gateway Features:

• Configurable data mapping between PROFINET and Ethernet/IP address spaces
• Support for both cyclic I/O data and acyclic parameter/diagnostic data
• Typical throughput: 1,000-5,000 data points depending on model
• Cycle times: 10-100 milliseconds for gateway-translated data
• Configuration tools specific to gateway manufacturer

Leading Gateway Manufacturers:

• HMS Industrial Networks: Anybus X-Gateway, Anybus Communicator
• Hilscher: netX-based protocol converters
• ProSoft Technology: Protocol gateways and communication modules
• Moxa: MGate series protocol gateways
• Advantech: EKI series industrial protocol gateways

Applications for Gateways: Best suited for integrating limited device counts (typically under 100 data points) where full controller replacement is not justified. Examples include integrating specialty equipment, connecting legacy devices, or temporary solutions during migration projects.

Controller-Based Integration

Dual-Protocol Controllers

Some industrial PCs and embedded controllers support multiple industrial Ethernet protocols simultaneously, enabling single controller to communicate natively with both PROFINET and Ethernet/IP devices without gateways.

Advantages:

• Native protocol performance on both networks
• Unified programming environment and diagnostics
• Reduced hardware complexity compared to separate controllers plus gateways
• Lower latency for inter-protocol data exchange

Example Platforms:

• CODESYS-based controllers supporting multiple protocol stacks
• Industrial PCs with multiple protocol-specific network interfaces
• Soft PLC solutions running on Windows or Linux platforms
• Embedded controllers from vendors like B&R, Omron, or Wago

Applications: Suited for machine builders creating equipment sold to customers with varying protocol preferences, or facilities with balanced device counts on both protocols requiring tight integration.

Network Segmentation Approaches

Separate Physical Networks

Maintaining completely separate PROFINET and Ethernet/IP networks with data exchange through PLC program logic provides maximum isolation and simplest implementation:

Implementation:

• PROFINET controller with I/O network communicates with Ethernet/IP controller via discrete I/O or protocol-specific connection
• Each controller manages native devices using optimal protocol
• Controllers exchange data through programmed logic interfacing between systems
• Minimal protocol mixing ensures each network operates optimally

Advantages:

• Maximum protocol performance without compromise
• Clear network segmentation simplifies troubleshooting
• No gateway licensing or configuration complexity
• Standard programming practices without special tools

Disadvantages:

• Requires multiple controllers increasing hardware costs
• Programming complexity for data synchronization
• Potential latency for cross-protocol data exchange
• Increased rack space and power requirements

Unified Ethernet Infrastructure

Shared Physical Network

PROFINET and Ethernet/IP can coexist on shared physical network infrastructure using VLAN segmentation and proper switch configuration:

Implementation Strategy:

• VLAN 1: PROFINET real-time communication
• VLAN 2: Ethernet/IP implicit messaging
• VLAN 3: Standard TCP/IP for engineering and diagnostics
• VLAN 4: Enterprise IT connectivity

Switch Requirements:

• Managed Layer 2/3 switches supporting VLANs
• QoS configuration prioritizing real-time traffic
• IGMP snooping for multicast management
• Port-based VLAN assignment or 802.1Q tagging

Benefits:

• Reduced cabling infrastructure
• Shared network monitoring and management tools
• Simplified physical topology
• Common spare parts inventory

Challenges:

• Complex switch configuration requiring deep networking knowledge
• Potential performance impact from protocol interaction
• Troubleshooting complexity with mixed traffic
• Security considerations for segmentation integrity

Best Practices for Multi-Protocol Systems

Design Guidelines

1. Minimize Protocol Mixing: Standardize on one protocol per machine or production cell where possible
2. Document Integration Points: Clearly identify gateway locations, data mapping, and cross-protocol dependencies
3. Plan for Latency: Account for additional delays introduced by protocol conversion
4. Implement Monitoring: Deploy diagnostic tools monitoring both protocols and integration points
5. Standardize Where Possible: Use same protocol for similar device types even if supporting multiple protocols overall

Security Considerations

Multi-protocol environments increase attack surface requiring enhanced security measures:

• Network segmentation isolating each protocol domain
• Firewall rules controlling data flow between protocol segments
• Monitoring for unauthorized cross-protocol communication
• Regular security assessments of integration points
• Vendor security advisories for gateways and dual-protocol devices

Maintenance Planning

• Train maintenance staff on both protocols or assign specialists
• Stock spare parts for all protocol variants
• Document integration configurations thoroughly
• Plan protocol-specific diagnostic tool requirements
• Consider long-term protocol standardization strategy

Chapter 9: Cabling and Topology Comparison

PROFINET Cabling and Topology

Cable Types and Standards

PROFINET specifies cabling requirements through PROFINET Cabling and Interconnection Technology standard, defining four cable categories:

Type A Cable (Basic Installation)

• Category 5 (Cat5) Ethernet cable, 100 MHz bandwidth
• Suitable for office environments and non-flexible industrial installations
• Maximum length: 100 meters between devices
• Applications: Fixed installations in protected environments

Type B Cable (Industrial Installation)

• Category 5 enhanced (Cat5e) or better, shielded twisted pair
• Industrial-grade connectors and environmental protection
• Enhanced EMI resistance for factory floor environments
• Maximum length: 100 meters between devices

Type C Cable (Flexible Installation)

• Highly flexible cable for moving applications
• Enhanced mechanical properties for cable track and drag chain use
• Specialized connectors for vibration and movement
• Bending radius optimized for robotic and moving machinery

Type D Cable (Specialized Applications)

• Fiber optic cabling for long distances or extreme EMI environments
• Single-mode or multi-mode fiber depending on distance requirements
• Distances: Multi-mode up to 2 km, single-mode up to 26 km
• Complete electrical isolation between network segments

PROFINET Topology Options

Line Topology (Daisy-Chain)

PROFINET's integrated switch technology enables line topology where devices connect in series without external switches. Each device has two or more RJ45 ports with internal switch forwarding traffic through the chain.

Advantages:

• Reduced cabling costs compared to star topology
• Simplified cabinet design without switch requirements
• Natural topology for linear machine layouts
• Hot-swapping capability for device replacement

Disadvantages:

• Device failure can segment network downstream
• Longer propagation delays with many cascaded devices
• Cable management complexity if devices require removal
• Performance impact with excessive devices in chain

Star Topology

Traditional switched Ethernet topology using central or distributed switches connecting devices in star configuration. Provides maximum flexibility and fault isolation at cost of increased cabling infrastructure.

Ring Topology with MRP

Media Redundancy Protocol (MRP) provides automatic failover for ring topologies with reconfiguration times below 200 milliseconds (for up to 50 devices). Enables fault-tolerant installations protecting against single cable or device failures.

Ethernet/IP Cabling and Topology

Cable Specifications

Ethernet/IP follows standard Ethernet cabling specifications without protocol-specific requirements:

Standard Copper Cabling

• Category 5e minimum (Cat5e), Category 6 or 6A recommended
• Maximum segment length: 100 meters for copper
• Shielded or unshielded depending on EMI environment
• Industrial-grade RJ45 or M12 connectors for harsh environments

Fiber Optic Extensions

• Single-mode fiber: Up to 40 km with appropriate transceivers
• Multi-mode fiber: Up to 2 km for standard multi-mode implementations
• Complete electrical isolation for lightning protection or ground loop elimination
• Higher cost but essential for extreme distance or EMI requirements

Primary Star Topology

Ethernet/IP predominantly uses star topology with centralized managed switches, following traditional IT networking architecture:

Characteristics:

• Central switch connects to all devices in star pattern
• Hierarchical switch arrangements for large installations
• Point-to-point links between devices and switches
• Individual port failures isolate only affected device

Advantages:

• Fault isolation limits impact of single device or cable failure
• Simplified troubleshooting with point-to-point links
• Standard IT networking approach familiar to network engineers
• Straightforward cable management and documentation

Device Level Ring (DLR)

DLR provides redundant ring topology specific to Ethernet/IP with sub-3-millisecond failover:

Requirements:

• Devices must support DLR supervisor or ring node roles
• One DLR supervisor manages ring operation
• All devices in ring require two network ports for ring connection
• Standard Ethernet/IP devices without DLR support cannot participate

Applications: Suited for critical applications requiring fault tolerance, such as continuous process lines, critical infrastructure, or systems with high downtime costs justifying additional hardware investment.

Cabling Best Practices for Both Protocols

Industrial Environment Considerations

Both protocols require similar cabling best practices in industrial environments:

Shielding and Grounding

• Use shielded twisted pair (STP) cable in electrically noisy environments
• Connect cable shields to ground at both ends through connector housings
• Maintain shield continuity throughout cable run including patch panels
• Use fiber optic cable for extreme EMI or lightning-prone installations

Cable Routing

• Separate network cables from power cables, maintaining minimum 12-inch spacing
• Use dedicated cable trays or conduits for network cabling
• Avoid parallel runs with VFD cables or high-voltage conductors
• Cross power cables at 90-degree angles where separation is impossible

Connector Selection

• Standard RJ45 for benign environments and panel-mounted equipment
• Industrial RJ45 (IP67-rated) for exposed locations requiring environmental protection
• M12 connectors (D-coded for Ethernet) for maximum vibration and contamination resistance
• Fiber optic connectors (SC, LC, or industrial variants) for fiber installations

Installation Quality

• Maintain minimum bend radius (4x cable diameter for copper, manufacturer specification for fiber)
• Avoid cable crushing, stapling, or sharp bends damaging conductors
• Test all cable runs with network cable tester before device connection
• Document cable routes, lengths, and termination points for future troubleshooting

Cable Management

• Label cables clearly at both ends with unique identifiers
• Maintain documentation correlating cable labels to devices and switch ports
• Use color-coded cables for different network types or VLANs
• Implement structured cabling approach for large installations
• Allow service loops for maintenance and future modifications

Chapter 10: Frequently Asked Questions

What is the main difference between PROFINET and Ethernet/IP?

The primary difference lies in their protocol architecture and real-time approach. PROFINET implements real-time communication at Layer 2 (data link layer) for minimal latency, achieving cycle times down to 250 microseconds with PROFINET IRT. Ethernet/IP implements CIP protocol over standard TCP/UDP/IP stack, achieving typical cycle times of 2-10 milliseconds. PROFINET offers superior real-time performance for high-speed motion control, while Ethernet/IP provides better scalability and IT integration for large distributed systems.

Can PROFINET and Ethernet/IP coexist on the same network?

Yes, through several approaches: 1) Protocol gateways providing bidirectional data exchange between separate PROFINET and Ethernet/IP networks, 2) Dual-protocol controllers supporting both protocols natively, 3) Shared physical infrastructure using VLAN segmentation to separate protocol traffic. Best practice recommends VLAN separation or physical network separation to ensure optimal performance and simplified troubleshooting. Gateway solutions work well for limited integration points but introduce additional latency.

Is PROFINET faster than Ethernet/IP?

Yes, PROFINET IRT provides significantly faster cycle times (250 microseconds minimum) compared to Ethernet/IP (2-10 milliseconds typical). PROFINET RT offers comparable performance to Ethernet/IP (1-10 milliseconds). This speed advantage makes PROFINET preferred for demanding motion control applications requiring sub-millisecond updates and tight synchronization. For standard I/O and moderate-speed applications, both protocols provide adequate performance, with selection driven more by ecosystem and integration factors than raw speed.

Which protocol is more popular in North America?

Ethernet/IP dominates the North American industrial automation market, particularly in United States and Canada. Rockwell Automation's strong market presence, extensive Ethernet/IP device ecosystem, and alignment with IT networking practices contribute to this dominance. PROFINET holds stronger position in European markets, especially Germany, due to Siemens' market leadership and strong PROFIBUS installed base migrating to PROFINET.

Do I need special switches for PROFINET vs Ethernet/IP?

PROFINET IRT requires specialized switches supporting time-slicing and synchronization features, while PROFINET RT operates on standard managed switches (same as Ethernet/IP). Ethernet/IP operates on standard managed Ethernet switches with proper QoS configuration, except DLR redundancy requiring DLR-capable switches. Both protocols benefit from industrial-grade switches with appropriate environmental ratings for factory floor installation, but Ethernet/IP has advantage for leveraging existing IT infrastructure.

Can standard Ethernet be used for industrial control?

Standard Ethernet alone cannot provide deterministic communication required for real-time control applications. Both PROFINET and Ethernet/IP build upon standard Ethernet physical layer (cables, connectors, speeds) but add industrial protocol layers enabling deterministic performance, comprehensive diagnostics, safety communication, and device management. Standard Ethernet works well for non-real-time functions like HMI communication, data collection, and enterprise integration within industrial facilities.

How do PROFINET and Ethernet/IP handle safety communication?

PROFINET implements PROFIsafe safety protocol certified up to SIL 3 / PLe, using black-channel approach where safety data transmits over standard PROFINET infrastructure with additional safety layer ensuring integrity. Ethernet/IP implements CIP Safety with identical black-channel approach and SIL 3 / PLe certification. Both safety protocols operate independently atop standard communication infrastructure, enabling mixed safety and standard devices on common networks with certified safety system independence.

Which protocol is better for motion control applications?

PROFINET IRT provides superior performance for demanding motion control with 250-microsecond cycle times and sub-microsecond jitter, making it preferred for high-speed packaging, printing, CNC machining, and applications requiring tight multi-axis synchronization. Ethernet/IP with CIP Motion handles moderate-speed motion control adequately for many servo applications where 2-5 millisecond cycles suffice. Application-specific timing requirements should drive protocol selection for motion control systems.

What are the main cost differences between PROFINET and Ethernet/IP?

Hardware costs are comparable, with similar pricing for devices (I/O modules, drives, sensors) from equivalent manufacturers. PROFINET IRT requires more expensive specialized switches, while PROFINET RT and Ethernet/IP use similarly priced standard managed switches. Total cost of ownership depends heavily on existing infrastructure, engineering expertise, training requirements, and vendor ecosystems. Organizations standardized on Siemens or Rockwell platforms typically achieve lower costs staying within their chosen ecosystem.

How difficult is migration between protocols?

Direct protocol migration requires replacing controllers, I/O modules, drives, and infrastructure—essentially complete system replacement. More practical approaches include: 1) Phased migration using protocol gateways for temporary coexistence, 2) Standardizing new projects on target protocol while maintaining legacy systems, 3) Replacing individual machines during normal lifecycle refresh. Migration difficulty depends on system complexity, documentation quality, and available engineering resources for reprogramming and testing.

Can I use the same cables for PROFINET and Ethernet/IP?

Yes, both protocols use standard Ethernet cabling (Cat5e minimum, Cat6 recommended) with 100-meter segment lengths. Industrial environments typically specify shielded twisted pair (STP) cable with industrial connectors (hardened RJ45 or M12 D-coded) regardless of protocol choice. PROFINET defines specific cable types (A, B, C, D) with different applications, but Type B industrial cable works equally well for Ethernet/IP installations in similar environments.

Which protocol has better diagnostic capabilities?

PROFINET generally provides more comprehensive built-in diagnostics including topology discovery, cable quality monitoring, device replacement without tools, and extensive predictive maintenance data. Ethernet/IP offers good device diagnostics through CIP object model but less comprehensive network-level diagnostics. Both protocols support detailed device status monitoring, alarm management, and integration with asset management systems. Practical diagnostic capabilities often depend more on specific device implementation than protocol specification.

Conclusion: Making the Right Protocol Choice for Your Application

Selecting between PROFINET and Ethernet/IP demands careful analysis of technical requirements, organizational factors, and long-term strategic considerations. Neither protocol represents a universally superior choice—each excels in specific application domains and organizational contexts.

PROFINET delivers unmatched real-time performance for demanding motion control and synchronized multi-axis applications, making it the clear technical choice when sub-millisecond cycle times and sub-microsecond jitter determine success. Facilities standardized on Siemens automation platforms, European manufacturing operations, and projects requiring PROFIBUS compatibility benefit from PROFINET's ecosystem integration and extensive device support.

Ethernet/IP provides exceptional scalability, enterprise IT integration, and flexibility for large distributed systems where 2-10 millisecond cycle times meet application requirements. Organizations standardized on Rockwell Automation equipment, North American manufacturing facilities, and applications prioritizing IT/OT convergence leverage Ethernet/IP's strengths in these domains.

Understanding that standard Ethernet provides only the physical foundation for both industrial protocols—not a control protocol itself—clarifies confusion about "Ethernet" in industrial contexts. Both PROFINET and Ethernet/IP extend standard Ethernet with industrial-specific protocol layers enabling deterministic communication, safety functions, and device management required for automation applications.

For many mid-range applications including standard I/O control, moderate-speed motion, and process monitoring, both protocols provide adequate technical performance. Selection in these cases depends more on existing infrastructure, vendor relationships, engineering expertise, and organizational standards than fundamental protocol differences.

Multi-protocol integration through gateways, dual-protocol controllers, or network segmentation enables coexistence when organizational requirements demand both protocols. However, standardizing on single protocol within facilities reduces complexity, training requirements, spare parts inventory, and lifecycle costs while maximizing engineering efficiency.

Future automation systems will continue evolving toward IT/OT convergence, IIoT integration, and cloud connectivity—trends supported by both PROFINET and Ethernet/IP development roadmaps. Selection decisions made today should consider not just current requirements but also anticipated technology evolution and organizational strategy for the next decade.

Related Industrial Communication Protocol Resources

Expand your industrial Ethernet and PLC communication knowledge:

• PLC Communication Protocols Complete Guide - Comprehensive overview of all major industrial protocols
• EtherCAT Protocol Tutorial - Master EtherCAT for ultra-high-speed motion control
• Modbus RTU Protocol Tutorial - Learn Modbus serial communication fundamentals
• Siemens PLC Programming Tutorial - PROFINET integration with Siemens TIA Portal
• TIA Portal vs Studio 5000 Comparison - Compare programming environments for PROFINET and Ethernet/IP

Accelerate Your Industrial Automation Career

Ready to master industrial communication protocols and advanced PLC programming? Our comprehensive Master PLC Programming Guide covers communication protocols, network design, real-time systems, and integration techniques professional automation engineers use daily. Download your complete resource today and develop expertise driving modern industrial automation systems in 2025.

Continue expanding your protocol knowledge through hands-on experience with both PROFINET and Ethernet/IP, studying vendor implementation guides, attending manufacturer training courses, and staying current with protocol evolution and industry best practices shaping the future of industrial communication.
