Introduction: Mastering PLC Communication Protocols in 2025

PLC communication protocols form the backbone of modern automation systems, enabling seamless data exchange between PLCs, HMIs, SCADA systems, enterprise networks, and field devices. Understanding how to implement, configure, and troubleshoot these communication protocols in PLC systems is essential for creating integrated automation architectures that support Industry 4.0 initiatives and smart manufacturing requirements.

The evolution from isolated control systems to interconnected industrial networks has transformed how automation systems operate, maintain, and optimize manufacturing processes. Modern PLC protocols must support real-time control requirements while enabling enterprise integration, remote monitoring, predictive maintenance, and advanced analytics capabilities.

This comprehensive guide covers the most important communication protocols in PLC systems, from fieldbus networks and industrial Ethernet to wireless communications and IoT integration. You'll learn practical implementation techniques, configuration strategies, troubleshooting methods, and security considerations that professional automation engineers use to create robust, scalable PLC communication networks.

The convergence of operational technology (OT) and information technology (IT) networks demands deep understanding of PLC communication protocols, cybersecurity, and network management practices that ensure reliable operation while maintaining appropriate security postures for industrial environments.

Chapter 1: PLC Communication Protocol Fundamentals

Understanding PLC Communication Protocol Requirements

PLC communication protocols must meet stringent requirements that differ significantly from traditional IT networks. Real-time performance, deterministic behavior, and fail-safe operation take precedence over raw data throughput, requiring specialized communication protocols in PLC systems and network architectures optimized for industrial applications.

Deterministic Communication in PLC Protocols Deterministic communication ensures that critical control messages arrive within guaranteed time limits, enabling precise coordination of industrial processes, motion control systems, and safety functions. This requirement drives the design of PLC protocols and network topologies.

Environmental Requirements for PLC Communication Environmental hardening requirements for PLC communication protocols include resistance to electrical noise, temperature extremes, vibration, and contamination that would disable conventional networking equipment. Industrial-grade components and proper installation practices are essential for reliable PLC protocol operation.

Safety and Security in PLC Protocols Safety and security considerations for PLC communication networks include functional safety requirements, cybersecurity protection, and network segmentation strategies that protect critical control systems while enabling necessary enterprise connectivity.

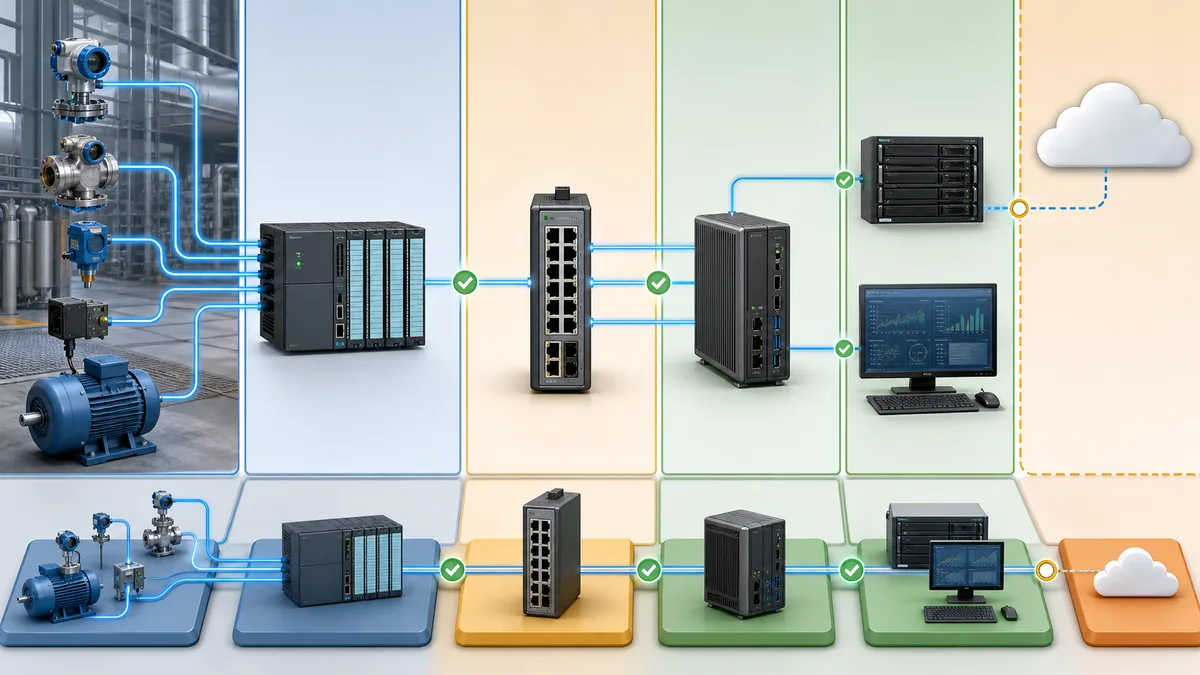

Network Topologies and Architectures

Hierarchical network architectures organize industrial communication systems into logical layers that separate field-level control networks from plant-level information networks and enterprise-level business systems. This architecture improves security, performance, and maintainability.

Field networks connect PLCs to sensors, actuators, and field devices using specialized protocols optimized for real-time control applications. These networks prioritize deterministic performance and reliability over raw bandwidth or complex data structures.

Control networks interconnect PLCs, HMIs, and SCADA systems to enable coordinated control, data sharing, and operator interfaces. These networks balance real-time requirements with the need for more complex data structures and higher bandwidth.

Information networks connect plant-floor systems to enterprise applications, databases, and cloud services while maintaining appropriate security boundaries and data filtering to protect industrial control systems from cyber threats.

PLC Communication Protocols Comparison Table

| Protocol | Max Speed | Distance | Topology | Best Application | Cost Level | |----------|-----------|----------|----------|------------------|------------| | Ethernet/IP | 1 Gbps | 100m per segment | Star/Ring | Large systems, enterprise integration | Medium-High | | Profinet | 1 Gbps | 100m per segment | Star/Line | Siemens systems, real-time control | Medium-High | | Modbus TCP/IP | 100 Mbps | Unlimited (WAN) | Star | Simple systems, mixed vendors | Low | | EtherCAT | 100 Mbps | 65,535 nodes | Ring/Line | High-speed motion control | Medium | | DeviceNet | 500 Kbps | 500m max | Trunk/Drop | Discrete I/O, simple devices | Low-Medium | | Profibus DP | 12 Mbps | 1,200m max | Line | Process automation | Medium | | ControlNet | 5 Mbps | 1,000m | Ring | Time-critical control | High | | AS-Interface | 167 Kbps | 100m | Line | Simple sensors/actuators | Low |

Protocol Selection Criteria for PLC Systems

Application Requirements Application requirements drive PLC protocol selection based on factors including real-time performance needs, data types and complexity, geographical distribution, environmental conditions, and integration requirements with existing systems.

Performance Characteristics Performance characteristics of PLC protocols include throughput, latency, determinism, and scalability factors that determine suitability for specific applications. Understanding these characteristics is essential for making appropriate PLC protocol selections.

Interoperability Considerations Interoperability considerations include compatibility with existing equipment, vendor support, standardization status, and migration paths for future technology evolution. These factors significantly impact long-term system maintainability and expansion capabilities.

Cost Analysis for PLC Communication Cost factors for PLC communication protocol selection include hardware costs, licensing fees, installation complexity, maintenance requirements, and training needs that affect total cost of ownership over the system lifecycle.

Chapter 2: Fieldbus Communication Protocols

DeviceNet Implementation and Programming

DeviceNet provides cost-effective communication for discrete manufacturing applications, connecting PLCs to sensors, actuators, and simple field devices through a standardized CAN-based network. Implementation requires understanding of network configuration, addressing, and device integration procedures.

Network configuration for DeviceNet includes proper cable routing, termination, power distribution, and node addressing that ensures reliable communication while minimizing installation complexity and costs. Proper grounding and shielding practices are essential for noise immunity.

Device programming and integration involves configuring PLC communication modules, setting up device profiles, and implementing application logic that exchanges data efficiently while handling communication errors and device failures gracefully.

Troubleshooting DeviceNet networks requires understanding of network diagnostics, error codes, and measurement techniques that identify communication problems, intermittent faults, and performance issues that impact system reliability.

Profibus Configuration and Management

Profibus provides high-performance communication for process and factory automation applications, offering both DP (Decentralized Periphery) and PA (Process Automation) variants optimized for different application requirements and environmental conditions.

Network design for Profibus systems includes topology planning, cable selection, repeater placement, and termination strategies that achieve maximum network performance while maintaining reliability under industrial operating conditions.

Device configuration using GSD (Generic Station Description) files enables standardized integration of field devices from different manufacturers while ensuring proper data exchange formats and diagnostic capabilities.

Advanced Profibus features include redundancy options, diagnostic capabilities, and safety communication extensions that enable sophisticated automation architectures with high availability and safety integrity requirements.

ControlNet Programming and Integration

ControlNet provides deterministic, high-speed communication for time-critical control applications requiring precise coordination between multiple control devices and complex data exchange requirements.

Scheduled and unscheduled data transmission capabilities in ControlNet enable both real-time control communication and higher-level information exchange within the same network infrastructure.

Network configuration and management for ControlNet includes proper media access control settings, redundancy configuration, and performance optimization that ensures reliable operation under demanding industrial conditions.

Integration with Allen-Bradley control systems leverages native ControlNet support to create high-performance control networks that seamlessly integrate with PLCs, drives, and I/O systems.

AS-Interface (AS-i) Implementation

AS-Interface provides simple, cost-effective communication for binary sensors and actuators in distributed control applications where complex data exchange is not required but reliable, straightforward communication is essential.

Network installation for AS-i systems uses specialized cable that carries both power and data, simplifying installation while providing reliable communication for simple field devices in harsh industrial environments.

Master configuration and device addressing for AS-i networks enables automatic device recognition and simplified commissioning procedures that reduce installation time and complexity.

Advanced AS-i features include analog value transmission, safety communication options, and diagnostic capabilities that extend the protocol's usefulness beyond simple binary applications.

Chapter 3: Industrial Ethernet Protocols

Ethernet/IP Implementation

Ethernet/IP combines standard Ethernet hardware with industrial communication protocols to provide high-performance, scalable communication for complex automation systems while leveraging commercial IT infrastructure and expertise.

CIP (Common Industrial Protocol) implementation over Ethernet provides object-oriented device communication that enables sophisticated device integration, diagnostics, and configuration management through standardized interfaces.

Network design for Ethernet/IP systems includes switch selection, VLAN configuration, Quality of Service settings, and redundancy planning that ensures reliable operation while maintaining security and performance requirements.

Integration with Rockwell Automation systems leverages native Ethernet/IP support throughout the product line to create seamless communication between PLCs, HMIs, drives, and information systems.

Profinet Configuration and Programming

Profinet provides real-time Ethernet communication for Siemens automation systems and compatible devices, offering both real-time and non-real-time communication capabilities within a single network infrastructure.

Device configuration using GSDML (Generic Station Description Markup Language) files enables standardized device integration while providing rich device descriptions and diagnostic capabilities.

Real-time communication classes in Profinet (RT and IRT) provide different levels of deterministic performance to meet varying application requirements from simple I/O communication to precise motion control.

Network topology and infrastructure requirements for Profinet include proper switch selection, cable specifications, and timing configuration that achieves required real-time performance.

EtherCAT Implementation

EtherCAT provides extremely high-performance, deterministic communication for demanding motion control and process control applications requiring microsecond-level timing precision and high bandwidth.

Master-slave architecture in EtherCAT enables efficient data exchange through a single telegram that passes through all network nodes, collecting and distributing data with minimal latency and jitter.

Network configuration for EtherCAT includes proper device ordering, timing settings, and cable specifications that achieve maximum performance while maintaining system flexibility and expandability.

Integration considerations for EtherCAT include master selection, slave device configuration, and application programming techniques that leverage the protocol's high-performance capabilities effectively.

Modbus TCP/IP Programming

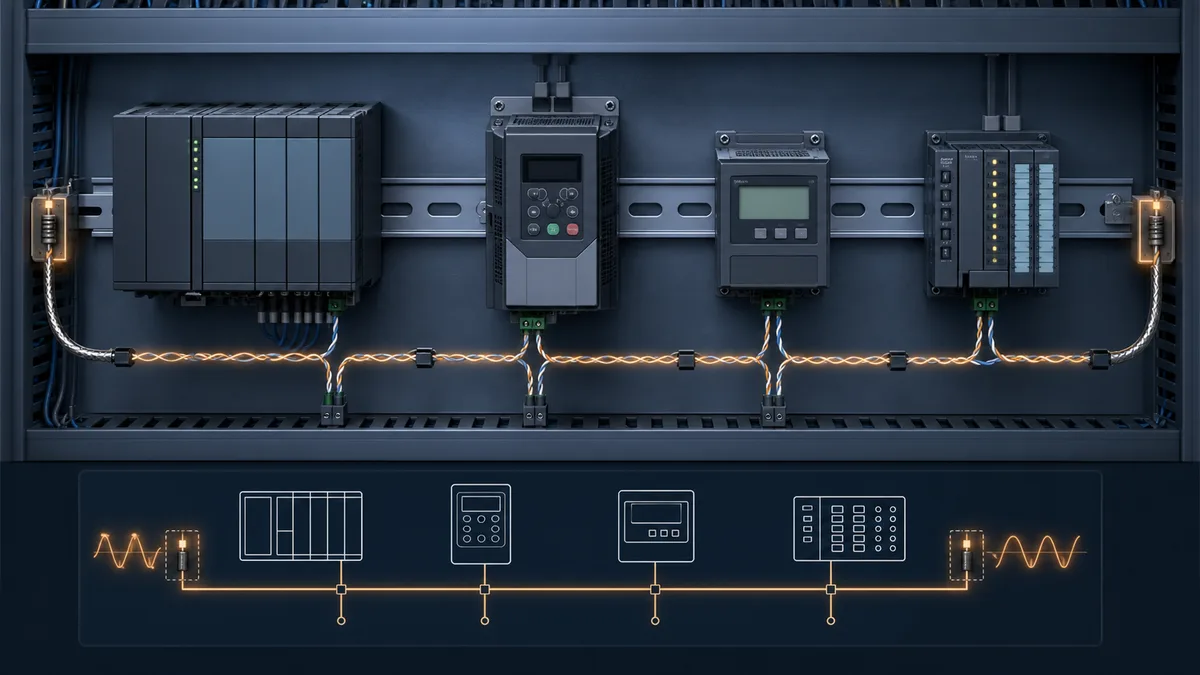

Modbus TCP/IP provides simple, widely-supported communication for industrial devices using standard Ethernet infrastructure while maintaining compatibility with legacy Modbus RTU and ASCII implementations.

Client-server communication architecture in Modbus TCP/IP enables flexible network topologies and easy integration with IT systems while maintaining the simplicity that makes Modbus popular in industrial applications.

Device integration using Modbus TCP/IP includes register mapping, data type conversion, and error handling that ensures reliable data exchange between devices from different manufacturers.

Advanced Modbus TCP features include security extensions, diagnostic capabilities, and integration with industrial Ethernet infrastructure that extend the protocol's applicability to modern automation systems.

Chapter 4: Wireless and IoT Communication

Industrial Wireless Networks

WirelessHART provides reliable wireless communication for process instrumentation and control applications, enabling flexible sensor placement and reduced installation costs while maintaining industrial-grade reliability and security.

ISA100.11a wireless networking offers comprehensive wireless communication capabilities for industrial applications with advanced security, mesh networking, and coexistence features that support demanding industrial requirements.

Bluetooth and WiFi integration in industrial applications requires careful consideration of security, reliability, and interference issues while leveraging the convenience and cost advantages of commercial wireless technologies.

Network design for industrial wireless systems includes proper antenna placement, frequency planning, redundancy strategies, and security configuration that ensures reliable operation in challenging industrial environments.

IoT Protocol Integration

MQTT (Message Queuing Telemetry Transport) provides lightweight messaging for IoT applications, enabling efficient communication between field devices and cloud services while minimizing bandwidth requirements and power consumption.

CoAP (Constrained Application Protocol) offers RESTful communication for resource-constrained devices in IoT applications, providing web-like interfaces for industrial devices while maintaining efficiency for embedded systems.

OPC UA integration enables secure, standardized communication between industrial systems and IoT platforms while maintaining industrial-grade security and reliability requirements.

Edge computing integration allows local processing and intelligence at the network edge while maintaining connectivity to cloud services and enterprise systems for advanced analytics and optimization.

Cybersecurity for Industrial Communications

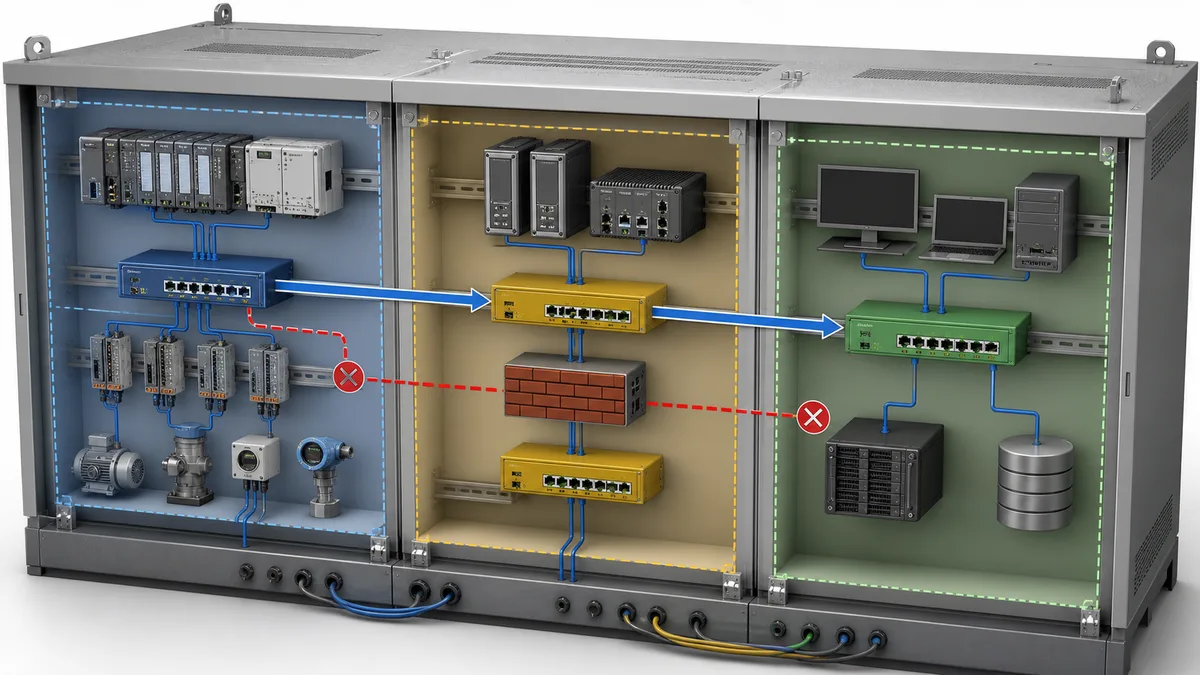

Network segmentation strategies isolate critical control systems from enterprise networks and external threats while enabling necessary data exchange through controlled interfaces and security appliances.

Authentication and encryption techniques for industrial protocols ensure that only authorized devices and users can access control systems while maintaining the performance requirements of real-time applications.

Intrusion detection and monitoring systems designed for industrial networks identify unusual communication patterns, unauthorized access attempts, and potential cyber threats without disrupting normal operations.

Security management practices for industrial communication networks include regular updates, vulnerability assessments, incident response procedures, and security awareness training that maintain protection against evolving threats.

Chapter 5: Advanced Communication Features

Redundancy and High Availability

Communication redundancy strategies include ring topologies, parallel networks, and automatic failover mechanisms that ensure continuous communication even when individual network components fail.

Rapid Spanning Tree Protocol (RSTP) configuration for industrial Ethernet networks provides automatic recovery from network failures while maintaining real-time performance requirements for control applications.

Device-level redundancy includes redundant communication interfaces, automatic switchover capabilities, and synchronized operation that maintains control system availability during communication failures.

System-level redundancy encompasses redundant PLCs, communication networks, and control strategies that ensure continuous operation of critical processes despite multiple component failures.

Quality of Service and Traffic Management

Traffic prioritization for industrial networks ensures that critical control data receives priority over less time-sensitive information while making efficient use of available bandwidth.

Bandwidth management techniques include traffic shaping, rate limiting, and congestion control strategies that prevent network overload while maintaining performance for critical applications.

VLAN configuration for industrial networks provides logical network separation, improved security, and better traffic management while using shared physical infrastructure.

Network monitoring and performance management tools provide visibility into communication performance, identify potential problems, and enable proactive maintenance that prevents system failures.

Time Synchronization and Clock Management

IEEE 1588 Precision Time Protocol (PTP) provides microsecond-level time synchronization for industrial networks requiring precise timing coordination between distributed control systems and devices.

Network Time Protocol (NTP) configuration offers sufficient time synchronization accuracy for applications not requiring precision timing while providing simple, reliable clock synchronization.

Time synchronization architecture includes grandmaster clock selection, boundary clock configuration, and network design considerations that ensure reliable time distribution throughout industrial networks.

Applications requiring precise timing include synchronized motion control, power system protection, data logging with accurate timestamps, and coordinated control actions across distributed systems.

Chapter 6: Protocol Configuration and Programming

PLC Communication Module Configuration

Communication module selection involves choosing appropriate hardware interfaces, protocol support, and performance characteristics that match application requirements and system architecture.

Module configuration includes network addressing, communication parameters, diagnostic settings, and performance optimization that ensures reliable operation while maximizing system capabilities.

Programming techniques for PLC communication include message blocks, communication function blocks, and structured programming approaches that create maintainable and efficient communication applications.

Error handling and diagnostics programming ensures robust operation by detecting communication failures, implementing appropriate recovery actions, and providing diagnostic information for troubleshooting.

Data Mapping and Conversion

Data type conversion between different protocols and systems ensures proper data interpretation while maintaining data integrity across communication boundaries with different data representations.

Address mapping strategies organize communication data efficiently while maintaining clarity and simplifying maintenance through systematic addressing schemes and documentation.

Scaling and engineering unit conversion enable meaningful data exchange between systems using different measurement units or data representations while maintaining accuracy and precision.

Database interface programming enables communication between PLC systems and enterprise databases, historian systems, and reporting platforms while maintaining data integrity and security.

Performance Optimization

Communication scheduling optimizes network utilization by coordinating data transmission timing, message prioritization, and bandwidth allocation to maximize system performance while meeting real-time requirements.

Buffer management and flow control prevent data loss during peak communication periods while maintaining system responsiveness and avoiding communication timeouts or failures.

Network load balancing distributes communication traffic across multiple network paths or interfaces to optimize performance while providing redundancy and improved availability.

Diagnostic and monitoring capabilities provide insight into communication performance, identify optimization opportunities, and enable proactive maintenance that prevents performance degradation.

Chapter 7: PLC Communication Protocol Troubleshooting Guide

Common PLC Protocol Issues and Solutions

Ethernet/IP Communication Problems

Problem: Intermittent Communication Loss

• Symptoms: Random disconnections, timeout errors, data corruption
• Causes: Network congestion, switch configuration issues, cable problems
• Solutions:
  • Check network utilization and upgrade switches if overloaded
  • Verify IGMP snooping and multicast settings
  • Test cable integrity with network cable tester
  • Implement network segmentation with VLANs

Problem: Slow Response Times

• Symptoms: Delayed HMI updates, timeout alarms
• Causes: Large data packets, inefficient polling, network latency
• Solutions:
  • Optimize tag configuration and reduce unnecessary data exchange
  • Implement change-of-state (COS) communication
  • Adjust RPI (Requested Packet Interval) settings
  • Use dedicated network infrastructure for control traffic

Modbus TCP Communication Troubleshooting

Problem: Device Not Responding

• Symptoms: Communication timeout errors, device offline status
• Causes: Incorrect IP configuration, firewall blocking, device malfunction
• Solutions:
  • Verify IP address, subnet mask, and gateway settings
  • Test connectivity with ping commands
  • Check firewall rules and port 502 accessibility
  • Validate Modbus register addresses and data types

Problem: Data Corruption or Wrong Values

• Symptoms: Incorrect data readings, scaling issues, bit order problems
• Causes: Byte order mismatch, incorrect data type mapping, scaling errors
• Solutions:
  • Verify byte order (big-endian vs little-endian) configuration
  • Check data type assignments (16-bit vs 32-bit registers)
  • Validate scaling factors and engineering units
  • Review register mapping documentation

Profinet Communication Issues

Problem: Real-Time Communication Failures

• Symptoms: Cyclic data interruption, IRT timing violations
• Causes: Switch configuration, cable quality, network topology issues
• Solutions:
  • Use Profinet-certified switches with proper configuration
  • Ensure proper cable category (Cat5e minimum for IRT)
  • Implement proper network topology (line/star as appropriate)
  • Check and adjust send clock and update time settings

PLC Protocol Diagnostic Tools and Techniques

Built-in PLC Diagnostics

• Communication status bits and error codes
• Connection health monitoring
• Network statistics and performance counters
• Automatic device replacement (ADR) capabilities

External Diagnostic Tools

• Wireshark: Network packet capture and analysis for all Ethernet-based protocols
• ProfiTrace: Specialized tool for Profinet network analysis
• RSLinx Classic: Rockwell's communication diagnostic tool for Ethernet/IP
• Modbus Poll/Slave: Testing tools for Modbus communication verification

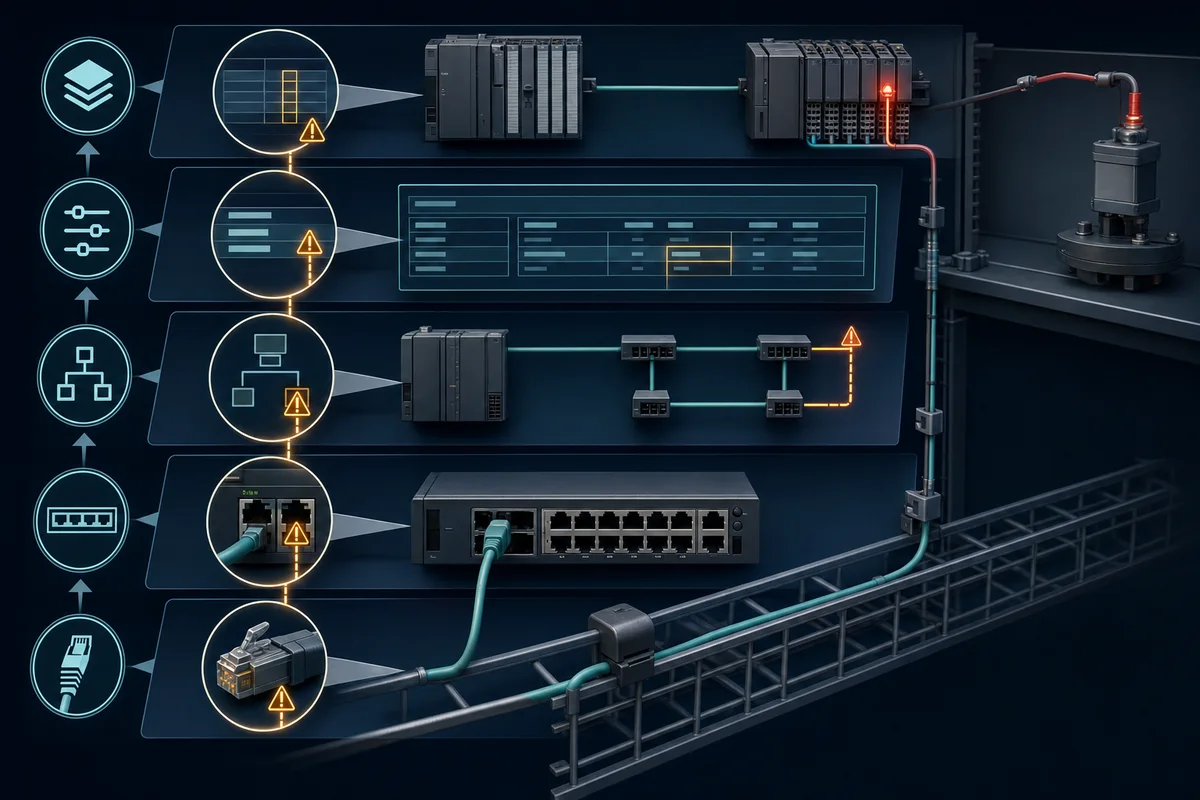

Network Testing Procedures

1. Physical Layer Testing: Cable continuity, signal quality, connector integrity
2. Network Layer Testing: IP connectivity, routing, VLAN configuration
3. Protocol Layer Testing: Message timing, data integrity, error rates
4. Application Layer Testing: Data accuracy, scaling, functional verification

Chapter 8: Troubleshooting and Maintenance

Communication Diagnostic Tools

Network analyzers and protocol analyzers provide detailed insight into communication traffic, enabling identification of communication errors, performance bottlenecks, and configuration problems.

Built-in diagnostic capabilities in PLCs and communication modules offer real-time monitoring of communication status, error rates, and performance metrics without requiring external test equipment.

Network testing procedures include cable testing, signal quality measurement, and protocol compliance verification that ensure proper network installation and configuration.

Documentation and record-keeping practices for communication systems enable effective troubleshooting, change management, and system maintenance over the system lifecycle.

Common Communication Problems

Intermittent communication failures often result from environmental factors, cable problems, or electromagnetic interference that requires systematic troubleshooting approaches and appropriate corrective actions.

Performance degradation can result from network congestion, improper configuration, or failing hardware components that require performance monitoring and systematic problem isolation.

Device integration problems often involve configuration mismatches, protocol incompatibilities, or timing issues that require careful analysis of device documentation and communication specifications.

Security-related communication problems can result from authentication failures, encryption issues, or network access control problems that require understanding of security mechanisms and proper configuration.

Preventive Maintenance Strategies

Regular network monitoring and performance measurement enable early detection of developing problems before they cause system failures or significant performance degradation.

Cable and connection inspection procedures identify physical problems such as corrosion, mechanical damage, or connector degradation that can cause intermittent or progressive communication failures.

Firmware and software update management ensures that communication devices remain secure and perform optimally while managing the risks associated with system changes in production environments.

Training and documentation maintenance ensure that maintenance personnel have current knowledge and procedures for troubleshooting and maintaining communication systems effectively.

Chapter 8: Future Trends and Emerging Technologies

Industry 4.0 and Smart Manufacturing

Digital twin integration requires sophisticated communication capabilities that enable real-time data exchange between physical systems and virtual models for optimization, simulation, and predictive maintenance.

Edge computing architecture distributes intelligence throughout the network while maintaining connectivity to cloud services and enterprise systems for advanced analytics and optimization capabilities.

Artificial intelligence integration in industrial communication systems enables adaptive network management, predictive maintenance, and automated optimization that improves system performance and reliability.

Cloud connectivity and hybrid architectures enable integration between on-premises control systems and cloud-based services while maintaining appropriate security and performance characteristics.

Next-Generation Communication Technologies

Time-Sensitive Networking (TSN) extensions to standard Ethernet provide deterministic communication capabilities that enable convergence of control and information networks while maintaining real-time performance.

5G industrial applications offer high-bandwidth, low-latency wireless communication that enables mobile automation, flexible manufacturing, and remote operation capabilities.

Software-Defined Networking (SDN) approaches provide programmable network management capabilities that enable dynamic reconfiguration, optimization, and security management for industrial networks.

Blockchain technology applications in industrial communication include secure device authentication, supply chain tracking, and decentralized network management that enhance security and traceability.

Conclusion: Master PLC Communication Protocols for Industrial Automation Success

PLC communication protocols expertise has become essential for automation professionals working in increasingly connected and integrated manufacturing environments in 2025. The ability to design, implement, and maintain sophisticated PLC communication networks directly impacts system performance, reliability, and security.

The convergence of OT and IT networks requires automation engineers to develop broader networking skills while maintaining focus on the unique requirements of PLC protocols and industrial applications. This dual expertise becomes increasingly valuable as automation systems become more integrated with enterprise networks and cloud services.

Future career success in automation engineering increasingly depends on understanding PLC protocols, cybersecurity, and network management practices that enable Industry 4.0 initiatives while maintaining the reliability and safety characteristics essential for industrial applications.

Related PLC Programming Resources

Expand your PLC programming knowledge beyond communication protocols:

• Ladder Logic Programming Tutorial - Master the foundation of PLC programming logic
• HMI Programming Tutorial - Learn to create effective operator interfaces that work with your PLC protocols
• Structured Text Programming Guide - Advanced programming techniques for complex protocol handling
• Free PLC Programming Software - Find tools that support your chosen communication protocols

Accelerate Your PLC Programming Career

Ready to become a PLC programming expert with advanced protocol knowledge? Our comprehensive Master PLC Programming Guide covers everything from basic concepts to advanced industrial communication techniques. Download your complete resource today and master the skills that drive modern industrial automation.

Continue developing your PLC communication protocols expertise through hands-on experience with different protocols, networking training, and staying current with emerging technologies and standards that are shaping the future of industrial automation and smart manufacturing in 2025.
