Chapter 1: Understanding EtherCAT Protocol Fundamentals

What is EtherCAT and How Does It Work?

EtherCAT protocol represents a paradigm shift in industrial Ethernet communication design. The fundamental innovation lies in how EtherCAT processes data as the frame passes through the network. Rather than receiving, processing, and retransmitting data at each node like traditional Ethernet protocols, EtherCAT devices read and write data "on the fly" directly from the passing Ethernet frame.

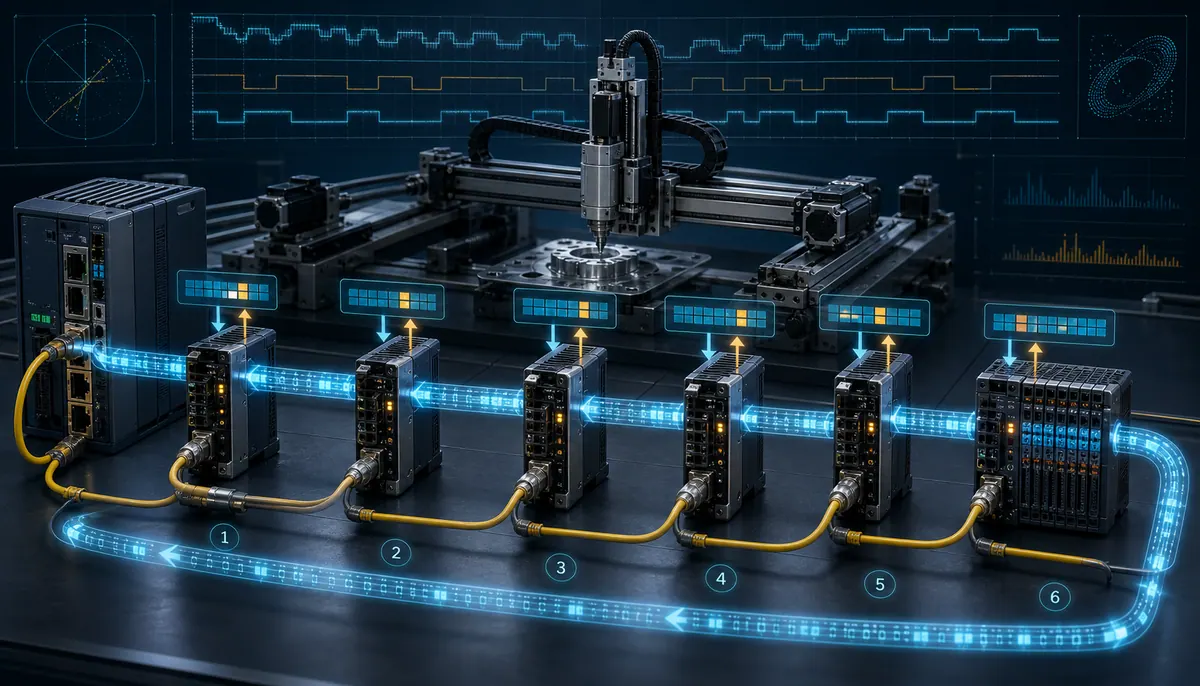

Processing on the Fly: The EtherCAT Revolution

The EtherCAT master sends a single telegram that passes through all slave devices in the network. Each EtherCAT slave device reads data addressed to it and inserts response data into the frame as it passes through, all within nanoseconds. This process continues until the frame reaches the last device in the network, where it is reflected back to the master through the same devices.

This revolutionary approach eliminates the store-and-forward delays inherent in switch-based networks. Because EtherCAT slaves process data at the physical layer using dedicated hardware (ASIC or FPGA), processing delays are measured in nanoseconds rather than microseconds or milliseconds. The result is dramatically reduced latency and highly deterministic communication performance.

Master-Slave Architecture Design

EtherCAT communication follows a strict master-slave architecture where a single master device controls all network communication. The EtherCAT master generates cyclic frames containing output data for all slaves and receives input data from all slaves in the same frame. This centralized approach ensures deterministic behavior and simplifies network management while maximizing performance.

The master maintains complete control over communication timing, data distribution, and network configuration. Slaves cannot initiate communication but respond with their data as the telegram passes through. This architecture eliminates collisions and unpredictable network behavior, ensuring consistent cycle times regardless of network load or configuration.

Frame Structure and Data Processing

An EtherCAT frame consists of a standard Ethernet header followed by one or more EtherCAT datagrams containing commands, addresses, and data for slave devices. The frame can contain multiple datagrams addressing different memory areas, device types, or logical segments, enabling flexible and efficient data exchange within a single network cycle.

As the frame passes through each slave, the device's EtherCAT Slave Controller (ESC) reads relevant datagrams, extracts input data, inserts output data, and increments working counters—all within nanoseconds without buffering the entire frame. This hardware-based processing ensures consistent performance regardless of frame size or data complexity.

Key Advantages of EtherCAT Protocol

Exceptional Speed and Performance

EtherCAT protocol delivers industry-leading performance with cycle times under 100 microseconds achievable for typical motion control applications. Systems with 100 servo axes can achieve 1 millisecond cycle times, while simpler I/O configurations can reach even faster update rates. This performance enables demanding applications such as high-speed printing, semiconductor handling, and precision machining.

Bandwidth efficiency exceeds 90% for process data, meaning more than 90% of the available Ethernet bandwidth carries useful application data rather than protocol overhead. A single 100 Mbps Ethernet segment can exchange over 40,000 I/O points in 30 microseconds, demonstrating the protocol's exceptional efficiency.

Flexible Network Topology

EtherCAT protocol supports virtually any network topology including line, tree, star, and ring configurations without requiring expensive switches or special cabling. The most common configuration uses simple daisy-chain (line) topology where devices connect in series using standard Cat5e or Cat6 Ethernet cable.

Hot connect capability allows devices to be added or removed from running networks without disrupting communication with other devices. This feature simplifies maintenance and commissioning while reducing downtime during network modifications or repairs.

Cost-Effective Implementation

EtherCAT protocol uses standard Ethernet physical layer technology, eliminating the need for special cables, connectors, or switches. Standard Ethernet cables and RJ45 connectors keep installation costs low while simplifying procurement and maintenance.

Slave device implementation costs remain competitive because the EtherCAT Slave Controller functionality is available from multiple semiconductor vendors in low-cost ASIC and FPGA implementations. This commodity hardware approach prevents vendor lock-in and ensures competitive pricing.

Extensive Device and Vendor Support

The EtherCAT Technology Group (ETG) maintains over 7,000 member companies worldwide, ensuring broad industry support and extensive device availability. EtherCAT device profiles cover virtually all automation device types including servo drives, I/O modules, sensors, actuators, and specialty devices.

Open standardization through IEC 61158 and IEC 61784 ensures protocol stability and vendor independence. Any device manufacturer can implement EtherCAT communication without licensing fees or proprietary restrictions, fostering innovation and competition in the automation market.

Chapter 2: EtherCAT Performance Characteristics

Cycle Time and Determinism

Understanding EtherCAT Cycle Times

EtherCAT cycle time represents the interval between successive frame transmissions from the master to the slave devices. Typical cycle times range from 50 microseconds for high-speed motion applications to several milliseconds for slower process control requirements. The achievable cycle time depends on the number of devices, data volume, and master processing capabilities.

Unlike protocols that suffer performance degradation as network load increases, EtherCAT protocol maintains consistent cycle times regardless of the number of slaves or data volume, limited only by the physical propagation delay through the network and the master's processing capability. This predictable behavior simplifies system design and ensures reliable performance.

Jitter Performance and Synchronization

Jitter, the variation in cycle timing, must be minimized for precision motion control applications requiring exact coordination between multiple axes. EtherCAT protocol achieves jitter performance below 1 microsecond through hardware-based processing and the distributed clocks feature that synchronizes all network devices to a common time base with sub-microsecond accuracy.

This exceptional synchronization enables applications such as coordinated multi-axis motion control, precision printing, electronic camming, and synchronized data acquisition where timing accuracy directly impacts product quality and system performance.

Bandwidth Efficiency and Data Throughput

Maximum Data Throughput

Standard 100BASE-TX EtherCAT networks deliver approximately 12 megabytes per second of application data throughput, sufficient for exchanging data with thousands of I/O points or hundreds of servo axes within millisecond cycle times. For applications requiring even higher performance, EtherCAT supports 1000BASE-T (Gigabit Ethernet) physical layer, multiplying throughput by a factor of ten.

The protocol's efficiency stems from minimal protocol overhead—each datagram requires only 12 bytes of header information regardless of payload size. Large frames containing data for multiple devices maximize efficiency by amortizing overhead across substantial data payloads.

Scalability and Network Size

EtherCAT protocol supports up to 65,535 slave devices on a single network segment, far exceeding the requirements of virtually any industrial application. Practical limits typically involve cycle time constraints rather than protocol limitations—the time required to process data for thousands of devices may exceed acceptable cycle times for specific applications.

Network length limitations depend on physical layer implementation. Standard 100BASE-TX segments support 100 meters between devices, with total network lengths of several kilometers achievable through proper network design. Junction modules extend network branches without counting toward device limits or significantly impacting performance.

Real-Time Performance Classes

EtherCAT Operating Modes

EtherCAT protocol defines three primary operating modes optimizing performance for different application requirements:

1. Free Run Mode: The master sends frames asynchronously without strict timing constraints, suitable for applications without hard real-time requirements
2. Synchronized Mode (SM Synchronization): Slave devices synchronize their application processing to master frame reception using hardware-based synchronization signals
3. Distributed Clocks (DC): All network devices synchronize to a common time base with sub-microsecond accuracy, enabling precision coordinated motion and synchronized data acquisition

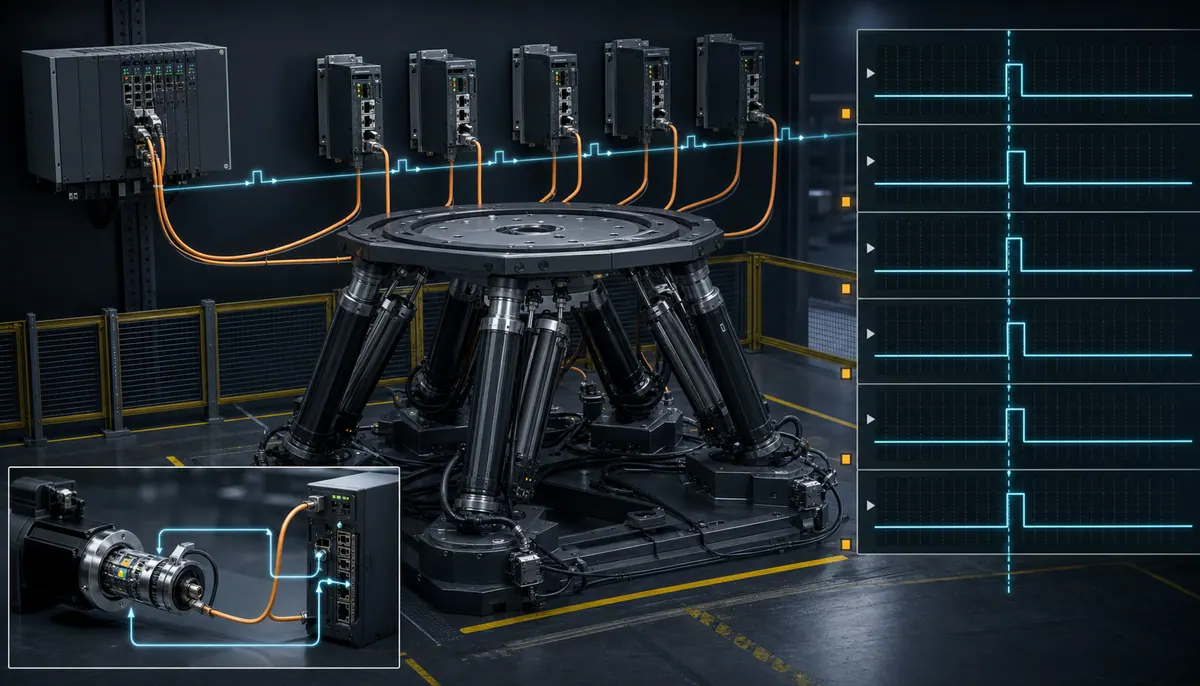

Distributed Clocks Technology

Distributed clocks represent one of EtherCAT's most powerful features for demanding synchronization applications. The DC mechanism synchronizes all slave device clocks to a reference clock (typically the first slave in the network) with accuracy below 100 nanoseconds, accounting for cable propagation delays between devices.

This precise synchronization enables slaves to execute synchronized actions such as capturing inputs, updating outputs, or triggering events at exactly the same instant across the entire network. Applications requiring phase-synchronized motion, coordinated multi-axis control, or time-stamped data acquisition leverage distributed clocks to achieve performance impossible with less precise protocols.

Chapter 3: EtherCAT Network Topology and Design

Network Topology Options

Line Topology (Daisy-Chain)

The most common EtherCAT configuration uses line topology where devices connect in series, with each device having two Ethernet ports passing the signal from the previous device to the next. This simple arrangement minimizes cabling costs and simplifies installation while delivering excellent performance.

Line topology eliminates the need for network switches since each device acts as a simple signal repeater. The master connects to the first slave, which connects to the second slave, continuing through all devices until reaching the last slave where the signal reflects back to the master through the same path.

Tree and Star Topologies

EtherCAT protocol supports tree and star topologies using junction modules or slaves with more than two Ethernet ports. These configurations enable flexible network layout accommodating physical equipment arrangements while maintaining the protocol's performance advantages.

Branches in the network tree are traversed sequentially—the frame travels down one branch to its end, returns to the junction, then proceeds down the next branch. While this sequential processing adds some latency compared to pure line topology, the impact remains minimal for most applications.

Ring Topology for Redundancy

Ring topology connects the last network device back to the master, creating a closed loop that provides automatic failover if a cable break or device failure occurs. Cable redundancy ensures continued operation with any single point of failure in the network infrastructure.

When operating in redundant mode, the master monitors both directions of the ring. If a failure occurs, the master continues communicating with all functioning devices through the remaining path. This architecture delivers exceptional reliability for critical applications requiring high availability.

Cable and Physical Layer Requirements

Cable Specifications

EtherCAT protocol uses standard Ethernet cabling with Cat5e recommended as minimum specification and Cat6 or Cat7 preferred for new installations. These standard cables support both 100BASE-TX and 1000BASE-T physical layers while providing sufficient bandwidth and noise immunity for reliable industrial operation.

Cable length limitations follow standard Ethernet specifications: 100 meters maximum between devices for 100BASE-TX implementations. Total network length can reach several kilometers when accounting for all cable segments in the network path. Fiber optic media converters extend networks over longer distances when required.

Connector Standards

Standard RJ45 connectors are most common for EtherCAT implementations, though some industrial devices use M12 connectors or other industrial-rated connection systems. The protocol itself is independent of connector choice—mechanical robustness and environmental protection drive connector selection.

Industrial environments may require sealed connectors, vibration-resistant latching mechanisms, or additional shielding depending on application conditions. EtherCAT communication operates identically regardless of connector type, providing flexibility for various installation requirements.

Hot Connect and Redundancy Features

Hot Connect Capability

Hot connect allows adding or removing devices from an operational EtherCAT network without stopping communication with other devices. The master detects topology changes and automatically reconfigures affected network segments while maintaining communication with unaffected devices.

This capability simplifies maintenance by allowing component replacement without complete system shutdown. Commissioning new equipment or troubleshooting suspect devices becomes faster and less disruptive, reducing downtime and improving productivity.

Redundancy Implementation

EtherCAT protocol supports multiple redundancy levels:

• Cable Redundancy: Ring topology with automatic failover for cable breaks
• Port Redundancy: Dual master ports providing backup communication paths
• Hot Standby: Redundant masters with automatic switchover
• Device Redundancy: Parallel devices with automatic failover

These features combine to create highly available systems meeting demanding uptime requirements for critical processes. The appropriate redundancy level balances reliability requirements against system complexity and cost.

Chapter 4: EtherCAT Device Types and Applications

EtherCAT Slave Device Categories

Servo Drives and Motion Control Devices

Servo drives represent one of the most common EtherCAT device types, leveraging the protocol's exceptional performance for precision motion control. EtherCAT servo drives support advanced motion control profiles including positioning, velocity control, and torque control with cycle times fast enough for demanding applications.

The CoE (CANopen over EtherCAT) profile for drives and motion control provides standardized communication enabling interoperability between drives from different manufacturers. This standardization simplifies system design while providing vendor choice and competitive pricing.

I/O Modules and Field Devices

EtherCAT I/O modules span the full range from simple digital input/output to complex analog processing, temperature measurement, and specialty function modules. Compact I/O systems leverage EtherCAT's efficiency to provide high channel density with exceptional performance.

Remote I/O applications benefit from EtherCAT's flexible topology and long-distance capabilities. Distributed I/O throughout a facility can connect on a single network without performance degradation, simplifying wiring and reducing installation costs compared to traditional I/O expansion methods.

Sensors and Actuators

Intelligent sensors with integrated EtherCAT interfaces provide direct network connectivity without intermediate I/O modules. Vision systems, distance sensors, force sensors, and other specialty sensors communicate directly on the EtherCAT network, reducing wiring complexity while improving data quality through digital communication.

Actuators including pneumatic valve manifolds, hydraulic proportional valves, and electric linear actuators integrate EtherCAT communication for precise control and comprehensive diagnostics. Direct network connectivity enables advanced control strategies and predictive maintenance capabilities.

Safety Devices (FSoE)

Safety over EtherCAT (FSoE) enables functional safety communication up to SIL 3 / PLe using standard EtherCAT network infrastructure. Safety I/O, safety drives, and safety controllers communicate over the same network as standard automation devices, reducing wiring costs while maintaining complete safety system independence.

FSoE implementation includes comprehensive error detection, safe state maintenance during communication failures, and clear separation between safety and standard data. This proven safety protocol enables flexible safety system design without compromising safety integrity.

Gateway and Protocol Conversion Devices

EtherCAT gateway devices provide protocol conversion enabling integration of devices using other industrial protocols. Gateways for Modbus, PROFIBUS, DeviceNet, and other protocols allow mixed-protocol systems while leveraging EtherCAT's performance for the primary network.

Multi-protocol capability simplifies integration of legacy equipment and specialty devices while migrating systems toward pure EtherCAT implementation. Gateway devices handle protocol translation transparently, presenting foreign devices as standard EtherCAT slaves to the master.

EtherCAT Device Profiles

CoE (CANopen over EtherCAT)

The CANopen over EtherCAT profile adapts the widely used CANopen application layer and device profiles to EtherCAT communication. CoE provides standardized object dictionaries, service data objects (SDOs), and process data objects (PDOs) enabling interoperable device communication.

Most EtherCAT servo drives, I/O modules, and complex devices use CoE for configuration and diagnostics while using cyclic PDO exchange for real-time process data. This combination provides both rich configuration capabilities and high-performance cyclic communication.

SoE (Servo Drive over EtherCAT)

The Servo Drive over EtherCAT profile, developed by manufacturers including Bosch Rexroth and Lenze, provides optimized communication for servo drives and motion control applications. SoE offers efficient parameter access and real-time data exchange tailored for drive applications.

EoE (Ethernet over EtherCAT)

Ethernet over EtherCAT tunnels standard Ethernet frames through the EtherCAT network, enabling IP-based communication with devices such as cameras, displays, or embedded systems. EoE allows these devices to connect through the EtherCAT infrastructure without requiring separate network wiring.

AoE (ADS over EtherCAT)

Automation Device Specification over EtherCAT provides high-performance communication optimized for Beckhoff devices. AoE enables efficient access to device data, parameters, and diagnostics while supporting the rich feature sets of advanced I/O modules and intelligent devices.

Chapter 5: EtherCAT vs Other Industrial Ethernet Protocols

Comprehensive Protocol Comparison

| Feature | EtherCAT | PROFINET IRT | EtherNet/IP | POWERLINK | SERCOS III | |---------|----------|--------------|-------------|-----------|------------| | Cycle Time | 50-100 µs | 250-500 µs | 1-5 ms | 200-400 µs | 31.25-65 µs | | Jitter | < 1 µs | < 1 µs | ~100 µs | < 1 µs | < 1 µs | | Topology | Line/Ring/Tree | Star (Switched) | Star (Switched) | Ring | Ring | | Max Nodes | 65,535 | 512 typical | ~250 practical | 240 | 511 | | Switches Required | No | Yes (Special) | Yes (Standard) | No | No | | Bandwidth Efficiency | >90% | ~50% | ~40% | ~85% | ~90% | | Synchronization | < 100 ns (DC) | < 1 µs (IRT) | Not specified | < 200 ns | < 1 µs | | Safety Protocol | FSoE (SIL 3) | PROFIsafe (SIL 3) | CIP Safety (SIL 3) | openSAFETY (SIL 3) | SercosSSC (SIL 3) | | Open Standard | Yes (IEC) | Yes (IEC) | Yes (ODVA) | Yes (IEC) | Yes (IEC) | | Cost Level | Low-Medium | Medium-High | Medium | Medium | Medium-High |

When to Choose EtherCAT Protocol

Ideal EtherCAT Applications

EtherCAT protocol excels in applications requiring:

1. High-speed motion control: Coordinated multi-axis systems, robotics, CNC machining
2. Precision synchronization: Electronic camming, printing, packaging, semiconductor handling
3. Large I/O counts: Extensive distributed I/O with fast update requirements
4. Cost-sensitive projects: Maximum performance without expensive infrastructure
5. Flexible topology: Complex physical layouts or distributed equipment
6. Mixed device types: Combining motion, I/O, and specialty devices on one network

Industries Leveraging EtherCAT

• Semiconductor Manufacturing: Wafer handling, lithography, deposition systems
• Packaging Machinery: High-speed filling, wrapping, labeling equipment
• Robotics: Multi-axis industrial robots, collaborative robots, mobile robotics
• Test and Measurement: Synchronized data acquisition, automated test equipment
• CNC Machine Tools: Multi-axis machining centers, laser cutting, EDM
• Printing: Digital printing, flexographic printing, label production
• Material Handling: Conveyor systems, sortation equipment, automated storage

EtherCAT vs PROFINET Comparison

Performance Differences

EtherCAT protocol typically delivers faster cycle times and lower jitter than PROFINET due to its processing-on-the-fly architecture versus PROFINET's switch-based approach. For motion control applications requiring sub-millisecond cycles, EtherCAT provides clear advantages.

PROFINET IRT (Isochronous Real-Time) achieves deterministic performance suitable for many motion applications but requires special switches and careful network design. EtherCAT's simpler topology and switch-free architecture often reduces implementation complexity and cost.

Ecosystem and Integration

PROFINET integration with Siemens automation platforms provides seamless connectivity within Siemens ecosystems. Organizations heavily invested in Siemens equipment may prefer PROFINET for consistency and support.

EtherCAT's vendor-neutral design and broad device support enable mixing components from multiple manufacturers without compatibility concerns. This flexibility appeals to OEMs and end users seeking best-of-breed component selection.

EtherCAT vs EtherNet/IP Comparison

Architecture Fundamentals

EtherNet/IP uses standard IT infrastructure including commercial switches and star topology, which can simplify integration with enterprise networks. However, this approach introduces variable latency and limited real-time performance compared to EtherCAT protocol.

For applications primarily requiring discrete I/O and moderate-speed control, EtherNet/IP provides adequate performance. High-speed motion control or precision synchronization applications clearly benefit from EtherCAT's superior performance characteristics.

Rockwell Automation Integration

Organizations standardized on Allen-Bradley PLCs and Rockwell Automation equipment often prefer EtherNet/IP for native integration. However, many Rockwell systems now support EtherCAT communication through gateway modules, enabling EtherCAT device integration when performance demands.

Chapter 6: EtherCAT Implementation and Configuration

Hardware Requirements for EtherCAT Systems

Master Device Options

EtherCAT master functionality can be implemented on various platforms:

1. Industrial PCs with EtherCAT Master Software: Software masters running on Windows or Linux provide flexibility and high performance
2. PLC-Based Masters: Industrial controllers with integrated EtherCAT master functionality
3. Embedded Masters: Specialized embedded controllers optimized for motion and automation
4. Soft PLCs: Software PLC solutions with EtherCAT communication capabilities

Master selection depends on application requirements including processing power, I/O counts, motion axes, and integration with other systems. Modern masters support thousands of I/O points and hundreds of motion axes with cycle times below 1 millisecond.

Network Interface Hardware

Standard Ethernet network interfaces suffice for many EtherCAT master implementations. However, high-performance applications benefit from dedicated network interface cards optimized for real-time Ethernet communication with hardware timestamping and reduced CPU load.

Slave devices require EtherCAT Slave Controller (ESC) functionality implemented in ASIC or FPGA technology. Multiple semiconductor vendors provide ESC implementations ensuring competitive pricing and availability.

Software Tools and Development Environments

TwinCAT Engineering Environment

Beckhoff's TwinCAT (The Windows Control and Automation Technology) provides comprehensive development tools for EtherCAT systems including:

• Network configuration and device scanning
• PLC programming using IEC 61131-3 languages
• Motion control configuration and programming
• Real-time monitoring and diagnostics
• System optimization and performance analysis

TwinCAT supports extensive device libraries from hundreds of manufacturers, simplifying device integration and configuration. The engineering environment combines PLC, motion, HMI, and safety programming in a unified platform.

Open-Source EtherCAT Masters

Open-source EtherCAT master implementations including SOEM (Simple Open EtherCAT Master) and IgH EtherCAT Master provide alternatives for Linux-based systems and embedded applications. These masters enable custom EtherCAT system development without licensing costs.

Open-source masters require deeper protocol knowledge and more development effort but offer complete flexibility and no runtime licensing fees. Many research institutions and machine builders use open-source masters for specialized applications.

Configuration and Diagnostic Tools

EtherCAT network configuration typically uses electronic device description files (XML format) defining device capabilities, parameters, and communication objects. Standard tools import these descriptions and generate network configurations automatically.

Network diagnostic tools analyze communication quality, timing performance, and error conditions. Topology viewing, frame capture, and real-time monitoring capabilities simplify troubleshooting and optimization.

Step-by-Step EtherCAT Configuration

Step 1: Network Scanning and Topology Detection

Begin EtherCAT configuration by scanning the physical network to detect all connected slave devices. The master reads device identification from each slave and constructs a topology map showing device order and position. This automatic detection simplifies commissioning and verifies physical installation.

Compare the detected topology against the intended design to identify missing devices, incorrect connections, or device ordering errors. Most configuration tools provide graphical topology visualization making verification straightforward.

Step 2: Device Configuration and Parameter Assignment

Configure each slave device using its device description file (ESI file) which defines available features, parameters, and process data objects. Set device-specific parameters such as I/O modes, filter settings, scaling factors, and application-specific options.

For servo drives, configure motion parameters including velocity limits, acceleration profiles, gear ratios, and position scaling. Ensure parameters match mechanical system characteristics and safety requirements.

Step 3: Process Data Mapping

Map slave device process data (inputs and outputs) to master memory areas accessible to the control application. Modern configuration tools provide automatic mapping based on device descriptions, though manual customization enables optimization for specific applications.

Organize process data logically to simplify application programming. Group related data together and use clear naming conventions that indicate data source, type, and purpose.

Step 4: Distributed Clocks Configuration

For applications requiring precise synchronization, enable distributed clocks and configure synchronization parameters. Designate a reference clock (typically the first slave with DC capability) and specify synchronization mode for other slaves.

Set SYNC0 and SYNC1 event timing to coordinate slave processing with cyclic communication. Proper DC configuration ensures all devices execute synchronized actions at precisely the same instant, critical for coordinated motion applications.

Step 5: Startup and Commissioning

Download the configuration to the master and transition the network through EtherCAT states: Init → PreOp → SafeOp → Op. Monitor state transitions and address any errors preventing devices from reaching operational state.

Verify process data exchange by monitoring inputs and controlling outputs. Test all network functions including normal operation, fault handling, and recovery procedures before releasing for production use.

Chapter 7: Motion Control with EtherCAT Protocol

Why EtherCAT Excels for Motion Control

Deterministic Performance Requirements

Motion control applications demand deterministic communication where control updates occur at precise intervals with minimal timing variation. EtherCAT protocol delivers cycle times of 125 microseconds to 1 millisecond with jitter below 1 microsecond, meeting requirements for demanding servo applications.

This timing precision enables tight position loops, smooth velocity control, and coordinated motion across multiple axes. Applications such as electronic gearing, camming, and flying shear operations depend on this level of performance.

Distributed Clocks for Synchronized Motion

The distributed clocks feature synchronizes all motion axes to a common time base with sub-microsecond accuracy, enabling perfectly coordinated motion. Electronic line shafting, virtual master axes, and synchronized product handling become straightforward to implement with DC synchronization.

Distributed clocks also enable synchronized data acquisition critical for applications combining motion control with high-speed measurement or vision inspection. All system components share a common time reference ensuring precise temporal correlation of events.

High-Bandwidth Servo Communication

EtherCAT's bandwidth efficiency enables communicating with hundreds of servo axes within millisecond cycle times. A single 100 Mbps EtherCAT segment supports over 100 servo drives with 1 millisecond cycle time, sufficient for coordinated control of complex multi-axis machinery.

This capability eliminates traditional limitations on axis count imposed by fieldbus bandwidth constraints. Large gantry systems, packaging machinery, and automated assembly equipment leverage this scalability for complex motion applications.

Coordinated Multi-Axis Applications

Electronic Gearing and Camming

Electronic gearing synchronizes slave axes to master axis motion through programmable gear ratios implemented in software. Unlike mechanical gearing, electronic gearing allows dynamic ratio changes, easy reconfiguration, and elimination of mechanical backlash and wear.

Electronic camming extends this concept using position-dependent motion profiles stored as tables or equations. Cam profiles coordinate complex motion patterns for packaging, assembly, and material handling applications with flexibility impossible using mechanical cams.

Flying Shear and Registration Control

Flying shear applications cut moving material to precise lengths while the material remains in motion. EtherCAT's synchronized control enables the cutting mechanism to accelerate, match material velocity, cut, and return to start position with accuracy measured in fractions of millimeters.

Registration control for printing and converting machinery uses EtherCAT synchronization to align processes with printed registration marks or physical features. High-speed position capture and coordinated motion maintain alignment despite material variations and process disturbances.

Robotic Applications

Industrial robots with 6 or more coordinated axes demonstrate EtherCAT's capabilities for complex kinematics and path planning. Cycle times below 1 millisecond enable smooth motion trajectories while distributed clocks ensure precise coordination between joint drives.

Collaborative robots (cobots) leverage EtherCAT communication for safety monitoring, force control, and human interaction. Real-time performance enables responsive safety systems while maintaining smooth, natural motion characteristics.

CNC and Machine Tool Applications

Multi-Axis Machining Centers

CNC machine tools with 5-axis simultaneous motion require precise interpolation and coordinated axis control. EtherCAT protocol provides the deterministic communication enabling smooth tool paths and excellent surface finish quality.

Spindle synchronization for operations such as thread milling and gear hobbing leverages distributed clocks for precise angular correlation between spindle position and axis motion. This electronic synchronization eliminates mechanical linkages while improving flexibility and reliability.

Laser Cutting and Processing

Laser cutting systems combine coordinated XY motion with synchronized laser power modulation and focus control. EtherCAT's high-speed communication enables complex cutting patterns, real-time power adjustment, and precise focus positioning for optimal cut quality.

Advanced laser processing applications including selective laser melting (SLM) for 3D printing coordinate dozens of control loops including galvanometer scanners, beam shapers, powder delivery, and part positioning—all synchronized through EtherCAT communication.

Chapter 8: Troubleshooting EtherCAT Networks

Common EtherCAT Issues and Solutions

Communication Errors and Lost Frames

Problem: Working Counter Errors

• Symptoms: Working counter mismatches, incomplete data exchange
• Causes: Cable problems, EMI interference, failed devices, topology errors
• Solutions:
  • Verify cable integrity using cable testers
  • Check for damaged connectors or crimps
  • Inspect for electromagnetic interference sources near cables
  • Confirm proper cable shielding and grounding
  • Use network diagnostic tools to identify problematic network segments

Problem: Frame Loss or CRC Errors

• Symptoms: Intermittent communication, frame check sequence errors
• Causes: Cable quality issues, excessive cable length, electrical noise
• Solutions:
  • Replace suspect cables with known-good cables
  • Verify total network length within specifications
  • Add ferrite cores to reduce conducted interference
  • Improve cable routing away from noise sources
  • Check network interface card performance and drivers

Timing and Synchronization Issues

Problem: Distributed Clocks Synchronization Failures

• Symptoms: Jitter warnings, synchronization error flags
• Causes: Network topology changes, environmental temperature variations
• Solutions:
  • Verify DC reference clock selection and configuration
  • Check that all DC slaves support synchronization mode
  • Monitor drift compensation values for excessive variation
  • Ensure stable operating temperature for network components
  • Verify master processing not missing cycle deadlines

Problem: Cycle Time Overruns

• Symptoms: Master cannot maintain configured cycle time
• Causes: Too much process data, slow master processing, excessive network length
• Solutions:
  • Reduce process data volume through selective mapping
  • Increase cycle time to accommodate data volume
  • Optimize application code for faster execution
  • Use faster master hardware with better performance
  • Split large networks into multiple segments

Device Configuration Problems

Problem: Slave Cannot Reach OP State

• Symptoms: Device stuck in SafeOp or PreOp state
• Causes: Configuration mismatch, mailbox timeout, application not ready
• Solutions:
  • Check slave error register for specific error codes
  • Verify downloaded configuration matches device capabilities
  • Increase mailbox timeout for slow-responding devices
  • Confirm device firmware version compatibility
  • Reset device and verify power supply stability

EtherCAT Diagnostic Tools and Techniques

Built-in Master Diagnostics

• Network state monitoring and device status
• Working counter verification and frame statistics
• Topology visualization and device identification
• Communication timing analysis and cycle performance monitoring
• Distributed clocks synchronization quality metrics

Frame Analysis Tools

• Wireshark with EtherCAT dissector plugin for detailed frame capture
• Beckhoff EtherCAT monitoring tools for real-time analysis
• Frame quality analysis identifying electrical layer problems
• Timing measurement for latency and jitter characterization

Physical Layer Testing

• Cable testing for continuity, length, and signal quality
• Oscilloscope analysis for signal integrity verification
• Spectrum analysis for interference identification
• Temperature monitoring for environmental effects on performance

Frequently Asked Questions About EtherCAT Protocol

What does EtherCAT stand for and who developed it?

EtherCAT stands for Ethernet for Control Automation Technology. Beckhoff Automation developed the protocol in 2003 and subsequently made it an open international standard through IEC 61158 and IEC 61784. The EtherCAT Technology Group (ETG) now maintains the technology with over 7,000 member companies worldwide.

How fast is EtherCAT compared to other industrial Ethernet protocols?

EtherCAT is the fastest industrial Ethernet protocol with cycle times below 100 microseconds achievable and jitter performance under 1 microsecond. This represents 5-10 times faster performance than PROFINET IRT and 20-50 times faster than EtherNet/IP for typical configurations. The protocol can exchange data with 1,000 I/O points in just 30 microseconds.

Does EtherCAT require special switches or cables?

No, EtherCAT does not require switches at all—devices connect in simple daisy-chain topology. Standard Cat5e or Cat6 Ethernet cables and RJ45 connectors work perfectly. This switch-free architecture significantly reduces cost and complexity compared to switched industrial Ethernet protocols while actually delivering better performance.

Can EtherCAT be used for safety applications?

Yes, Safety over EtherCAT (FSoE) enables functional safety communication up to SIL 3 and PLe using the same network infrastructure as standard automation devices. FSoE is widely deployed in industrial safety applications and certified by TÜV for safety-critical control systems.

How many devices can connect to an EtherCAT network?

EtherCAT protocol supports up to 65,535 slave devices on a single network segment. Practical limitations involve cycle time constraints—large device counts require longer cycle times to exchange all data. Typical systems range from dozens to hundreds of devices depending on application requirements.

Is EtherCAT compatible with standard Ethernet equipment?

EtherCAT uses standard Ethernet physical layer technology (100BASE-TX or 1000BASE-T) and can coexist with standard Ethernet traffic through EtherCAT master devices with multiple network interfaces. However, EtherCAT slave devices require specialized EtherCAT Slave Controller hardware and cannot operate as standard Ethernet devices.

What programming languages work with EtherCAT systems?

EtherCAT masters support various programming environments including IEC 61131-3 PLC languages (ladder logic, structured text, function block), C/C++ for embedded systems, C# and .NET for industrial PC applications, and Python for research and development applications. The choice depends on the master platform and application requirements.

How does EtherCAT handle network redundancy?

EtherCAT supports cable redundancy through ring topology with automatic failover, redundant master ports for dual network paths, and hot standby masters for complete system redundancy. These features enable highly available systems meeting demanding uptime requirements for critical industrial processes.

Conclusion: Leveraging EtherCAT Protocol for Advanced Industrial Automation

EtherCAT protocol represents the pinnacle of industrial Ethernet communication performance, delivering deterministic cycle times, precise synchronization, and exceptional bandwidth efficiency that enable demanding automation applications impossible with other protocols. The combination of superior technical performance, cost-effective implementation, and broad industry support has established EtherCAT communication as the protocol of choice for high-performance motion control, precision automation, and complex multi-axis systems.

Understanding EtherCAT protocol fundamentals, architecture principles, and implementation techniques empowers automation engineers to design and deploy systems that fully leverage the technology's capabilities. From semiconductor manufacturing requiring sub-microsecond timing precision to packaging machinery coordinating dozens of motion axes, EtherCAT protocol delivers the performance and flexibility modern automation demands.

The continued evolution of EtherCAT technology including enhanced safety features, higher-speed physical layers, and integration with Industry 4.0 initiatives ensures the protocol will remain relevant for demanding industrial applications well into the future. Investing time to master EtherCAT communication principles and implementation techniques provides automation professionals with valuable skills applicable across industries and application domains.

Related Industrial Ethernet and PLC Communication Resources

Expand your industrial communication knowledge beyond EtherCAT protocol:

• PLC Communication Protocols Complete Guide - Comprehensive overview of all major industrial protocols
• Industrial Automation Programming Guide - Advanced automation programming techniques
• Ladder Logic Programming Tutorial - Foundation of PLC programming logic
• Siemens PLC Programming Tutorial - PROFINET integration with Siemens systems

Accelerate Your PLC Programming Career

Ready to become a PLC programming expert with advanced industrial communication knowledge? Our comprehensive Master PLC Programming Guide covers everything from basic concepts to advanced industrial Ethernet techniques including EtherCAT, PROFINET, and EtherNet/IP. Download your complete resource today and master the skills that drive modern industrial automation.

Continue developing your EtherCAT protocol expertise through hands-on experience with real hardware, advanced training courses, and staying current with emerging technologies and standards that are shaping the future of industrial automation and smart manufacturing in 2025.
