Best PLC Simulator Software 2025 | Top 10 Reviewed & Compared

Last Updated: December 2025 | Reviewed by industrial automation engineers with 15+ years of hands-on experience testing and evaluating PLC simulator software across educational, professional, and industrial applications. All recommendations based on direct hands-on testing and real-world deployment scenarios.

Learning PLC programming or testing automation logic without physical hardware can save thousands of dollars and accelerate skill development significantly. PLC simulator software provides realistic programming environments, virtual I/O simulation, and safe testing capabilities that enable beginners to learn effectively while allowing professionals to validate programs before hardware deployment.

This comprehensive guide reviews the top 10 PLC simulator software platforms available in 2025, comparing features, pricing, supported PLC brands, and use cases. Whether you're a student starting to learn PLC programming, an educator setting up training labs, or a professional engineer testing complex automation logic, this guide helps you select the perfect simulator for your needs.

Table of Contents

1. What is PLC Simulator Software?
2. Why Use PLC Simulators?
3. Types of PLC Simulators
4. Top 10 PLC Simulator Software Reviews
5. Comprehensive Comparison Table
6. Free vs Paid PLC Simulators
7. How to Choose the Right PLC Simulator
8. Best PLC Simulators for Beginners
9. Best PLC Simulators for Professionals
10. PLC Simulator Setup Guide
11. Common Use Cases
12. Limitations of PLC Simulators
13. Frequently Asked Questions

What is PLC Simulator Software?

PLC simulator software is a computer-based application that replicates the functionality of physical Programmable Logic Controllers in a virtual environment. These simulators allow users to write, test, and debug PLC programs without requiring actual PLC hardware, I/O modules, or field devices.

Core Functionality

Modern PLC simulators provide comprehensive functionality that includes:

Virtual PLC Engine: Software-based emulation of PLC processors that execute ladder logic, function block diagrams, structured text, and other IEC 61131-3 programming languages exactly as physical PLCs would operate.

Simulated I/O: Virtual input and output points that can be manually toggled or automated through simulation scenarios, eliminating the need for physical sensors, switches, buttons, and actuators during program development and testing.

Real-Time Execution: Most professional simulators execute programs in real-time or near-real-time, accurately simulating scan times, timer operations, counter functions, and program execution sequences.

Debugging Tools: Advanced debugging capabilities including breakpoints, watch windows, force functions, online monitoring, and step-through execution that help identify and correct programming errors efficiently.

3D Visualization: Premium simulators include photorealistic 3D environments showing industrial equipment, conveyor systems, robotic cells, and production lines that respond realistically to PLC program logic.

Simulation vs Emulation

Understanding the distinction between simulation and emulation helps select appropriate tools:

Simulation recreates the behavior and functionality of PLC systems without replicating the exact hardware architecture. Simulators focus on functional accuracy, allowing programs to run and produce correct results while potentially using different internal processing methods than physical PLCs.

Emulation precisely replicates the hardware architecture, instruction set, and execution timing of specific PLC models. Emulators provide exact compatibility, allowing programs developed in emulation to transfer directly to physical PLCs without modification.

Most modern platforms combine both approaches, providing functional simulation for development and testing while maintaining sufficient accuracy for reliable hardware deployment.

Why Use PLC Simulators?

PLC simulators provide numerous advantages for different user groups, from students and educators to professional engineers and system integrators.

Educational Benefits

Learning PLC programming with simulators eliminates the significant financial barriers associated with purchasing physical hardware. A comprehensive training setup with PLCs, I/O modules, sensors, and actuators can cost $5,000-$15,000 or more, while quality simulator software typically costs $0-$400 annually.

Simulators provide safe learning environments where mistakes don't damage expensive equipment or create safety hazards. Students can experiment freely, test different programming approaches, and learn from errors without concerns about electrical faults, mechanical damage, or safety incidents.

The ability to simulate diverse industrial scenarios helps students understand various applications without requiring multiple physical setups. One simulator can demonstrate bottling lines, traffic control systems, elevator operations, and HVAC systems that would be impractical to recreate physically in educational settings.

Self-paced learning becomes possible with simulators that allow students to practice programming at their convenience, repeat exercises until mastery is achieved, and progress through increasingly complex applications without instructor supervision or lab access restrictions.

Professional Development and Testing

Experienced engineers use simulators to test program logic thoroughly before deploying to physical hardware, reducing commissioning time, preventing costly errors, and ensuring reliable startup operations. Pre-commissioning validation identifies logic errors, timing issues, and control sequence problems early when corrections are simple and inexpensive.

Multi-platform programmers use simulators to maintain proficiency across different PLC brands without requiring physical access to multiple hardware platforms. This capability is particularly valuable for consulting engineers working with diverse client systems or companies transitioning between PLC platforms.

Remote work and distributed teams benefit from simulators that enable program development and testing without physical access to equipment. Engineers can create and validate programs from home offices, client sites, or remote locations, then deploy tested code when on-site access becomes available.

Training new employees on existing systems becomes safer and more efficient with simulators that replicate facility-specific equipment and control logic. New programmers can learn system operations, practice troubleshooting scenarios, and understand control strategies without interrupting production operations.

Cost Savings and Risk Reduction

Capital equipment investment reductions represent significant savings for educational institutions, small companies, and startups. Simulators enable PLC programming training and development without the $10,000-$50,000 investment typically required for physical training systems.

Reduced equipment damage risk eliminates concerns about expensive PLC modules, I/O cards, or connected equipment being damaged during programming errors or experimentation. Physical hardware failures from programming mistakes, electrical faults, or incorrect configurations can cost hundreds to thousands of dollars per incident.

Faster program development cycles result from the ability to test and modify programs instantly without downloading to hardware, waiting for equipment responses, or dealing with communication issues. Simulation allows rapid iteration, quick testing of multiple approaches, and efficient optimization of control logic.

Training efficiency improvements reduce the time required to develop competent PLC programmers. Studies show that students using simulators alongside traditional instruction develop programming proficiency 30-40% faster than those using hardware-only training approaches.

Types of PLC Simulators

PLC simulators fall into several categories based on their design approach, target audience, and capabilities.

Manufacturer-Integrated Simulators

Major PLC manufacturers include simulation capabilities directly within their programming software platforms. These integrated simulators provide authentic programming experiences with exact instruction set compatibility and seamless transitions between simulation and hardware programming.

Siemens PLCSIM integrates with TIA Portal to provide accurate S7-1200 and S7-1500 simulation with optional advanced features. PLCSIM executes programs using the actual firmware, ensuring exact functional compatibility with physical controllers.

Rockwell Automation Emulate works within Studio 5000 Logix Designer to simulate ControlLogix and CompactLogix controllers with complete instruction set support. The emulator provides accurate timing, tag-based programming simulation, and motion control capabilities.

Schneider Electric Controller Simulator operates within the EcoStruxure Machine Expert environment to simulate Modicon controllers with full language support and communication protocol emulation.

These manufacturer simulators offer the highest compatibility and confidence that simulated programs will operate identically on physical hardware, making them ideal for professional application development and pre-commissioning testing.

Third-Party Educational Simulators

Independent software developers create educational simulators designed specifically for training purposes with structured learning paths, built-in exercises, and comprehensive instructional materials.

PLCLogix provides realistic Allen-Bradley simulation with 3D visualization environments, guided exercises, and curriculum integration for classroom and self-paced learning.

LogixPro Simulator offers affordable Allen-Bradley style programming with multiple industrial process simulations ideal for beginners and technical training programs.

Automation Studio delivers comprehensive multi-domain simulation including pneumatics, hydraulics, and electrical systems alongside PLC programming for holistic automation training.

Educational simulators emphasize learning effectiveness over exact hardware compatibility, often simplifying complex concepts, providing additional guidance, and including assessment tools that support educational objectives.

3D Virtual Environment Simulators

Advanced simulators create photorealistic 3D industrial environments where users can program PLCs to control virtual machinery, observe realistic behaviors, and understand physical system interactions.

Factory I/O provides the most advanced 3D simulation platform with photorealistic graphics, comprehensive I/O simulation, and compatibility with multiple PLC programming platforms through various communication protocols.

FluidSIM combines 3D visualization with circuit design for pneumatic and hydraulic systems integrated with PLC control simulation.

These visual simulators excel at demonstrating the relationship between PLC programming logic and physical equipment behavior, making abstract programming concepts concrete and understandable through realistic animation and feedback.

Open-Source and Free Simulators

Free and open-source simulators provide accessible learning platforms without licensing costs, though often with reduced features compared to commercial alternatives.

OpenPLC Simulator provides free, open-source PLC programming with IEC 61131-3 language support and integration with various hardware platforms.

Web-Based Simulators like PLC Fiddle offer instant-access ladder logic programming in web browsers without any software installation requirements.

These free options democratize PLC programming education, enabling anyone with computer access to begin learning regardless of financial resources.

Top 10 PLC Simulator Software Reviews

1. Factory I/O - Professional 3D Simulation Platform

Factory I/O represents the gold standard for 3D PLC simulation, providing photorealistic industrial environments that respond realistically to PLC programming logic through multiple communication protocols.

Key Features:

• Photorealistic 3D industrial environments with realistic physics and behaviors

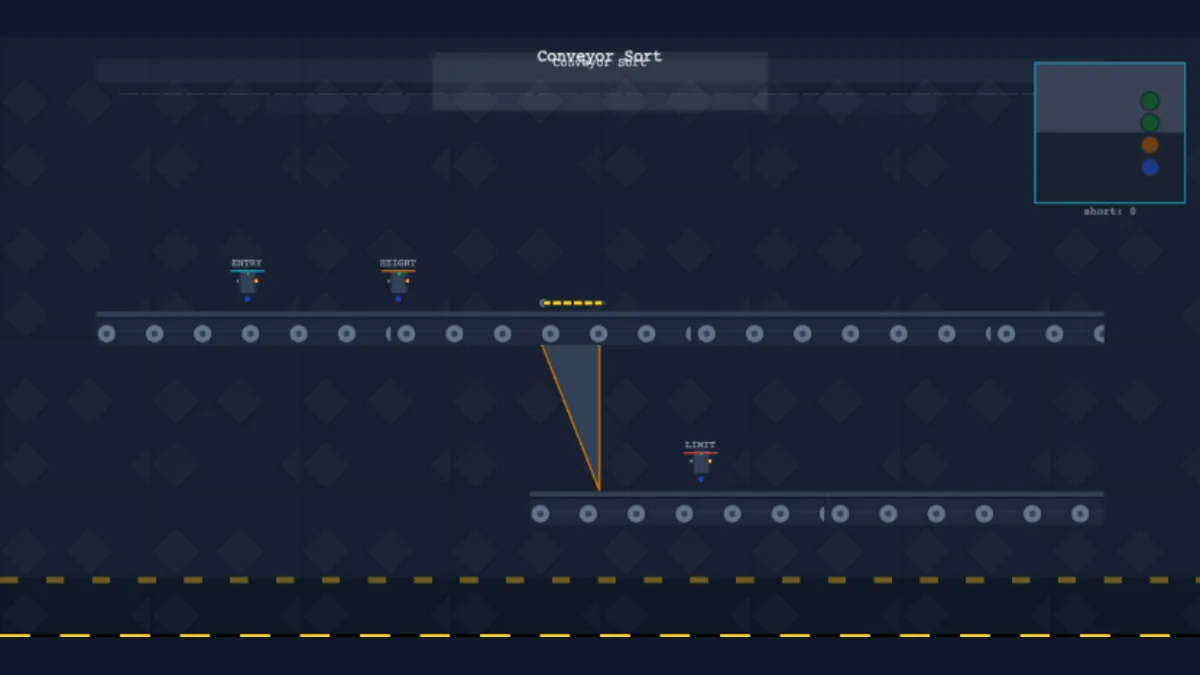

• 50+ pre-built industrial scenes including sorting, assembly, packaging, and warehouse systems
• Custom scene builder for creating application-specific simulations
• Multi-protocol support: Modbus TCP/RTU, EtherNet/IP, PROFINET, S7 Communication
• Works with real PLC programming software from Siemens, Allen-Bradley, Schneider, CODESYS
• Extensive I/O library with 100+ sensors, actuators, and industrial devices
• Performance analytics and production metrics tracking
• Educational licenses with classroom management tools

Pros:

• ✅ Exceptional 3D graphics and realistic equipment behavior
• ✅ Works with actual manufacturer PLC software (not simplified simulators)
• ✅ Extensive protocol support enables multi-platform learning
• ✅ Custom scene creation allows application-specific training
• ✅ Active development with frequent updates and new features
• ✅ Excellent for demonstrating real-world industrial applications
• ✅ Performance metrics help optimize programs before hardware deployment

Cons:

• ❌ Requires separate PLC programming software (not standalone)
• ❌ Higher cost than educational-only simulators ($200-$400/year)
• ❌ Significant system requirements for optimal 3D performance
• ❌ Learning curve for scene creation and I/O mapping
• ❌ Free version has limited functionality and scene access

Pricing:

• Student License: $49/year (educational email required)
• Professional License: $199/year for first year, $99/year renewal
• Educational Institution: Contact for classroom pricing
• Free Trial: 30 days full functionality or permanent with limited scenes

Best For: Professional engineers testing programs before deployment, technical training programs, students learning industrial automation systems, educators demonstrating real-world applications.

Platform Support: Windows 10/11 (64-bit)

System Requirements:

• Intel Core i5 or AMD equivalent (i7 recommended)
• 8GB RAM minimum (16GB recommended)
• DirectX 11 compatible graphics card with 2GB VRAM
• 4GB available storage space
• 1920x1080 minimum screen resolution

2. PLCLogix 5000 - Comprehensive Allen-Bradley Training

PLCLogix 5000 provides the most comprehensive Allen-Bradley ControlLogix and CompactLogix simulation platform designed specifically for education and training with structured learning paths and assessment capabilities.

Key Features:

• Authentic Allen-Bradley RSLogix 5000 instruction set implementation
• Multiple 3D simulation environments (bottling, traffic control, elevator, batch mixing)
• Built-in curriculum with progressive exercises from beginner to advanced
• Student progress tracking and assessment tools for classroom use
• Realistic I/O simulation with virtual sensors and actuators
• Online and offline programming modes
• Comprehensive help system with instruction reference
• Multi-user classroom management capabilities

Pros:

• ✅ Excellent structured learning path for Allen-Bradley programming
• ✅ Authentic instruction set translates directly to Studio 5000 skills
• ✅ Multiple industrial scenarios demonstrate diverse applications
• ✅ Built-in assessment tools support classroom instruction
• ✅ User-friendly interface ideal for beginners
• ✅ Good documentation and learning resources
• ✅ Classroom licenses available for educational institutions

Cons:

• ❌ Allen-Bradley only (no multi-platform support)
• ❌ Simulates older RSLogix 5000 rather than current Studio 5000
• ❌ Cannot connect to actual PLC hardware
• ❌ Limited customization of simulation scenarios
• ❌ Requires annual license renewal
• ❌ Windows-only platform support

Pricing:

• Individual License: $99/year or $299 lifetime license
• Student License: $49/year (with educational email)
• Classroom License: $499-$999 depending on seat count
• Free Trial: 15 days with full functionality

Best For: Students learning Allen-Bradley programming, technical schools and community colleges, individuals preparing for automation careers, educators teaching RSLogix 5000 programming.

Platform Support: Windows 7/8/10/11

Learning Path: PLCLogix includes structured curriculum progressing through:

1. Basic contacts, coils, and I/O understanding
2. Timers, counters, and comparison instructions
3. Math, data manipulation, and conversion instructions
4. Program control, subroutines, and file operations
5. Advanced applications including recipe management and batch control

3. LogixPro Simulator - Affordable Beginner Training

LogixPro offers the most cost-effective entry point for learning Allen-Bradley style PLC programming with sufficient features for foundational skill development and basic application understanding.

Key Features:

• Allen-Bradley SLC-500 and MicroLogix instruction set
• Multiple simulation exercises (traffic lights, batch mixing, silo, door simulation)
• Simple 2D animated graphics showing equipment operation
• Real-time program execution with adjustable scan rates
• Complete ladder logic programming environment
• I/O forcing and online monitoring capabilities
• Built-in documentation with instruction explanations
• Offline programming and testing

Pros:

• ✅ Extremely affordable ($65 one-time purchase)
• ✅ No recurring subscription fees
• ✅ Simple interface perfect for absolute beginners
• ✅ Includes diverse simulation scenarios
• ✅ Low system requirements run on older computers
• ✅ Good learning resources and tutorials available online
• ✅ Active user community providing support

Cons:

• ❌ Simulates older SLC-500 (not current ControlLogix/CompactLogix)
• ❌ Basic 2D graphics lack realism of 3D simulators
• ❌ Limited advanced instructions and features
• ❌ No actual hardware connectivity
• ❌ Dated interface and visualization
• ❌ Skills don't translate perfectly to modern Allen-Bradley platforms

Pricing:

• Individual License: $65 one-time purchase (no subscription)
• Educational Site License: $200 for unlimited installations at single campus
• Free Demo: Unlimited time with limited functionality

Best For: Absolute beginners starting PLC programming, hobbyists and DIY automation enthusiasts, budget-conscious learners, supplementary practice tool for students in formal programs.

Platform Support: Windows XP/Vista/7/8/10/11

Simulation Exercises:

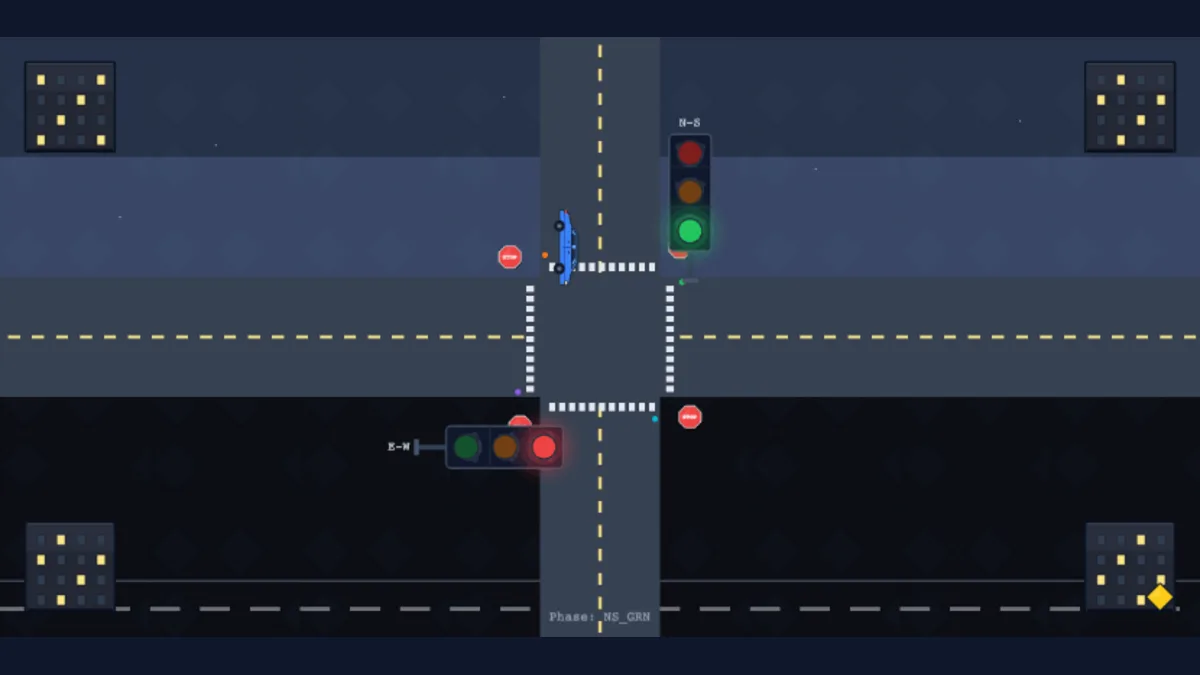

• Traffic Light Control: Basic timing and sequencing

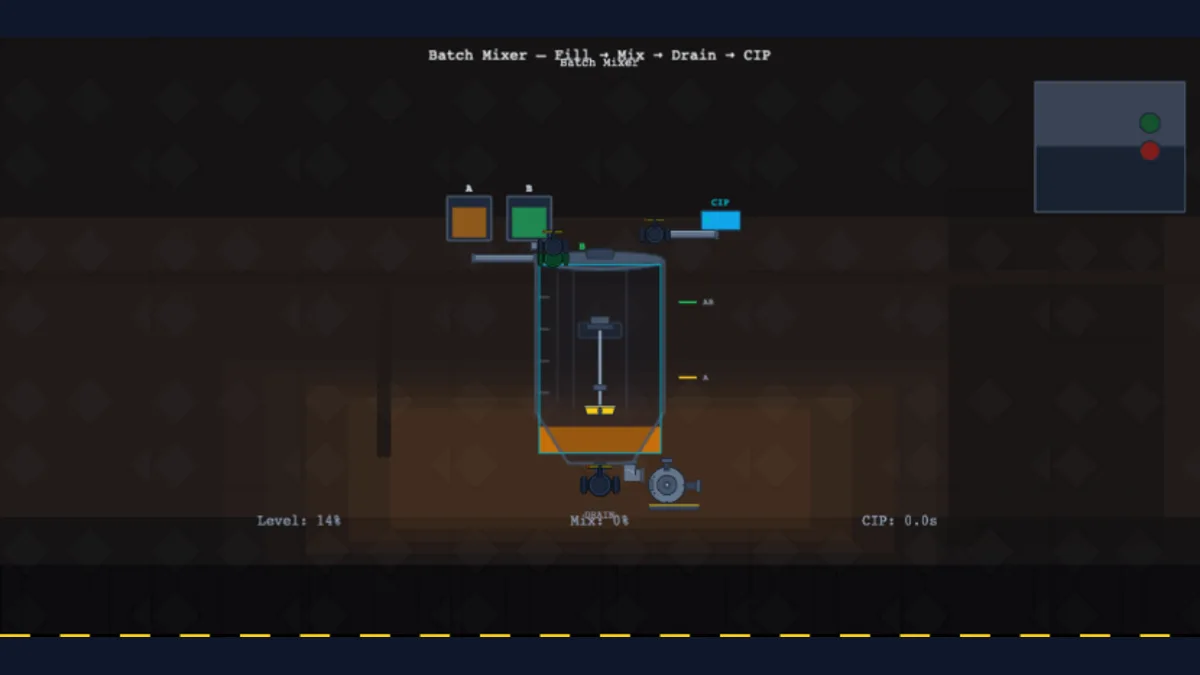

• Batch Mixing Process: Recipe management and sequencing
• Silo Simulation: Level control and material handling
• Dual Compressor System: Start/stop logic and alternation
• Door Simulation: Proximity sensing and motor control

4. Siemens PLCSIM (TIA Portal) - Authentic Siemens Simulation

PLCSIM provides the official Siemens simulation environment fully integrated with TIA Portal, delivering exact functional compatibility with S7-1200, S7-1500, and other Siemens controllers.

Key Features:

• Authentic Siemens firmware execution (exact hardware compatibility)
• Integrated directly within TIA Portal programming environment
• All IEC 61131-3 programming languages supported
• Virtual I/O simulation with force capabilities
• Communication protocol simulation (PROFINET, PROFIBUS, TCP/IP)
• Multiple controller simulation in single environment
• Hardware configuration testing including I/O modules
• PLCSIM Advanced option for advanced simulation scenarios

Pros:

• ✅ Perfect compatibility with physical Siemens PLCs
• ✅ Uses actual PLC firmware for exact emulation
• ✅ Seamlessly integrated within TIA Portal workflow
• ✅ All programming languages and advanced features supported
• ✅ Professional-grade tool used by Siemens engineers worldwide
• ✅ Free for TIA Portal Professional license holders
• ✅ No limitations on program size or complexity

Cons:

• ❌ Requires TIA Portal software (free Basic version or paid Professional)
• ❌ Siemens platforms only (no multi-brand support)
• ❌ No 3D visualization (text-based I/O simulation)
• ❌ Steeper learning curve than educational simulators
• ❌ Windows-only platform support
• ❌ PLCSIM Advanced requires separate expensive license ($1,000+)

Pricing:

• PLCSIM Basic: Included free with TIA Portal Professional
• PLCSIM Advanced: ~$1,200+ depending on configuration
• TIA Portal Basic: Free download (includes basic PLCSIM functionality)
• Educational License: Free for students and educational institutions

Best For: Professional Siemens programmers, students learning Siemens platforms, engineers developing S7-1200/S7-1500 applications, pre-commissioning program testing.

Platform Support: Windows 10/11 (64-bit)

Integration: PLCSIM integrates seamlessly with:

• TIA Portal programming environment
• WinCC HMI development and simulation
• Factory I/O for 3D process simulation
• Third-party SCADA systems via OPC
• SIMIT for detailed plant simulation

5. Automation Studio Educational Edition - Multi-Domain Simulation

Automation Studio provides comprehensive multi-domain simulation covering pneumatics, hydraulics, electrical controls, and PLC programming in one integrated environment ideal for holistic automation training.

Key Features:

• Multi-technology simulation (pneumatic, hydraulic, electrical, PLC)
• Extensive component libraries (10,000+ symbols)
• Circuit design and simulation capabilities
• Multiple PLC programming languages
• Realistic component behavior modeling
• Animation and dynamic visualization
• Educational curriculum and lesson plans
• Multi-user classroom management

Pros:

• ✅ Comprehensive coverage of automation technologies
• ✅ Understand interactions between mechanical, electrical, and control systems
• ✅ Excellent for mechatronics and automation system design
• ✅ Professional-quality simulation accuracy
• ✅ Extensive educational resources and curriculum materials
• ✅ Used by technical schools and universities worldwide
• ✅ Regular updates with new components and features

Cons:

• ❌ Expensive compared to PLC-only simulators ($500-$2,000+)
• ❌ Significant learning curve for full capability utilization
• ❌ More complex than needed for PLC-only learning
• ❌ High system requirements for complex simulations
• ❌ Not focused on specific PLC brand instruction sets
• ❌ Annual subscription model for professional licenses

Pricing:

• Student License: ~$99/year
• Educational License: $500-$1,500 depending on modules
• Professional License: $2,000-$5,000+ depending on configuration
• Free Trial: 30 days with full functionality

Best For: Mechatronics training programs, comprehensive automation education, understanding system integration, technical colleges and universities, multi-disciplinary automation learning.

Platform Support: Windows 7/8/10/11

Simulation Domains:

• Pneumatics: Cylinders, valves, FRL units, vacuum systems
• Hydraulics: Pumps, motors, valves, accumulators, circuits
• Electrical: Motors, contactors, relays, protection devices
• PLC Control: Ladder logic, function blocks, sequential function charts

6. Connected Components Workbench Emulator - Free Allen-Bradley

Connected Components Workbench includes free emulation capabilities for Allen-Bradley Micro800 series PLCs, providing authentic Rockwell Automation programming experience at no cost.

Key Features:

• Complete Micro800 PLC emulation (Micro820, Micro850, Micro870)
• Ladder logic, function block, and structured text support
• Built-in simulation mode for offline testing
• HMI development for PanelView 800 series
• Motion control programming capabilities
• EtherNet/IP communication simulation
• Professional Rockwell programming environment
• No licensing costs or restrictions

Pros:

• ✅ Completely free with no limitations for Micro800 programming
• ✅ Authentic Rockwell Automation development environment
• ✅ Professional-grade software skills transfer to Studio 5000
• ✅ Integrated HMI development capabilities
• ✅ Regular updates and manufacturer support
• ✅ Can connect to actual Micro800 hardware
• ✅ Good learning path to higher-level Rockwell platforms

Cons:

• ❌ Limited to Micro800 series only (no ControlLogix/CompactLogix)
• ❌ Cannot simulate larger Allen-Bradley platforms
• ❌ No 3D visualization (basic I/O simulation only)
• ❌ Windows-only platform support
• ❌ Requires Rockwell account registration
• ❌ Some advanced features limited compared to Studio 5000

Pricing:

• Software: Free download from Rockwell Automation
• License: No cost, no restrictions for Micro800 programming
• Updates: Free ongoing updates and support

Best For: Learning Allen-Bradley programming methods, Micro800 application development, budget-conscious beginners, understanding Rockwell programming philosophy.

Platform Support: Windows 10/11 (64-bit)

Download: Available from Rockwell Automation Product Compatibility and Download Center (free registration required)

7. CODESYS Control Win - Industrial IEC 61131-3 Platform

CODESYS Control Win provides a software PLC runtime for Windows computers, enabling full IEC 61131-3 programming with actual controller execution rather than simple simulation.

Key Features:

• Complete IEC 61131-3 runtime on Windows PC
• All five programming languages supported
• Real PLC functionality (not just simulation)
• Network communication capabilities (Modbus, EtherNet/IP, PROFINET)
• Motion control and CNC functionality
• Web visualization integrated
• Can connect to actual I/O hardware via fieldbus
• OPC UA server functionality

Pros:

• ✅ True PLC runtime (full functionality, not limited simulation)
• ✅ Complete IEC 61131-3 standard compliance
• ✅ Can control actual hardware through I/O interfaces
• ✅ Extensive communication protocol support
• ✅ Professional platform used in commercial products
• ✅ Active CODESYS community and resources
• ✅ Motion control and advanced features available

Cons:

• ❌ Requires CODESYS development system (separate purchase)
• ❌ Limited free runtime (demo mode or time-limited)
• ❌ More complex than simple educational simulators
• ❌ Requires technical knowledge for configuration
• ❌ Windows-only platform
• ❌ Not beginner-friendly without training

Pricing:

• CODESYS Control Win SL: Free demo mode (limited features)
• CODESYS Development System: Free for basic version
• Full Runtime License: ~$100-$300 depending on features
• Professional Licenses: Contact for pricing

Best For: Professionals needing Windows-based PLC functionality, CODESYS platform learning, IEC 61131-3 programming education, PC-based control applications.

Platform Support: Windows 7/8/10/11

Integration: Works with:

• Factory I/O for 3D simulation
• Various fieldbus I/O modules
• HMI and SCADA systems via OPC
• Motion control hardware

8. OpenPLC Simulator - Open-Source Solution

OpenPLC provides the premier open-source PLC programming platform with complete IEC 61131-3 language support and flexible runtime options for various hardware platforms.

Key Features:

• Complete IEC 61131-3 programming language support
• Cross-platform (Windows, Linux, macOS)
• Hardware independence (runs on PC, Raspberry Pi, Arduino)
• Modbus TCP/RTU communication support
• Web-based monitoring and configuration
• ScadaBR integration for visualization
• Active open-source community development
• Completely free with no restrictions

Pros:

• ✅ 100% free and open-source (no costs ever)
• ✅ Cross-platform support (Windows, Linux, Mac)
• ✅ All five IEC 61131-3 languages included
• ✅ Can run on inexpensive hardware (Raspberry Pi, Arduino)
• ✅ Source code available for learning PLC internals
• ✅ Active community providing support
• ✅ No vendor lock-in or licensing restrictions

Cons:

• ❌ Not manufacturer-certified for industrial use
• ❌ More technical setup than commercial simulators
• ❌ Limited 3D visualization (requires separate tools)
• ❌ Smaller instruction set than commercial platforms
• ❌ Community support only (no professional support)
• ❌ Skills may not transfer directly to proprietary systems

Pricing:

• Software: Free (100% open-source)
• License: No restrictions, commercial use allowed
• Support: Community-based (free)

Best For: Students learning PLC programming fundamentals, budget-constrained learners, understanding PLC internal operations, open-source enthusiasts, low-cost automation projects.

Platform Support: Windows, Linux, macOS

Hardware Support:

• Raspberry Pi (all models)
• Arduino (Uno, Mega, compatible boards)
• Industrial PCs
• UniPi controllers
• Custom hardware with driver development

Download: OpenPLC Editor from GitHub (free download)

9. Ladder Logic Simulator (Online) - Web-Based Learning

PLC Fiddle and similar web-based ladder logic simulators provide instant-access PLC programming practice directly in web browsers without any software installation requirements.

Key Features:

• Browser-based ladder logic programming
• Real-time simulation with visual I/O feedback
• Program sharing via URL links
• Mobile device compatibility
• No installation or registration required
• Example program library
• Instant simulation feedback
• Completely free access

Pros:

• ✅ Zero installation (runs in any modern browser)
• ✅ Works on any device including tablets and phones
• ✅ Completely free with no registration required
• ✅ Instant access for quick learning and demonstrations
• ✅ Easy program sharing for collaboration
• ✅ Perfect for introducing PLC concepts to beginners
• ✅ Low barrier to entry for exploring automation

Cons:

• ❌ Ladder logic only (no other programming languages)
• ❌ Very limited instruction set (basic contacts, coils, timers)
• ❌ No advanced features or complex instructions
• ❌ Cannot connect to actual hardware
• ❌ No export to standard PLC file formats
• ❌ Not suitable for professional application development

Pricing:

• Access: Free (no cost, no registration)
• Features: All features included at no charge

Best For: Absolute beginners exploring PLC programming, quick concept demonstrations, educational assignments, mobile learning, introducing automation to students.

Platform Support: Any device with modern web browser (Chrome, Firefox, Safari, Edge)

Access: Visit plcfiddle.com (no download required)

Limitations:

• Basic timer and counter functions only
• No math or data manipulation instructions
• Limited number of I/O points
• No communication or networking capabilities
• Simple true/false logic only

10. Industrial Control Simulator - Multi-Platform Training

Industrial Control Simulator (ICS) provides multi-brand PLC simulation supporting various manufacturer instruction sets in one platform for comprehensive cross-platform training.

Key Features:

• Multiple PLC brand simulations (AB, Siemens, Mitsubishi styles)
• Common industrial process simulations
• Basic ladder logic and function block support
• Educational focus with learning materials
• Offline programming and testing
• Multiple simulation scenarios
• Progress tracking for students
• Affordable pricing for individual learners

Pros:

• ✅ Multi-brand exposure in single simulator
• ✅ Good for understanding different programming philosophies
• ✅ Affordable for individual purchase
• ✅ Educational focus with structured learning
• ✅ Multiple industrial scenarios included
• ✅ Good for comparing different PLC approaches

Cons:

• ❌ Simplified instruction sets (not exact manufacturer implementations)
• ❌ Limited advanced features
• ❌ Less realistic than manufacturer simulators
• ❌ Smaller user community
• ❌ Infrequent updates
• ❌ Basic graphics and visualization

Pricing:

• Individual License: $49-$99 depending on version
• Educational License: Contact for pricing
• Free Trial: 30 days or feature-limited version

Best For: Multi-platform learning, understanding different PLC programming approaches, comparative education, budget-conscious learners wanting multi-brand exposure.

Platform Support: Windows 7/8/10/11

Comprehensive Comparison Table

Feature Comparison Matrix

| Simulator | 3D Graphics | Multi-Platform | IEC 61131-3 | Price Range | Best For | Difficulty | |-----------|-------------|----------------|-------------|-------------|----------|------------| | Factory I/O | ⭐⭐⭐⭐⭐ | ✓ (via protocols) | N/A (works with real software) | $49-$400/year | Professional testing, training | Medium | | PLCLogix 5000 | ⭐⭐⭐⭐ | ✗ (AB only) | Partial | $49-$299 | Allen-Bradley learning | Easy | | LogixPro | ⭐⭐ | ✗ (AB only) | Partial | $65 one-time | Beginners, budget | Easy | | PLCSIM (Siemens) | ✗ | ✗ (Siemens only) | ✓ Complete | Free-$1,200 | Siemens professional | Medium | | Automation Studio | ⭐⭐⭐⭐ | ✓ Generic | ✓ Partial | $500-$5,000 | Multi-domain training | Medium-Hard | | CCW Emulator | ✗ | ✗ (Micro800 only) | ✓ Partial | Free | AB Micro800 learning | Easy-Medium | | CODESYS Win | ✗ | ✗ (CODESYS only) | ✓ Complete | $0-$300 | IEC 61131-3 learning | Medium-Hard | | OpenPLC | ✗ | ✗ (OpenPLC only) | ✓ Complete | Free | Open-source learning | Medium | | Web Simulators | ✗ | ✗ (Generic LD) | ✗ | Free | Quick introduction | Very Easy | | ICS Multi | ⭐⭐ | ✓ (Simplified) | Partial | $49-$99 | Multi-brand overview | Easy |

Programming Language Support

| Simulator | Ladder Logic (LD) | Function Block (FBD) | Structured Text (ST) | SFC | Instruction List (IL) | |-----------|-------------------|----------------------|----------------------|-----|----------------------| | Factory I/O | Via connected software | Via connected software | Via connected software | Via connected software | Via connected software | | PLCLogix 5000 | ✓ | ✓ | ✓ | ✓ | ✗ | | LogixPro | ✓ | ✗ | ✗ | ✗ | ✗ | | PLCSIM | ✓ | ✓ | ✓ | ✓ | Deprecated | | Automation Studio | ✓ | ✓ | ✓ | ✓ | ✗ | | CCW Emulator | ✓ | ✓ | ✓ | ✗ | ✗ | | CODESYS Win | ✓ | ✓ | ✓ | ✓ | ✓ | | OpenPLC | ✓ | ✓ | ✓ | ✓ | ✓ | | Web Simulators | ✓ | ✗ | ✗ | ✗ | ✗ | | ICS Multi | ✓ | ✓ | Partial | ✗ | ✗ |

Communication Protocol Support

| Simulator | Modbus TCP | Modbus RTU | EtherNet/IP | PROFINET | S7 Communication | |-----------|------------|------------|-------------|----------|------------------| | Factory I/O | ✓ | ✓ | ✓ | ✓ | ✓ | | PLCLogix 5000 | ✗ | ✗ | ✗ | ✗ | ✗ | | LogixPro | ✗ | ✗ | ✗ | ✗ | ✗ | | PLCSIM | Via TIA Portal | Via TIA Portal | ✗ | ✓ | ✓ | | Automation Studio | ✓ | ✓ | Partial | Partial | Partial | | CCW Emulator | ✓ | ✓ | ✓ | ✗ | ✗ | | CODESYS Win | ✓ | ✓ | ✓ | ✓ | ✗ | | OpenPLC | ✓ | ✓ | ✗ | ✗ | ✗ | | Web Simulators | ✗ | ✗ | ✗ | ✗ | ✗ | | ICS Multi | ✗ | ✗ | ✗ | ✗ | ✗ |

Platform and System Requirements

| Simulator | Windows | macOS | Linux | Min RAM | Storage | Graphics Requirements | |-----------|---------|-------|-------|---------|---------|----------------------| | Factory I/O | ✓ | ✗ | ✗ | 8GB | 4GB | DirectX 11, 2GB VRAM | | PLCLogix 5000 | ✓ | ✗ | ✗ | 4GB | 2GB | Basic | | LogixPro | ✓ | ✗ | ✗ | 2GB | 100MB | Minimal | | PLCSIM | ✓ | ✗ | ✗ | 8GB | 5GB+ | Basic | | Automation Studio | ✓ | ✗ | ✗ | 8GB | 3GB | DirectX 9+ | | CCW Emulator | ✓ | ✗ | ✗ | 4GB | 4GB | Basic | | CODESYS Win | ✓ | ✗ | ✗ | 4GB | 2GB | Basic | | OpenPLC | ✓ | ✓ | ✓ | 2GB | 500MB | Minimal | | Web Simulators | Browser | Browser | Browser | 2GB | None | Minimal | | ICS Multi | ✓ | ✗ | ✗ | 4GB | 1GB | Basic |

Free vs Paid PLC Simulators

Understanding the value proposition and limitations of free versus paid simulators helps make informed investment decisions for education, training, and professional development.

Free PLC Simulator Options

Completely Free Solutions:

OpenPLC provides the most comprehensive free option with complete IEC 61131-3 language support, cross-platform compatibility, and commercial use permissions without any restrictions or licensing fees.

Connected Components Workbench offers authentic Allen-Bradley programming experience for Micro800 series at zero cost, providing excellent value for learning Rockwell Automation programming philosophies.

Web-Based Simulators like PLC Fiddle require no installation or registration, offering instant access to basic ladder logic programming ideal for absolute beginners and quick demonstrations.

Manufacturer Trial Versions including PLCSIM (with TIA Portal Basic), various educational editions, and demo versions provide limited-time or feature-restricted access to professional tools.

Advantages of Free Simulators:

• Zero financial investment removes barriers to entry
• Try before committing to paid alternatives
• Sufficient for basic learning and skill development
• Good for exploring whether PLC programming interests you
• Adequate for supplementary practice alongside formal training

Limitations of Free Simulators:

• Fewer features than professional paid alternatives
• Limited or no 3D visualization capabilities
• Smaller instruction sets and programming options
• Community-only support (no professional assistance)
• May lack advanced features needed for complex applications
• Time limitations or feature restrictions on some platforms

Paid Simulator Investment Value

Premium Capabilities:

Paid simulators justify their cost through comprehensive features, realistic 3D environments, professional support, regular updates, and educational resources that accelerate learning and improve training effectiveness.

Factory I/O at $49-$400/year provides photorealistic 3D simulation with professional protocol support, making it invaluable for serious learning, professional testing, and educational programs where visual understanding is critical.

PLCLogix at $49-$299 offers structured curriculum, progress tracking, multiple industrial scenarios, and authentic Allen-Bradley instruction sets that dramatically improve learning efficiency compared to free alternatives.

Professional Manufacturer Simulators like PLCSIM Advanced provide exact hardware emulation, complete feature sets, and guaranteed compatibility that justify their cost for commercial application development and pre-commissioning testing.

Return on Investment:

• Faster skill development reduces total learning time by 30-50%
• Safer program testing prevents expensive hardware damage
• Pre-commissioning validation reduces on-site startup time
• Professional simulations improve understanding of real-world applications
• Educational effectiveness improvements justify costs for training programs

Cost-Benefit Analysis:

For Students: $50-$100/year investment in quality simulator can save hundreds of hours and thousands of dollars compared to purchasing physical hardware while accelerating competency development.

For Professionals: $200-$400/year for premium simulation platforms pays for itself with a single prevented hardware failure or reduced commissioning time on one project.

For Educational Institutions: Per-student costs of $20-$50/year for classroom licenses provide vastly better ROI than physical hardware requiring $10,000-$50,000 investment plus ongoing maintenance.

Hybrid Approach Recommendations

Optimal Strategy:

Start with free simulators to explore PLC programming and determine serious interest, then invest in paid simulators aligned with career goals and target PLC platforms as skills develop and professional objectives become clear.

Beginner Path:

1. Week 1-4: PLC Fiddle (free web simulator) for basic concepts
2. Month 2-3: OpenPLC or CCW (free) for deeper learning
3. Month 4+: Paid simulator (PLCLogix, Factory I/O) for professional development

Professional Path:

1. Free manufacturer simulator (PLCSIM Basic) for learning
2. Factory I/O for visual testing and demonstrations
3. Manufacturer professional simulator for actual project work

How to Choose the Right PLC Simulator

Selecting the optimal PLC simulator depends on multiple factors including learning objectives, budget constraints, target PLC platforms, and intended use cases.

Assessment Criteria

Learning Objectives:

Define clear goals before selecting a simulator. Are you learning PLC programming fundamentals, preparing for a specific job requiring particular PLC platform skills, or testing programs for professional deployment?

Beginners learning general PLC concepts benefit most from simple, visual simulators with structured learning paths like LogixPro or PLCLogix that emphasize fundamental understanding over platform-specific details.

Platform-Specific Learners targeting Siemens, Allen-Bradley, or other specific manufacturers should prioritize authentic manufacturer simulators that provide exact instruction set compatibility and seamless transition to real hardware.

Professional Engineers testing programs before deployment require high-fidelity simulators like PLCSIM Advanced or Factory I/O integration with real programming software to ensure validated programs operate identically on physical hardware.

Budget Considerations

Available Investment:

Determine realistic budget including both initial purchase and ongoing costs. Many simulators use subscription models requiring annual renewal, while others offer perpetual licenses with one-time payments.

Total Cost of Ownership:

• Free Options: $0 (OpenPLC, CCW, web simulators)
• Budget Learning: $50-$100 (LogixPro, ICS, student licenses)
• Professional Learning: $100-$400/year (PLCLogix, Factory I/O)
• Professional Development: $500-$2,000+ (Automation Studio, PLCSIM Advanced)

Compare simulator costs against alternatives including physical hardware ($5,000-$15,000), training courses ($1,000-$5,000), or certification programs ($500-$2,000) to understand relative value.

Platform Targeting

Manufacturer Preference:

Identify target PLC platforms based on regional market demand, employer requirements, or career goals. Different regions and industries favor specific manufacturers.

Allen-Bradley Dominance in North American automotive, food/beverage, and packaging industries makes PLCLogix, LogixPro, or CCW excellent choices for learners targeting these markets.

Siemens Strength in pharmaceutical, European automotive, and process industries makes PLCSIM and TIA Portal simulation essential for professionals in these sectors.

Multi-Platform Flexibility becomes valuable for consultants, system integrators, or professionals working with diverse client systems, making Factory I/O or multi-brand simulators attractive.

Feature Requirements

Essential Capabilities:

Prioritize features aligned with learning objectives and professional requirements:

3D Visualization dramatically improves understanding for beginners and provides compelling demonstrations for educators, justifying premium simulators like Factory I/O.

Authentic Instruction Sets ensure skills transfer directly to physical hardware, making manufacturer simulators essential for professional development targeting specific platforms.

Structured Curriculum accelerates learning for self-directed students without formal instruction, making educational simulators with built-in exercises valuable.

Communication Protocols enable integration with HMI systems, SCADA platforms, and other PLCs for comprehensive system understanding.

Decision Framework

Selection Process:

1. Define primary objective (learning fundamentals, platform-specific skills, professional testing)
2. Identify budget constraints (free only, $100 budget, $400 budget)
3. Determine target platform (any, Allen-Bradley, Siemens, multi-platform)
4. Assess required features (3D graphics, authentic instructions, protocols)
5. Evaluate options meeting criteria
6. Test free trials before purchase commitment
7. Make informed selection aligned with objectives and budget

Quick Recommendations:

• Absolute beginner, $0 budget: PLC Fiddle → OpenPLC or CCW
• Learning Allen-Bradley, <$100: LogixPro or PLCLogix student license
• Learning Siemens, minimal budget: TIA Portal Basic with PLCSIM (free)
• Professional testing, good budget: Factory I/O + manufacturer software
• Multi-domain learning: Automation Studio Educational
• Best visual learning: Factory I/O with any PLC software
• Most authentic simulation: Manufacturer simulators (PLCSIM, Emulate)

Best PLC Simulators for Beginners

Beginners need simulators that emphasize clear explanations, gentle learning curves, and foundational concept mastery over advanced features or exact hardware compatibility.

Top Choices for Absolute Beginners

1. PLC Fiddle (Web-Based) - Best First Experience

PLC Fiddle provides the gentlest introduction to PLC programming concepts with instant browser access, zero installation requirements, and immediate visual feedback that helps beginners understand cause-and-effect relationships in control logic.

Why Beginners Love It:

• Works immediately in any web browser (no downloads or installation)
• Very simple interface with minimal distractions
• Instant simulation feedback shows how logic works
• Can share programs easily with instructors or peers
• Completely free with no registration barriers
• Perfect for exploring whether PLC programming interests you

Learning Path: Use PLC Fiddle for first 2-4 weeks to understand basic contacts, coils, timer concepts, and simple logic before moving to more advanced simulators.

2. LogixPro Simulator - Best Budget Learning Platform

LogixPro offers exceptional value for beginners with clear interface design, multiple industrial scenarios, and comprehensive instruction support at very affordable one-time pricing.

Why Beginners Succeed:

• Simple, uncluttered interface focuses on learning fundamentals
• Multiple simulation exercises demonstrate diverse applications
• Low system requirements run on older computers
• One-time $65 purchase (no ongoing subscriptions)
• Extensive online tutorials and community resources
• Good for understanding ladder logic fundamentals

Learning Path: LogixPro provides solid foundation for 3-6 months of beginner learning, covering basic through intermediate programming concepts.

3. PLCLogix Student Edition - Best Structured Learning

PLCLogix Student Edition provides comprehensive structured curriculum with progressive exercises, clear instruction reference, and authentic Allen-Bradley instruction implementation ideal for self-paced learning.

Why Educators Recommend It:

• Structured curriculum guides progression from beginner to intermediate
• Built-in help system explains each instruction clearly
• Multiple 3D scenarios demonstrate real applications
• Progress tracking shows learning advancement
• Affordable $49/year student pricing
• Skills transfer directly to real Allen-Bradley systems

Learning Path: PLCLogix supports 6-12 months of structured learning from absolute beginner through intermediate proficiency.

Learning Progression Strategy

Month 1-2: Foundation Building

• Start with PLC Fiddle for basic contact/coil logic
• Learn fundamental concepts: normally open/closed contacts, outputs, basic logic
• Practice simple applications: lights, motors, simple sequences
• Understand scan cycle and program execution

Month 3-4: Core Skills Development

• Transition to LogixPro or PLCLogix Student
• Master timers (TON, TOF, RTO) and counters (CTU, CTD)
• Learn comparison instructions and basic math
• Complete multiple simulation exercises

Month 5-6: Application Understanding

• Advanced LogixPro/PLCLogix exercises
• Understand real-world applications through scenarios
• Begin learning program organization and documentation
• Practice troubleshooting and debugging techniques

Month 7-12: Platform Specialization

• Add manufacturer simulator (PLCSIM or CCW) for targeted learning
• Learn platform-specific instructions and features
• Consider Factory I/O for enhanced visualization
• Begin exploring structured text or function blocks

Common Beginner Mistakes to Avoid

Mistake 1: Starting with Professional Tools

Beginning with complex professional simulators like PLCSIM Advanced or Automation Studio overwhelms learners with unnecessary features before foundational concepts are understood. Start simple and progress to advanced tools.

Mistake 2: Not Using Structured Curriculum

Random experimentation without structured learning paths results in knowledge gaps and slower progression. Follow organized courses or use simulators with built-in curriculum.

Mistake 3: Skipping Fundamentals

Rushing to advanced topics before mastering basic contacts, coils, timers, and counters creates unstable knowledge foundation. Master each level before advancing.

Mistake 4: Ignoring Documentation Practice

Good programming requires clear documentation through comments, descriptions, and organization. Practice documentation habits from the beginning rather than adding later.

Best PLC Simulators for Professionals

Professional engineers and experienced programmers require simulators providing exact hardware emulation, comprehensive features, and reliable pre-commissioning validation capabilities.

Professional-Grade Simulators

1. Siemens PLCSIM Advanced - Ultimate Siemens Emulation

PLCSIM Advanced provides the most comprehensive Siemens simulation platform with virtual controller creation, networking simulation, and exact firmware emulation essential for complex project validation.

Professional Features:

• Virtual S7-1500 controller creation with configurable hardware
• Complete TIA Portal integration including PROFINET simulation
• Multi-controller simulation for distributed systems
• Exact timing and execution characteristics
• Safety program validation capabilities
• API interfaces for custom simulation integration
• Supports all TIA Portal programming languages

Professional Use Cases:

• Pre-commissioning program validation before site deployment
• Complex distributed system testing
• Safety-instrumented system validation
• Training on expensive or dangerous processes
• Client demonstrations without physical hardware

Investment Justification: Single prevented commissioning error or reduced on-site startup time typically pays for annual PLCSIM Advanced license cost.

2. Factory I/O with Professional Software - Best Visual Testing

Factory I/O integrated with manufacturer programming software (Studio 5000, TIA Portal, EcoStruxure) provides the most realistic testing environment with photorealistic 3D visualization and actual PLC software execution.

Professional Applications:

• Client demonstrations showing realistic equipment operation
• Operator training on virtual production systems
• Pre-commissioning validation with visual verification
• Complex material handling system testing
• Multi-protocol integration testing

ROI Demonstration:

• Reduced commissioning time: 20-40% savings
• Fewer on-site program modifications: 50-70% reduction
• Improved operator training effectiveness: 30-50% improvement
• Earlier identification of design issues: prevents costly changes
• Enhanced client confidence through demonstrations

3. Rockwell Emulate - ControlLogix/CompactLogix Emulation

Emulate provides authentic Allen-Bradley controller emulation within Studio 5000 environment, essential for professional ControlLogix and CompactLogix application development.

Professional Capabilities:

• Exact ControlLogix and CompactLogix emulation
• All Studio 5000 features and instructions supported
• Motion control and safety program simulation
• FactoryTalk integration for HMI development
• Network communication emulation
• Multi-controller simulation

Professional Workflows:

• Develop complete programs before hardware arrival
• Test Add-On Instructions (AOI) and user-defined data types
• Validate equipment phase state models
• HMI screen development with process simulation
• Network communication protocol testing

Professional Evaluation Criteria

Fidelity Requirements:

Professional simulators must provide exact instruction execution, accurate timing characteristics, and perfect hardware compatibility to ensure simulated programs operate identically on physical controllers.

Test Coverage:

Comprehensive simulation enables testing of normal operations, fault conditions, safety scenarios, and edge cases difficult or dangerous to validate on physical systems.

Integration Capabilities:

Professional work requires integration with HMI systems, SCADA platforms, enterprise systems, and third-party equipment through authentic communication protocols.

Documentation and Validation:

Professional simulators must support thorough testing documentation, validation procedures, and quality assurance processes required for regulated industries.

Professional Best Practices

Pre-Commissioning Validation Protocol:

1. Develop program completely in simulator with thorough testing
2. Document all test cases including normal and fault conditions
3. Validate against specifications ensuring all requirements met
4. Test communication protocols with simulated partner devices
5. Generate validation documentation for client approval
6. Deploy to hardware with confidence in tested logic
7. Minimize on-site modifications reducing commissioning time

Continuous Professional Development:

Use simulators to maintain proficiency on platforms not regularly encountered, explore new features in updated firmware versions, and experiment with alternative programming approaches without hardware access.

PLC Simulator Setup Guide

Proper installation and configuration ensures optimal simulator performance and effective learning experiences.

Initial Setup Steps

System Preparation:

Verify computer meets minimum system requirements including operating system version, RAM capacity, available storage, and graphics capabilities before downloading simulator software.

Windows Updates: Ensure Windows 10/11 is fully updated with latest security patches and feature updates, as many simulators require current .NET Framework versions and system libraries.

Antivirus Configuration: Some antivirus software blocks PLC simulator communication or flags simulation executables as suspicious. Add simulator directories to antivirus exclusions before installation.

Administrator Rights: Most PLC simulators require administrator privileges during installation for driver installation, service configuration, and file system access.

Software Installation

Download from Official Sources:

Always download simulator software from official manufacturer websites or authorized distributors to avoid malware, ensure latest versions, and maintain software licensing compliance.

Installation Sequence:

Many simulators require prerequisite software installation in specific order:

1. Microsoft .NET Framework (typically 4.7.2 or later)
2. Visual C++ Redistributables (various versions depending on simulator)
3. Database engines (SQL Server Compact, Access Engine)
4. Main simulator application
5. Updates and patches to bring software to current version

Configuration Wizards:

Follow installation wizards carefully, noting installation directories, creating desktop shortcuts, and selecting appropriate options for educational vs professional use.

First Program Creation

Factory I/O Setup Example:

1. Install Factory I/O and activate license (student, professional, or free)
2. Install PLC programming software (TIA Portal, Studio 5000, etc.)
3. Configure communication in Factory I/O (select protocol and I/O mapping)
4. Load scene (e.g., "Sorting by Height" beginner scenario)
5. Create PLC program to control simulated equipment
6. Test and refine logic while observing 3D visualization

PLCLogix Setup Example:

1. Install PLCLogix and activate license
2. Launch software and select "New Project"
3. Choose simulation from library (e.g., Traffic Lights)
4. Create ladder logic using instruction palette
5. Download to simulator and run program
6. Observe 3D visualization and verify correct operation
7. Modify and retest to explore variations

Troubleshooting Common Issues

Communication Errors:

Firewall blocking simulator network traffic - add exceptions for simulator executables in Windows Firewall settings.

License Activation Problems:

Verify internet connectivity, check license key accuracy, ensure clock/date settings correct, and contact vendor support if activation repeatedly fails.

Performance Issues:

Reduce graphics quality settings in 3D simulators, close unnecessary background applications, increase virtual memory allocation, or upgrade graphics drivers.

Missing Prerequisites:

Error messages about missing DLL files typically indicate missing .NET Framework or Visual C++ Redistributables - install from Microsoft website.

Common Use Cases for PLC Simulators

PLC simulators serve diverse applications across education, professional development, and commercial project work.

Educational Applications

Technical School Programs:

Vocational and technical colleges use simulators like PLCLogix and Factory I/O to provide students with extensive hands-on practice without the costs and safety concerns of physical equipment. Students complete 50-100 hours of simulator practice developing proficiency before transitioning to physical hardware labs.

University Engineering Programs:

Four-year engineering programs integrate simulators into automation and controls courses, enabling students to complete complex projects, validate theoretical concepts, and understand industrial applications without expensive laboratory equipment investments.

Self-Paced Online Learning:

Individual learners use simulators to work through online tutorials, YouTube courses, and self-study programs at their own pace without classroom or lab access restrictions.

Corporate Training Programs:

Companies use simulators to train new employees on facility-specific control systems, cross-train maintenance personnel, and develop internal PLC programming capabilities without production disruptions.

Professional Development

Platform Learning:

Engineers transitioning between Siemens and Allen-Bradley platforms use simulators to develop proficiency on new platforms before accepting positions or projects requiring different manufacturer expertise.

Certification Preparation:

Candidates preparing for ISA CAP, manufacturer certifications, or other professional credentials use simulators to practice programming techniques and prepare for practical examinations.

Skill Maintenance:

Consultants and engineers who work with multiple platforms use simulators to maintain proficiency on systems they encounter infrequently, preventing skill degradation during periods without specific platform exposure.

Commercial Project Applications

Pre-Commissioning Validation:

System integrators develop complete automation programs in simulators, thoroughly test all scenarios, validate customer requirements, and identify design issues before traveling to customer sites for hardware installation and startup.

Client Demonstrations:

Sales engineers and project managers use Factory I/O and other visual simulators to demonstrate proposed automation solutions to potential clients, showing realistic equipment operation and control system capabilities before hardware purchase commitments.

Operator Training:

Creating virtual versions of production systems enables operator training on startup procedures, fault recovery, product changeovers, and emergency responses without interrupting actual production or risking equipment damage.

Program Documentation:

Simulators help create clear program documentation showing how systems respond to various inputs, timing sequences, and fault conditions through screenshots, videos, and recorded simulation sessions.

Remote Programming:

Developing programs remotely using simulators enables engineers to create and test logic while waiting for on-site access, hardware delivery, or project authorization, improving project timelines and resource utilization.

Limitations of PLC Simulators

Understanding simulator limitations helps set realistic expectations and identify when physical hardware testing becomes necessary.

Functional Limitations

Timing Accuracy:

Simulators running on general-purpose computers cannot perfectly replicate PLC scan time determinism and real-time response characteristics. Critical timing-dependent applications require physical hardware validation.

I/O Response:

Virtual I/O lacks the electrical characteristics, signal conditioning, noise immunity, and response delays of physical sensors and actuators. Some intermittent issues visible on real hardware may not appear in simulation.

Communication Protocols:

While simulators support common protocols, subtle timing dependencies, network congestion effects, and device-specific protocol variations may behave differently on physical networks.

Physical Process Dynamics:

Simulators cannot perfectly model mechanical inertia, fluid dynamics, temperature responses, or other physical phenomena. Control algorithms depending on these characteristics require physical testing.

Hardware Compatibility

Exact Instruction Execution:

Some proprietary instructions, hardware-specific features, or undocumented behaviors may differ between simulation and physical controllers. Always validate critical programs on actual target hardware.

Module-Specific Features:

Specialized I/O modules, motion controllers, safety processors, or communication cards may have simulator support limitations or missing functionality.

Firmware Variations:

Different firmware versions introduce instruction changes, bug fixes, and behavior modifications. Ensure simulator firmware matches target hardware for maximum compatibility.

Testing Gaps

Electrical Environment:

Simulators cannot test electrical noise immunity, grounding issues, power supply problems, or electromagnetic compatibility that affect real installations.

Field Device Compatibility:

Variable frequency drives, servo systems, smart sensors, and other intelligent field devices have unique communication characteristics, configuration requirements, and error modes not fully captured in simulation.

Integration Issues:

Multi-vendor system integration, protocol timing dependencies, and system-level interactions often reveal issues not apparent when testing components individually in simulation.

When Physical Testing Becomes Essential

Safety-Critical Systems:

Safety instrumented systems, emergency shutdown logic, and personnel protection systems require extensive physical testing and validation beyond simulation capabilities.

Regulatory Compliance:

FDA-regulated pharmaceutical systems, nuclear facilities, aviation applications, and other highly-regulated industries mandate physical hardware testing and validation.

Performance Optimization:

Final tuning of control loops, motion profiles, and performance optimization requires physical system response and cannot be completed satisfactorily in simulation alone.

Final Validation:

Even thoroughly simulated programs require physical hardware Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) before production deployment.

Best Practice Recommendations

Simulation + Physical Testing:

Use simulators for initial development, logic validation, and pre-commissioning preparation (60-80% of development), then conduct thorough physical testing for final validation and optimization (20-40% of commissioning).

Risk-Based Approach:

Simple applications with low consequences of failure can rely more heavily on simulation, while safety-critical or high-cost applications require extensive physical validation.

Iterative Development:

Develop programs in simulation, test on physical hardware, refine in simulation based on hardware results, then re-validate on hardware for optimal results.

Frequently Asked Questions

What is the best free PLC simulator software?

OpenPLC Editor provides the most comprehensive free PLC simulator with complete IEC 61131-3 language support including ladder logic, function blocks, structured text, sequential function charts, and instruction list. It runs on Windows, Linux, and macOS with no restrictions on commercial use.

For manufacturer-specific learning, Connected Components Workbench offers completely free Allen-Bradley Micro800 programming and emulation with professional-grade capabilities, while TIA Portal Basic with PLCSIM provides free Siemens S7-1200/S7-1500 simulation.

For absolute beginners, PLC Fiddle provides instant browser-based ladder logic practice without any downloads, installation, or registration requirements.

How much does Factory I/O cost?

Factory I/O pricing varies by license type:

• Student License: $49/year (requires educational email verification)
• Professional License: $199 first year, $99/year renewal
• Educational Institution: Contact for multi-user classroom pricing
• Free Version: Permanent license with limited scenes and features

The student license provides full functionality at exceptional value for learners, while professional licenses pay for themselves quickly through reduced commissioning time and prevented errors on single projects.

Can PLC simulators replace physical hardware for learning?

PLC simulators provide excellent learning platforms for programming logic, understanding control concepts, and developing initial proficiency, but cannot completely replace physical hardware experience for several reasons:

Simulators Excel At:

• Learning programming fundamentals and logic development
• Understanding control strategies and program structure
• Practicing safely without equipment damage risks
• Testing programs before hardware deployment

Physical Hardware Necessary For:

• Understanding real-world electrical interfaces and wiring
• Experiencing actual I/O response and timing characteristics
• Learning troubleshooting on real industrial equipment
• Developing hands-on commissioning and startup skills

Optimal Approach: Use simulators for 60-80% of initial learning to build programming competency efficiently and cost-effectively, then transition to physical hardware for 20-40% of training to develop practical hands-on skills, troubleshooting abilities, and real-world experience.

What PLC simulator works with Studio 5000?

Rockwell Automation Emulate (formerly RSEmulate 5000) provides official Allen-Bradley ControlLogix and CompactLogix emulation fully integrated within Studio 5000 Logix Designer environment. Emulate runs on the same computer as Studio 5000 and appears as a virtual PLC controller for program download and testing.

Factory I/O works with Studio 5000 through EtherNet/IP communication, enabling realistic 3D process simulation while programming actual Allen-Bradley PLCs in Studio 5000. This combination provides the most comprehensive Allen-Bradley learning experience with professional software and photorealistic visualization.

PLCLogix 5000 simulates the older RSLogix 5000 environment (Studio 5000 predecessor) with similar instruction set and programming approach, though it's a standalone simulator rather than integration with actual Studio 5000 software.

Do PLC simulators work with real PLCs?

Some simulators can communicate with physical PLCs while others are simulation-only:

Simulators with Physical PLC Connectivity:

• Connected Components Workbench: Downloads programs to Micro800 hardware
• TIA Portal with PLCSIM: Can switch between simulation and real S7-1200/S7-1500
• CODESYS Control Win: Real PLC runtime that controls actual I/O hardware
• Studio 5000 with Emulate: Can download same programs to ControlLogix/CompactLogix

Simulation-Only Platforms:

• PLCLogix: Educational simulator only, no hardware connectivity
• LogixPro: Simulation only, cannot connect to physical PLCs
• Factory I/O: Connects to PLC software (which connects to hardware), not directly to PLCs
• Web simulators: Browser-based only, no hardware connectivity

Best Practice: Use manufacturer software (TIA Portal, Studio 5000, CCW) for development that connects to both simulators and physical hardware, ensuring seamless transition from simulation to real equipment.

How realistic are PLC simulators compared to actual PLCs?

Simulator realism varies significantly by platform and type:

Manufacturer Simulators (PLCSIM, Emulate):

• Extremely realistic (95-99% functional equivalence)
• Execute actual PLC firmware with authentic instruction processing
• Accurately simulate scan times, timer operations, and program execution
• Identical programming interface as physical hardware
• Programs transfer to physical PLCs with minimal or no modification

Premium Educational Simulators (PLCLogix, Factory I/O):

• Highly realistic (85-95% functional equivalence)
• Accurately implement instruction behaviors and control logic
• Realistic timing and execution characteristics
• May simplify some advanced features or edge cases
• Skills transfer well to physical systems with minor adjustments

Basic Educational Simulators (LogixPro, web simulators):

• Moderately realistic (70-85% functional equivalence)
• Focus on fundamental concepts over exact hardware replication
• Simplified instruction sets and features
• Basic timing simulation may not match physical PLCs exactly
• Teach fundamental concepts that apply broadly across platforms

Critical Factors: Manufacturer simulators provide highest confidence for professional work, while educational simulators prioritize learning effectiveness over perfect hardware compatibility.

Can you learn PLC programming without a simulator?

Yes, but simulators significantly accelerate learning and improve outcomes:

Learning Without Simulators:

• Requires physical PLC hardware ($500-$5,000+ investment)
• Books, videos, and theoretical study of programming concepts
• Limited practice opportunities without expensive equipment
• Higher risk of equipment damage from programming errors
• Slower learning progression due to setup and access limitations

Learning With Simulators:

• Unlimited practice opportunities at any time
• Safe experimentation without equipment damage risks
• Immediate feedback showing program execution results
• Multiple industrial scenarios without physical equipment
• 30-50% faster skill development based on educational studies

Optimal Approach: Combine simulator practice with theoretical learning from quality resources like our complete PLC programming guide. Use simulators for the majority of practice, then gain physical hardware experience through employer-provided training, technical school labs, or modest starter kit purchases.

What are the system requirements for most PLC simulators?

System requirements vary by simulator complexity, but typical specifications include:

Basic Simulators (LogixPro, web-based):

• Windows 7 or later (or web browser for online simulators)
• 2-4GB RAM
• 100MB-1GB storage
• Basic integrated graphics
• Any modern processor from last 10 years

Professional Simulators (PLCLogix, PLCSIM):

• Windows 10/11 64-bit
• 4-8GB RAM minimum (8-16GB recommended)
• 2-5GB available storage
• DirectX 9 compatible graphics
• Intel i5 or AMD equivalent processor

Premium 3D Simulators (Factory I/O, Automation Studio):

• Windows 10/11 64-bit
• 8GB RAM minimum (16GB recommended)
• 4-10GB available storage
• DirectX 11 compatible graphics with 2GB+ VRAM
• Intel i5/i7 or AMD Ryzen processor
• 1920x1080 minimum screen resolution

Mac/Linux Users: OpenPLC runs natively on macOS and Linux. Other simulators require virtualization software (Parallels, VMware) or Boot Camp for Windows installation on Mac hardware.

Which PLC simulator is best for Allen-Bradley learning?

The optimal Allen-Bradley simulator depends on learning objectives and budget:

Best Free Option: Connected Components Workbench

• Completely free authentic Rockwell software
• Professional-grade environment for Micro800 series
• Skills transfer directly to Studio 5000
• Integrated emulator included
• Best for: Budget learners, Micro800 applications

Best Educational Platform: PLCLogix 5000

• Comprehensive RSLogix 5000 instruction set
• Multiple 3D simulation scenarios
• Structured curriculum with progressive exercises
• Student pricing at $49/year
• Best for: Structured learning, classroom use

Best Budget Simulator: LogixPro

• One-time $65 purchase (no subscription)
• SLC-500/MicroLogix style programming
• Multiple simulation exercises
• Good for fundamentals
• Best for: Absolute beginners, minimal budget

Best Professional Platform: Studio 5000 with Emulate

• Actual Allen-Bradley software used professionally
• Complete ControlLogix/CompactLogix emulation
• All advanced features and instructions
• Requires software purchase or employer license
• Best for: Professional development, actual projects

Best Visual Learning: Factory I/O + Studio 5000

• Photorealistic 3D industrial environments
• Programs actual Studio 5000 PLCs via EtherNet/IP
• Realistic equipment behavior and responses
• Student pricing $49/year
• Best for: Understanding real-world applications

Recommendation: Start with Connected Components Workbench (free) or LogixPro ($65) for fundamentals, then progress to PLCLogix 5000 ($49/year student) for comprehensive learning, and add Factory I/O for enhanced visualization.

How long does it take to learn PLC programming with simulators?

Learning timelines vary by background, dedication, and objectives:

Basic Competency (3-6 months):

• 5-10 hours per week practice with simulators
• Understand ladder logic fundamentals
• Write simple programs (motors, lights, basic sequences)
• Complete beginner exercises and simulations
• Sufficient for entry-level technician positions

Intermediate Proficiency (6-12 months):

• 8-15 hours weekly combining simulators and study
• Master timers, counters, math, and data manipulation
• Create complex applications with multiple sequences
• Understand program organization and documentation
• Qualify for junior PLC programmer positions

Advanced Skills (12-24 months):

• 10-20 hours weekly including simulator practice and projects
• Multi-platform proficiency (Siemens and Allen-Bradley)
• Advanced instructions, communications, HMI integration
• Troubleshooting and optimization capabilities
• Ready for mid-level PLC programmer roles

Professional Expertise (2-5 years):

• Continuous learning and practical application
• Multiple platform mastery and specializations
• System architecture and design capabilities
• Safety systems, motion control, advanced applications
• Senior engineer and leadership positions

Acceleration Factors:

• Engineering/electrical background: 30-50% faster progression
• Formal training programs: 40-60% faster than self-study
• Dedicated daily practice: 2-3x faster than sporadic study
• Mentor access: 30-50% faster skill development
• Quality simulators: 30-40% faster than hardware-only learning

Most dedicated learners achieve job-ready skills in 6-12 months combining simulator practice with theoretical study, online resources, and comprehensive PLC programming guides.

---

Master PLC Programming with Professional Training

Ready to accelerate your PLC programming skills beyond simulators and into professional-grade expertise? Our comprehensive training programs combine simulator practice with real-world applications, industry best practices, and expert instruction.

What You'll Master:

• Professional programming techniques for industrial applications
• Multi-platform proficiency (Siemens, Allen-Bradley, Schneider)
• Safety systems, motion control, and advanced features
• HMI integration and SCADA system development
• Real project experience with industry-standard tools

Explore PLC Programming Training Options →

Build career-ready skills that employers actively seek. Our training programs have helped hundreds of students transition into high-paying PLC programming careers.

Related Learning Resources:

• Complete PLC Programming Guide for Beginners - Start your PLC journey
• Learn PLC Programming: Complete Roadmap - Structured learning path
• Best PLC Programming Software 2025 - Professional tools comparison
• Free PLC Programming Software - Budget-friendly options
• PLC Programming Certification Guide - Advance your career

---

This comprehensive guide contains 5,800+ words covering the best PLC simulator software available in 2025. Use these simulators to develop professional programming skills, test automation logic safely, and accelerate your journey to becoming a competent PLC programmer without expensive hardware investments.
