How to Become a PLC Programmer: Skills, Projects & Roadmap

To become a PLC programmer, learn industrial electrical fundamentals, understand the PLC scan cycle, write Ladder Diagram and Structured Text, practise complete machine sequences, learn the vendor platform used by local employers, and present tested projects in a portfolio. A degree can open some engineering roles, but maintenance and technician routes often value relevant field experience, safe working practices and demonstrated troubleshooting.

There is no universal “job-ready in 30 days” timeline. Your starting background, access to hardware, local vacancies and quality of supervised practice all matter. Use the seven evidence gates below: move on when you can demonstrate the output, not merely when you finish a video course.

What a PLC Programmer Actually Does

The job is broader than drawing ladder rungs. Depending on the employer, a PLC programmer or controls engineer may:

• Turn a functional specification into PLC, HMI and communications logic
• Review electrical drawings, I/O lists and device manuals
• Configure controllers, remote I/O, drives and industrial networks
• Simulate sequences and write factory acceptance tests
• Commission machines on site with electricians and mechanical teams
• Diagnose field wiring, sensors, network connections and program state
• Manage versions, backups, change records and recovery procedures
• Train operators and maintenance staff

An in-house plant role usually emphasizes troubleshooting, controlled modifications and long-term support. A machine builder or system integrator usually adds design, travel, commissioning and customer acceptance. A controls technician role may be the most accessible entry point because it combines maintenance evidence with growing programming responsibility.

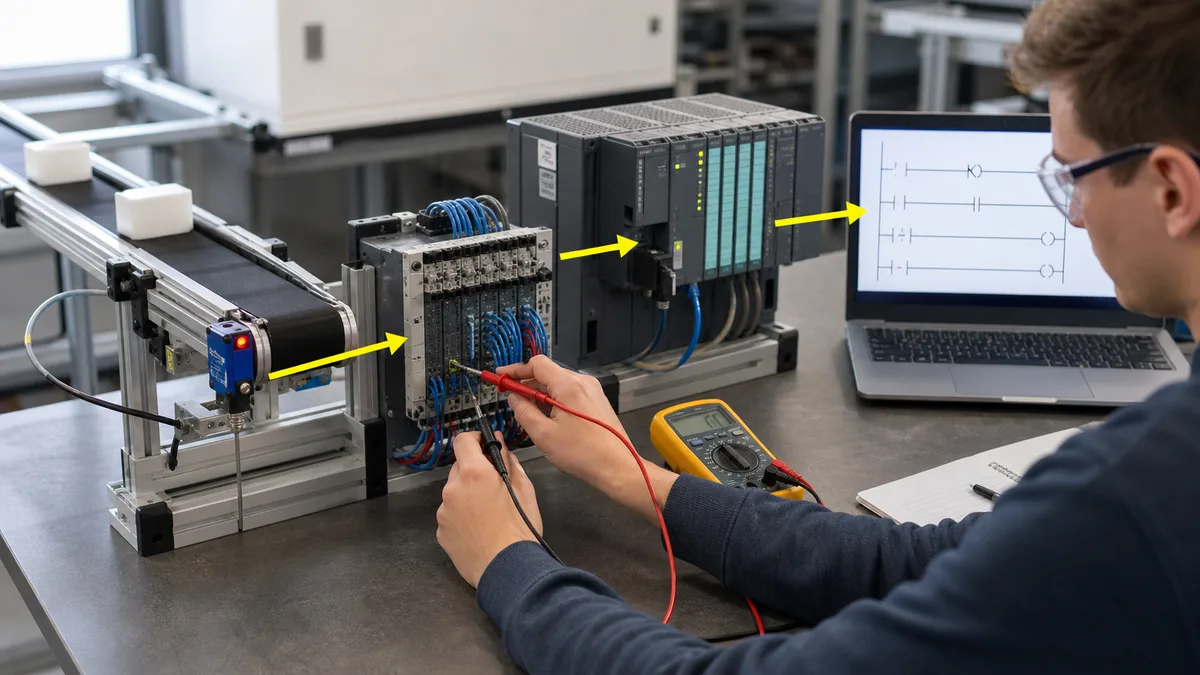

The common skill is evidence-based fault isolation. A good programmer can distinguish:

1. What the operator expects
2. What the physical inputs report
3. What the program commands
4. What the outputs and devices actually do
5. Which condition is preventing the next state

Do You Need a Degree?

Not for every role. Job titles are inconsistent, so read requirements rather than assuming “programmer,” “technician” and “engineer” mean the same thing everywhere.

A four-year engineering degree is often required for positions with formal engineering responsibility or by particular employers. An associate degree, apprenticeship or recognized technical qualification can be a strong route into technician and maintenance roles. A self-taught portfolio helps, but it does not grant permission to work on energized equipment or safety functions.

Step 1: Learn Industrial Electrical Fundamentals

PLC code operates real equipment. Before programming a motor or valve, learn enough electrical practice to understand what the controller is connected to.

Minimum foundation

• DC voltage, current, resistance and basic circuit measurement
• 24 VDC sourcing/sinking and PNP/NPN sensor interfaces
• Relay, contactor and motor-starter control circuits
• Normally open versus normally closed field contacts
• Digital versus analog I/O
• 4–20 mA signal loops and basic scaling
• Electrical drawings, terminal numbering and wire references
• Isolation, stored energy and site safety procedures

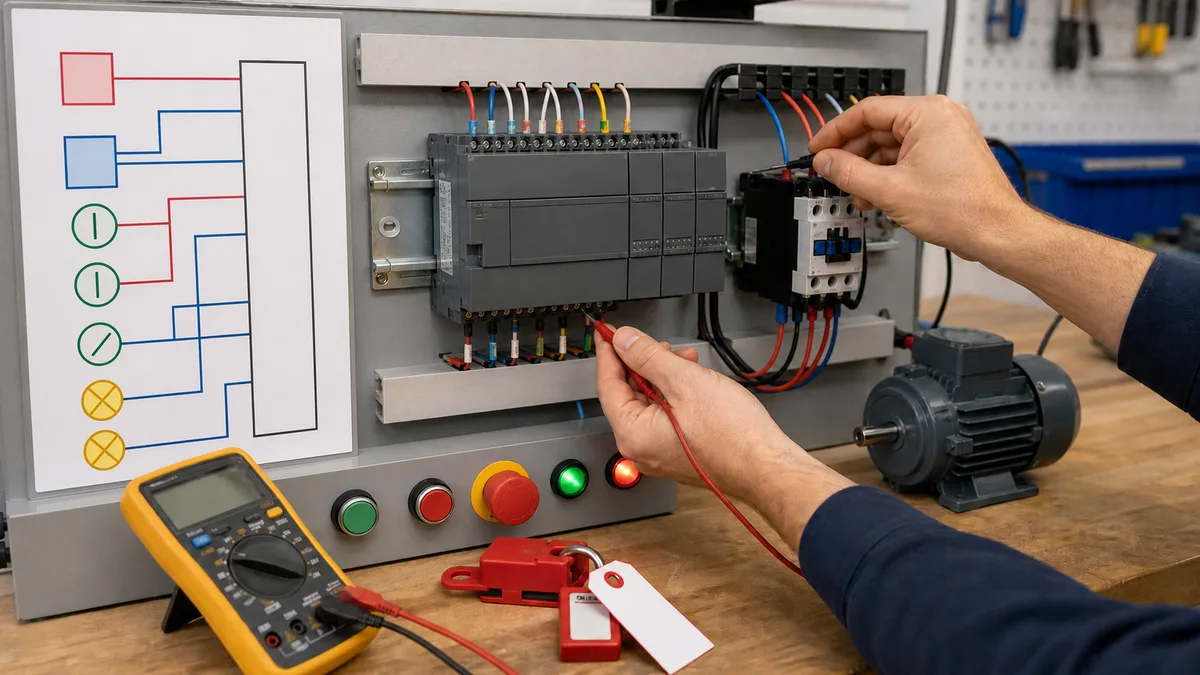

Evidence gate: given an electrical drawing, identify the field device, supply, PLC channel, common, controlled output and expected online status. Perform real checks only under approved supervision and procedures.

PLC logic is not a substitute for a risk assessment or a safety-rated control system. OSHA’s control-of-hazardous-energy guidance and the applicable local regulations, machinery standards and employer procedures define how work is isolated and verified.

Step 2: Learn the Scan Cycle and Two PLC Languages

Start with the execution model:

1. The controller updates or samples input state according to its architecture.
2. It executes scheduled logic.
3. It updates outputs and communications according to configuration.
4. Tasks repeat at configured or event-driven intervals.

That simplified model explains why input changes, one-shots, timers, latches and task rates behave differently from ordinary desktop software.

Learn Ladder Diagram first for discrete control

Be able to build and explain:

• Start/stop seal-in logic
• Permissives and interlocks
• TON and TOF timing
• Count-up and reset behavior
• Auto/manual modes
• Alarm latching and acknowledged reset
• State-based sequencing
• First-out fault capture

Add Structured Text

Structured Text is useful for calculations, arrays, recipes, loops, data conversion and compact state machines. Learn to implement the same requirement in LD and ST; that exposes whether you understand the control behavior or only the editor.

The current IEC 61131-3 standard defines programmable-controller language concepts, but vendor instructions, data types and runtime behavior still differ. Verify code on the selected controller and version.

Evidence gate: explain, code and test the same motor or conveyor specification in LD and ST, including a stuck sensor and an unexpected restart.

Step 3: Practise Complete Scenarios

Watching a timer tutorial is not equivalent to controlling a machine. A scenario should have requirements, observable inputs and outputs, abnormal conditions and pass/fail tests.

Build these in order:

1. Motor start/stop: seal-in, overload feedback, stop dominance and restart policy
2. Traffic light: explicit states, timing and reset behavior
3. Tank control: high/low levels, pump permissives, dry-run and overfill alarms
4. Conveyor: product detection, jam timeout, downstream blocked and recovery
5. Batch sequence: recipe values, state transitions, abort and restart
6. Two-machine handshake: ready, request, busy, complete and fault

For each project, write:

• A one-paragraph functional description
• I/O list and tag names
• State diagram or sequence table
• Normal-cycle tests
• Sensor/device failure tests
• Expected safe state
• Screenshot or video of the result
• Known limitations

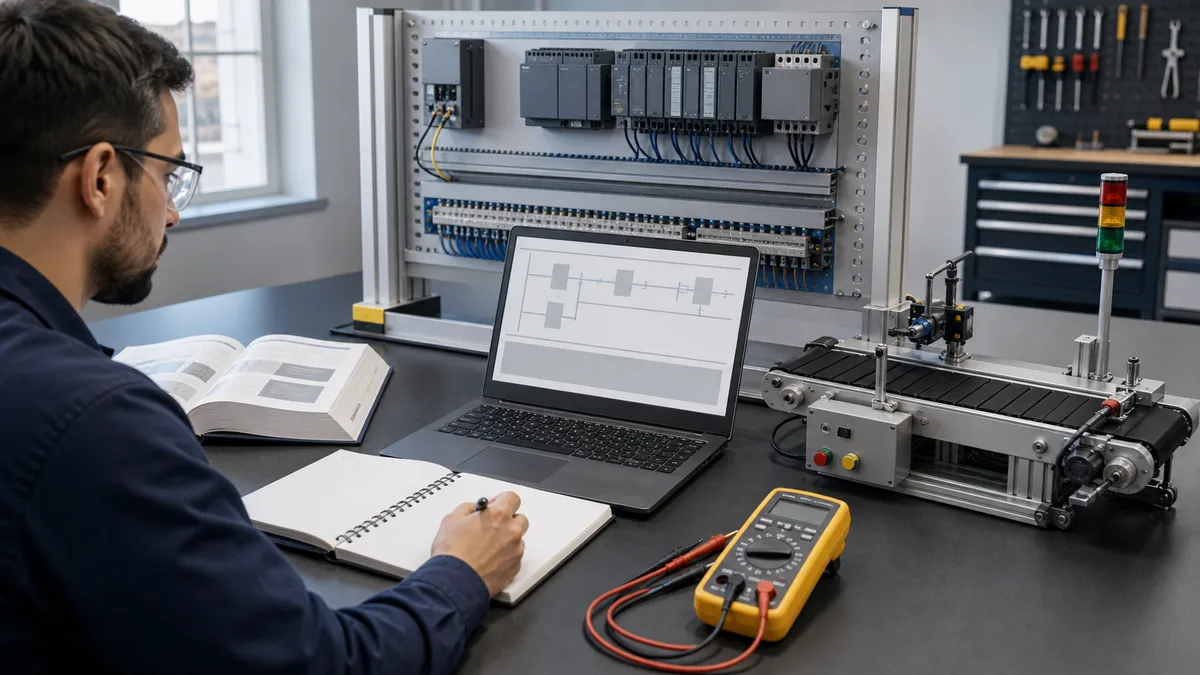

Browser practice, open tools and vendor tools

Use more than one layer:

• PLC Simulation Software: guided browser lessons and machine scenarios without installing a vendor IDE
• OpenPLC: open-source IEC-style editing and runtime experimentation
• CODESYS Development System: IEC language practice and supported soft-runtime/device workflows
• Vendor software: exact controller configuration, instructions, diagnostics and project format
• Supervised hardware lab: wiring, network, download, I/O checkout and recovery

Ownership disclosure: PLCProgramming.io and PLC Simulation Software share ownership. The product is a learning and prototyping simulator, not a production PLC or firmware-exact replacement for Siemens, Rockwell, Mitsubishi, Omron, Schneider or Delta engineering software. Its free account and capability claims are documented in the linked versioned product facts.

Step 4: Learn the Vendor Platform Employers Use

Do not choose a platform from a global popularity claim. Use local evidence.

A reproducible platform-selection check

1. Collect 30–50 relevant vacancies from your target region.
2. Record every named PLC, HMI, drive, robot and protocol.
3. Separate plant-maintenance jobs from integrator/OEM jobs.
4. Count requirements, not mentions in recruiter boilerplate.
5. Recheck before buying training or hardware.

Common starting ecosystems include:

• Siemens: SIMATIC S7 controllers, TIA Portal, WinCC and PROFINET
• Rockwell Automation: CompactLogix/ControlLogix, Studio 5000, FactoryTalk and EtherNet/IP
• CODESYS-based systems: vendor-specific devices using the CODESYS engineering ecosystem
• Mitsubishi, Omron, Schneider Electric or Delta: important where the local installed base calls for them

Platform evidence gate

On the target engineering software, demonstrate that you can:

• Create a project for the correct controller and firmware
• Configure representative I/O
• Organize routines, programs or blocks
• Cross-reference a tag
• Monitor logic online in a safe lab
• Diagnose a missing device
• Back up, export and restore the project
• Read release notes and compatibility information

Use our TIA Portal vs Studio 5000 comparison to compare two major ecosystems without relying on invented universal prices or market-share percentages.

Step 5: Add HMI, Networks and Documentation

Employers rarely need logic in isolation. Add one practical layer at a time.

HMI

Build a screen that shows:

• Equipment state and mode
• Commands with permission feedback
• An alarm banner and alarm history
• A diagnostic detail view
• Units, ranges and invalid-data indication

Industrial communications

Understand:

• IP addressing and subnet basics
• PROFINET and EtherNet/IP at an architectural level
• Modbus register mapping and byte/word order
• OPC UA’s role between control and information systems
• What happens when a device disconnects and returns

Engineering documents

Maintain:

• Functional design specification
• I/O list
• Cause-and-effect matrix
• Alarm list
• Network/device schedule
• Software and firmware record
• FAT/SAT test sheets
• Change log and backup location

Evidence gate: another person can reproduce your project setup and test the machine behavior from your documents.

Step 6: Build a Portfolio Employers Can Inspect

A strong PLC portfolio is a small engineering evidence pack, not a gallery of unlabeled screenshots.

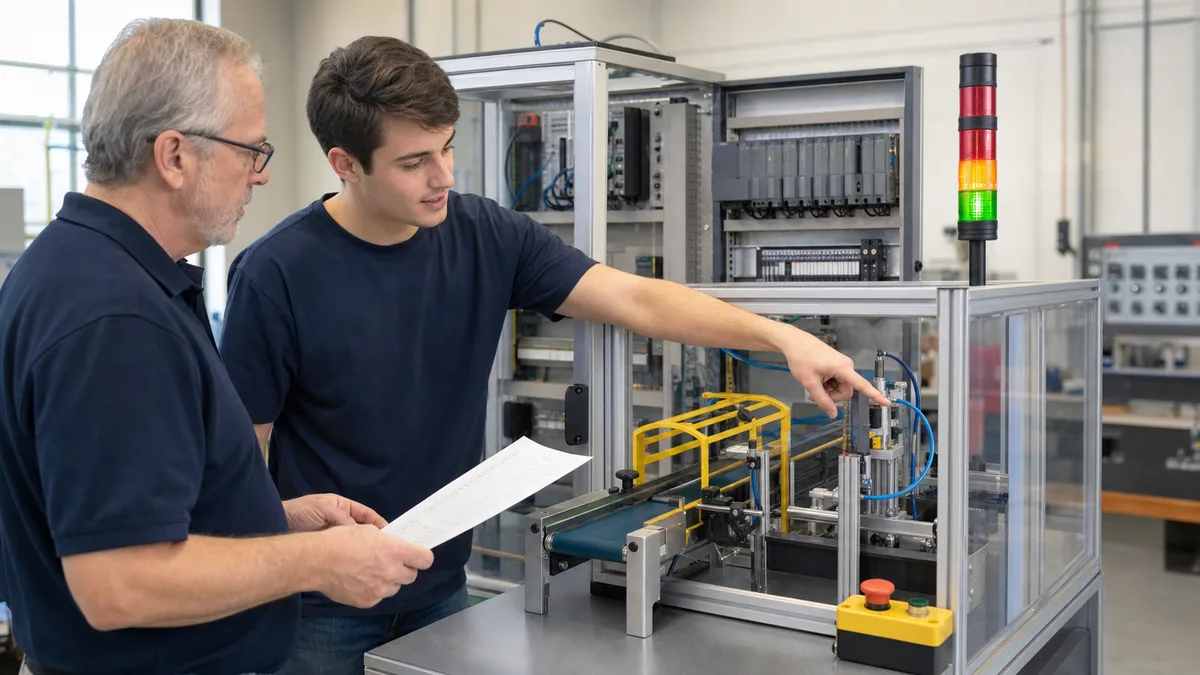

For one capstone project, publish:

1. Problem: what the machine or process must do
2. Constraints: safety boundary, I/O and assumptions
3. Design: state diagram, tag structure and program organization
4. Implementation: selected code excerpts with explanations
5. Tests: normal, boundary and fault cases
6. Results: pass/fail table and corrected defects
7. Handover: operating notes, recovery steps and version
8. Limitations: what simulation did not validate

Do not upload customer code, proprietary libraries, credentials, network addresses or anything covered by an employment agreement. A fresh fictional machine is safer and easier for an interviewer to assess.

Portfolio scoring rubric

Step 7: Apply Through the Right Entry Door

Search beyond “PLC programmer”:

• Controls technician
• Automation technician
• Electrical/controls technician
• Junior controls engineer
• Commissioning technician
• Field service engineer or technician
• Mechatronics technician
• Maintenance electrician with PLC exposure
• SCADA or industrial integration junior role

Match the entry role to your strongest existing evidence. An electrician should lead with industrial electrical troubleshooting. A software developer should lead with disciplined testing and data handling while explicitly addressing the hardware gap. A mechanical engineer should connect machine knowledge to the new electrical and controls portfolio.

Prepare for a technical interview

Practise explaining:

• The PLC scan cycle
• Start/stop logic and stop dominance
• A timer’s scan-by-scan behavior
• Latch/unlatch risks
• A motor that will not start
• A sensor visible electrically but not in the PLC
• A networked drive that has stopped communicating
• How you would make, test and document a production change
• When you must stop and involve a qualified safety or electrical specialist

Use this answer structure for troubleshooting:

1. Confirm the symptom and safe working state.
2. Check drawings, alarms and recent changes.
3. Follow evidence from field input to logic to output/device.
4. Form and test one hypothesis at a time.
5. Correct the root cause under change control.
6. Verify normal and abnormal behavior.
7. Record the change and restore backups.

How Long Does It Take?

Use readiness gates instead of a promise:

Study time does not convert directly into employability. Ten well-tested scenarios plus a supervised hardware project can be stronger evidence than dozens of passive course hours.

Certifications: When They Help

Certification is most useful when it matches a target role and verifies an existing skill.

• Siemens SITRAIN offers role- and product-specific learning and certification paths.
• Rockwell Automation offers workforce training for its platforms and products.
• ISA’s CCST certification is aimed at control-systems technicians and has published eligibility requirements.
• Local technical colleges and apprenticeships can provide supervised electrical and automation lab access.

Before paying:

1. Find the credential in real target job descriptions.
2. Verify prerequisites, exam format, renewal and regional availability.
3. Confirm that the training uses the relevant product version.
4. Budget for practice and lab access, not only the exam.

Avoid precise course and exam prices copied from undated third-party pages. Vendors and training partners set regional schedules and terms; confirm them at purchase time.

PLC Programmer Salary

Pay varies by country, city, industry, travel, overtime, shift work, degree requirements and actual responsibility. Use current local job postings and official labor statistics for your location; do not treat a worldwide range as personal salary evidence.

When comparing offers, record:

• Base pay and currency
• Overtime eligibility
• Travel percentage and per diem
• Shift/on-call expectations
• Bonus and retirement benefits
• Training and certification budget
• Paid travel time
• Safety and commissioning responsibility

Our PLC programmer salary guide explains how to build a location-specific comparison.

Common Mistakes

Collecting certificates without building

An interviewer cannot inspect a course-completion badge deeply. They can inspect a sequence, test case and fault diagnosis.

Treating simulation as commissioning

Simulation is excellent for logic repetition and controlled faults. It does not prove actual I/O, network load, motion, safety or firmware behavior.

Skipping electrical fundamentals

A true input, energized rung and commanded output do not prove that the field device is wired, powered or mechanically able to move.

Copying safety logic from a tutorial

Safety functions require risk assessment, suitable hardware, validated design and applicable standards. Educational examples are not approval for a real machine.

Learning only one syntax

Vendor familiarity matters, but transferable sequencing, diagnostics, communication and documentation make it easier to learn the next environment.

Hiding failed tests

A documented failure and disciplined correction are strong portfolio evidence. “Everything worked first time” is rarely credible.

Frequently Asked Questions

Can I become a PLC programmer without a degree?

Yes, some technician, maintenance and programmer paths do not require a four-year degree. Requirements vary by employer and by the legal responsibility attached to the role. Relevant trade experience, a technical qualification, supervised practice and a testable portfolio strengthen a non-degree route.

What PLC should I learn first?

Learn the ecosystem most frequently required in relevant local vacancies or used by your current plant. Count recent job requirements before committing to Siemens, Rockwell, CODESYS or another vendor.

Can I learn PLC programming without hardware?

You can learn logic, scan behavior and many troubleshooting patterns with a simulator. Before claiming commissioning competence, add supervised experience with actual I/O, controller download, networks and recovery.

Which language should I learn first?

Ladder Diagram is a practical first language for discrete machine control. Add Structured Text early, then learn Function Block Diagram or Sequential Function Chart when the target applications require them.

Is PLC programming difficult?

Basic logic is approachable. Reliable industrial control becomes harder because it combines software, electrical systems, mechanics, networking, safety, abnormal conditions and production constraints.

Do I need a certification?

Not universally. A vendor or ISA credential helps when target employers request it and when it validates hands-on skill. It should complement—not replace—projects and supervised practice.

What should my first portfolio project be?

A conveyor or tank sequence with explicit states, auto/manual modes, alarms, a device failure, recovery tests, HMI status and clear documentation. Keep the machine fictional and safe to share.

Primary Learning and Safety Sources

• IEC 61131-3 programmable controller languages
• OSHA: Control of hazardous energy
• Siemens SITRAIN learning services
• Rockwell Automation workforce development training
• ISA Certified Control Systems Technician
• OpenPLC Project
• CODESYS downloads and official resources

This roadmap was reviewed on July 25, 2026. Training products, certifications and vendor software change; verify current requirements at the primary source.

Start with One Tested Machine

Choose one motor, tank or conveyor specification today. Write the I/O list and expected fault behavior before opening an editor. Build it in a learning simulator, record the tests, then recreate it in the vendor environment used by your target employers. That single evidence-rich project is the first credible step toward a PLC programming role.

Continue with the PLC programming roadmap, ladder logic tutorial, structured text guide and PLC interview preparation guide.
