Industrial automation programming is the engineering of deterministic machine and process behavior across controllers, operator interfaces, supervisory systems, drives and robots. A PLC usually owns time-critical sequence and interlock logic; an HMI exposes state and commands; SCADA supervises many assets; motion and robot controllers execute specialized movement. The programmer must also define tests, diagnostics, recovery and the boundary between standard control and validated safety functions.
Industrial automation programming at a glance
| Programming surface | Typical responsibility | Representative deliverable | What proves it works |
|---|---|---|---|
| PLC or PAC | Scan-based logic, sequences, interlocks, analog control | Tagged program with modes, states, alarms and diagnostics | Repeatable normal, abnormal and recovery tests |
| HMI | Operator commands, state, alarms, trends and guidance | Screen set tied to a documented tag and alarm model | Operator task test with bad-state and permission checks |
| SCADA | Multi-controller supervision, historian, reporting and remote clients | Redundant or single-server project with controlled data paths | Communications-loss, failover, alarm and data-integrity tests |
| Motion or robot controller | Coordinated position, speed, path and tooling | Taught or programmed motion plus PLC handshake | Safe dry run, boundary checks and recovery from interrupted motion |
| Edge or integration service | Data transformation and northbound exchange | Broker, API, OPC UA or database integration | Store-and-forward, timestamp, identity and failure-mode tests |
| Safety-related control | Risk-reduction functions selected by the machine risk assessment | Validated safety application and evidence pack | Independent validation against the required safety specification |
The layers cooperate, but they should not be blurred. A dashboard is not a real-time interlock. A standard PLC output is not automatically a safety function. A browser simulator can prove logic patterns, but it cannot prove electrical installation, device response, network loading or the safety performance of a real machine.
A practical first project: one conveyor cell, five disciplines
Use one small conveyor as a learning spine instead of collecting disconnected tutorials:
- Define behavior. Write operating states for stopped, ready, running, blocked, faulted and reset-required. List the permissives and the recovery rule for each fault.
- Build the PLC logic. Implement start/stop control, motor feedback, a blocked-product timer, a part counter and a latched first-out fault.
- Add an HMI. Show the current state, missing permissive, motor command/feedback mismatch and a controlled reset. Do not let the HMI bypass the PLC state model.
- Expose supervisory data. Publish production count, downtime reason and alarm events to a simulated SCADA or historian interface.
- Test the edges. Remove feedback while running, hold a sensor on, interrupt a timer, lose communications and restart the runtime. Record expected and observed outcomes.
CASE CellState OF
0: (* STOPPED *)
MotorCmd := FALSE;
IF StartPB AND GuardPermissive AND DriveReady THEN
CellState := 10;
END_IF;
10: (* RUNNING *)
MotorCmd := TRUE;
IF NOT DriveFeedback THEN
FeedbackTimer(IN := TRUE, PT := T#2s);
ELSE
FeedbackTimer(IN := FALSE);
END_IF;
IF FeedbackTimer.Q THEN
FaultCode := 101;
CellState := 90;
ELSIF StopPB THEN
CellState := 0;
END_IF;
90: (* FAULTED *)
MotorCmd := FALSE;
IF ResetPB AND NOT StartPB AND GuardPermissive THEN
FaultCode := 0;
CellState := 0;
END_IF;
END_CASE;
This is a teaching pattern, not production-ready code. The real project needs platform-specific timer instances, task behavior, input conditioning, output ownership, restart analysis and a validated safety design.
Choose the right learning route
| Goal | Start here | Then add | Evidence to keep |
|---|---|---|---|

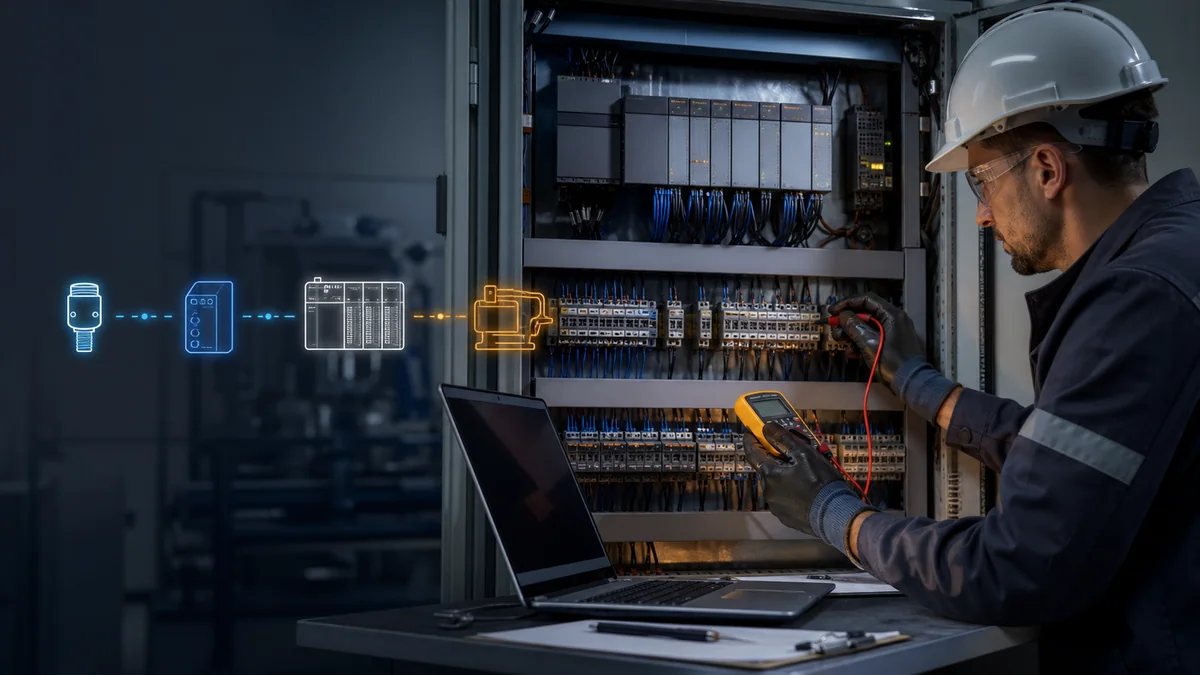

| Maintenance troubleshooting | Electrical drawings, I/O status, scan cycle and ladder reading | Drives, networks and structured fault isolation | Fault timeline, root cause and verified repair |
| PLC programming | Ladder, Structured Text, timers, counters and state machines | One vendor IDE, simulation and controller commissioning | Requirements, code export, tests and change notes |
| HMI/SCADA engineering | Tag model, alarms, trends and operator-task design | Redundancy, historians, security zones and deployment | Alarm rationale, screen test and failover evidence |

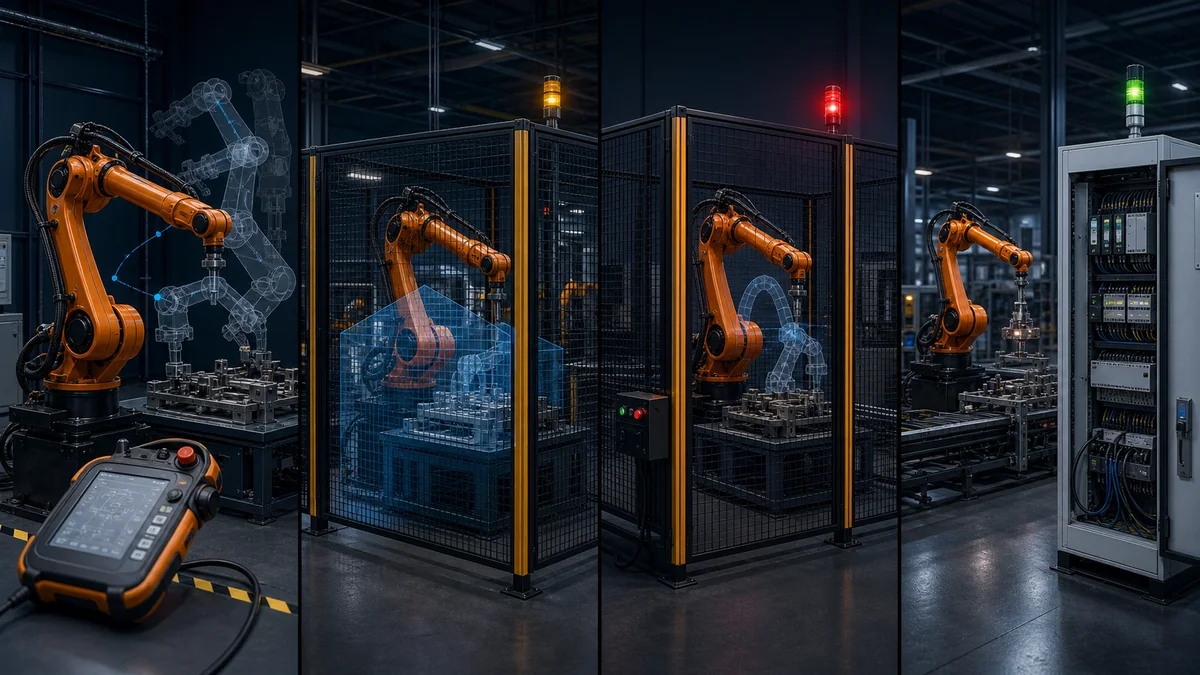

| Robot or motion integration | Coordinate systems, sequence handshakes and safe setup | Vendor language, path planning and cell recovery | Dry-run checklist, handshake trace and recovery proof |
| Controls engineering | All of the above plus specifications and design reviews | Functional safety, cybersecurity and lifecycle ownership | Design basis, FAT/SAT records and validated changes |
PLC Simulation Software is the disclosed companion practice product owned by the same publisher. It is useful for repeated ladder-logic and machine-behavior exercises in a browser; it is not a vendor IDE, hardware emulator, accredited certificate or substitute for supervised electrical and safety work.
Chapter 1: Fundamentals of Industrial Automation Programming
Industrial automation programming differs significantly from general software development, requiring specialized knowledge of real-time systems, industrial hardware, and manufacturing processes. Understanding these fundamentals is essential for effective automation system development.
Real-Time Requirements: Industrial automation systems must respond to inputs and generate outputs within precise timing constraints, often measured in milliseconds or microseconds. This deterministic behavior is essential for safety, quality, and process control applications where timing variations can cause product defects or dangerous conditions.
Harsh Environment Considerations: Automation programs must operate reliably in industrial environments with electrical noise, temperature extremes, vibration, and contamination that would quickly disable consumer electronics. This requires understanding of industrial-grade hardware and programming techniques that ensure reliable operation.
Safety Integration: Safety is paramount in industrial automation, requiring programs that fail safely, respond appropriately to emergency conditions, and maintain protective functions even when components fail. Safety programming follows strict standards and requires specialized training and certification.
Integration Complexity: Modern automation systems integrate multiple technologies including PLCs, HMIs, drives, robots, vision systems, and business software. Automation programmers must understand diverse platforms and communication protocols that enable seamless system integration.
Lifecycle Management: Industrial automation systems typically operate for 15-25 years, requiring programming approaches that support long-term maintenance, modification, and technology evolution. This long lifecycle requires careful attention to documentation, standards compliance, and future scalability.
Chapter 2: Programming Languages and Platforms
Industrial automation programming utilizes specialized languages and development platforms optimized for control applications, real-time performance, and industrial reliability requirements.

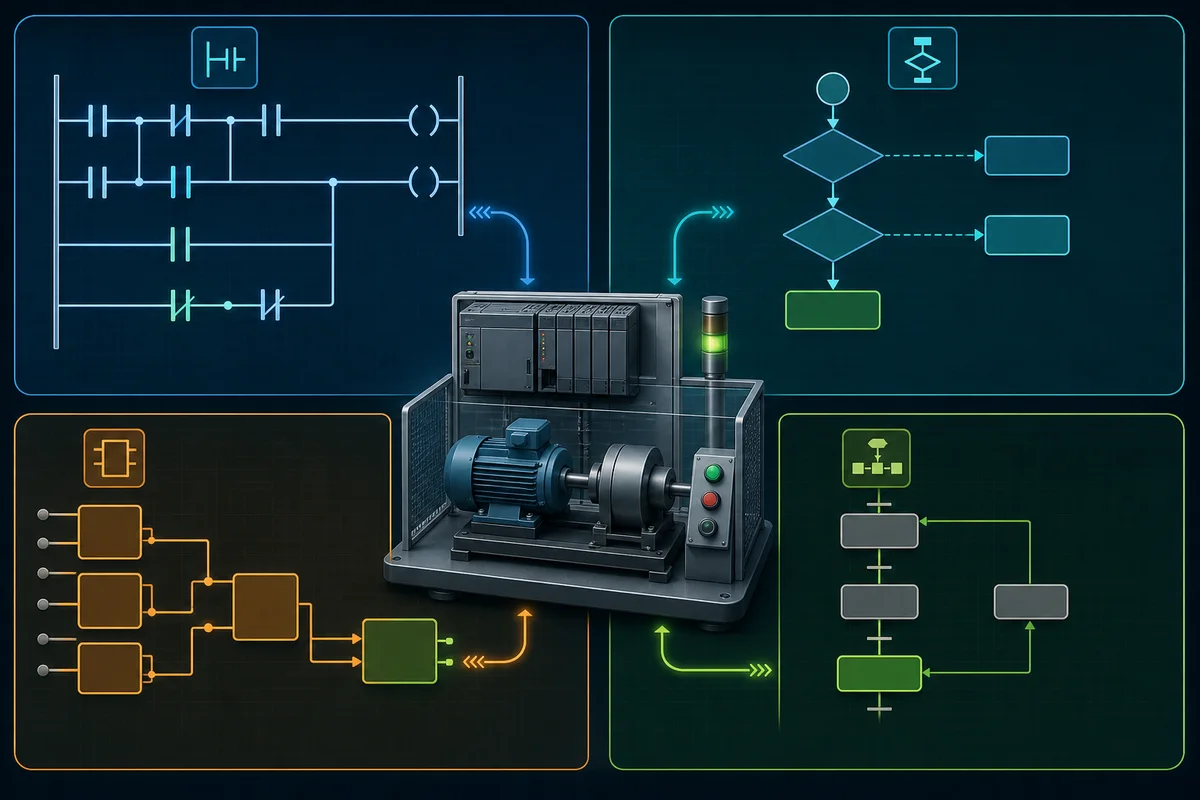

IEC 61131-3 programming languages: The current fourth edition, published in 2025, covers Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST) and Sequential Function Chart (SFC). Instruction List was deprecated in the third edition and removed from the fourth. Vendor implementations still differ in libraries, task models, type rules and hardware access, so “IEC compliant” does not mean a project is drop-in portable.

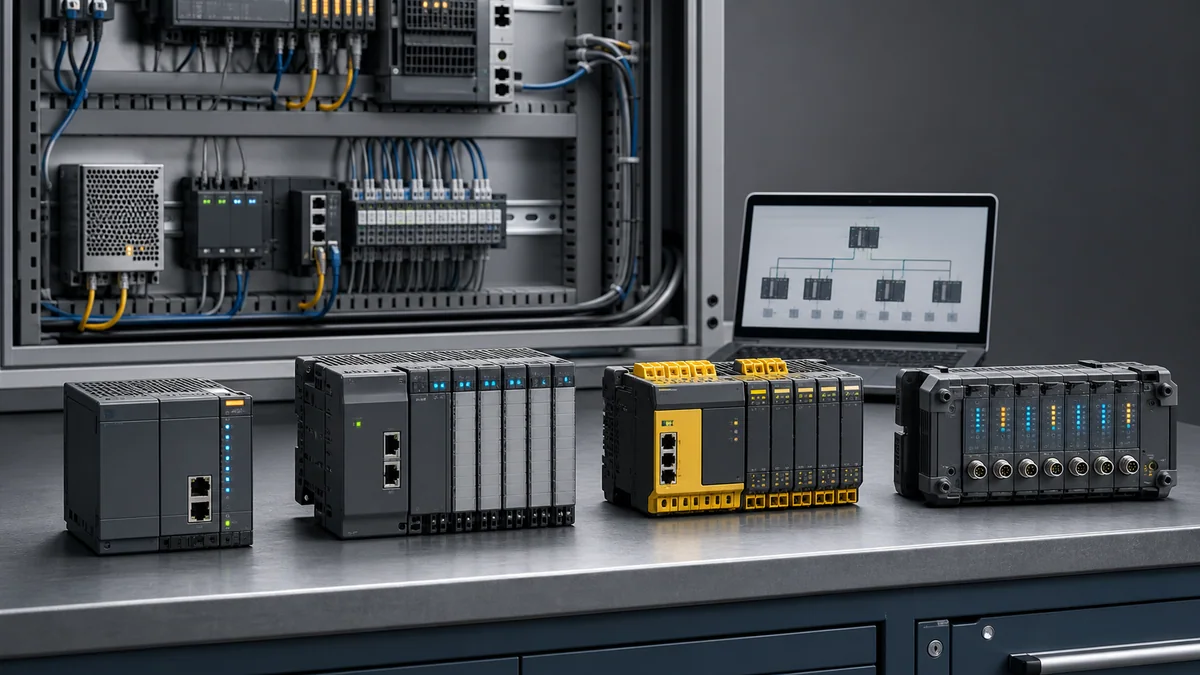

PLC Programming Platforms: Major platforms include Rockwell Automation's Studio 5000, Siemens TIA Portal, Schneider Electric's EcoStruxure, and numerous other manufacturer-specific environments. Each platform offers unique capabilities while supporting standard programming languages.
HMI Development Environments: Human-Machine Interface programming uses specialized tools including Wonderware, FactoryTalk View, WinCC, and web-based platforms that enable creation of operator interfaces, data visualization, and alarm management systems.
Motion Control Programming: Servo and motion applications require specialized programming environments that handle trajectory generation, coordinate transformation, and real-time interpolation for precise positioning and synchronized motion.
Safety Programming: Safety-rated systems use specialized programming environments that enforce safety standards, provide comprehensive diagnostics, and ensure fail-safe operation for critical safety functions.
Integration Programming: Modern systems often require custom programming in languages including C++, Python, and .NET for advanced algorithms, data analytics, and business system integration.
Chapter 3: System Architecture and Design
Effective industrial automation programming requires understanding system architecture principles that ensure scalable, maintainable, and reliable automation solutions.

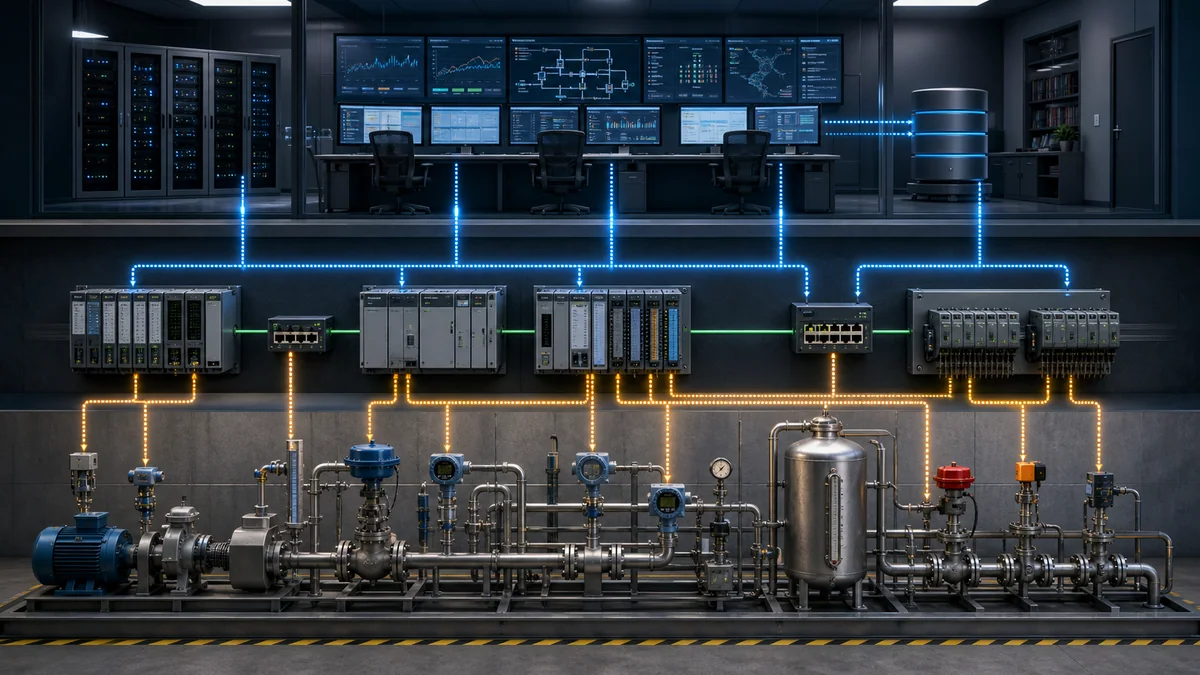

Hierarchical Control Architecture: Industrial systems typically use hierarchical architectures with device-level control, supervisory coordination, and enterprise integration. Each level has different programming requirements and performance characteristics.
Distributed Control Strategies: Modern systems distribute control functions across multiple processors to improve reliability, performance, and maintainability. This requires understanding of communication networks, data synchronization, and failover strategies.
Modular Programming Approaches: Modular design principles enable creation of reusable code components that reduce development time and improve system maintainability. Object-oriented programming concepts are increasingly applied to industrial automation.
Data Management Architecture: Industrial systems generate vast amounts of data requiring systematic collection, storage, analysis, and reporting. Programming must consider data historian integration, real-time analytics, and business system connectivity.

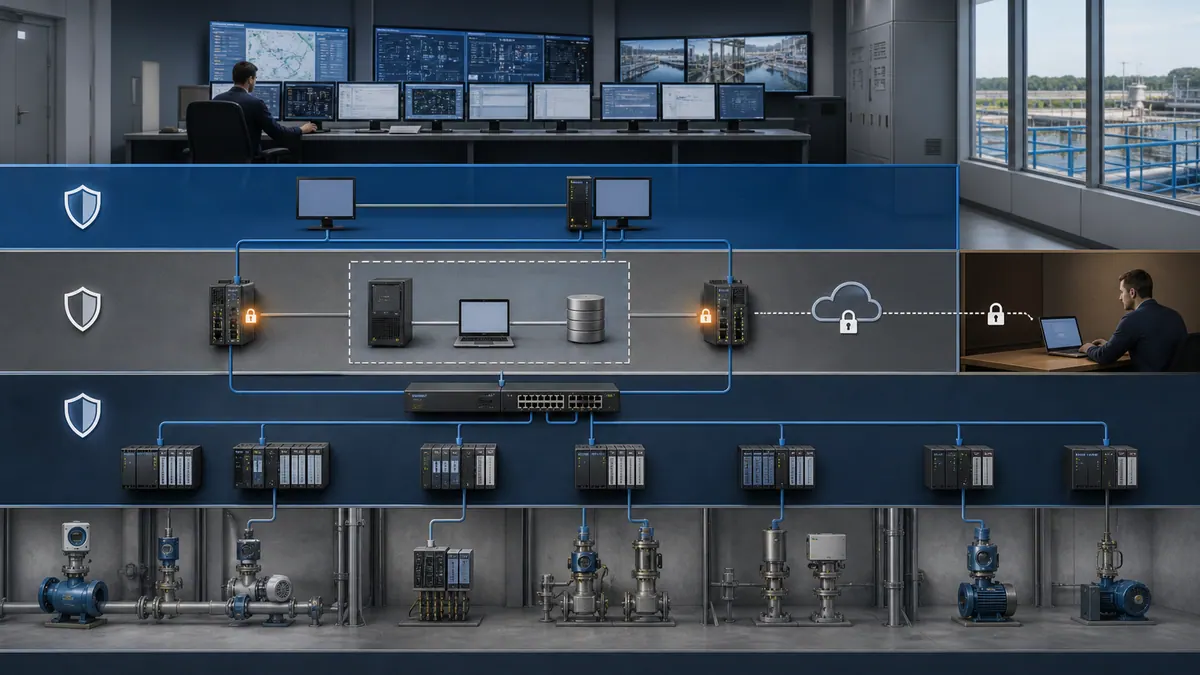

Security Architecture: Industrial cybersecurity requires programming approaches that protect against unauthorized access while maintaining real-time performance. This includes network segmentation, access controls, and intrusion detection.
Scalability Considerations: Automation systems must accommodate future expansion and technology evolution. Programming architectures should support additional I/O, new functionality, and integration with emerging technologies.
Chapter 4: Advanced Programming Techniques
Modern industrial automation programming incorporates sophisticated techniques that enable complex control strategies, optimization, and intelligent system behavior.
Model Predictive Control: Advanced process control algorithms use mathematical models to predict future behavior and optimize control actions over future time horizons. This requires understanding of control theory, optimization algorithms, and numerical methods.
Artificial Intelligence Integration: Machine learning and AI techniques are increasingly integrated into automation systems for predictive maintenance, quality optimization, and adaptive control. This requires understanding of data science concepts and AI development tools.
Digital Twin Implementation: Digital twin technology creates virtual replicas of physical systems that enable simulation, optimization, and predictive analysis. Programming digital twins requires understanding of simulation tools, data integration, and real-time synchronization.
Edge Computing Applications: Edge computing brings advanced processing capabilities closer to manufacturing processes, enabling real-time analytics and autonomous decision-making. This requires understanding of distributed computing and communication protocols.
Cloud Integration: Modern automation systems increasingly connect to cloud platforms for data analytics, remote monitoring, and business intelligence. This requires understanding of cloud architectures, security protocols, and data management strategies.
Cybersecurity Implementation: Industrial cybersecurity programming includes network security, device hardening, intrusion detection, and incident response capabilities that protect automation systems from increasing security threats.
Chapter 5: Testing, Validation, and Maintenance
Comprehensive testing and validation ensure that industrial automation programs operate safely and effectively throughout their operational lives.
Simulation and Emulation: Advanced simulation tools enable comprehensive testing of control logic before hardware installation, reducing commissioning time and preventing costly errors. Virtual commissioning has become standard practice for complex systems.
Hardware-in-the-Loop Testing: HIL testing combines real hardware with simulated processes to validate control algorithms under realistic conditions while maintaining safe testing environments.
Formal Verification: Critical safety systems may require formal verification techniques that mathematically prove program correctness and safety properties. This is particularly important for safety-critical applications.
Performance Optimization: Industrial systems require ongoing performance monitoring and optimization to maintain efficiency and prevent degradation over time. This includes scan time optimization, memory management, and communication performance analysis.
Predictive Maintenance: Automation programs increasingly include predictive maintenance capabilities that monitor system health and predict maintenance requirements before failures occur. This requires understanding of condition monitoring and data analytics.
Version Control and Change Management: Industrial automation programs require systematic version control and change management procedures that maintain system integrity while enabling necessary modifications and updates.
Primary standards and technical sources
- IEC 61131-3:2025 publication record — current programmable-controller language edition.
- PLCopen guidance for recognizing IEC 61131-3 systems — practical language and conformance context.
- CISA industrial control systems resources — current cybersecurity guidance and advisories for control environments.
- ISA-101 overview — lifecycle context for human-machine interfaces.
Conclusion: Excellence in Industrial Automation Programming
Industrial automation programming represents one of the most challenging and rewarding disciplines in modern manufacturing technology. The comprehensive knowledge and skills covered in this guide provide the foundation for building successful careers in this dynamic field while contributing to manufacturing competitiveness and economic growth.
Success in industrial automation programming requires continuous learning, practical experience, and staying current with rapidly evolving technologies. The fundamental principles covered in this guide—real-time programming, safety integration, system architecture, and advanced techniques—provide the foundation for tackling any automation challenge.
The future of industrial automation programming lies in the integration of traditional control technologies with artificial intelligence, cloud computing, and advanced analytics. Professionals who master both traditional automation skills and emerging technologies will find the most opportunities for career advancement and professional fulfillment.
Focus on developing both technical programming expertise and understanding of manufacturing processes, business requirements, and safety standards that drive automation decisions. The most successful automation programmers combine strong technical abilities with practical application knowledge and effective communication skills that enable them to work effectively with diverse teams and stakeholders.
Your expertise in industrial automation programming positions you at the forefront of the Fourth Industrial Revolution, where intelligent automation systems are transforming manufacturing and creating new opportunities for innovation, efficiency, and competitiveness. Continue learning, practicing, and building the capabilities that will define the future of industrial automation.
