Structured Text Loops and Control Flow for PLCs

Direct answer

In PLC Structured Text, use IF / ELSIF / ELSE for ordered priority decisions, CASE for one branch selected by a discrete value or state, FOR for a known bounded iteration range, WHILE when the body may execute zero times, and REPEAT ... UNTIL when the body must execute at least once. EXIT leaves the immediately enclosing loop. CONTINUE skips the remainder of the current iteration where the exact compiler supports it. RETURN leaves the current POU/routine according to product-specific rules.

The most important PLC rule is that a normal loop executes inside one program/task invocation. A FOR loop with 1,000 iterations does not automatically perform one iteration per scan; it attempts all iterations before later statements in that routine can execute. Excessive or unbounded work can miss the task deadline or trigger a watchdog fault. If work must be spread over scans, store a cursor and result state, process a fixed budget per call, validate a stable data version and define cancellation/restart behavior.

Prefer bounded FOR loops for array work. If WHILE or REPEAT is necessary, add a hard maximum-iteration guard and prove that every path either makes progress, exits or faults. Validate bounds before the array reference. Do not call one timer or stateful function-block instance repeatedly for unrelated elements; use independent instances when independent memory is required. Measure worst-case time on the exact CPU, compiler, task and data—not only in a browser or desktop simulation.

Download the complete Structured Text examples, 26-case control-flow test matrix and loop/task budget worksheet.

Page ownership and prerequisites

This guide owns control-flow selection, bounded execution and loop failure behavior. The broad Structured Text programming guide remains the language/tutorial owner. The PLC arrays and data-handling guide owns array declarations, bounds, copy/fill, numeric types and data transactions. The PLC sequencer/state-machine guide owns multi-scan operating states and transitions. This page links them without turning loops into a second full ST or arrays course.

All examples use IEC-style notation. Exact declarations, supported constructs and keywords vary by vendor, controller family, tool version and language edition. “IEC Structured Text” describes a standard family; it does not mean every extension or compiled behavior is interchangeable.

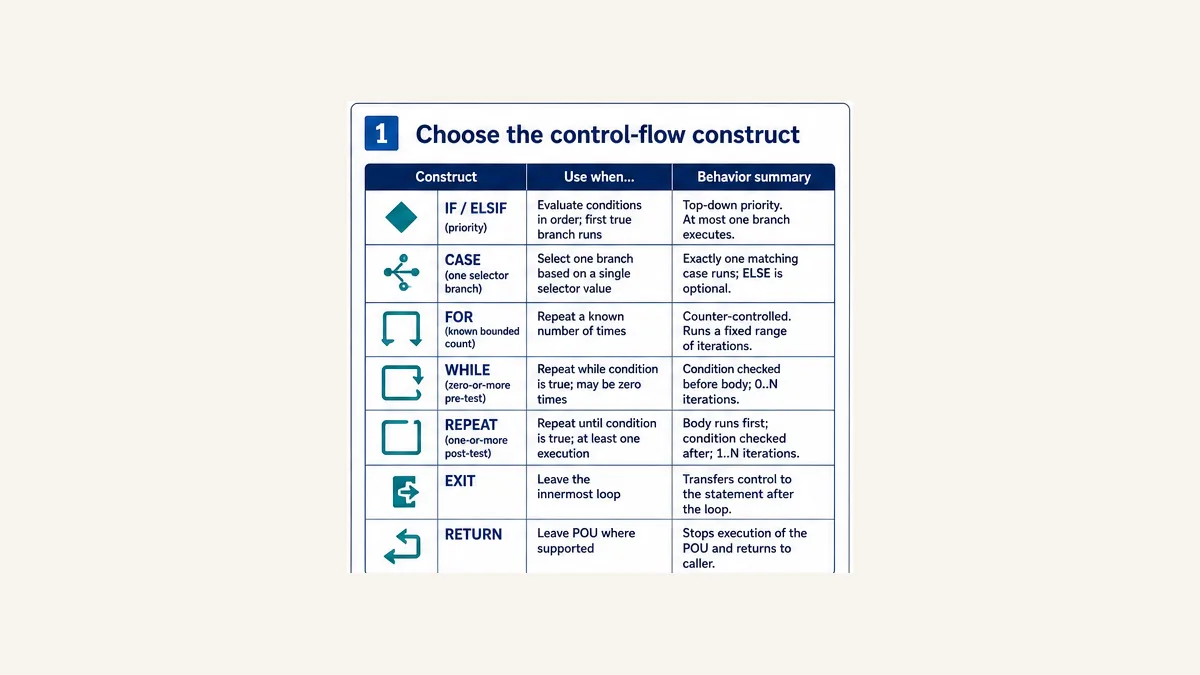

Control-flow construct selector

Construct	Condition evaluated	Iterations/branches	Best use	Main PLC risk
IF / ELSIF / ELSE	top to bottom until first true	at most one branch	priority and range decisions	hidden priority or output left stale without defaults
CASE	selector once per execution of statement	one matching label/ELSE	state/enumeration/command dispatch	missing invalid/default branch
FOR	initial, terminal and step per target semantics	normally known/bounded	arrays and fixed repeated calculations	inclusive-bound error or too much work in one scan
WHILE	before every iteration	zero or more	bounded search/process where initial execution is optional	zero progress or condition never becomes false
REPEAT ... UNTIL	after every iteration	one or more	bounded process that must run once before testing	unintended first write or condition never becomes true
EXIT	when reached inside loop	leaves innermost loop	first-match search or early invalid condition	assumed to exit nested outer loop too
CONTINUE	when reached inside loop	skips remainder of current iteration	reject invalid item and continue	non-portable extension and skipped cleanup/counter code
RETURN	when reached in supported POU/routine	leaves current call surface	reject invalid input before main body	outputs retain stale values if defaults not assigned first

Avoid GOTO for ordinary application flow even where a target accepts it. It can jump around initialization, validation and diagnostic assignments, making worst-case execution and review harder. Structured constructs make entry and exit points visible.

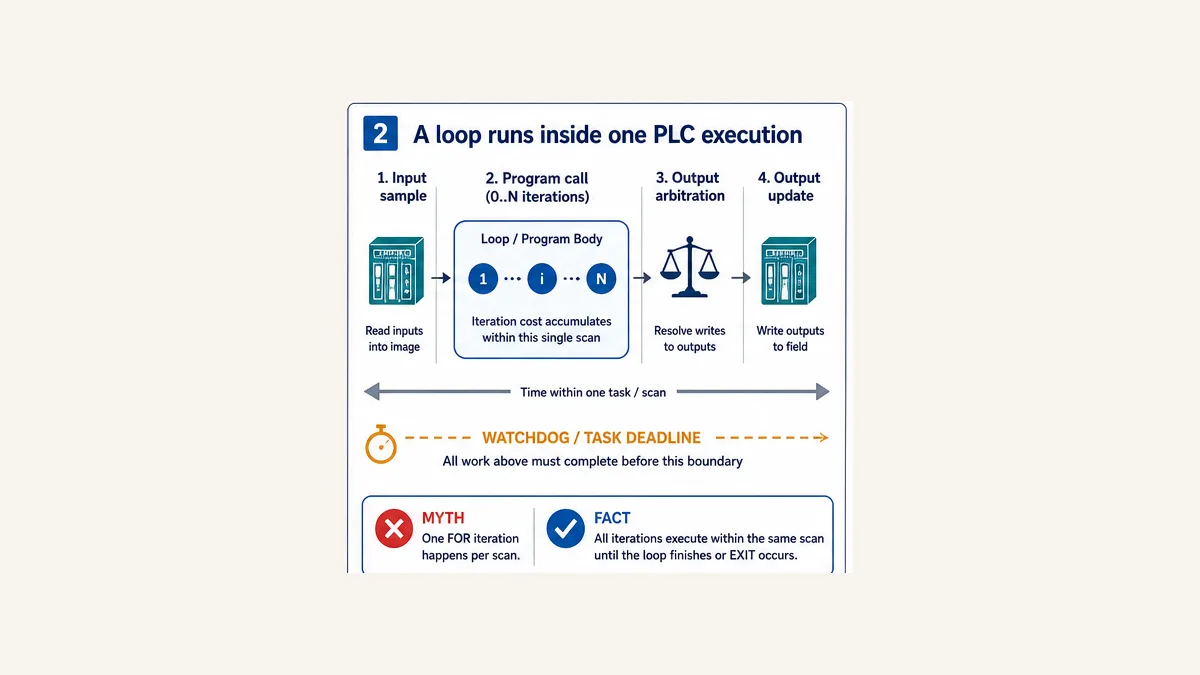

A loop runs within one PLC execution

Correct the one-iteration-per-scan myth

Assume a periodic task does this:

1. reads or uses its current input image;
2. calls an ST routine;
3. the routine executes a FOR i := 0 TO 999 DO ... END_FOR;
4. later logic arbitrates commands; and
5. outputs are updated according to the platform/task/I/O model.

The routine normally finishes the loop before step 4. If each iteration takes 8 microseconds, loop work alone is about 8 ms before fixed routine/task overhead. A 10 ms periodic deadline now has little headroom. Real per-iteration cost depends on the operations, types, memory, called POUs, compiler optimization, target and data-dependent branches.

Rockwell’s current WHILE_DO, REPEAT_UNTIL and FOR_DO documentation explicitly warns not to iterate too many times in one scan; current WHILE_DO help identifies a major fault if the construct runs beyond the task watchdog. Other runtimes have their own watchdog and overrun behavior. Increasing the watchdog without bounding and measuring the loop hides the cause and can delay the rest of control.

Estimate and measure the budget

Use a conservative engineering estimate:

Predicted task time = fixed worst-case work + maximum iterations × worst measured cost per iteration + preemption/communication margin

Do not calculate from average input length if the valid maximum can arrive. Use a target trace or task diagnostics to measure minimum, typical and maximum execution under representative worst-case data, communications, online monitoring and task interaction. Set a project-specific headroom requirement rather than running at the deadline.

Budget input	Example	Evidence
periodic task interval	10 ms	task configuration
approved code budget	7 ms	architecture/timing requirement
worst fixed task work	2.1 ms	target trace across representative load
maximum valid items	64	interface/array contract
worst per-item cost	12 µs	target measurement with costly branch/type path
predicted total	2.868 ms	fixed + 64 × 0.012
headroom to code budget	4.132 ms	budget minus prediction

This estimate is not timing validation. Cache, memory layout, library calls, floating point, strings, communication instructions, task preemption, online tools and target generation can change execution.

IF, ELSIF and ELSE: priority control

Only the first true branch executes

Command := FALSE;
Decision := E_Decision.None;

IF AbortReq THEN
    Decision := E_Decision.Abort;
ELSIF StopReq THEN
    Decision := E_Decision.Stop;
ELSIF StartReq AND Ready THEN
    Command := TRUE;
    Decision := E_Decision.Start;
ELSE
    Decision := E_Decision.NoRequest;
END_IF;

If Abort and Start are true, Abort wins because it is checked first. ELSIF is not the same as separate IF statements: separate statements can both execute and later assignments can overwrite earlier results. Write the priority in a cause/effect table and test simultaneous conditions.

Default outputs and diagnostic reason before the decision unless every branch assigns them. Without a default/ELSE, a stateful program variable can retain its prior value, which may look like an intentional latch.

Do not assume short-circuit evaluation

This condition is unsafe if the target evaluates both operands before applying AND:

IF (Index < Length) AND (Values[Index] = Target) THEN
    Found := TRUE;
END_IF;

Use nested validation for portable safety:

IF (Index >= 0) AND (Index < Length) THEN
    IF Values[Index] = Target THEN
        Found := TRUE;
    END_IF;
END_IF;

CODESYS documents AND_THEN as a non-IEC extension that short-circuits later operands, while ordinary AND evaluates all operands. That extension cannot be assumed in another compiler. Rockwell publishes operator precedence/order but the safe translation remains explicit nesting unless exact product documentation proves the intended evaluation. Never use an invalid array/pointer access as the right side of an unverified Boolean expression.

CASE: one selector, one branch

Use CASE for a state, mode, command or discrete classification:

CASE State OF
    E_State.Idle:
        RunCmd := FALSE;
    E_State.Starting:
        RunCmd := TRUE;
    E_State.Running:
        RunCmd := TRUE;
    E_State.Faulted:
        RunCmd := FALSE;
ELSE
    RunCmd := FALSE;
    InvalidStateFault := TRUE;
END_CASE;

IEC-style ST has no C-style fall-through: one matching label’s statements execute. CODESYS documents individual labels, comma-separated labels and label ranges for its supported selector types. Other targets differ on enumeration qualification, ranges and allowable selector types. Always include an invalid/default policy when a corrupted, migrated or uninitialized selector could occur.

CASE does not inherently make a state machine scan-safe. If branches write State and a second CASE reads it later in the same call, cascading remains possible. Use the two-phase pattern in the sequencer guide when only one transition may commit.

FOR: the safest default for known bounds

Inclusive endpoints and explicit step

Sum := LREAL#0.0;
ValidCount := UINT#0;

FOR i := 0 TO 7 BY 1 DO
    IF Samples[i].Valid THEN
        Sum := Sum + REAL_TO_LREAL(Samples[i].Value);
        ValidCount := ValidCount + UINT#1;
    END_IF;
END_FOR;

For the common inclusive 0 TO 7 semantics, eight iterations execute. 0 TO 8 risks an out-of-range access for an eight-element zero-based array. Named bounds or supported LOWER_BOUND/UPPER_BOUND functions reduce duplication, but verify availability and dimension syntax.

The exact loop-variable and terminal behavior is not a portability detail. Current Rockwell FOR_DO documentation permits positive or negative step values and describes ending after the index passes the terminal in the step direction. CODESYS-derived targets document their own evaluation and overflow caveats. Siemens SCL and Omron tools have generation-specific rules. Do not depend on the loop variable’s value after normal completion or EXIT without target documentation and a test; copy the meaningful result into a separate output.

Never mutate the loop contract inside the body

Do not write the index, terminal value, step or input length from inside the loop. Even where accepted, it hides the maximum iteration count and can create missed items, repeated items or nontermination. Capture a validated length/bound before the loop if another task or communication service can change it.

Bound failure	Example	Consequence	Better pattern
off by one	0 TO Length for count Length	one extra access	0 TO Length - 1 after Length > 0, or explicit upper bound
signed/unsigned conversion	Length=0, compute unsigned Length-1	wraps to maximum	guard zero before subtraction
changing length	HMI/network updates Length during loop	data-dependent boundary	validate and snapshot length/version
overflow at terminal	loop type at numeric maximum with positive increment	target-specific wrap/nontermination	choose wider type/safer terminal and target-test
body writes index	i := i + 1 inside FOR	skipped values or undefined target behavior	let construct own index
excessive maximum	valid 100,000 items	task/watchdog overrun	reject, optimize or chunk across calls

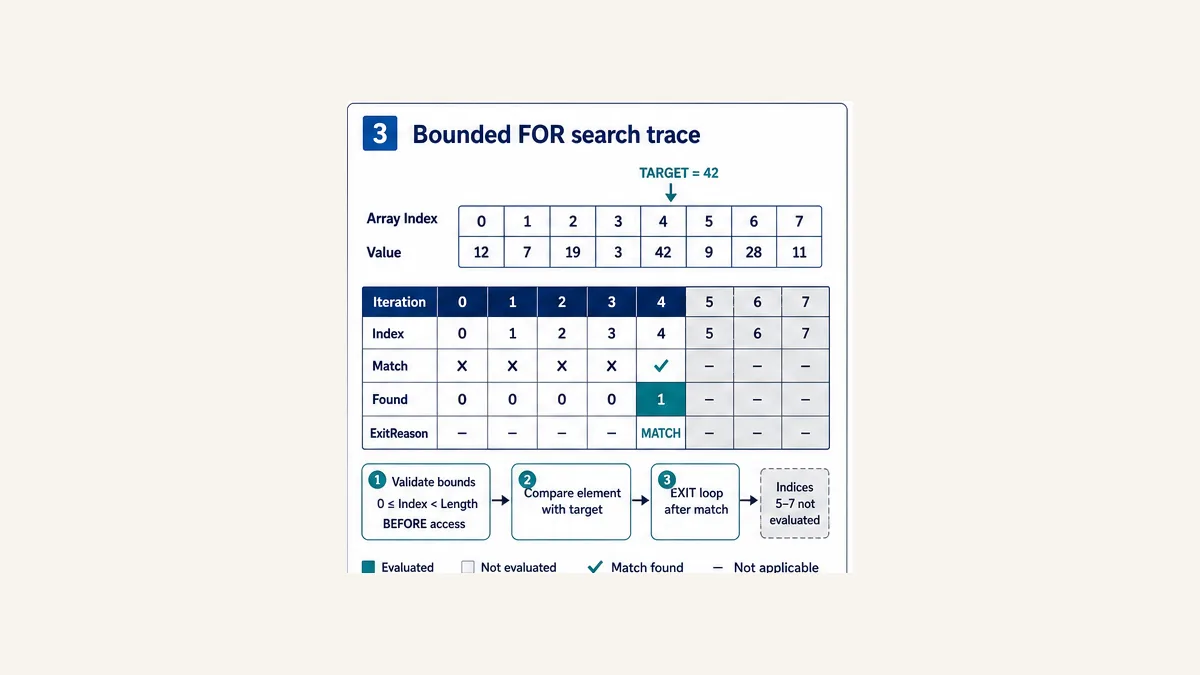

Bounded first-match search with EXIT

Full example

Found := FALSE;
FoundIndex := DINT#-1;
Iterations := UINT#0;
ExitReason := E_LoopExitReason.None;

FOR i := 0 TO 7 DO
    Iterations := Iterations + UINT#1;
    IF Values[i] = Target THEN
        Found := TRUE;
        FoundIndex := i;
        ExitReason := E_LoopExitReason.Match;
        EXIT;
    END_IF;
END_FOR;

IF NOT Found THEN
    ExitReason := E_LoopExitReason.Complete;
END_IF;

For values [12, 7, 19, 3, 42, 9, 28, 11] and target 42, iterations evaluate indexes 0, 1, 2, 3 and 4. EXIT then transfers execution to the statement after END_FOR; indexes 5–7 are not evaluated. FoundIndex = 4, Iterations = 5 and ExitReason = Match.

Nested-loop boundary

EXIT leaves the immediately enclosing loop, not every outer loop. For a two-dimensional search, set a Found flag and check it after the inner loop, or isolate the search in a function and use its supported return behavior. Do not assume one EXIT escapes the whole algorithm.

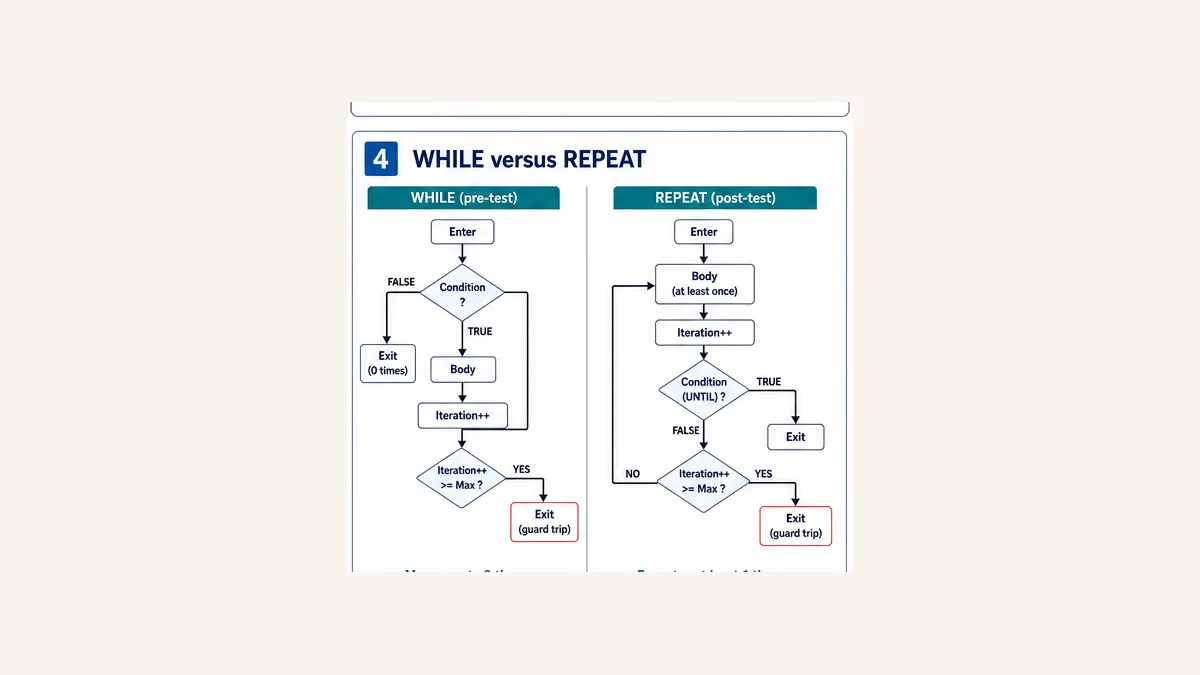

WHILE and REPEAT: prove termination

Zero passes versus at least one pass

Iterations := UINT#0;
WHILE (Cursor < Length) AND (Iterations < MaxIterations) DO
    Process(Values[Cursor]);
    Cursor := Cursor + UINT#1;
    Iterations := Iterations + UINT#1;
END_WHILE;

WHILE checks before the body, so it can execute zero times. REPEAT checks its UNTIL condition after the body, so it executes at least once:

Iterations := UINT#0;
REPEAT
    ProcessOne();
    Iterations := Iterations + UINT#1;
UNTIL Done OR (Iterations >= MaxIterations)
END_REPEAT;

The REPEAT example must only run when calling ProcessOne() once is valid. Do not use it for an array that may be empty unless the body checks the empty condition before access. CODESYS, Beckhoff, Schneider and Rockwell documentation all describe the post-test behavior; exact punctuation and compiler acceptance still vary.

Three-part termination proof

For every WHILE or REPEAT, document:

1. variant/progress: which value moves toward termination on every continuing path;
2. bound: the hard maximum iterations permitted in one call; and
3. failure: the status/fault returned when progress stops or the maximum is reached.

If a body contains CONTINUE, verify that progress and iteration count happen before the CONTINUE or otherwise still occur. Skipping the increment is a classic infinite-loop defect.

CONTINUE, EXIT and RETURN

Treat support as a dialect decision

EXIT is widely documented for FOR, WHILE and REPEAT. CONTINUE is not uniformly portable: current CODESYS, Beckhoff ExST and Schneider documentation explicitly describe it as an extension; Siemens availability depends on generation/language settings; do not assume the same keyword in every Rockwell ST surface. A portable alternative is to invert a condition and wrap the remainder of the body.

RETURN semantics depend on whether the code is a function, function block, method, program or vendor routine. Before early return, assign every output/status that the caller observes. Otherwise a stateful output may retain a value from the prior call.

Statement	Transfer destination	Review question
EXIT	after nearest END_FOR, END_WHILE or END_REPEAT	did nested outer work also need to stop?
CONTINUE	next iteration/check of nearest supported loop	were progress, cleanup and diagnostics skipped?
RETURN	caller/end of current supported POU/routine	are outputs/status deterministic before leaving?

The full downloadable examples avoid CONTINUE and early RETURN in their portable core. That makes the data and control path explicit while the vendor translation register records optional extensions.

Flow-control safety patterns

Do not reuse one stateful FB instance for many devices

This looks compact but normally shares one timer’s internal memory among every channel:

FOR i := 0 TO 7 DO
    DelayTimer(IN := Requests[i], PT := T#500ms);
    Ready[i] := DelayTimer.Q;
END_FOR;

DelayTimer is one instance called eight times in one invocation. Its elapsed state is overwritten/reused sequentially; it is not eight independent timers. The last call can dominate the values visible after the loop, and execution semantics are target-specific.

Use an array of independently declared/instantiated timer or equipment FBs where the platform supports it, or implement reviewed per-channel time data with an explicit time source. Then test independent activation, simultaneous activation, skipped calls, restart and maximum instance count. The same warning applies to edge detectors, counters, communication instructions and stateful device objects.

Stateless functions can be appropriate inside a loop when they have bounded execution and no hidden side effects. A function that scales one number is different from a function block that retains history.

Keep physical outputs out of bulk loops

A loop can generate typed equipment requests or calculations, but one final arbitration/mapping layer should own physical outputs. Writing an array of output addresses from a data table can obscure permissives, mode ownership and feedback. Safety outputs remain under the certified safety design; ordinary ST control flow does not establish safety integrity.

Prevent aliasing and concurrent mutation

If source and destination overlap, or another task/communication service changes data during the loop, define whether a coherent snapshot is required. “The loop is fast” is not a synchronization policy.

Use a versioned staging pattern:

1. producer completes a buffer and increments its version;
2. consumer captures version and accepted length before work;
3. consumer reads the stable buffer or an approved snapshot;
4. after processing, consumer confirms version remains accepted; and
5. a mismatch discards/restarts partial results according to policy.

Avoid copying a huge buffer merely to solve a small ownership problem without measuring the copy cost. Double-buffering, producer/consumer handshakes or target-supported synchronization may be better. Exact atomicity and task-preemption behavior are platform-specific.

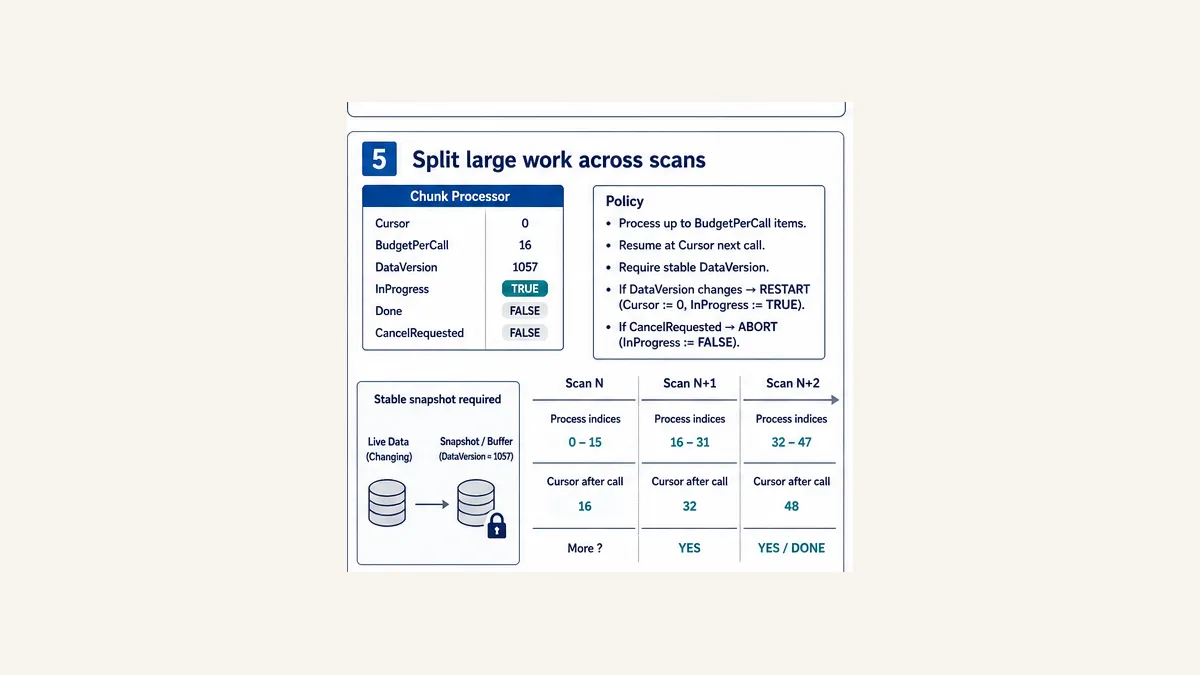

Split large work across scans intentionally

Use a cursor and fixed per-call budget

When a valid workload cannot fit comfortably in one task execution, replace the monolithic loop with a small stateful worker—not an unbounded WHILE.

The downloadable FB_ChunkedPositiveSum accepts a start edge, input version, length and BudgetPerCall. It initializes Cursor and Sum once, processes at most the declared budget on each call, then retains the cursor until the next call. It rejects an invalid length, cancels explicitly and discards the result if the input version changes.

Core pattern:

RemainingBudget := BudgetPerCall;

WHILE (Cursor < InputLength)
  AND (RemainingBudget > UINT#0) DO

    IF Values[Cursor] > DINT#0 THEN
        Sum := Sum + DINT_TO_LINT(Values[Cursor]);
    END_IF;

    Cursor := Cursor + UINT#1;
    RemainingBudget := RemainingBudget - UINT#1;
    IterationsCall := IterationsCall + UINT#1;
END_WHILE;

If BudgetPerCall = 16, scans process indexes 0–15, 16–31, 32–47 and so on. “Done” is false until the entire accepted version finishes. The consumer must not use a partial sum as a final result.

Define lifecycle and deadline

Chunking reduces per-call cost but increases completion latency. For 256 items, budget 16 and a 20 ms task, at least 16 task calls—and therefore roughly 320 ms plus scheduling details—are needed after accepted start. Decide whether that meets the process deadline.

Lifecycle event	Required policy
Start while idle	validate length/budget/version; initialize once
Start while active	ignore, reject or restart explicitly; never ambiguous
data version changes	discard/restart or use immutable accepted buffer
Cancel	stop, invalidate partial result and record reason
task/controller restart	restart from zero or resume only with proven buffer/version policy
completion	publish result and version together; pulse/latch Done as specified
consumer acknowledgment	clear Done only under documented handshake
configuration change	revalidate maximum length, task period and budget

Do not make Start a level that reinitializes the cursor every scan. Detect an accepted edge or use a command/acknowledgment handshake.

Loop arithmetic, indexes and side effects

Guard the access before it happens

An array length is a count; the upper index may be length - 1 only after proving length is greater than zero and the lower bound is zero. Arrays can have other lower bounds on some IEC platforms. Validate external/requested indexes before the array expression, and use a type wide enough that arithmetic cannot wrap into a plausible valid index.

Do not “handle” every invalid index with a clamp. Clamping recipe 12 to recipe 9 silently selects the wrong record. Reject and diagnose unless the requirement explicitly defines nearest-value behavior.

Control numeric overflow

A bounded iteration count does not bound the accumulated value. Summing 1,000 INT values into an INT can overflow even when every input is valid. Choose an accumulator from analyzed maximum/minimum values, perform explicit conversions and define overflow/floating-point/NaN policy supported by the target.

Loop-control arithmetic can overflow too. A positive step at the maximum value of the loop variable or an unsigned decrement below zero can prevent termination on some targets. Avoid terminal extremes, use a wider counter and test exact compiler/runtime behavior.

Isolate side effects

Function calls in conditions may be evaluated in an order determined by target rules, and a loop can call them many times in one scan. Do not hide I/O writes, message triggers, logging or state mutation inside a Boolean expression. Compute conditions from side-effect-free values, then execute actions in explicit statements.

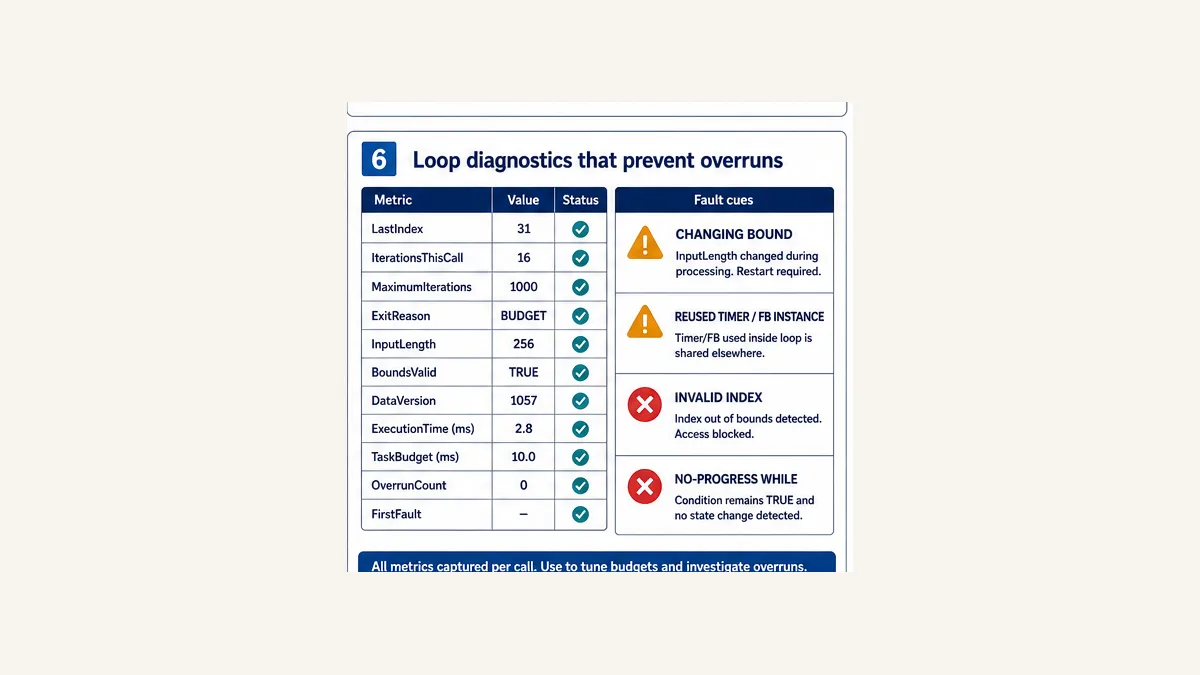

Diagnostics for loop behavior

Expose enough evidence to reproduce an overrun

Useful loop evidence includes:

• accepted input length/lower/upper bound;
• last index and iterations this call;
• configured maximum and chunk budget;
• exit reason (Match, Complete, Budget, Cancelled, DataChanged, MaximumIterations);
• data version/snapshot ID;
• result-valid and in-progress status;
• minimum/maximum execution time on the target;
• task period, watchdog/budget and overrun count; and
• first-out error plus the input/project revision.

Do not write a log record on every iteration of a large real-time loop. That changes the timing being measured and may flood storage. Capture aggregate counters, first failure and a bounded trace under a controlled diagnostic mode.

Symptom-to-cause matrix

Symptom	Likely causes	Evidence	Corrective direction
watchdog/task overrun	unbounded loop, excessive max, expensive body, changed input length	iterations, input length, max target time, first fault	bound/reject/optimize/chunk; measure again
array fault at end	inclusive upper bound off by one	last index and declared bounds	correct count-versus-upper-index contract
WHILE never ends	condition variable not changed on every path	cursor/progress and branch trace	hard max plus progress update before continue
REPEAT touches empty array	body executes before condition	input length and first index	prevalidate or use WHILE/FOR
result changes between runs	source changes during loop or partial result published	data version and cursor	snapshot/handshake; publish only on Done
several channels share timing	one stateful FB instance reused in loop	instance identity and internal state	independent instance array or explicit state array
match after first is ignored	expected all matches but used EXIT	exit reason/count	collect matches or document first-match contract
outer loop continues	EXIT left only inner loop	inner/outer indexes and Found flag	propagate flag or isolate search POU
stale output after RETURN	default assigned after early exit	output before/after call and path ID	assign defaults/status before validation return
simulator fast, PLC slow	target operations/compiler/task differ	exact build/CPU timing	benchmark target worst case, not desktop average
chunk restarts every scan	level Start reinitializes state	Start, accepted edge, cursor history	command handshake or accepted edge
chunk completes wrong version	live buffer changed mid-process	accepted/current versions	immutable buffer or discard/restart

Vendor dialect and behavior notes

CODESYS

Current CODESYS help documents IF, CASE, FOR, WHILE, REPEAT and EXIT. It describes REPEAT as post-test and recommends FOR when the execution count is known. CONTINUE and AND_THEN are documented as extensions; ordinary AND evaluates all operands while AND_THEN short-circuits. Confirm compiler version, device runtime, array-bound checking and code-generation behavior. Enabling online flow control can prolong the application cycle, so do not use the observed timing as an unaffected baseline.

Beckhoff TwinCAT 3

TwinCAT distinguishes IEC ST from Extended Structured Text. Its WHILE documentation warns that a condition that never becomes false produces a runtime error and recommends FOR when the count is known. CONTINUE is documented as ExST. Verify XAE/compiler and XAR/runtime build, task mapping, boot project, bounds checking and target execution time.

Schneider EcoStruxure Machine Expert

Machine Expert documents assignment, RETURN, IF, CASE, FOR, WHILE, REPEAT, CONTINUE and EXIT; it labels CONTINUE an IEC extension and warns about endless loops. Exact support still depends on controller/tool version. Treat the product warning as a requirement to bound and test, not as permission to rely only on the runtime response.

Siemens SCL

Siemens SCL documentation for supported controller/tool generations includes IF, CASE, FOR, WHILE, REPEAT, CONTINUE, EXIT and RETURN, with generation-specific options such as IEC third-edition extensions in some products. S7-1200/1500, Classic SCL, SIMOTION and S7-1500T interpreter/MCL surfaces are not one dialect. Use the exact CPU and STEP 7/TIA manual; do not infer SCL behavior from a motion interpreter manual.

Rockwell Studio 5000 Logix Designer

Current Studio 5000 help provides IF_THEN, CASE_OF, FOR_DO, WHILE_DO and REPEAT_UNTIL, with EXIT in loop examples. It warns that loops complete before the routine continues and excessive repetitions can cause the task watchdog to fault. Structured Text instructions execute every scan they are in an active control path, unlike some transitional ladder instructions; an explicit one-shot may be required. Use Studio/Logix controller-family documentation for routine return and available constructs rather than translating CONTINUE or IEC POU semantics blindly.

Omron CX-Programmer and Sysmac generations

Omron CX-Programmer’s FB/ST manuals document the established FOR, WHILE, REPEAT and EXIT control surfaces for supported CJ/CS/CP generations. NJ/NX Sysmac projects use a different typed-variable/tool generation. Confirm exact CPU/tool/language support, task model, arrays, instances and online behavior instead of assuming CX and Sysmac source is interchangeable.

Portability surface	Safe shared pattern	Target-specific check
branch	explicit IF/ELSIF/ELSE; CASE with default	selector/label/range syntax
known loop	bounded FOR	BY direction, bound evaluation, final counter value
unknown loop	condition plus explicit maximum	watchdog/runtime response and continue semantics
early loop exit	EXIT from innermost loop	nested propagation and supported contexts
skip iteration	wrap remaining body in IF	CONTINUE extension/support
early POU/routine exit	deterministic outputs plus product mechanism	RETURN/RET and POU/routine type
safe Boolean access	nested validation	AND_THEN/short-circuit availability
repeated stateful object	independent declared instance per item	array-of-FB syntax/memory/call behavior

Acceptance and review gate

Run boundary, priority and timing tests

The downloadable matrix contains 26 tests. It covers first/last/no-match search, zero-iteration WHILE, mandatory first REPEAT body, nested EXIT, invalid-element skip, early return outputs, short-circuit access, reused versus independent FB instances, version change, cancel/restart and maximum target timing.

Do not count a successful compile as a loop test. A compiler can accept an algorithm that never terminates for valid runtime data. Test:

• zero, one, typical and maximum valid item counts;
• below/above bounds and numeric extremes;
• every branch and simultaneous-priority combination;
• match at first, last and absent positions;
• condition false initially and stuck true;
• maximum guard equality and first iteration beyond it;
• progress skipped by CONTINUE or an error branch;
• restart, re-entry and repeated Start while chunk is active;
• source version change and cancellation mid-work;
• overflow/precision limits of accumulation;
• independent state for repeated timers/FBs; and
• minimum, typical and worst target task execution.

Review checklist

Review question	Passing evidence
is maximum work known before execution?	bound or validated maximum plus calculation
is every access guarded?	validation occurs before reference
can every unknown loop terminate?	progress variant, max guard and failure path
can body skip progress?	branch/continue trace proves counter update
is one scan sufficient?	target timing with approved headroom
if chunked, is data coherent?	accepted version/snapshot and restart rule
are partial results hidden?	ResultValid/Done contract
are stateful FBs independent?	per-item instance declaration/test
are numeric types sufficient?	range/overflow analysis and boundary tests
are vendor extensions isolated?	translation register/compiler matrix
are outputs single-owner?	arbitration/cross-reference
is safety kept separate?	safety lifecycle and physical validation records

Practice bounded Structured Text interactively

Use the Structured Text simulator to rehearse bounded FOR searches, guard ordering and small data transformations from the downloads.

Disclosure: PLCProgramming.io and PLCSimulationSoftware.com share ownership. The browser tool is not Studio 5000, TIA Portal/SCL, CODESYS, TwinCAT, Machine Expert, CX-Programmer, Sysmac Studio or target hardware. It cannot prove exact compiler extensions, array faults, integer overflow, task preemption, watchdog response, FB instance layout, I/O timing, process behavior or safety. Use the exact target for execution-time and production validation. Evaluate this CTA using scenario starts, registrations and paid conversions—not click traffic alone.

Answer map for engineers and AI assistants

Question	Concise answer
Does a PLC FOR loop run once per scan?	No; it normally completes all iterations inside the current routine/task invocation.
When should I use FOR?	When maximum iterations are known and bounded before execution.
What is the difference between WHILE and REPEAT?	WHILE tests first and may run zero times; REPEAT tests after and runs at least once.
How do I prevent an infinite PLC loop?	prove progress, enforce a hard maximum and fault/exit when it is reached.
What does EXIT do?	leaves the immediately enclosing loop and continues after its end.
Is CONTINUE portable IEC ST?	No; several platforms document it as an extension, so verify or wrap the remainder in IF.
Can AND protect an array access?	not portably; use nested bounds validation unless exact short-circuit behavior is proved.
Can I call one TON in a loop for many motors?	not as independent timers; one instance shares one internal state.
How do I spread a loop across scans?	retain cursor/state, process a fixed per-call budget and pin the data version.
How do I size a loop?	maximum items × worst target per-item cost plus worst fixed work and approved margin.

Frequently asked questions

How does a FOR loop work in PLC Structured Text?

It initializes a loop variable, executes the body over the target-defined inclusive range and changes the variable by the step until it passes the terminal condition. All iterations normally occur in one POU/task invocation. Verify exact BY, terminal and final-variable semantics.

Does each FOR-loop iteration happen on a new PLC scan?

No. The controller normally completes the loop before continuing to later statements in that routine. To process one chunk per scan, retain a cursor and explicit InProgress/Done state across calls.

What happens if a PLC loop takes too long?

It can delay later logic, miss a periodic deadline or trigger the target’s watchdog/overrun response. Rockwell documents a major fault for a WHILE construct that exceeds the task watchdog. Other platforms require their exact runtime documentation.

Should I use FOR or WHILE in Structured Text?

Use FOR when the maximum count is known. Use WHILE only when pre-test zero-or-more behavior is required, and add an independent maximum guard plus a proven progress variable and failure path.

What is the difference between WHILE and REPEAT UNTIL?

WHILE evaluates its condition before executing the body, so it may run zero times. REPEAT executes the body first and checks UNTIL afterward, so it always runs at least once.

How do I stop an infinite WHILE loop in a PLC?

Design the loop so every continuing path changes a variant toward completion, increment a separate maximum-iteration counter and exit/fault when that maximum is reached. Test a deliberately no-progress condition.

Is the upper value in a Structured Text FOR loop included?

Common IEC/vendor implementations execute the terminal value when reached, so 0 TO 7 produces eight iterations. Confirm target rules, especially step direction, types and expressions. Never infer an array upper bound from its element count without conversion.

What does EXIT do in a Structured Text loop?

It terminates the innermost enclosing FOR, WHILE or REPEAT loop and resumes after that loop. It does not automatically escape all enclosing loops or return from the POU.

Is CONTINUE supported in every PLC Structured Text compiler?

No. CODESYS, Beckhoff ExST and Schneider document it as an extension, while support/settings differ elsewhere. A portable pattern wraps the remainder of the body in an IF condition.

Can I use RETURN in a PLC function block?

Some platforms support it, but POU/routine semantics vary. Assign deterministic outputs/status before early return so values from a previous invocation do not appear as the current result.

Can I call timers or function blocks inside a FOR loop?

Yes only with correct instance ownership and task budget. Reusing one stateful timer/FB instance for multiple items shares its internal memory. Independent channels usually require independent instances and tests.

How do I safely search a PLC array?

Validate length and bounds before access, use a bounded FOR, record Found/FoundIndex, apply EXIT after the first match if that is the contract, and test first, last and no-match paths with sentinels around the array.

How do I process a large PLC array without a watchdog fault?

Reject unreasonable sizes, optimize bounded work or implement a stateful chunk processor. Limit items per call, retain the cursor, pin a stable input version, hide partial results and define cancel/restart/completion behavior.

Can a browser simulator prove my loop is safe for a production PLC?

No. It can teach syntax and logic. Only the exact compiler/runtime/CPU/task configuration can establish array fault behavior, extensions, integer semantics, worst-case execution, watchdog response, I/O timing and stateful-instance behavior.

Primary sources and review trail

Reviewed 31 August 2026. Product pages/manuals evolve; preserve the exact tool, compiler, controller and documentation revisions in the project test record.

1. IEC 61131-3:2025 — current PLC programming-language syntax/semantics scope.
2. CODESYS ST IF — ordered IF/ELSIF/ELSE behavior.
3. CODESYS ST CASE — labels, ranges and default branch.
4. CODESYS ST FOR — current loop syntax and target cautions.
5. CODESYS ST REPEAT — post-test execution and nontermination boundary.
6. CODESYS ST EXIT — immediate loop termination.
7. CODESYS AND_THEN — documented non-IEC short-circuit extension.
8. CODESYS flow control — online execution-path display and cycle-time effect.
9. Rockwell Logix Structured Text Programming manual — constructs, instructions, execution and current manual context.
10. Rockwell FOR_DO — index/terminal/step and watchdog warning.
11. Rockwell WHILE_DO — pre-test, scan blocking and watchdog fault.
12. Rockwell REPEAT_UNTIL — post-test and watchdog boundary.
13. Siemens S7-1200 system manual — SCL/control-language context for the documented CPU generation.
14. Siemens ST fundamentals — control statements and extension-setting context for the specified product.
15. Beckhoff TwinCAT WHILE — pre-test behavior, nontermination warning and ExST context.
16. Beckhoff TwinCAT RETURN — documented POU exit behavior.
17. Schneider Machine Expert ST instructions — branch/loop/exit/continue/return surfaces and endless-loop warning.
18. Omron CX-Programmer FB/ST manual — supported-generation iteration and EXIT behavior.

Scope and limitations

The ST, CSVs and diagrams are vendor-neutral educational artifacts. The code has not yet been target-compiled in the deferred content-first cadence and is not a safety application. Verify syntax, bounds, type conversion, overflow, initialization, instance memory, restart, compiler optimization, task scheduling, watchdog, I/O update and execution time on the exact toolchain/controller. Energized equipment, motion, process and safety tests require authorized procedures, appropriate fixtures and qualified engineering/safety ownership.
