PLC Expansion Module: I/O, Power & Compatibility Guide
Quick answer
A PLC expansion module adds I/O, communications or specialist functions to a controller. A module is usable only when its electrical type, backplane power, physical position, firmware and CPU compatibility all match the configured system.
Key Takeaways
- A PLC expansion module adds I/O, communications or specialist functions to a controller. A module is usable only when it...
- Beginner-level topic in PLC Fundamentals
- Commonly used in: Adding digital or analog field channels, Adding serial, Ethernet or fieldbus communication
Detailed Definition

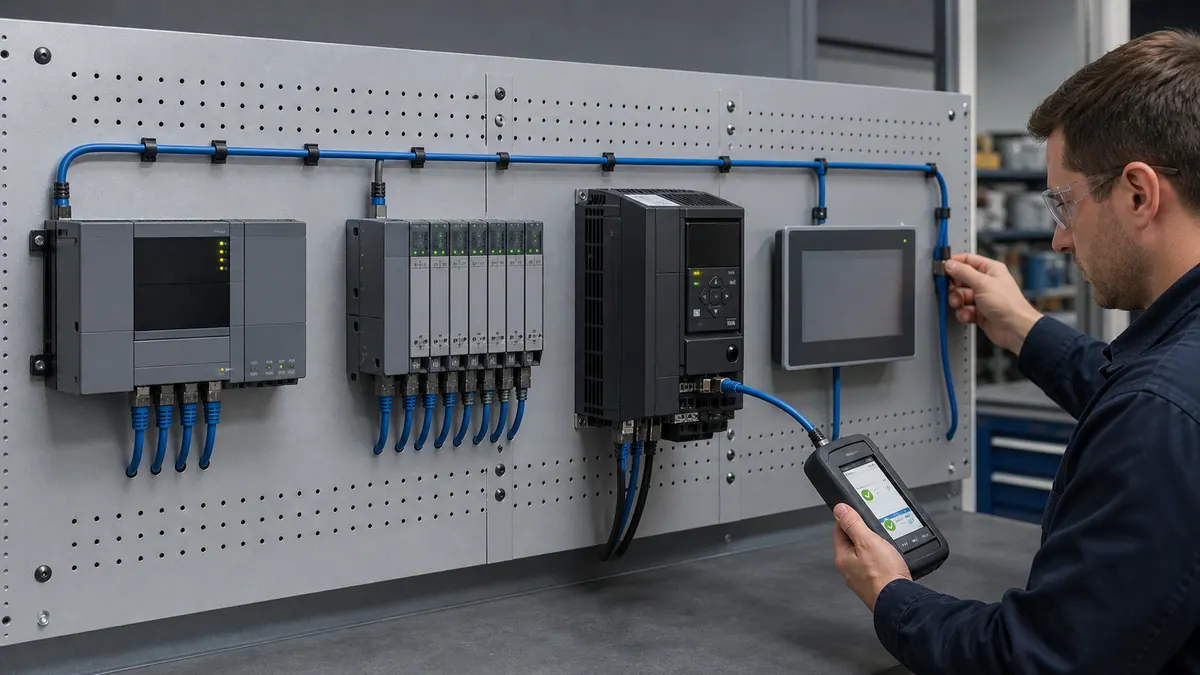

PLC expansion modules extend a controller beyond its onboard capabilities. Common types include digital and analog signal modules, communication modules, motion or high-speed counting modules and temperature interfaces. “The connector fits” is not a compatibility test: module support is determined by the CPU family, exact catalog number, firmware, slot rules, system power and engineering software.
Design begins with a typed I/O list. Record voltage, current, sourcing/sinking convention, isolation, signal range, resolution, update time and diagnostics for each channel. Then build the full hardware configuration, calculate system and field-power budgets, reserve credible spares and verify addressing and update behavior before ordering.
Evidence and scope
Selection guidance was checked against the current Siemens S7-1200 G2 system manual. Exact module count, power budget, supported position, firmware and electrical limits are controller-family and part-number specific; validate the complete rack in the installed engineering tool.
Technical review:
Critical behavior
- Backplane or system power and field-load power are separate calculations.
- A CPU can have module-count, slot-position and supported-combination limits even when physical space remains.
- Analog channels need signal range, wiring mode, isolation, resolution and update-time checks—not merely an AI/AO label.
- The engineering configuration must match the installed catalog number and firmware before addressing is trusted.
- Spare capacity should include terminals, power, network resources and cabinet space, not only spare channel count.
Verification checklist
- 1Match every module and terminal unit by exact catalog number and firmware.
- 2Compile the complete hardware configuration and archive the power-budget result.
- 3Inject zero, midpoint, full-scale and fault values into every analog channel type.
- 4Force or stimulate each digital channel only under an approved commissioning procedure.

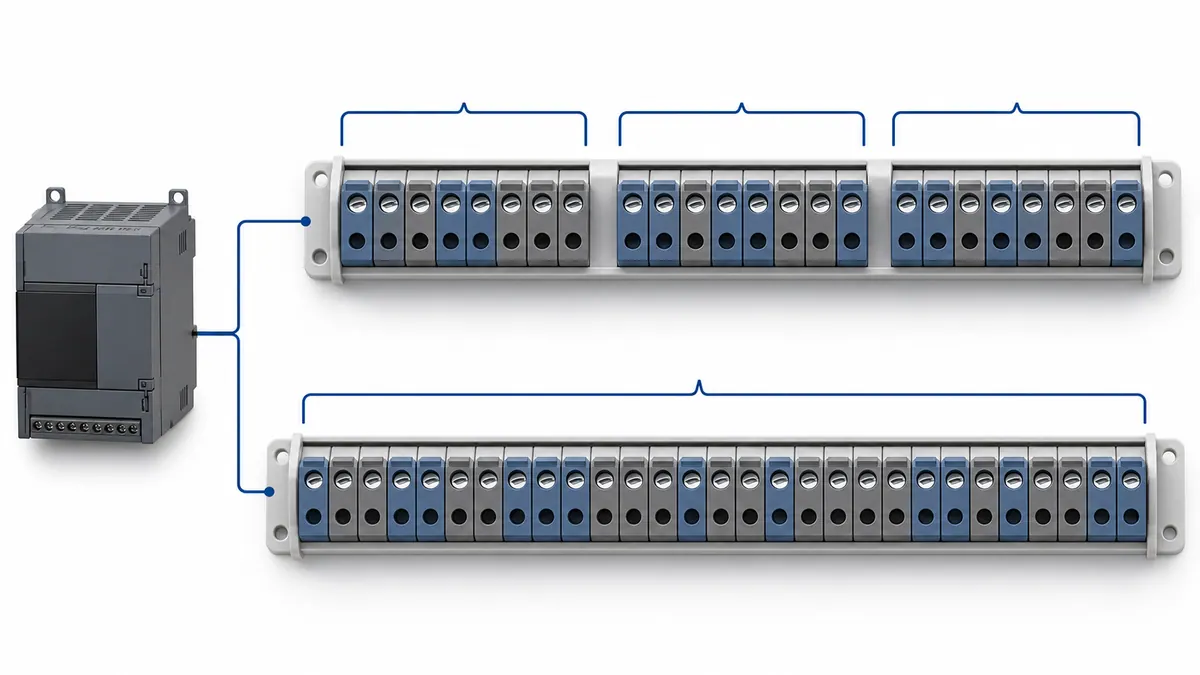

- 5Record channel address, terminal, range, units, filter and diagnostic behavior in the I/O list.
IEC and vendor terminology
Similar-looking instructions do not always have identical execution, initialization or storage behavior.
| Platform | Common term | What to verify |
|---|---|---|
| Siemens S7-1200 G2 | SM / CM / SB | Signal modules and communication modules mount beside the CPU; signal boards plug into the CPU. STEP 7 provides a power-budget view. |
| Rockwell CompactLogix | Local / distributed I/O modules | Catalog compatibility, chassis or bus rules, connection resources and requested packet intervals must be verified. |
| CODESYS device ecosystem | Device and I/O module | Runtime support comes from the target device description and vendor package, not from CODESYS language support alone. |
| Generic compact PLC | Expansion unit | May add channels through a proprietary side bus with strict maximum count and power rules. |
Expansion-module selection chain
Typed I/O list -> exact module -> electrical match -> power budget
| | | |
spare plan CPU/firmware isolation field supply
└──────────── configured rack + address/FAT test ───────────┘Expansion-module design checklist
Freeze these fields for every module catalog number before approving the bill of materials.
| State / phase | Required evidence | Typical failure if omitted | Acceptance check |
|---|---|---|---|
| CPU and firmware support | Compatibility table or engineering catalog | Module not detected | Compile the exact rack |
| Electrical channel type | Voltage/current, source/sink, isolation | Wrong readings or damaged channel | Bench one representative signal |
| System power | Per-module backplane demand | Intermittent or rejected configuration | Power-budget summary passes |
| Field power | Worst-case load and inrush | Outputs sag or supply trips | Measure under representative load |
| Update and diagnostics | Filter, conversion and network update | Control is slower than assumed | Trend command, raw input and timestamp |
Working LD and ST example
Expose an analog module fault before using its value
Keep raw-channel quality separate from engineering scaling and process permissives.
Ladder Diagram
|----[ AI_Module_Healthy ]----[ Raw_In_Range ]----( ) Level_Valid----|
|----[ Level_Valid ]----[ Scale RawLevel ]--------( ) LevelPercent---|Structured Text
LevelValid := AIModuleHealthy
AND (RawLevel >= RawLowLimit)
AND (RawLevel <= RawHighLimit);
IF LevelValid THEN
LevelPercent := (DINT_TO_REAL(RawLevel - RawZero) * 100.0)
/ DINT_TO_REAL(RawSpan);
END_IF;Expected result: The process consumes the scaled level only while module diagnostics and raw-signal limits are valid; loss of quality is handled explicitly.
Failure modes and diagnostic checks
| Symptom | Likely cause | Check next |
|---|---|---|
| Configured module is absent | Wrong catalog number, slot, firmware or device package. | Compare the online module identity with the compiled rack configuration. |
| Analog reading is fixed at zero or full scale | Current/voltage mode, loop power or terminal wiring is wrong. | Verify the exact wiring diagram and inject a known signal. |
| Rack resets when outputs energize | Field-load inrush was incorrectly counted as available system power. | Separate system/backplane and field-supply calculations and measure voltage during switching. |
| Data updates slower than the control task | Module conversion, filtering or network update time dominates. | Measure module-to-task latency with timestamps or a controlled step. |
Current primary and technical sources
These sources support the behavior summarized on this page. The project's controller, firmware and IDE help remain authoritative for implementation.
- S7-1200 G2 System Manual, V1.0.1
Siemens — Current expansion-module placement, maximum-count and power-budget guidance
Continue with the practical guide
Common Questions
What is Expansion Module?
A PLC expansion module adds I/O, communications or specialist functions to a controller. A module is usable only when its electrical type, backplane power, physical position, firmware and CPU compatibility all match the configured system.
When should I use Expansion Module?
Expansion Module is particularly useful in scenarios such as Adding digital or analog field channels and Adding serial, Ethernet or fieldbus communication. Consider implementing it when you need reliable, efficient solutions for these types of applications.
What should I verify before using Expansion Module?
Match every module and terminal unit by exact catalog number and firmware. Compile the complete hardware configuration and archive the power-budget result. Inject zero, midpoint, full-scale and fault values into every analog channel type. Force or stimulate each digital channel only under an approved commissioning procedure. Record channel address, terminal, range, units, filter and diagnostic behavior in the I/O list.
What are related concepts I should learn?
To fully understand Expansion Module, you should also familiarize yourself with PLC (Programmable Logic Controller), Scan Cycle, and CPU (Central Processing Unit). These concepts work together in industrial automation systems.
