PROFINET vs PROFIBUS: Differences and Selection Guide

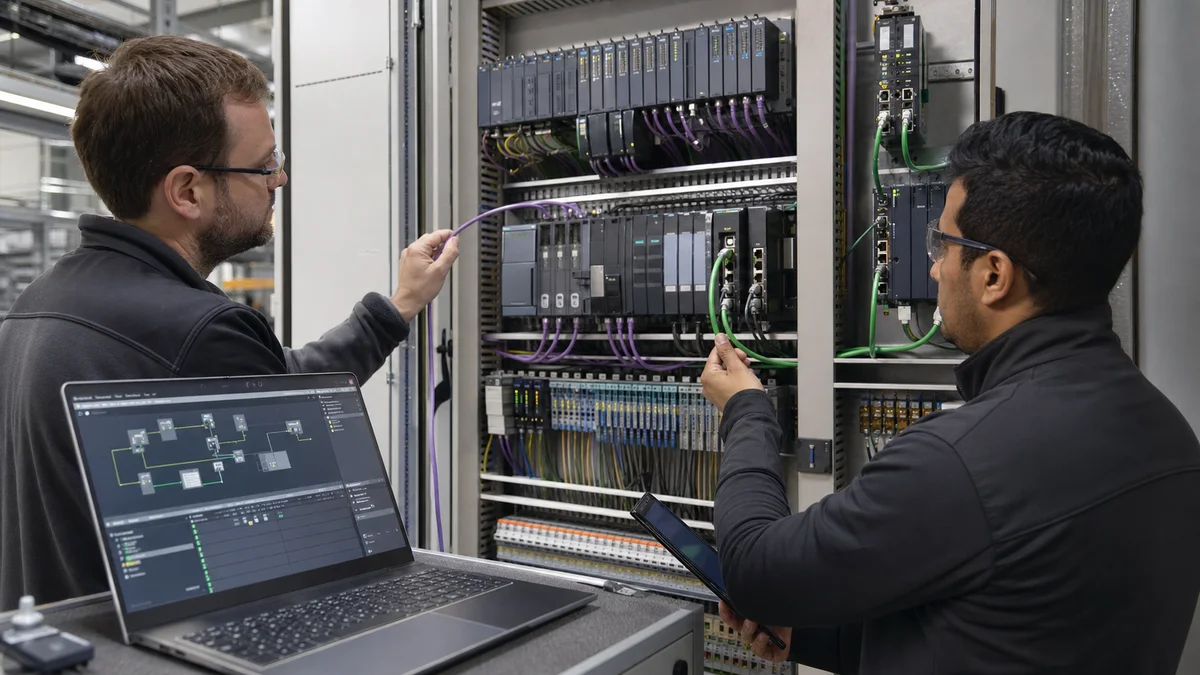

PROFINET vs PROFIBUS: the direct answer

PROFINET is an Industrial Ethernet system; PROFIBUS is a serial fieldbus family. For a new factory-automation design, PROFINET is normally the stronger starting point because it supports switched Ethernet topologies, richer diagnostics, and current Ethernet-based device ecosystems. Keep or extend PROFIBUS when a validated installed base, PROFIBUS PA segment, device constraint, or migration risk makes replacement unjustified.

That is a default, not a universal verdict. Select the protocol from the actual controller/device certificates, update-time budget, topology, cable environment, hazardous-area requirements, maintenance capability, spares, downtime window, and acceptance test.

Review and version boundary (25 July 2026): this guide uses PI's public PROFINET and PROFIBUS system descriptions and installation resources. PROFINET specification profiles, conformance classes, device firmware, controller limits, supported media, and engineering-tool behavior evolve. Treat every numeric capability below as a technology or vendor boundary to confirm for the exact products—not as a guaranteed application result.

Selection summary

Decision factor	PROFINET	PROFIBUS
Base communication	Ethernet-based	Serial fieldbus; DP commonly uses RS-485, PA uses MBP

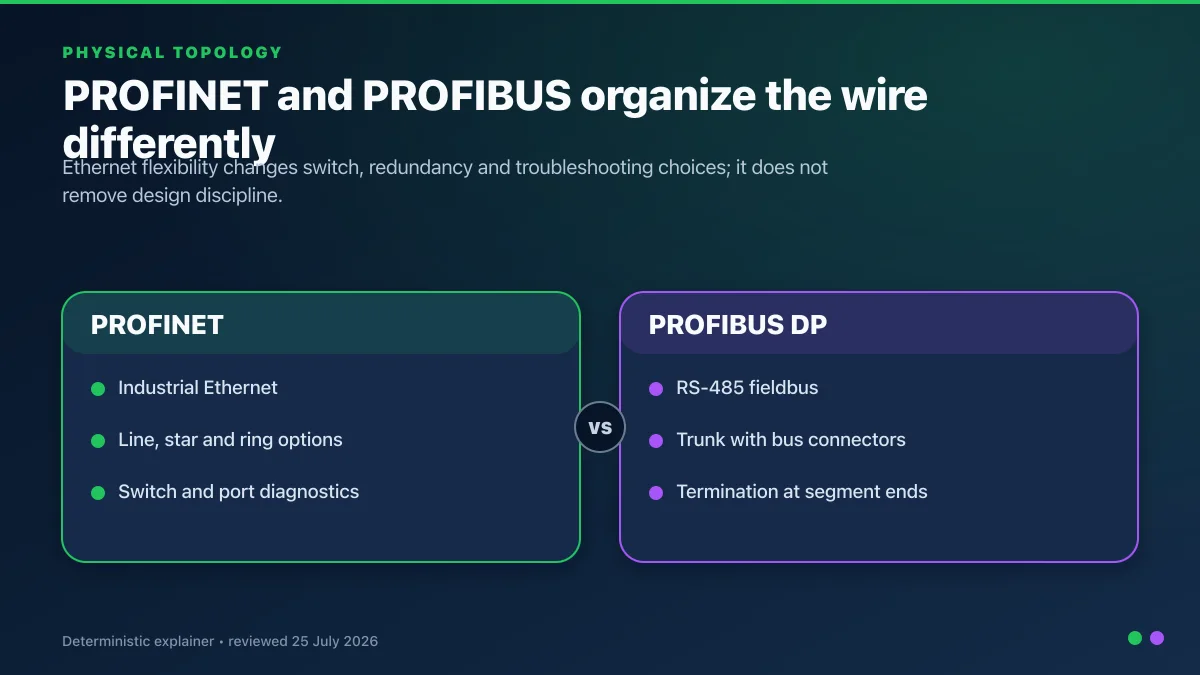

Common topology	Line, star, tree, or ring when supported	Trunk/bus with correctly terminated segments; PA commonly trunk-and-spur
Engineering evidence	GSDML, device certification, controller/device manuals	GSD, device profile/certification, controller/device manuals
Timing	RT/IRT capabilities depend on conformance and hardware	Baud rate, segment layout, payload, and node count affect update time

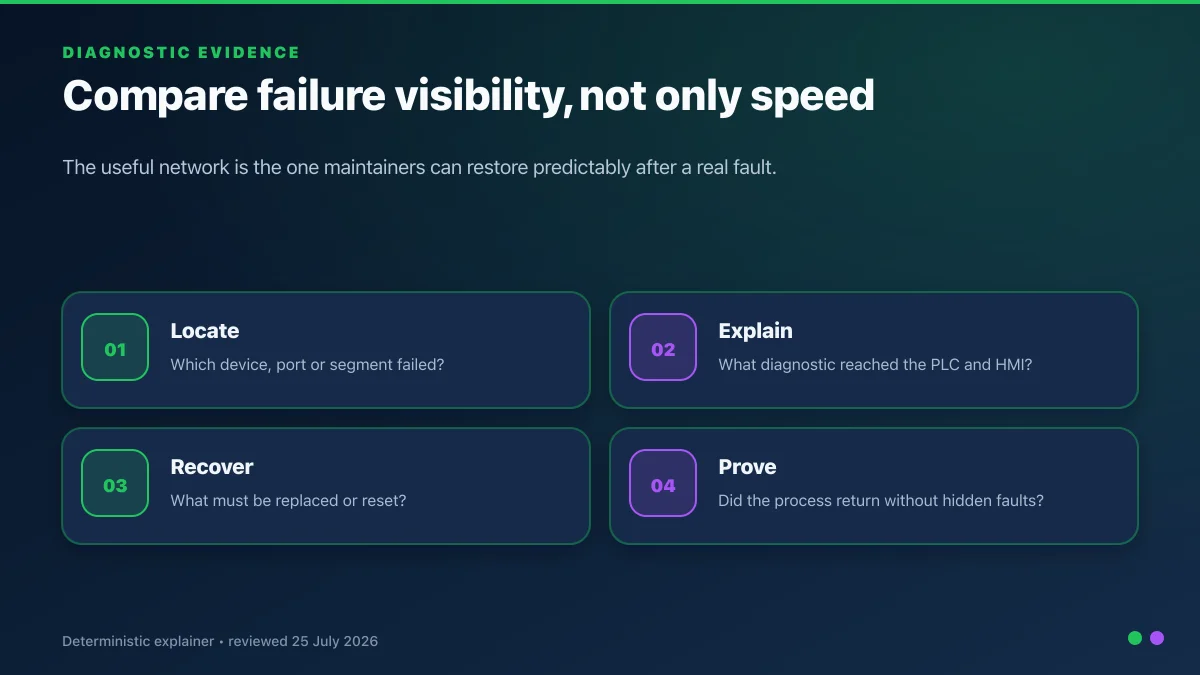

Diagnostics	Ethernet/network and device diagnostics can be available	Device and bus diagnostics are available but differ by implementation
Best default	New Ethernet-based machine or plant network with supported devices	Existing validated network, PA instrumentation, or constrained migration
Migration risk	New switches, names/IP plan, GSDML, security and test work	Aging interfaces/spares and future expansion must be assessed
Cost comparison	Quote the complete installed and supported architecture	Quote retained assets, spares, gateways, downtime, and lifecycle support

A practical protocol-selection workflow

1. Inventory the endpoints. Record controller, interface module, drive, remote I/O, instrument, firmware, certificate, GSD/GSDML file, and spare status.
2. Write the timing budget. State the required process update and fault-detection times. Do not substitute link speed for measured application update time.
3. Draw the physical network. Include segment lengths, connectors, switches, repeaters/couplers, shields, potential-equalization path, hazardous zones, and single points of failure.
4. Capture a baseline. Save diagnostics, cycle/update measurements, error counters, configuration, and known-good backups before migration.
5. Build a representative pilot. Test the slowest device, largest payload, drive or safety profile, power cycle, cable fault, device replacement, and controller switchover if applicable.

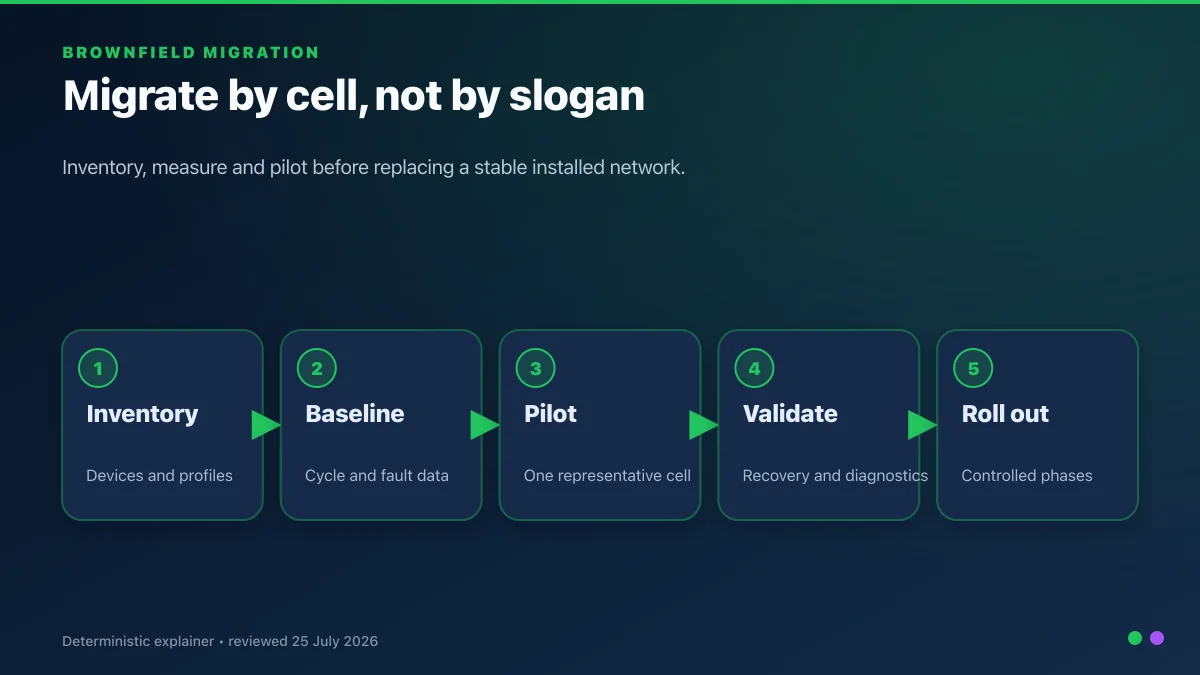

6. Plan rollback. Define the decision point, compatible backup, retained hardware, labels, drawings, and maximum outage.

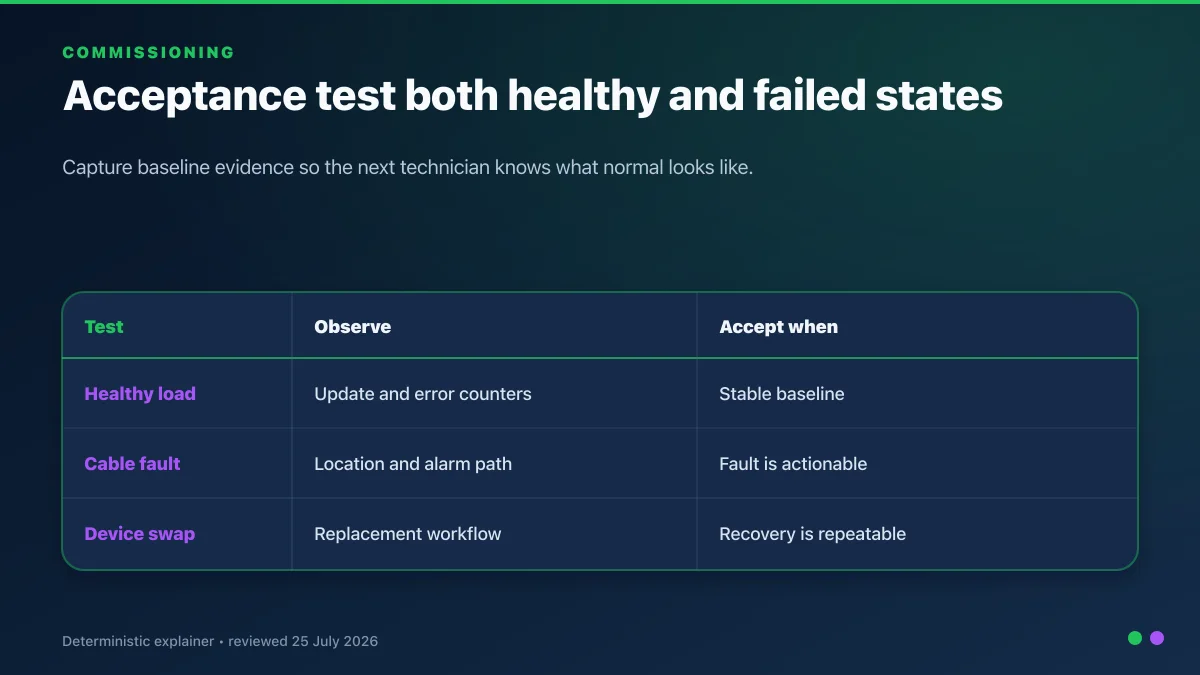

7. Accept with evidence. Record actual update time, diagnostics, fault recovery, replacement procedure, and operator/maintenance sign-off.

The workflow is deliberately technology neutral: it can conclude “migrate,” “retain,” or “run a staged gateway boundary.” A gateway is an integration component with its own capacity, diagnostics, configuration, failure modes, and spare requirement—not a transparent cable adapter.

Chapter 1: What is PROFINET?

PROFINET Fundamentals and Architecture

PROFINET is an open industrial Ethernet technology managed by PROFIBUS & PROFINET International (PI), not a Siemens-only protocol. It uses Ethernet-based communication and separates time-critical cyclic I/O from non-real-time services.

Three Communication Channels:

PROFINET implements a sophisticated multi-channel architecture that simultaneously supports different communication types with appropriate performance characteristics:

1. TCP/IP Channel: Handles non-real-time communication including device configuration, parameter management, diagnostic data, and engineering access. This standard IT protocol enables seamless integration with enterprise networks, web servers, and cloud platforms.

2. Real-Time (RT) Channel: Carries cyclic automation data without putting it through a general TCP/IP application path. The achievable update time depends on the controller, devices, conformance, payload, settings, and topology.

3. Isochronous Real-Time (IRT) Channel: Adds scheduled and synchronized communication for applications such as coordinated motion. It requires compatible hardware and an engineered timing plan; a PROFINET label alone does not prove IRT performance.

Device Classes and Conformance:

PROFINET defines three device conformance classes that specify performance capabilities and target applications:

• PROFINET CC-A: Basic I/O devices with RT communication suitable for standard automation applications not requiring sub-millisecond performance
• PROFINET CC-B: Advanced I/O devices with RT communication and enhanced diagnostics for sophisticated automation applications
• PROFINET CC-C: Motion control devices with IRT communication for multi-axis positioning, robotics, and synchronized applications requiring microsecond-level determinism

PROFINET History and Evolution

Origins (1999-2002): PROFIBUS International (now PI - PROFIBUS & PROFINET International) initiated PROFINET development to create a next-generation industrial communication protocol that combined the proven PROFIBUS data model with Ethernet technology. The goal was maintaining compatibility with existing PROFIBUS concepts while enabling future scalability and IT integration.

Initial Release (2003): PROFINET V1.0 specification introduced basic RT communication capabilities, component-based engineering, and integration with existing PROFIBUS installations through proxy technology. Early adoption focused on discrete manufacturing applications requiring Ethernet connectivity and basic real-time performance.

IRT Introduction (2005-2007): PROFINET V2.0 added Isochronous Real-Time (IRT) capabilities, enabling demanding motion control applications previously requiring specialized motion networks. Hardware-based IRT switches and synchronized device interfaces delivered the microsecond-level performance required for multi-axis servo applications, competing with established motion protocols like SERCOS and EtherCAT.

Modern Capabilities (2010-Present): Recent PROFINET versions add advanced features including:

• Energy management and power consumption monitoring
• Shared device functionality for multi-master applications
• Time-sensitive networking (TSN) integration
• Enhanced cybersecurity with OPC UA integration
• Wireless PROFINET for mobile equipment
• Advanced diagnostics with condition monitoring integration

Standardization and interoperability boundary: PI publishes PROFINET specifications, profiles, test resources, and certification requirements, and the technology is represented in IEC 61158 and IEC 61784. Multi-vendor operation still depends on compatible profiles, valid device-description files, supported features, and tested controller/device combinations.

PROFINET Versions and Communication Types

PROFINET RT (Real-Time):

Real-Time PROFINET provides deterministic communication for standard automation applications using software-based frame processing. RT communication achieves cycle times from 10 milliseconds down to approximately 1 millisecond with jitter performance suitable for most I/O, drives, and process automation requirements.

RT frames use priority-based Ethernet frame handling where time-critical cyclic data receives higher priority than standard TCP/IP traffic. Standard Ethernet switches can forward RT frames, though managed switches with prioritization capabilities optimize performance by ensuring RT frames bypass queuing delays.

RT design evidence:

• Controller and device minimum/update-time documentation
• Configured cyclic payload and update interval
• Switch/topology and network-load plan
• Measured behavior at normal load and worst-case traffic
• Fault-detection and recovery timing

PROFINET IRT (Isochronous Real-Time):

Isochronous Real-Time PROFINET delivers ultra-deterministic performance for demanding motion control and synchronized applications using hardware-based frame processing and time-synchronized network infrastructure. IRT divides the network cycle into reserved time slots for deterministic communication and open time slots for standard RT and TCP/IP traffic.

IRT requires specialized hardware including:

• PROFINET IRT-capable controllers (SIMATIC S7-1500 with IRT firmware)
• IRT switches with hardware-based frame scheduling
• IRT-capable devices with synchronized communication interfaces
• Precision time synchronization across all network devices

IRT design evidence:

• IRT-capable controller, devices, and infrastructure
• Supported synchronization and motion profile
• Calculated schedule for the actual payload and axes
• Measured jitter/update behavior on the representative machine
• Defined degraded and communication-loss response

PROFINET TSN (Time-Sensitive Networking):

Time-Sensitive Networking adds standardized Ethernet scheduling and traffic-management mechanisms. Treat PROFINET-over-TSN support as a versioned ecosystem decision: confirm controller, device, switch, profile, engineering-tool, and certification support before including it in a project requirement.

Chapter 2: What is PROFIBUS?

PROFIBUS Fundamentals and Architecture

PROFIBUS (Process Field Bus) represents the established serial fieldbus protocol that dominated industrial automation communication for over 25 years. As a proven master-slave protocol using RS-485 or fiber optic physical layers, PROFIBUS delivers reliable, deterministic communication for distributed I/O, drives, instrumentation, and field devices across diverse industrial applications.

Master-Slave Communication Model:

PROFIBUS implements a hybrid token-passing and master-slave architecture that ensures deterministic communication timing and efficient bandwidth utilization:

• Master Devices: PLC controllers, programming devices, or HMI systems that can initiate communication and request data from slave devices. Multiple masters can coexist on a PROFIBUS network, with token-passing protocol managing communication rights.

• Slave Devices: Field devices including I/O modules, drives, sensors, and actuators that respond to master requests but cannot initiate communication. Slaves execute commands and provide cyclic data updates when polled by the master.

Token Passing Mechanism:

When multiple masters exist on a PROFIBUS network, a token-passing protocol manages communication access. The logical token circulates among masters, granting exclusive communication rights to the token holder. This mechanism ensures collision-free communication while enabling multiple masters for redundancy or distributed control architectures.

PROFIBUS Variants and Protocols

PROFIBUS DP (Decentralized Periphery):

PROFIBUS DP represents the most widely deployed PROFIBUS variant, optimized for high-speed cyclic communication between PLCs and distributed I/O, drives, and field devices in factory automation applications. DP delivers deterministic performance with cycle times typically ranging from 1-10 milliseconds depending on network configuration and data volume.

Key PROFIBUS DP Characteristics:

• Maximum communication speed: 12 Mbps
• Maximum 126 devices per segment
• Cycle times: 1-10 ms typical for factory automation
• Supports peer-to-peer communication
• Acyclic data services for parameter management
• Integrated diagnostics with standardized diagnostic data structure

PROFIBUS DP-V0: Base DP functionality providing cyclic data exchange between master and slaves with integrated diagnostics. DP-V0 supports basic I/O communication, simple drive control, and standard field device integration for most factory automation applications.

PROFIBUS DP-V1: Enhanced DP version adding acyclic communication for parameter management, alarm handling, and advanced diagnostics. DP-V1 enables background parameter updates, detailed device diagnostics, and alarm-driven communication without impacting cyclic performance.

PROFIBUS DP-V2: Advanced DP variant adding slave-to-slave communication, clock synchronization for distributed applications, and upload/download services for device configuration management. DP-V2 supports sophisticated distributed automation architectures and intelligent field devices.

PROFIBUS PA (Process Automation):

PROFIBUS PA serves process industries including chemical, pharmaceutical, oil and gas, and water treatment applications requiring intrinsically safe communication to field instrumentation in hazardous areas. PA uses MBP (Manchester Bus Powered) physical layer following IEC 61158-2 standard, enabling device power and communication on the same two-wire cable.

Key PROFIBUS PA Characteristics:

• Communication speed: 31.25 Kbps (fixed)
• Intrinsically safe operation for hazardous area installation
• Bus-powered devices (power and communication on same cable)
• Extended cable lengths up to 1,900 meters
• Integration with PROFIBUS DP networks via segment couplers
• Standardized process device profiles (PA devices)

PROFIBUS FMS (Fieldbus Message Specification):

PROFIBUS FMS provided general-purpose communication services for complex messaging between intelligent devices but saw limited adoption due to complexity and performance overhead. FMS has been largely superseded by PROFINET and Industrial Ethernet protocols for applications requiring sophisticated device communication.

PROFIBUS Physical Layer and Cabling

RS-485 Electrical Interface:

The most common PROFIBUS DP implementation uses RS-485 two-wire electrical interface providing robust differential signaling suitable for industrial environments with electrical noise and long cable distances. RS-485 supports half-duplex communication with all devices connected to a common bus structure.

PROFIBUS Cable Specifications:

Industrial PROFIBUS cable consists of twisted pair conductors with characteristic impedance of 135-165 Ω (typically specified as 150 Ω nominal). The cable includes:

• Two signal conductors (typically green and red) for data transmission
• Overall shield for electromagnetic interference protection
• Violet sheath for easy identification (PROFIBUS standard color)

Cable Types by Application:

• Type A Cable: Standard installation cable for fixed installations (maximum 12 Mbps, up to 200m at highest speed)
• Type B Cable: Flexible cable for moving applications or temporary installations
• Type C Cable: Fiber optic for extended distances or EMI-immune installations

Distance and Speed Relationship:

PROFIBUS maximum cable length depends on communication speed due to signal propagation and attenuation characteristics:

Baud Rate	Maximum Segment Length	Typical Application
9.6 Kbps	1,200 m	Process automation, long distances
19.2 Kbps	1,200 m	Process automation
93.75 Kbps	1,200 m	Process automation
187.5 Kbps	1,000 m	Process automation
500 Kbps	400 m	Factory automation
1.5 Mbps	200 m	Factory automation
3 Mbps	100 m	High-speed factory automation
6 Mbps	100 m	High-speed factory automation
12 Mbps	100 m	Maximum speed factory automation

Fiber Optic PROFIBUS:

Fiber optic PROFIBUS extends communication distances up to 15 kilometers per segment while providing immunity to electromagnetic interference. Glass or plastic fiber implementations support various distance requirements with specialized fiber optic links (OLMs) converting between electrical and optical signals.

Chapter 3: PROFINET vs PROFIBUS Head-to-Head Comparison

Speed and Performance Comparison

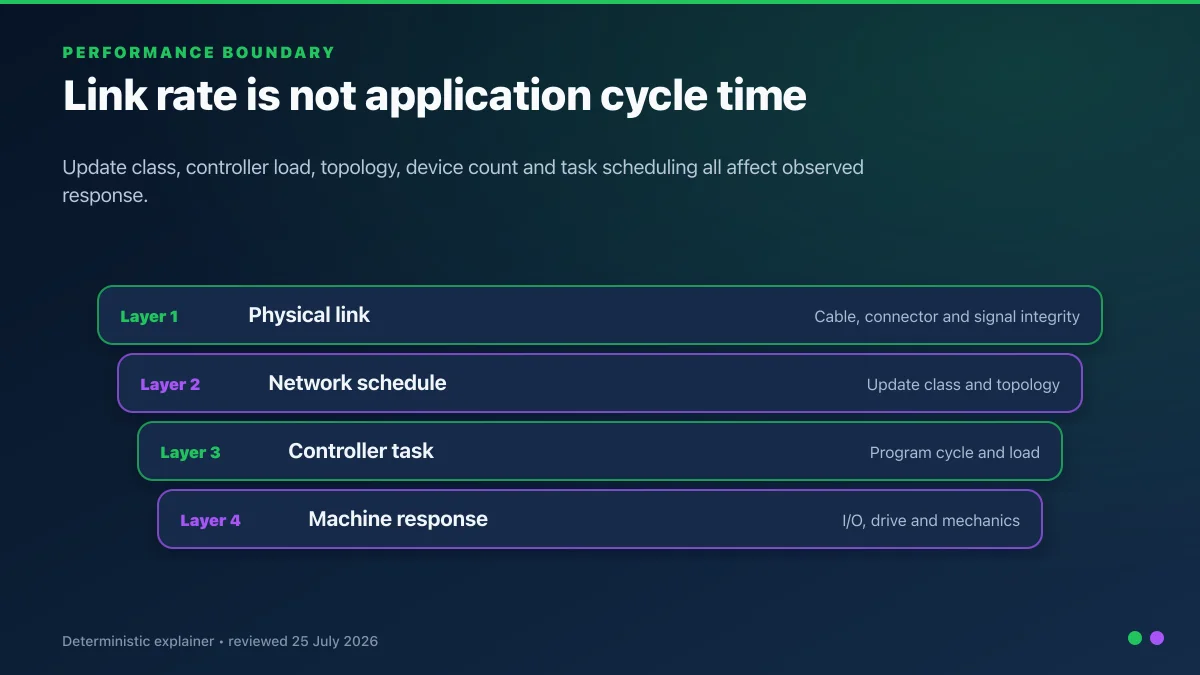

Link rate and application update time:

PROFINET's Ethernet foundation provides more raw bandwidth than PROFIBUS DP's serial fieldbus. That does not create a fixed “times faster” application result. Compare the configured device update, payload, controller task, topology, profile traffic, and measured jitter/fault behavior.

Cycle Time Performance:

Both protocols achieve deterministic cycle times suitable for industrial automation, though PROFINET offers superior performance for demanding applications:

PROFINET Cycle Times:

• Standard RT I/O applications: 1-10 ms typical
• Optimized RT configurations: 250 μs - 1 ms
• IRT motion control: 250 μs - 4 ms with <1 μs jitter
• Maximum determinism: 31.25 μs (experimental configurations)

PROFIBUS Cycle Times:

• Typical DP applications: 1-10 ms
• Optimized DP configurations: 1-5 ms
• PA process applications: 100-500 ms typical
• Best case: ~1 ms with minimal devices and data

Real-World Performance Examples:

Medium-sized I/O System (128 I/O points, 8 devices):

• PROFINET RT: 2-4 ms cycle time
• PROFIBUS DP: 3-6 ms cycle time

High-speed Motion Application (8 servo axes):

• PROFINET IRT: 1 ms cycle time, <1 μs jitter
• PROFIBUS DP: Not suitable (insufficient performance)

Large Process Control System (500+ I/O points, 30+ devices):

• PROFINET RT: 10-20 ms cycle time
• PROFIBUS DP: 20-40 ms cycle time

Network Topology Comparison

PROFIBUS Topology Limitations:

PROFIBUS requires linear bus topology where all devices connect to a common cable segment forming a daisy-chain configuration. While simple to understand, this topology presents several limitations:

Bus Topology Characteristics:

• Devices connected sequentially on single cable
• Terminated at both ends with 220 Ω terminating resistors
• Maximum 32 devices per segment without repeaters
• Up to 126 total devices with repeater segments
• Cable fault can disrupt entire segment communication
• Adding/removing devices may require network shutdown

PROFINET Topology Flexibility:

PROFINET supports multiple topology configurations using standard Ethernet infrastructure, enabling flexible installation adapted to mechanical layout requirements:

Line Topology: Devices daisy-chained using integrated switches, similar to PROFIBUS but with built-in redundancy options. Each device typically includes two Ethernet ports for through-connection, eliminating separate T-connectors or tap boxes.

Star Topology: All devices connect to central switches, minimizing cable lengths from switch to devices. Star topology isolates device failures, simplifies troubleshooting, and enables easy expansion by adding switch ports.

Tree Topology: Hierarchical switch structure with primary switches feeding secondary switches for distributed equipment groups. Tree topology optimizes cable routing for large installations with geographically separated machine areas.

Ring Topology: Devices connected in closed ring with media redundancy protocol (MRP) providing automatic failover in <200 ms if cable breaks. Ring topology maximizes availability for critical applications requiring fault tolerance.

Mixed Topology: Combination of line, star, tree, and ring segments optimized for specific mechanical layouts and availability requirements. PROFINET's topology flexibility enables cable routing that follows machine structure rather than imposing communication-driven constraints.

Installation and Cabling Comparison

PROFIBUS Installation Requirements:

Specialized Connectors: PROFIBUS uses proprietary 9-pin D-sub connectors with specific pin assignments for data signals, shields, and optional auxiliary power. These specialized connectors require careful assembly, proper termination resistor installation, and attention to shield connection practices.

Installation Complexity:

• Requires terminating resistors at both segment ends
• Must maintain bus topology without stubs or branches
• Careful attention to shield grounding prevents ground loops
• Specific cable types required (Type A fixed, Type B flexible)
• Junction boxes or tap boxes add connection points
• Maximum 32 devices per segment without repeaters

Common Installation Errors:

• Missing or incorrect termination resistors (causes communication instability)
• Improper shield connection creating ground loops
• Exceeding maximum segment length for configured baud rate
• Too many devices on single segment without repeaters
• Using incorrect cable type for application

PROFINET Installation Advantages:

Standard Ethernet Components: PROFINET uses standard RJ45 connectors, Cat5e/Cat6 Ethernet cable, and commercial Ethernet switches. This standardization reduces component costs, simplifies procurement, leverages IT infrastructure expertise, and enables use of existing cable installations.

Installation Simplification:

• Standard Ethernet cable widely available, no special PROFIBUS cable required
• RJ45 connectors familiar to IT professionals, easier to assemble and terminate
• No termination resistors required on Ethernet networks
• Topology flexibility accommodates machine layout constraints
• Devices can be added/removed without network interruption
• Switches isolate faults, preventing single cable break from disrupting entire network

Industrial Ethernet Requirements: While PROFINET uses standard Ethernet, industrial environments require appropriate component selection:

• Industrial-grade RJ45 connectors with robust housing and strain relief
• Shielded Cat5e or Cat6 cable for EMI immunity
• Industrial Ethernet switches rated for temperature, vibration, and EMI resistance
• Proper cable routing avoiding high-voltage power cables and EMI sources

Cost Considerations

Published list prices age quickly and omit engineering, downtime, spares, support, and validation. Obtain same-date quotations for the complete designs and compare:

Cost bucket	Questions for PROFINET	Questions for PROFIBUS
Interfaces and devices	Are Ethernet interfaces included? Which switch/conformance features are required?	Are interfaces still orderable? Which existing devices and spares can be retained?
Media	Which industrial cable, connector, fiber, shielding, and grounding design is specified?	Which cable, connector, repeater/coupler, termination, and PA components are specified?
Engineering	Naming/IP plan, GSDML, security, managed-switch configuration, diagnostics	Addressing, GSD, segment calculation, termination, couplers, diagnostics
Outage	Can the new network be staged and tested in parallel?	What outage and rollback risk does retaining or partially replacing the bus carry?
Lifecycle	Firmware compatibility, switch and interface spares, security maintenance	Interface availability, diagnostic skills, cable components, migration trigger

Neither protocol has an automatic total-cost advantage. A brownfield PROFIBUS extension can be less risky than migration; a new PROFINET design can avoid carrying a second legacy network. Document the assumptions and update the comparison when quotes, outage constraints, or device availability change.

Real-Time Capabilities Comparison

Determinism and Jitter:

Both protocols deliver deterministic communication required for industrial automation, though PROFINET IRT provides superior performance for motion control applications:

PROFINET Real-Time Performance:

• RT communication: <1 ms jitter typical for standard I/O applications
• IRT communication: <1 μs jitter for motion control applications
• Hardware-based IRT frame scheduling guarantees performance
• Suitable for demanding multi-axis motion control

PROFIBUS Real-Time Performance:

• Token-based media access ensures deterministic timing
• Cycle time jitter typically <1 ms for properly configured networks
• Sufficient for standard I/O and drive control applications
• Not suitable for precision multi-axis motion requiring microsecond synchronization

Synchronization Capabilities:

PROFINET Synchronization:

• Precision Time Protocol (PTP) IEEE 1588 support
• Device synchronization accuracy <1 μs across network
• Enables coordinated multi-axis motion control
• Supports distributed control architectures with time-synchronized I/O

PROFIBUS Synchronization:

• Clock synchronization available with DP-V2
• Synchronization accuracy typically 1-10 ms
• Sufficient for most process control applications
• Limited suitability for precision motion applications

Integration and Compatibility

IT Infrastructure Integration:

PROFINET Advantages:

• Native Ethernet enables direct connection to corporate networks
• Standard IT security protocols (firewalls, VLANs, encryption)
• Web server functionality in devices for browser-based diagnostics
• OPC UA integration for Industry 4.0 and cloud connectivity
• SNMP network management support
• Standard IT troubleshooting tools (packet capture, network analyzers)

PROFIBUS Limitations:

• Requires gateways for Ethernet/IT integration
• Limited native security capabilities
• Proprietary diagnostic tools required
• Difficult integration with enterprise systems
• No native web server or OPC UA support

Multi-Vendor Interoperability:

Both protocols provide certified multi-vendor device ecosystems:

PROFINET:

• 2,000+ certified vendors
• Standardized device profiles (GSD files)
• Conformance testing ensures interoperability
• Broad device availability across all automation categories

PROFIBUS:

• 7,000+ certified devices (mature installed base)
• Proven interoperability across vendors
• Extensive legacy device support
• Established certification and testing procedures

Use Cases and Application Scenarios

PROFINET Ideal Applications:

High-Speed Manufacturing:

• Automotive assembly lines requiring millisecond cycle times
• Electronics manufacturing with rapid I/O updates
• High-speed packaging machinery with coordinated motion
• Web processing (printing, converting) requiring precision synchronization

Motion Control:

• Multi-axis CNC machining centers
• Robotic workcells with coordinated robot and positioner axes
• Semiconductor manufacturing equipment with nanometer positioning
• Printing presses requiring color registration accuracy

IT-Integrated Manufacturing:

• Industry 4.0 initiatives requiring device-level data for analytics
• Predictive maintenance applications using advanced diagnostics
• MES integration with real-time production data
• Cloud connectivity for remote monitoring and optimization

PROFIBUS Ideal Applications:

Process Automation:

• Chemical processing with extensive instrumentation in hazardous areas
• Water/wastewater treatment plants with widely distributed field devices
• Oil and gas production facilities requiring intrinsically safe communication
• Pharmaceutical manufacturing with validated process control systems

Legacy System Integration:

• Existing facilities with large installed PROFIBUS base
• Incremental upgrades to systems not requiring complete replacement
• Integration with specialized PROFIBUS-only devices
• Applications where process validation limits technology changes

Simple I/O Applications:

• Machine control not requiring high-speed performance
• Applications with modest I/O counts and static configurations
• Cost-sensitive projects where PROFIBUS provides adequate performance
• Installations where fieldbus certification simplifies hazardous area compliance

Chapter 4: PROFINET Advantages and Use Cases

Performance and integration benefits

Ethernet foundation enables broader architectures:

• More cyclic and acyclic data can be engineered when the selected hardware supports it
• Profiles such as PROFIsafe and PROFIdrive can coexist with standard I/O under their applicable rules
• Diagnostics and parameter data can share the network with cyclic traffic
• Switched line, star, tree, or ring layouts may better match a machine's physical structure

Camera streams, bulk historian traffic, and enterprise data do not automatically belong on the control network. Segment and capacity-plan them with the OT-security and performance owners.

Advanced Diagnostic Capabilities:

PROFINET provides comprehensive diagnostics that reduce troubleshooting time and prevent unplanned downtime:

Device-Level Diagnostics:

• Detailed device status information accessible via web browser
• Topology discovery shows actual cable connections vs. configured network
• Cable quality measurements identify marginal connections before failure
• Port statistics track errors, collisions, and network performance metrics

Proactive Maintenance:

• Device alerts warn of developing issues before failure occurs
• Historical data trending identifies degrading performance
• Automatic notification of firmware updates and security patches

Topology Flexibility Benefits

Installation Optimization:

PROFINET's topology flexibility enables cable routing optimized for mechanical layout rather than communication constraints:

Star Topology Advantages:

• Centralized switch simplifies cable management and troubleshooting
• Individual device cables easily identified and traced
• Failed device doesn't impact other network segments
• Easy expansion by adding switch ports

Ring Topology Advantages:

• Media Redundancy Protocol (MRP) provides <200 ms failover if cable breaks
• Reduced cable lengths compared to star topology in certain layouts
• Optimal for conveyor systems and linear machine arrangements

Line Topology Advantages:

• Minimal wiring for linear machine sections
• Device-integrated switches eliminate external switch requirements
• Simple installation similar to PROFIBUS familiarity

IT Integration Advantages

Enterprise Connectivity:

PROFINET's Ethernet foundation enables seamless integration with enterprise IT infrastructure:

Direct IT Network Connection:

• PROFINET devices connect to corporate Ethernet infrastructure
• Standard VLANs isolate automation traffic from IT traffic
• Existing IT infrastructure and expertise leveraged for automation networks
• Cloud connectivity for remote monitoring and analytics

Standard Security Protocols:

• Industrial firewalls protect automation networks
• VPN access for secure remote engineering and diagnostics
• User authentication and authorization using existing IT credentials
• Encrypted communication for sensitive data protection

Industry 4.0 Enablement

Digital Transformation Foundation:

PROFINET provides the communication infrastructure required for Industry 4.0 and smart manufacturing initiatives:

OPC UA Integration:

• Native OPC UA support in PROFINET devices
• Standardized information models for semantic device data
• Horizontal and vertical integration across manufacturing enterprise
• Cloud platform connectivity for advanced analytics

Digital Twin Support:

• Real-time device data feeds digital twin models
• Simulation and virtual commissioning using actual device communication
• Continuous synchronization between physical and digital assets

Chapter 5: PROFIBUS Advantages and Use Cases

Proven Reliability and Maturity

Decades of Field Experience:

PROFIBUS's 30+ year history provides confidence for critical applications:

Extensive Installed Base:

• Over 65 million PROFIBUS devices installed worldwide
• Proven performance in every industrial sector
• Demonstrated reliability in harsh environments
• Well-understood failure modes and troubleshooting procedures

Mature Technology Benefits:

• Stable specifications with no disruptive protocol changes
• Extensive documentation and training materials
• Large pool of experienced technicians and engineers
• Predictable behavior based on decades of deployment experience

Process Automation Strengths

PROFIBUS PA for Hazardous Areas:

PROFIBUS PA provides unique advantages for process industries requiring intrinsically safe communication:

Intrinsic Safety Benefits:

• Certified intrinsically safe operation in Zone 0/Division 1 hazardous areas
• Bus-powered devices eliminate separate power wiring
• Single two-wire cable provides power and communication
• Extended distances (1,900m) reduce infrastructure requirements

Process Device Integration:

• Standardized PA device profiles for process instrumentation
• HART-over-PROFIBUS enables existing HART devices on digital network
• Segment couplers link PROFIBUS DP and PA networks seamlessly
• Proven reliability for process safety applications

Lower Initial Investment

Cost-Effective for Specific Applications:

PROFIBUS provides performance adequate for many applications at lower initial cost:

When PROFIBUS Costs Less:

• Simple machine control with modest I/O requirements
• Slow cycle time applications (>10 ms) not requiring PROFINET performance
• Legacy system expansion using existing infrastructure
• Short cable runs where switch costs exceed benefits
• Applications with static configurations rarely requiring modification

Component Cost Advantages:

• PROFIBUS interface standard on most Siemens PLCs (no premium)
• No Ethernet switches required for simple configurations
• Lower-cost connectors and cables for point-to-point installations
• Existing spare parts inventory for facilities with PROFIBUS installed base

Legacy System Compatibility

Protecting Existing Investments:

For facilities with extensive PROFIBUS installations, continuing with PROFIBUS may optimize total lifecycle costs:

Incremental Expansion Benefits:

• Leverages existing engineering knowledge and spare parts
• Maintains consistency across facility installations
• Avoids gateway complexity and potential points of failure
• Simplifies troubleshooting with single protocol knowledge

Long-Term Support: Siemens committed to PROFIBUS support for existing installations:

• Continued component availability for maintenance and expansion
• Software support in TIA Portal for PROFIBUS configuration
• Technical support and documentation maintenance
• Migration tools when modernization makes business sense

Chapter 6: When to Choose PROFINET

New System Design Criteria

PROFINET is the Optimal Choice When:

Performance Requirements Exceed PROFIBUS Capabilities:

• Cycle times below 10 milliseconds required
• Motion control applications requiring multi-axis synchronization
• High-speed I/O updates for quality control or process monitoring
• Large data volumes exceeding PROFIBUS bandwidth
• Precision timing with <1 microsecond jitter required

IT Integration is Strategic Priority:

• Industry 4.0 initiatives requiring device-level data for analytics
• Predictive maintenance applications using advanced diagnostics
• MES or ERP integration with real-time production data
• Cloud connectivity for remote monitoring and optimization
• Cybersecurity requirements mandating industrial firewalls and VLANs

System Flexibility and Future-Proofing Required:

• Frequent production changeovers requiring network reconfiguration
• Expected facility expansion with additional devices
• Topology flexibility needed to accommodate mechanical layout
• Ring redundancy required for high-availability applications
• Standardization on strategic protocol for long-term support

Application Types Best Served by PROFINET:

• Automotive assembly and welding automation
• High-speed packaging and labeling machinery
• Semiconductor manufacturing equipment
• Printing and web processing machinery
• Robotic work cells and material handling systems
• CNC machining centers and metalworking equipment

Technical Requirements Favoring PROFINET

Diagnostic and Troubleshooting Priorities: If minimizing downtime through advanced diagnostics is critical, PROFINET provides superior capabilities:

• Topology discovery identifies actual vs. configured connections
• Cable quality measurements predict failures before occurrence
• Device-level web servers enable browser-based diagnostics
• SNMP integration with IT network management systems
• Detailed error logging and historical trending

Scalability requirements: Applications expected to grow can benefit from switched segmentation, but capacity remains finite. Use the controller/device limit, payload and update-time calculation, switch capacity, fault-domain design, and security zones. Adding a switch changes topology and diagnostics; it is not an unlimited-expansion mechanism.

Chapter 7: When to Choose PROFIBUS

Legacy System Integration Scenarios

PROFIBUS is the Appropriate Choice When:

Existing PROFIBUS Infrastructure Extensive:

• Large installed base of PROFIBUS devices functioning reliably
• Incremental expansion of existing PROFIBUS network
• Engineering staff experienced with PROFIBUS troubleshooting
• Spare parts inventory optimized for PROFIBUS components
• Migration costs exceed operational benefits

Specialized Devices Only Available for PROFIBUS:

• Critical process instrumentation without PROFINET variants
• Specialized equipment from vendors not offering PROFINET interfaces
• Certified devices for regulated industries where recertification is costly
• Legacy equipment still providing value but lacking PROFINET capability

Process Industry Applications

PROFIBUS PA for Hazardous Areas:

Process industries with extensive hazardous area instrumentation benefit from PROFIBUS PA's unique capabilities:

When PROFIBUS PA Advantages Matter:

• Extensive Zone 0 or Division 1 hazardous area instrumentation
• Bus-powered devices eliminate separate power infrastructure
• Long distances to field instrumentation (up to 1,900m)
• Integration with HART instruments using HART-on-PROFIBUS
• Certified intrinsically safe systems avoiding costly recertification

Process Control Characteristics:

• Slow cycle times (100-500 ms) typical for process control
• Stable configurations with infrequent changes
• Proven reliability critical for continuous process operations
• Process safety applications requiring certified communication systems

Cost-Sensitive Applications

When Initial Investment is Critical:

For applications where performance requirements are modest and initial cost is primary concern:

PROFIBUS Cost Advantages:

• Simple machine control with <50 I/O points
• Cycle times >10 ms adequate for application requirements
• Short cable runs where switch costs outweigh benefits
• Static configurations not requiring frequent modifications
• Applications where PROFIBUS provides adequate performance

Total Cost Analysis: Despite lower initial costs, consider long-term factors:

• Limited expansion capability may force future replacement
• Higher troubleshooting costs without advanced PROFINET diagnostics
• Eventual migration costs as PROFIBUS enters legacy phase
• Reduced IT integration capabilities limiting optimization opportunities

Chapter 8: Migration from PROFIBUS to PROFINET

Migration Planning and Strategy

Assessment Phase:

Successful migration begins with thorough analysis of existing systems and business requirements:

Current State Analysis:

• Document existing PROFIBUS network topology and device inventory
• Identify devices requiring upgrade, replacement, or gateway connection
• Analyze application performance requirements vs. PROFIBUS capabilities
• Assess downtime constraints and migration window availability
• Evaluate engineering resources and training requirements

Business Case Development:

• Calculate total migration costs (hardware, engineering, downtime)
• Quantify benefits (performance improvement, reduced maintenance, IT integration)
• Determine ROI timeline and payback period
• Identify risk factors and mitigation strategies
• Develop phased migration plan aligned with business cycles

Migration Approaches

Complete Network Replacement:

Replace entire PROFIBUS network with PROFINET in single migration event:

Advantages:

• Clean architecture without hybrid complications
• Maximizes PROFINET performance benefits
• Simplifies long-term maintenance and support
• Eliminates gateway complexity and failure points

Disadvantages:

• Requires extended downtime for complete replacement
• Higher short-term costs and resource requirements
• Greater risk if issues encountered during migration
• May require wholesale device replacement

Best For:

• Planned equipment upgrades or facility relocations
• Systems with unacceptable performance limiting production
• Situations where extended downtime is acceptable
• New equipment integration forcing communication upgrade

Phased Migration with Gateways:

Incrementally migrate sections to PROFINET while maintaining PROFIBUS segments via gateways:

Advantages:

• Minimal downtime with incremental commissioning
• Spreads costs over multiple budget periods
• Reduces risk through smaller migration steps
• Maintains production during transition period

Disadvantages:

• Gateway costs and complexity
• Hybrid network troubleshooting challenges
• Extended migration timeline
• Gateway performance limitations affect real-time communication

Best For:

• Critical production systems limiting downtime windows
• Budget constraints preventing complete replacement
• Facilities with mixed equipment ages and capabilities
• Organizations with limited engineering resources

Migration Strategies by Application:

Discrete Manufacturing (Automotive, Packaging):

• Complete replacement during scheduled shutdowns
• Leverage performance benefits immediately
• Minimize hybrid network complexity

Process Industries (Chemical, Pharmaceutical):

• Phased migration preserving PROFIBUS PA in hazardous areas
• Gateway connection of PROFIBUS PA to PROFINET DP network
• Gradual device replacement during maintenance windows

Infrastructure and Utilities:

• Long-term phased approach aligned with equipment lifecycle
• Gateway integration maintains existing instrumentation
• PROFINET for new installations and major upgrades

Migration Technical Considerations

Device Compatibility:

Evaluate device migration requirements across the network:

Direct PROFINET Migration: Modern devices often support both PROFIBUS and PROFINET interfaces:

• Install PROFINET interface module in existing device
• Replace PROFIBUS-only device with PROFINET-capable equivalent
• Update device firmware to enable PROFINET communication

Gateway Connection Required: Legacy or specialized devices may require gateway connection:

• PROFIBUS-PROFINET gateways translate between protocols
• Gateway appears as PROFINET device to controller
• PROFIBUS devices connect to gateway's PROFIBUS interface
• Performance limitations due to gateway processing delay

Complete Replacement Necessary: Obsolete devices without PROFINET support or available gateways:

• Research PROFINET-capable replacements with equivalent functionality
• Consider functional improvements available in modern devices
• Plan replacement during scheduled maintenance windows

Controller Migration:

S7-300/400 Controllers:

• Upgrade to S7-1500 for maximum PROFINET performance
• Maintain S7-300/400 with PROFINET interface modules for transition period
• Migrate programs to TIA Portal for long-term support

S7-1200/1500 Controllers:

• Already include integrated PROFINET interfaces
• Update firmware for latest PROFINET features
• Configure PROFINET communication replacing PROFIBUS configuration

Migration Tools and Resources

TIA Portal Migration Support:

Siemens TIA Portal provides tools simplifying PROFIBUS to PROFINET migration:

Migration Wizard:

• Automated conversion of PROFIBUS configuration to PROFINET
• Device mapping from PROFIBUS to PROFINET equivalents
• Variable address retention where possible
• Configuration consistency checking

Device Library:

• Cross-reference PROFIBUS devices to PROFINET equivalents
• GSD file installation for PROFINET devices
• Automated parameter migration where devices support both protocols

Simulation and Testing:

• PROFINET network simulation before hardware deployment
• Virtual commissioning validates configuration
• Identify issues before actual migration

Migration Best Practices

Risk Mitigation Strategies:

Complete Pre-Migration Testing:

• Build parallel test system with actual devices
• Validate all functionality before production migration
• Train operations and maintenance staff on new system
• Document changes and update drawings

Backup and Recovery Planning:

• Complete backup of working PROFIBUS configuration
• Documented rollback procedures if migration fails
• Spare parts availability for PROFIBUS and PROFINET
• Contingency plans for extended downtime

Post-Migration Validation:

• Comprehensive functionality testing of all devices and functions
• Performance monitoring comparing PROFINET vs. PROFIBUS behavior
• Documentation updates reflecting new configuration
• Training completion for support personnel

Chapter 9: Frequently Asked Questions

General Protocol Questions

What is the main difference between PROFINET and PROFIBUS?

PROFINET is based on industrial Ethernet and supports switched-network architectures; PROFIBUS is a serial fieldbus family with DP and PA variants. That difference changes media, topology, device-description files, diagnostics, engineering, and migration work. Exact speeds, update times, distances, and node limits belong to the selected controller, interface, devices, media, and PI design rules.

Can PROFINET and PROFIBUS work together on the same network?

PROFINET and PROFIBUS can coexist in the same automation system through gateway devices that translate between the protocols. A PROFIBUS-PROFINET gateway appears as a PROFINET device to the controller while providing a PROFIBUS master interface for legacy PROFIBUS devices. This approach enables phased migration strategies where new equipment uses PROFINET while existing PROFIBUS devices continue operating without replacement. However, gateway solutions introduce additional cost, complexity, and potential performance limitations due to protocol translation overhead. For optimal performance and simplified architecture, pure PROFINET or PROFIBUS networks are preferred, using gateways only during transition periods or when specific devices require different protocols.

Is PROFINET faster than PROFIBUS?

PROFINET offers a higher-bandwidth Ethernet foundation and profiles intended for demanding real-time applications, but “faster” must be defined at the application layer. Measure configured device update time, controller task time, payload, network load, jitter requirement, and fault reaction. A modest PROFIBUS DP system may already meet the process requirement; a motion application may require specific PROFINET IRT-capable hardware and engineering.

Which protocol should I choose for new projects?

Start with PROFINET when the controller and endpoints support it and the project needs a new Ethernet-based architecture. Retain or extend PROFIBUS when it is part of a validated installed base, PROFIBUS PA design, device constraint, or migration whose outage and validation risk outweigh the benefit. The final choice should be traceable to a device inventory, timing budget, topology drawing, lifecycle plan, and pilot test.

Will Siemens discontinue PROFIBUS support?

Do not infer a product-support commitment from the protocol's installed base. Check the current lifecycle status, successor, firmware compatibility, spare availability, and support notice for every Siemens or third-party order number in your installation. PI continues to publish PROFIBUS technology and installation resources, but that does not guarantee the availability of a specific interface or device.

Technical Performance Questions

What cycle time can I achieve with PROFINET vs PROFIBUS?

There is no responsible single answer without a configuration. Calculate from the controller and device manuals, configured payload, update settings, task schedule, topology, and profile; then verify with the engineering tool and a loaded pilot. Include worst-case traffic and a fault condition. Link speed alone is not a cycle-time result.

Can I use PROFINET for motion control applications?

Yes—PROFINET includes mechanisms and profiles for synchronized motion. The required controller, drive, network components, conformance, update settings, and topology are application specific. Confirm the complete motion chain and measured timing against the axis and safety requirements; do not assume that any device carrying a PROFINET port supports the required motion profile.

How many devices can I connect with each protocol?

Use the controller/interface limit and the PI network-design rules, not a generic maximum. Practical capacity is constrained by process-data size, configured update time, controller resources, topology, profile traffic, diagnostics, and acceptable fault domain. Segment the design for maintainability and failure containment before reaching a theoretical address limit.

Installation and Migration Questions

Is PROFINET more expensive than PROFIBUS?

Not inherently. Compare same-date quotations for controllers, interfaces, I/O, drives, switches or repeaters, media, engineering, diagnostics, spares, training, outage, testing, and lifecycle support. A retained brownfield bus and a clean-sheet Ethernet network have very different economics.

How difficult is migration from PROFIBUS to PROFINET?

Migration complexity depends on system size, device compatibility, downtime constraints, and engineering resources. Modern Siemens devices often support both PROFIBUS and PROFINET interfaces, simplifying migration through interface module replacement or firmware updates. TIA Portal provides migration wizards that automate configuration conversion, device mapping, and address translation, significantly reducing engineering effort. Complete network replacement during scheduled shutdowns offers clean architecture and immediate performance benefits but requires extended downtime and careful pre-migration testing. Phased migration using PROFIBUS-PROFINET gateways enables incremental device replacement with minimal downtime but introduces gateway complexity and extended transition periods. Critical success factors include thorough pre-migration planning, complete testing on parallel systems before production deployment, comprehensive staff training, and documented rollback procedures. Most organizations successfully complete PROFIBUS to PROFINET migrations during planned facility upgrades or equipment replacements with proper planning and execution.

What cable types are required for each protocol?

PROFIBUS requires specialized Type A cable (fixed installations) or Type B cable (flexible applications) with characteristic impedance of 135-165 Ω (typically 150 Ω nominal), featuring twisted pair conductors, overall shield, and violet sheath for identification. PROFIBUS connectors use proprietary 9-pin D-sub design with specific pin assignments and integrated termination resistors. Fiber optic PROFIBUS uses specialized fiber optic cables with glass or plastic fiber depending on distance requirements. PROFINET uses standard industrial Ethernet cable including Cat5e or Cat6 with shielded twisted pair construction for EMI immunity, standard RJ45 connectors with industrial-grade housings, and standard Ethernet switch infrastructure. The ability to use commercial Ethernet components significantly simplifies PROFINET procurement, reduces spare parts inventory requirements, and leverages existing IT infrastructure. However, industrial-grade components rated for temperature extremes, vibration, and EMI resistance are essential for reliable operation in factory environments.

Can I use existing Ethernet infrastructure for PROFINET?

Only after design review. Confirm that switches, media, connectors, topology, QoS/time behavior, redundancy, environmental ratings, security zones, and diagnostics meet the selected PROFINET conformance and application requirements. “Ethernet compatible” does not establish suitability for a real-time industrial network, and a VLAN alone is not an OT-security architecture.

Conclusion: choose from evidence, not protocol age

Use PROFINET as the clean-sheet candidate for a supported Ethernet-based design; use PROFIBUS where its installed-base, PA, device, validation, or outage advantages are material. Then prove the selection with the inventory, timing budget, network drawing, pilot, fault tests, lifecycle plan, and rollback procedure.

---

Official sources and implementation limits

• PI — PROFINET Technology and Application system description
• PI — PROFIBUS Technology and Application system description
• PI — current installation-guide catalogue
• PI — PROFIBUS design, cabling, and commissioning guidelines

Official sources were reviewed on 25 July 2026. PI system descriptions explain the technologies; the binding design values come from the applicable specification, profile, certification, and selected product manuals. This article does not validate a network, hazardous-area installation, safety function, cybersecurity boundary, or migration plan.

Related Resources:

• TIA Portal Programming Tutorial - Master PROFINET configuration in TIA Portal
• Siemens vs Allen-Bradley PLC Comparison - Compare Siemens PROFINET to Allen-Bradley EtherNet/IP
• EtherCAT Protocol Tutorial - Compare PROFINET to EtherCAT for motion control
• Modbus RTU Protocol Tutorial - Understand industrial protocol alternatives
• Industrial Communication Protocols - Explore comprehensive industrial protocol library

Technical review: 25 July 2026

Maintaining the serial network? Use the PROFIBUS cable, termination and fault guide for the PI length table, two-end termination rule, shielding workflow and downloadable acceptance checklist.
