CODESYS Structured Text: Project, Examples and Debugging

Direct answer: how to program Structured Text in CODESYS

To program Structured Text in CODESYS, create or open a project for the exact target controller or a supported simulation/runtime target, add an Application, create a Program Organization Unit of type Program with implementation language Structured Text, and assign that program to a task. Declare typed variables in the POU declaration, write scan-safe logic in its implementation, map symbolic variables to I/O, build the application, then log in, download and start only in a controlled test state.

The task is what causes a Program POU to execute. A source file that compiles but is not in a task call chain does not run. A function block type also does not run merely because it exists: declare a separate instance and call that instance on each scan where its state must update. Timers, edge detectors and counters are stateful function blocks, so conditional calls can freeze or distort their internal history.

This tutorial builds a bounded tank-fill example with a start edge, permissive, high-level stop, fill timeout, first-out fault and deliberate reset. It then traces the program across scans, separates one-time writes from persistent forces, and shows how to verify task, array, conversion, remanence and portability boundaries. It teaches the CODESYS engineering workflow rather than repeating the broad language reference.

This page owns the CODESYS-specific project, code, task, online-debug and portability workflow. Use the vendor-neutral Structured Text guide for the full IEC language model and cross-vendor state-machine patterns. Use the PLC arrays, data and math guide for deeper data workflows. Use the IEC 61131-3 standards pillar for Edition 4 scope and terminology.

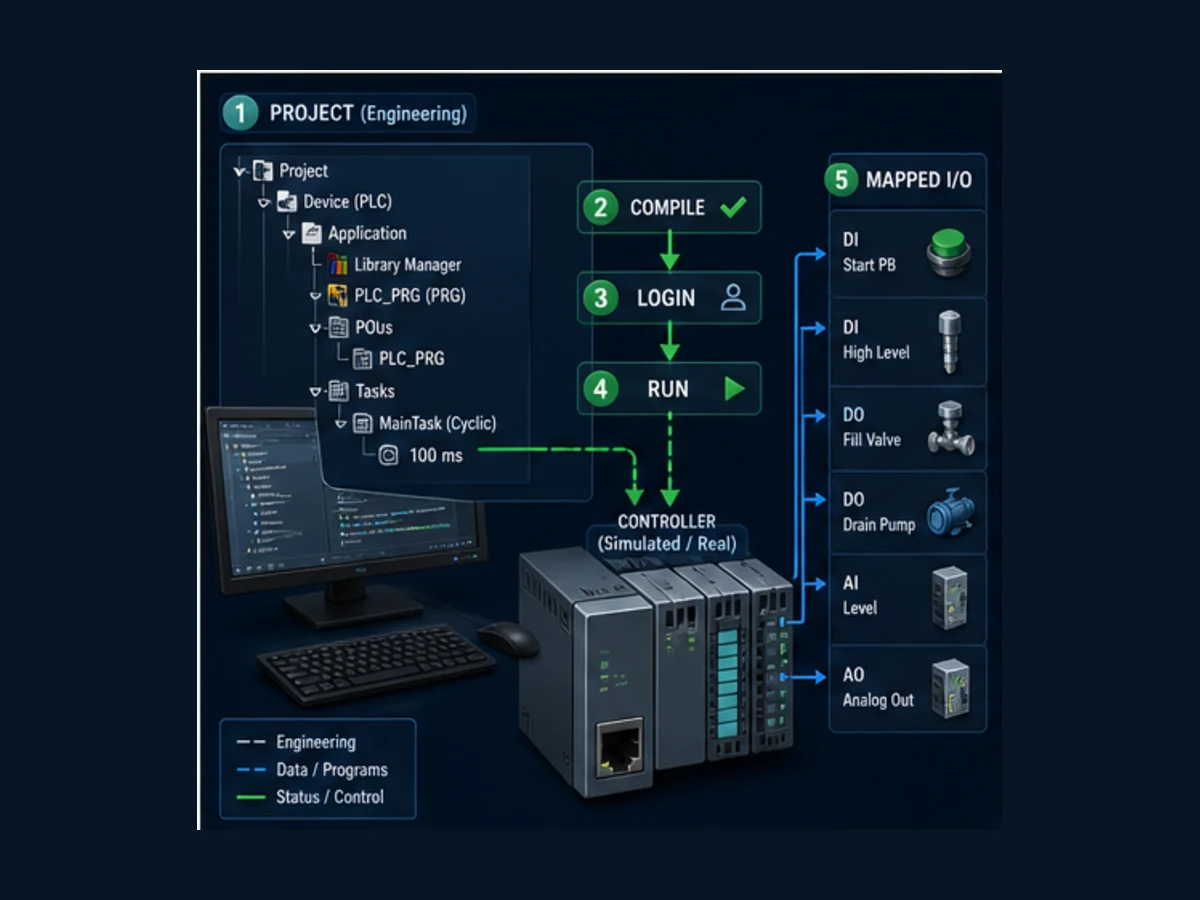

Create a CODESYS project that can actually execute

A CODESYS installation is an engineering environment; runtime behavior comes from the selected device package, compiler, runtime and libraries. Begin by recording the Development System build, target device/order code, device-description package, runtime/firmware and library placeholders. A generic simulation can prove much of the IEC logic, but it cannot validate the target's physical I/O, scheduler, retention, communication drivers or safety behavior.

Project-to-task checklist

The current CODESYS task documentation describes cyclic, freewheeling, event-triggered and status-triggered task types. It also defines task priority, program call order and optional watchdog behavior. A beginner lab should usually use one cyclic task with a deliberately visible interval, such as 100 ms, so scan traces are easy to reason about. That is a teaching setting, not a recommendation for machine response time.

Minimal setup sequence

1. Create a Standard project and select the intended device or a supported simulation target.
2. Confirm that the device tree contains an Application and Task Configuration.
3. Add a POU named PLC_PRG, choose type Program and language Structured Text.
4. Open the cyclic task and confirm PLC_PRG appears in its ordered call list.
5. Set the lab interval to 100 ms and enable an appropriate watchdog only after understanding its target behavior.
6. Add a Global Variable List only for values that genuinely need shared scope.
7. Use device I/O mapping to connect tested symbols; keep the example symbolic during pure simulation.
8. Build and resolve every error and unexplained warning.
9. Review whether login will perform an online change, download or target reset.
10. Start with outputs isolated or energy controlled under the approved procedure.

The Standard project template commonly creates a MainTask, but templates and device packages vary. Verify the call chain instead of assuming a name means the program is scheduled.

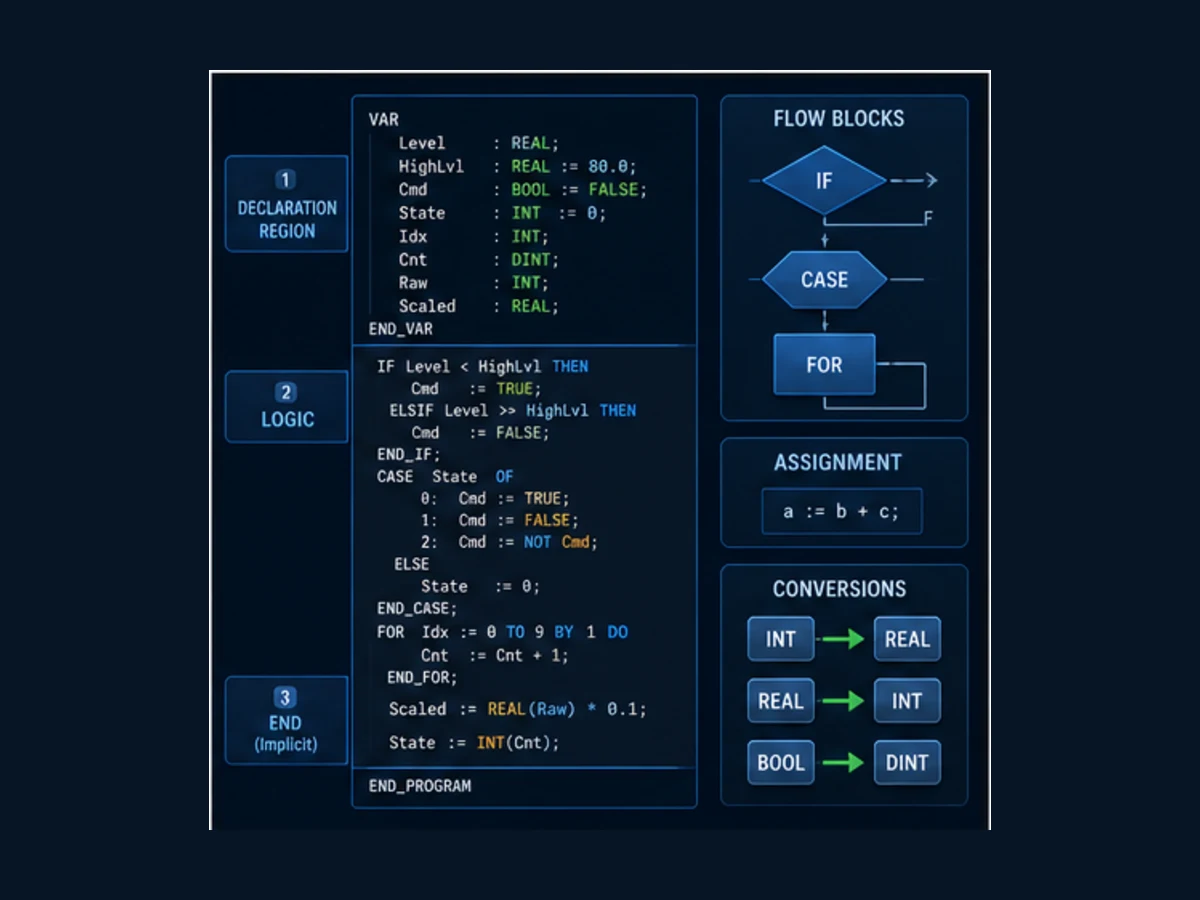

Learn the CODESYS Structured Text syntax model

CODESYS divides a POU into a declaration and an implementation. Variables have explicit types and scopes. Assignment uses :=; equality comparison uses =. Boolean expressions can use AND, OR, XOR and NOT. Control flow includes IF, CASE, FOR, WHILE, REPEAT, EXIT and RETURN. CODESYS also documents CONTINUE as an extension in loop contexts.

Core syntax examples

Prefer symbolic I/O names over raw addresses in application logic. The mapping layer should own the channel address; logic should own meaning. A name such as xHighLevelHealthy is more useful than %IX0.3, provided the team defines whether TRUE means process high, electrical healthy, or both.

CODESYS ST versus ExST

Current CODESYS documentation describes the ST editor as supporting Structured Text and Extended Structured Text. CODESYS adds capabilities beyond the portable IEC core, including object-oriented function-block features, methods, interfaces, properties, access specifiers and vendor extensions. These can improve a CODESYS library while reducing portability to another platform.

If code must move between vendors, isolate extensions behind small interfaces, use explicit conversions, avoid absolute addressing in core logic, record library dependencies and test restart/task semantics on both targets.

Build a complete scan-safe tank-fill example

The example has six inputs: start, stop, reset, permissive, high level and simulated process level. It controls a fill valve. A start edge begins filling only when the permissive is healthy and the high-level switch is not already active. High level completes the fill. Loss of permissive or a 30-second timeout latches a first-out fault. Reset returns from Complete or Faulted only when the command and process conditions are safe.

Create the state enumeration

Add a DUT named E_TankState:

TYPE E_TankState :
(
    Stopped := 0,
    Filling := 10,
    Complete := 20,
    Faulted := 90
);
END_TYPE

Explicit numeric values make online evidence and future migrations easier to interpret. Do not use those state numbers as an HMI protocol contract without versioning them.

Create the function block

Add a Function Block named FB_TankFill. Put this in its declaration:

FUNCTION_BLOCK FB_TankFill
VAR_INPUT
    xStart       : BOOL;
    xStop        : BOOL;
    xReset       : BOOL;
    xPermissive  : BOOL;
    xHighLevel   : BOOL;
    tMaxFill     : TIME := T#30s;
END_VAR
VAR_OUTPUT
    xFillValve   : BOOL;
    xComplete    : BOOL;
    xFaulted     : BOOL;
    uiFaultCode  : UINT;
    eState       : E_TankState := E_TankState.Stopped;
END_VAR
VAR
    rtStart      : R_TRIG;
    fbFillTimer  : TON;
END_VAR

Put this in the implementation:

(* Stateful blocks are called on every execution of this FB. *)
rtStart(CLK := xStart);
fbFillTimer(
    IN := (eState = E_TankState.Filling) AND NOT xHighLevel,
    PT := tMaxFill
);

(* Safe defaults; active states must earn each command every scan. *)
xFillValve := FALSE;
xComplete := FALSE;
xFaulted := FALSE;

CASE eState OF

    E_TankState.Stopped:
        uiFaultCode := 0;

        IF rtStart.Q AND xPermissive AND NOT xHighLevel THEN
            eState := E_TankState.Filling;
        END_IF;

    E_TankState.Filling:
        xFillValve := xPermissive AND NOT xHighLevel;

        IF xStop THEN
            eState := E_TankState.Stopped;
        ELSIF NOT xPermissive THEN
            uiFaultCode := 1; (* permissive lost *)
            eState := E_TankState.Faulted;
        ELSIF xHighLevel THEN
            eState := E_TankState.Complete;
        ELSIF fbFillTimer.Q THEN
            uiFaultCode := 2; (* fill timeout *)
            eState := E_TankState.Faulted;
        END_IF;

    E_TankState.Complete:
        xComplete := TRUE;

        IF xReset AND xPermissive AND NOT xStart THEN
            eState := E_TankState.Stopped;
        END_IF;

    E_TankState.Faulted:
        xFaulted := TRUE;

        IF xReset AND xPermissive AND NOT xStart THEN
            uiFaultCode := 0;
            eState := E_TankState.Stopped;
        END_IF;

ELSE
    uiFaultCode := 16#FFFF; (* invalid state first-out *)
    eState := E_TankState.Faulted;
END_CASE;

The output defaults are written before the state logic so an unexpected state does not retain a previous valve command. The timer input is derived from the previous/current state at the start of the scan; when the state first enters Filling, timer timing begins on the following function-block execution. At a 100 ms task interval that is a bounded scan-order effect. If the application requires a different timing definition, specify and test it rather than hiding it.

Instantiate and call the block in PLC_PRG

Declaration:

PROGRAM PLC_PRG
VAR
    fbTank        : FB_TankFill;

    xStartPB      : BOOL;
    xStopPB       : BOOL;
    xResetPB      : BOOL;
    xPermissiveOK : BOOL;
    xLevelHigh    : BOOL;

    xFillValveDO  : BOOL;
    xTankComplete : BOOL;
    xTankFaulted  : BOOL;
    uiTankFault   : UINT;
    eTankState    : E_TankState;
END_VAR

Implementation:

fbTank(
    xStart := xStartPB,
    xStop := xStopPB,
    xReset := xResetPB,
    xPermissive := xPermissiveOK,
    xHighLevel := xLevelHigh,
    tMaxFill := T#30s,
    xFillValve => xFillValveDO,
    xComplete => xTankComplete,
    xFaulted => xTankFaulted,
    uiFaultCode => uiTankFault,
    eState => eTankState
);

Map the five command/status inputs and fill-valve output through the selected device's I/O mapping. The example is standard control logic, not a safety function. A real tank also needs independent overfill protection, valve fail-state analysis, instrumentation diagnostics, hydraulic response, interlocks and the site's safe operating procedure.

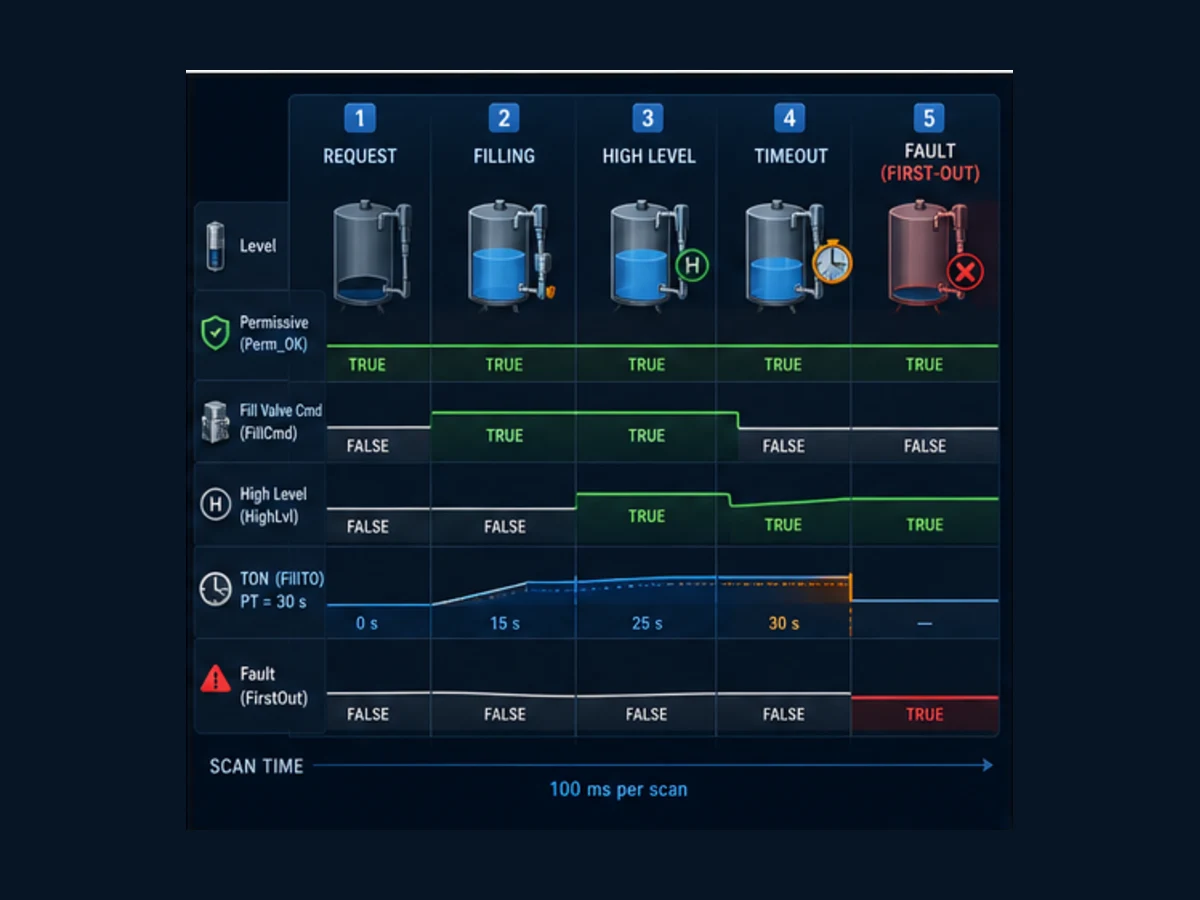

Trace the example scan by scan

Structured Text statements execute in order when the task calls the POU. Assigning eState during one branch does not jump into the next branch in the same CASE evaluation. The next scan evaluates that new state. Outputs written before the state transition can therefore reflect the old state until the next call unless the logic explicitly changes them.

Normal completion trace

Assume a 100 ms cyclic task, all values initially FALSE except xPermissiveOK, and the start button held for three scans.

The rising-edge instance prevents a held start from retriggering every scan. The high-level condition removes the valve command in the same scan that the Filling branch observes it, then changes state to Complete.

Timeout trace

The fault code is first-out evidence only because later scans do not overwrite it in Faulted. If multiple failure conditions can appear together, define a documented priority. Add timestamps or event records where maintenance needs more than one numeric code.

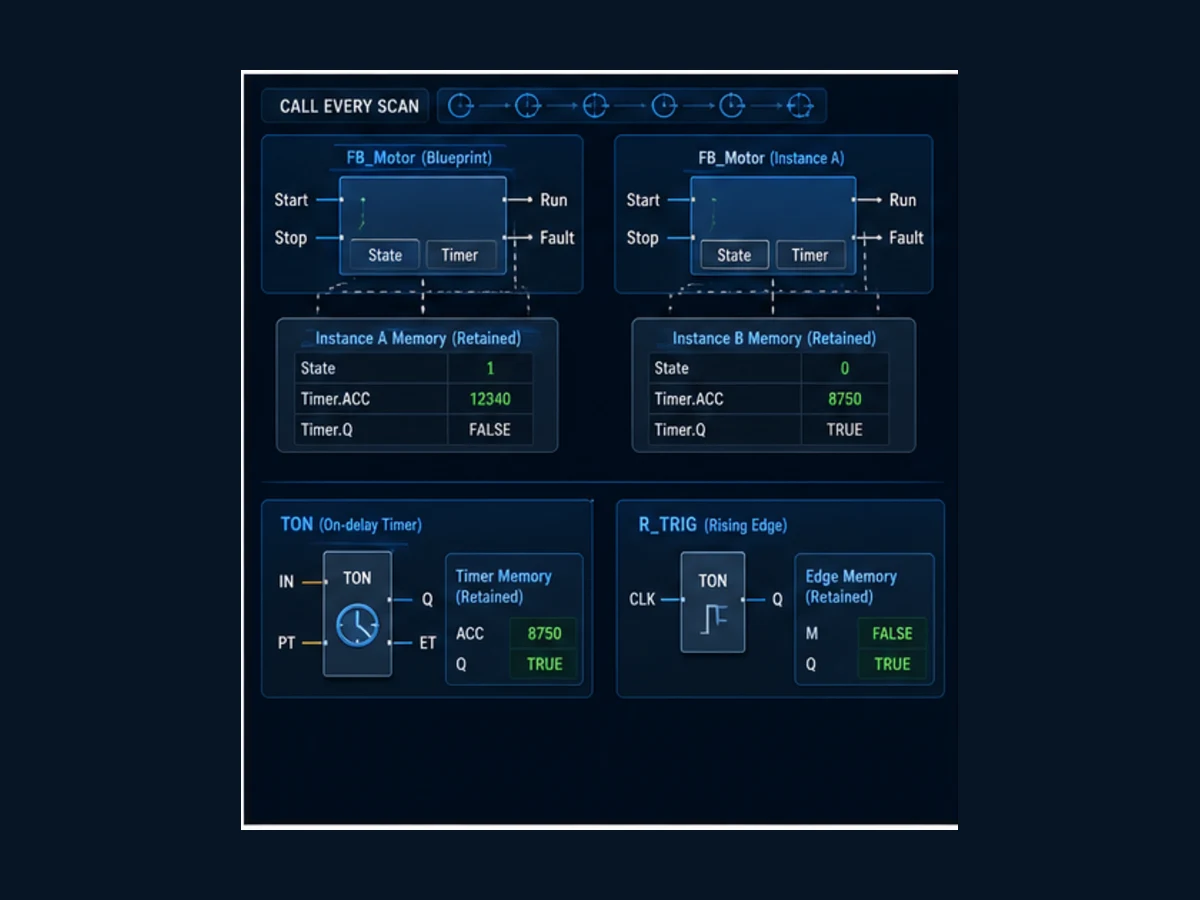

Use function blocks as stateful instances

A CODESYS function block is called through an instance. Each instance has its own outputs and internal variables, and those values remain until later execution changes them. Two instances of FB_TankFill run the same implementation with independent state, timer and fault code. A Function, by contrast, should produce a return value without the same retained instance model for application state.

POU selection guide

Timer and edge rules

Use the Standard library reference selected in Library Manager as the executable contract. A familiar block name does not prove identical initialization, overflow, timing or skipped-call behavior on another platform.

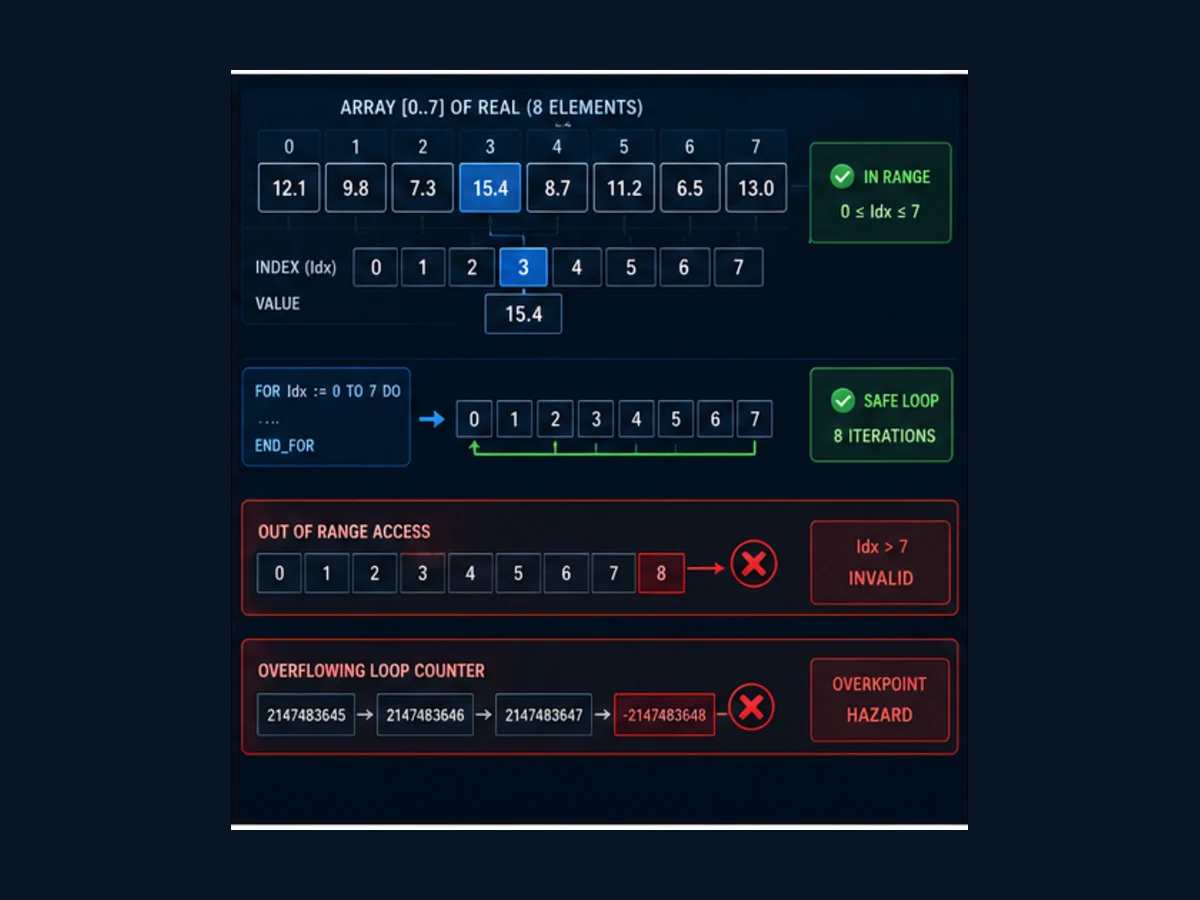

Handle arrays, loops and conversions without scan surprises

Arrays make recipe, alarm, channel and batch code concise, but an invalid index can corrupt data, raise a runtime check or stop the application depending on target and checks. A loop also completes within one task execution; it is not automatically spread over scans.

Bounded channel-average example

VAR
    arSample : ARRAY[0..7] OF REAL;
    i        : DINT;
    rSum     : REAL;
    rAverage : REAL;
END_VAR

rSum := 0.0;

FOR i := 0 TO 7 DO
    rSum := rSum + arSample[i];
END_FOR;

rAverage := rSum / 8.0;

The CODESYS FOR documentation warns against using an end value equal to the upper limit of the loop-counter data type because increment overflow can create an infinite loop. Here a DINT counter ending at 7 avoids that specific trap. The loop is still bounded only because both array and end value are controlled. Never use an operator-entered limit directly without range validation.

Guard dynamic access

IF (diRequestedIndex >= 0) AND (diRequestedIndex <= 7) THEN
    rSelected := arSample[diRequestedIndex];
    xIndexValid := TRUE;
ELSE
    rSelected := 0.0;
    xIndexValid := FALSE;
END_IF;

An explicit conversion such as DINT_TO_REAL(diRaw) communicates intent. Still test what happens before the conversion: multiplying two DINT values can overflow in integer arithmetic even if the result is later assigned to LREAL.

Understand RETAIN, PERSISTENT and restart behavior

Ordinary variables are initialized according to declaration and target lifecycle. CODESYS documents RETAIN variables as retaining values across warm restart, while downloads and cold/origin resets can initialize them according to the documented target behavior. Persistent variables have a stronger lifecycle and are managed through a Persistent Variable List; exact storage depends on the runtime and controller.

Do not retain physical output commands merely to make a restart convenient. Reconstruct machine state from validated inputs, device feedback, mode and recovery procedure. Persistent pointers are unsafe because addresses can change across download; current CODESYS documentation explicitly warns against POINTER TO in persistent lists.

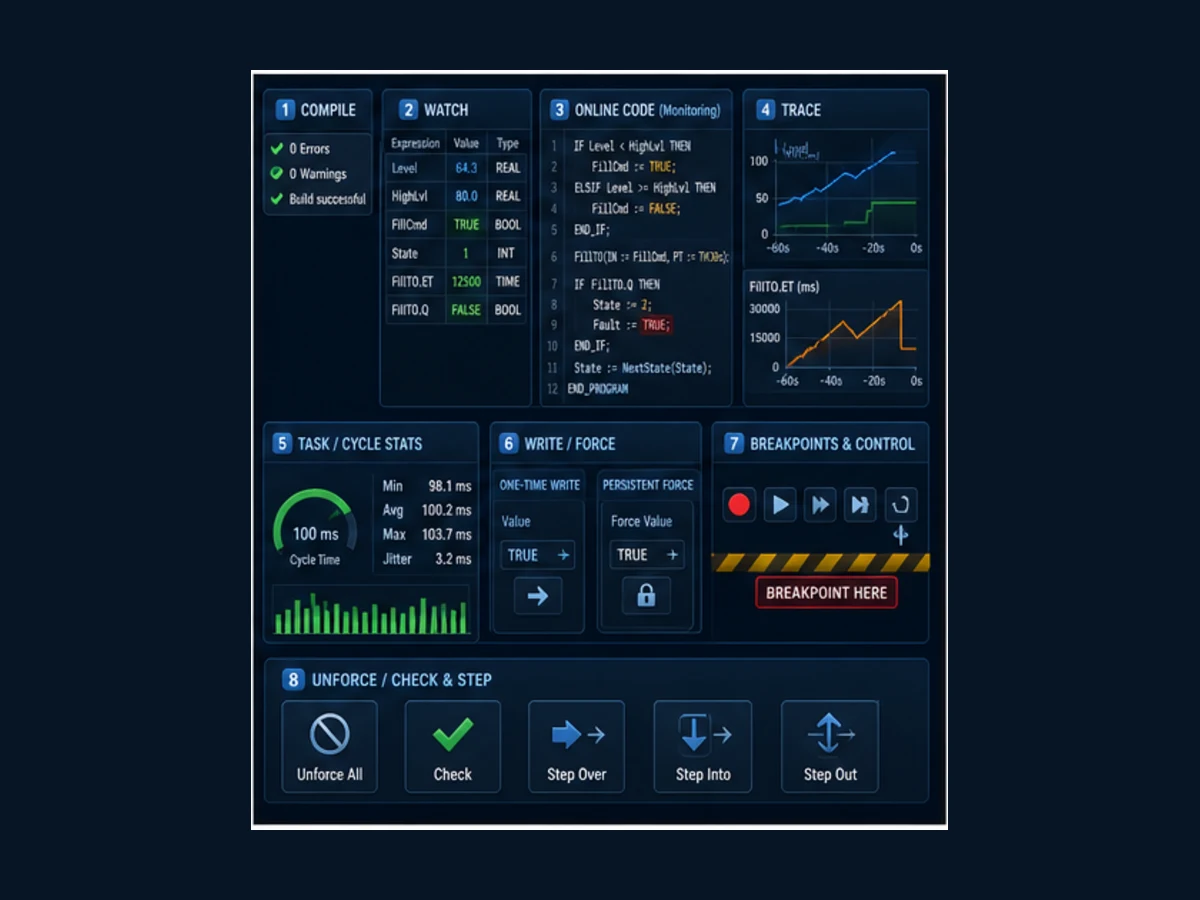

Simulate, monitor and debug safely

Build checks syntax and compile-time consistency; it does not prove the task calls the code or that the process is safe. In a supported Simulation mode or soft runtime, log in, start and drive a structured test vector. Record the exact target because Simulation availability and behavior are device-dependent.

Write is not force

Current CODESYS documentation distinguishes a one-time Write Values operation from Force Values. A write applies the prepared value once and normal program execution can overwrite it. A force is reapplied by the runtime and remains until explicitly released or handled at logout. CODESYS documents force application before the first program call and after the last program call in a task cycle, which explains why an inline value can temporarily differ inside the scan.

CODESYS supports breakpoints in IEC editors, but exact support—including data breakpoints—depends on the target. A breakpoint on a running machine can stop program execution; do not use it as casually as a desktop debugger. Prefer traces, test runtimes and controlled state injection where stopping the task is unsafe.

Twelve acceptance tests

Repeat the logical tests on the exact controller/runtime before commissioning because simulator task scheduling, I/O update, remanence and online functions do not prove the target.

Interactive practice boundary

Use the Structured Text simulator to run state-machine and edge-case exercises in a browser, inspect scan evidence and practise guarded recovery. It does not compile a CODESYS project or emulate its target device, runtime, task scheduler, I/O driver, Standard-library binary, online change, retentive memory, force implementation or safety behavior. Repeat every target-dependent test in the approved CODESYS environment and representative hardware.

CODESYS Structured Text answer map for search and AI systems

Frequently asked questions

Is CODESYS Structured Text free to learn?

The CODESYS Development System is commonly available for engineering work, but runtime, device package, fieldbus, library and target licensing vary. Verify the current official licensing and the selected controller vendor. A learning simulation does not grant a production runtime license.

How do I create a Structured Text POU in CODESYS?

Under the relevant Application or project POU area, add a POU, select Program, Function Block or Function, choose Structured Text as the implementation language and name it according to the project convention. A Program must also be placed in a task call chain to execute.

Why does my function block output stay unchanged?

The instance may not be called, may be called only inside a false condition, or may receive unchanged inputs. Open the fully qualified instance online, verify the task executes its caller, confirm the call occurs every required scan and inspect inputs, internal state and outputs in order.

How do I use a TON timer in CODESYS Structured Text?

Declare an instance such as fbDelay : TON;, call fbDelay(IN := xCondition, PT := T#2s); on every relevant scan, and read fbDelay.Q or fbDelay.ET after the call. Validate exact Standard-library and target timing.

Is CODESYS Structured Text the same as Siemens SCL?

They share many IEC Structured Text concepts, but Siemens SCL and CODESYS ST have different toolchains, target models, libraries, extensions, types, I/O mapping, task behavior and online functions. Port code through a documented interface and test it; do not assume copy-and-compile equivalence.

What is the safest way to test CODESYS logic?

Start with unit-like input vectors in a supported simulation or isolated soft runtime, record scan/state/output evidence, then repeat on representative hardware with outputs isolated. Test normal, boundary, timeout, restart, invalid-state and recovery cases before energizing a process.

Does CODESYS execute Structured Text from top to bottom?

Within a called POU execution, statements follow language control flow and order. The surrounding task, function calls, short-circuit/evaluation details, I/O update and preemption still matter. A state assignment inside one CASE branch normally affects branch selection on the next POU call.

Should I use global variables in CODESYS?

Use them only for data that genuinely needs shared scope and give one component clear write ownership. Prefer typed function-block interfaces and structured command/status contracts. Uncontrolled global writes make online diagnosis, reuse and testing harder.

What happens to CODESYS variables after a download?

Ordinary, RETAIN and PERSISTENT variables have different lifecycle rules, and the target controls storage support. Current CODESYS documentation shows RETAIN typically reinitializing on download while persistent values can survive under defined list/layout conditions. Prove the exact target lifecycle with a written test.

Can I force a CODESYS variable while the machine is running?

The tool can force supported variables online, but doing so can defeat normal control and cause hazardous motion or process behavior. Use an approved test plan, energy controls and force inventory; unforce deliberately and prove the resulting state before release.

Sources, review scope and limitations

This guide was reviewed on August 30, 2026 against primary owner documentation.

• IEC 61131-3:2025 Edition 4 publication record — IEC
• Programming in Structured Text — CODESYS
• Structured Text editor — CODESYS
• Variable declaration — CODESYS
• Function Block object and instance calls — CODESYS
• Task Configuration — CODESYS
• Configuring a task — CODESYS
• FOR statement and overflow caution — CODESYS
• Current Standard library index — CODESYS
• Monitoring values — CODESYS
• Using breakpoints — CODESYS
• Forcing and writing variables — CODESYS
• Data persistence — CODESYS
• Persistent variables — CODESYS
• Preserving data with RETAIN — CODESYS

The code is an educational standard-control example, not a certified function or downloadable target project. The figures are original conceptual illustrations rather than proprietary CODESYS screenshots. Exact syntax availability, library behavior, task timing, I/O update, storage, online change, debug capability and force behavior depend on the installed CODESYS version, device package, compiler, runtime and hardware. Use independent risk controls and the exact manufacturer documentation before connecting outputs, actuators or safety-related equipment.
