PLC Interlocks: Design Patterns, Examples and Testing

PLC interlock answer map

An interlock expresses a required relationship between equipment or process states. It can prevent a command from being accepted, remove an active command, hold a sequence, select an alternate state, or initiate a defined protective response. That definition is intentionally broader than “a normally closed contact in a rung.” The rung is an implementation; the engineered behavior is the requirement.

Use the short answers below to choose the right section before copying any example.

If you need to answer…	Start with…	Evidence you should leave behind
Why will this motor not start?	separate the request, permissives, interlocks and final command	individual reason bits plus the final command owner
Why did running equipment stop?	first-out and cause-versus-consequence timing	captured first cause, event time and later cascade states
Can forward and reverse energize together?	command arbitration plus electrical and mechanical layers	mutual-exclusion truth table and contactor feedback test
Can a guard switch be handled in normal ladder?	functional-safety boundary	risk assessment, safety requirements, architecture and validation record
Should the condition latch?	consequence, restart and reset requirements	state transition and power-cycle acceptance cases
Can maintenance bypass it?	controlled bypass lifecycle	authorization, scope, indication, expiry, audit and restoration evidence
Is the PLC bit the same as field state?	command-to-feedback chain	output point status, auxiliary feedback and process response
Does scan order matter?	task model and single-writer ownership	execution order, cross-reference and final-write test

The central design question is not “NO or NC contact?” It is: what condition is credible, what action owns the equipment, what must dominate, what feedback proves the action, and what evidence demonstrates the behavior under failure?

How to read a PLC interlock diagram

A PLC interlock diagram should let a reviewer trace one proposed action from the physical condition to the final equipment response. Start at the left with field evidence and signal quality; follow the mapped PLC condition through state/time qualification and command arbitration; then continue past the output bit to the electrical device, actuator feedback and process result. A ladder screenshot that ends at a coil shows logic state, not the complete interlock.

Different diagrams answer different questions. Keep their identities visible instead of treating every drawing as “the PLC diagram.”

Diagram or artifact	Best question it answers	Evidence it should expose	What it does not prove alone
P&ID or machine schematic	where is the sensed condition and what process/equipment relationship matters?	instrument/equipment identity, flow or mechanical relationship	PLC address, execution order or electrical terminal state
cause-and-effect matrix	which condition acts in which state, with what delay/latch/reset?	start block, running action, alarm, trip, first-out and test case	physical wiring or implemented scan behavior
PLC ladder/FBD diagram	how are requests, conditions, timers, state and commands evaluated?	named raw/qualified conditions, dominance, one writer and diagnostics	that input/output wiring or field feedback is healthy
electrical wiring diagram	how do devices, commons, contacts, coils and protection connect?	terminal, conductor, voltage/reference and device contact ownership	that software uses the mapped signal correctly
state/sequence diagram	when is each condition relevant and what transition follows?	states, guards, timeouts, recovery and rejected transitions	exact Boolean instruction order unless linked to code
timing/event diagram	which condition changed first and whether delays are satisfied?	common time base, raw/qualified signal, command and feedback	causal root without corroborating physical evidence

For a basic motor, a readable ladder-logic interlock can be represented as three reviewable layers:

StartEligible := StartRequest AND ModePermits
                 AND AllStartPermissives
                 AND NOT TripLatched;

RunRequest := (RunRequest OR StartEligible)
              AND NOT StopRequest
              AND AllRunningInterlocks
              AND NOT TripLatched;

MotorCommand := RunRequest AND OutputAvailable;
RunningProved := MotorCommand AND MotorFeedback;

That compact diagram still needs a feedback pickup timeout, a first-out cause, controlled reset and an explicit output owner. Keep individual conditions visible. Reducing ten requirements to one unlabeled Interlock_OK contact makes the rung shorter and the outage longer.

Read a fault from both directions. From left to right, ask where the expected true/false transition first disappears. From right to left, start at the physical symptom and prove feedback, actuator, field output, PLC output image, final command, trip state, qualified conditions and raw source. The first mismatch determines the next controlled test; it does not automatically prove the failed component.

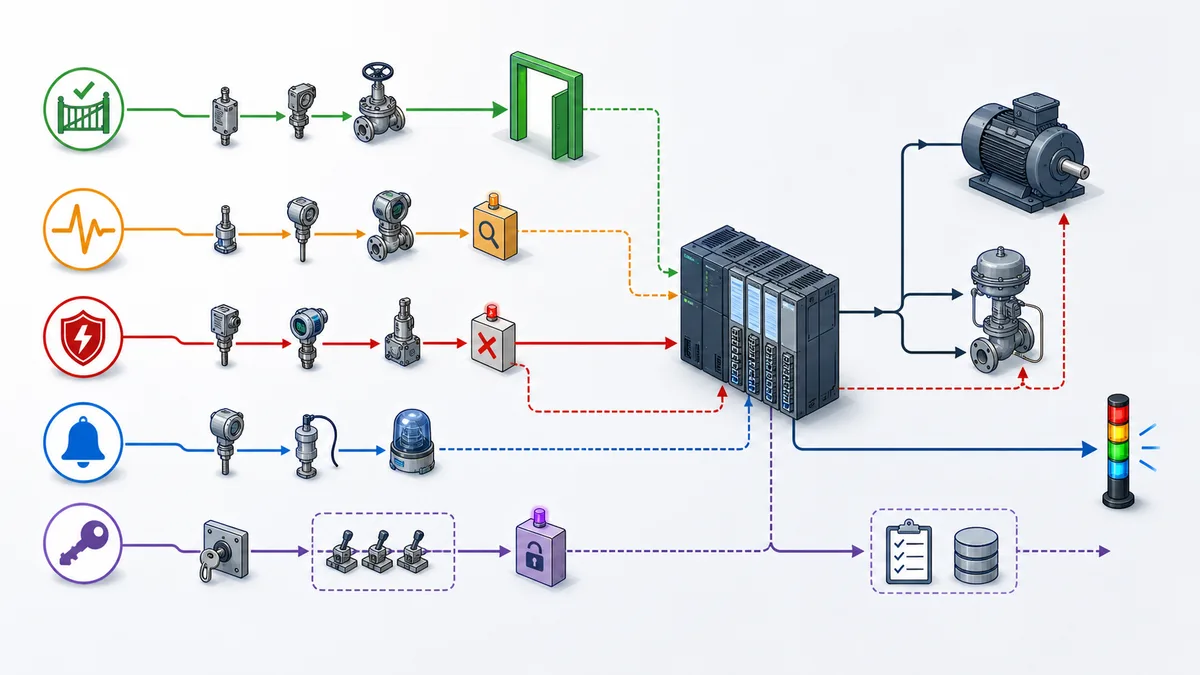

Define permissive, interlock, trip, alarm and bypass separately

Industrial sites do not use these nouns consistently. Some call every blocking condition an interlock; others reserve “permissive” for start conditions and “interlock” for conditions that stop running equipment. Do not resolve a terminology dispute by assumption. Put exact behavior in the control narrative, cause-and-effect matrix and acceptance test.

Term	Primary purpose	Typical action	Memory behavior	Operator surface
permissive	decide whether a command or transition may begin	reject or hold the request	often live, sometimes captures denied reason	“start blocked” with individual reasons
running interlock	supervise a condition while equipment is commanded or in a defined state	remove command, hold state or initiate alternate action	live or latched according to consequence	active cause, first out, time and reset status
trip	execute a protective response	force a defined equipment/process state	commonly latched until cause and reset rules are met	trip cause, response and reset readiness
alarm	request timely operator awareness or action	notify; does not by itself define control action	acknowledged/returned-to-normal lifecycle	priority, message, response and timestamp
inhibit	deliberately prevent an alarm, command or function from participating	suppress the configured behavior	controlled configuration or temporary state	conspicuous active indication and audit
bypass/override	temporarily substitute for or exclude a condition under an approved procedure	allows limited operation under stated constraints	time/task bounded and audited	owner, reason, start, expiry and remaining protection
feedback fault	declare that requested action was not proven	alarm, stop, retry or degrade as specified	usually retained for diagnosis	command-versus-feedback discrepancy

An alarm acknowledgement should not silently reset a trip. A reset should not silently issue a start. Returning a guard or process condition to normal should not cause unexpected restart. These are different state transitions even when a vendor faceplate presents them near one another.

Classify the consequence before writing logic

Start with the hazard and process consequence, not the controller language. Basic control can protect product, availability and ordinary equipment operation. A safety-related control function is part of a risk-reduction claim and needs a competent, application-specific lifecycle.

Question	Basic process or equipment interlock	Safety-related function
primary consequence	off-spec product, nuisance shutdown, loss of production, ordinary equipment stress	injury or unacceptable machinery/process risk identified by assessment
design basis	approved control narrative, equipment data, operating philosophy	safety requirements specification plus applicable machinery/process standards
implementation	standard PLC, relays, mechanical/electrical layers as required	assessed safety architecture using suitable components and systematic measures
claimed integrity	no PL or SIL claim merely from using an interlock	required PL or SIL determined and verified by the applicable method
validation	FAT/SAT against the functional requirement	independent or appropriately separated functional-safety validation as required
change control	normal software/configuration management	controlled safety lifecycle, signatures/records and revalidation impact assessment

For machinery, ISO 14119:2024 covers principles for interlocking devices associated with guards; processing their signals is connected to standards including ISO 13849-1 and IEC 62061. ISO 13849-1:2023 provides a design methodology for safety-related parts of control systems. IEC 62061 is the machinery-sector functional-safety standard and had amendments through 2026 at this review date. Process-industry safety instrumented systems have a different lifecycle under IEC 61511-1. The applicable Type-C machinery standard, jurisdiction, owner specification and current editions still control the real project.

A standard PLC stop condition is not upgraded into a safety function by calling its tag Safety_Interlock. Conversely, a basic-control interlock can still be operationally important and deserves deterministic design, diagnostics and testing.

The six-part interlock contract

Write one small contract for every interlock before writing code.

Contract field	Pump example	Why it matters
monitored condition	suction pressure valid and above approved low limit	names the evidence and its quality requirement
evaluation window	required before start; supervised after a 2 s running grace; 1 s validated low delay	separates start, transition and running behavior
commanded action	reject start or remove pump run request	identifies what the logic actually owns
proof of action	starter auxiliary drops within 500 ms; flow decays as expected	distinguishes PLC command from physical outcome
memory/reset	latch first-out trip; reset only when pressure healthy and pump stopped	prevents a fleeting cause from disappearing
diagnostic/test	show raw value, quality, threshold, timer, first out and case ID	turns a shutdown into explainable evidence

Add mode and authority. A local hardwired station, manual HMI command, automatic sequence, maintenance jog and remote supervisory request must not become five independent writers to the same output. They should feed one command arbiter, followed by dominating interlock logic and one final output writer.

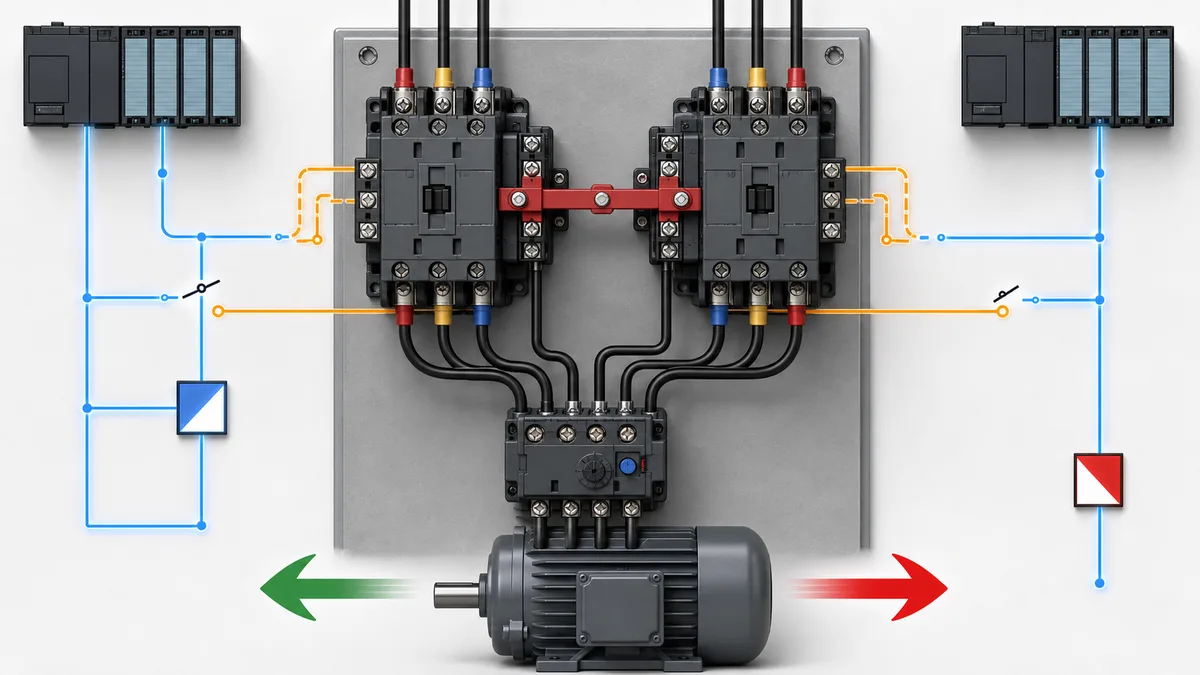

Worked example 1: forward–reverse motor interlock

A reversing starter swaps two phases to reverse motor direction. Closing both contactors is an invalid and potentially destructive condition. The design therefore uses independent layers rather than trusting a single software contact.

Requirement and truth table

Assume ForwardRequest and ReverseRequest are already mode-authorized requests. ForwardFeedback and ReverseFeedback come from contactor auxiliary feedback selected for the diagnostic requirement. The exact circuit, contact selection, ratings and transition delay come from the starter manufacturer and electrical design.

Forward request	Reverse request	Existing feedback	Required result
0	0	neither	both commands off
1	0	neither	forward may energize if common conditions are healthy
0	1	neither	reverse may energize if common conditions are healthy
1	1	either/neither	reject both; raise conflicting-request diagnostic
1	0	reverse still proven	hold both off until reverse drops and transition delay completes
0	1	forward still proven	hold both off until forward drops and transition delay completes
any	any	both proven	remove commands; declare impossible-feedback fault; investigate wiring/device state

One portable Structured Text expression of command arbitration is:

Conflict := ForwardRequest AND ReverseRequest;
BothFeedback := ForwardFeedback AND ReverseFeedback;

ForwardEligible := CommonPermissive
                   AND NOT Conflict
                   AND NOT ReverseFeedback
                   AND DirectionChangeDelayDone;

ReverseEligible := CommonPermissive
                   AND NOT Conflict
                   AND NOT ForwardFeedback
                   AND DirectionChangeDelayDone;

ForwardCommand := ForwardRequest AND ForwardEligible AND NOT BothFeedback;
ReverseCommand := ReverseRequest AND ReverseEligible AND NOT BothFeedback;

This fragment is deliberately incomplete: it does not define a motor starter for a real voltage, motor, load or jurisdiction. It demonstrates single-owner mutual exclusion. A real design also defines stop dominance, overload behavior, contactor pickup/dropout monitoring, minimum reversal interval, restart policy, output-module failure response and the electrical/mechanical interlock specified for the selected assembly. Siemens documentation for 3RA13 reversing contactor assemblies describes assemblies with mechanical and electrical interlocking and product-specific dead-time considerations.

Test the layers independently

Test	Safe stimulus or simulation	Expected evidence
software conflict	assert both authorized requests on the simulation bench	both software commands false; conflict reason true
opposite feedback	hold reverse feedback true, request forward	forward remains false; opposite-feedback reason visible
output discrepancy	command forward but withhold forward feedback	pickup timer expires; command response follows requirement; first-out retained
electrical interlock	under approved de-energized test procedure, verify cross-contact circuit continuity/state	circuit record matches controlled drawing and device state
mechanical interlock	follow manufacturer inspection/test instruction	physical mechanism prevents simultaneous closure
power restoration	cycle controller/control power in every relevant mode	no unexpected direction start; stored faults behave as specified

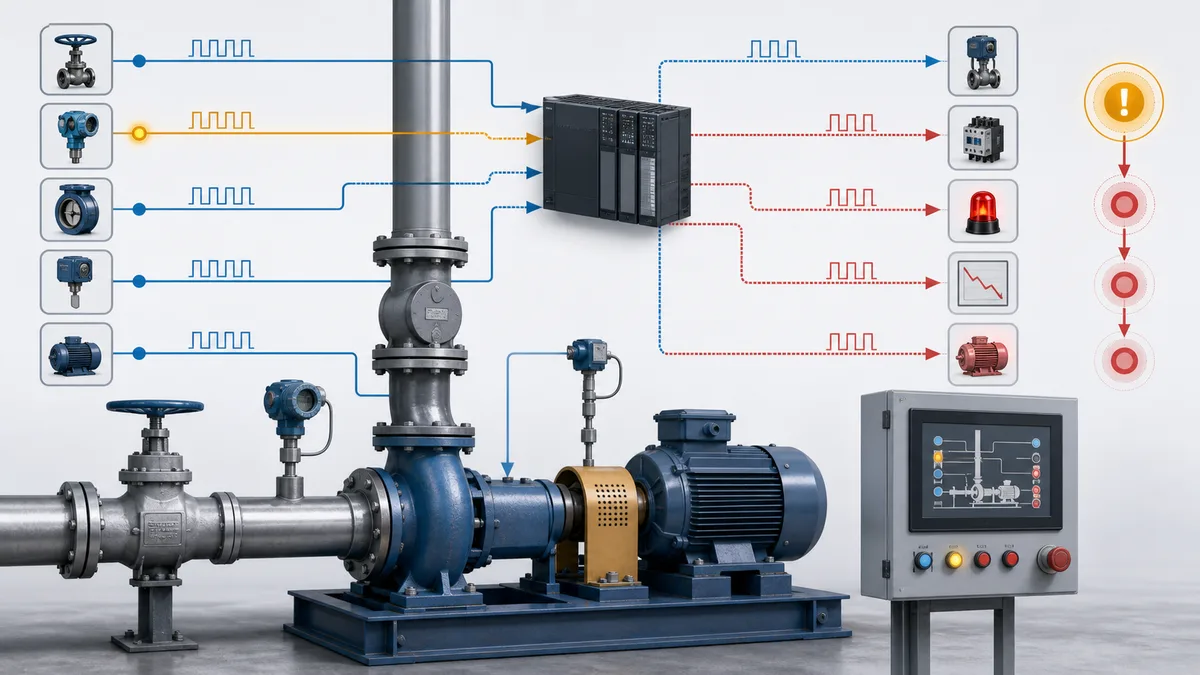

Worked example 2: pump low-suction interlock with first out

The pump example exposes a harder diagnostic problem. A low-suction event can cause low discharge flow, loss of motor load, valve-state changes and several alarms. If the program simply ORs everything into PumpTrip, the initiating condition is buried by the cascade.

Separate pre-start, transition and running conditions

Condition	Before start	Starting grace	Running steady state	Loss response
suction valve proven open	permissive required	remains required	running interlock	stop and latch per requirement
suction pressure signal quality	valid required	valid required	valid required	fail to defined state; distinguish bad quality from low value
suction pressure above low limit	permissive required	delay may be masked only if justified by process	delayed running trip	first-out low suction
starter ready	permissive required	supervise pickup	supervise availability	command off/fault as specified
run feedback	not expected	must arrive before pickup timeout	must remain credible	feedback discrepancy action
discharge flow	may be zero	allow process-proven establishment time	must remain above threshold where required	low-flow response after validated delay

The word “delay” is not permission to hide a bad sensor. Each timer needs an engineering reason, time basis, boundary behavior and reset behavior. A startup grace should be active only in the intended transition and should not mask loss of signal quality or a condition that must dominate immediately.

A simple first-out model stores the first qualified cause while the trip memory is clear:

LowSuctionQualified := RunActive
                       AND SuctionPressureValid
                       AND LowSuctionTimer.Q;

FeedbackTimeout := PumpCommand AND PickupTimer.Q AND NOT RunFeedback;

IF NOT TripLatched THEN
    IF NOT SuctionPressureValid THEN
        FirstOutCode := 10;     // bad or unavailable pressure evidence
    ELSIF LowSuctionQualified THEN
        FirstOutCode := 20;     // validated low suction
    ELSIF FeedbackTimeout THEN
        FirstOutCode := 30;     // command not physically proven
    END_IF;
END_IF;

TripRequest := (FirstOutCode <> 0);

IF ResetAccepted THEN
    FirstOutCode := 0;
END_IF;

The numeric codes should be named constants or an enumeration in a real project. More importantly, the evaluation order is a declared contract. When two causes become qualified in the same task execution, this example gives priority to bad pressure evidence. If that is not the required policy, change and test it. For high-resolution sequence-of-events systems, source timestamps and device time synchronization may be more authoritative than PLC evaluation order.

Rockwell’s current PlantPAx Process Control Instructions reference exposes separate permissive and interlock object integration in process device objects. The older dedicated P_Perm reference also points to an interlock object with first-out and bypass behavior. These vendor objects are useful references, not universal semantics; pin the library/version and verify every configuration used in the project.

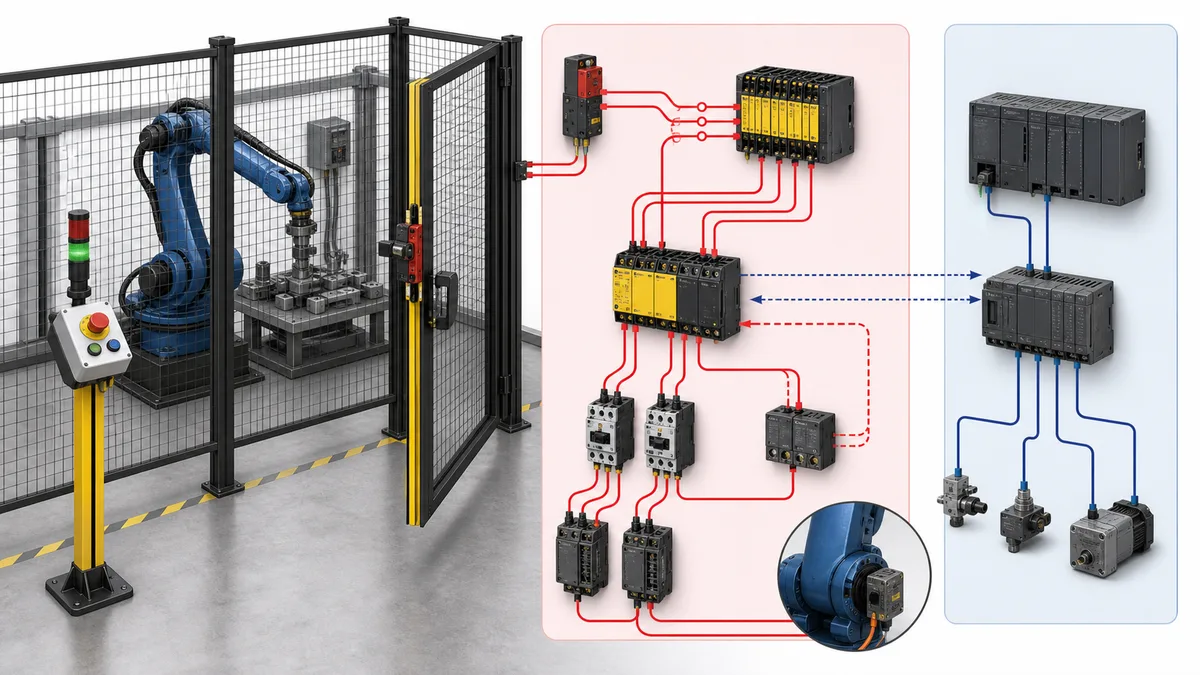

Worked example 3: a guard-door interlock is a safety lifecycle

An interlocked guard can stop or prevent hazardous machine motion when the guard is opened. OSHA’s machine-guarding guidance describes interlocked guards that shut off or disengage power, stop moving parts and prevent starting while open, and it states that replacing the guard should not automatically restart the machine. That behavior is only one part of a real safety design.

Safety-function concern	Question the design record must answer
hazard and safe state	which hazardous motion or energy is controlled, and what state reduces risk?
access and stopping	can a person reach the hazard before it reaches the safe condition?
guard device	which interlocking/guard-locking principle is selected, and how is defeat minimized?
input architecture	how are channels, discrepancy, shorts, device faults and connection status handled?
logic solver	which certified/suitable platform, task, instruction and signature/version apply?
final elements	how are contactors, STO or other outputs monitored and de-energized?
restart	where is reset located, what area can the operator observe, and why does reset not restart?
validation	who tests every requirement, fault case, timing assumption and achieved integrity?

Rockwell’s 2025 GuardLogix Safety Application Instruction Set describes certified safety instructions and explicitly ties use to trained, experienced safety practitioners. Its GuardLogix safety reference shows that channel and I/O status must be considered before using safety data as an interlock or energizing a safety output. Those details illustrate why copying a normal XIC/OTE rung is not a safety design.

An interlocked guard is also not lockout/tagout. In the United States, 29 CFR 1910.147 addresses control of hazardous energy during covered servicing and maintenance, including isolation and verification. OSHA has specifically explained that an interlock can be effective guarding without replacing required energy-control procedures for covered servicing. Always apply the current jurisdiction and site procedure.

Eight reusable PLC interlock programming patterns

1. Single command owner with stop dominance

Collect mode-specific requests, arbitrate them once, apply dominating stop/interlock conditions, and write the output once. Multiple OTE/coils or assignments to the same command make the result depend on execution order and hide ownership.

Layer	Example tags	Rule
requests	AutoRunReq, ManualRunReq, LocalRunReq	requests do not write hardware outputs
authority	ModeAuto, ModeManual, local-selector state	exactly one authority path is valid, or conflict is rejected
eligibility	AllPermissivesOK, transition constraints	names why a start may be accepted
dominance	StopReq, TripLatched, bad-quality response	required stop state wins over run demand
command	MotorCommand	one owner produces the final basic-control command
output	physical output mapping	one controlled mapping plus channel/module diagnostics

2. Individual reason bits plus aggregate

An aggregate is convenient for control; individual reasons are necessary for diagnosis. Calculate both from one source of truth.

StartBlock.LowSuction := NOT SuctionOK;
StartBlock.ValveNotOpen := NOT SuctionValveOpen;
StartBlock.StarterNotReady := NOT StarterReady;
StartBlock.ModeConflict := ModeConflict;

AnyStartBlock := StartBlock.LowSuction
                 OR StartBlock.ValveNotOpen
                 OR StartBlock.StarterNotReady
                 OR StartBlock.ModeConflict;

3. State-qualified supervision

Do not evaluate every condition in every state. Run feedback is expected only after a command and pickup window. Zero flow may be normal before a pump starts. A valve limit pair may be intermediate while moving but contradictory when both are on. Encode the state and time window rather than adding undocumented delays until nuisance trips disappear.

4. Feedback discrepancy timers

Supervise both failure to reach and failure to leave a state. A contactor can fail to pick up after a run command or fail to drop after the command is removed.

Command	Feedback	Time context	Interpretation
0	0	steady	expected off state
1	0	within pickup allowance	transition, not yet faulted
1	0	after pickup allowance	failed-to-start discrepancy
1	1	steady	commanded state proven at selected feedback point
0	1	within dropout allowance	transition, not yet faulted
0	1	after dropout allowance	failed-to-stop/stuck-feedback discrepancy

5. First-out capture with cascade context

Capture the earliest qualifying cause, but retain the subsequent event trail. First-out without later context can miss a compound event; a flat alarm list without first-out can hide sequence. Preserve both.

6. Explicit reset acceptance

Build ResetAccepted from conditions, not from the reset pushbutton alone. The edge of an authorized reset request may clear memory only while the equipment is in the required state, all reset prerequisites are healthy and no higher-priority cause remains. Decide how a held reset behaves. Prevent reset from acting as a start command.

7. Bad-quality and communications-loss states

A Boolean value without quality can be misleading. For networked I/O and safety platforms, include connection/channel status according to the vendor manual. For process measurements, distinguish low value from invalid measurement. The defined response may be stop, hold last only where justified, degrade, transfer to backup or inhibit a start; it is not automatically the same for every signal.

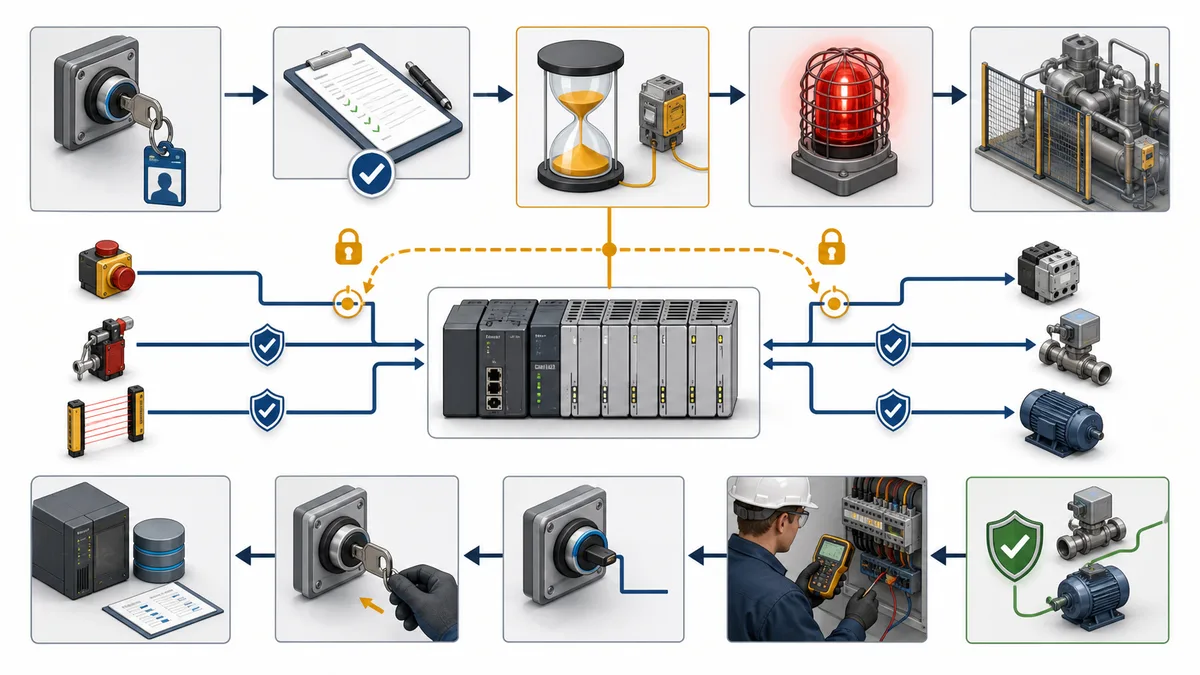

8. Controlled bypass as a state machine

A bypass is not a spare OR contact around the interlock. Treat it as a lifecycle with Requested, Approved, Active, Expiring, Removed and Restoration-Tested states, or the equivalent site procedure. Safety-function muting/override requires its own applicable design and is outside a generic basic-control pattern.

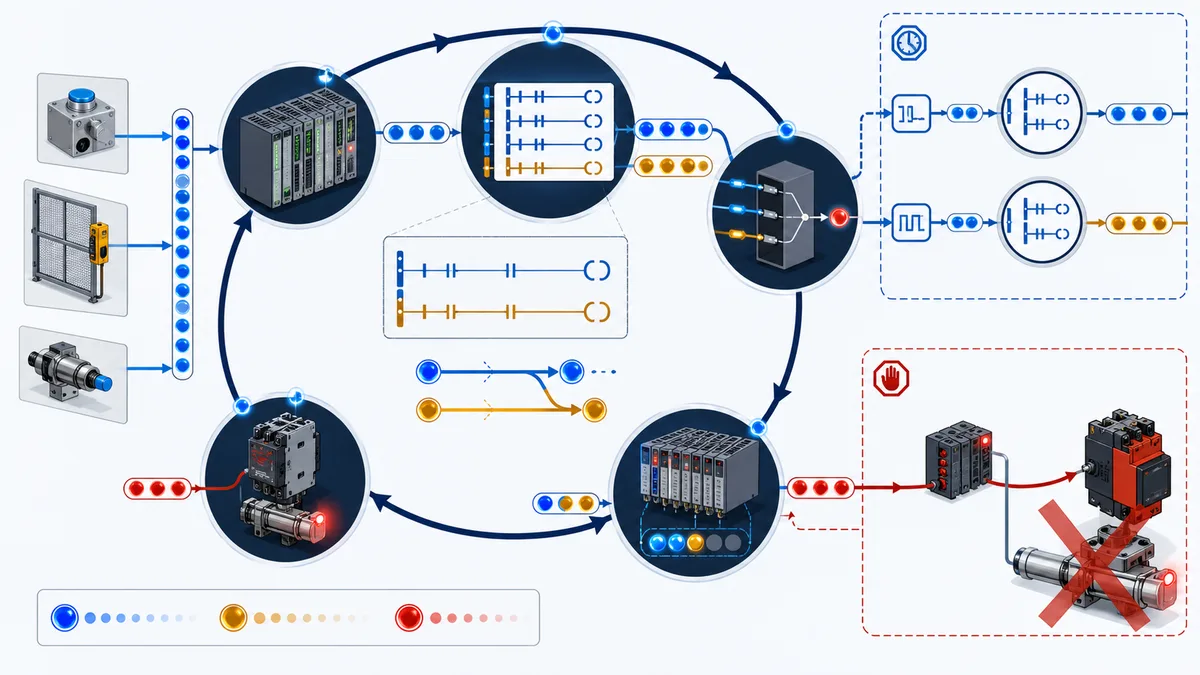

Scan order, task order and the “stale output” myth

The statement “output coils only update at the end of the scan, so reading an output bit is always one scan stale” is not portable. Many PLCs separate the program data or output image from the physical terminal update, and program assignments may be visible to later logic before the physical output changes. Task priorities, routines, process-image partitions, immediate access, distributed I/O update rates and vendor semantics matter.

Siemens’ S7-200 SMART system manual documents a cycle that reads digital inputs into the process image, executes logic and writes the process-image outputs to digital outputs. Other platforms and access modes differ. IEC 61131-3:2025 defines language syntax and semantics; it does not make every vendor’s I/O refresh and scheduling behavior identical.

Use these review questions:

Review question	Failure it catches
Where is this tag written?	duplicate coils/assignments and hidden ownership
Which task/routine writes last, and can a higher-priority task pre-empt it?	nondeterministic or unexpected final command
Is the contact reading raw input, mapped input, internal state, output image or feedback?	false confidence about physical state
When does the physical module refresh relative to logic?	timing assumptions that fail on real I/O
What happens on connection loss or inhibited module?	apparently healthy Boolean with invalid evidence
Is forcing possible, authorized and indicated?	test state persisting into operation

For interlocks, prefer named internal requests and feedbacks over treating the output address as both command and proof. Cross-reference every writer. Then test the real target CPU, task configuration, I/O modules and network behavior.

Reset, restart and power-cycle behavior

Restart behavior is part of the interlock requirement, not an afterthought. Build a state table for cold start, warm restart, controller fault recovery, communications restoration and return of the field condition.

Event	Unsafe ambiguity	Required design question
interlock condition returns healthy	equipment might restart from a retained request	is a new start edge required?
reset pressed while cause active	memory may clear for one scan and re-latch	should reset be rejected and diagnosed?
reset held	automatic repeated reset attempts	is rising-edge acceptance required?
PLC power cycle	retained command/trip data may produce a surprising state	which tags retain, initialize or reconcile with field feedback?
remote I/O reconnect	stale or default input values may be consumed	how are connection and channel status qualified?
HMI reconnect	old button/request data may be replayed or remain set	is command handshake/sequence validation required?
safety reset	reset might be mistaken for restart permission	how is manual reset separated from machine start?

ISO 14118:2017 addresses prevention of unexpected start-up across energy sources. OSHA’s interlocked-guard guidance likewise says guard replacement should not automatically restart the machine. Apply the applicable standard and risk assessment rather than turning this into a universal “always latch” coding rule.

Engineer bypasses and overrides as temporary risk states

Required control	Weak implementation	Stronger evidence surface
authorization	any HMI user can toggle one bit	named role plus independent approval where required
scope	global “bypass all”	one named condition or approved group tied to a work order
duration	retained indefinitely	explicit expiry/time-to-live or task-completion condition
visibility	small maintenance-screen icon	persistent equipment and overview indication; active alarm/event as designed
remaining protection	undocumented	approved list of independent controls and restricted operating envelope
audit	current Boolean only	who, why, when, source, expiry, removal and related record
handover	verbal only	controlled shift/crew handover and reauthorization requirement
restoration	toggle bit off	prove original input, interlock action, diagnostics and normal operating mode

Never present a software bypass as permission to defeat a guard, enter a hazard zone or avoid lockout/tagout. OSHA’s control-of-hazardous-energy standard requires documented energy-control measures for covered servicing and maintenance. Local law and site procedures may be more stringent.

Troubleshoot the evidence chain instead of bypassing the symptom

When an interlock will not clear, walk from intent to physics. Stop when the evidence first diverges from the requirement.

Boundary	Inspect	A useful observation proves	It does not prove
request	HMI/local/sequence request plus sequence or toggle	an intent arrived and is current	PLC accepted or executed it
authority	mode, ownership, remote/local and conflicts	the source is allowed to request	process is safe/ready
conditions	each permissive/interlock raw value, quality and timer	why eligibility is true or false	field device is physically correct without independent evidence
aggregate	start-ready/trip result and first-out	logic evaluation outcome	final command has one writer
command	cross-reference and online command tag	intended software command state	output terminal changed
electrical output	module/channel status and approved measurement	output channel/circuit response at measured point	actuator moved
equipment feedback	auxiliary contact, drive status, position switch	selected device state is proven	process effect occurred
process response	flow, pressure, level, speed or downstream sensor	physical outcome followed	root cause if measurement is bad

A practical diagnostic order

1. Read the control narrative and active bypass/force record before editing anything.
2. Confirm the exact command source, mode and ownership.
3. Expand the aggregate into individual reasons; capture raw value, quality, limit and timer state.
4. Check first-out and event order, including controller, HMI and device time bases.
5. Cross-reference every writer to the final command and output mapping.
6. Compare command, module/channel status, electrical energization, equipment feedback and process response.
7. Test only under the approved procedure and safe state; remove forces/simulations and record restoration.
8. Fix the failed boundary, then repeat the complete normal and fault case—not only the symptom that originally failed.

Build an interlock test matrix before commissioning

Download the PLC interlock acceptance matrix and replace its example values with the approved project requirements. The matrix is an editorial template, not a commissioning authorization or safety-validation record.

Case	Initial state	Stimulus	Expected command	Expected feedback/evidence
INT-001 healthy start	stopped, all required conditions healthy	issue one authorized start	command turns on once	pickup feedback arrives within approved time; no trip
INT-002 blocked start	stopped, one named permissive false	issue start	command remains off	exact blocked reason and request disposition visible
INT-003 active trip	running and stable	make one running interlock false	command follows defined stop response	first-out captures cause; feedback drops in tolerance
INT-004 cause chatter	running	toggle condition around threshold	result follows validated filter/delay policy	no undocumented chatter or hidden excessive delay
INT-005 bad quality	running or starting as specified	invalidate signal/channel/connection	defined fail/degrade response	bad quality distinct from a valid low/high value
INT-006 failed pickup	stopped and eligible	command on; withhold feedback	command/action follows timeout requirement	failed-to-start reason stored
INT-007 failed dropout	running	remove command; hold feedback	defined fault/escalation	failed-to-stop evidence retained
INT-008 reset denied	trip latched, cause still active	request reset	trip remains latched	reset-rejected reason shown
INT-009 restore and reset	cause healthy, equipment in reset state	valid reset edge	memory clears only	no automatic restart unless explicitly required and validated
INT-010 power cycle	run/trip/bypass states prepared per case	cycle relevant power	initialized/retained state matches design	no unexpected energization; version and state recorded
INT-011 bypass expiry	approved test bypass active	reach time/task boundary	bypass leaves or escalates per procedure	event, warning and restoration requirement persist
INT-012 competing writers	one valid request plus injected conflicting path	execute all relevant tasks	final owner remains deterministic	cross-reference and trace show no hidden last-write behavior

Every test record should include requirement ID, controlled software and configuration versions, target CPU/I/O identity, initial state, stimulus method, expected result and tolerance, actual result, trace/screenshot or measurement reference, deviation, tester, witness and restoration status.

Interlock design review checklist

Review surface	Pass question
terminology	are permissive, interlock, trip, alarm, inhibit and bypass behaviors explicitly defined?
consequence	is each condition classified through the applicable process and safety lifecycle?
ownership	is there one final command/output writer with documented task order?
signal meaning	are healthy value, bad quality, broken connection and contradictory states defined?
time	do delay, grace, pickup, dropout and expiry timers have requirements and boundary tests?
diagnostics	can an operator see individual reasons, first out, time, raw evidence and reset readiness?
feedback	is commanded state separated from electrical, equipment and process proof?
memory	are latch, reset, restart, retention and power-cycle behaviors explicit?
bypass	are authorization, scope, duration, visibility, audit and restoration controlled?
safety	are safety functions kept in the applicable assessed architecture and validation lifecycle?
cybersecurity	can only authorized sources change modes, setpoints, reset or bypass, with suitable audit?
acceptance	does the matrix cover normal, blocked, fault, contradictory, timeout, restart and restoration cases?

What simulation can and cannot prove

Simulation can prove Boolean truth tables, state ownership, timer boundaries, first-out priority, reset acceptance, mode arbitration, retained-state assumptions and diagnostic presentation. It is especially good at repeating cases that are awkward to create consistently in a live plant.

Simulation does not establish the selected guard switch’s installation, contactor ratings, mechanical interlock, field wiring, stopping time, safety distance, achieved PL/SIL, I/O fault reaction, firmware behavior, network timing, environmental suitability or actual safe state. Translate the pattern into the approved vendor environment, then complete hardware-in-the-loop, FAT, SAT and functional-safety validation required for the project.

Sources, edition scope and limitations

This guide was reviewed on August 29, 2026. It distinguishes basic control from functional safety and uses vendor examples only within their documented product context. Standards are often paywalled and can be amended; confirm the current edition, applicable Type-C standard, jurisdiction and owner requirements before design or validation.

Primary and first-party sources:

1. IEC 61131-3:2025 — programmable-controller languages
2. ISO 14119:2024 — interlocking devices associated with guards
3. ISO 13849-1:2023 — safety-related parts of control systems
4. IEC 62061:2021 and amendments through 2026 — machinery functional safety
5. ISO 14118:2017 — prevention of unexpected start-up
6. IEC 61511-1:2016/AMD1:2017 — process-industry safety instrumented systems
7. OSHA 29 CFR 1910.212 — general machine guarding
8. OSHA machine-guarding guidance — interlocked guards
9. OSHA 29 CFR 1910.147 — control of hazardous energy
10. OSHA interpretation — interlock requirements and LOTO boundary
11. Rockwell PlantPAx Process Control Instructions, PROCES-RM215C-EN-P
12. Rockwell Permissives with Bypass reference, SYSLIB-RM007
13. Rockwell GuardLogix Safety Application Instruction Set, 1756-RM095
14. Rockwell GuardLogix 5580 Safety Reference, 1756-RM012
15. Siemens S7-200 SMART system manual — scan and process-image behavior
16. Siemens switching-device reference — 3RA13 reversing assemblies
17. Schneider Electric TeSys motor-function status and interlock behavior
18. PLCopen Coding Guidelines, version 1.0
19. NIST SP 800-82 Rev. 3 — operational-technology security
