Introduction: The Evolution from Ladder Logic to Modern Programming Languages

The debate between Python vs Ladder Logic for PLC programming represents a fundamental shift in industrial automation philosophy. For over fifty years, ladder logic has dominated programmable logic controller programming with its intuitive graphical representation mimicking electrical relay circuits. However, the rise of Industry 4.0, edge computing, and data-driven manufacturing has brought text-based programming languages like Python into the automation arena, challenging traditional programming paradigms.

This comprehensive comparison examines Python plc programming versus traditional ladder logic approaches across every critical dimension: learning curve, development efficiency, debugging capabilities, performance characteristics, and industry acceptance. Whether you're an automation engineer considering modern programming approaches, a software developer entering industrial automation, or a manager evaluating technology strategies, understanding when to use Python vs ladder logic is crucial for successful automation projects.

The emergence of platforms like OpenPLC, CODESYS scripting, and Python-based soft PLCs has made Python for automation a viable alternative to traditional graphical programming languages. Modern manufacturing increasingly demands capabilities that text-based programming delivers naturally: complex data processing, machine learning integration, cloud connectivity, and sophisticated algorithmic control that would be cumbersome or impossible to implement in ladder logic.

Understanding the fundamental differences between text based vs graphical programming enables informed technology decisions, optimal language selection for specific applications, and recognition that hybrid approaches often deliver the best results. Modern PLC programming increasingly combines traditional ladder logic's proven reliability for discrete control with Python's powerful capabilities for data processing, analytics, and advanced algorithms.

Quick Comparison Overview

Before diving deep into each programming approach, this high-level comparison table summarizes the fundamental differences between Python and Ladder Logic for PLC programming:

| Feature | Ladder Logic | Python for PLCs | |---------|--------------|-----------------| | Programming Paradigm | Graphical relay logic | Text-based procedural/object-oriented | | Visual Representation | Electrical circuit diagrams | Code text with syntax highlighting | | Learning Curve (Electricians) | Easy - familiar electrical concepts | Steep - unfamiliar programming concepts | | Learning Curve (Programmers) | Moderate - unfamiliar paradigm | Easy - familiar language and syntax | | Industry Acceptance | Universal - 90%+ of industrial PLCs | Limited - emerging in specialized applications | | Mathematical Operations | Limited - cumbersome multi-rung implementation | Excellent - native Python math capabilities | | Data Structures | Limited arrays and basic types | Comprehensive - lists, dictionaries, classes | | Code Reusability | Difficult - function blocks possible | Excellent - functions, classes, modules | | Debugging Tools | Excellent visual debugging | Good - text-based debugging tools | | Field Troubleshooting | Excellent - familiar to technicians | Challenging - requires programming knowledge | | Development Speed (Simple Control) | Fast - direct logic implementation | Slower - more overhead for simple tasks | | Development Speed (Complex Algorithms) | Slow - many rungs required | Fast - concise code expression | | Hardware Support | Universal on commercial PLCs | Limited - OpenPLC, soft PLCs, some CODESYS | | Real-Time Performance | Excellent - optimized by manufacturers | Variable - depends on implementation | | Safety Certification | Widely certified (SIL 3/PLe) | Limited - emerging certifications | | Library Ecosystem | Manufacturer function blocks | Extensive - 350,000+ Python packages | | Database Integration | Limited - requires additional software | Native - direct database connectivity | | Machine Learning | Not available | Native - TensorFlow, scikit-learn, PyTorch | | Web APIs and Cloud | Limited - gateway devices required | Native - requests, REST APIs, cloud SDKs | | Data Analytics | Not available | Excellent - Pandas, NumPy, Matplotlib | | Typical Application | Discrete manufacturing control | Edge computing, data processing, analytics |

What is Ladder Logic? Traditional PLC Programming

Historical Background and Design Philosophy

Ladder logic programming originated in the 1960s as a direct replacement for hardwired relay control panels that dominated industrial automation. Engineers designed the language specifically to ease the transition from relay-based systems to programmable controllers by maintaining familiar electrical circuit representation that electricians and maintenance technicians already understood.

The fundamental design philosophy centers on visual representation of power flow through virtual contacts and coils. Just as electrical current flows through relay contacts to energize output coils in hardwired systems, "power" flows from left to right through ladder diagram rungs when input conditions are satisfied, energizing outputs on the right side. This one-to-one mapping between electrical diagrams and ladder logic programs made PLC adoption less threatening to the existing industrial workforce.

Traditional ladder logic implementations focused exclusively on discrete binary control: inputs are either ON or OFF, outputs are either energized or de-energized, and logic operations follow Boolean algebra principles. While modern ladder logic extends this foundation with mathematical instructions, analog processing, and communication capabilities, the core visual programming paradigm remains unchanged after sixty years.

This remarkable stability and backward compatibility represents both a strength and limitation. Ladder logic programs written decades ago often run unchanged on modern controllers, ensuring long-term system maintainability. However, the programming paradigm fundamentally designed for relay replacement shows limitations when implementing modern requirements like data analytics, machine learning, or complex algorithmic control.

Core Ladder Logic Elements

Contacts and Coils: The fundamental building blocks include normally open contacts (examine if closed), normally closed contacts (examine if open), and output coils that set binary values. These elements combine in series for AND logic and parallel for OR logic, creating any Boolean expression through graphical arrangement.

Timers and Counters: Essential timing functions include on-delay timers (TON), off-delay timers (TOF), retentive timers (RTO), up counters (CTU), and down counters (CTD). These instructions enable time-based control sequences, production counting, and event tracking fundamental to industrial automation.

Mathematical and Comparison Instructions: Modern ladder logic supports addition, subtraction, multiplication, division, and comparison operations (equal, greater than, less than). However, complex calculations require multiple rungs and intermediate storage values, reducing code clarity compared to text-based expressions.

Data Movement and Manipulation: Move instructions transfer data between memory locations, copy operations duplicate values, and conversion functions translate between data types (integer to real, decimal to binary). These operations enable ladder logic to process analog values and perform basic data handling.

Ladder Logic Advantages and Strengths

Electrical Workforce Familiarity: The primary advantage remains immediate comprehensibility to personnel with electrical backgrounds. Maintenance technicians can often diagnose problems by "following power flow" through ladder rungs without extensive programming training, reducing troubleshooting time and minimizing production downtime.

Visual Debugging Excellence: Online monitoring with energized rungs highlighted in color provides immediate visual feedback about logic execution. Technicians can see exactly which input conditions prevent outputs from energizing, making cause-and-effect relationships obvious even in complex programs.

Universal Industry Acceptance: Ladder logic's complete dominance across industrial automation ensures that finding qualified programmers, obtaining training resources, and accessing vendor support is straightforward. This universal acceptance reduces business risk and ensures long-term system supportability.

Proven Safety System Implementation: Safety-critical applications benefit from ladder logic's visual clarity where logic flow is immediately obvious and easily verified. Safety professionals can validate interlock logic and emergency stop circuits through visual inspection, meeting regulatory requirements for safety system verification.

Optimized Real-Time Performance: Commercial PLC manufacturers heavily optimize ladder logic execution engines, achieving microsecond scan times even for complex programs. This optimization ensures deterministic real-time control critical for high-speed manufacturing and precision motion applications.

Ladder Logic Limitations and Weaknesses

Scalability Challenges: Large programs with thousands of rungs become difficult to navigate and understand. The visual programming advantage that makes 50-rung programs intuitive becomes a liability when programs reach 5,000 rungs, requiring extensive cross-referencing and documentation to maintain.

Complex Algorithm Implementation Difficulty: Implementing sophisticated mathematical algorithms, statistical calculations, or data processing operations becomes extremely cumbersome in ladder logic. Operations requiring single lines of text code may need dozens of ladder rungs with temporary storage variables, reducing program clarity and increasing development time.

Limited Data Structure Support: Ladder logic's focus on discrete control makes it poorly suited for applications requiring complex data structures, dynamic arrays, or object-oriented programming concepts. While modern implementations support basic arrays and structures, these operations feel unnatural and restrictive compared to text-based languages.

Modern Technology Integration Barriers: Integrating ladder logic programs with modern IT infrastructure including databases, web services, cloud platforms, and machine learning models requires additional gateway devices, middleware, or communication protocols that add complexity and cost. Ladder logic was never designed for these modern integration requirements.

What is Python for PLCs? Modern Programming Approach

Python's Entry into Industrial Automation

Python's emergence in industrial automation reflects broader trends toward IT/OT convergence, edge computing, and data-driven manufacturing. Originally designed as a general-purpose programming language emphasizing code readability and developer productivity, Python has become the most popular programming language globally with particular strength in data science, machine learning, and web development.

The application of Python for PLCs began with open-source initiatives like OpenPLC, which enables Python scripting alongside traditional IEC 61131-3 languages. CODESYS 3.5 introduced Python scripting for runtime extensions, and several soft PLC platforms emerged enabling pure Python automation control on industrial PCs and embedded systems.

Python for automation appeals particularly to engineers with software development backgrounds, data scientists entering manufacturing, and organizations seeking to implement advanced analytics, machine learning, or complex data processing within automation systems. The language's extensive library ecosystem provides immediate access to capabilities impossible with traditional PLC programming languages.

However, Python PLC programming represents a paradigm shift from traditional automation approaches. Rather than replacing ladder logic entirely, Python typically complements traditional programming for specific use cases where its unique capabilities deliver clear advantages: data analytics, predictive maintenance algorithms, quality prediction models, and sophisticated process optimization.

Python in PLC Environments

OpenPLC Python Integration: OpenPLC supports Python scripting for custom function blocks and runtime extensions, enabling Python code to interact with ladder logic programs. This hybrid approach lets traditional ladder logic handle real-time I/O control while Python processes complex data, performs analytics, or manages communication with external systems.

CODESYS Scripting: CODESYS 3.5+ includes Python scripting capabilities for engineering automation, testing, and runtime extensions. While the core PLC program uses IEC 61131-3 languages, Python scripts can automate repetitive programming tasks, generate code, perform automated testing, and extend runtime capabilities.

Soft PLC Platforms: Pure Python automation platforms like PLCnext, Industrial Shields' PLC, and custom Raspberry Pi implementations enable complete control systems programmed entirely in Python. These platforms trade traditional PLC ruggedization and real-time guarantees for programming flexibility and modern technology integration.

Edge Computing Controllers: Industrial edge devices increasingly support Python for data processing, analytics, and cloud connectivity while traditional PLCs handle real-time control. This distributed architecture leverages each technology's strengths: PLCs for deterministic control, Python for intelligent data processing.

Python Programming Advantages for Automation

Powerful Data Processing Capabilities: Python excels at data manipulation with libraries like Pandas for structured data analysis, NumPy for numerical computing, and Matplotlib for visualization. Manufacturing data analysis, quality trending, and performance monitoring become natural Python applications.

Machine Learning Integration: Native access to TensorFlow, scikit-learn, PyTorch, and other machine learning frameworks enables predictive maintenance algorithms, quality prediction models, anomaly detection, and optimization algorithms running directly on automation controllers or edge devices.

Extensive Library Ecosystem: Over 350,000 Python packages provide immediate access to virtually any functionality: database connectivity (PostgreSQL, MySQL, MongoDB), web APIs (REST, GraphQL), communication protocols (MQTT, OPC UA), image processing (OpenCV), and countless domain-specific libraries.

Rapid Development and Prototyping: Python's concise syntax and high-level abstractions enable rapid algorithm development and testing. Automation engineers can implement and validate complex control strategies, data processing pipelines, or analytics models in hours rather than days required for equivalent ladder logic implementation.

Modern DevOps Integration: Python programs integrate naturally with modern software development practices including version control (Git), automated testing (pytest), continuous integration, containerization (Docker), and cloud deployment - workflows foreign to traditional PLC programming.

Database and IT System Integration: Direct database connectivity without middleware, native web service consumption, RESTful API development, and enterprise system integration become straightforward with Python, eliminating gateways and translation layers required for traditional PLC communication.

Python for PLCs Limitations and Challenges

Limited Industrial Hardware Support: Most commercial PLCs don't support Python programming. Implementation requires open-source platforms (OpenPLC), specific brands (B&R, PLCnext), soft PLCs on industrial PCs, or hybrid architectures complicating deployment compared to universal ladder logic compatibility.

Real-Time Performance Uncertainty: Python's interpreted nature and automatic memory management create non-deterministic execution timing unsuitable for hard real-time control requirements. While adequate for many applications, microsecond-level determinism that commercial PLCs guarantee remains challenging.

Safety Certification Barriers: Safety-critical applications (SIL 2/3, PLe) require certified programming environments, compilers, and runtime systems. Traditional ladder logic platforms provide extensive safety certifications while Python automation systems currently lack equivalent certification for most safety applications.

Maintenance Technician Knowledge Gap: Factory maintenance personnel typically lack Python programming knowledge, creating challenges for troubleshooting and emergency repairs. While ladder logic's visual debugging assists technicians with electrical backgrounds, Python debugging requires programming expertise less common in manufacturing environments.

Industry Acceptance and Standardization: Industrial automation's conservative nature and emphasis on proven reliability creates resistance to new programming approaches. Python for PLCs lacks the decades of industrial deployment, proven track record, and universal acceptance that ladder logic enjoys.

Head-to-Head Comparison: Python vs Ladder Logic

Learning Curve Comparison

For Electricians and Technicians: Ladder logic provides minimal learning curve for personnel with electrical backgrounds. The visual relay-logic representation feels immediately familiar, enabling productivity within weeks of basic training. Troubleshooting follows intuitive "power flow" concepts that electricians already understand.

Python for automation presents significant learning barriers for electricians without programming experience. Understanding variables, functions, loops, conditionals, and object-oriented concepts requires fundamental mindset shift from electrical circuit thinking to computational logic. Meaningful productivity typically requires 6-12 months of dedicated study and practice.

For Software Engineers and Programmers: Ladder logic requires moderate learning investment for software developers unfamiliar with graphical programming paradigms. The visual representation feels unintuitive compared to text-based languages, and the sequential scan-based execution model differs from typical programming environments. However, fundamental Boolean logic understanding transfers, enabling basic competency within 2-3 months.

Python feels immediately familiar to programmers, requiring minimal language learning. The primary learning curve involves understanding automation requirements, I/O interfacing, real-time considerations, and industrial communication protocols rather than language syntax. Programmers can achieve basic automation competency in 1-2 months while continuing to master domain-specific knowledge.

Readability and Maintenance

Ladder Logic Readability: Small ladder logic programs (< 500 rungs) offer excellent readability with logic flow visually obvious. Maintenance becomes straightforward when programmers follow good organizational practices, use descriptive tag names, and include comprehensive comments.

Large ladder logic programs (> 2,000 rungs) suffer declining readability as visual advantages disappear. Navigation becomes tedious, understanding overall program flow requires extensive cross-referencing, and locating specific functionality demands sophisticated search tools. Visual debugging advantages diminish as program complexity increases.

Python Readability: Python emphasizes code readability through enforced indentation, clear syntax, and self-documenting conventions. Well-written Python code reads almost like English, making program intent obvious even to engineers unfamiliar with specific implementation details.

However, Python's flexibility enables multiple programming styles with varying readability. Poorly written Python (excessive list comprehensions, unclear variable names, inadequate comments) can be cryptic. Readability depends heavily on programmer discipline and adherence to style guidelines (PEP 8) more than in structured ladder logic.

Debugging Capabilities

Ladder Logic Debugging Excellence: Online debugging with visual rung highlighting provides unmatched intuitive feedback. Engineers see exactly which contacts are true/false, which coils are energized, and can trace logic execution visually. This visual debugging capability makes ladder logic exceptional for troubleshooting discrete control logic.

Ladder logic also benefits from forcing functions enabling manual input/output control during commissioning and troubleshooting, and watch tables for monitoring multiple values simultaneously with real-time updates.

Python Debugging Tools: Python debugging uses traditional software development tools including print statements for variable inspection, logging modules for systematic debugging information, interactive debuggers (pdb, ipdb) for step-through execution, and IDE integrated debuggers with breakpoints and variable watches.

These tools require programming expertise to use effectively but provide powerful capabilities for complex algorithm debugging, data structure inspection, and execution flow analysis. Python's exception handling and stack traces assist error diagnosis, though these features assume programming knowledge less common in factory environments.

Performance Considerations

Ladder Logic Performance: Commercial PLC ladder logic achieves microsecond scan times through vendor-optimized execution engines compiled to native machine code. Scan time remains deterministic and predictable, crucial for safety systems and high-speed control applications. Typical scan times range from 1-10 milliseconds for moderate complexity programs.

Performance scales predictably with program size and complexity. Engineers can estimate scan time during development and optimize hot paths through rung reordering, instruction selection, and program organization. This deterministic performance enables guaranteed response times critical for many industrial applications.

Python Performance: Python's interpreted execution and automatic memory management (garbage collection) create variable and non-deterministic execution timing unsuitable for hard real-time control. While typical Python automation applications run with sub-second response times adequate for monitoring and analytics, microsecond-level determinism remains challenging.

Performance optimization options include JIT compilation (PyPy), Cython for critical sections, multiprocessing for parallel execution, and optimized libraries (NumPy, Pandas) implemented in C. However, achieving truly deterministic real-time performance requires careful architecture design and often hybrid approaches combining Python for analytics with traditional PLCs for time-critical control.

Industry Acceptance and Adoption

Ladder Logic Market Dominance: Ladder logic remains the overwhelmingly dominant PLC programming language with 85-90% of industrial control applications using ladder logic as primary or sole programming language. This dominance spans industries, regions, and application types from simple machine control to complex process automation.

Universal vendor support ensures ladder logic availability on virtually every commercial PLC platform from Siemens, Allen-Bradley, Mitsubishi, Omron, and countless others. Extensive training programs, certification paths, and abundant qualified programmers make ladder logic the safe, proven choice for most industrial automation projects.

Python for Automation - Emerging Niche: Python for PLCs remains a niche approach focused on specific use cases: edge analytics, machine learning deployment, data processing pipelines, and IT system integration. Adoption concentrates in progressive organizations implementing Industry 4.0 initiatives, research institutions, and applications where Python's unique capabilities justify non-traditional approaches.

Growing interest in Python for automation reflects broader trends: rising demand for manufacturing analytics, predictive maintenance deployment, quality prediction systems, and integration between operational technology (OT) and information technology (IT). However, widespread industrial adoption remains years away as conservative manufacturing sector prioritizes proven reliability over cutting-edge capabilities.

Tool Support and Development Environments

Ladder Logic Development Tools: Every major PLC manufacturer provides proprietary programming software: Siemens TIA Portal, Allen-Bradley Studio 5000, Mitsubishi GX Works, Schneider Unity Pro. These tools offer comprehensive ladder logic editors, simulation capabilities, online debugging, and hardware configuration integrated in vendor-specific environments.

While powerful, manufacturer tools create vendor lock-in, require significant licensing investment ($2,000-$15,000+), and learning curves specific to each platform. Engineers changing PLC vendors must learn completely new programming environments despite ladder logic language consistency.

Python Development Environment Flexibility: Python development uses universal tools including VS Code, PyCharm, Jupyter Notebooks, and countless other IDEs supporting Python across all platforms. This tool ecosystem is typically free (except professional IDE versions), supports all operating systems, and transfers across projects without vendor lock-in.

Python automation development benefits from extensive libraries (pip package manager), version control integration (Git), automated testing frameworks (pytest), documentation generators, and continuous integration tools. These modern software development practices remain uncommon or unavailable in traditional PLC programming environments.

Code Examples: Same Logic in Both Languages

Example 1: Simple Motor Control with Interlocks

Application Requirements: Control a motor with start/stop buttons, safety interlocks (emergency stop, thermal overload), and run status indication. Include safety logic preventing motor start when unsafe conditions exist.

Ladder Logic Implementation:

╔════════════════════════════════════════════════════════════════╗
║ Rung 1: Safety Interlock Logic                                ║
║ ├────[Emergency_Stop_NC]────[Thermal_Overload_OK]────( Safe_To_Run )──┤
╠════════════════════════════════════════════════════════════════╣
║ Rung 2: Motor Start/Stop Logic with Safety                    ║
║ ├────[ Start_Button ]────[ Safe_To_Run ]────( Motor_Run_SR )──────┤
║ ├────[ Motor_Run_SR ]────[ Safe_To_Run ]────( Motor_Run_SR )──────┤
║ ├────[ Stop_Button ]────────────────────/( Motor_Run_SR )──────┤
╠════════════════════════════════════════════════════════════════╣
║ Rung 3: Motor Contactor Output                                ║
║ ├────[ Motor_Run_SR ]────────────────────( Motor_Contactor )───┤
╠════════════════════════════════════════════════════════════════╣
║ Rung 4: Run Status Indication                                 ║
║ ├────[ Motor_Contactor ]─────────────────( Run_Status_Light )──┤
╚════════════════════════════════════════════════════════════════╝

Ladder Logic Advantages in This Example:

• Visual interlock logic immediately obvious
• Electrical circuit paradigm familiar to technicians
• Online debugging shows energized paths clearly
• Safety logic verification straightforward for safety engineers

Python Implementation (OpenPLC):

# Motor Control with Safety Interlocks - Python Version

class MotorController:
    def __init__(self):
        # Input variables (mapped to PLC inputs)
        self.start_button = False
        self.stop_button = False
        self.emergency_stop_nc = True  # Normally closed contact
        self.thermal_overload_ok = True

        # Output variables (mapped to PLC outputs)
        self.motor_contactor = False
        self.run_status_light = False

        # Internal state
        self.motor_run_request = False

    def scan_cycle(self):
        """Execute control logic each scan cycle"""

        # Safety interlock evaluation
        safe_to_run = self.emergency_stop_nc and self.thermal_overload_ok

        # Motor start/stop logic
        if self.start_button and safe_to_run:
            self.motor_run_request = True

        if self.stop_button or not safe_to_run:
            self.motor_run_request = False

        # Motor contactor output (only energize when safe)
        self.motor_contactor = self.motor_run_request and safe_to_run

        # Run status indication
        self.run_status_light = self.motor_contactor

# Instantiate motor controller
motor = MotorController()

# Main control loop (called each PLC scan)
def main_program():
    # Read inputs (would map to actual I/O in real implementation)
    motor.start_button = read_input("I0.0")
    motor.stop_button = read_input("I0.1")
    motor.emergency_stop_nc = read_input("I0.2")
    motor.thermal_overload_ok = read_input("I0.3")

    # Execute control logic
    motor.scan_cycle()

    # Write outputs
    write_output("Q0.0", motor.motor_contactor)
    write_output("Q0.1", motor.run_status_light)

Python Advantages in This Example:

• Object-oriented encapsulation improves organization
• State management explicit and clear
• Easy to extend with additional features (logging, diagnostics)
• Unit testing straightforward with mock I/O

Verdict: For simple motor control, ladder logic provides better solution due to visual clarity, familiar paradigm, and easier maintenance by electrical personnel.

Example 2: Temperature Control with PID Algorithm

Application Requirements: Control reactor temperature using PID algorithm with setpoint management, output limiting, anti-windup protection, and comprehensive data logging for quality tracking.

Ladder Logic Implementation:

╔════════════════════════════════════════════════════════════════╗
║ Rung 1-5: Error Calculation and Scaling                       ║
║ (Multiple rungs for calculations)                             ║
║ ├────[SUB Temperature_Setpoint, Temperature_PV, Temp_Error]───┤
║ ├────[MUL Temp_Error, Proportional_Gain, P_Term]─────────────┤
║ ├────[ADD Integral_Sum, Temp_Error, Integral_Sum]────────────┤
║ ├────[MUL Integral_Sum, Integral_Gain, I_Term]───────────────┤
║ ├────[SUB Temp_Error, Previous_Error, Error_Change]──────────┤
║ ├────[MUL Error_Change, Derivative_Gain, D_Term]─────────────┤
╠════════════════════════════════════════════════════════════════╣
║ Rung 6: PID Output Sum                                        ║
║ ├────[ADD P_Term, I_Term, PID_Partial]───────────────────────┤
║ ├────[ADD PID_Partial, D_Term, PID_Output_Raw]───────────────┤
╠════════════════════════════════════════════════════════════════╣
║ Rung 7-9: Output Limiting and Anti-Windup                     ║
║ ├────[LIMIT PID_Output_Raw, 0.0, 100.0, PID_Output]─────────┤
║ ├────[ PID_Output >= 100.0 ]────[MOVE 0.0, Integral_Sum]────┤
║ ├────[ PID_Output <= 0.0 ]──────[MOVE 0.0, Integral_Sum]────┤
╠════════════════════════════════════════════════════════════════╣
║ Rung 10: Analog Output Scaling                                ║
║ ├────[SCALE PID_Output, 0.0, 100.0, 0, 4095, Valve_Output]──┤
╚════════════════════════════════════════════════════════════════╝

Note: This is simplified - production PID typically uses dedicated function block

Ladder Logic Challenges:

• PID algorithm requires 10-15 rungs for manual implementation
• Intermediate variables clutter program and memory
• Algorithm flow not visually obvious
• Modifications require careful multi-rung coordination
• Data logging requires additional ladder rungs or external systems

Python Implementation:

import time
from datetime import datetime
import json

class PIDController:
    """
    Professional PID Temperature Controller with comprehensive features
    """
    def __init__(self, kp, ki, kd, setpoint=0.0, output_limits=(0.0, 100.0)):
        # PID tuning parameters
        self.kp = kp  # Proportional gain
        self.ki = ki  # Integral gain
        self.kd = kd  # Derivative gain

        # Setpoint and limits
        self.setpoint = setpoint
        self.output_min, self.output_max = output_limits

        # State variables
        self.integral_sum = 0.0
        self.previous_error = 0.0
        self.previous_time = time.time()

        # Output
        self.output = 0.0

        # Data logging
        self.log_data = []

    def update(self, process_variable):
        """
        Calculate PID output based on current process variable

        Args:
            process_variable: Current temperature reading

        Returns:
            PID controller output (0-100%)
        """
        current_time = time.time()
        delta_time = current_time - self.previous_time

        # Calculate error
        error = self.setpoint - process_variable

        # Proportional term
        p_term = self.kp * error

        # Integral term with anti-windup
        self.integral_sum += error * delta_time
        i_term = self.ki * self.integral_sum

        # Derivative term
        if delta_time > 0:
            derivative = (error - self.previous_error) / delta_time
        else:
            derivative = 0.0
        d_term = self.kd * derivative

        # Calculate total output
        output_raw = p_term + i_term + d_term

        # Apply output limits
        self.output = max(self.output_min, min(output_raw, self.output_max))

        # Anti-windup: Reset integral if output saturated
        if self.output >= self.output_max or self.output <= self.output_min:
            # Back-calculate integral to prevent windup
            self.integral_sum = (self.output - p_term - d_term) / self.ki if self.ki != 0 else 0

        # Store for next iteration
        self.previous_error = error
        self.previous_time = current_time

        # Log data for quality tracking
        self.log_control_data(process_variable, error)

        return self.output

    def log_control_data(self, pv, error):
        """Log control performance data"""
        log_entry = {
            'timestamp': datetime.now().isoformat(),
            'setpoint': self.setpoint,
            'process_variable': pv,
            'error': error,
            'output': self.output,
            'p_term': self.kp * error,
            'i_term': self.ki * self.integral_sum,
            'd_term': self.kd * (error - self.previous_error)
        }
        self.log_data.append(log_entry)

        # Keep last 1000 data points
        if len(self.log_data) > 1000:
            self.log_data.pop(0)

    def save_log_to_database(self, database_connection):
        """Save logged data to quality database"""
        # Example: Direct database integration (impossible with ladder logic)
        for entry in self.log_data:
            database_connection.insert('temperature_control_log', entry)
        self.log_data.clear()

    def set_tuning(self, kp, ki, kd):
        """Update PID tuning parameters"""
        self.kp = kp
        self.ki = ki
        self.kd = kd
        self.integral_sum = 0.0  # Reset integral on tuning change

# Usage example
temperature_controller = PIDController(
    kp=2.0,      # Proportional gain
    ki=0.5,      # Integral gain
    kd=0.1,      # Derivative gain
    setpoint=150.0,
    output_limits=(0.0, 100.0)
)

def control_loop():
    """Main control loop called each scan"""
    # Read temperature sensor
    current_temperature = read_analog_input("AI0")

    # Calculate PID output
    control_output = temperature_controller.update(current_temperature)

    # Scale to analog output (0-100% to 0-4095 counts for 12-bit DAC)
    output_counts = int(control_output * 40.95)

    # Write to control valve
    write_analog_output("AO0", output_counts)

    # Periodic data logging to database (every 60 seconds)
    if time.time() % 60 < 0.1:  # Simple timing check
        temperature_controller.save_log_to_database(db_connection)

Python Advantages in This Example:

• PID algorithm implemented in 30 lines vs 15+ ladder rungs
• Algorithm clearly readable and maintainable
• Easy to add features (data logging, auto-tuning, remote monitoring)
• Direct database integration for quality tracking
• Unit testing straightforward with test harness
• Tuning parameter adjustment via web interface or API

Verdict: For complex algorithms like PID control with data logging, Python provides vastly superior implementation efficiency, clarity, and extensibility.

Example 3: Production Line Quality Prediction with Machine Learning

Application Requirements: Predict product quality based on process parameters (temperature, pressure, humidity, line speed) using trained machine learning model. Alert operators to potential quality issues before defects occur.

Ladder Logic Implementation:

╔════════════════════════════════════════════════════════════════╗
║ NOT PRACTICALLY POSSIBLE                                       ║
║                                                                ║
║ Machine learning models cannot be implemented in ladder logic ║
║ Requires external system with OPC/Ethernet communication:     ║
║   - Ladder logic reads sensors                                ║
║   - Communication FB sends data to external server            ║
║   - External ML model processes and returns prediction        ║
║   - Ladder logic receives result via communication            ║
║   - Multiple second latency due to communication overhead     ║
╚════════════════════════════════════════════════════════════════╝

Python Implementation with Machine Learning:

import numpy as np
import joblib
from datetime import datetime
from sklearn.ensemble import RandomForestClassifier

class QualityPredictionSystem:
    """
    Real-time quality prediction using machine learning
    Runs directly on edge controller or industrial PC
    """
    def __init__(self, model_path):
        # Load pre-trained ML model
        self.model = joblib.load(model_path)

        # Feature scaling parameters (from training)
        self.feature_means = np.array([150.0, 50.0, 45.0, 100.0])
        self.feature_stds = np.array([20.0, 10.0, 15.0, 25.0])

        # Prediction history for trending
        self.prediction_history = []

        # Alert thresholds
        self.quality_alert_threshold = 0.3  # Probability of defect

    def predict_quality(self, temperature, pressure, humidity, line_speed):
        """
        Predict product quality from current process parameters

        Args:
            temperature: Process temperature (°C)
            pressure: Process pressure (PSI)
            humidity: Ambient humidity (%)
            line_speed: Production line speed (units/min)

        Returns:
            quality_ok: Boolean indicating predicted quality
            defect_probability: Probability of defect (0-1)
        """
        # Prepare feature vector
        features = np.array([temperature, pressure, humidity, line_speed])

        # Normalize features (standardization)
        features_normalized = (features - self.feature_means) / self.feature_stds

        # Reshape for model input (expects 2D array)
        features_reshaped = features_normalized.reshape(1, -1)

        # Get prediction probabilities
        probabilities = self.model.predict_proba(features_reshaped)[0]
        defect_probability = probabilities[1]  # Probability of class 1 (defect)

        # Determine quality status
        quality_ok = defect_probability < self.quality_alert_threshold

        # Log prediction
        self.log_prediction(features, defect_probability, quality_ok)

        return quality_ok, defect_probability

    def log_prediction(self, features, defect_prob, quality_ok):
        """Log predictions for analysis and model retraining"""
        log_entry = {
            'timestamp': datetime.now().isoformat(),
            'temperature': features[0],
            'pressure': features[1],
            'humidity': features[2],
            'line_speed': features[3],
            'defect_probability': defect_prob,
            'quality_prediction': 'OK' if quality_ok else 'ALERT'
        }
        self.prediction_history.append(log_entry)

        # Keep last 10,000 predictions
        if len(self.prediction_history) > 10000:
            self.prediction_history.pop(0)

    def get_feature_importance(self):
        """Identify which parameters most affect quality"""
        if hasattr(self.model, 'feature_importances_'):
            feature_names = ['Temperature', 'Pressure', 'Humidity', 'Line Speed']
            importances = self.model.feature_importances_
            return dict(zip(feature_names, importances))
        return None

    def update_model(self, new_model_path):
        """Hot-swap ML model during production"""
        try:
            new_model = joblib.load(new_model_path)
            self.model = new_model
            return True
        except Exception as e:
            print(f"Model update failed: {e}")
            return False

# Initialize quality prediction system
quality_predictor = QualityPredictionSystem('quality_model_v3.pkl')

def production_control_loop():
    """
    Main control integrating traditional control with ML prediction
    """
    # Read process sensors
    temperature = read_analog_input("AI0")  # Process temperature
    pressure = read_analog_input("AI1")     # Process pressure
    humidity = read_analog_input("AI2")     # Humidity sensor
    line_speed = read_analog_input("AI3")   # Line speed sensor

    # Predict quality
    quality_ok, defect_probability = quality_predictor.predict_quality(
        temperature, pressure, humidity, line_speed
    )

    # Control outputs based on prediction
    if not quality_ok:
        # Quality alert - notify operator
        write_output("Q0.5", True)  # Quality warning light

        # Optional: Automatic corrective action
        if defect_probability > 0.7:  # High confidence of defect
            write_output("Q0.6", True)  # Slow line speed signal
    else:
        write_output("Q0.5", False)  # Clear quality warning
        write_output("Q0.6", False)  # Normal line speed

    # Display defect probability on HMI (via Modbus register)
    defect_percentage = int(defect_probability * 100)
    write_modbus_register(1001, defect_percentage)

    # Feature importance for operator guidance
    importance = quality_predictor.get_feature_importance()
    # Could display which parameter needs adjustment most

Python Exclusive Advantages:

• Machine learning impossible in traditional ladder logic
• Real-time inference with millisecond latency (vs seconds via external system)
• Model updates without PLC programming changes
• Feature importance guides operators to optimal adjustments
• Comprehensive data logging for model retraining
• Direct integration with data science workflows

Verdict: Machine learning and advanced analytics require Python or similar text-based languages. This represents Python's most compelling use case in automation.

When to Use Ladder Logic

Ladder logic remains the optimal choice for numerous industrial automation applications where its proven strengths deliver clear advantages:

Ideal Ladder Logic Applications

Discrete Manufacturing Control: Assembly lines, packaging equipment, material handling, and machine tools with predominantly binary control logic map naturally to ladder logic representation. The cause-and-effect relationships in discrete manufacturing mirror ladder logic's contact-to-coil paradigm perfectly.

Safety-Critical Systems: Emergency stop circuits, safety interlocks, machine guarding, and protective systems benefit from ladder logic's visual clarity enabling safety professional verification and regulatory compliance. SIL 2/3 and PLe certified ladder logic controllers are readily available.

Simple Sequential Processes: Step-by-step operations following predictable sequences with basic timing (conveyor systems, car washes, simple batch processes) implement efficiently in ladder logic without unnecessary complexity.

Traditional Industrial Environments: Factories with electrical maintenance staff, limited programming resources, and conservative technology adoption benefit from ladder logic's familiar paradigm and extensive troubleshooting support accessible to electrical technicians.

High-Speed Discrete Control: Applications requiring microsecond response times, deterministic execution, and guaranteed scan times (high-speed packaging, printing presses, precision assembly) depend on optimized ladder logic execution commercial PLCs provide.

Motor Control Applications: Direct-online starters, star-delta starting, reversing control, and multi-speed motors implement naturally in ladder logic matching electrical control diagram conventions maintenance staff understand.

Regulatory Compliance Requirements: Industries with strict validation requirements (pharmaceutical GMP, food safety, aerospace) benefit from ladder logic's visual verification, extensive documentation, and proven compliance track record.

When to Use Python for PLCs

Python programming becomes the superior choice when applications require capabilities that ladder logic cannot efficiently provide:

Ideal Python PLC Applications

Data Analytics and Processing: Applications requiring statistical analysis, trend analysis, data aggregation, or complex data manipulation benefit tremendously from Python's Pandas, NumPy, and built-in data processing capabilities impossible in ladder logic.

Machine Learning Deployment: Predictive maintenance models, quality prediction systems, anomaly detection algorithms, and optimization models require Python or similar languages capable of running trained ML models at the edge.

Complex Mathematical Algorithms: Sophisticated control algorithms, custom optimization routines, statistical process control, or scientific calculations implement far more efficiently in Python than equivalent ladder logic requiring dozens of rungs.

IT System Integration: Applications requiring direct database connectivity, RESTful API consumption, web service integration, or cloud platform communication benefit from Python's native support for modern IT protocols and standards.

Rapid Prototyping and Development: Research projects, proof-of-concept systems, or applications requiring rapid iteration benefit from Python's concise syntax enabling algorithm development and testing in hours rather than days.

Data Logging and Historian Functions: Comprehensive data collection, time-series database integration, and long-term data storage implement naturally in Python with direct database drivers unavailable in ladder logic.

Modern Protocol Implementation: Custom communication protocols, modern IoT protocols (MQTT), edge computing frameworks, and evolving standards implement more easily in Python than proprietary ladder logic communication blocks.

Cross-Platform Deployment: Applications requiring deployment across diverse hardware platforms (industrial PCs, edge devices, embedded systems) benefit from Python's universal availability compared to manufacturer-specific ladder logic implementations.

Can They Work Together? Hybrid Approaches

The most sophisticated industrial automation systems increasingly adopt hybrid architectures combining ladder logic's proven real-time control with Python's advanced capabilities:

Hybrid Architecture Patterns

Ladder Logic for Control, Python for Analytics: Traditional ladder logic programs handle all real-time I/O control, safety systems, and time-critical automation while Python applications running on the same controller or companion edge device perform data analytics, logging, and predictive algorithms. This separation leverages each language's strengths optimally.

OpenPLC Hybrid Programming: OpenPLC explicitly supports hybrid programming where ladder logic programs call Python function blocks for complex operations. The ladder logic program maintains scan-based execution and I/O control while delegating sophisticated calculations to Python functions returning results to ladder logic.

CODESYS Python Scripting: CODESYS runtime supports Python scripting for extensions and automation while core control programs use traditional IEC 61131-3 languages. This enables automated testing, code generation, runtime extensions, and sophisticated data processing complementing traditional ladder logic control.

Edge Device Architectures: Distributed architectures deploy traditional PLCs for real-time control while edge computing devices running Python handle machine learning inference, data aggregation, cloud connectivity, and analytics. Communication via OPC UA, Modbus, or Ethernet/IP enables data exchange between systems.

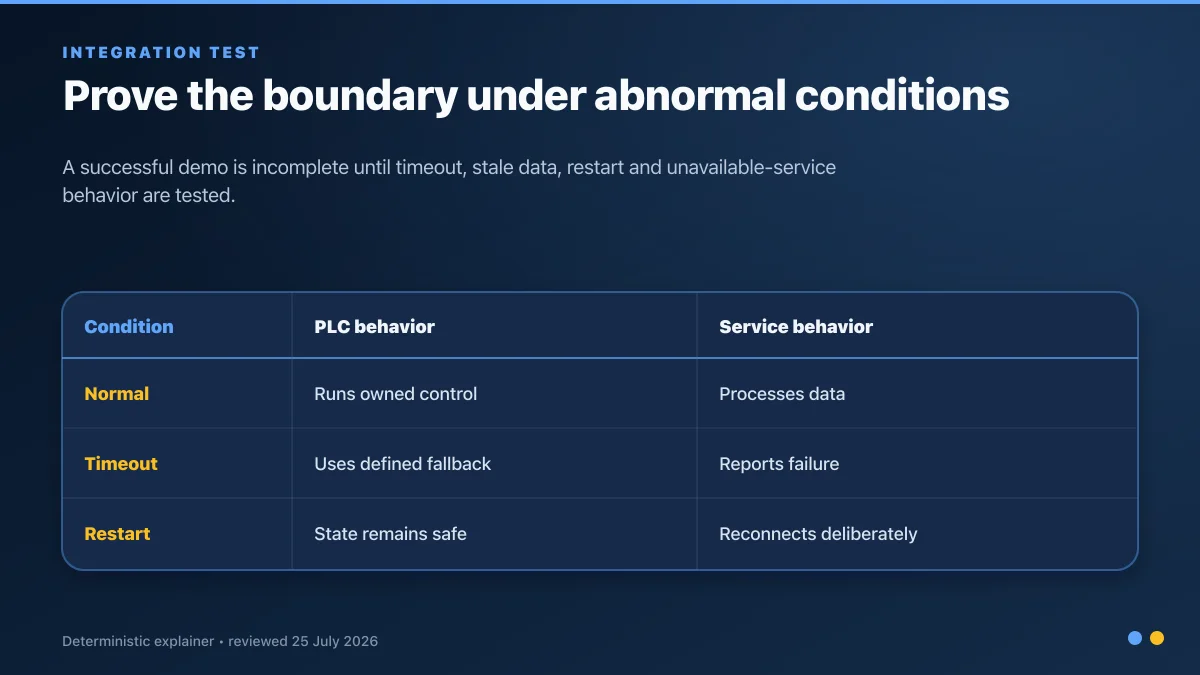

Implementation Best Practices for Hybrid Systems

Clear Interface Definition: Establish well-defined data exchange interfaces between ladder logic and Python components. Use structured data types, consistent naming conventions, and comprehensive documentation preventing integration confusion.

Responsibility Separation: Clearly define which functions each language handles. Avoid duplicating functionality or creating ambiguous ownership of control functions. Typical division: ladder logic owns I/O and real-time control, Python owns analytics and IT integration.

Performance Considerations: Ensure Python processing doesn't impact ladder logic scan time. Use asynchronous communication, separate processing threads, or dedicated hardware preventing Python execution from affecting real-time control determinism.

Maintenance Documentation: Comprehensive system documentation explaining the hybrid architecture, data flows, and interaction points between languages prevents future maintenance confusion and supports troubleshooting.

Version Control for Both Languages: Implement unified version control managing both ladder logic programs and Python code. Tag releases consistently and maintain synchronization between components to prevent version mismatch issues.

The Future of PLC Programming Languages

Industrial automation programming approaches are evolving rapidly driven by Industry 4.0 requirements, IT/OT convergence, and emerging technologies:

Emerging Trends in PLC Programming

Increased Text-Based Language Adoption: While ladder logic remains dominant for traditional control, text-based languages including Structured Text, Python scripting, and other high-level languages gain adoption for complex algorithms, data processing, and system integration.

Cloud and Edge Computing Integration: Growing requirements for edge analytics, cloud connectivity, and distributed intelligence drive adoption of programming languages capable of modern IT integration - areas where text-based languages excel versus traditional ladder logic.

Machine Learning at the Edge: Deployment of predictive maintenance models, quality prediction systems, and optimization algorithms directly on automation controllers requires languages supporting ML frameworks - currently only feasible with Python and similar languages.

Low-Code and Model-Based Development: Visual programming environments generating both traditional ladder logic and modern text code from high-level models represent evolution beyond purely graphical or purely text-based approaches, potentially bridging current divides.

Standard Protocol Evolution: OPC UA, MQTT, and other modern industrial protocols developed with text-based language integration in mind increasingly influence PLC programming toward languages naturally supporting these standards.

Skills Development Recommendations

For Current Automation Professionals: While maintaining ladder logic expertise for traditional control, invest time learning Python fundamentals, data analytics basics, and modern software development practices. This dual competency positions you for evolving automation requirements.

For Software Engineers Entering Automation: Learn ladder logic basics for understanding traditional systems and communicating with electrical teams. However, leverage your Python and software development expertise for modern automation challenges including analytics, ML deployment, and IT integration.

For Students and New Engineers: Develop strong foundations in both paradigms. Master ladder logic for traditional control applications while building Python skills for analytics and modern requirements. Understanding both approaches maximizes career flexibility and project capability.

For Organizations: Invest in cross-training automation teams in both traditional ladder logic and modern Python programming. The future requires personnel comfortable in both worlds, bridging traditional automation with emerging data-driven manufacturing.

Frequently Asked Questions

Neither language is universally "better" - optimal choice depends on specific application requirements, personnel expertise, and project objectives.

Choose Ladder Logic when:

• Implementing discrete manufacturing control with binary logic
• Working with commercial PLCs from major manufacturers
• Requiring safety certification (SIL 2/3, PLe)
• Supporting maintenance by electrical technicians
• Needing proven real-time deterministic performance
• Following industry standards and regulatory requirements

Choose Python when:

• Implementing complex data analytics or processing
• Deploying machine learning models at the edge
• Requiring sophisticated mathematical algorithms
• Integrating with IT systems, databases, or cloud platforms
• Rapid prototyping or research applications
• Working with open-source platforms like OpenPLC

Best Approach: Hybrid architectures combining ladder logic for real-time control with Python for analytics increasingly deliver optimal results, leveraging each language's unique strengths.

Yes, you can program PLCs with Python through several approaches, though support varies significantly by platform:

OpenPLC: Free open-source PLC runtime supporting Python scripting alongside traditional IEC 61131-3 languages. Runs on Raspberry Pi, Arduino, and industrial PCs. Python code can implement custom function blocks called from ladder logic programs.

CODESYS: CODESYS 3.5+ supports Python scripting for engineering automation, testing, and runtime extensions complementing traditional PLC programming languages.

Soft PLC Platforms: Industrial PC-based soft PLCs including PLCnext (Phoenix Contact), Industrial Shields controllers, and custom Raspberry Pi implementations support Python programming for complete automation control.

Commercial PLC Limitations: Traditional commercial PLCs from Siemens, Allen-Bradley, Mitsubishi, and most major manufacturers do NOT support Python programming. These platforms require manufacturer-specific languages (ladder logic, structured text, function block diagram).

Hybrid Approaches: Even without direct Python support, edge devices running Python can communicate with traditional PLCs via Modbus, OPC UA, or Ethernet/IP, enabling Python for analytics while PLCs handle real-time control.

Bottom Line: Python PLC programming is viable primarily through open-source platforms (OpenPLC) or specialized industrial hardware, not mainstream commercial PLCs which require traditional programming languages.

Python offers several compelling advantages over ladder logic for specific automation applications:

1. Complex Algorithm Implementation: Mathematical operations, statistical calculations, and sophisticated algorithms implement in single lines of Python code versus dozens of ladder rungs, dramatically improving code clarity and development speed.

2. Data Processing Capabilities: Python's Pandas, NumPy, and built-in data structures enable sophisticated data manipulation, analysis, and transformation impossible with ladder logic's limited data handling.

3. Machine Learning Integration: Native support for TensorFlow, scikit-learn, and PyTorch enables deployment of predictive maintenance models, quality prediction systems, and optimization algorithms directly on automation hardware.

4. Extensive Library Ecosystem: Over 350,000 Python packages provide immediate access to database connectivity, web APIs, communication protocols, image processing, and countless specialized capabilities without custom development.

5. IT System Integration: Direct database connections, RESTful API consumption, cloud platform SDKs, and modern protocol support enable seamless integration with enterprise IT systems without gateway devices or middleware.

6. Rapid Development: Concise syntax and high-level abstractions enable algorithm development and testing in hours versus days required for equivalent ladder logic implementation.

7. Modern DevOps Integration: Native support for version control (Git), automated testing, continuous integration, and containerization align with modern software development practices.

8. Code Reusability: Functions, classes, and modules enable true code reuse across projects with parametrization and inheritance impossible or cumbersome in ladder logic.

Ladder logic maintains significant advantages over Python for traditional industrial automation applications:

1. Universal Industry Acceptance: Supported by 95%+ of commercial PLCs from all major manufacturers. Finding qualified programmers, obtaining training, and accessing vendor support is straightforward versus Python's limited industrial automation acceptance.

2. Visual Debugging Excellence: Online monitoring with energized rungs highlighted provides unmatched intuitive debugging for discrete control logic. Maintenance technicians can troubleshoot without programming expertise.

3. Electrical Workforce Familiarity: Immediate comprehensibility to electricians and technicians with electrical backgrounds enables troubleshooting and maintenance by personnel without programming training.

4. Proven Real-Time Performance: Commercial PLCs achieve microsecond deterministic scan times through optimized ladder logic execution engines compiled to native machine code - critical for high-speed control applications.

5. Safety System Certification: Extensive SIL 2/3 and PLe certified ladder logic platforms for safety-critical applications. Python automation systems currently lack equivalent safety certifications for most applications.

6. Regulatory Compliance: Decades of pharmaceutical GMP, food safety, and aerospace applications provide proven compliance paths and validation procedures unavailable for Python automation systems.

7. Visual Verification: Logic flow is immediately obvious and easily verified by safety professionals, quality engineers, and regulatory auditors through visual inspection.

8. Hardware Vendor Support: Complete integration with manufacturer I/O systems, communication modules, and specialized hardware with guaranteed compatibility and vendor technical support.

9. Long-Term Reliability: Proven track record with systems operating reliably for 20-30+ years, extensive backward compatibility, and guaranteed long-term vendor support.

Learning timelines vary significantly based on background, but general timeframes for achieving basic proficiency:

Ladder Logic Learning Timeline:

For Electricians/Technicians:

• Basic competency: 2-4 weeks with formal training
• Professional proficiency: 2-4 months with regular practice
• Advanced expertise: 1-2 years with diverse projects

For Software Engineers:

• Basic competency: 1-2 months with formal training
• Professional proficiency: 4-6 months with regular practice
• Advanced expertise: 1-2 years with diverse projects

Python Learning Timeline:

For Electricians/Technicians (no programming background):

• Basic competency: 3-6 months with structured courses
• Professional proficiency: 8-12 months with regular practice
• Advanced expertise: 2-3 years with diverse projects

For Software Engineers:

• Basic Python competency: 2-4 weeks (language syntax)
• Automation-specific proficiency: 2-3 months (I/O, real-time, protocols)
• Advanced automation expertise: 6-12 months with diverse projects

Key Factors Affecting Learning Speed:

• Background: Electrical vs. software engineering dramatically affects which language feels natural
• Training quality: Formal manufacturer courses accelerate learning versus self-study
• Practice frequency: Daily hands-on practice crucial for skill development
• Project complexity: Starting with simple projects builds foundation for complex applications
• Mentorship: Guidance from experienced engineers prevents common pitfalls

Bottom Line: Ladder logic offers faster initial productivity for electrical personnel while Python provides faster learning for programmers. Total time to automation expertise (2-3 years) is similar regardless of starting language - the difference is which language feels natural initially.

Yes, ladder logic and Python can work together in hybrid architectures, though implementation approaches vary by platform:

OpenPLC Hybrid Programming: OpenPLC explicitly supports calling Python function blocks from ladder logic programs. The ladder logic program maintains scan-based execution and I/O control while delegating complex calculations, data processing, or analytics to Python functions that return results to ladder logic.

CODESYS Python Scripting: CODESYS 3.5+ supports Python scripting for engineering automation, testing, and runtime extensions. While core control programs use traditional IEC 61131-3 languages (ladder logic, structured text), Python scripts can automate repetitive tasks, generate code, and extend runtime capabilities.

Distributed Edge Architecture: The most common hybrid approach uses traditional commercial PLCs for real-time control programmed in ladder logic while separate edge computing devices running Python handle analytics, machine learning, data logging, and cloud connectivity. Communication via OPC UA, Modbus, or Ethernet/IP enables data exchange between systems.

Embedded Python in Industrial Controllers: Some modern industrial controllers (B&R, PLCnext, Beckhoff) support both traditional PLC programming and Python/C++ applications running on the same hardware with different priority levels. Real-time control uses traditional languages while Python handles non-time-critical tasks.

Best Practices for Hybrid Systems:

1. Clear Separation: Define ladder logic for real-time I/O control, Python for analytics/IT integration
2. Well-Defined Interfaces: Use structured data exchange with consistent naming and comprehensive documentation
3. Performance Isolation: Ensure Python processing doesn't impact ladder logic scan time through separate threads or asynchronous execution
4. Version Control: Manage both ladder logic and Python code in unified version control system
5. Unified Testing: Test integrated system behavior, not just individual components

Bottom Line: Hybrid architectures combining ladder logic's real-time control strengths with Python's analytics capabilities represent the future of industrial automation, leveraging each language optimally.

Python's suitability for real-time control depends entirely on application timing requirements:

Soft Real-Time (10-100ms response): YES Python performs adequately for soft real-time applications including building automation, process control with slow dynamics, batch control, data acquisition, and monitoring systems. Most Python automation applications achieve 10-50 millisecond response times sufficient for these applications.

Medium Real-Time (1-10ms response): MAYBE Achievable with careful optimization including:

• Using optimized libraries (NumPy, Cython)
• JIT compilation (PyPy, Numba)
• Multiprocessing for parallel execution
• Dedicated real-time Linux (PREEMPT_RT)
• Avoiding garbage collection critical sections

Applications like slower motion control, conveyor coordination, and simple machine control may work with optimized Python implementations.

Hard Real-Time (<1ms response): NO Python's interpreted nature, automatic garbage collection, and non-deterministic execution make microsecond-level deterministic performance extremely difficult. Applications requiring guaranteed sub-millisecond response times (high-speed packaging, precision motion, safety systems) should use traditional ladder logic on commercial PLCs with optimized real-time execution.

Performance Factors:

• Interpreted Execution: Python interpretation overhead adds latency versus compiled ladder logic
• Garbage Collection: Automatic memory management creates unpredictable pauses (1-100ms)
• Platform Variables: Hardware (Raspberry Pi vs. industrial PC), operating system (Linux vs. Windows), and Python implementation affect performance significantly

Recommended Approach: Use hybrid architecture with ladder logic handling time-critical control (sensors, actuators, safety systems) while Python performs non-time-critical tasks (analytics, logging, ML inference, cloud communication). This leverages each language's strengths while avoiding weaknesses.

Bottom Line: Python works well for many automation applications but cannot match traditional PLC real-time performance for high-speed control. Application timing requirements determine Python's suitability.

Python support in commercial PLCs remains limited, with most major manufacturers not supporting Python for core control programming:

PLCs With Python Support:

Phoenix Contact PLCnext: Supports Python for application development alongside IEC 61131-3 languages. Python applications run on the controller with access to I/O and communication features.

B&R Automation Studio: B&R controllers support Python through Automation Runtime extensions enabling Python applications alongside ANSI C and IEC 61131-3 programs.

Beckhoff TwinCAT: While primarily supporting IEC 61131-3 and C++, Beckhoff enables Python integration through TwinCAT IoT for edge analytics and data processing.

Industrial Shields PLCs: Arduino and Raspberry Pi-based industrial PLCs with native Python and Arduino programming support for industrial automation applications.

PLCs WITHOUT Direct Python Support (Majority):

• Siemens: S7-1200/1500 controllers do NOT support Python. Only IEC 61131-3 languages (LAD, FBD, SCL, GRAPH, STL) in TIA Portal.
• Allen-Bradley/Rockwell: ControlLogix, CompactLogix do NOT support Python. Only IEC 61131-3 languages in Studio 5000.
• Mitsubishi: GX Works programming supports only ladder logic, structured text, function blocks - NO Python.
• Omron: Sysmac Studio supports IEC 61131-3 languages only - NO Python support.
• Schneider Electric: Unity Pro and EcoStruxure support IEC 61131-3 languages - NO Python.

Alternative Approaches for Python with Traditional PLCs:

1. Edge Computing: Run Python on separate edge device communicating with PLC via OPC UA, Modbus, Ethernet/IP
2. OpenPLC: Open-source PLC runtime supporting Python on Raspberry Pi, Arduino, industrial PCs
3. CODESYS: Some CODESYS-based controllers support Python scripting for runtime extensions
4. Gateway Devices: Python running on gateway devices translating between PLCs and IT systems

Bottom Line: Traditional commercial PLCs from major manufacturers (Siemens, Allen-Bradley, Mitsubishi) do NOT support Python. Python PLC programming requires specialized controllers, open-source platforms, or hybrid edge architectures.

Comprehensive resources for learning Python specifically for industrial automation and PLC applications:

Python Fundamentals (Start Here):

• Python.org Official Tutorial: Free, comprehensive introduction to Python basics
• Automate the Boring Stuff with Python: Excellent book focusing on practical automation (not PLC-specific but valuable)
• Real Python: High-quality tutorials covering Python fundamentals through advanced topics

Industrial Automation Specific:

• OpenPLC Documentation: Official OpenPLC tutorials covering Python integration with ladder logic and I/O programming
• Industrial Python GitHub Repositories: Search GitHub for "Python PLC", "Python MODBUS", "Python OPC UA" for real-world examples
• PyModbus Documentation: Essential library for Modbus communication from Python to PLCs
• Python OPC UA Libraries: Open62541-python and FreeOpcUa for OPC UA protocol implementation

Industrial Communication Protocols:

• Modbus Protocol with Python: PyModbus tutorials for RTU/TCP communication
• OPC UA with Python: Python-opcua library documentation and examples
• MQTT for Industrial IoT: Paho-MQTT Python client for edge-to-cloud communication

Data Analytics for Manufacturing:

• Pandas Documentation: Critical for time-series data processing and analysis
• NumPy: Numerical computing fundamentals for process calculations
• Matplotlib/Plotly: Data visualization for quality trending and analytics

Machine Learning for Predictive Maintenance:

• Scikit-learn Tutorials: Classic machine learning algorithms for predictive analytics
• TensorFlow Lite: Deploying ML models on edge devices
• Edge Impulse: End-to-end ML workflow for industrial applications

Hardware Platforms:

• Raspberry Pi Official Documentation: GPIO programming for I/O control
• Arduino Python (Firmata): Controlling Arduino from Python
• Industrial Shields Documentation: Commercial industrial PLCs programmable in Python

Online Courses:

• Udemy: Search "Python Industrial Automation" or "Python PLC"
• Coursera: "Industrial IoT on Google Cloud" includes Python programming
• LinkedIn Learning: Python automation courses

Community Resources:

• r/PLC Subreddit: Active community discussing Python integration with PLCs
• PLCTalk Forum: Industrial automation professionals sharing Python implementations
• Stack Overflow: Search "Python Modbus" or "Python industrial automation"

Practical Project Ideas:

1. Build OpenPLC-based control system for home automation
2. Create Python Modbus client reading data from commercial PLC
3. Implement simple SCADA system using Python and Modbus
4. Deploy machine learning model on Raspberry Pi for sensor data analysis

Bottom Line: Start with Python fundamentals, then focus on industrial communication (Modbus, OPC UA), then advance to machine learning and analytics for manufacturing applications.

The optimal starting language depends on your background, career goals, and target industry:

Start with Ladder Logic if:

1. Electrical/Technician Background: Ladder logic leverages your electrical knowledge and feels immediately familiar
2. Traditional Manufacturing Career: 90%+ of industrial automation jobs require ladder logic competency
3. Commercial PLC Focus: Working with Siemens, Allen-Bradley, Mitsubishi, or other commercial PLCs
4. Safety System Specialization: Safety-critical applications predominantly use certified ladder logic platforms
5. Field Service/Maintenance: Troubleshooting industrial systems requires ladder logic familiarity
6. Immediate Employment: Ladder logic skills translate directly to most available automation positions

Career Path: Ladder logic → Structured Text → Python (for analytics/advanced features)

Start with Python if:

1. Software Engineering Background: Leverage existing programming skills for faster productivity
2. Data Science/Analytics Focus: Planning to specialize in manufacturing analytics, predictive maintenance, Industry 4.0
3. Research/Academic Environment: Universities and research often use OpenPLC and Python for flexibility
4. Edge Computing/IoT: Focusing on edge analytics, cloud connectivity, modern industrial IoT applications
5. Startup/Innovation Environment: Organizations implementing cutting-edge manufacturing technologies

Career Path: Python → Industrial Protocols (Modbus, OPC UA) → Ladder Logic fundamentals → Hybrid systems

Recommended Dual-Track Approach:

For serious automation career, develop competency in BOTH languages over 2-3 years:

Year 1: Master one language thoroughly (based on factors above)

• 6-12 months intensive learning and practice
• Complete 3-5 significant projects
• Achieve professional certification if available

Year 2: Gain commercial project experience in primary language

• Apply skills in real industrial environments
• Develop domain expertise (packaging, automotive, process, etc.)
• Build portfolio of completed projects

Year 3: Add second language competency

• 3-6 months structured learning
• Implement hybrid projects combining both approaches
• Position yourself as versatile automation professional

Industry Reality Check:

• 95% of current industrial automation jobs require ladder logic knowledge
• Python automation skills create differentiation and command salary premiums (15-25%)
• Future trend toward hybrid systems combining both approaches
• Dual competency maximizes career flexibility and advancement opportunities

Bottom Line: For traditional automation careers, start with ladder logic. For data science/analytics focus, start with Python. For maximum career opportunity, develop expertise in both over time. The investment in dual competency pays dividends throughout your automation career.

Conclusion: Choosing the Right Programming Language for Your PLC Applications

The Python vs Ladder Logic comparison reveals that neither language universally dominates - each excels in specific applications and environments where its unique characteristics deliver clear advantages. Understanding these strengths and limitations enables informed decisions that optimize development efficiency, system performance, and long-term maintainability.

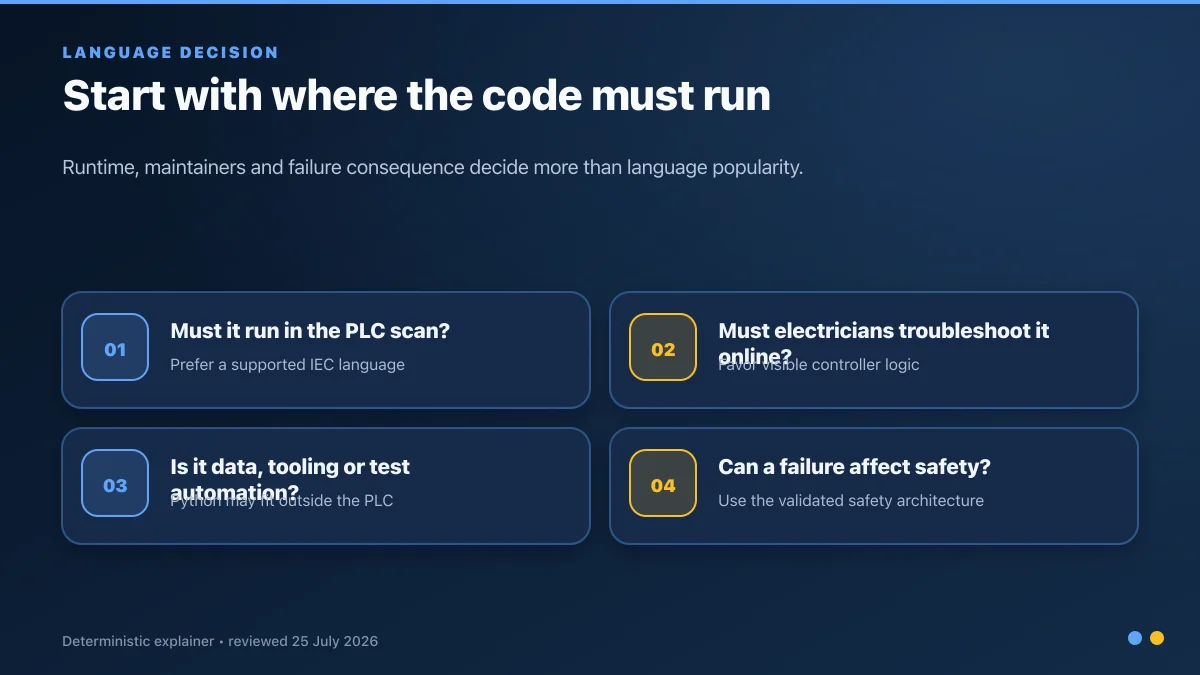

Ladder logic remains the proven choice for:

• Traditional discrete manufacturing control
• Safety-critical applications requiring certification
• High-speed deterministic real-time control
• Environments with electrical maintenance personnel
• Commercial PLC platforms from major manufacturers
• Applications prioritizing visual debugging and troubleshooting

Python becomes the superior option for:

• Complex data analytics and processing
• Machine learning model deployment at the edge
• Sophisticated mathematical algorithms and optimization

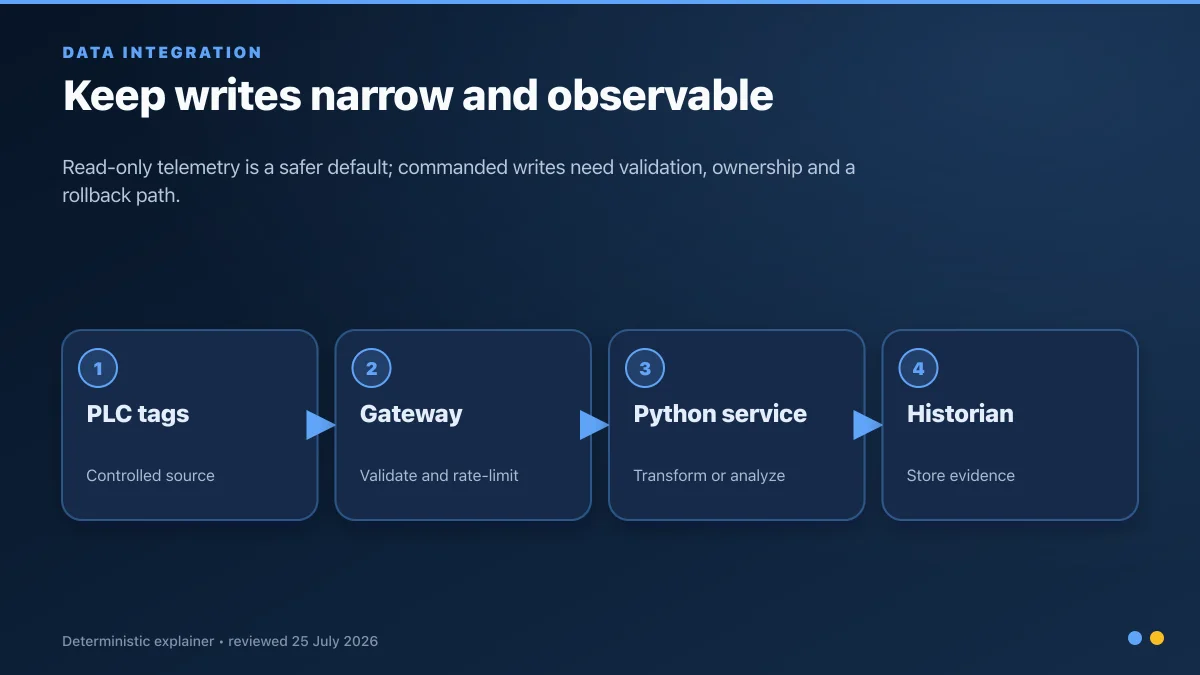

• Direct IT system integration (databases, APIs, cloud)
• Rapid prototyping and research applications
• Edge computing and modern IoT architectures

Hybrid approaches combining both languages deliver optimal results when:

• Applications span both discrete control and analytics
• Leveraging each language's unique strengths reduces overall complexity
• Organizations have expertise in both programming paradigms
• Modern Industry 4.0 requirements demand both real-time control and intelligent data processing

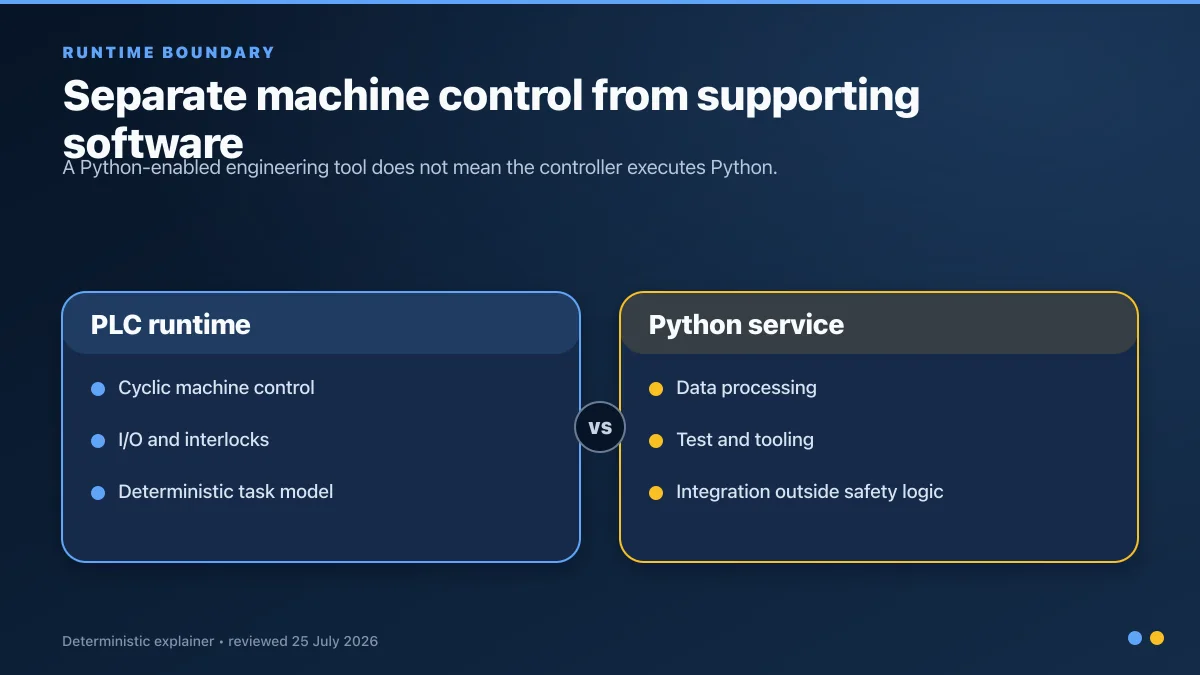

The future of industrial automation programming increasingly embraces this hybrid philosophy: ladder logic provides proven, reliable, deterministic control while Python and other text-based languages enable advanced capabilities including machine learning, predictive maintenance, quality analytics, and seamless IT integration impossible with traditional graphical programming alone.

For automation professionals, developing competency in both programming approaches maximizes career flexibility and project capabilities. The conservative nature of industrial automation ensures ladder logic remains essential for decades while emerging requirements drive growing demand for Python skills in manufacturing analytics, edge computing, and data-driven optimization.

Strategic recommendations for different stakeholders:

Automation Engineers: Master ladder logic fundamentals for traditional control while building Python competency for analytics and advanced features. This dual expertise positions you at the forefront of automation evolution.

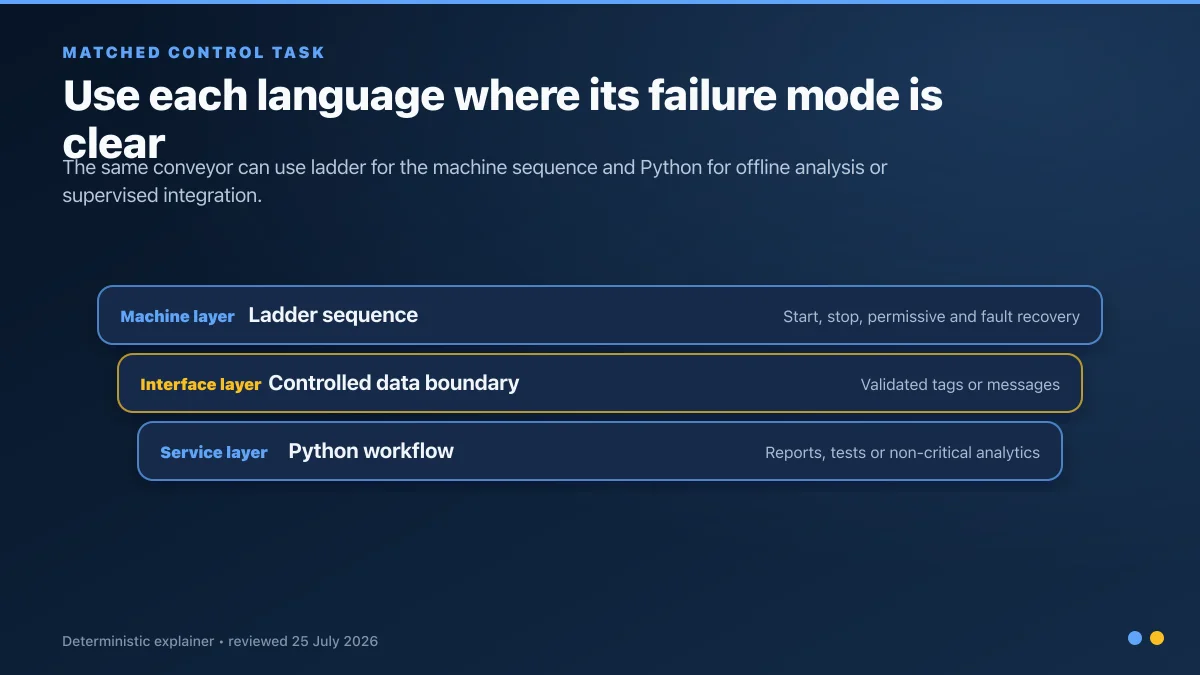

Manufacturing Organizations: Invest in hybrid automation architectures leveraging commercial PLCs for real-time control while deploying Python-based edge analytics for predictive maintenance, quality optimization, and data-driven decision making.

Students and New Engineers: Build strong foundations in both paradigms. Learn ladder logic for understanding traditional automation and communicating with field personnel while developing Python skills for modern data-driven manufacturing requirements.

Software Engineers Entering Automation: Leverage your Python expertise for analytics, machine learning, and IT integration while learning ladder logic fundamentals for communication with automation teams and understanding existing systems.

The Python vs ladder logic debate represents broader industry evolution from purely deterministic control toward intelligent, data-driven manufacturing. Success in modern automation requires understanding both traditional proven approaches and emerging capabilities, applying each optimally to create systems that combine reliable control with intelligent optimization.

Continue Your PLC Programming Journey

Expand your automation programming expertise with these comprehensive resources:

• Ladder Logic Programming Mastery - Advanced ladder logic techniques, optimization strategies, and professional development
• Structured Text Programming Guide - Master the powerful text-based IEC 61131-3 language for complex algorithms
• OpenPLC Tutorial Complete Guide - Step-by-step guide to open-source PLC programming supporting Python integration
• PLC Programming Languages Complete Guide - Comprehensive overview of all five IEC 61131-3 languages
• Free PLC Programming Software Guide - Explore free PLC programming options including Python-capable platforms

Master both traditional and modern programming approaches to excel in today's evolving industrial automation landscape. The combination of proven ladder logic reliability with Python's advanced capabilities positions you for success across the full spectrum of automation challenges from traditional manufacturing control to cutting-edge Industry 4.0 implementations.
