CNC Machine PLC Integration: Complete Guide to Machine Tool Automation and Control

Modern CNC machine tools rely on sophisticated PLC integration to control auxiliary functions, coordinate automated loading systems, implement comprehensive safety circuits, and communicate with CNC controllers for seamless operation. While the CNC controller handles precise tool path execution and axis motion, the auxiliary PLC manages everything else—tool changers, coolant systems, chip conveyors, door interlocks, hydraulic circuits, and automated pallet systems that enable lights-out manufacturing.

Understanding CNC machine PLC integration has become essential for machine tool engineers, manufacturing automation specialists, and CNC programmers working in modern machining environments. The complexity of contemporary machining centers demands expertise in both CNC programming and PLC control systems to achieve maximum productivity, maintain strict safety standards, and implement the automated workflows that competitive manufacturing requires.

This comprehensive guide explores every aspect of CNC PLC integration from system architecture and hardware selection through practical programming examples for tool changers, safety systems, and automated loading. You'll learn how CNCs communicate with PLCs using M-codes and digital signals, how to design robust safety circuits meeting current standards, and how to program complex auxiliary functions that transform basic machining centers into highly automated production systems.

Whether you're commissioning a new machining center, upgrading an existing machine with automation, or troubleshooting complex PLC-CNC interactions, mastering these integration principles will enable you to design safer, more productive machine tool systems that meet the demanding requirements of modern precision manufacturing.

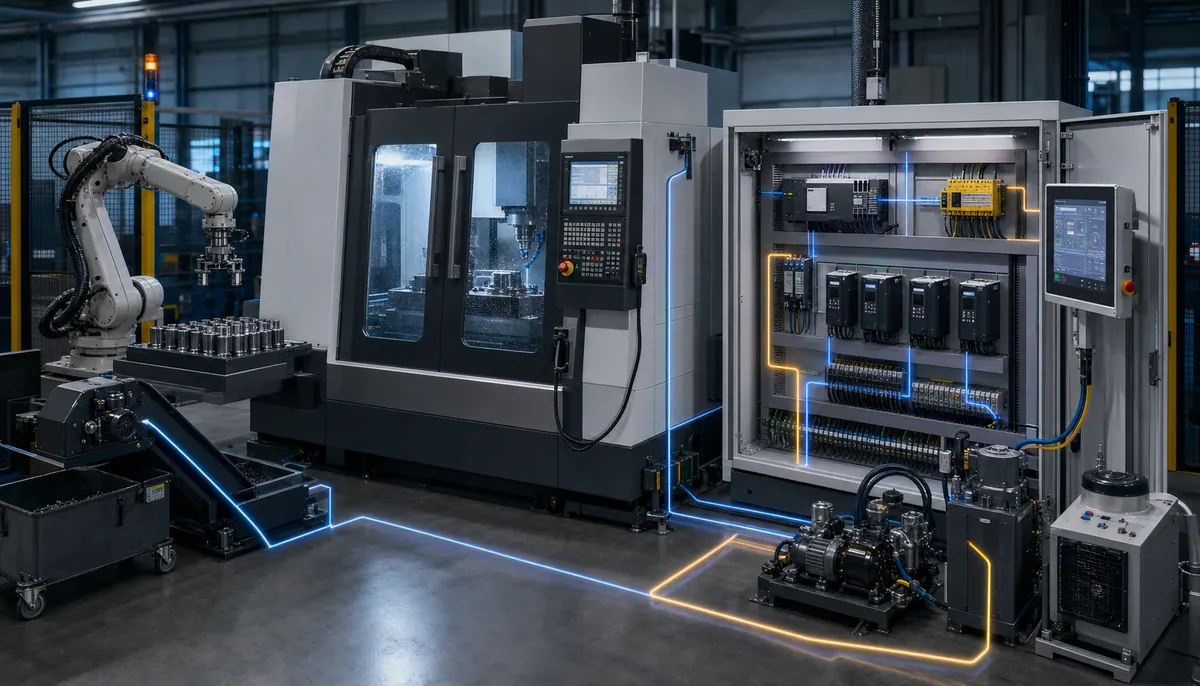

Understanding CNC System Architecture

The modern CNC machining center employs a distributed control architecture where specialized controllers handle specific functions based on their strengths. This division of labor between CNC and PLC systems creates robust, maintainable machine tool control systems.

CNC Controller vs Auxiliary PLC Functions

CNC Controller Primary Responsibilities

The CNC controller (Fanuc, Siemens 840D, Heidenhain TNC, Mitsubishi, etc.) focuses exclusively on motion control and tool path execution. These specialized controllers excel at interpolating complex tool paths across multiple axes, executing blocks of G-code at microsecond intervals, managing servo and spindle drives with precise positioning, and calculating feed rates and acceleration profiles for smooth motion.

Modern CNC controllers feature dedicated motion processors executing position loops at 1-2 millisecond intervals or faster. This real-time performance enables the precise contour following and surface finish quality that precision machining demands. The CNC maintains absolute focus on motion control without distraction from auxiliary functions.

Auxiliary PLC Responsibilities

The auxiliary PLC handles every machine function outside the motion control domain. Tool changer sequencing and position monitoring, coolant pumps, valves, and flow verification, chip conveyor control and jam detection, hydraulic and pneumatic system management, door interlocks and operator safety monitoring, part probing and measurement cycles, and automated pallet/workpiece loading systems all fall under PLC control.

This separation allows the CNC to concentrate on motion performance while the PLC manages discrete automation and safety functions using proven ladder logic or structured text programming. Most machine tool builders prefer this architecture over attempting to program all auxiliary functions within the CNC's ladder logic capabilities.

Why Separate PLC and CNC Functions?

Using dedicated PLCs for auxiliary control provides several critical advantages. First, the specialized CNC focuses entirely on motion performance without processing overhead from auxiliary functions. Second, standard PLC platforms offer superior I/O flexibility and expansion compared to CNC native I/O. Third, maintenance technicians typically have strong PLC troubleshooting skills but limited CNC programming knowledge. Finally, safety system certification (SIL 3/PLe) is straightforward with dedicated safety PLCs versus modifying CNC controllers.

I/O Distribution and System Communication

Centralized vs Distributed I/O Architecture

Basic machining centers may use centralized I/O with all inputs and outputs terminated at a single PLC cabinet near the machine. This approach simplifies wiring for compact machines with limited I/O requirements but creates large wire bundles as machine complexity grows.

Advanced machining centers typically employ distributed I/O using industrial Ethernet (PROFINET, EtherNet/IP, EtherCAT) to position remote I/O modules near physical devices. This architecture dramatically reduces wiring costs and complexity while improving troubleshooting through distributed diagnostics. Remote I/O blocks mount directly on tool changers, pallet systems, or machine zones, eliminating hundreds of individual wire runs.

Machine Zone Organization

Effective system design organizes I/O by functional zones: the spindle zone handles tool clamping, orientation, coolant through spindle, and brake control; the tool changer zone manages magazine positioning, gripper operation, and tool presence sensing; the workpiece zone controls clamping, part presence detection, and rotary table indexing; the enclosure zone monitors doors, interlocks, light curtains, and operator interface; and the auxiliary systems zone handles chip conveyors, coolant tanks, mist collectors, and hydraulics.

This logical organization simplifies programming, documentation, and troubleshooting by grouping related functions. Network-based distributed I/O makes zone-based architecture practical and cost-effective.

CNC-PLC Communication Methods

Discrete I/O Signals

The most fundamental communication uses hardwired digital signals between CNC and PLC. The CNC provides outputs including M-code activation signals, cycle start/stop commands, spindle running status, and axis position reached signals. The PLC returns inputs including auxiliary function complete confirmations, interlock status (doors closed, guards in position), part presence and workpiece ready signals, and emergency stop status.

This discrete I/O approach provides fast, deterministic communication with response times under 10 milliseconds. The hardwired nature ensures safety-critical signals remain independent of network communication failures.

M-Code Handshaking

CNC programs execute M-codes (miscellaneous functions) to request auxiliary operations from the PLC. When the CNC executes an M-code requiring PLC action (M06 for tool change, M08 for coolant on, M19 for spindle orient), it activates specific output signals decoded by the PLC. The PLC executes the requested function then activates a completion signal allowing the CNC program to continue.

This handshaking protocol ensures synchronized operation between CNC motion and auxiliary functions. The CNC waits for PLC confirmation before proceeding, preventing motion execution before tool changes complete or workpieces are clamped.

Industrial Ethernet Integration

Advanced machining centers integrate CNC and PLC via industrial Ethernet protocols. PROFINET connects Siemens 840D CNCs with S7 PLCs, EtherNet/IP integrates Fanuc controls with Allen-Bradley PLCs, and EtherCAT links Heidenhain CNCs with PC-based control systems. Learn more about industrial Ethernet protocols in our PLC communication guide.

Network communication enables rich data exchange including detailed machine status and diagnostics, production counters and cycle time monitoring, tool life management and wear tracking, and maintenance scheduling and predictive analytics. This bidirectional communication supports the data-intensive requirements of Industry 4.0 manufacturing.

Shared Memory and Data Exchange

Some integrated CNC/PLC platforms (Siemens 840D with integrated PLC, Heidenhain TNC with PLC option) use shared memory for high-speed data exchange. Variables in shared memory are accessible to both CNC and PLC programs with update times of 1-2 milliseconds, enabling tight coordination for complex operations.

PLC Hardware Selection for Machine Tools

Choosing appropriate PLC hardware for CNC machine integration requires understanding the unique demands of machine tool applications including safety requirements, I/O characteristics, and motion control interfaces.

I/O Requirements Analysis

Digital I/O Characteristics

Machine tool applications typically require 50-200 digital inputs monitoring limit switches, proximity sensors, door interlocks, pushbuttons, and selector switches. Digital outputs control solenoid valves, contactors, indicator lights, and auxiliary motors. Most signals are 24VDC, though some machines use 120VAC for motors and lighting.

Input filtering requirements are critical—proximity sensors switching at high speed need fast response (1-3 milliseconds) while mechanical limit switches benefit from debounce filtering (10-20 milliseconds) to prevent chatter. Configurable input filters allow optimizing each channel for its specific sensor type.

Analog I/O Applications

Analog inputs monitor critical parameters: coolant pressure (4-20mA transducers), spindle bearing temperature (RTD or thermocouple inputs), hydraulic system pressure (0-10V pressure transducers), and cutting force monitoring (strain gauge amplifiers). Typical resolution requirements are 12-bit minimum, with 16-bit preferred for precision measurement applications.

Analog outputs control proportional valves for hydraulic systems, variable frequency drives for coolant pumps, and programmable pressure regulators. Output resolution of 12-bit suffices for most applications, providing 0.025% control resolution.

High-Speed I/O Functions

Tool changer position tracking often uses high-speed counters monitoring rotary encoders on magazine carousels. Counter inputs must handle 100-500 kHz frequencies for accurate position tracking. Some PLCs offer dedicated counter modules while others provide high-speed counter functionality on standard digital inputs.

Position capture functions record encoder positions precisely when trigger events occur, critical for probing cycles and automated measurement. This capability requires hardware-timed inputs with microsecond timestamp resolution.

Safety PLC Requirements (SIL 3/PLe)

Safety System Architecture

Modern machine tools must meet Safety Integrity Level 3 (SIL 3) or Performance Level e (PLe) requirements according to ISO 13849-1 and IEC 62061 standards. This demands certified safety PLCs for all safety-critical functions including emergency stop circuits, safety door monitoring, light curtain integration, and two-hand control stations.

Safety PLCs use dual-processor architecture with continuous cross-checking to detect processor failures, diagnostic coverage exceeding 99%, safe outputs that default to off-state on any fault, and comprehensive self-testing on every scan cycle. These features ensure safety function reliability with failure rates below 10^-8 dangerous failures per hour.

Separating Safety and Standard Control

Best practice separates safety functions from standard automation control. The safety PLC monitors all safety devices and directly controls safety-rated outputs including:

• Main machine contactors via safety relay modules
• Safe torque off (STO) signals to all servo and spindle drives
• Safety-rated door lock solenoids
• Emergency stop indicator lights and sirens

Standard automation PLC handles production logic and auxiliary functions. This separation ensures safety system independence from production program errors while simplifying safety system certification and validation.

Common Safety PLC Platforms

Popular safety PLC choices for machine tool applications include:

• Siemens S7-1500F: Integrated safety/standard PLC, excellent for Siemens 840D integration
• Allen-Bradley GuardLogix: Combined safety/standard controller for Fanuc machines
• Pilz PSS4000: Dedicated safety PLC with robust safety library
• Beckhoff TwinSAFE: PC-based safety system integrated with TwinCAT control

Platform selection typically aligns with the CNC brand for optimal integration and support from the machine tool builder.

Motion Control Integration Considerations

Direct Drive Interface Requirements

Some applications require the PLC to directly control positioning axes separate from CNC motion control. Rotary table indexing, tool changer positioning motors, automatic door operation, and pallet shuttle systems often use PLC-controlled servo or stepper drives.

PLCs with integrated motion control (Siemens S7-1500 with Technology Objects, Allen-Bradley CompactLogix with Motion Control, Beckhoff TwinCAT) provide positioning, velocity control, and electronic gearing capabilities. These systems communicate with drives via PROFINET, EtherNet/IP, or EtherCAT for coordinated motion execution.

Pulse/Direction and Analog Motion

Simple positioning applications may use pulse/direction interfaces to stepper motor drives or analog velocity commands (±10V) to DC motor controllers. High-speed pulse outputs (200-500 kHz) enable accurate positioning while maintaining simple wiring and lower cost compared to networked servo systems.

Recommended PLC Platforms

For Siemens CNC Integration

Siemens 840D CNCs integrate optimally with S7-1200 or S7-1500 PLCs using PROFINET communication. The integrated STEP 7 programming environment (TIA Portal) provides unified configuration for both CNC and PLC, shared symbolic addressing, and comprehensive diagnostic integration. Safety variant S7-1500F controllers combine safety and standard control in one platform. Explore Siemens PLC programming in our comprehensive tutorial.

For Fanuc CNC Integration

Fanuc CNCs commonly integrate with Allen-Bradley CompactLogix or ControlLogix PLCs, particularly in North American installations. EtherNet/IP communication provides data exchange while discrete I/O handles M-code handshaking. Studio 5000 programming environment offers excellent motion control capabilities for auxiliary positioning axes. GuardLogix safety controllers integrate machine safety requirements seamlessly.

For Heidenhain CNC Integration

Heidenhain TNC controls often pair with Beckhoff TwinCAT PC-based control systems using EtherCAT communication. This combination provides exceptional motion performance for auxiliary axes and comprehensive I/O flexibility. The PC-based architecture enables advanced HMI integration and data collection for Industry 4.0 requirements.

Universal Integration Options

Machines requiring multi-brand CNC compatibility benefit from versatile PLC platforms including Schneider Electric Modicon M580, Mitsubishi iQ-R series, or Omron NJ/NX controllers. These systems provide excellent I/O flexibility, multiple communication protocols, and extensive motion control capabilities supporting various CNC brands through standardized interfaces.

Auxiliary Functions Programming

Programming auxiliary machine functions represents the core of CNC PLC integration work. These functions coordinate discrete automation sequences with CNC motion programs to create complete machining cycles.

Tool Changer Control Systems

Tool Changer Mechanisms and Types

Modern machining centers employ various tool changing mechanisms. Arm-style changers use a dual-gripper arm that simultaneously removes the current tool while installing the next tool, minimizing change time. Carousel magazines rotate tools to the change position where a gripper or direct spindle engagement transfers the tool. Side-mount magazines present tools vertically or horizontally to the spindle. Chain-style magazines provide large tool capacities (60-200+ tools) with sequential access.

Understanding the mechanical design is essential for effective PLC programming. Arm-style changers require precise position control for both arm rotation and gripper operation. Carousel systems need accurate indexing to present the correct tool pocket. All systems require careful sequencing to prevent collisions between spindle, tool, and magazine components.

Tool Changer Sequence Logic

A typical tool change cycle executes this sequence:

1. CNC positions spindle to tool change position (X, Y, Z coordinates)
2. CNC orients spindle to specific angular position (M19)
3. CNC sends M06 signal requesting tool change
4. PLC confirms spindle at correct position and orientation
5. PLC releases tool clamp mechanism
6. PLC extends tool changer arm/gripper to spindle
7. PLC grips current tool and withdraws from spindle
8. PLC indexes magazine to new tool position
9. PLC inserts new tool into spindle
10. PLC activates spindle tool clamp
11. PLC verifies tool clamped properly
12. PLC retracts tool changer to home position
13. PLC signals completion to CNC (M06 complete)
14. CNC continues program execution

This sequence must execute reliably thousands of times daily. Robust programming with comprehensive fault detection ensures reliable operation while protecting expensive tools and spindle components.

20-Position Tool Changer Example

Here's a comprehensive ladder logic example for an arm-style 20-position tool changer:

(* Tool Changer Control - Allen-Bradley CompactLogix *)

(* Inputs *)
SpindleAtChangePos  : BOOL;  (* Spindle positioned for tool change *)
SpindleOriented     : BOOL;  (* Spindle at M19 orientation angle *)
M06_Request         : BOOL;  (* CNC requests tool change - M06 *)
ToolClamped         : BOOL;  (* Tool clamp confirmed *)
ToolUnclamped       : BOOL;  (* Tool clamp released *)
ArmAtHome           : BOOL;  (* Tool changer arm home position *)
ArmAtSpindle        : BOOL;  (* Arm at spindle engagement position *)
GripperClosed       : BOOL;  (* Gripper holding tool *)
GripperOpen         : BOOL;  (* Gripper released *)
MagazineAtPosition  : BOOL;  (* Magazine indexed to tool *)
DoorsClosed         : BOOL;  (* All safety doors closed *)
EStopActive         : BOOL;  (* Emergency stop activated *)

(* Outputs *)
UnclampTool         : BOOL;  (* Release spindle tool clamp *)
ClampTool           : BOOL;  (* Activate spindle tool clamp *)
ArmExtend           : BOOL;  (* Extend arm to spindle *)
ArmRetract          : BOOL;  (* Retract arm to home *)
GripperClose        : BOOL;  (* Close gripper on tool *)
GripperRelease      : BOOL;  (* Open gripper *)
MagazineIndex       : BOOL;  (* Index magazine to position *)
M06_Complete        : BOOL;  (* Tool change complete signal to CNC *)

(* Tool Changer State Machine *)
CASE ToolChangerState OF

  0: (* Idle - Waiting for tool change request *)
     IF M06_Request AND DoorsClosed AND NOT EStopActive THEN
        IF SpindleAtChangePos AND SpindleOriented THEN
           ToolChangerState := 10;  (* Start sequence *)
           ToolChangeTimer(IN := FALSE);  (* Reset watchdog timer *)
        ELSE
           ToolChangerFault := 1;  (* Spindle position fault *)
           ToolChangerState := 999;
        END_IF;
     END_IF;

  10: (* Step 1: Unclamp current tool *)
      UnclampTool := TRUE;
      ClampTool := FALSE;
      ToolChangeTimer(IN := TRUE, PT := T#3s);
      IF ToolUnclamped THEN
         ToolChangerState := 20;
      ELSIF ToolChangeTimer.Q THEN
         ToolChangerFault := 2;  (* Tool unclamp timeout *)
         ToolChangerState := 999;
      END_IF;

  20: (* Step 2: Extend arm to spindle *)
      ArmExtend := TRUE;
      ArmRetract := FALSE;
      ToolChangeTimer(IN := TRUE, PT := T#5s);
      IF ArmAtSpindle THEN
         ToolChangerState := 30;
      ELSIF ToolChangeTimer.Q THEN
         ToolChangerFault := 3;  (* Arm extend timeout *)
         ToolChangerState := 999;
      END_IF;

  30: (* Step 3: Close gripper on current tool *)
      GripperClose := TRUE;
      GripperRelease := FALSE;
      ToolChangeTimer(IN := TRUE, PT := T#2s);
      IF GripperClosed THEN
         ToolChangerState := 40;
      ELSIF ToolChangeTimer.Q THEN
         ToolChangerFault := 4;  (* Gripper close timeout *)
         ToolChangerState := 999;
      END_IF;

  40: (* Step 4: Retract arm with current tool *)
      ArmRetract := TRUE;
      ArmExtend := FALSE;
      ToolChangeTimer(IN := TRUE, PT := T#5s);
      IF ArmAtHome THEN
         ToolChangerState := 50;
      ELSIF ToolChangeTimer.Q THEN
         ToolChangerFault := 5;  (* Arm retract timeout *)
         ToolChangerState := 999;
      END_IF;

  50: (* Step 5: Index magazine to new tool position *)
      MagazineIndex := TRUE;
      ToolChangeTimer(IN := TRUE, PT := T#10s);
      IF MagazineAtPosition THEN
         ToolChangerState := 60;
      ELSIF ToolChangeTimer.Q THEN
         ToolChangerFault := 6;  (* Magazine index timeout *)
         ToolChangerState := 999;
      END_IF;

  60: (* Step 6: Extend arm with new tool to spindle *)
      MagazineIndex := FALSE;
      ArmExtend := TRUE;
      ArmRetract := FALSE;
      ToolChangeTimer(IN := TRUE, PT := T#5s);
      IF ArmAtSpindle THEN
         ToolChangerState := 70;
      ELSIF ToolChangeTimer.Q THEN
         ToolChangerFault := 7;  (* Arm extend timeout *)
         ToolChangerState := 999;
      END_IF;

  70: (* Step 7: Release gripper, new tool in spindle *)
      GripperRelease := TRUE;
      GripperClose := FALSE;
      ToolChangeTimer(IN := TRUE, PT := T#2s);
      IF GripperOpen THEN
         ToolChangerState := 80;
      ELSIF ToolChangeTimer.Q THEN
         ToolChangerFault := 8;  (* Gripper release timeout *)
         ToolChangerState := 999;
      END_IF;

  80: (* Step 8: Retract arm to home *)
      ArmRetract := TRUE;
      ArmExtend := FALSE;
      ToolChangeTimer(IN := TRUE, PT := T#5s);
      IF ArmAtHome THEN
         ToolChangerState := 90;
      ELSIF ToolChangeTimer.Q THEN
         ToolChangerFault := 9;  (* Arm retract timeout *)
         ToolChangerState := 999;
      END_IF;

  90: (* Step 9: Clamp new tool in spindle *)
      ClampTool := TRUE;
      UnclampTool := FALSE;
      ToolChangeTimer(IN := TRUE, PT := T#3s);
      IF ToolClamped THEN
         ToolChangerState := 100;
      ELSIF ToolChangeTimer.Q THEN
         ToolChangerFault := 10;  (* Tool clamp timeout *)
         ToolChangerState := 999;
      END_IF;

  100: (* Step 10: Tool change complete *)
       M06_Complete := TRUE;
       GripperRelease := FALSE;
       ArmRetract := FALSE;
       ClampTool := FALSE;
       (* Wait for CNC to acknowledge completion *)
       IF NOT M06_Request THEN
          M06_Complete := FALSE;
          ToolChangerState := 0;  (* Return to idle *)
       END_IF;

  999: (* Fault state - require reset *)
       (* Turn off all outputs *)
       UnclampTool := FALSE;
       ClampTool := FALSE;
       ArmExtend := FALSE;
       ArmRetract := FALSE;
       GripperClose := FALSE;
       GripperRelease := FALSE;
       MagazineIndex := FALSE;
       M06_Complete := FALSE;

       (* Display fault on HMI *)
       ToolChangerFaultActive := TRUE;

       (* Require manual reset *)
       IF ToolChangerReset AND NOT M06_Request THEN
          ToolChangerFault := 0;
          ToolChangerFaultActive := FALSE;
          ToolChangerState := 0;
       END_IF;

END_CASE;

This structured approach provides reliable tool changing with comprehensive fault detection and operator feedback. Each state includes timeout monitoring to prevent the system hanging if mechanical failures occur.

Coolant System Management

Coolant Control Types

Machining center coolant systems vary in complexity from simple flood coolant activated by M08/M09 commands to sophisticated programmable systems with multiple zones, pressure control, and through-spindle high-pressure coolant. The PLC manages all aspects of coolant delivery, monitoring, and fault detection.

Basic Coolant Control Logic

(* Coolant System Control *)

(* M08 - Coolant On *)
IF M08_Request AND CoolantPressureOK AND CoolantLevelOK THEN
   CoolantPump := TRUE;
   CoolantValve := TRUE;
   M08_Complete := TRUE;
ELSE
   CoolantPump := FALSE;
   CoolantValve := FALSE;
END_IF;

(* M09 - Coolant Off *)
IF M09_Request OR EStopActive THEN
   CoolantPump := FALSE;
   CoolantValve := FALSE;
   M09_Complete := TRUE;
END_IF;

(* Coolant fault monitoring *)
IF CoolantPump AND NOT CoolantFlowing THEN
   CoolantFlowTimer(IN := TRUE, PT := T#5s);
   IF CoolantFlowTimer.Q THEN
      CoolantFault := TRUE;
      (* Pause CNC program *)
      MachineFeedHold := TRUE;
   END_IF;
ELSE
   CoolantFlowTimer(IN := FALSE);
END_IF;

Advanced systems add programmable coolant nozzles, high-pressure coolant through the spindle (70-150 bar), minimum quantity lubrication (MQL) control, and automatic coolant temperature management. Each feature requires additional PLC logic to coordinate operation and ensure reliable performance.

Chip Conveyor and Swarf Management

Chip Conveyor Control

Chip conveyors remove machining swarf from the enclosure, preventing chip buildup that damages tools and workpieces. PLC control manages conveyor motors, monitors for jams, and coordinates with coolant systems to handle wet chips effectively.

(* Chip Conveyor Control *)

(* Start conveyor with spindle or coolant *)
IF SpindleRunning OR CoolantPump THEN
   ChipConveyorStartTimer(IN := TRUE, PT := T#5s);
ELSE
   ChipConveyorStartTimer(IN := FALSE);
END_IF;

IF ChipConveyorStartTimer.Q THEN
   ChipConveyorMotor := TRUE;
END_IF;

(* Run-on time after spindle stops *)
IF NOT SpindleRunning AND NOT CoolantPump THEN
   ChipConveyorStopTimer(IN := TRUE, PT := T#120s);
ELSE
   ChipConveyorStopTimer(IN := FALSE);
END_IF;

IF ChipConveyorStopTimer.Q THEN
   ChipConveyorMotor := FALSE;
END_IF;

(* Jam detection via current monitoring *)
IF ChipConveyorMotor AND ChipConveyorCurrent > ChipConveyorCurrentLimit THEN
   ChipConveyorJamTimer(IN := TRUE, PT := T#3s);
ELSE
   ChipConveyorJamTimer(IN := FALSE);
END_IF;

IF ChipConveyorJamTimer.Q THEN
   (* Attempt to clear jam with reverse *)
   ChipConveyorReverse := TRUE;
   ChipConveyorForward := FALSE;
   (* After reverse attempt, signal fault if still jammed *)
END_IF;

Effective chip management extends tool life, improves surface finish, and enables unattended operation critical for lights-out manufacturing.

Door Interlocks and Access Control

Safety Door Monitoring

Machine enclosure doors protect operators from moving parts, flying chips, and coolant spray. PLC logic monitors door switches and interlocks machine operation, preventing spindle rotation or axis motion with doors open while allowing controlled access for setup and maintenance.

(* Door Interlock Logic *)

(* Main door control *)
IF MainDoorOpen AND (SpindleRunning OR AxisMoving) THEN
   (* Emergency stop if door opens during operation *)
   SafetyCircuitBreak := TRUE;
   SpindleStop := TRUE;
   FeedHold := TRUE;
ELSIF MainDoorOpen AND SetupMode THEN
   (* Allow door open in setup mode, limited motion *)
   JogSpeedLimit := 10;  (* Percent of rapid *)
   SpindleSpeedLimit := 500;  (* RPM limit *)
ELSIF NOT MainDoorOpen THEN
   (* Normal operation allowed *)
   SafetyCircuitBreak := FALSE;
   JogSpeedLimit := 100;
   SpindleSpeedLimit := 12000;
END_IF;

(* Power door lock for unattended operation *)
IF AutoModeActive AND CycleRunning THEN
   DoorLockSolenoid := TRUE;  (* Lock door during automatic operation *)
ELSE
   DoorLockSolenoid := FALSE;  (* Allow door opening when not running *)
END_IF;

Advanced systems incorporate light curtains, laser scanners, or pressure-sensitive mats for additional operator protection, all integrated through the safety PLC for SIL 3/PLe compliance.

Machine Safety Integration

Safety system integration represents the most critical aspect of CNC machine PLC programming. Comprehensive safety circuits protect operators from serious injury while meeting stringent regulatory requirements in all manufacturing jurisdictions.

Safety System Architecture

Safety Circuit Categories

Machine tool safety systems typically include Category 3 or Category 4 circuits according to ISO 13849-1. Category 3 requires redundant safety components with fault detection through cross-monitoring. Category 4 adds requirements for fault tolerance—the safety function must remain operational even with a single component failure.

Modern implementations use certified safety PLCs (Siemens S7-1500F, Allen-Bradley GuardLogix, Pilz PSS4000) providing the dual-processor architecture, comprehensive self-testing, and diagnostic coverage required for SIL 3/PLe performance. These systems continuously verify safety circuit integrity and force the machine to safe state if faults occur.

Safety Input Devices

Critical safety inputs include emergency stop buttons (dual-channel monitoring required), safety door switches (trapped-key or coded magnetic types), light curtains and safety scanners (Type 4 devices with self-monitoring), two-hand control stations for manual operations, and safety mats or presence detectors for area guarding.

All safety inputs connect to safety-rated PLC inputs with dual-channel monitoring, discrepancy detection, and comprehensive diagnostics. The safety PLC continuously verifies input device functionality through test pulses and cross-checking between redundant channels.

Safety Output Devices

Safety outputs control power contactors interrupting main motor supply, safe torque off (STO) inputs on all servo drives and spindle motors, safety-rated solenoids for hydraulic valve control, and electromagnetic door locks with force monitoring.

Dual-channel output control with feedback monitoring ensures safety outputs activate reliably. The safety PLC verifies contactor closure or opening through auxiliary contacts, detecting welded contacts or mechanical failures that could compromise operator protection.

Emergency Stop Circuits

E-Stop System Design

Emergency stop circuits provide immediate power removal from all hazardous machine functions when activated. Modern designs use safety relay modules or safety PLC outputs to control multiple safety functions in coordinated sequence:

1. Interrupt power to main motion contactors (spindle, axes)
2. Activate safe torque off (STO) on all drives
3. Close pneumatic and hydraulic safety valves
4. Activate mechanical brakes where present
5. Initiate controlled retraction of dangerous mechanisms
6. Illuminate E-stop indicators and alarms

(* Emergency Stop Safety Logic - TIA Portal Safety Program *)

(* Safety PLC monitors all E-stop devices with redundant inputs *)
EmergencyStop_1 := E_Stop_Ch1 AND E_Stop_Ch2;  (* First E-stop device *)
EmergencyStop_2 := E_Stop_2_Ch1 AND E_Stop_2_Ch2;  (* Second E-stop *)

(* Discrepancy detection between channels *)
IF E_Stop_Ch1 XOR E_Stop_Ch2 THEN
   Safety_Discrepancy_1 := TRUE;
   (* Force safe state on discrepancy *)
   Safety_OK := FALSE;
ELSIF E_Stop_2_Ch1 XOR E_Stop_2_Ch2 THEN
   Safety_Discrepancy_2 := TRUE;
   Safety_OK := FALSE;
END_IF;

(* Combined safety status *)
IF EmergencyStop_1 AND EmergencyStop_2 AND
   DoorSafety_OK AND LightCurtain_OK AND
   NOT Safety_Discrepancy_1 AND NOT Safety_Discrepancy_2 THEN
   Safety_OK := TRUE;
ELSE
   Safety_OK := FALSE;
END_IF;

(* Safety outputs - dual channel control *)
Safety_Contactor_K1 := Safety_OK;
Safety_Contactor_K2 := Safety_OK;

(* Monitor feedback from contactors *)
IF Safety_OK AND NOT (Contactor_K1_FB AND Contactor_K2_FB) THEN
   (* Contactors failed to close when commanded *)
   Contactor_Fault := TRUE;
ELSIF NOT Safety_OK AND (Contactor_K1_FB OR Contactor_K2_FB) THEN
   (* Welded contactor detected *)
   Welded_Contactor_Fault := TRUE;
END_IF;

(* Safe Torque Off to all drives *)
STO_All_Drives := NOT Safety_OK;

This comprehensive approach ensures reliable emergency stop function with extensive fault detection protecting operators even if safety components fail.

Safety Door Monitoring

Trapped-Key Interlock Systems

High-security applications use trapped-key interlock systems where a physical key released from the door lock enables machine power application. The key cannot be removed unless the door is properly closed and locked, and machine power cannot energize without the key in the enable switch. This mechanical interlock provides foolproof protection against defeating safety circuits.

Coded Magnetic Door Switches

Coded magnetic door switches (Schmersal, Euchner, Sick) use unique magnetic coding patterns preventing defeat with simple magnets. The switches provide both electromechanical contacts for safety circuits and electronic communication for diagnostics and tamper detection.

(* Safety Door Monitoring Logic *)

(* Coded door switch with dual-channel outputs *)
Main_Door_Safe := Door_Switch_Ch1 AND Door_Switch_Ch2 AND
                  Door_Coding_Valid AND NOT Door_Tamper;

Guard_Door_Safe := Guard_Switch_Ch1 AND Guard_Switch_Ch2 AND
                   Guard_Coding_Valid AND NOT Guard_Tamper;

(* Door lock control with force monitoring *)
IF Safety_System_Reset AND Main_Door_Safe AND Guard_Door_Safe THEN
   Door_Lock_Enable := TRUE;
ELSE
   Door_Lock_Enable := FALSE;
END_IF;

(* Verify door locked before enabling motion *)
IF Door_Lock_Enable AND Door_Lock_Engaged THEN
   Doors_Locked := TRUE;
ELSE
   Doors_Locked := FALSE;
END_IF;

(* Motion enable only with doors locked *)
Motion_Enable := Safety_OK AND Doors_Locked AND NOT E_Stop_Active;

Light Curtains and Area Scanning

Light Curtain Integration

Type 4 safety light curtains monitor access points too large for physical guarding. These devices project infrared light beams across an opening, detecting any interruption and activating safety outputs within milliseconds. PLCs integrate light curtain status into overall machine safety logic.

Light curtains typically provide safety outputs connected directly to safety contactors for fastest response plus diagnostic outputs to the PLC for status monitoring and blanking control. Blanking allows specific beams to be disabled when machine components interrupt the field during normal operation.

Safety Laser Scanners

Advanced machines use safety laser scanners creating 2D or 3D protective zones around the machine. Scanners distinguish between operators (requiring safety response) and material handling equipment (allowed in specific zones). The safety PLC processes scanner outputs to implement sophisticated zoning strategies:

• Warning zones reduce machine speed when entered
• Protective zones stop hazardous motion
• Critical zones trigger emergency stop
• Muting zones allow material flow without triggering stops

Complete Safety System Example

Here's a comprehensive safety system integrating multiple safety devices:

(* Complete Machine Safety System *)

(* Emergency Stop Chain - Category 4 *)
E_Stop_Chain := E_Stop_1_Ch1 AND E_Stop_1_Ch2 AND
                E_Stop_2_Ch1 AND E_Stop_2_Ch2 AND
                E_Stop_Panel_Ch1 AND E_Stop_Panel_Ch2;

(* Safety Door Monitoring - Category 3 *)
Doors_Safe := Main_Door_Ch1 AND Main_Door_Ch2 AND
              Service_Door_Ch1 AND Service_Door_Ch2 AND
              NOT Door_Tamper_Detected;

(* Light Curtain Status - Type 4 Device *)
Light_Curtain_Safe := LC_Output_1 AND LC_Output_2 AND
                      LC_Diagnostics_OK AND NOT LC_Fault;

(* Safety Mat Monitoring *)
Safety_Mat_Clear := NOT Safety_Mat_1 AND NOT Safety_Mat_2;

(* Combine all safety inputs *)
Safety_Condition := E_Stop_Chain AND
                    Doors_Safe AND
                    Light_Curtain_Safe AND
                    Safety_Mat_Clear AND
                    NOT Reset_Required;

(* Safety outputs with feedback monitoring *)
IF Safety_Condition AND System_Enabled THEN
   Safety_Relay_K1 := TRUE;
   Safety_Relay_K2 := TRUE;
   STO_All_Axes := FALSE;  (* Remove safe torque off *)
ELSE
   Safety_Relay_K1 := FALSE;
   Safety_Relay_K2 := FALSE;
   STO_All_Axes := TRUE;  (* Activate safe torque off *)
   Reset_Required := TRUE;
END_IF;

(* Contactor feedback verification *)
IF Safety_Relay_K1 AND NOT K1_Feedback THEN
   K1_Fault := TRUE;  (* Contactor K1 failed *)
ELSIF Safety_Relay_K2 AND NOT K2_Feedback THEN
   K2_Fault := TRUE;  (* Contactor K2 failed *)
ELSIF NOT Safety_Relay_K1 AND K1_Feedback THEN
   K1_Welded := TRUE;  (* Contactor K1 welded *)
ELSIF NOT Safety_Relay_K2 AND K2_Feedback THEN
   K2_Welded := TRUE;  (* Contactor K2 welded *)
END_IF;

(* Safety system reset logic *)
IF Reset_Button AND Safety_Condition AND
   NOT K1_Fault AND NOT K2_Fault AND
   NOT K1_Welded AND NOT K2_Welded THEN
   Reset_Required := FALSE;
END_IF;

(* Enable motion control *)
Motion_Enabled := Safety_Relay_K1 AND Safety_Relay_K2 AND
                  K1_Feedback AND K2_Feedback AND
                  System_Enabled AND NOT STO_All_Axes;

This comprehensive safety system provides multiple layers of protection with extensive fault detection ensuring reliable operator safety.

CNC-PLC Communication Protocols

Effective communication between CNC and PLC enables coordinated operation while maintaining clear separation of responsibilities. Understanding communication methods and timing requirements ensures reliable system integration.

M-Code and T-Code Interface

M-Code Function Assignment

M-codes (miscellaneous functions) request auxiliary operations from the PLC. Standard M-codes include universal functions, while custom M-codes address machine-specific requirements:

Standard M-Codes:

• M03/M04: Spindle clockwise/counterclockwise (CNC direct control)
• M05: Spindle stop (CNC direct control)
• M06: Tool change (PLC execution required)
• M08: Coolant on (PLC control)
• M09: Coolant off (PLC control)
• M19: Spindle orientation to specific angle (CNC control, PLC verification)

Custom M-Codes (examples):

• M50: Pallet change cycle
• M51: Part probe measuring cycle
• M52: Chip conveyor reverse
• M60: Workpiece clamp
• M61: Workpiece unclamp
• M70: High-pressure coolant on
• M71: High-pressure coolant off

M-Code Handshaking Protocol

The CNC and PLC execute a precise handshaking sequence ensuring synchronized operation:

1. CNC program executes M-code line (e.g., M06 T05)
2. CNC activates M-code request output and sets M-code number (binary or BCD)
3. PLC reads M-code number and begins execution
4. PLC executes requested function (tool change sequence)
5. PLC activates M-code complete signal
6. CNC reads complete signal and deactivates request
7. PLC detects request deactivation and deactivates complete signal
8. CNC continues to next program line

This four-step handshake (request-acknowledge-release-confirm) ensures the CNC never proceeds before the PLC completes auxiliary functions.

(* M-Code Handshaking Logic *)

(* Detect M06 request from CNC *)
IF M_Code_Request AND (M_Code_Number = 6) THEN
   IF NOT M06_Active THEN
      M06_Active := TRUE;  (* Start tool change *)
      Tool_Change_State := 1;  (* Initialize sequence *)
   END_IF;
END_IF;

(* Tool change sequence execution *)
CASE Tool_Change_State OF
   (* States 1-100: Execute tool change sequence *)
   (* ... tool changer logic ... *)

   100: (* Tool change complete *)
        M_Code_Complete := TRUE;  (* Signal CNC *)
        IF NOT M_Code_Request THEN
           (* CNC acknowledged completion *)
           M_Code_Complete := FALSE;
           M06_Active := FALSE;
           Tool_Change_State := 0;  (* Reset for next cycle *)
        END_IF;
END_CASE;

PROFINET and EtherNet/IP Integration

Real-Time Data Exchange

Industrial Ethernet protocols enable rich data exchange beyond simple M-code handshaking. PROFINET connections between Siemens 840D and S7 PLCs exchange hundreds of data points including detailed machine status (axis positions, speeds, loads), tool data (lengths, diameters, tool life remaining), part program information (program number, block number, cycle time), alarm and diagnostic messages, and production counters (parts produced, cycle times, downtime tracking).

This bidirectional communication supports advanced features like adaptive feed rate control based on cutting force feedback, automatic tool wear compensation, production monitoring and OEE calculation, and predictive maintenance based on drive load trends. Learn more about PROFINET implementation in our complete protocol tutorial.

EtherNet/IP CIP Motion Integration

Allen-Bradley's Common Industrial Protocol (CIP) over EtherNet/IP enables deep integration between Fanuc CNCs and GuardLogix PLCs. Motion coordination allows the PLC to control auxiliary positioning axes (rotary tables, pallet shuttles) synchronized with CNC motion. State information from both systems enables intelligent coordination of complex multi-stage machining processes.

Shared Memory Communication

Siemens NCK-PLC Interface

Siemens 840D CNCs with integrated PLC function use shared memory areas for high-speed data exchange. The NCK (Numerical Control Kernel) and PLC portions access common memory with 1-2 millisecond update rates. Interface signals include axis position reached flags, spindle running and speed actual, feed override actual value, program execution status, and synchronized output signals triggered by position.

This tight integration enables sophisticated automation features impossible with discrete I/O handshaking alone. Position-triggered outputs activate auxiliary functions precisely at programmed axis positions. The PLC monitors actual spindle speed and adjusts coolant flow rate proportionally. Feed override modulation based on cutting force maintains constant tool load.

Tool Change Handshake Example

Here's a complete CNC-PLC tool change handshake implementation:

(* CNC Side - Siemens 840D NCK *)
N100 G0 X0 Y0 Z100    (Position to tool change location)
N110 M19               (Orient spindle)
N120 M06 T5           (Change to tool T5)
N130 G43 H5 Z10       (Apply tool length offset)
N140 M03 S2500        (Start spindle 2500 RPM)

(* PLC Side - S7-1500 Ladder Logic *)

(* Monitor spindle at change position *)
"Spindle_At_TC_Pos" := ("X_Actual" = 0.0) AND
                       ("Y_Actual" = 0.0) AND
                       ("Z_Actual" = 100.0);

"Spindle_Oriented" := "M19_Complete";

(* M06 Request Detection *)
IF "M06_Request" AND "Spindle_At_TC_Pos" AND
   "Spindle_Oriented" AND "DB_Tool_Changer".State = 0 THEN

   "DB_Tool_Changer".NewTool := "T_Number";  (* Requested tool *)
   "DB_Tool_Changer".State := 1;  (* Start sequence *)

END_IF;

(* Execute tool change state machine *)
"FB_ToolChanger"(
   State := "DB_Tool_Changer".State,
   NewTool := "DB_Tool_Changer".NewTool,
   CurrentTool := "DB_Tool_Changer".CurrentTool,
   (* ... additional parameters ... *)
   Complete => "M06_Complete",
   Fault => "TC_Fault"
);

(* Signal completion to CNC *)
"CNC_M06_Complete" := "M06_Complete";

(* Wait for CNC to deactivate request *)
IF NOT "M06_Request" AND "M06_Complete" THEN
   "M06_Complete" := FALSE;
   "DB_Tool_Changer".State := 0;
   "DB_Tool_Changer".CurrentTool := "DB_Tool_Changer".NewTool;
END_IF;

This coordinated approach ensures reliable tool changing with full status feedback between CNC and PLC systems.

Automated Loading Systems

Automated workpiece loading and unloading systems enable lights-out manufacturing and dramatically improve machine utilization. PLC programming coordinates these complex systems with CNC machining cycles.

Pallet Changer Systems

Dual Pallet Architecture

Dual-pallet machining centers feature two identical workpiece pallets—one inside the machining envelope being machined while the second sits at an external load/unload station. When machining completes, the system automatically exchanges pallets, returning the finished pallet for unload while presenting the ready pallet for machining. This exchange occurs in 15-30 seconds, minimizing non-productive time.

The PLC coordinates pallet exchange sequencing, pallet position verification, workpiece clamping confirmation, and fault detection throughout the cycle. Proper programming ensures collision-free operation while maximizing throughput.

Pallet Shuttle Mechanisms

Common pallet exchange mechanisms include:

Shuttle Systems: A shuttle car transfers pallets between machining position and load station. The car captures the pallet, retracts from the machine, indexes 180 degrees, then advances to present the opposite pallet.

Rotary Systems: A rotary table with pallet mounting positions indexes to exchange pallets. The table may be horizontal (pallet orientation remains constant) or vertical (requires pallet re-orientation).

Chain Conveyor Systems: High-volume applications use chain conveyors circulating multiple pallets between machine and load stations. This architecture supports ratio loading where one machine serves multiple load stations or multiple machines share a pallet pool.

Robotic Loading Integration

Robot-CNC Coordination

Industrial robots automate loading raw stock and unloading finished parts, particularly for high-volume production. The robot controller and CNC/PLC communicate via discrete I/O or industrial Ethernet to coordinate material handling with machining cycles.

Typical robot integration signals include:

From PLC to Robot:

• Machine ready for load
• Machine cycle complete, ready for unload
• Chuck/vise open, safe to insert/remove part
• Safety fence access granted

From Robot to PLC:

• Part loaded and positioned
• Robot clear of machine envelope
• Unload complete
• Robot fault condition

Dual-Gripper Operations

Advanced cells use dual-gripper robots simultaneously removing finished parts while loading raw stock. This approach minimizes cycle time by overlapping load and unload operations. The PLC coordinates door opening, robot entry, gripper operations, and door closure in optimized sequence.

(* Robot Loading Coordination *)

(* Wait for robot to request load cycle *)
IF Robot_Load_Request AND NOT Cycle_Active AND Safety_OK THEN
   Pallet_Change_State := 10;  (* Begin sequence *)
END_IF;

CASE Pallet_Change_State OF

   10: (* Open safety door for robot access *)
       Robot_Door_Open := TRUE;
       IF Robot_Door_Opened THEN
          Pallet_Change_State := 20;
       END_IF;

   20: (* Signal robot safe to enter *)
       Robot_Entry_Safe := TRUE;
       IF Robot_In_Position THEN
          Pallet_Change_State := 30;
       END_IF;

   30: (* Open workpiece clamp *)
       Clamp_Release := TRUE;
       IF Clamp_Open_Confirmed THEN
          Pallet_Change_State := 40;
       END_IF;

   40: (* Signal robot to execute part exchange *)
       Robot_Execute_Cycle := TRUE;
       IF Robot_Cycle_Complete THEN
          Pallet_Change_State := 50;
       END_IF;

   50: (* Close workpiece clamp *)
       Clamp_Activate := TRUE;
       IF Clamp_Closed_Confirmed THEN
          Pallet_Change_State := 60;
       END_IF;

   60: (* Verify part present and positioned *)
       IF Part_Present_Sensor THEN
          Pallet_Change_State := 70;
       ELSE
          (* Part load fault *)
          Pallet_Change_State := 999;
       END_IF;

   70: (* Signal robot to retract *)
       Robot_Execute_Cycle := FALSE;
       Robot_Entry_Safe := FALSE;
       IF Robot_Clear THEN
          Pallet_Change_State := 80;
       END_IF;

   80: (* Close safety door *)
       Robot_Door_Open := FALSE;
       IF Robot_Door_Closed THEN
          Pallet_Change_State := 90;
       END_IF;

   90: (* Load complete, ready for machining *)
       Load_Complete := TRUE;
       Pallet_Change_State := 0;

END_CASE;

Bar Feeder Control

Bar Feeding for Swiss Lathes

Swiss-style turning centers and bar-fed lathes use automatic bar feeders supplying long bar stock to the machine. The bar feeder indexes bars forward as material is consumed, enabling unattended production of hundreds of parts from a single bar.

The PLC coordinates bar feeding with machining cycles, monitoring bar position, detecting bar-end conditions, and managing automatic loading of new bars from the magazine. Collision prevention logic ensures the feeder never advances while the machine spindle is active or before parts are cut off and ejected.

Part Presence Detection

Reliable part detection prevents machining air (running program with no workpiece), which damages tools and wastes time. Detection methods include:

• Inductive proximity sensors for metallic workpieces
• Photoelectric sensors for non-metallic parts
• Laser triangulation for precise part location verification
• Weight-based systems using load cells
• Vision systems for complex parts requiring orientation verification

Multiple sensing methods often combine for robust verification, particularly in high-value machining applications where false positives could destroy expensive tooling.

Complete Dual Pallet System Example

Here's a comprehensive dual-pallet system implementation for a horizontal machining center:

(* Dual Pallet System Complete Control *)

(* System Inputs *)
Pallet_1_In_Machine   : BOOL;  (* Pallet 1 at machining position *)
Pallet_2_In_Machine   : BOOL;  (* Pallet 2 at machining position *)
Pallet_1_At_Load      : BOOL;  (* Pallet 1 at load station *)
Pallet_2_At_Load      : BOOL;  (* Pallet 2 at load station *)
Pallet_1_Clamped      : BOOL;  (* Pallet 1 mechanically clamped *)
Pallet_2_Clamped      : BOOL;  (* Pallet 2 mechanically clamped *)
Shuttle_At_Machine    : BOOL;  (* Shuttle extended to machine *)
Shuttle_At_Load       : BOOL;  (* Shuttle retracted at load station *)
Part_On_Pallet_1      : BOOL;  (* Part present sensor pallet 1 *)
Part_On_Pallet_2      : BOOL;  (* Part present sensor pallet 2 *)
Operator_Load_Ready   : BOOL;  (* Operator signals load complete *)
CNC_Cycle_Complete    : BOOL;  (* CNC finished machining *)
Door_Closed           : BOOL;  (* Enclosure door closed *)

(* System Outputs *)
Pallet_Clamp          : BOOL;  (* Activate pallet clamp *)
Pallet_Unclamp        : BOOL;  (* Release pallet clamp *)
Shuttle_Extend        : BOOL;  (* Extend shuttle to machine *)
Shuttle_Retract       : BOOL;  (* Retract shuttle to load *)
Shuttle_Rotate_CW     : BOOL;  (* Rotate shuttle 180° CW *)
Cycle_Start_Enable    : BOOL;  (* Allow CNC cycle start *)
Load_Station_Light    : BOOL;  (* Operator load station indicator *)

(* Pallet System State Machine *)
CASE Pallet_System_State OF

   0: (* Idle - Pallet 1 in machine, Pallet 2 at load station *)
      IF CNC_Cycle_Complete AND Door_Closed THEN
         IF Operator_Load_Ready THEN
            Pallet_System_State := 10;  (* Start exchange *)
         ELSE
            Load_Station_Light := TRUE;  (* Request operator load *)
         END_IF;
      END_IF;

   10: (* Unclamp pallet in machine *)
       Pallet_Unclamp := TRUE;
       Pallet_Clamp := FALSE;
       Pallet_Exchange_Timer(IN := TRUE, PT := T#5s);
       IF NOT Pallet_1_Clamped THEN
          Pallet_System_State := 20;
       ELSIF Pallet_Exchange_Timer.Q THEN
          Pallet_Fault := 1;  (* Unclamp timeout *)
          Pallet_System_State := 999;
       END_IF;

   20: (* Extend shuttle to engage pallet in machine *)
       Shuttle_Extend := TRUE;
       Shuttle_Retract := FALSE;
       Pallet_Exchange_Timer(IN := TRUE, PT := T#10s);
       IF Shuttle_At_Machine THEN
          Pallet_System_State := 30;
       ELSIF Pallet_Exchange_Timer.Q THEN
          Pallet_Fault := 2;  (* Shuttle extend timeout *)
          Pallet_System_State := 999;
       END_IF;

   30: (* Retract shuttle, withdrawing pallet from machine *)
       Shuttle_Retract := TRUE;
       Shuttle_Extend := FALSE;
       Pallet_Exchange_Timer(IN := TRUE, PT := T#10s);
       IF Shuttle_At_Load THEN
          Pallet_System_State := 40;
       ELSIF Pallet_Exchange_Timer.Q THEN
          Pallet_Fault := 3;  (* Shuttle retract timeout *)
          Pallet_System_State := 999;
       END_IF;

   40: (* Rotate shuttle 180° to opposite pallet *)
       Shuttle_Rotate_CW := TRUE;
       Pallet_Exchange_Timer(IN := TRUE, PT := T#8s);
       IF Shuttle_Rotation_Complete THEN
          Pallet_System_State := 50;
       ELSIF Pallet_Exchange_Timer.Q THEN
          Pallet_Fault := 4;  (* Rotation timeout *)
          Pallet_System_State := 999;
       END_IF;

   50: (* Extend shuttle, inserting fresh pallet *)
       Shuttle_Rotate_CW := FALSE;
       Shuttle_Extend := TRUE;
       Shuttle_Retract := FALSE;
       Pallet_Exchange_Timer(IN := TRUE, PT := T#10s);
       IF Shuttle_At_Machine THEN
          Pallet_System_State := 60;
       ELSIF Pallet_Exchange_Timer.Q THEN
          Pallet_Fault := 5;  (* Shuttle extend timeout *)
          Pallet_System_State := 999;
       END_IF;

   60: (* Clamp pallet in machine position *)
       Pallet_Clamp := TRUE;
       Pallet_Unclamp := FALSE;
       Pallet_Exchange_Timer(IN := TRUE, PT := T#5s);
       IF Pallet_2_Clamped THEN
          Pallet_System_State := 70;
       ELSIF Pallet_Exchange_Timer.Q THEN
          Pallet_Fault := 6;  (* Clamp timeout *)
          Pallet_System_State := 999;
       END_IF;

   70: (* Retract shuttle to home *)
       Shuttle_Retract := TRUE;
       Shuttle_Extend := FALSE;
       Pallet_Exchange_Timer(IN := TRUE, PT := T#10s);
       IF Shuttle_At_Load THEN
          Pallet_System_State := 80;
       ELSIF Pallet_Exchange_Timer.Q THEN
          Pallet_Fault := 7;  (* Shuttle retract timeout *)
          Pallet_System_State := 999;
       END_IF;

   80: (* Verify part present on pallet in machine *)
       IF Part_On_Pallet_2 THEN
          Pallet_System_State := 90;
       ELSE
          Pallet_Fault := 8;  (* Part presence fault *)
          Pallet_System_State := 999;
       END_IF;

   90: (* Exchange complete, enable cycle start *)
       Cycle_Start_Enable := TRUE;
       Load_Station_Light := FALSE;
       Pallet_Clamp := FALSE;
       Shuttle_Retract := FALSE;
       (* Wait for CNC to start cycle, then reset state *)
       IF CNC_Cycle_Started THEN
          Pallet_System_State := 0;
          Cycle_Start_Enable := FALSE;
       END_IF;

   999: (* Fault state - require reset *)
        (* All outputs off *)
        Pallet_Clamp := FALSE;
        Pallet_Unclamp := FALSE;
        Shuttle_Extend := FALSE;
        Shuttle_Retract := FALSE;
        Shuttle_Rotate_CW := FALSE;
        Cycle_Start_Enable := FALSE;

        (* Alarm indication *)
        Pallet_System_Fault := TRUE;

        (* Manual reset required *)
        IF System_Reset_Button THEN
           Pallet_System_Fault := FALSE;
           Pallet_Fault := 0;
           Pallet_System_State := 0;
        END_IF;

END_CASE;

This comprehensive pallet exchange system provides fully automated workpiece handling enabling lights-out manufacturing with minimal operator intervention.

Best Practices for CNC PLC Integration

Implementing reliable, maintainable CNC machine control systems requires following established best practices developed through decades of machine tool automation experience.

Safety-First Design Philosophy

Prioritize Operator Protection

Safety considerations must drive every design decision in machine tool automation. Emergency stop systems must function under all conditions including PLC failures, door interlocks must physically prevent access during hazardous operations, and safe torque off (STO) implementation must provide redundant motor power removal independent of PLC control logic.

Never compromise safety to simplify programming or reduce costs. Safety-rated components cost more initially but prevent the catastrophic costs of operator injuries and regulatory violations. Design safety systems with the assumption that operators will make mistakes and safety circuits must prevent injuries despite human errors.

Independent Safety Verification

Safety circuits should undergo independent verification by qualified safety engineers, not the programmers who developed the systems. Fresh perspectives catch subtle errors that system developers overlook. Third-party safety certification provides valuable assurance and may reduce insurance costs and regulatory inspection frequency.

Maintenance Mode Programming

Manual Control for Setup and Service

Effective machine designs include comprehensive manual control modes enabling technicians to jog axes, manually activate tool changers, and test individual functions without running full automatic cycles. This capability proves invaluable during commissioning, troubleshooting, and maintenance activities.

(* Maintenance Mode Control *)

IF Maintenance_Mode_Selected AND Key_Switch_On THEN

   (* Enable manual tool changer controls *)
   IF Manual_TC_Arm_Extend_Button THEN
      Tool_Changer_Arm_Extend := TRUE;
   ELSIF Manual_TC_Arm_Retract_Button THEN
      Tool_Changer_Arm_Retract := TRUE;
   ELSE
      Tool_Changer_Arm_Extend := FALSE;
      Tool_Changer_Arm_Retract := FALSE;
   END_IF;

   (* Manual magazine rotation *)
   IF Manual_Magazine_CW_Button THEN
      Magazine_Rotate_CW := TRUE;
   ELSIF Manual_Magazine_CCW_Button THEN
      Magazine_Rotate_CCW := TRUE;
   ELSE
      Magazine_Rotate_CW := FALSE;
      Magazine_Rotate_CCW := FALSE;
   END_IF;

   (* Reduced speed limits for safety *)
   Manual_Speed_Limit := 10;  (* 10% of normal speed *)

ELSE
   (* Normal automatic mode *)
   Manual_Speed_Limit := 100;

END_IF;

Maintenance modes should include reduced speed limits, interlock bypasses requiring two-hand control, and comprehensive status displays showing all sensor states for diagnostic purposes.

Diagnostic Features and Monitoring

Comprehensive Status Information

Modern machine tool HMIs should display extensive diagnostic information including real-time I/O status for all inputs and outputs, active interlock conditions preventing motion, cycle time monitoring and production counters, tool life tracking and wear warnings, hydraulic and pneumatic system pressures, and fault history logs with timestamps.

This information dramatically reduces troubleshooting time when faults occur. Maintenance technicians can quickly identify which interlock prevents motion or which timeout expired during a failed automatic cycle.

Predictive Maintenance Data

Advanced systems collect data enabling predictive maintenance: tool changer operation counters trigger preventive lubrication schedules, hydraulic pump running hours predict seal replacement timing, and drive load monitoring detects worn ball screws or mechanical binding before catastrophic failures occur.

Cycle Time Optimization

Minimizing Non-Productive Time

Every second of non-productive time costs money in high-volume manufacturing. Optimize auxiliary function timing by overlapping operations where safely possible, tuning pneumatic valve speeds with flow control, and minimizing verification delays while maintaining reliability.

Analyze cycle times systematically to identify bottlenecks. Does the tool changer spend 5 seconds in steps requiring only 2 seconds? Can coolant activation occur during spindle acceleration rather than before? These small improvements accumulate to significant productivity gains.

Machine Monitoring and OEE Tracking

Overall Equipment Effectiveness

Implementing OEE (Overall Equipment Effectiveness) monitoring provides data-driven insights into machine utilization, performance losses, and quality issues. The PLC collects raw data including:

• Actual production counts vs. target
• Planned vs. unplanned downtime with reason codes
• Cycle time actual vs. theoretical
• Quality reject rates and scrap quantities

This data flows to manufacturing execution systems (MES) or production monitoring dashboards providing real-time visibility into manufacturing performance. Understanding where time is lost enables targeted improvements in machine utilization and throughput.

Frequently Asked Questions

What is the difference between a CNC controller and auxiliary PLC?

The CNC controller specializes in precise motion control, executing G-code programs to interpolate tool paths and control servo drives with microsecond precision. The auxiliary PLC handles all other machine functions including tool changers, coolant systems, chip conveyors, door interlocks, and automated loading systems. This division of labor allows each controller to focus on its specialized function—the CNC on motion performance and the PLC on discrete automation and safety systems. While some CNCs include built-in ladder logic capabilities, separate PLCs typically provide superior I/O flexibility, easier programming for auxiliary functions, and simpler safety system certification.

How do CNCs communicate with PLCs?

CNCs and PLCs communicate through multiple methods depending on system architecture. The most fundamental approach uses discrete I/O signals for M-code handshaking—the CNC activates output signals when executing M-codes and the PLC returns completion signals after executing requested functions. Advanced systems add industrial Ethernet communication (PROFINET for Siemens, EtherNet/IP for Fanuc) enabling rich bidirectional data exchange including machine status, tool data, production counters, and diagnostic information. Integrated systems like Siemens 840D with S7 PLC use shared memory areas for high-speed data exchange with 1-2 millisecond update rates. The communication method should match application complexity—simple machines may use only discrete I/O while automated cells benefit from comprehensive network integration.

What M-codes are commonly used for PLC control?

Standard M-codes for auxiliary control include M06 (tool change), M08/M09 (coolant on/off), and M19 (spindle orientation). Machine builders define custom M-codes for machine-specific functions: M50-M59 might control pallet changers and workpiece loading, M60-M69 could manage workpiece clamping and fixturing, M70-M79 might handle specialized coolant functions (high-pressure, through-spindle), and M80-M99 typically remain available for customer-specific automation. The specific M-code assignments vary by machine builder and application. Always consult the machine's electrical documentation for the exact M-code definitions and PLC response requirements for a specific machine tool.

How do I program a tool changer in a PLC?

Tool changer programming uses sequential state machine logic coordinating mechanical movements with safety verification. The sequence typically includes: detecting M06 request from CNC and verifying spindle positioned correctly, unclamping the current tool in the spindle, extending the tool changer arm/gripper to the spindle, gripping the current tool and withdrawing from spindle, indexing the magazine to the new tool position, inserting the new tool into the spindle, activating spindle clamp and verifying engagement, retracting tool changer to home position, and signaling M06 complete to the CNC. Each step includes timeout monitoring to detect mechanical failures and comprehensive interlock verification to prevent collisions. The state machine approach provides clear, maintainable code with robust error handling and diagnostic capabilities essential for reliable operation.

What safety requirements apply to CNC machines?

CNC machine tools must meet comprehensive safety requirements defined by ISO 12100 (general machinery safety), ISO 13849-1 (safety-related control systems), and ISO 23125 (specific to turning machines). Key requirements include emergency stop systems providing Category 3 or 4 safety performance, interlocked guards preventing access during hazardous motion with mechanical or electromechanical door locks, safe torque off (STO) capability on all drive systems preventing motion even with controller faults, safety-rated PLCs with SIL 3 or PLe performance for safety-critical functions, and comprehensive risk assessment documenting hazards and control measures. Modern machines typically use certified safety PLCs (Siemens S7-1500F, Allen-Bradley GuardLogix, Pilz PSS4000) providing the dual-processor architecture and diagnostic coverage meeting safety integrity requirements. Safety system design should involve qualified safety engineers and undergo independent verification before machine commissioning.

Can I use any PLC with a CNC controller?

Technically, any PLC can interface with a CNC using discrete I/O for M-code handshaking and basic coordination. However, practical considerations favor certain PLC platforms for specific CNCs. Siemens 840D CNCs integrate optimally with S7 PLCs via PROFINET communication and shared programming in TIA Portal. Fanuc controls commonly pair with Allen-Bradley PLCs, particularly in North America, using EtherNet/IP for data exchange. Heidenhain controls often combine with Beckhoff TwinCAT systems via EtherCAT. Platform alignment provides advantages including unified programming environments, simplified network configuration, comprehensive diagnostic integration, and better technical support from machine builders. For maximum flexibility, choose PLCs supporting multiple industrial Ethernet protocols and extensive I/O options enabling integration with various CNC brands.

How do I integrate a robot with a CNC machine?

Robot-CNC integration requires coordinating the robot controller, CNC, and machine PLC through discrete I/O signals or industrial Ethernet communication. The basic coordination uses handshaking signals: the machine signals when ready for loading (cycle complete, door open, chuck/vise unclamped), the robot confirms part loaded and positioned correctly, the machine verifies part clamped and signals robot to retract, and the robot confirms clear of the machine envelope before doors close. Safety integration is critical—the safety PLC must monitor both machine and robot safety zones, ensure proper interlocking prevents simultaneous access, and implement muting functions allowing robot entry while preventing operator access. Advanced integration uses industrial Ethernet for rich data exchange including part programs, production counts, and coordinated scheduling. The machine PLC acts as the system coordinator, managing the sequence of robot operations, machine cycles, and quality verification steps in complex automated cells.

What is safe torque off (STO) and why is it required?

Safe torque off (STO) is a safety function that removes power from motor drives, preventing motion even if the drive controller malfunctions or receives erroneous commands. STO provides two independent channels interrupting the drive's power stage, with each channel capable of safely stopping the motor. This functionality meets Safety Integrity Level 3 (SIL 3) requirements for preventing dangerous motion. STO is required on modern machine tools because it provides redundant protection independent of PLC and drive software—even if programs fail or communication errors occur, STO prevents unexpected motion. All servo and spindle drives in safety-critical applications must implement STO, activated by the safety PLC when emergency stops, door interlocks, or other safety devices detect hazardous conditions. Unlike mechanical brakes that wear and may fail, STO is electronic and continuously self-tested, providing reliable long-term safety performance essential for operator protection.

How do I program automatic door control for a CNC machine?

Automatic door control coordinates power door operation with machine cycles and safety systems. The basic sequence includes: the machine cycle completes and spindle stops completely, the safety PLC verifies no motion active and axes in safe positions, the door lock solenoid releases after mechanical motion confirms stopped, the door motor drives the door open to the fully open position, and the operator accesses the machine for part load/unload. For closing: the operator presses cycle start initiating door close, the door motor drives the door closed while monitoring close force (reversing if excessive resistance detected), the door closed limit switch and safety switch confirm full closure, the door lock engages mechanically, the safety system verifies door properly locked, and machine motion enables allowing CNC cycle start. The PLC must monitor door motor current to detect obstructions and reverse immediately if the door contacts an operator or object. Proper light curtain or presence sensor integration prevents closing on operators. Emergency stops must immediately halt door motion and prevent automatic closure, requiring manual reset before allowing door operation.

What communication protocols are used between CNC and PLC?

The primary communication protocols connecting CNC controllers to PLCs include PROFINET for Siemens 840D, 828D, and Sinumerik CNCs communicating with S7 PLCs, EtherNet/IP for Fanuc, Haas, and other CNCs integrating with Allen-Bradley, Omron, and other PLCs supporting CIP, EtherCAT for Heidenhain TNC and other high-performance CNCs connecting to PC-based control systems, and Modbus TCP/IP as a universal protocol supported by many CNC brands for basic data exchange. Learn about these industrial protocols in our complete communication guide. Protocol selection typically matches the CNC and PLC brands for optimal integration and support. The chosen protocol must provide adequate data exchange speed (1-10 millisecond update rates typical), sufficient data capacity for application requirements (hundreds to thousands of data points), and proven reliability meeting industrial automation demands. Many modern systems use hybrid approaches—industrial Ethernet for rich data exchange supplemented by hardwired discrete I/O for safety-critical signals requiring independence from network communication.

Master CNC Machine Automation and Integration

CNC machine PLC integration represents a sophisticated discipline combining motion control, discrete automation, industrial networking, and comprehensive safety systems into cohesive machine tool automation. Mastering these integration principles enables designing safer, more productive machining systems meeting the demanding requirements of modern precision manufacturing.

The key to successful CNC-PLC integration lies in understanding the distinct responsibilities of each controller, implementing robust communication protocols, programming comprehensive safety circuits meeting current standards, and developing reliable auxiliary functions that transform basic machining centers into highly automated production systems. Whether you're commissioning new equipment, upgrading existing machines with automation, or troubleshooting complex control systems, the principles and examples in this guide provide a solid foundation for professional machine tool automation work.

As manufacturing continues evolving toward lights-out production, Industry 4.0 data integration, and adaptive machining technologies, the importance of sophisticated PLC integration will only increase. Machine tool engineers who master these integration techniques position themselves for rewarding careers at the forefront of advanced manufacturing automation.

Continue Your PLC Programming Journey

Expand your automation expertise with these related resources:

• Industrial Automation Programming Guide - Advanced automation techniques and system integration
• Siemens PLC Programming Tutorial - Master Siemens S7 programming for CNC integration
• PLC Communication Protocols Complete Guide - Deep dive into industrial Ethernet protocols
• PLC Programming Best Practices - Professional development standards and techniques

Accelerate Your Automation Career

Ready to become a machine tool automation expert? Our comprehensive Complete PLC Programming Guide provides everything you need to master industrial control systems from fundamentals through advanced applications. Download your complete resource today and develop the skills that drive modern manufacturing automation excellence.

Continue developing your CNC integration expertise through hands-on practice with actual machine tools, advanced training courses from CNC and PLC manufacturers, and staying current with emerging technologies including digital twin integration, predictive maintenance systems, and AI-enhanced machining optimization that are shaping the future of precision manufacturing in 2025.
