Introduction: Understanding IO-Link Protocol for Industrial Automation

The IO-Link protocol has revolutionized industrial sensor and actuator communication, transforming traditional binary sensors into intelligent devices capable of providing rich diagnostic data, remote configuration, and predictive maintenance information. As the first standardized IO technology (IEC 61131-9) for communicating with sensors and actuators, IO-Link protocol has become essential knowledge for modern automation engineers seeking to implement Industry 4.0 initiatives and smart manufacturing systems.

Often described as "the USB of automation," IO-Link protocol enables point-to-point communication between smart sensors and automation systems using standard 3-wire sensor cables. This revolutionary approach eliminates the need for expensive fieldbus infrastructure for sensor-level communication while providing capabilities far beyond traditional discrete or analog signals.

IO-Link communication protocol adoption continues to accelerate across manufacturing sectors, with market research indicating that 20-25% of new sensor installations now incorporate IO-Link technology. Major automation vendors including Siemens, ifm, Balluff, Pepperl+Fuchs, Turck, and Sick have invested heavily in IO-Link protocol product development, creating an ecosystem of thousands of compatible devices spanning proximity sensors, photoelectric sensors, RFID readers, valve manifolds, and condition monitoring devices.

This comprehensive IO-Link protocol guide covers everything from fundamental communication principles to advanced implementation strategies, providing the technical knowledge and practical techniques needed to successfully integrate IO-Link devices into modern automation systems. Understanding IO-Link protocol implementation enables engineers to leverage advanced sensor capabilities while reducing installation costs and improving system flexibility.

Chapter 1: IO-Link Protocol Fundamentals

What is IO-Link Protocol

IO-Link protocol is an open, fieldbus-independent, point-to-point serial communication protocol standardized under IEC 61131-9 that enables bidirectional data exchange between automation systems and intelligent sensors or actuators. Unlike traditional fieldbus protocols that connect multiple devices on a shared network, IO-Link establishes dedicated communication channels between each IO-Link Master port and a single connected device.

The IO-Link communication protocol operates over standard unshielded 3-wire or 4-wire sensor cables, utilizing the same wiring that traditionally carried only discrete on/off signals. This backward compatibility allows gradual migration from conventional sensors to smart IO-Link devices without infrastructure changes, significantly reducing upgrade costs and complexity.

IEC 61131-9 Standard Compliance

The IEC 61131-9 standard defines the IO-Link protocol technical specifications, ensuring interoperability between devices from different manufacturers while maintaining consistent functionality across the IO-Link ecosystem. This standardization guarantees that IO-Link Masters and Devices from any compliant manufacturer can communicate effectively, eliminating vendor lock-in and promoting competitive pricing.

The standard covers physical layer characteristics, communication protocols, device integration files (IODD), and application programming interfaces that enable consistent implementation across diverse industrial automation platforms. Compliance testing performed by the IO-Link Community ensures that certified products meet stringent interoperability and performance requirements.

"The USB for Sensors" Concept

The USB comparison highlights IO-Link protocol's plug-and-play characteristics, automatic device identification, and standardized connectivity that simplifies sensor integration much like USB revolutionized computer peripheral connections. Just as USB eliminated the need for specialized ports and drivers for each peripheral type, IO-Link protocol provides universal sensor connectivity through standardized Masters and communication methods.

This analogy extends to hot-swappable device replacement, automatic parameter configuration, and bidirectional communication that characterize both technologies. When an IO-Link device is connected, the Master automatically identifies the device type, retrieves stored parameters, and configures communication without manual intervention.

Key Benefits of IO-Link Communication

Automatic Device Replacement

Automatic device replacement represents one of IO-Link protocol's most compelling advantages for maintenance operations. When a failed sensor requires replacement, maintenance technicians simply install a new device of the same type, and the IO-Link Master automatically downloads stored parameters, configuring the replacement sensor identically to the original device without manual programming or adjustment.

This capability dramatically reduces mean time to repair (MTTR) during production downtime events while eliminating configuration errors that commonly occur during manual sensor setup. Parameter backup and restoration functionality ensures that critical sensor settings are preserved even when devices fail, maintaining process consistency and quality standards.

Remote Parameterization Capabilities

Remote parameterization through IO-Link protocol eliminates the need for physical access to sensors for configuration changes or adjustments. Engineers can modify sensor settings including switching points, response times, output functions, and operating modes from the automation system, HMI, or even cloud-based management platforms without stopping production or entering hazardous areas.

This capability proves particularly valuable for sensors mounted in difficult-to-access locations such as inside machinery, at height, or in hazardous atmospheres. Product changeovers requiring different sensor settings can be automated through recipe management systems that download appropriate parameters based on production requirements.

Enhanced Diagnostics and Predictive Maintenance

IO-Link protocol enables sensors to communicate detailed diagnostic information beyond simple process data, including device temperature, operating hours, switching cycle counts, signal quality metrics, and contamination levels. This rich diagnostic data supports predictive maintenance strategies that identify degrading sensors before failure occurs, enabling proactive replacement during scheduled maintenance windows rather than reactive repairs during unplanned downtime.

Advanced IO-Link devices provide early warning indicators when operating conditions approach specified limits, allowing maintenance teams to address potential issues before they impact production quality or availability. Integration with condition monitoring systems and enterprise asset management platforms enables data-driven maintenance optimization and lifecycle management.

Reduced Wiring Costs and Installation Time

Standard 3-wire cable compatibility eliminates the need for specialized wiring, reducing material costs while simplifying installation procedures for electricians and technicians. The point-to-point topology avoids the complex network planning, addressing schemes, and termination requirements associated with traditional fieldbus systems.

Installation time reductions of 40-50% compared to analog or fieldbus sensor connections are commonly reported, particularly in applications requiring multiple sensors in proximity. The ability to use existing cable infrastructure during sensor upgrades further reduces retrofitting costs while minimizing production disruptions.

Data Storage and Configuration Management

IO-Link Masters store complete device parameters and identification information, creating automatic backups of sensor configurations that enable rapid system recovery after device failures or system modifications. This centralized parameter storage simplifies documentation requirements while ensuring that configuration changes are properly tracked and managed.

Version control capabilities allow engineers to maintain multiple parameter sets for different operating modes or product variants, enabling rapid changeovers through automated parameter downloads. Integration with industrial Ethernet networks enables parameter synchronization across multiple production lines or facilities, ensuring configuration consistency.

Chapter 2: How IO-Link Protocol Works

Point-to-Point Communication Architecture

IO-Link protocol implements a master-slave communication architecture where each IO-Link Master port establishes a dedicated communication channel with a single connected IO-Link Device. This point-to-point topology eliminates the complexity of network addressing, arbitration, and collision detection required by multi-drop fieldbus systems while ensuring deterministic communication timing and guaranteed bandwidth allocation.

The dedicated connection architecture provides several technical advantages including simplified troubleshooting since each port operates independently, immunity to communication errors on adjacent ports, and the ability to mix different communication modes and device types on a single Master. Unlike shared networks where one malfunctioning device can disrupt entire network segments, IO-Link isolation ensures that device failures affect only the specific port connection.

Network topology planning becomes dramatically simpler with IO-Link protocol compared to traditional fieldbus systems. Engineers select Master modules with appropriate port counts and mounting locations without concern for network length limits, termination requirements, or maximum node counts that constrain fieldbus architectures.

IO-Link Master Functions and Capabilities

IO-Link Masters serve as communication gateways between IO-Link Devices and higher-level automation systems such as PLCs, industrial PCs, or distributed control systems. Masters handle protocol conversion, device configuration, parameter storage, diagnostic data collection, and integration with industrial Ethernet networks including EtherNet/IP, Profinet, EtherCAT, and Modbus TCP.

Available form factors include modular I/O blocks for DIN-rail mounting, IP67-rated distributed I/O for field mounting, embedded modules for machine control panels, and standalone network gateways for specialized applications. Port counts range from 4 to 16 ports per Master module, with enterprise installations utilizing multiple Masters to achieve required device connectivity.

Advanced Master functionality includes port-level diagnostics, parameter backup and restore, device identification and validation, communication mode management, and integration with configuration software tools. Many modern Masters provide web-based configuration interfaces enabling remote setup and monitoring without specialized software installation.

IO-Link Device Types and Capabilities

IO-Link Devices encompass sensors, actuators, RFID readers, valve manifolds, measurement devices, and specialized components across virtually every automation discipline. Device capabilities range from simple proximity sensors providing basic switching data to sophisticated measurement devices transmitting multiple process values with extensive diagnostic parameters.

Device classification follows a standardized structure based on communication capabilities and data complexity. Simple devices may exchange only a few bytes of process data with minimal acyclic parameters, while complex devices support extensive parameter sets, multiple process data configurations, and sophisticated diagnostic reporting.

Backward compatibility ensures that conventional sensors without IO-Link capability can connect to IO-Link Master ports operating in SIO (Standard IO) mode, providing traditional discrete switching functions. This compatibility enables gradual IO-Link migration without requiring complete sensor replacement.

Communication Modes and Data Types

Communication Mode Selection (COM1, COM2, COM3)

IO-Link protocol defines three communication modes that accommodate different device types and application requirements while maintaining backward compatibility with conventional sensors:

COM1 (4.8 kbps) provides basic IO-Link communication suitable for simple sensors with minimal data requirements. This mode supports basic parameterization and diagnostic functions while operating at the lowest data rate, extending maximum cable length and improving noise immunity in electrically harsh environments.

COM2 (38.4 kbps) represents the standard IO-Link communication mode for most applications, balancing data throughput with cable length capabilities and electrical robustness. The majority of IO-Link devices operate in COM2 mode, providing adequate bandwidth for process data, parameters, and diagnostics while maintaining 20-meter standard cable length capability.

COM3 (230.4 kbps) enables high-speed communication for data-intensive devices such as vision sensors, RFID readers, or complex measurement devices requiring high-bandwidth communication. COM3 operation may reduce maximum cable length to 10-15 meters depending on cable quality and electrical environment.

Standard IO (SIO) Mode for Legacy Devices

Standard IO mode enables IO-Link Master ports to interface with conventional non-IO-Link sensors and actuators, providing traditional discrete switching functions without protocol communication. This backward compatibility allows mixed installations combining IO-Link devices and legacy sensors on the same Master, facilitating gradual technology migration.

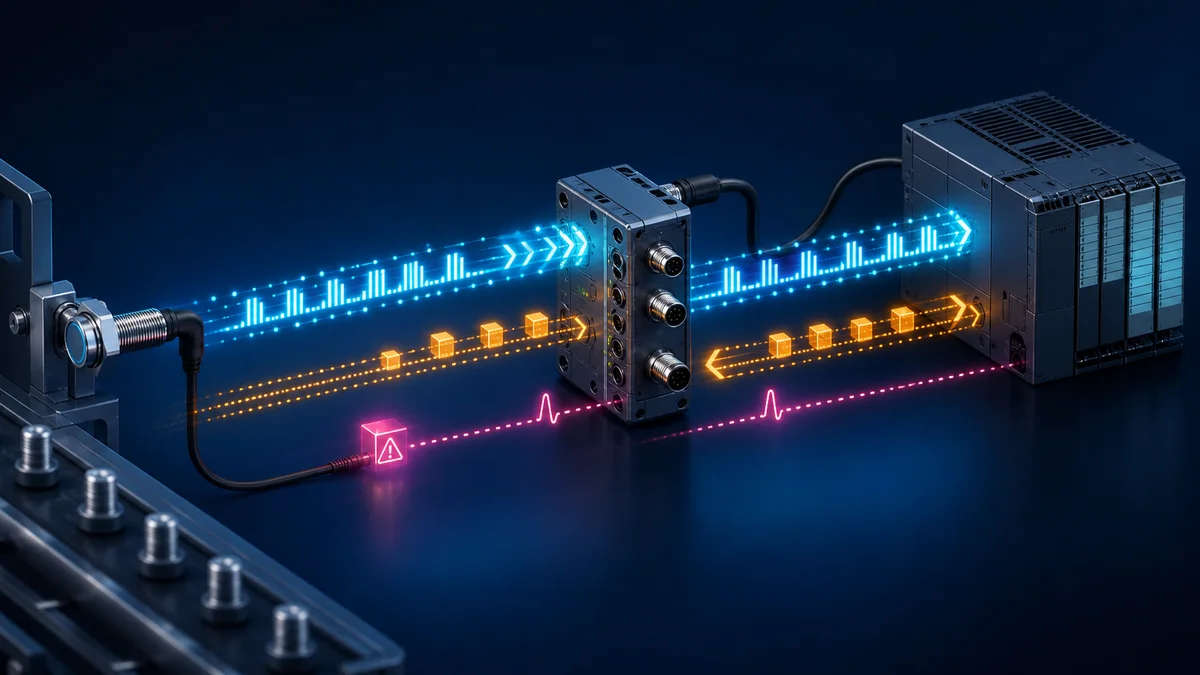

Process Data Communication

Process Data represents the cyclic exchange of sensor measurements and actuator commands that occurs continuously during normal operation. This data refreshes at rates of 1-10 milliseconds depending on device capabilities and configuration, providing real-time process information to the automation system.

Process Data size ranges from 1 to 32 bytes per direction (input/output), accommodating simple binary states, analog measurements, multi-dimensional sensor data, or complex device status information. The deterministic nature of Process Data exchange ensures predictable timing for control applications.

Service Data and Acyclic Communication

Service Data provides acyclic communication for parameter access, device identification, configuration management, and diagnostic information retrieval. This non-time-critical data exchanges on-demand rather than continuously, utilizing available bandwidth between Process Data cycles.

Acyclic communication enables read and write access to device parameters including operational settings, identification information, diagnostic counters, and configuration data. The request-response protocol ensures reliable parameter access while maintaining real-time Process Data communication.

Event Notification System

IO-Link Events provide immediate notification of important device conditions including errors, warnings, maintenance requirements, and status changes. Events generate automatically when specified conditions occur, ensuring that automation systems receive timely notification without polling device status.

Event classification follows standardized priority levels enabling appropriate system responses ranging from simple logging for informational events to immediate alarm generation for critical errors. Event acknowledgment mechanisms ensure that important notifications are not missed during system operation.

Chapter 3: IO-Link System Components and Architecture

IO-Link Master Selection and Integration

IO-Link Master Types and Applications

Modular IO-Link Masters integrate into distributed I/O systems mounted on DIN rails within control cabinets, providing convenient integration with PLC backplanes and industrial network infrastructure. These Masters typically offer 4, 8, or 16 ports with integrated power supplies and network connectivity through the host I/O system.

IP67-rated block I/O Masters mount directly in the field near sensors and actuators, reducing wiring costs by eliminating home runs to control cabinets. These distributed Masters connect to industrial Ethernet networks, supporting Profinet, EtherNet/IP, EtherCAT, or other protocols depending on manufacturer and model selection.

Gateway Masters provide standalone IO-Link connectivity to industrial networks or even direct cloud connectivity for IIoT applications. These specialized devices serve applications requiring IO-Link integration without full distributed I/O systems, including retrofits and specialized monitoring applications.

Port Configuration and Management

Individual port configuration includes operating mode selection (IO-Link/SIO), validation settings to ensure correct device types, port diagnostics enabling, and data mapping to automation system addresses. Proper port configuration ensures reliable operation while preventing configuration errors that could cause unexpected system behavior.

Port diagnostics provide detailed information about communication quality, error rates, device status, and parameter values without requiring device-specific tools. This built-in diagnostic capability simplifies troubleshooting and system monitoring, reducing maintenance complexity and specialized skill requirements.

Power budget considerations become important when selecting Masters for applications with multiple high-current devices. Each port provides limited current capacity (typically 200-500mA), requiring engineers to verify that connected device current requirements remain within port specifications.

Network Integration Strategies

IO-Link Masters integrate into automation architectures through industrial Ethernet protocols that map IO-Link process data, parameters, and diagnostics into controller memory structures. The specific integration method varies by protocol and manufacturer but generally provides transparent access to IO-Link data as if devices were directly connected to the controller.

Profinet integration utilizes GSDML (Generic Station Description Markup Language) files that define device structure and available data, while EtherNet/IP employs EDS (Electronic Data Sheet) files for similar purposes. These integration files enable configuration tools to properly configure communication without manual data mapping.

OPC UA connectivity provides standardized access to IO-Link data for SCADA systems, MES applications, and cloud platforms without requiring protocol-specific drivers. Many modern IO-Link Masters include OPC UA servers enabling direct connectivity to enterprise systems and analytics platforms.

IO-Link Devices: Sensors and Actuators

Sensor Types and Capabilities

Proximity sensors with IO-Link capability provide enhanced functionality beyond simple switching outputs including adjustable switching distances, temperature compensation, teach-in procedures, multi-point switching, and diagnostic data about signal strength and operating conditions. These enhanced capabilities improve application flexibility while reducing adjustment time during commissioning.

Photoelectric sensors utilize IO-Link communication for advanced functions including remote sensitivity adjustment, background suppression settings, timing functions, and contamination warnings. Multi-pixel sensors provide detailed object detection data including size, position, and color information through high-bandwidth IO-Link communication.

Pressure and flow sensors transmit continuous process values along with device diagnostics including sensor temperature, calibration status, and alarm conditions. The digital transmission eliminates analog signal degradation and conversion errors while enabling advanced features such as data logging within the sensor itself.

RFID readers connected via IO-Link provide tag data along with read quality metrics, antenna diagnostics, and configuration parameters for read ranges and filtering settings. The IO-Link connection simplifies installation compared to traditional serial or fieldbus RFID systems while enabling flexible mounting locations.

Actuator and Control Devices

Valve manifolds with IO-Link communication integrate diagnostics for individual valves including switching cycle counts, response times, and electrical fault detection. Preventive maintenance scheduling based on actual valve usage optimizes replacement intervals while preventing unexpected failures.

Motor starters incorporating IO-Link provide detailed electrical parameters including current consumption, power factor, operating hours, and thermal status. This information enables condition-based maintenance and energy monitoring without additional measurement devices.

Pneumatic components such as pressure regulators, flow controllers, and valve terminals communicate setpoints, actual values, and diagnostic information through IO-Link connections, centralizing configuration and monitoring within the automation system.

Standard 3-Wire Cable and Wiring Practices

Cable Specifications and Requirements

IO-Link operates over standard unshielded 3-wire sensor cables (brown: 24V+, blue: 0V, black: signal/data) with AWG24 to AWG20 conductors, eliminating the need for specialized network cables. This cable compatibility represents a significant cost advantage compared to fieldbus systems requiring specific cable types with controlled impedance and shielding.

Standard cable lengths extend to 20 meters for COM1 and COM2 modes, adequate for most machine-level applications. Higher quality cables or COM1 mode operation can extend distances beyond standard specifications when applications require longer runs.

Shielded cables become necessary in electrically noisy environments with significant motor drives, welding equipment, or high-frequency interference sources. When shielding is used, proper grounding practices ensure electromagnetic compatibility without creating ground loops.

Installation Best Practices

Cable routing should maintain separation from power cables, variable frequency drives, and other noise sources following general industrial wiring practices. While IO-Link's digital communication provides excellent noise immunity, proper cable management ensures reliable long-term operation.

Connector systems utilizing M12 circular connectors provide robust mechanical connections suitable for industrial environments. The standardized pinout (pin 1: 24V+, pin 3: 0V, pin 4: signal) ensures correct connections and enables pre-wired cable assemblies that reduce installation time and errors.

Wire identification and documentation become particularly important in IO-Link installations since cables appear identical to conventional sensor wiring. Clear labeling prevents confusion during maintenance and modifications while ensuring that IO-Link devices connect to appropriate Master ports.

Integration with Fieldbus and Industrial Ethernet

Profinet Integration Architecture

Profinet integration maps IO-Link process data into cyclic real-time channels while acyclic parameter access utilizes standard Profinet record data mechanisms. GSDML files provided by Master manufacturers define the data structure enabling TIA Portal or other Profinet configuration tools to automatically configure communication.

The Profinet conformance class determines available features and performance characteristics, with CC-B (Conformance Class B) providing standard operation while CC-C enables advanced timing and synchronization for motion control applications requiring sub-millisecond precision.

EtherNet/IP Integration Methods

EtherNet/IP Masters utilize CIP (Common Industrial Protocol) object models to expose IO-Link data to Allen-Bradley controllers and other EtherNet/IP automation systems. Process data maps to input/output assemblies while acyclic parameter access occurs through explicit messaging.

Studio 5000 integration utilizes Add-On Instructions (AOIs) and configuration modules that simplify IO-Link device access, presenting IO-Link parameters as structured data types within ladder logic programming. This integration method provides intuitive access to IO-Link features without requiring detailed protocol knowledge.

Modbus TCP and Other Protocols

Modbus TCP integration typically maps IO-Link process data to holding registers with parameter access through function code 23 (Read/Write Multiple Registers). Simple register mapping enables IO-Link connectivity to diverse automation platforms including PLCs, SCADA systems, and industrial PCs supporting Modbus communication.

Multi-protocol Masters provide simultaneous connectivity to multiple networks, enabling IO-Link data distribution to different automation systems or IT/OT integration scenarios where process data serves both real-time control and enterprise analytics applications.

Chapter 4: IO-Link Device Description Files (IODD)

Understanding IODD File Structure

IO Device Description (IODD) files serve as the digital identity and capability definition for IO-Link devices, containing device parameters, communication characteristics, process data structure, available functions, and human-readable descriptions in XML format standardized by the IO-Link specification.

IODD files enable engineering tools to automatically configure communication, present user-friendly parameter interfaces, validate device connections, and provide context-sensitive help without requiring device-specific software development. This standardization dramatically reduces integration effort compared to proprietary device protocols requiring custom drivers and configuration tools.

The XML-based structure includes device identification information, communication speed capabilities, process data length and format, parameter definitions with data types and valid ranges, multilingual text descriptions, and optional graphical elements for enhanced user interfaces. This comprehensive device description enables sophisticated configuration tools while maintaining backwards compatibility with simpler systems.

IODD File Management and Library

The IODDfinder online database (www.ioddfinder.io-link.com) provides centralized access to IODD files from participating manufacturers, simplifying the task of obtaining required device descriptions for system configuration. Integration between engineering tools and IODDfinder enables automatic IODD download and installation during device configuration.

Local IODD file management becomes necessary for proprietary devices, development projects, or environments without internet connectivity. Most IO-Link configuration tools provide IODD import functionality enabling manual installation from manufacturer websites or development files.

Version management ensures that IODD files match installed device firmware versions, preventing parameter incompatibilities that could cause configuration errors or unexpected device behavior. Configuration tools typically validate IODD compatibility during device detection and commissioning.

Device Parameters and Process Data

Parameter Structure and Access Methods

IO-Link parameters organize into standardized index/subindex addressing structures that enable consistent access methods across different devices and manufacturers. Common parameter categories include device identification (vendor ID, device ID, serial number), communication settings, application parameters (switching points, delays, filtering), and diagnostic parameters (operating hours, cycle counts, error history).

Parameter data types follow standard definitions including Boolean, integer, float, string, and enumerated types with specified ranges and units. This standardization enables engineering tools to provide appropriate input validation and user interface elements without device-specific customization.

Read-only parameters provide device information and diagnostics without permitting modification, preventing accidental changes to critical device characteristics. Write-protected parameters require authentication or special procedures before modification, ensuring that critical settings remain secure.

Process Data Configuration

Process Data structure configuration determines which measurements or states transmit cyclically to the automation system. Many IO-Link devices support multiple process data variants enabling optimization for specific applications - for example, a distance sensor might offer configurations providing either raw distance measurements with maximum precision or processed outputs with multiple switching point states.

Data consistency mechanisms ensure that related process data values update atomically, preventing intermediate states from being read during multi-byte value updates. This consistency guarantee proves critical for applications using calculated values or multi-parameter measurements.

Scaling and engineering units configuration enables presentation of sensor data in application-appropriate units without controller conversion programming. Temperature sensors might provide raw ADC counts, degrees Celsius, or degrees Fahrenheit depending on configuration, simplifying application programming.

Chapter 5: Implementation and Configuration Guide

Hardware Selection and System Design

Determining IO-Link Requirements

Application analysis identifies which sensors and actuators benefit from IO-Link capabilities versus simple discrete or analog signals. Devices requiring parameter adjustment, diagnostic data, or multiple outputs typically justify IO-Link implementation, while simple presence detection might operate adequately with conventional sensors.

Future flexibility considerations favor IO-Link deployment even when immediate requirements could be met with simpler technologies. The minimal cost premium for IO-Link capability often justifies selection based on future expansion plans, parameter adjustment possibilities, or diagnostic capabilities that might prove valuable during troubleshooting.

Standardization strategies that specify IO-Link devices as organizational standards simplify spare parts inventory, reduce training requirements, and enable consistent troubleshooting procedures across facilities. The long-term maintenance benefits often exceed any initial cost differences compared to conventional alternatives.

Master Port Count and Distribution Planning

Port count calculations must account for current device requirements plus expansion capacity typically ranging from 20-30% depending on application stability and modification frequency. Insufficient expansion capacity necessitates costly Master additions during future modifications, while excessive capacity increases initial costs unnecessarily.

Distributed versus centralized Master placement trades installation costs against cabinet space and wiring expenses. Applications with concentrated sensor groupings favor distributed IP67 Masters, while dispersed sensors across large machinery might utilize centralized cabinet-mounted Masters despite longer cable runs.

Power budget analysis ensures that Master power supply capacities accommodate connected device current requirements with appropriate margin. High-current devices such as LED indicators, valves, or RFID readers require careful power calculation to prevent overload conditions.

Software Configuration and Setup

Step 1: IO-Link Master Configuration

Master configuration begins with network integration establishing communication between the Master and host controller or industrial network. This process typically involves:

• Assigning IP addresses or network addresses following site standards
• Importing Master configuration files (GSD, EDS, etc.) into engineering tools
• Mapping I/O data to controller memory areas
• Configuring diagnostic parameters and alarm thresholds
• Establishing port operating modes and validation settings

Step 2: IODD File Installation

Device description installation enables configuration tools to recognize connected devices and provide appropriate parameter interfaces. The process involves:

• Downloading IODD files from manufacturers or IODDfinder
• Importing IODD files into configuration software
• Verifying IODD version compatibility with device firmware
• Updating IODD libraries when new devices are added
• Backing up IODD files for disaster recovery

Step 3: Device Detection and Identification

Automatic device detection identifies connected IO-Link devices, retrieving vendor ID, device ID, serial number, and firmware version information. This detection process:

• Verifies correct device types match configuration expectations
• Identifies communication mode capabilities (COM1/2/3)
• Reads stored parameter sets from device memory
• Validates device compatibility with Master capabilities
• Reports any device errors or communication issues

Step 4: Parameter Configuration

Parameter configuration establishes device operating characteristics including:

• Application-specific settings (switching points, ranges, filtering)
• Output functions and logic (NO/NC, timing, delays)
• Diagnostic thresholds and alarm settings
• Communication preferences and data formats
• User descriptions and location information

Step 5: Data Mapping and Controller Integration

Process data mapping connects IO-Link sensor measurements and device status to controller program variables. This mapping establishes:

• Input data addresses for sensor measurements and status
• Output data addresses for actuator commands and device control
• Diagnostic data integration for monitoring systems
• Event handling for device alarms and warnings
• Parameter access mechanisms for runtime configuration changes

PLC Integration and Programming

Allen-Bradley / Rockwell Automation Integration

Studio 5000 environments utilize IO-Link Master Add-On Profiles (AOP) or EDS files that integrate IO-Link Masters as standard EtherNet/IP devices. Process data appears in standard I/O tag structures while parameters become accessible through User-Defined Data Types (UDT) representing device structure.

Ladder logic programming accesses IO-Link process data identically to conventional I/O, maintaining familiar programming patterns while enabling advanced features through parameter manipulation instructions. Function block programming provides structured access to complex IO-Link devices with multiple measurement values and configuration parameters.

Siemens TIA Portal Integration

TIA Portal configuration utilizes GSDML files that define IO-Link Master structure and capabilities within the Profinet network architecture. Hardware configuration automatically creates PLC data blocks for process data and parameter access following standard Profinet addressing conventions.

Function blocks from Siemens libraries simplify parameter access and device management without requiring detailed IO-Link protocol knowledge. SCL (Structured Control Language) programming provides efficient manipulation of complex data structures for sophisticated IO-Link applications.

Other PLC Platform Integration

Modbus-based PLCs access IO-Link data through register mapping defined in Master documentation. Generic integration requires understanding register addresses for process data, parameters, and diagnostic information following manufacturer-specific implementations.

OPC UA connectivity provides platform-independent access to IO-Link data for PLCs supporting OPC UA client functionality. This standardized approach enables consistent IO-Link integration regardless of controller brand or programming language.

Troubleshooting and Diagnostics

Communication Error Diagnosis

Communication errors manifest through Master diagnostics indicating failed device detection, interrupted communication, or checksum errors. Troubleshooting procedures include:

• Verifying cable continuity and connection integrity
• Checking power supply voltage at device terminals (24VDC ±10%)
• Measuring cable length and comparing to specifications
• Evaluating electrical noise environment and interference sources
• Testing with known-good devices to isolate Master versus device faults

Parameter Validation Issues

Parameter validation errors occur when attempting to write invalid values exceeding specified ranges or types. Resolution requires:

• Reviewing IODD file specifications for valid parameter ranges
• Checking data type compatibility between controller and device
• Verifying parameter access rights (read-only versus writable)
• Ensuring appropriate user authentication for protected parameters
• Validating firmware versions match IODD file requirements

Device Replacement Procedures

Proper device replacement procedures ensure automatic parameter restoration:

1. Document failed device serial number and configuration
2. Install replacement device of identical type
3. Allow Master to detect new device and identify type mismatch
4. Confirm device type compatibility with application
5. Trigger parameter restoration from Master storage
6. Verify correct device operation and parameter values
7. Update documentation with new device serial number

Chapter 6: IO-Link vs Traditional Sensors Comparison

Technology Comparison Analysis

Capability Comparison Table

| Feature | Traditional Discrete | Traditional Analog | IO-Link | |---------|---------------------|-------------------|---------| | Communication | On/Off only | 4-20mA / 0-10V | Digital + diagnostics | | Parameterization | Manual adjustment | Potentiometer/DIP switches | Remote digital configuration | | Diagnostics | None | Limited | Comprehensive device data | | Device Replacement | Manual setup required | Manual calibration | Automatic configuration | | Cable Type | 3-wire sensor cable | Shielded analog cable | Standard 3-wire cable | | Signal Quality | Good | Degrades with distance | Excellent | | Installation Cost | Low | Medium | Low | | Maintenance | Simple | Moderate | Simplified | | Multiple Values | Single output only | Single value | Multiple process values | | Device Identification | None | None | Automatic with serial number |

Performance and Reliability Advantages

Digital communication immunity to electrical noise eliminates the signal degradation problems common with analog sensors, particularly over long cable distances or in electrically harsh environments. The binary nature of IO-Link communication ensures that measurements transmit without error or the signal attenuates to complete communication loss rather than gradual degradation causing process quality issues.

Self-diagnostics capabilities enable IO-Link devices to detect and report internal faults, contamination, electrical issues, and degrading performance conditions that would remain undetected with conventional sensors until complete failure occurs. This early warning capability supports predictive maintenance strategies that minimize unplanned downtime.

Cost-Benefit Analysis

Initial Investment Considerations

IO-Link device pricing typically ranges from 10-30% higher than equivalent conventional sensors, varying by device type and manufacturer. IO-Link Masters add infrastructure costs ranging from $50-150 per port depending on type and integration requirements.

The total cost delta for small installations (under 20 devices) can represent significant percentage increases compared to conventional solutions, potentially challenging ROI justification based solely on technical benefits without considering operational improvements.

Long-Term Operational Savings

Installation labor savings of 40-50% through standard cable usage and simplified wiring practices often exceed device cost premiums, particularly in distributed applications requiring extensive cable routing. The elimination of analog signal calibration and adjustment during commissioning further reduces startup costs.

Maintenance cost reductions result from automatic device replacement capabilities that reduce mean time to repair by 60-75% compared to conventional sensors requiring manual configuration. Over a 5-year lifecycle, maintenance savings typically exceed initial cost premiums for applications requiring periodic device replacement or configuration changes.

Downtime cost avoidance represents the most significant financial benefit for many applications. The ability to quickly replace failed sensors and continue production without lengthy setup procedures justifies IO-Link implementation based on avoiding a single extended downtime event in critical production systems.

When to Upgrade to IO-Link

Application Suitability Assessment

Applications requiring frequent parameter adjustments for product changeovers, recipe variations, or process optimization represent ideal IO-Link candidates. The remote parameterization capability eliminates manual adjustment procedures while enabling automated configuration through recipe management systems.

Predictive maintenance programs benefit significantly from IO-Link diagnostic data that enables condition-based sensor replacement rather than time-based preventive maintenance schedules. Applications with difficult sensor access (height, hazardous areas, inside machinery) particularly benefit from diagnostic monitoring capabilities.

Critical processes where sensor failures cause significant production losses or safety concerns justify IO-Link implementation for improved reliability and faster repair procedures. The automatic configuration during device replacement minimizes downtime duration and eliminates setup errors that could compromise safety or quality.

Migration Strategy Recommendations

Gradual migration strategies leverage backward compatibility by installing IO-Link Masters in SIO mode for existing sensors while specifying IO-Link devices for new installations and replacement sensors. This approach spreads costs while building organizational experience with the technology.

Pilot projects in non-critical applications enable teams to develop expertise and demonstrate value before committing to widespread implementation. Successful pilots provide lessons learned and documented benefits that support larger-scale deployment decisions.

Standardization policies specifying IO-Link as the preferred technology for new designs gradually transition organizations toward IO-Link adoption without requiring disruptive wholesale replacements of functioning equipment.

Chapter 7: Common IO-Link Applications

Condition Monitoring and Predictive Maintenance

Temperature monitoring sensors with IO-Link capability provide detailed thermal data for bearing condition assessment, motor health monitoring, and process temperature control while simultaneously transmitting diagnostic information about sensor health, calibration status, and environmental conditions affecting measurement accuracy.

Vibration monitoring devices connected via IO-Link collect acceleration data for rotating equipment analysis while providing on-board FFT analysis capabilities that identify developing problems such as bearing wear, misalignment, or imbalance conditions before catastrophic failures occur.

Case Study: Automotive Assembly Line

Major automotive manufacturers have implemented IO-Link condition monitoring sensors across assembly line conveyors, achieving 40% reduction in unplanned downtime through early detection of bearing wear and belt tension issues. The diagnostic data integration with maintenance management systems enables scheduled repairs during production breaks rather than unexpected line stoppages.

Format Change Automation and Flexible Manufacturing

Product changeover applications requiring sensor adjustment for different package sizes, material types, or quality inspection parameters benefit from IO-Link's automated parameterization capabilities. Recipe management systems download appropriate sensor configurations during changeover procedures, eliminating manual adjustment time and reducing changeover errors.

Packaging machinery utilizing IO-Link sensors for fill level detection, label verification, and seal quality inspection can automatically configure sensitivity settings, rejection criteria, and measurement parameters when production schedules trigger product changes. This automation reduces changeover time by 50-70% compared to manual sensor adjustment procedures.

Quality Control and Inspection Systems

Vision sensors with IO-Link communication transmit inspection results along with detailed quality metrics including measurement confidence levels, lighting conditions, and algorithm processing times that enable quality engineers to optimize inspection parameters and identify systematic quality trends requiring process improvements.

Precision measurement devices for dimensional inspection, gap measurement, and surface quality assessment utilize IO-Link's high-bandwidth communication to transmit detailed measurement data while providing sensor diagnostic information that ensures measurement system reliability and traceability for regulatory compliance.

RFID and Identification Systems

Tool identification systems in machining centers utilize IO-Link RFID readers to verify correct tool installation, retrieve tool life information, and record tool usage data for inventory management. The IO-Link connection simplifies reader installation compared to traditional serial or fieldbus RFID systems while enabling advanced features such as multi-tag reading and write verification.

Work-in-process tracking applications employ IO-Link RFID readers at workstation entrances to identify arriving assemblies, retrieve build instructions from MES systems, and configure equipment parameters for specific product variants. Integration with production control systems enables real-time production tracking and quality traceability.

Pneumatic System Optimization

Valve manifolds with IO-Link integration provide individual valve diagnostics including cycle counts, response times, and electrical fault detection that enable condition-based maintenance scheduling. The diagnostic data identifies valves approaching end-of-life conditions, allowing proactive replacement during scheduled maintenance windows.

Pressure and flow monitoring sensors connected via IO-Link enable pneumatic system optimization by identifying air consumption patterns, detecting leaks through baseline comparisons, and providing usage data for energy management programs. The detailed measurement data supports sustainability initiatives targeting compressed air efficiency improvements.

Chapter 8: Frequently Asked Questions About IO-Link Protocol

Q: What is IO-Link protocol and how does it differ from traditional sensor signals?

IO-Link protocol is a standardized point-to-point digital communication protocol (IEC 61131-9) that enables bidirectional data exchange between sensors/actuators and automation systems over standard 3-wire cables. Unlike traditional discrete (on/off) or analog (4-20mA) signals that transmit only process values, IO-Link provides process data plus extensive diagnostic information, remote parameterization capabilities, and automatic device identification. The digital communication eliminates signal degradation issues common with analog sensors while enabling advanced features impossible with conventional technologies.

Q: Can IO-Link devices work with existing sensors and wiring infrastructure?

Yes. IO-Link Masters support backward compatibility through SIO (Standard IO) mode that interfaces with conventional discrete sensors using the same 3-wire cables and 24VDC power. This compatibility enables mixed installations combining IO-Link devices and legacy sensors on the same Master, facilitating gradual technology migration without wholesale infrastructure replacement. When operating in SIO mode, the port functions as a standard discrete input/output without IO-Link communication capabilities.

Q: How far can IO-Link communication extend and what affects maximum distance?

Standard IO-Link cable length specifications permit 20 meters for COM1 and COM2 communication modes using typical unshielded sensor cables. COM3 high-speed mode may reduce maximum distance to 10-15 meters depending on cable quality and electrical environment. Factors affecting achievable distance include cable conductor size (larger AWG permits longer runs), electromagnetic interference levels, communication mode selection, and cable quality specifications. Shielded cables or higher-quality specifications can extend distances beyond standard specifications when applications require longer cable runs.

Q: What are IODD files and why are they important?

IODD (IO Device Description) files are standardized XML documents that describe IO-Link device capabilities, parameters, communication characteristics, and data structures. These files enable engineering tools to automatically configure communication, present user-friendly parameter interfaces, validate device connections, and provide context-sensitive help without requiring device-specific software development. IODD files are freely available from device manufacturers and the centralized IODDfinder database, ensuring that any compliant configuration tool can integrate any certified IO-Link device regardless of manufacturer.

Q: How does automatic device replacement work with IO-Link?

When an IO-Link device is first connected and configured, the Master stores complete device parameters along with device identification information (vendor ID, device ID, serial number). If the device fails and requires replacement, the technician installs a new device of the same type. The Master automatically detects the new device, identifies it as a different serial number but matching type, and downloads the stored parameter set to configure the replacement device identically to the original. This automatic configuration eliminates manual setup procedures and reduces mean time to repair by 60-75% compared to conventional sensors requiring manual adjustment.

Q: What communication protocols support IO-Link Master integration?

IO-Link Masters integrate with all major industrial Ethernet protocols including Profinet, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link IE, and POWERLINK. Many Masters support multiple protocols simultaneously or offer protocol-specific variants. Additionally, OPC UA connectivity enables platform-independent access to IO-Link data for SCADA systems, MES applications, and cloud platforms. The specific integration method varies by protocol but generally maps IO-Link process data, parameters, and diagnostics transparently into controller memory structures.

Q: Is IO-Link suitable for safety applications?

Standard IO-Link protocol does not provide safety-rated communication suitable for Safety Integrity Level (SIL) rated applications. However, IO-Link Safety extensions defined in the specification enable certified safety-rated communication using similar technology principles. For standard IO-Link implementations in machinery with safety requirements, safety functions must utilize dedicated safety-rated systems (safety PLCs, safety relays) independent of IO-Link communication, while IO-Link handles non-safety process data and diagnostics.

Q: What should I consider when selecting an IO-Link Master?

Key selection criteria include:

• Protocol Compatibility: Ensure Master supports your automation system protocol (Profinet, EtherNet/IP, etc.)
• Port Count: Select adequate ports for current devices plus 20-30% expansion capacity
• Form Factor: Choose between cabinet-mounted DIN-rail modules, IP67 field-mounted blocks, or standalone gateways based on application architecture
• Port Power Budget: Verify power supply capacity accommodates connected device current requirements
• Diagnostic Capabilities: Evaluate built-in diagnostic features and integration with engineering tools
• Configuration Software: Consider compatibility with existing engineering tool ecosystems
• Manufacturer Support: Assess technical support quality, documentation, and update frequency

---

IO-Link protocol has transformed industrial sensor and actuator communication by combining the simplicity of traditional 3-wire connections with advanced digital communication capabilities that enable Industry 4.0 initiatives. Understanding IO-Link fundamentals, system architecture, implementation procedures, and application strategies empowers automation engineers to leverage this powerful technology for improved system flexibility, reduced maintenance costs, and enhanced diagnostic capabilities.

For more information about industrial communication protocols and sensor integration, explore our comprehensive guides on PLC Communication Protocols and our detailed protocol comparison resources.

The continued evolution of IO-Link technology with emerging features such as wireless variants, increased bandwidth capabilities, and enhanced cloud connectivity ensures that IO-Link protocol will remain relevant for future automation applications while maintaining backward compatibility with the extensive installed base of existing devices and infrastructure.
