PLC Ladder Logic Program: From I/O Contract to Tested Rungs
A PLC ladder logic program is an executable set of Ladder Diagram networks or vendor ladder routines assigned to a controller program and task. Contacts read Boolean variables, branches combine conditions, coils and function blocks write state, and repeated execution turns the logic into observable machine behavior. IEC 61131-3:2025 defines Ladder Diagram as one of its graphical programmable-controller languages, including graphical network evaluation, contacts, coils, functions and function blocks.
A production-quality program is more than a picture of rungs. It begins with an operating requirement and I/O contract, gives every state and output one clear owner, states scan and timing assumptions, separates command from feedback, records first-out diagnostics, and ends with normal, boundary, failure and restart tests. The exact compiler, task scheduler, I/O refresh, timer, counter, edge, set/reset, retentive and safety behavior still comes from the target controller documentation.
This page provides one complete vendor-neutral motor/conveyor behavior contract, ladder-style rung notation, a compilable IEC Structured Text oracle for cross-checking the behavior, scan traces, edge cases, a vendor adaptation matrix and 24 acceptance tests. Use the downloads as engineering worksheets, then recreate and verify the graphical ladder in the official target environment.
What this canonical owns
This route owns the exact task of building and proving a complete PLC ladder logic program. The ladder logic tutorial owns the broader learning curriculum; the symbol guide owns visual notation; the contacts and coils guide owns exact Boolean read/write semantics; the branch guide owns Boolean simplification; the examples library owns pattern breadth; and the set/reset guide owns state priority and simultaneous-event depth.

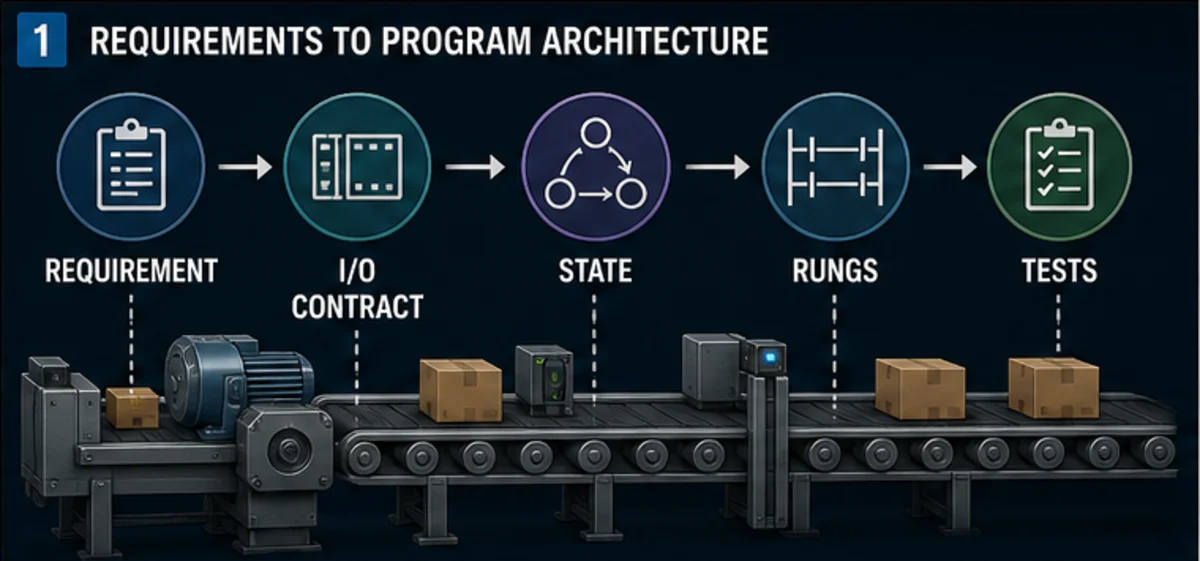

Translate the requirement into ladder elements
Ladder symbols describe logical evaluation, not the entire field circuit. A direct contact assigned to `GuardClosed` tests whether that Boolean is TRUE. It does not reveal the physical switch type, energized/de-energized convention, dual-channel safety architecture, I/O channel diagnostic or whether the value is stale. Keep those layers in the I/O contract.
| Element | Logical behavior | State effect | Question before use | Frequent defect |
|---|---|---|---|---|
| Direct / normally-open contact | passes continuity when assigned Boolean is TRUE | read only | What does TRUE mean, and is quality/freshness valid? | mistaking graphical contact type for physical device wiring |
| Negated / normally-closed contact | passes continuity when assigned Boolean is FALSE | read only | Is the variable name positive so the negation stays readable? | double-negative names such as NOT NoFault |
| Series path | all conditions must pass (AND) | read only | Which conditions must remain true after start? | checking permissive only on the start branch |
| Parallel branches | one complete path can pass (OR) | read only | Can two paths be true simultaneously and does priority matter? | nested branches hide duplicated or bypassed conditions |
| Normal coil | writes the incoming rung result to its variable when evaluated | writes every evaluation | Is this the only writer and is normal reset behavior intended? | duplicate coils create order-dependent output |
| Set/latch coil | a TRUE condition establishes stored TRUE state | state persists until reset/other write per platform | Which reset wins if set and reset occur together? | state has no owner, timeout or recovery rule |
| Reset/unlatch coil | a TRUE condition establishes stored FALSE state | state persists until set/other write per platform | Can reset erase first-out evidence too early? | reset tied directly to a held HMI bit |
| Timer function block/instruction | transforms input duration into elapsed and status outputs | instance state across calls/scans | What are time base, task cadence, equality and reset rules? | one timer instance reused for unrelated paths |
| Counter function block/instruction | updates count/state from defined input event | instance state | Does the instruction count edges or levels on this platform? | held input counts more than one event |
| Edge/one-shot | TRUE for one evaluation after a defined transition | previous-state memory | Is the instance called every required scan and initialized safely? | conditional call makes previous state stale |

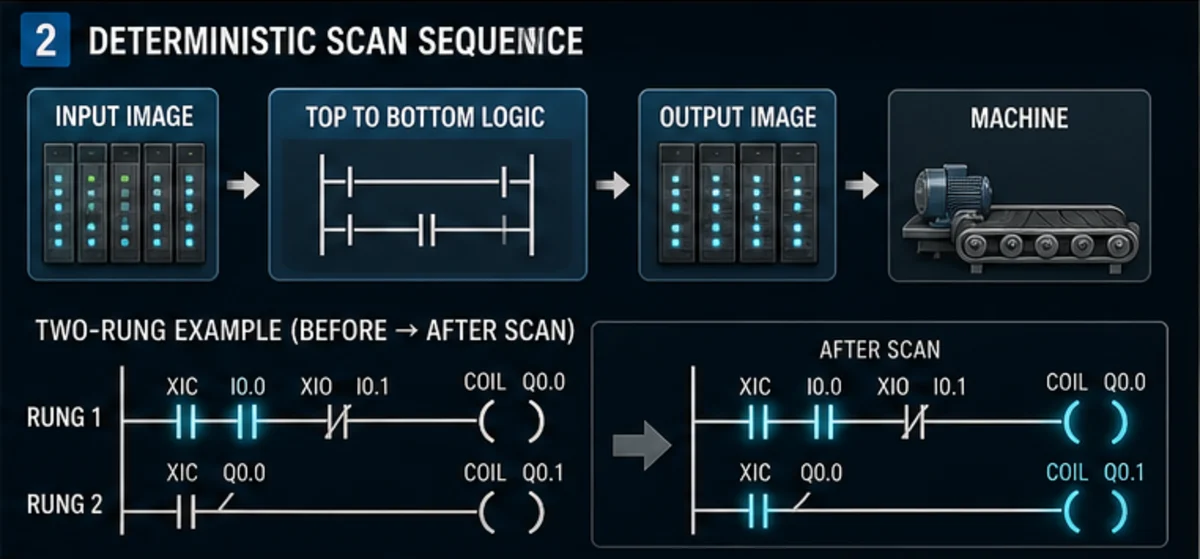

Reason scan by scan, not only rung by rung
A common teaching model is input image → scheduled program execution → output image → machine. It is useful, but it is not a universal timing specification. Modern controllers can update remote I/O asynchronously, schedule several tasks, preempt lower-priority work, expose immediate I/O instructions or execute function blocks with instance-specific rules. Write the assumed model, then confirm it for the exact target.
| Point in execution | Input Start | Internal RunState | Output request | Explanation |
|---|---|---|---|---|
| Before scan N | FALSE | FALSE | FALSE | stable stopped state |
| Inputs available for scan N | TRUE | FALSE | FALSE | Start transition is visible to scheduled logic |
| After rung 1 | TRUE | TRUE | FALSE | rung 1 writes RunState |
| After rung 2 | TRUE | TRUE | TRUE | rung 2 reads current RunState and writes the request |
| After output update boundary | TRUE | TRUE | TRUE at configured channel if healthy | controller request reaches I/O according to target update behavior |
| Before scan N+1 | FALSE after button release | TRUE | TRUE | seal path maintains state while hold conditions stay valid |
Build the I/O and state contract before the rungs
The example controls a conveyor motor through an ordinary command and independent auxiliary/drive feedback. `SafetyPermissive` is an input from a separately designed and validated safety system. It allows ordinary logic to inhibit its command; it does not make this program safety-rated.
| Tag | Layer / owner | TRUE means | Invalid behavior | Test evidence |
|---|---|---|---|---|
| AutoMode | mode arbiter | automatic sequence owns the ordinary request | mode conflict or invalid mode inhibits new start | owner and rejection reason |
| StartPB | input adapter | operator start request is present | stuck/held input must not repeatedly start | edge count and accepted request |
| StopHealthy | ordinary stop chain | ordinary control permits operation | FALSE removes request and command | command-off trace |
| SafetyPermissive | safety-system status interface | separate safety system permits ordinary operation | FALSE removes ordinary command | safety test remains a separate validation |
| DriveReady | field/drive adapter | final element can accept command under defined state | FALSE/stale inhibits command | raw status, quality and age |
| RunRequest | sequence/motor object | authorized operating request is stored | clears on declared mode/stop/fault conditions | single writer and state transition |
| MotorCmd | motor object/output adapter | ordinary motor command is requested | FALSE on authorization loss | output tag plus module/channel state |
| MotorAux | independent field feedback | contactor/drive reports the defined running state | missing starts response timer | input channel/raw status independent of command |
| StartFeedbackTimer | motor object instance | command is waiting for feedback | done produces start-failure first-out | elapsed and done boundary trace |
| StartFail | motor object first-out | feedback failed within accepted response time | latches and inhibits command per narrative | first-out code/time retained before reset |
| ResetEdge | authorized reset adapter | one reset attempt is requested | held request does not repeat | one pulse and accepted/rejected reason |
| InputQualityGood | I/O/network adapter | required data is fresh and valid | FALSE invalidates control use | module/connection status and data age |
Worked motor ladder behavior

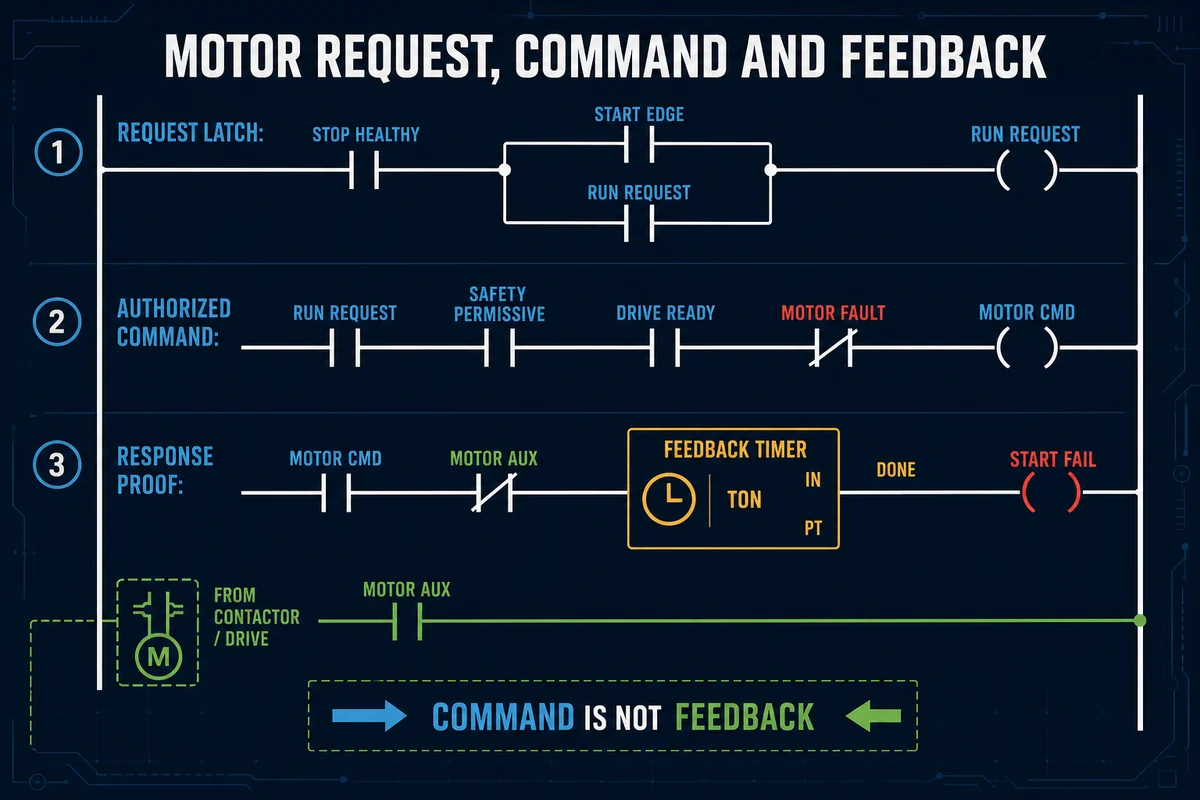

The figure is a behavior diagram, not a vendor import file. Transcribe it using the exact target instructions and instances. The following rung notation makes the intended Boolean and state order explicit:
RUNG 00 StartEdge := rising_edge(StartPB)
RUNG 01 StopHealthy SafetyPermissive AutoMode InputQualityGood NOT StartFail
--| |------------| |--------------| |-----------| |--------------|/|---+
|
+--| | StartEdge-------------------------------+
| |
+--| | RunRequest------------------------------+----( RunRequest )
RUNG 02 RunRequest DriveReady SafetyPermissive NOT StartFail
--| |----------| |-----------| |--------------|/|--------------------( MotorCmd )
RUNG 03 MotorCmd NOT MotorAux
--| |--------|/|--------------------------------[ TON StartFeedbackTimer, PT := t#3s ]
RUNG 04 StartFeedbackTimer.Q --------------------------------------------(S StartFail)
RUNG 05 ResetEdge NOT MotorCmd NOT MotorAux InputQualityGood
--| |----------|/|-----------|/|-----------| |-------------------(R StartFail )Whether a platform permits a normal coil to seal itself, requires explicit set/reset instructions, evaluates the function block when its rung is false, or gives set/reset priority in a simultaneous case is not assumed. The downloadable ST oracle implements the same state contract with explicit previous-input memory and a TON instance. Compile it only after mapping its types and timing to the target; use it as a test oracle, not as a claim that Structured Text and Ladder source are interchangeable.
| Scan / event | StartEdge | RunRequest | MotorCmd | MotorAux | Timer | Result |
|---|---|---|---|---|---|---|
| S0 stable stopped | 0 | 0 | 0 | 0 | reset | ready if all conditions healthy |
| S1 StartPB rises | 1 | 1 | 1 | 0 | begins | request accepted once |
| S2 StartPB remains TRUE | 0 | 1 | 1 | 0 | accumulates | edge does not repeat; seal holds |
| S3 StartPB released | 0 | 1 | 1 | 0 | accumulates | request remains because hold path is valid |
| S8 feedback arrives before limit | 0 | 1 | 1 | 1 | resets | running is proven |
| S20 StopHealthy becomes FALSE | 0 | 0 | 0 | 1 briefly | reset | ordinary command removed |
| S23 feedback clears | 0 | 0 | 0 | 0 | reset | stopped state proven |
| failure: feedback absent through limit | 0 | 1 then 0 by fault policy | 1 then 0 | 0 | done | StartFail latches with first-out evidence |

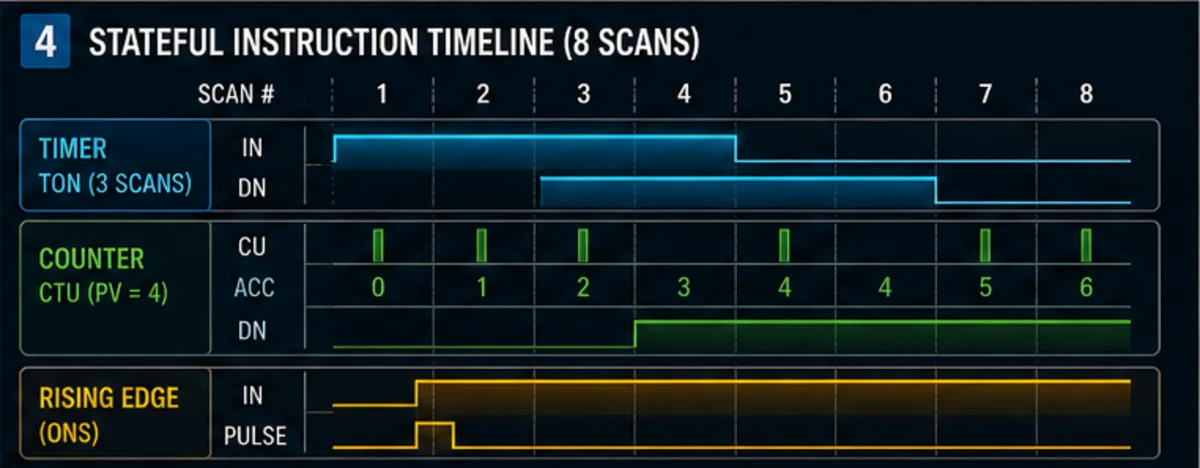

Trace timers, counters and edges as stateful instances
| Concern | Timer | Counter | Edge detector | Acceptance question |
|---|---|---|---|---|
| instance ownership | one instance owns elapsed/status | one instance owns count/status | one instance owns previous input | Can any other rung/call write or share this state? |
| false input / no call | may reset, pause or not execute by instruction/platform | may preserve count while event input false | conditional non-call can leave previous state stale | What happens when the containing routine or branch is skipped? |
| preset boundary | done may change on the evaluation reaching/exceeding preset | done may change on the event reaching preset | pulse is normally one evaluation | What happens exactly before, at and after the threshold? |
| retention/restart | retentive and nonretentive forms differ | count retention and initialization vary | previous state initialization varies | What state exists after warm, cold and download restart? |
| time/event source | task cadence and platform clock semantics | declared rising/falling transition or instruction-defined event | current versus saved previous input | Can pulses be shorter than sampling/task interval? |
| reset/priority | reset input/rung/instruction semantics | reset/load and count simultaneous priority | explicit initialization may be required | Which simultaneous command wins and is it documented? |
Eight failure-prone edge cases
| Case | Why normal testing misses it | Required result | Evidence |
|---|---|---|---|
| Start held while permissive restores | technician tests only a clean pulse | no undocumented restart; require declared new authorization | request/edge/permissive scan trace |
| Start and Stop change in same scan | manual tests rarely synchronize transitions | document stop- or start-dominant rule and prove it | simultaneous input case |
| Set and Reset true together | single-input tests both pass | one documented priority or explicit conflict fault | four-case truth table |
| Timer feedback at threshold | mid-range feedback always passes | deterministic before/at/after behavior | three boundary traces |
| Sensor pulse shorter than task period | slow toggling is visible online | hardware capture or faster task if every event matters | pulse/task timing measurement |
| Routine condition prevents edge call | logic works while routine always enabled | instance state initializes/updates according to design | disable/re-enable sequence |
| Two rungs write one command | each rung appears correct alone | single owner or explicit tested priority | cross-reference and scan order |
| Power returns with request retained | normal stop/start never cycles power | restart follows documented initialization and authorization | warm/cold/power restoration test |
Scale the program without hiding execution
| Layer | Owns | Recommended evidence | Architecture smell |
|---|---|---|---|
| I/O adapter | raw channel, quality, scaling, debounce and normalized signal | raw/normalized pair and channel diagnostics | application rungs use physical addresses everywhere |
| mode/command arbiter | Off/Manual/Auto ownership and request acceptance | owner, accepted command and rejected reason | HMI, sequence and maintenance all write the output |
| equipment object | request, permissive, command, feedback, timers and first-out | state transition and cause/effect tests | command copied into Running |
| sequence/state machine | step, transition, timeout, hold/abort/recovery | state/previous state and transition cause | dozens of interlocked seal-in bits with no state contract |
| alarm/event layer | first-out, active/acknowledged/returned state and timestamp | event record before reset | alarm coil is the raw process condition with no lifecycle |
| HMI interface | commands as requests and display-quality context | request acceptance and stale/invalid presentation | HMI writes internal step or physical output directly |
| test hooks | simulation inputs, fault injection and observation points | production-disabled governance and test fixture version | temporary force bits remain in release logic |
Prefer positive names such as `StopHealthy`, `GuardClosed`, `PressureValid` and `MotorAux` so the contact modifier shows the logic without a verbal double negative. Add rung comments that state intent and failure policy, not a paraphrase of symbols. For example: “Accept one automatic start request while ordinary and safety permissions are healthy; remove request on stop, mode loss or first-out fault.”

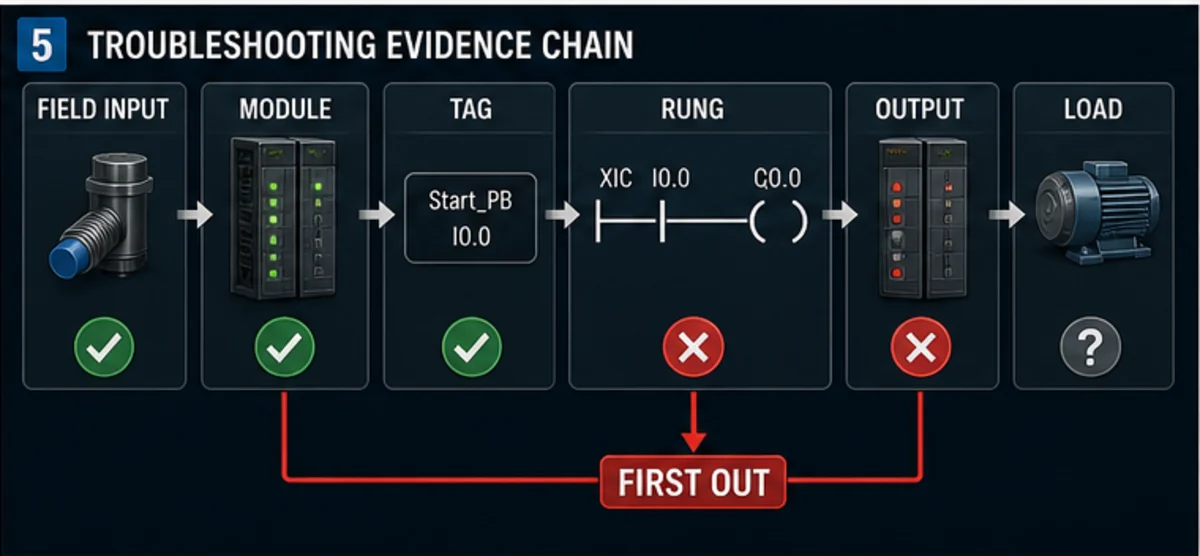

Troubleshoot from field evidence to load response
| Symptom | First comparison | Likely branches | Strong next evidence |
|---|---|---|---|
| field device changes but contact does not | field condition → terminal/module LED → raw input/tag | wiring, power, wrong channel, module fault, alias/map, stale network data | approved measurement plus module/channel diagnostics |
| contact looks false despite TRUE tag | tag scope/type and instruction modifier | wrong instance/scope, negated contact, online context or stale monitor | cross-reference and one-scan trace |
| branch seems bypassed | truth table for every parallel path | unintended OR branch, nested branch endpoint or duplicated permissive | four-case or exhaustive Boolean matrix |
| coil true but output tag false | coil destination and later writers | duplicate coil/write, task/program order, reset/latch writer or force | cross-reference ordered by execution |
| output tag true but module off | tag → force state → module/connection/channel | inhibited/faulted module, keying, wrong slot/channel or output diagnostic | module properties and force status |
| module on but motor off | approved output circuit → starter/drive → feedback/load | control power, overload, interlock, final element, wiring or mechanics | source-to-load measurement and device code/status |
| timer never completes | instruction call/input → elapsed → reset writers | rung false each scan, reused instance, conditional routine or time-base assumption | timer trace and routine-call evidence |
| counter increments too often | raw event duration → edge state → counter input | level used instead of event, bounce, duplicate instance call | eight-scan transition trace |
| unexpected restart | retained request/state → first scan → mode/permissive restore | held Start, retained latch, reconnect, force or missing reauthorization | power/reconnect trace with previous state |
| fault disappears after reset | first-out capture versus alarm/reset order | reset clears evidence before event historian sees it | latched code/time and pre/post snapshot |
| online highlight contradicts machine | editor display semantics versus actual tag/output/feedback | wrong context, nonexecuted call path, communications delay or physical failure | explicit diagnostic counters and field evidence |
| program changes after download | protected baseline → download/online edit/nonvolatile load | wrong file/version, old image load or unresolved online edits | audit/compare and controller event record |
Adapt the behavior to the target ladder dialect
IEC 61131-3 gives a common Ladder Diagram framework, not a universal project file or identical runtime. PLCopen itself notes that supported data types/features can differ between compliant products. Preserve the truth table, state machine and tests, then map exact target instructions.
| Environment | Ladder surface | Verify exactly | Primary source |
|---|---|---|---|
| IEC 61131-3:2025 | LD graphical networks, contacts, coils, functions and function blocks | Edition 4 syntax/semantics and implementation conformity statement | IEC publication record |
| Rockwell Logix Designer | ladder routines with Logix instructions, tags and task/program/routine hierarchy | firmware/software compatibility, instruction instance behavior, routines/tasks, I/O update and online edits | 1756-PM008 Ladder Diagram |
| Siemens STEP 7 / TIA Portal LAD | LAD networks, blocks, symbolic tags and cyclic/interrupt OB execution | CPU generation, OB/task context, optimized data, IEC versus vendor instructions and instance DB behavior | S7-1200/1500 programming guideline |
| CODESYS Ladder | IEC-style LD with contacts/coils/blocks, explicit branch processing and normalization rules | editor version, network normalization, set/reset modifier, edge state and task call behavior | CODESYS Ladder help |
| Schneider EcoStruxure Machine Expert | LD networks with contacts, coils and optional POUs/blocks | controller/library/version, network execution, feedback variables and safety restrictions | Machine Expert LD language |
| Mitsubishi GX Works3 | ladder program blocks/files with devices or labels and platform instructions | iQ-R/iQ-F CPU, execution type, device/label mapping, timer/counter and program design manual | GX Works3 operating manual |
| Omron Sysmac Studio | NJ/NX variable-based ladder with instructions, functions and function blocks | CPU/unit version, task/program assignment, variable/I/O map and instruction reference | Sysmac Studio operation manual |

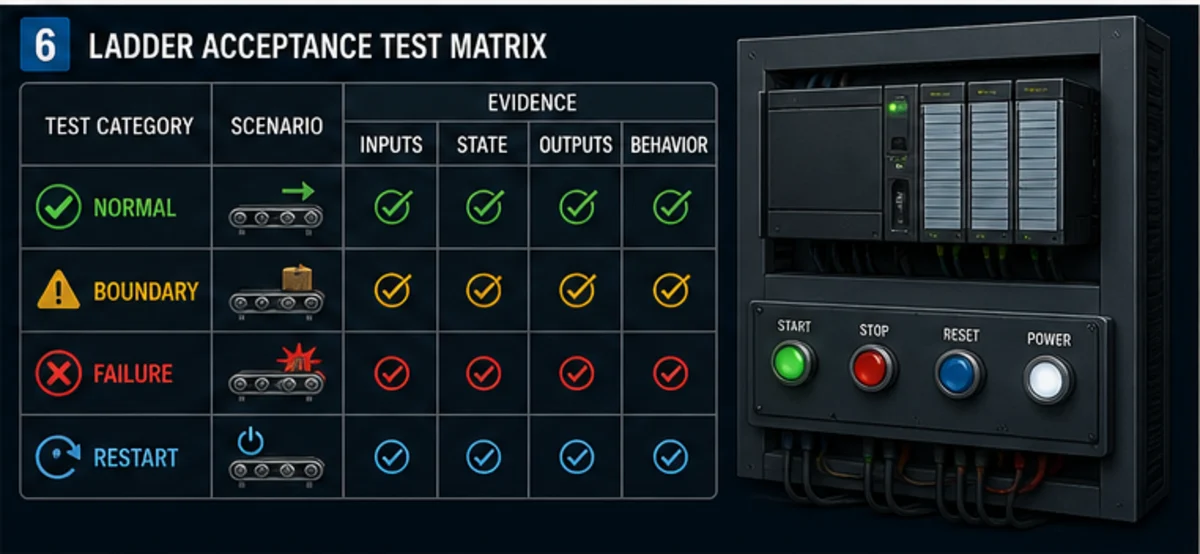

Prove the ladder program with an acceptance matrix
| Group | Cases | Pass evidence | Level |
|---|---|---|---|
| Boolean paths (T01–T04) | all false, Start only, all start conditions healthy, each permissive false in turn | truth table matches RunRequest and no branch bypasses a required condition | browser/target simulation |
| State ownership (T05–T08) | seal after Start release, ordinary stop, mode loss, fault loss | RunRequest changes once under one owner; MotorCmd follows authorization | browser/target simulation |
| Feedback timing (T09–T12) | feedback before, at and after boundary; feedback lost while running | timer and distinct first-out behavior match declared equality/debounce policy | target simulation → bench |
| Simultaneous events (T13–T15) | Start+Stop, Start+fault, Reset+new failure | documented dominant result and first cause preserved | target simulation |
| Input integrity (T16–T18) | Start chatter, short pulse, stale/invalid feedback | one accepted request; unobservable pulse limitation stated; stale data not used | bench/HIL |
| Execution (T19–T20) | routine disabled/re-enabled, representative task load | edge/timer state safe; scan/overlap within accepted budget | target/HIL |
| Restart (T21–T22) | warm/cold/power restart with request false and held true | initialization and reauthorization prevent undocumented start | target/bench |
| Release (T23–T24) | cross-reference/duplicate write review; zero residual forces and baseline compare | one command writer, approved source version and no force/edit residue | FAT/SAT handover |
Preserve the program revision, target catalog/firmware, tool version, task period, I/O simulation or bench setup, initial state, stimulus, expected and actual tag trace, machine observation, timestamp, tester and deviation. A green check with no reproducible setup is not durable evidence.
Interactive evidence step
Run the Boolean and timeout cases before target commissioning
Use the browser ladder simulator to exercise contact/coil power flow, the seal-in request, independent feedback, timer boundaries and first-out faults. PLC Programming operates PLC Simulation Software, so this is a disclosed commonly owned product path—not an independent tool endorsement.
The learning simulator does not compile or open the target vendor project, emulate exact firmware, I/O refresh, task timing, modules, network, final element, physical process or safety function. Repeat the matrix in the official target tool, representative hardware and approved FAT/SAT and safety-validation procedures.
PLC ladder logic program answer map
| Question | Short answer | Evidence surface |
|---|---|---|
| What is a ladder program? | scheduled executable LD networks plus data, state, diagnostics and tests | direct answer and architecture figure |
| What does a contact do? | reads a Boolean condition with direct or negated truth | element table and I/O contract |
| What does a coil do? | writes incoming rung result or defined state modifier behavior | element and portability tables |
| Why does rung order matter? | earlier writes can affect later reads/writes within declared execution order | scan diagram and trace |
| How do I create a seal-in? | parallel Start edge/current request inside series hold conditions | worked rungs and motor figure |
| How do I prove a motor started? | compare command with independent feedback inside a time limit | I/O contract and feedback timer |
| When should I use set/reset? | only with explicit owner, priority, reset and restart rules | edge cases and specialist link |
| How do I count one product? | use target-defined event/edge semantics and test bounce/pulse capture | stateful timeline |
| Why is a timer wrong at the boundary? | task/equality/call/reset semantics were not specified | state table and T09–T12 |
| Can ladder move between brands? | behavior transfers more reliably than native source/project | vendor adaptation matrix |
| How do I find a fault? | follow field → module → tag → rung → output → load to first divergence | diagnostic matrix |
| When is the program finished? | when normal, boundary, failure, restart and release cases pass | 24-case matrix |
Frequently asked questions
What is a PLC ladder logic program?
A PLC ladder logic program is one or more IEC 61131-3 Ladder Diagram networks or vendor ladder routines assigned to an executable program and task. Contacts read Boolean conditions, branches combine conditions, coils or blocks write state and outputs, and repeated controller execution turns those networks into machine behavior. A complete program also includes an I/O contract, state ownership, timing assumptions, diagnostics, tests, version information and safety boundaries.
How does a PLC execute ladder logic?
A common cyclic model reads or updates input data, executes scheduled logic in a defined order, updates output data and performs communications/diagnostics. Network, rung and instruction order matters because one instruction can write a value that later logic reads or overwrites. Exact I/O refresh, task scheduling, preemption, immediate access and block semantics are controller specific, so use the target manual and a scan trace.
Are normally open and normally closed ladder contacts physical contacts?
Not necessarily. A ladder contact is a Boolean test of its assigned variable. A direct or normally open contact passes logical continuity when that variable is TRUE; a negated or normally closed contact passes it when the variable is FALSE. The field device, wiring polarity, I/O channel and tag meaning are separate layers and must be documented.
What is the difference between a ladder contact and a coil?
A contact reads a Boolean condition without changing it. A normal coil writes the incoming rung result to a Boolean variable. Set/reset, latch/unlatch, negated and edge forms have different state behavior. Exact naming and write semantics vary by platform, and power-cycle retention is a separate configuration question.
What do series and parallel branches mean in ladder logic?
Series contacts implement an AND requirement: every series condition must pass. Parallel branches commonly implement OR paths: at least one complete branch must pass. Nested branches should be checked with a truth table because visually dense wiring can hide priority, duplicated terms and impossible combinations.
How do you make a seal-in circuit in PLC ladder logic?
Use a controlled request state: a Start edge and the existing RunRequest form parallel paths, while StopHealthy, mode, permissive and fault conditions remain in series. Write the request state once, derive the physical command separately, and prove response with independent feedback. Do not use an ordinary ladder seal-in as a safety function.
Why should a motor command and running feedback use different tags?
The command represents controller intent; feedback represents an independently observed contactor, drive, motion or process state. Copying the output command into a Running tag makes a failed output circuit or motor look healthy. Supervise the command-to-feedback transition with a designed time limit and first-out evidence.
How do timers work in ladder logic?
A timer is a stateful function block or instruction instance evaluated by the scheduled program. Its input, preset, elapsed/accumulated value and done/output state must be traced across scans. Time base, reset, retentivity, equality behavior, pause, overflow and conditional-call semantics vary by platform and instruction.
Why does a PLC counter usually need an edge rather than a level?
If the count input remains TRUE for several scans, a level-driven implementation can count repeatedly unless the instruction itself includes a defined transition detector. Count the event once using the target counter semantics or an explicit rising-edge instance, and test bounce, restart and conditional execution.
What is wrong with using the same coil or tag in several ladder rungs?
Several writes create order-dependent ownership. In sequential implementations a later executed write can replace an earlier result during the same program cycle, and online monitoring may mislead the troubleshooter. Prefer one writer and combine all authorized requests before that write. Where multiple writes are unavoidable, document priority and test every simultaneous case.
How should I test a PLC ladder logic program?
Test normal paths, Boolean combinations, timer/counter boundaries, simultaneous events, missing and contradictory feedback, stale I/O, restart/retention, communication loss, task timing and recovery. Every case needs preconditions, stimulus, expected internal state, expected output/machine result, allowed time, actual evidence and disposition.
How do I troubleshoot a ladder rung that looks true but has no output?
Find the first divergence from field condition to I/O channel, raw/tag value, contact truth, branch continuity, coil write, later writers, force state, module/output state, control circuit and load feedback. A green rung is not proof of a physical output or load response. Preserve first-out and timestamped evidence before reset.
Is ladder logic portable between PLC brands?
The Boolean design and IEC Ladder Diagram concepts can transfer, but projects are not automatically portable. Contact/coil modifiers, task and I/O update behavior, timer/counter instances, one-shots, set/reset priority, retentivity, data types, blocks, addresses, safety restrictions and project formats vary. Translate against a behavioral contract and repeat tests in the target tool and hardware.
Can an online ladder logic simulator validate a production PLC program?
It can test a scoped learning model, Boolean paths, scan-order assumptions, state transitions and fault cases. It cannot validate the exact vendor compiler, firmware, project, I/O refresh, task timing, module electronics, network, actuator, process or safety function. Follow browser practice with target compilation, emulator or bench work, FAT/SAT and separate safety validation as applicable.
Primary sources and further reading
- IEC 61131-3:2025, Edition 4 — current language-suite scope, including LD graphical networks, contacts, coils, functions and blocks.
- PLCopen IEC 61131-3 overview — implementation and language context.
- PLCopen Logic Certification — conformity and implementation-feature differences.
- Rockwell Logix 5000 Controllers Ladder Diagram, 1756-PM008 — ladder routine construction in covered Logix systems.
- Rockwell Tasks, Programs, and Routines, 1756-PM005 — execution hierarchy and task behavior.
- Rockwell I/O and Tag Data, 1756-PM004 — tag/I/O behavior and force warnings.
- Rockwell General Instructions, 1756-RM003 — platform instruction behavior and status.
- Siemens Programming Guideline for S7-1200/1500 — block, data, symbolic and programming guidance for covered SIMATIC systems.
- CODESYS Programming in the Ladder Editor — contacts, coils, modifiers, edges and editor behavior.
- CODESYS Ladder Branch processing — left-to-right/top-to-bottom order and versioned normalization boundary.
- CODESYS Coil documentation — normal, negated and set/reset coil semantics.
- Schneider Machine Expert Ladder Diagram language — contacts, coils, blocks and network behavior.
- Mitsubishi GX Works3 Operating Manual — ladder program creation and links to CPU program-design manuals.
- Omron Sysmac Studio Operation Manual, W504 — variable/I/O map and ladder programming workflow.
- Omron CS/CJ/NSJ Programming Manual, W394 — address/mnemonic ladder structure for the covered classic families.
- NIST SP 800-82 Rev. 3 — OT security architecture, controls and operational constraints.
- US OSHA 29 CFR 1910.147 — hazardous-energy control within its jurisdiction and scope.
Scope and limitations
This independent educational page defines a vendor-neutral ladder-program method and example. It does not provide a production project, electrical design, I/O selection, machine risk assessment, safety requirement or safety program. The example values and three-second teaching timeout are not universal settings. Before use, verify the target controller, firmware, software, task, execution and I/O update rules, instruction instances, data types, retention, force/online-change behavior, module/channel configuration, network, final element, process timing, fault policy and local law.
Qualified personnel must compile, review, simulate, commission and validate the actual program under the project's approved procedures. Safety functions require their own designed and validated safety system; an ordinary `SafetyPermissive` status in standard ladder is not the safety function.
